OMRON's SmartSlice I/O system is compact, intelligent and easy. When used with OMRON's CS1/CJ1 DeviceNet or CompoNet master units, no configuration tool is required. By using built-in functions such as pre-scaling, totalising, differentiation and alarming in analog I/O units, PLC programming can be minimised. Preventive maintenance data collected by all I/O units can be accessed using CX-Integrator or NS-series Smart Active Parts.
Most compact in the market (84 mm high)
Easy set-up, backup and restore functions
Diagnostics and preventive maintenance data at I/O level
Detachable terminal blocks allow hot-swapping without re-wiring
3-wire I/O connection with 'push-in' technology, no screwdriver required
System Configuration
last update: February 06, 2014
Purchase the OMRON Profibus Please fill in the following
If you have just landed here, this product OMRON GRT1-PRT Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GRT1-PRT We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GRT1-PRTAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NJ301-[][][][] NJ-Series NJ301 CPU Units/Features
E3Z-LT / LR / LL Compact Laser Photoelectric Sensor with Built-in Amplifier/Features
ZX-L-N Smart Sensors (Laser Displacement & Measurement Sensors)/Features
E2E2 Long-barrel Inductive Proximity Sensor/Features
V680 Series RFID System/Features
OMRON GRT1-PRT lineup
GRT1-PRT SmartSlice/Lineuplast update: February 07, 2014
Communication Units
| Function | Specification | Model code | |
|---|---|---|---|
| PROFIBUS-DP interface unit | For up to 64 I/O units | 84x58x70 | GRT1-PRT |
| End plate | One unit required per bus interface | 84x20x58 | GRT1-END |
I/O units
| Function | Specification | Model code | |
|---|---|---|---|
| 4 NPN inputs | 24 VDC, 6 mA, 3-wire connection | 84x15x74 | GRT1-ID4 |
| 4 PNP inputs | 24 VDC, 6 mA, 3-wire connection | 84x15x74 | GRT1-ID4-1 |
| 8 NPN inputs | 24 VDC, 4 mA, 1-wire connection + 4xG | 84x15x74 | GRT1-ID8 |
| 8 PNP inputs | 24 VDC, 4 mA, 1-wire connection + 4xV | 84x15x74 | GRT1-ID8-1 |
| 4 AC inputs | 110 VAC, 2-wire connection | 84x15x74 | GRT1-IA4-1 |
| 4 AC inputs | 230 VAC, 2-wire connection | 84x15x74 | GRT1-IA4-2 |
| 4 NPN outputs | 24 VDC, 500 mA, 2-wire connection | 84x15x74 | GRT1-OD4 |
| 4 PNP outputs | 24 VDC, 500 mA, 2-wire connection | 84x15x74 | GRT1-OD4-1 |
| 4 PNP outputs with short-circuit protection | 24 VDC, 500 mA, 3-wire connection | 84x15x74 | GRT1-OD4G-1 |
| 4 PNP outputs with short-circuit protection | 24 VDC, 2 A, 2-wire connection | 84x15x74 | GRT1-OD4G-3 |
| 8 NPN outputs | 24 VDC, 500 mA, 1-wire connection + 4xV | 84x15x74 | GRT1-OD8 |
| 8 PNP outputs | 24 VDC, 500 mA, 1-wire connection + 4xG | 84x15x74 | GRT1-OD8-1 |
| 8 PNP outputs with short-circuit protection | 24 VDC, 500 mA, 1-wire connection + 4xG | 84x15x74 | GRT1-OD8G-1 |
| 2 relay outputs | 240 VAC, 2A, normally-open contacts | 84x15x74 | GRT1-ROS2 |
| 60 kHz Counter unit, NPN | A+B encoder inputs + 1 Z/control input + 1 output (NPN-type) | 84x15x74 | GRT1-CT1 |
| 60 kHz Counter unit, PNP | A+B encoder inputs + 1 Z/control input + 1 output (PNP-type) | 84x15x74 | GRT1-CT1-1 |
| 100 kHz Counter / Positioner unit | A+B+Z encoder inputs (line driver or 24 V selectable) + 1 control input + 2 outputs (PNP-type) | 84x15x74 | GRT1-CP1-L |
| 2 analog inputs, current/voltage | ±10 V, 0-10 V, 0-5 V, 1-5 V, 0-20 mA, 4-20 mA | 84x15x74 | GRT1-AD2 |
| 2 analog outputs, voltage | ±10 V, 0-10 V, 0-5 V, 1-5 V | 84x15x74 | GRT1-DA2V |
| 2 analog outputs, current | 0-20 mA, 4-20 mA | 84x15x74 | GRT1-DA2C |
| 2 Pt100 inputs | Pt100, 2-wire or 3-wire connection | 84x15x74 | GRT1-TS2P |
| 2 Pt1000 inputs | Pt1000, 2-wire or 3-wire connection | 84x15x74 | GRT1-TS2PK |
| 2 Thermocouple inputs | Types B, E, J, K, N, R, S, T, U, W, PL2, with cold junction compensation | 84x15x74 | GRT1-TS2T |
Other units
| Function | Model code | |
|---|---|---|
| I/O power feed unit, separates power supply between groups of I/O units | 84x15x74 | GRT1-PD2 |
| I/O power feed unit with electronic overload protection, separates power supply between groups of I/O units | 84x15x74 | GRT1-PD2G |
| I/O power feed and distribution unit, separates power supply between groups of I/O units, 8xV + 4xG | 84x15x74 | GRT1-PD8 |
| I/O power feed and distribution unit, separates power supply between groups of I/O units, 4xV + 8xG | 84x15x74 | GRT1-PD8-1 |
| I/O power connection unit, 8xV + 4xG | 84x15x74 | GRT1-PC8 |
| I/O power connection unit, 4xV + 8xG | 84x15x74 | GRT1-PC8-1 |
| Turnback Unit, right-hand side | 84x20x58 | GRT1-TBR |
| Turnback Unit, left-hand side | 84x58x70 | GRT1-TBL |
| Turnback cable, one meter | 1 m | GCN2-100 |
Accessories
| Function | Model code |
|---|---|
| Replacement front connectors, pack of 5 pcs. | GRT1-BT1-5 |
| PROFIBUS-DP connector, 9-pin D-sub | PROFIBUS Connector 839550 |
| PROFIBUS-DP connector, 9-pin D-sub, with bus termination | PROFIBUS Term. Conn. 846086 |
Master Units
| Function | Model code |
|---|---|
| PROFIBUS-DP Master Unit for CS1-series PLCs | CJ1W-PNT21 |
| PROFIBUS-DP Master Unit for CJ1-series PLCs | CJ1W-PRM21 |
Software
| Function | Model code |
|---|---|
| CX-One, Omron's integrated software for programming and configuration of all control system components, including PLCs, remote I/O, HMI, servo drives, inverters, temperature controllers and advanced sensors. | CX-ONE-AL[][] C-E [][] = number of licenses (01, 03, 10) |
last update: February 07, 2014
OMRON GRT1-PRT dimension
GRT1-PRT SmartSlice/Dimensionslast update: February 06, 2014
Communication Units

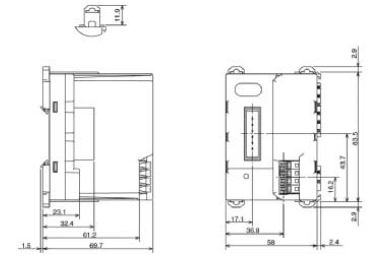

GRT1-PRT
