OMRON D4MC specification

last update: September 24, 2012

Ratings

Rated voltage	Non-inductive load (A)				Inductive load (A)
	Resistive load		Lamp load		Inductive load		Motor load
	NC	NO	NC	NO	NC	NO	NC	NO
125 VAC 250 VAC 480 VAC	10 10 3		3 2.5 1.5	1.5 1.25 0.75	10 10 2.5		5 3 1.5	2.5 1.5 0.75
8 VDC 14 VDC 30 VDC 125 VDC 250 VDC	10 10 6 0.5 0.25		3 3 3 0.4 0.2	1.5 1.5 1.5 0.4 0.2	6 6 5 0.05 0.03		5 5 5 0.05 0.03	2.5 2.5 2.5 0.05 0.03

Inrush current	NC	30 A max.
	NO	15 A max.

Note:Note:

Note:The above figures are for steady-state currents.

Note:Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).

Note:Lamp load has an inrush current of 10 times the steady-state current.

Note:Motor load has an inrush current of 6 times the steady-state current.

Note:The above ratings were tested under the following conditions.
(1) Ambient temperature: +20±2°C
(2) Ambient humidity: 65±5%RH
(3) Operating frequency: 20 operations/min

Characteristics

Degree of protection		IP67
Durability	Mechanical	10,000,000 operations min.
	Electrical	500,000 operations min.
Operating speed		0.05 mm/s to 0.5 m/s *1
Operating frequency	Mechanical	120 operations/min
	Electrical	20 operations/min
Rated frequency		50/60 Hz
Insulation resistance		100 M Ω min. (at 500 VDC)
Contact resistance		15 m Ω max. (initial value for the built-in switch when tested alone)
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min
	Between each terminal and non- current-carrying part	2,000 VAC, 50/60 Hz for 1 min
Rated insulation voltage (Ui)		1,000 VAC
Pollution degree (operating environment)		3 (IEC947-5-1)
Protection against electric shock		Class II
PTI (tracking characteristics)		175
Switch category		D (IEC335)
Rated operating current (Ie)		10 A
Rated operating voltage (Ue)		250 VAC
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude *2
Shock resistance	Destruction	1,000 m/s2 min.
	Malfunction	100 m/s2 min. *1 *2
Ambient operating temperature		- 10 ° C to +80 ° C (with no icing)
Ambient operating humidity		35% to 95%RH
Weight		Approx. 71 g (in case of panel mount plunger)

Note:Only for models with plungers. (Contact your OMRON representative for information on other models.)

Note:Less than 1 ms under a free state at the operating limits.

last update: September 24, 2012

OMRON D4MC dimension

last update: September 24, 2012

Dimensions and Operating Characteristics

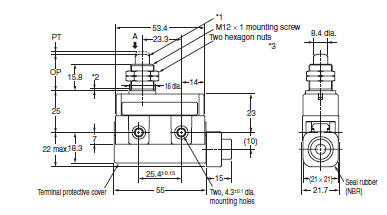

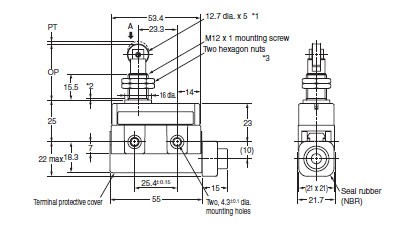

Panel Mount Plunger
D4MC-5000

Note:*1. Stainless steel plunger
*2. The length of the imperfect threads is 1.5 mm maximum.
*3. Thickness: 3 width: 17

Note:Note: Do not use the M12 mounting screw and the case mounting hole at the same time.

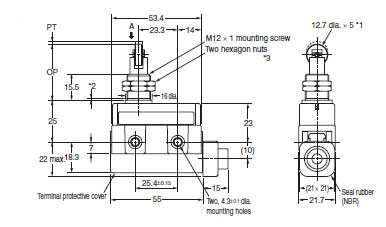

Panel Mount Roller Plunger
D4MC-5020

Note:*1. Stainless steel plunger
*2. The length of the imperfect threads is 1.5 mm maximum.
*3. Thickness: 3 width: 17

Note:Note: Do not use the M12 mounting screw and the case mounting hole at the same time.

Panel Mount Crossroller Plunger
D4MC-5040

Note:*1. Stainless steel plunger
*2. The length of the imperfect threads is 1.5 mm maximum.
*3. Thickness: 3 width: 17

Note:Note: Do not use the M12 mounting screw and the case mounting hole at the same time.

Hinge Lever
D4MC-1000

Note:* Stainless steel lever

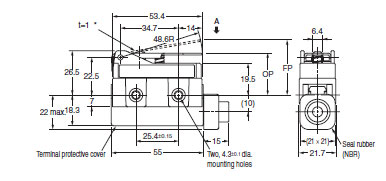

Short Hinge Lever
D4MC-1020

Note:* Stainless steel lever

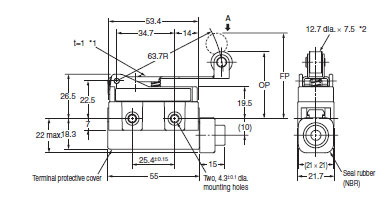

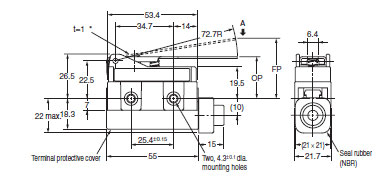

Hinge Roller Lever
D4MC-2000

Note:*1. Stainless steel lever
*2. Plastic roller

Note:Note:
1. Unless otherwise specified, a tolerance of±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
3. Make sure that the permissible OT position is not exceeded.

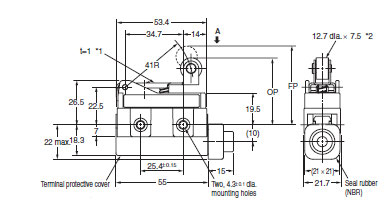

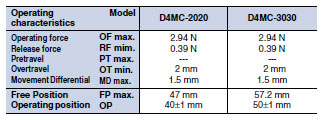

Short Hinge Roller Lever
D4MC-2020

Note:*1. Stainless steel lever
*2. Plastic roller

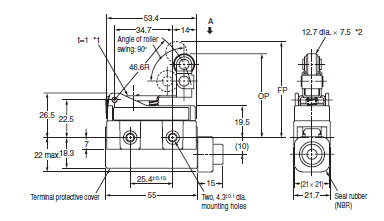

One-way Action Short Hinge Roller Lever
D4MC-3030

Note:*1. Stainless steel lever
*2. Plastic roller

Note:Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
3. Make sure that the permissible OT position is not exceeded.

last update: September 24, 2012

OMRON D4MC lineup

last update: September 24, 2012

List of Models

Actuator		Model
Panel mount plunger		D4MC-5000
Panel mount roller plunger		D4MC-5020
Panel mount crossroller plunger		D4MC-5040
Hinge lever		D4MC-1000
Short hinge lever		D4MC-1020
Hinge roller lever		D4MC-2000
Short hinge roller lever		D4MC-2020
One-way action short hinge roller lever		D4MC-3030

Note:Note:
1. Use Switches with molded terminals in locations subject to dirt, dust, oil drops, or high humidity. Models are available with lead wires on the right, on the left, and from the bottom.
2. Contact your OMRON representative for information on models certified for international standards.

last update: September 24, 2012
