OMRON D5A dimension

last update: September 24, 2012

Dimensions and Operating Characteristics

M5 Type (Contact Output)
D5A-1100, D5A-2100
D5A-1200, D5A-2200

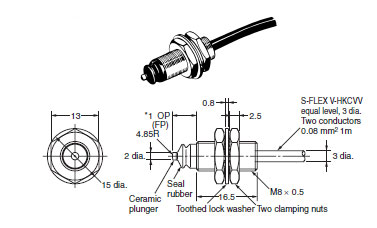

M8 Type (Contact Output)
D5A-3200
D5A-3300

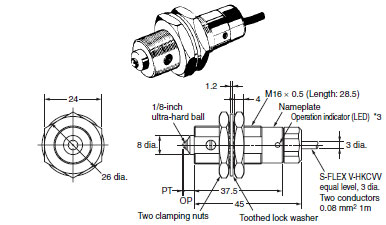

M16 Type (Contact Output/Solid-state Output)
D5A-7400
D5A-7410

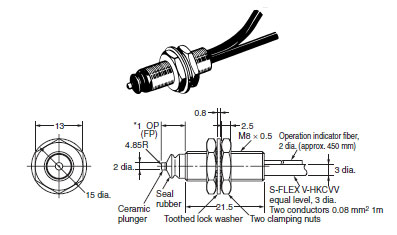

M8 Type (Solid-state Output)
D5A-3210
D5A-3310

Slim Type (Solid-state Output)
D5A-5210
D5A-5310

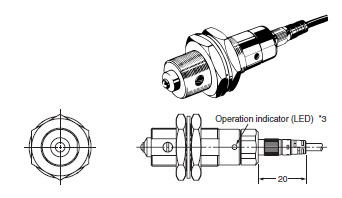

M16 Type (Contact Output/Solid-state Output)
D5A-7403
D5A-7413
(Connector type)

Note:Note:

Note:The dimensions are the same as the left model's.

Note:Cables with connectors are not sold separately.

Note:Note:

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note:Special screw dimensions apply to the case screws (pitch: 0.5 mm). Mounting is not possible with standard tapping. Use the provided special nuts.

Note:The operating position of these types is the same as the free position because of high sensitivity (repeat accuracy: 1 μm max.). This does not apply to M16 limit switch types.

Note:Total movement is 1.9 to 2.1 mm. Set the appropriate stroke (plunging depth) to 1.0 to 1.5 mm from the FP.

Note:Not available in the contact output type.

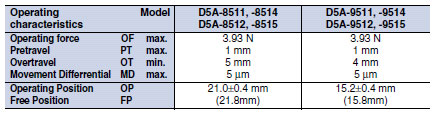

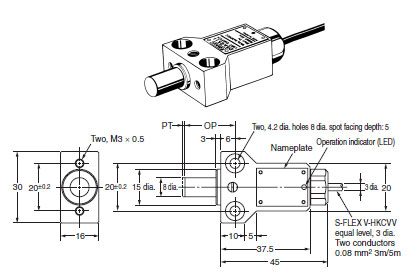

Limit Type (Solid-state Output)
D5A-8511
D5A-8512

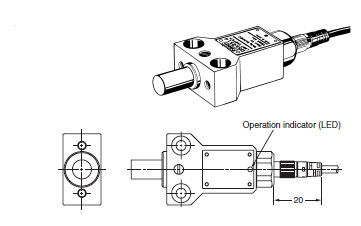

Limit Type (Solid-state Output)
D5A-8514
D5A-8515
(Connector type)

Note:Note:

Note:The dimensions are the same as the left model's.

Note:Cables with connectors are not sold separately.

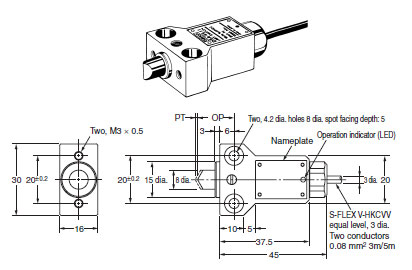

Limit Type (Solid-state Output)
D5A-9511
D5A-9512

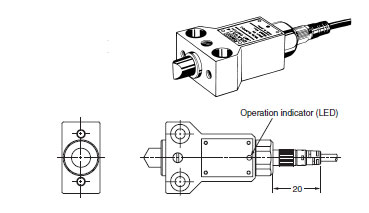

Limit Type (Solid-state Output)
D5A-9514
D5A-9515
(Connector type)

Note:Note:

Note:The dimensions are the same as the left model's.

Note:Cables with connectors are not sold separately.

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

last update: September 24, 2012

OMRON D5A specification

last update: September 24, 2012

Ratings

Item	Electrical ratings
Contact output models	M5, M8, M16 Type: 10 mA at 24 VAC, 10 mA at 12 VDC
Solid-state output models	100 mA at 5 to 24 VDC ± 10% Leakage current: 0.15 mA max. Residual voltage: 3 V max. Power consumption: 3 mW max.

Characteristics

Degree of protection		D5A-1[], D5A-2[]: IP40 Other than the above models: IP67
Repeat accuracy *1		M5 (D5A-1[][][] series), M8, slim type:1 μm max.
		M5 (D5A-2[][][] series), M16, limit type:3 μm max.
Durability *2	Mechanical	10,000,000 operations min.
	Electrical	1,000,000 operation min. (Contact output models: 24 VAC, 10 mA, resistive load, Solid-state output models: 24 VAC, 100 mA, resistive load)
Deviation in electrical durability after 1,000,000 operations		M5, M8, M16, slim type: 10 μm max.
		Limit type: 20 μm max.
Operating speed		1 μm/s to 0.5 m/s
Rated frequency		50/60 Hz
Insulation resistance		100 MΩ min. (at 250 VDC) between each terminal and non-current-carrying metal part
Contact resistance (Initial value) *4		800 mΩ max. (initial) with 1 m cable, 2.4 Ω max. (initial) with 3 m cable, 4 Ω max. (initial) with 5 m cable
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Mechanical	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Temperature coefficient *3		M5, M8, slim type: ± 20 × 10-6/ ° C max. M16 type: ± 40 × 10-6/ ° C max. Limit type: ± 50 × 10-6/ ° C max.
Ambient operating temperature		-20°C to +75°C (with no icing)
Ambient operating humidity		35% to 85% RH (35% to 95% RH with the seal rubber)

Note:The above figures are initial values.

Note:Contact your OMRON sales representative for measurement conditions of the repeat accuracy.

Note:Durability values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

Note:The value indicates the operating position change rate for a change of 1°C in the ambient temperature. The specifications depend on the model. Contact your OMRON sales representative for details.

Note:Values for contact output models.

last update: September 24, 2012

OMRON D5A catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
D5A Data Sheet	- [468KB]	Aug 24, 201220120824	D5A Data Sheet

OMRON D5A lineup

last update: September 24, 2012

Contact Output Models (NC Contact)

Actuator	Type	Operation Indicator	Repeat accuracy	Operating force OF max.	Cable lead outlet		Degree of protection	Model
					Lead outlet	Length
Pin plunger	M5	None	1 μm max.	0.29 N	Pre-wired	1 m	IP40	D5A-1100
				0.49 N				D5A-1200
			3 μm max.	0.29 N				D5A-2100
				0.49 N				D5A-2200
	M8		1 μm max.	0.49 N			IP67	D5A-3200
				0.98 N				D5A-3300
	M16		3 μm max.	2.45 N				D5A-7400
					Connector			D5A-7403

Solid-state Output Models (PNP Transistor Output)

Actuator	Type	Operation Indicator	Repeat accuracy	Operating force OF max.	Cable lead outlet		Degree of protection	Model
					Lead outlet	Length
Pin plunger	M8	Provided	1 μm max.	0.49 N	Pre-wired	1 m	IP67	D5A-3210
				0.98 N				D5A-3310
	Slim			0.49 N				D5A-5210
				0.98 N				D5A-5310
	M16		3 μm max.	2.45 N				D5A-7410
					Connector			D5A-7413
Top plunger	Limit		3 μm max.	3.92 N	Pre-wired	3 m		D5A-8511
						5 m		D5A-8512
					Connector	3 m		D5A-8514
						5 m		D5A-8515
Bevel plunger					Pre-wired	3 m		D5A-9511
						5 m		D5A-9512
					Connector	3 m		D5A-9514
						5 m		D5A-9515
