OMRON F3SG-R Series specification

• F3SG-RA Advanced type
• F3SG-RR Robust type
• F3SG-RE Easy type

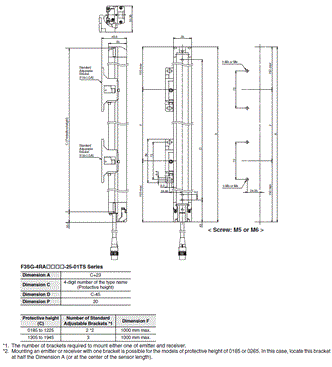

• F3SG-RA-01TS

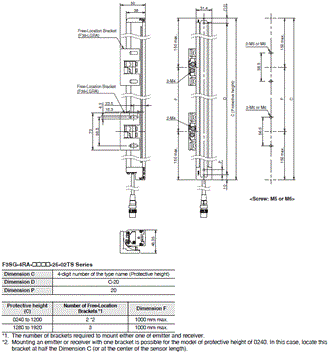

• F3SG-RA-02TS

last update: November 1, 2018

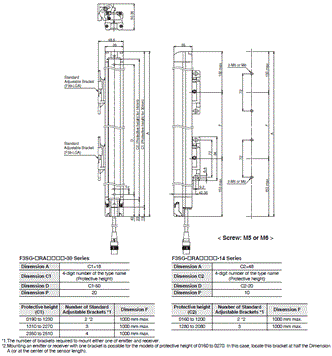

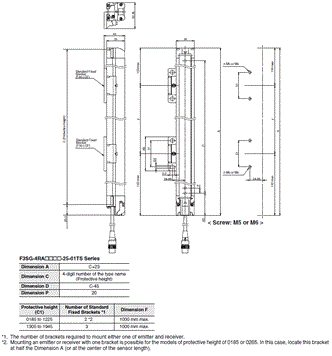

F3SG-RA Advanced type

Main unit

The [][][][] in the model names indicate the protective heights in millimeters.

			F3SG-4RA[][][][]-14 F3SG-2RA[][][][]-14	F3SG-4RA[][][][]-30 F3SG-2RA[][][][]-30
Type of ESPE (IEC 61496-1)		Type 4	F3SG-4RA[][][][]-14/-30
		Type 2	F3SG-2RA[][][][]-14/-30
Perfor- mance	Object Resolution (Detection Capability)		Opaque objects
			14-mm dia.	30-mm dia.
	Beam Gap		10 mm	20 mm
	Number of Beams		15 to 207	8 to 124
	Lens Size		5.2 × 3.4 (W × H) mm	7-mm dia.
	Protective Height		160 to 2080 mm (6.3 to 81.9 inch)	190 to 2510 mm (7.3 to 98.7 inch)
	Operating Range	Long	0.3 to 10.0 m (1 to 32 ft.)	0.3 to 20.0 m (1 to 65 ft.)
		Short	0.3 to 3.0 m (1 to 10 ft.)	0.3 to 7.0 m (1 to 23 ft.)
	Response Time	ON to OFF	Normal mode: 8 to 18 ms max. *1 Slow mode: 16 to 36 ms max. *1 *2
		OFF to ON	40 to 90 ms max. *1
		*1. Response time when used in one segment system or in cascaded connection. Refer to the one segment system. Refer to Safety Light Curtain F3SG-R Series User's Manual (ManNo.: Z352) for cascaded connection. *2. Selectable by Configuration Tool.
	Effective Aperture Angle (EAA) (IEC 61496-2)	Type 4	±2.5° max., emitter and receiver at operating range of 3 m or greater
		Type 2	±5.0° max., emitter and receiver at operating range of 3 m or greater
	Light Source		Infrared LEDs, Wavelength: 870 nm
	Startup Waiting Time		2 s max.
Elec- trical	Power Supply Voltage (Vs)		SELV/PELV 24 VDC±20% (ripple p-p 10% max.)
	Current Consumption		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Safety Outputs (OSSD)		Two PNP or NPN transistor outputs (PNP or NPN is selectable by DIP Switch.) Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension), Capacitive load of 1 μF max., Inductive load of 2.2 H max. *1 Leakage current of 1 mA max. (PNP), 2 mA max. (NPN) *2 *1 The load inductance is the maximum value when the safety output frequently repeats ON and OFF. When you use the safety output at 4 Hz or less, the usable load inductance becomes larger. *2 These values must be taken into consideration when connecting elements including a capacitive load such as a capacitor.
	Auxiliary Output		One PNP or NPN transistor output (PNP or NPN is selectable by DIP Switch.) Load current of 100 mA max., Residual voltage of 2 V max .
	Output Operation Mode	Safety Output	Light-ON (Safety output is enabled when the receiver receives an emitting signal.)
		Auxiliary Output	Safety output (Inverted signal output:Enable) (default) (Cofigurable by Configuration Tool)
	Input Voltage	ON Voltage	TEST: 24 V Active: 9 V to Vs (sink current 3 mA max.) * 0 V Active: 0 to 3 V (source current 3 mA max.) MUTE A/B: PNP: Vs to Vs-3 V (sink current 3 mA max.) * NPN: 0 to 3 V (source current 3 mA max.) RESET: PNP: Vs to Vs-3 V (sink current 5 mA max.) * NPN: 0 to 3 V (source current 5 mA max.)
		OFF Voltage	TEST: 24 V Active: 0 to 1.5 V or open 0 V Active: 9 V to Vs or open MUTE A/B, RESET: PNP: 0 to 1/2 Vs, or open * NPN: 1/2 Vs to Vs, or open *
		* The Vs indicates a supply voltage value in your environment.
	Overvoltage Category (IEC 60664-1)		II
	Indicators		Refer to "Indicator".
	Protective Circuit		Output short protection, Power supply reverse polarity protection
	Insulation Resistance		20 MΩ or higher (500 VDC megger)
	Dielectric Strength		1,000 VAC, 50/60 Hz (1 min)
Func- tional	Mutual Interference Prevention (Scan Code)		This function prevents mutual interference in up to two F3SG-RA systems.
	Cascade Connection		Number of cascaded segments: 3 max. Total number of beams: 255 max. Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2W) and power cable)
	Test Function		Self-test (at power-on, and during operation) External test (light emission stop function by test input)
	Safety-Related Functions		Interlock External device monitoring (EDM) Pre-reset Fixed blanking/Floating blanking Reduced resolution Muting/Override Scan code selection PNP/NPN selection Response time adjustment
Environ- mental	Ambient Temperature	Operating	-10 to 55°C (14 to 131°F) (non-icing)
		Storage	-25 to 70°C (-13 to 158°F)
	Ambient Humidity	Operating	35% to 85% (non-condensing)
		Storage	35% to 95%
	Ambient Illuminance		Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface
	Degree of Protection (IEC 60529)		IP65 and IP67
	Vibration Resistance (IEC 61496-1)		10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
	Shock Resistance (IEC 61496-1)		100 m/s2, 1000 shocks for all 3 axes
	Pollution Degree (IEC 60664-1)		Pollution Degree 3
Connec- tions	Power cable	Type of Connection	M12 connectors: 5-pin emitter and 8-pin receiver, IP67 rated when mated, Cables prewired to the sensors
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm

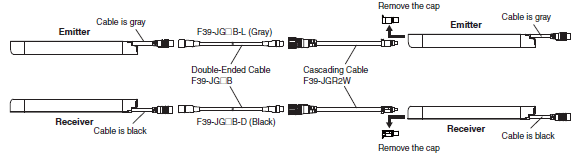

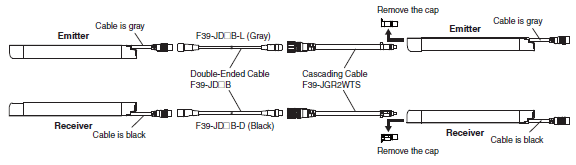

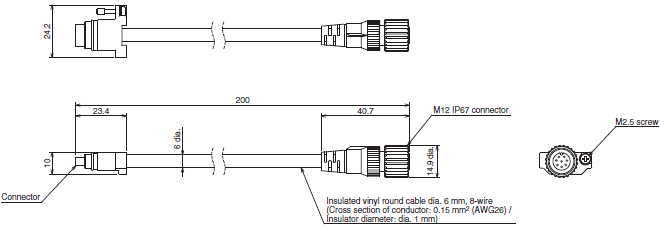

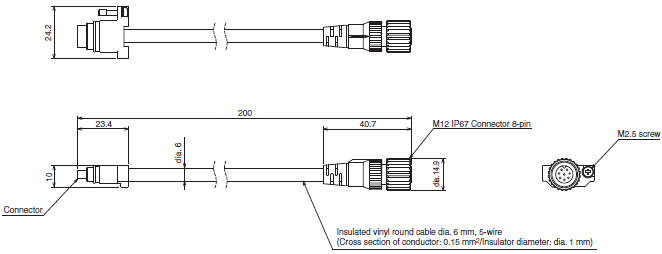

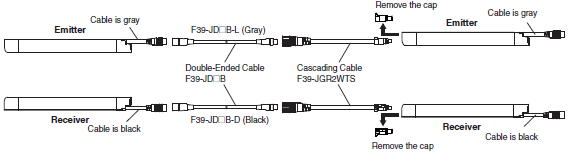

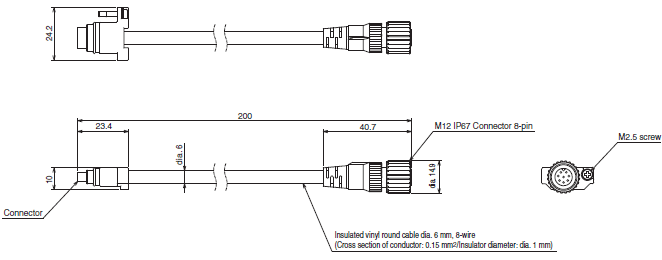

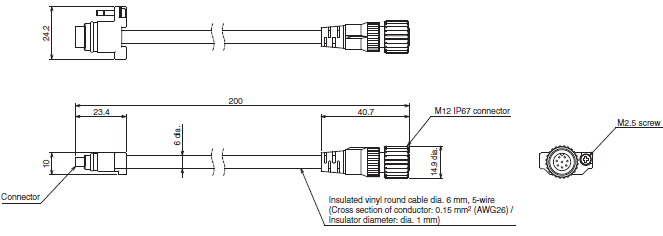

	Cascading cable	Type of Connection	M12 connectors: 5-pin emitter and 8-pin receiver, IP67 rated when mated
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	0.2 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm

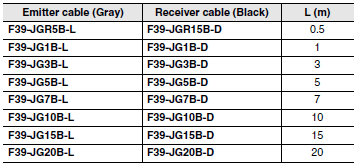

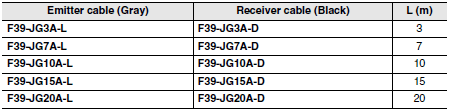

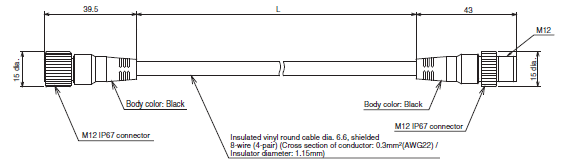

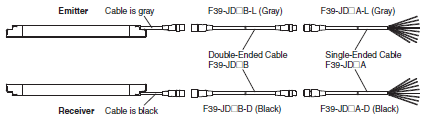

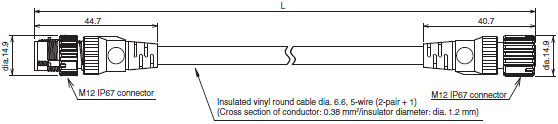

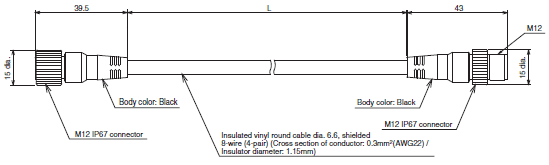

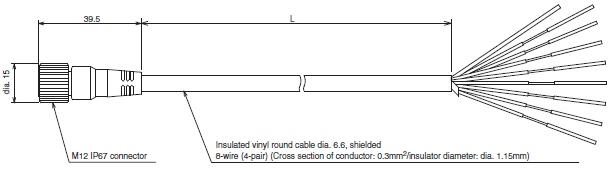

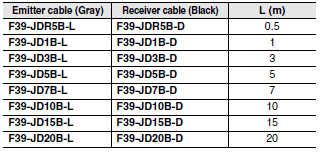

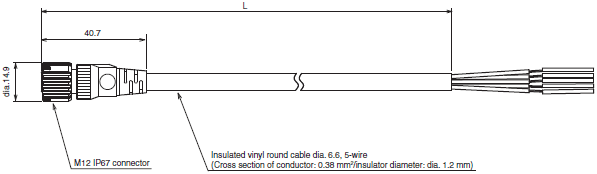

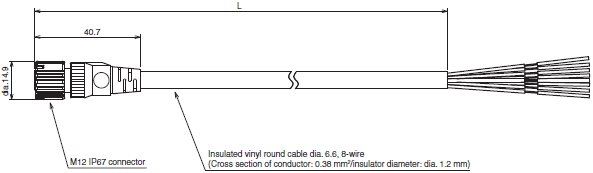

	Extension cable - Single- Ended Cable - Double- Ended Cable	Type of Connection	M12 connectors: 5-pin emitter and 8-pin receiver, IP67 rated when mated
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	Refer to Lineup.
		Cable Diameter	6.6 mm
		Minimum Bending Radius	R36 mm
	Extension of Power Cable		100 m max.
Material	Material		Housing: Aluminum alloy Cap: PBT resin Front window: Acrylic resin Cable: Oil-resistant PVC resin Standard Fixed Bracket (F39-LGF): Zinc alloy FE plate: Stainless steel
	Weight		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Included Accessories		Safety Precautions, Quick Installation Manual, Standard Fixed Bracket *, Troubleshooting Guide Sticker, Warning Zone Label * The quantity of Standard Fixed Brackets included varies depending on the protective height. [F3SG-[]RA[][][][]-14] - Protective height of 0160 to 1200: 2 sets - Protective height of 1280 to 2080: 3 sets [F3SG-[]RA[][][][]-30] - Protective height of 0190 to 1230: 2 sets - Protective height of 1310 to 2270: 3 sets - Protective height of 2350 to 2510: 4 sets
Con- formity	Conforming standards		Refer to "Legislation and Standards".
	Type of ESPE (IEC 61496-1)		Type 4
	Performance Level (PL)/ Safety category	Type 4	PL e/Category 4 (EN ISO 13849-1:2015)
		Type 2	PL c/Category 2 (EN ISO 13849-1:2015)
	PFHD		1.1 × 10-8 (IEC 61508)
	Proof test interval TM		Every 20 years (IEC 61508)
	SFF		99% (IEC 61508)
	HFT		1 (IEC 61508)
	Classification		Type B (IEC 61508-2)

Bluetooth Communication Unit

Communication System	Bluetooth Version 3.0
Communication Profile	SPP (Serial Port Profile)
Transmission Distance	Approx. 10 m max. (Output power: Class 2) *

* It depends on use environment conditions.

List of Models/Response Time/Current Consumption/Weight

F3SG-4RA[][][][]-14/F3SG-2RA[][][][]-14

Model		Num- ber of Beams	Pro- tective Height [mm]	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
				ON → OFF *2	OFF (Syn- chro- nized) → ON	OFF (Not syn- chro- nized) → ON	Emitter	Re- ceiver	Net *3	Gross *4
F3SG-4RA0160-14	F3SG-2RA0160-14	15	160	8	40	140	40	75	0.7	2.0
F3SG-4RA0240-14	F3SG-2RA0240-14	23	240	8	40	140	45	75	0.9	2.3
F3SG-4RA0320-14	F3SG-2RA0320-14	31	320	8	40	140	55	75	1.1	2.6
F3SG-4RA0400-14	F3SG-2RA0400-14	39	400	8	40	140	60	80	1.3	2.9
F3SG-4RA0480-14	F3SG-2RA0480-14	47	480	13	65	165	50	80	1.5	3.2
F3SG-4RA0560-14	F3SG-2RA0560-14	55	560	13	65	165	55	80	1.7	3.5
F3SG-4RA0640-14	F3SG-2RA0640-14	63	640	13	65	165	60	85	1.9	3.9
F3SG-4RA0720-14	F3SG-2RA0720-14	71	720	13	65	165	65	85	2.1	4.2
F3SG-4RA0800-14	F3SG-2RA0800-14	79	800	13	65	165	65	90	2.3	4.5
F3SG-4RA0880-14	F3SG-2RA0880-14	87	880	13	65	165	70	90	2.6	4.8
F3SG-4RA0960-14	F3SG-2RA0960-14	95	960	13	65	165	75	90	2.8	5.1
F3SG-4RA1040-14	F3SG-2RA1040-14	103	1040	13	65	165	80	95	3.0	5.4
F3SG-4RA1120-14	F3SG-2RA1120-14	111	1120	13	65	165	85	95	3.2	5.7
F3SG-4RA1200-14	F3SG-2RA1200-14	119	1200	13	65	165	90	100	3.4	6.0
F3SG-4RA1280-14	F3SG-2RA1280-14	127	1280	13	65	165	95	100	3.6	6.4
F3SG-4RA1360-14	F3SG-2RA1360-14	135	1360	13	65	165	95	105	3.8	6.7
F3SG-4RA1440-14	F3SG-2RA1440-14	143	1440	18	90	190	85	105	4.0	7.0
F3SG-4RA1520-14	F3SG-2RA1520-14	151	1520	18	90	190	90	105	4.2	7.3
F3SG-4RA1600-14	F3SG-2RA1600-14	159	1600	18	90	190	90	110	4.4	7.6
F3SG-4RA1680-14	F3SG-2RA1680-14	167	1680	18	90	190	95	110	4.7	7.9
F3SG-4RA1760-14	F3SG-2RA1760-14	175	1760	18	90	190	100	115	4.9	8.2
F3SG-4RA1840-14	F3SG-2RA1840-14	183	1840	18	90	190	100	115	5.1	8.5
F3SG-4RA1920-14	F3SG-2RA1920-14	191	1920	18	90	190	105	120	5.3	8.8
F3SG-4RA2000-14	F3SG-2RA2000-14	199	2000	18	90	190	105	120	5.5	9.2
F3SG-4RA2080-14	F3SG-2RA2080-14	207	2080	18	90	190	110	125	5.7	9.5

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.
*3. The net weight is the weight of an emitter and a receiver.
*4. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

F3SG-4RA[][][][]-30/F3SG-2RA[][][][]-30

Model		Num- ber of Beams	Pro- tective Height [mm]	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
				ON → OFF *2	OFF (Syn- chro- nized) → ON	OFF (Not syn- chro- nized) → ON	Emitter	Re- ceiver	Net *3	Gross *4
F3SG-4RA0190-30	F3SG-2RA0190-30	8	190	8	40	140	35	75	0.6	2.1
F3SG-4RA0270-30	F3SG-2RA0270-30	12	270	8	40	140	35	75	0.9	2.4
F3SG-4RA0350-30	F3SG-2RA0350-30	16	350	8	40	140	40	75	1.1	2.7
F3SG-4RA0430-30	F3SG-2RA0430-30	20	430	8	40	140	45	75	1.3	3.0
F3SG-4RA0510-30	F3SG-2RA0510-30	24	510	8	40	140	50	75	1.5	3.3
F3SG-4RA0590-30	F3SG-2RA0590-30	28	590	8	40	140	50	75	1.7	3.6
F3SG-4RA0670-30	F3SG-2RA0670-30	32	670	8	40	140	55	75	1.9	3.9
F3SG-4RA0750-30	F3SG-2RA0750-30	36	750	8	40	140	60	80	2.1	4.2
F3SG-4RA0830-30	F3SG-2RA0830-30	40	830	8	40	140	65	80	2.3	4.5
F3SG-4RA0910-30	F3SG-2RA0910-30	44	910	13	65	165	50	80	2.5	4.8
F3SG-4RA0990-30	F3SG-2RA0990-30	48	990	13	65	165	50	80	2.7	5.1
F3SG-4RA1070-30	F3SG-2RA1070-30	52	1070	13	65	165	55	80	2.9	5.4
F3SG-4RA1150-30	F3SG-2RA1150-30	56	1150	13	65	165	55	85	3.1	5.7
F3SG-4RA1230-30	F3SG-2RA1230-30	60	1230	13	65	165	55	85	3.3	6.0
F3SG-4RA1310-30	F3SG-2RA1310-30	64	1310	13	65	165	60	85	3.5	6.3
F3SG-4RA1390-30	F3SG-2RA1390-30	68	1390	13	65	165	60	85	3.8	6.6
F3SG-4RA1470-30	F3SG-2RA1470-30	72	1470	13	65	165	65	85	4.0	6.9
F3SG-4RA1550-30	F3SG-2RA1550-30	76	1550	13	65	165	65	90	4.2	7.2
F3SG-4RA1630-30	F3SG-2RA1630-30	80	1630	13	65	165	70	90	4.4	7.5
F3SG-4RA1710-30	F3SG-2RA1710-30	84	1710	13	65	165	70	90	4.6	7.8
F3SG-4RA1790-30	F3SG-2RA1790-30	88	1790	13	65	165	70	90	4.8	8.1
F3SG-4RA1870-30	F3SG-2RA1870-30	92	1870	13	65	165	75	90	5.0	8.4
F3SG-4RA1950-30	F3SG-2RA1950-30	96	1950	13	65	165	75	95	5.2	8.7
F3SG-4RA2030-30	F3SG-2RA2030-30	100	2030	13	65	165	80	95	5.4	9.0
F3SG-4RA2110-30	F3SG-2RA2110-30	104	2110	13	65	165	80	95	5.6	9.3
F3SG-4RA2190-30	F3SG-2RA2190-30	108	2190	13	65	165	85	95	5.8	9.6
F3SG-4RA2270-30	F3SG-2RA2270-30	112	2270	13	65	165	85	100	6.0	9.9
F3SG-4RA2350-30	F3SG-2RA2350-30	116	2350	13	65	165	85	100	6.2	10.2
F3SG-4RA2430-30	F3SG-2RA2430-30	120	2430	13	65	165	90	100	6.4	10.5
F3SG-4RA2510-30	F3SG-2RA2510-30	124	2510	13	65	165	90	100	6.7	10.8

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.
*3. The net weight is the weight of an emitter and a receiver.
*4. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

Legislation and Standards

1. The F3SG-R does not receive type approval provided by Article 44-2 of the Industrial Safety and Health Act of Japan.
      When using the F3SG-R in Japan as a "safety system for pressing or shearing machines" prescribed in Article 42 of
      that law, the machine control system must receive type approval.

2. The F3SG-R is electro-sensitive protective equipment (ESPE) in accordance with European Union (EU) Machinery
     Directive Index Annex V, Item 2.

3. EC Declaration of Conformity
     OMRON declares that the F3SG-R is in conformity with the requirements of the following EC Directives:
     Machinery Directive 2006/42/EC
     EMC Directive 2014/30/EU

4. Conforming Standards
     (1) European standards
            EN61496-1 (Type 4 and Type 2 ESPE), EN 61496-2 (Type 4 and Type 2 AOPD), EN61508-1 through -4 (SIL 3 for
            Type 4 and SIL 1 for Type 2), EN ISO 13849-1:2015 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)
     (2) International standards
            IEC61496-1 (Type 4 and Type 2 ESPE), IEC61496-2 (Type 4 and Type 2 AOPD), IEC61508-1 through -4 (SIL 3 for
            Type 4 and SIL 1 for Type 2), ISO 13849-1:2015 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)
     (3) JIS standards
            JIS B 9704-1 (Type 4 and Type 2 ESPE), JIS B 9704-2 (Type 4 and Type 2 AOPD)
     (4) North American standards
            UL61496-1(Type 4 and Type 2 ESPE), UL61496-2(Type 4 and Type 2 AOPD), UL508, UL1998, CAN/CSA C22.2
            No.14, CAN/CSA C22.2 No.0.8
     (5) Chinese standards
            GB/T 4584(Specification of active opto-electronic protective devices for presses)

5. Third-Party Certifications
     (1) TÜV SÜD
            • EC Type-Examination certificate:
                EU Machinery Directive, Type 4 and Type 2 ESPE (EN61496-1), Type 4 and Type 2 AOPD (EN 61496-2)
            • Certificate:
                Type 4 and Type 2 ESPE (EN61496-1), Type 4 and Type 2 AOPD (EN61496-2), EN 61508-1 through -4 (SIL 3
                for Type 4 and SIL 1 for Type 2), EN ISO 13849-1:2015 (PL e, Category 4 for Type 4, and PL c, Category 2 for
                Type 2)
     (2) UL
            • UL Listing:
                Type 4 and Type 2 ESPE (UL61496-1), Type 4 and Type 2 AOPD (UL61496-2), UL508, UL1998, CAN/CSA C22.2
                No.14, CAN/CSA C22.2 No.0.8
     (3) China National Casting and Forging Machines Quality Supervision and Inspection Center
            • Certificate:
                GB/T 4584 (Specification of active opto-electronic protective devices for presses)

6. Other Standards
      The F3SG-R is designed according to the standards listed below. To make sure that the final system complies with
      the following standards and regulations, you are asked to design and use it in accordance with all other related
      standards, laws, and regulations. If you have any questions, consult with specialized organizations such as the body
      responsible for prescribing and/or enforcing machinery safety regulations in the location where the equipment is to
      be used.
       • European Standards: EN415-4, EN691-1, EN692, EN693, IEC 62046
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.212
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.217
       • American National Standards: ANSI B11.1 to B11.19
       • American National Standards: ANSI/RIA R15.06
       • Canadian Standards Association CSA Z142, Z432, Z434
       • SEMI Standards SEMI S2
       • Japan Ministry of Health, Labour and Welfare "Guidelines for Comprehensive Safety Standards of Machinery",
         Standard Bureau's Notification No. 0731001 dated July 31, 2007.rms and Conditions Agreement
       • Chinese National Standards: GB17120, GB27607

Indicator

Emitter

Name of Indicator		Color	Illuminated	Blinking
Test	TEST	Green	-	External Test is being performed
Operating range	LONG	Green	Long range mode is selected	Lockout state due to DIP Switch setting error or Operating range selection setting error
Power	POWER	Green	Power is ON.	Error due to noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in emitter

Receiver

Name of Indicator		Color	Illuminated	Blinking
Top-beam-state	TOP	Blue	The top beam is unblocked	Muting/Override state, or Lockout state due to Cap error or Other sensor error
PNP/NPN mode	NPN	Green	NPN mode is selected by DIP Switch	-
Response time	SLOW	Green	Response Time Adjustment is enabled	-
Sequence error	SEQ	Yellow	-	Sequence error in Muting or Pre-reset mode
Blanking	BLANK	Green	Blanking, Warning Zone or Reduced Resolution is enabled	Teach-in mode, or Blanking Monitoring error
Configuration	CFG	Green	-	Teach-in mode, zone measurement beng performed by Dynamic Muting, or Lockout state due to Parameter error or Cascading Configuration error
Interlock	INT-LK	Yellow	Interlock state	Pre-reset mode
External device monitoring	EDM	Green	RESET input is in ON state *	Lockout state due to EDM error
Internal error	INTERNAL	Red	-	Lockout state due to Internal error, or error due to abnormal power supply or noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in receiver
Stable-state	STB	Green	Incident light level is 170% or higher of ON-threshold	Safety output is instantaneously turned OFF due to ambient light or vibration
ON/OFF	ON/OFF	Green	Safety output is in ON state	-
		Red	Safety output is in OFF state, or the sensor is in Setting state	Lockout state due to Safety Output error, or error due to abnormal power supply or noise
Communication	COM	Green	Synchronization between emitter and receiver is maintained	Lockout state due to Communication error, or error due to abnormal power supply or noise
Bottom-beam- state	BTM	Blue	The bottom beam is unblocked	Muting/Override state, or Lockout state due to DIP Switch setting error

* The LED is illuminated when the EDM input is in ON state regardless of wiring with EDM used or unused.

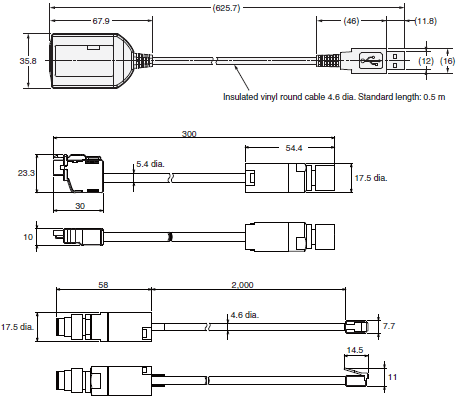

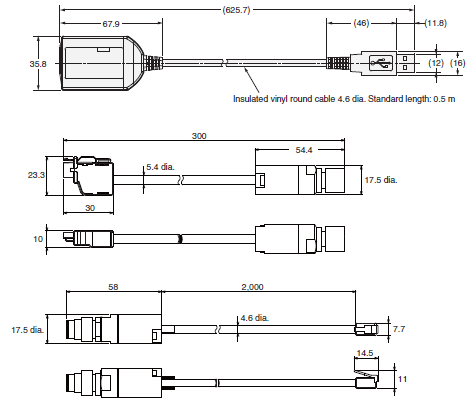

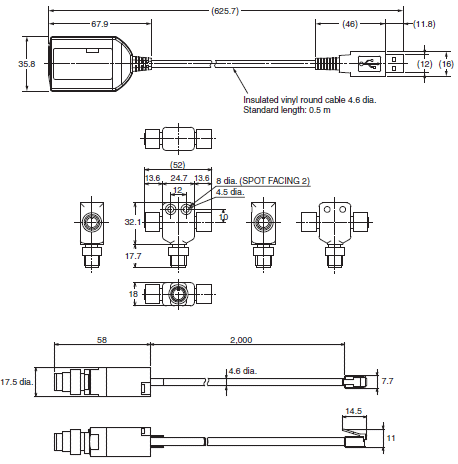

Interface Unit

Main unit	PC/AT compatible machine (computer that runs Microsoft Windows)
Operating system (OS)	Windows 7 (32-bit/64-bit), Windows 8, 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit)
Communication port	USB port ×1
Ambient temperature	Operating: -10 to 55°C, Storage: -30 to 70°C (non-icing and non-condensing)
Ambient humidity	Operating: 35% to 85%, Storage: 35% to 95% (non-condensing)

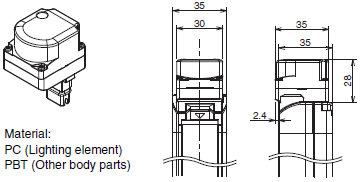

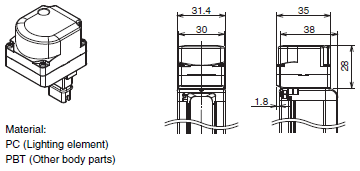

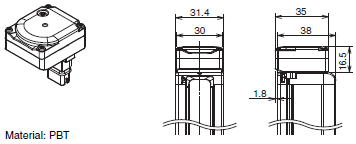

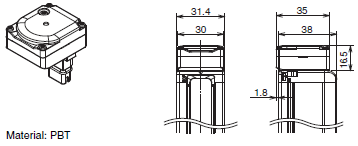

Lamp

Item	F39-LP
Applicable Sensor	F3SG-[]RA/RR Series Safety Light Curtain (Receiver)
LED Light Color	Red/Orange/Green
Power Supply Voltage	24 VDC±20%, ripple p-p 10% max. (shares sensor's power supply)
Current Consumption	25 mA max. (shares sensor's power supply.)
Ambient Temperature	Operating: -10 to 55°C, Storage: -25 to 70°C
Ambient Humidity	Operating: 35% to 85%, Storage: 35% to 95%
Vibration Resistance	10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
Shock Resistance	100 m/s2, 1000 shocks for all 3 axes
Degree of Protection	IP65 and IP67 (When attached to F3SG)
Type of Connection	Connectable to F3SG-RA's terminal connector

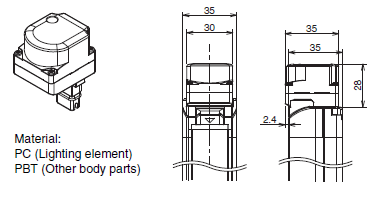

Material	Lighting element: PC, Other body parts: PBT
Weight	45 g (when packaged)

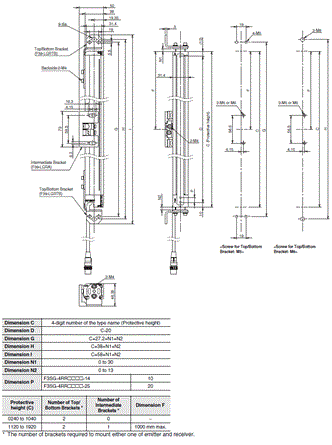

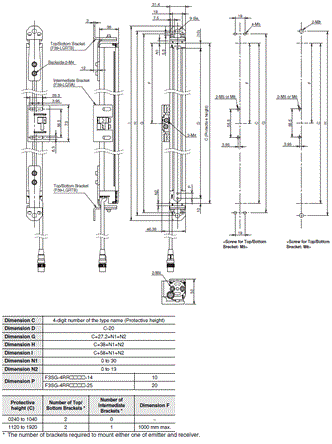

F3SG-RR Robust type

Main unit

The [][][][] in the model names indicate the protective heights in millimeters.

			F3SG-4RR[][][][]-14	F3SG-4RR[][][][]-25
Perfor- mance	Object Resolution (Detection Capability)		Opaque objects
			14-mm dia.	25-mm dia.
	Beam Gap		10 mm	20 mm
	Number of Beams		23 to 191	12 to 96
	Lens Size		5.2 × 3.4 (W × H) mm	6.0 × 5.0 (W × H) mm
	Protective Height		240 to 1920 mm
	Operating Range		0.3 to 10.0 m	0.3 to 17.0 m
	Response Time	ON to OFF	Normal mode: 8 to 18 ms *1 Slow mode: 16 to 36 ms *1 *2
		OFF to ON	Normal mode: 40 to 90ms (synchronized), 140 to 190ms (not synchronized) *1
		*1. Response time when used in one segment system or in cascaded connection. Refer to "List of Models/Response Time/Current Consumption/Weight". *2. Selectable by Configuration Tool.
	Effective Aperture Angle (EAA) (IEC 61496-2)		±2.5° max., emitter and receiver at operating range of 3 m or greater
	Light Source		Infrared LEDs, Wavelength: 870 nm
	Startup Waiting Time		2 s max.
Elec- trical	Power Supply Voltage (Vs)		SELV/PELV 24 VDC±20% (ripple p-p 10% max.)
	Current Consumption		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Safety Outputs (OSSD)		Two PNP or NPN transistor outputs (PNP or NPN is selectable by Configuration Tool.)
			Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension), Capacitive load of 1 μF max., Inductive load of 2.2 H max. *1 Leakage current of 1 mA max. (PNP), 2 mA max. (NPN) *2 *1. The load inductance is the maximum value when the safety output frequently repeats ON and OFF. When you use the safety output at 4 Hz or less, the usable load inductance becomes larger. *2. These values must be taken into consideration when connecting elements including a capacitive load such as a capacitor.
	Auxiliary Output		One PNP or NPN transistor output (PNP or NPN is selectable by Configuration Tool.)
			Load current of 100 mA max., Residual voltage of 2 V max .
	Output Operation Mode	Safety Output	Light-ON (Safety output is enabled when the receiver receives an emitting signal.)
		Auxiliary Output	Safety output (Inverted signal output:Enable) (default) (Cofigurable by Configuration Tool)
	Input Voltage	External device monitoring input (Lockout reset input)	PNP ON voltage: Vs-3 V to Vs (short circuit current: approx. 6.5 mA) * OFF voltage: 0 V to 1/2 Vs, or open (short circuit current: approx. 8.0 mA) * NPN ON voltage: 0 V to 3 V (short circuit current: approx. 8.0 mA) OFF voltage: 1/2 Vs to Vs, or open (short circuit current: approx. 6.5 mA) *
		Muting input A/B	PNP ON voltage: Vs-3 V to Vs (short circuit current: approx. 3.0 mA) * OFF voltage: 0 V to 1/2 Vs, or open (short circuit current: approx. 5.0 mA) * NPN ON voltage: 0 V to 3 V (short circuit current: approx. 5.0 mA) OFF voltage: 1/2 Vs to Vs, or open (short circuit current: approx. 3.0 mA) *
		Test input	24 V Active setting: ON voltage: 9 V to Vs (short circuit current: approx. 2.5 mA) * OFF voltage: 0 V to 1.5 V or open (short circuit current: approx. 2.0 mA) 0 V Active setting: ON voltage: 0 V to 3 V (short circuit current: approx. 2.0 mA) OFF voltage: 9 V to Vs or open (short circuit current: approx. 2.5 mA) *
		* The Vs indicates a supply voltage value in your environment.
	Overvoltage Category (IEC 60664-1)		II
	Indicators		Refer to "Indicator".
	Protective Circuit		Output short protection, Power supply reverse polarity protection
	Insulation Resistance		20 MΩ or higher (500 VDC megger)
	Dielectric Strength		1,000 VAC, 50/60 Hz (1 min)
Func- tional	Mutual Interference Prevention (Scan Code)		This function prevents mutual interference in up to two F3SG-RR systems.
	Cascade Connection		Number of cascaded segments: 3 max.
			Total number of beams: 255 max. Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)
	Test Function		Self-test (at power-on, and during operation) External test (light emission stop function by test input)
	Safety-Related Functions		Interlock External device monitoring (EDM) Pre-reset Fixed blanking/Floating blanking Reduced resolution Muting/Override Scan code selection PNP/NPN selection Response time adjustment
Environ- mental	Ambient Temperature	Operating	-10 to 55°C (14 to 131°F) (non-icing)
		Storage	-25 to 70°C (-13 to 158°F)
	Ambient Humidity	Operating	35% to 85% (non-condensing)
		Storage	35% to 95%
	Ambient Illuminance		Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface
	Degree of Protection (IEC 60529)		IEC 60529: IP65 and IP67, JIS C 0920 Annex 1: IP67G
	Vibration Resistance (IEC 61496-1)		10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
	Shock Resistance (IEC 61496-1)		100 m/s2, 1000 shocks for all 3 axes
	Pollution Degree (IEC 60664-1)		Pollution Degree 3
Connec- tions	Power cable	Type of Connection	M12 connectors: 8-pin emitter and receiver. Cables prewired to the sensors. IP67 and IP67G (JIS C 0920 Annex 1) * rated when mated. *F3SG-RR meets the degree of protection when it is correctly connected with an F39-JD[][]RA-[] Oil-Resistant cable.
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R36 mm
	Cascading cable	Type of Connection	M12 connectors: 8-pin emitter and receiver. IP67 rated when mated.
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm

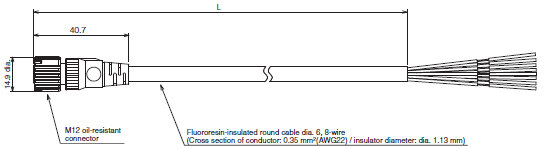

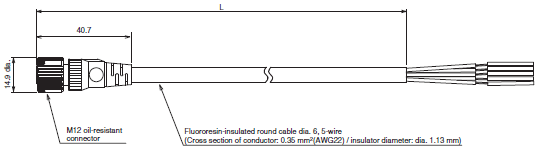

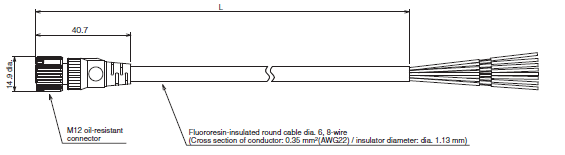

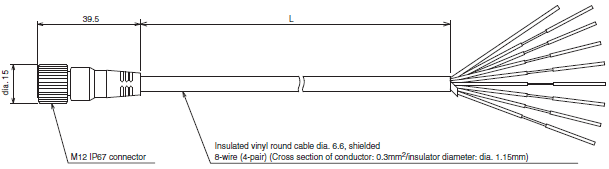

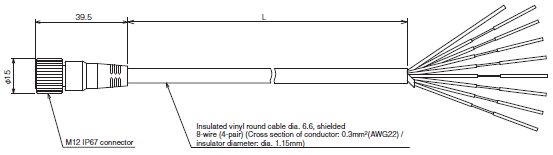

	F39-JD[]RA-[] Oil-Resistant cable - Single- Ended Cable	Type of Connection	M12 connectors: 8-pin emitter and receiver. Cables prewired to the sensors. IP67 and IP67G (JIS C 0920 Annex 1)* rated when mated. * F3SG-RR meets the degree of protection when it is correctly connected with the power cable. The degree of protection is not satisfied with the part where cable wires are uncovered.
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	Refer to Lineup.
		Cable Diameter	6 mm
		Minimum Bending Radius	R36 mm

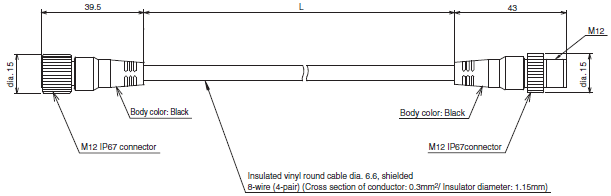

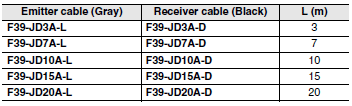

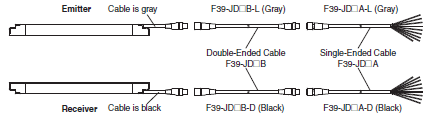

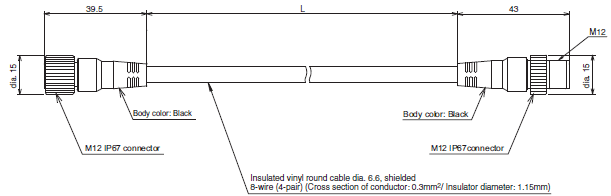

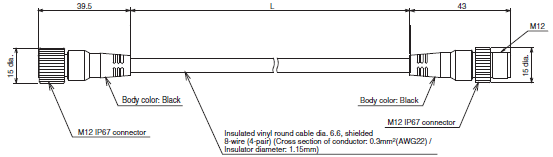

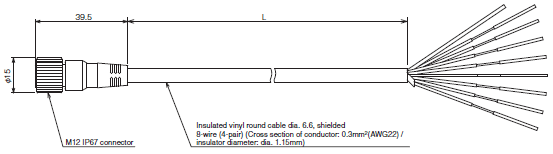

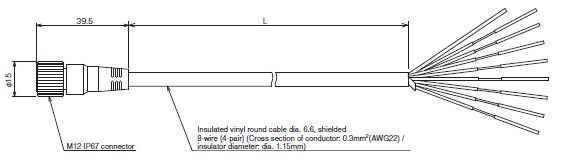

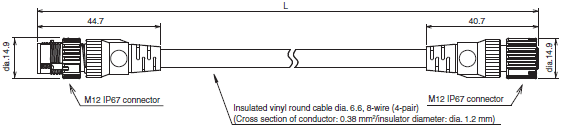

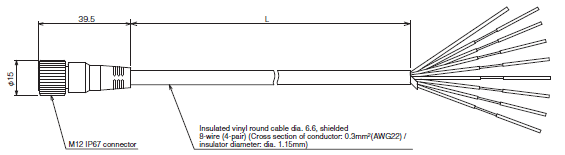

	Extension cable - Single- Ended Cable (F39-JD[]A) - Double- Ended Cable (F39-JD[]B)	Type of Connection	M12 connectors: 8-pin emitter and receiver. IP67 rated when mated.
		Number of Wires	Emitter: 8, Receiver: 8
		Cable Length	Refer to Lineup.
		Cable Diameter	6.6 mm
		Minimum Bending Radius	R36 mm
	Extension of Power Cable		100 m max. (Emitter/Receiver)
Material	Material		Housing: Aluminum alloy Cap: PBT resin Front window: Acrylic resin Cable: Fluororesin FE plate: Stainless steel
	Weight		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Included Accessories		Safety Precautions, Quick Installation Manual, Troubleshooting Guide Sticker, Warning Zone Label, End Cap (for switching External Test Input function)
Con- formity	Conforming standards		Refer to "Legislation and Standards".
	Performance Level (PL)/ Safety category		PL e/Category 4 (EN ISO 13849-1:2015)
	PFHD		1.1 × 10-8 (IEC 61508)
	Proof test interval TM		Every 20 years (IEC 61508)
	SFF		99% (IEC 61508)
	HFT		1 (IEC 61508)
	Classification		Type B (IEC 61508-2)

Bluetooth Communication Unit

Communication System	Bluetooth Version 3.0
Communication Profile	SPP (Serial Port Profile)
Transmission Distance	Approx. 10 m max. (Output power: Class 2) *

* It depends on use environment conditions.

List of Models/Response Time/Current Consumption/Weight

F3SG-4RR[][][][]-14

Model	Num- ber of Beams	Pro- tective Height [mm] (Overall length)	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
			ON → OFF *2	OFF (Syn- chro- nized) → ON	OFF (Not syn- chro- nized) → ON	Emitter	Re- ceiver	Net *3	Gross *4
F3SG-4RR0240-14	23	240	8	40	140	45	75	0.7	1.5
F3SG-4RR0320-14	31	320	8	40	140	55	75	0.9	1.7
F3SG-4RR0400-14	39	400	8	40	140	60	80	1.1	2.0
F3SG-4RR0480-14	47	480	13	65	165	50	80	1.3	2.3
F3SG-4RR0560-14	55	560	13	65	165	55	80	1.5	2.5
F3SG-4RR0640-14	63	640	13	65	165	60	85	1.7	2.8
F3SG-4RR0720-14	71	720	13	65	165	65	85	1.9	3.1
F3SG-4RR0800-14	79	800	13	65	165	65	90	2.1	3.4
F3SG-4RR0880-14	87	880	13	65	165	70	90	2.4	3.6
F3SG-4RR0960-14	95	960	13	65	165	75	90	2.6	3.9
F3SG-4RR1040-14	103	1040	13	65	165	80	95	2.8	4.2
F3SG-4RR1120-14	111	1120	13	65	165	85	95	3.0	4.4
F3SG-4RR1200-14	119	1200	13	65	165	90	100	3.2	4.7
F3SG-4RR1280-14	127	1280	13	65	165	95	100	3.4	5.0
F3SG-4RR1360-14	135	1360	13	65	165	95	105	3.6	5.3
F3SG-4RR1440-14	143	1440	18	90	190	85	105	3.8	5.5
F3SG-4RR1520-14	151	1520	18	90	190	90	105	4.0	5.8
F3SG-4RR1600-14	159	1600	18	90	190	90	110	4.2	6.1
F3SG-4RR1680-14	167	1680	18	90	190	95	110	4.4	6.3
F3SG-4RR1760-14	175	1760	18	90	190	100	115	4.6	6.6
F3SG-4RR1840-14	183	1840	18	90	190	100	115	4.8	6.9
F3SG-4RR1920-14	191	1920	18	90	190	105	120	5.0	7.2

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.
*3. The net weight is the weight of an emitter and a receiver.
*4. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

F3SG-4RR[][][][]-25

Model	Num- ber of Beams	Pro- tective Height [mm] (Overall length)	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
			ON → OFF *2	OFF (Syn- chro- nized) → ON	OFF (Not syn- chro- nized) → ON	Emitter	Re- ceiver	Net *3	Gross *4
F3SG-4RR0240-25	12	240	8	40	140	35	75	0.7	1.6
F3SG-4RR0320-25	16	320	8	40	140	40	75	0.9	1.9
F3SG-4RR0400-25	20	400	8	40	140	45	75	1.1	2.1
F3SG-4RR0480-25	24	480	8	40	140	50	75	1.3	2.4
F3SG-4RR0560-25	28	560	8	40	140	50	75	1.5	2.7
F3SG-4RR0640-25	32	640	8	40	140	55	75	1.7	3.0
F3SG-4RR0720-25	36	720	8	40	140	60	80	1.9	3.2
F3SG-4RR0800-25	40	800	8	40	140	65	80	2.1	3.5
F3SG-4RR0880-25	44	880	13	65	165	50	80	2.3	3.8
F3SG-4RR0960-25	48	960	13	65	165	50	80	2.5	4.0
F3SG-4RR1040-25	52	1040	13	65	165	55	80	2.7	4.3
F3SG-4RR1120-25	56	1120	13	65	165	55	85	2.9	4.6
F3SG-4RR1200-25	60	1200	13	65	165	55	85	3.1	4.9
F3SG-4RR1280-25	64	1280	13	65	165	60	85	3.3	5.1
F3SG-4RR1360-25	68	1360	13	65	165	60	85	3.5	5.4
F3SG-4RR1440-25	72	1440	13	65	165	65	85	3.7	5.7
F3SG-4RR1520-25	76	1520	13	65	165	65	90	3.9	5.9
F3SG-4RR1600-25	80	1600	13	65	165	70	90	4.1	6.2
F3SG-4RR1680-25	84	1680	13	65	165	70	90	4.3	6.5
F3SG-4RR1760-25	88	1760	13	65	165	70	90	4.5	6.7
F3SG-4RR1840-25	92	1840	13	65	165	75	90	4.7	7.0
F3SG-4RR1920-25	96	1920	13	65	165	75	95	4.9	7.3

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.
*3. The net weight is the weight of an emitter and a receiver.
*4. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

Legislation and Standards

1. The F3SG-RR does not receive type approval provided by Article 44-2 of the Industrial Safety and Health Act of Japan.
      When using the F3SG-RR in Japan as a "safety system for pressing or shearing machines" prescribed in Article 42 of
      that law, the machine control system must receive type approval.

2. The F3SG-RR is electro-sensitive protective equipment (ESPE) in accordance with European Union (EU) Machinery
      Directive Index Annex V, Item 2.

3. EC/EU Declaration of Conformity
      OMRON declares that the F3SG-RR is in conformity with the requirements of the following EC/EU Directives:
      Machinery Directive 2006/42/EC
      EMC Directive 2014/30/EU

4. Conforming Standards
     (1) European standards
            EN61496-1 (Type 4 ESPE), EN 61496-2 (Type 4 AOPD), EN61508-1 through -4 (SIL 3), EN ISO 13849-1:2015
            (PL e, Category 4)
     (2) International standards
            IEC61496-1 (Type 4 ESPE), IEC61496-2 (Type 4 AOPD), IEC61508-1 through -4 (SIL 3), ISO 13849-1:2015
            (PL e, Category 4)
     (3) JIS standards
            JIS B 9704-1 (Type 4 ESPE), JIS B 9704-2 (Type 4 AOPD)
     (4) North American standards
            UL61496-1 (Type 4 ESPE), UL61496-2 (Type 4 AOPD), UL508, UL1998,
            CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

5. Third-Party Certifications
     (1) TÜV SÜD
            • EC Type-Examination certificate:
                EU Machinery Directive, Type 4 ESPE (EN61496-1), Type 4 AOPD (EN 61496-2)
            • Certificate:
                Type 4 ESPE (EN61496-1), Type 4 AOPD (EN61496-2), EN 61508-1 through -4 (SIL 3), EN ISO 13849-1:2015
                (PL e, Category 4)
     (2) UL
            • UL Listing:
                Type 4 and ESPE (UL61496-1), Type 4 AOPD (UL61496-2), UL508, UL1998, CAN/CSA C22.2 No.14,
                CAN/CSA C22.2 No.0.8

6. Other Standards
      The F3SG-RR is designed according to the standards listed below. To make sure that the final system complies with the
      following standards and regulations, you are asked to design and use it in accordance with all other related standards,
      laws, and regulations. If you have any questions, consult with specialized organizations such as the body responsible
      for prescribing and/or enforcing machinery safety regulations in the location where the equipment is to be used.
       • European Standards: EN415-4, EN691-1, EN692, EN693, IEC 62046
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.212
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.217
       • American National Standards: ANSI B11.1 to B11.19
       • American National Standards: ANSI/RIA R15.06
       • Canadian Standards Association CSA Z142, Z432, Z434
       • SEMI Standards SEMI S2
       • Japan Ministry of Health, Labour and Welfare "Guidelines for Comprehensive Safety Standards of Machinery",
         Standard Bureau's Notification
         No. 0731001 dated July 31, 2007.rms and Conditions Agreement

Indicator

Emitter

Name of Indicator		Color	Illuminated	Blinking
Test	TEST	Green	-	External Test is being performed
Operating range	LONG	Green	Always illuminated	Lockout state due to Scan code setting error
Power	POWER	Green	Power is ON.	Error due to noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in emitter

Receiver

Name of Indicator		Color	Illuminated	Blinking
Top-beam-state	TOP	Blue	The top beam is unblocked	Muting/Override state, or Lockout state due to Cap error or Other sensor error
PNP/NPN mode	NPN	Green	NPN mode is selected	-
Response time	SLOW	Green	Response Time Adjustment is enabled	-
Sequence error	SEQ	Yellow	-	Sequence error in Muting or Pre-reset mode
Blanking	BLANK	Green	Blanking, Warning Zone or Reduced Resolution is enabled	Blanking Monitoring error
Configuration	CFG	Green	-	Zone measurement being performed by Dynamic Muting, or Lockout state due to Parameter error or Cascading Configuration error
Interlock	INT-LK	Yellow	Interlock state	Pre-reset mode *2
External device monitoring	EDM	Green	RESET input is in ON state *1	Lockout state due to EDM error
Internal error	INTERNAL	Red	-	Lockout state due to Internal error, or error due to abnormal power supply or noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in receiver
Stable-state	STB	Green	Incident light level is 170% or higher of ON-threshold	Safety output is instantaneously turned OFF due to ambient light or vibration
ON/OFF	ON/OFF	Green	Safety output is in ON state	-
		Red	Safety output is in OFF state	Lockout state due to Safety Output error, or error due to abnormal power supply or noise
Communication	COM	Green	Synchronization between emitter and receiver is maintained	Lockout state due to Communication error, or error due to abnormal power supply or noise
Bottom-beam-state	BTM	Blue	The bottom beam is unblocked	Muting/Override state, or Lockout state due to Scan code setting error

Note: TOP, CFG, LOCKOUT, STB and ON/OFF indicators are illuminated when the receiver of the F3SG-RR is in Setting mode.
*1. The EDM indicator is illuminated when the EDM input is in the ON state regardless of the use of the EDM function.
*2. Refer to Safety Light Curtain F3SG-[]RR Series User's Manual (ManNo.: Z383) for more information of blinking patterns.

Interface Unit

Main Unit	PC/AT compatible machine (computer that runs Microsoft Windows)
Operating System (OS)	Windows 7 (32-bit/64-bit), Windows 8, 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit)
Communication Port	USB port ×1
Ambient Temperature	Operating: -10 to 55°C, Storage: -30 to 70°C (non-icing and non-condensing)
Ambient Humidity	Operating: 35% to 85%, Storage: 35% to 95% (non-condensing)

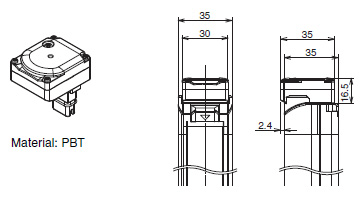

Lamp

Item	F39-LP
Applicable Sensor	F3SG-[]RA/RR Series Safety Light Curtain (Receiver)
LED Light Color	Red/Green/Orange
Power Supply Voltage	24 VDC±20%, ripple p-p 10% max. (shares sensor’s power supply)
Current Consumption	25 mA max. (shares sensor’s power supply.)
Ambient Temperature	Operating: -10 to 55°C, Storage: -25 to 70°C
Ambient Humidity	Operating: 35% to 85%, Storage: 35% to 95%
Vibration Resistance	10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
Shock Resistance	100 m/s2 , 1000 shocks for all 3 axes
Degree of Protection	IP65 and IP67 (When attached to F3SG)
Type of Connection	Connectable to F3SG-RA/RR’s terminal connector
Material	Lighting element: PC, Other body parts: PBT
Weight	45 g (when packaged)

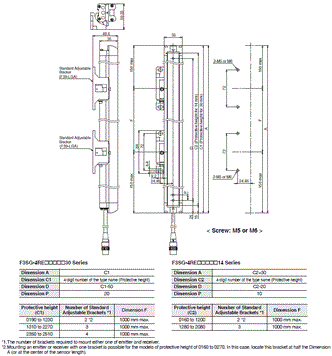

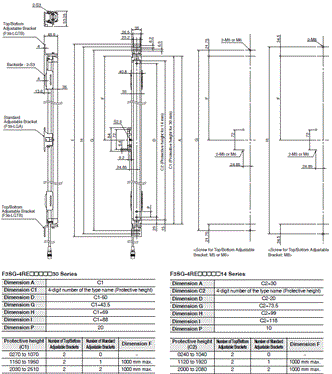

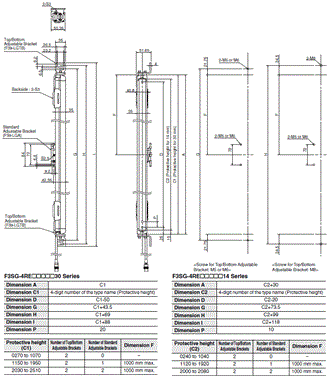

F3SG-RE Easy type

Main unit

The [][][][] in the model names indicate the protective heights in millimeters.

			F3SG-4RE[][][][]-14 F3SG-2RE[][][][]-14	F3SG-4RE[][][][]-30 F3SG-2RE[][][][]-30
Perform- ance	Type of ESPE (IEC 61496-1)	Type 4	F3SG-4RE[][][][][]14/30
		Type 2	F3SG-2RE[][][][][]14/30
	Object Resolution (Detection Capability)		Opaque objects
			14-mm dia.	30-mm dia.
	Beam Gap		10 mm	20 mm
	Number of Beams		15 to 207	8 to 124
	Lens Size		5.2 × 3.4 (W × H) mm	7-mm dia.
	Protective Height		160 to 2080 mm (6.3 to 81.9 inch)	190 to 2510 mm (7.3 to 98.7 inch)
	Operating Range	Long	0.3 to 10.0 m (1 to 32 ft.)	0.3 to 20.0 m (1 to 65 ft.)
		Short	0.3 to 3.0 m (1 to 10 ft.)	0.3 to 7.0 m (1 to 23 ft.)
	Response Time	ON to OFF	5 to 15 ms *1
		OFF to ON	25 to 75 ms *1
		*1.Response time when used in one segment system Refer to "List of Models/Response Time/Current Consumption/Weight"
	Effective Aperture Angle (EAA) (IEC 61496-2)	Type 4	±2.5° max., emitter and receiver at operating range of 3 m or greater
		Type 2	±5.0° max., emitter and receiver at operating range of 3 m or greater
	Light Source		Infrared LEDs, Wavelength: 870 nm
	Startup Waiting Time		2 s max.
Elec- tricall	Power Supply Voltage (Vs)		SELV/PELV 24 VDC±20% (ripple p-p 10% max.)
	Current Consumption		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Safety Outputs (OSSD)		F3SG-[]RE[][][][]P[][]: Two PNP transistor outputs F3SG-[]RE[][][][]N[][]: Two NPN transistor outputs
			Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension), Capacitive load of 1 μF max., Inductive load of 2.2 H max. *1 Leakage current of 1 mA max. (PNP), 2 mA max. (NPN) *2 *1.The load inductance is the maximum value when the safety output frequently repeats ON and OFF. When you use the safety output at 4 Hz or less, the usable load inductance becomes larger. *2. These values must be taken into consideration when connecting elements including a capacitive load such as a capacitor.
	Output Operation Mode	Safety Output	Light-ON (Safety output is enabled when the receiver receives an emitting signal.)
	Input Voltage	ON Voltage	Operating Range Select Input: Long: 9 V to Vs (sink current 3 mA max.) * Short: 0 to 3 V (source current 3 mA max.)
		OFF Voltage
		*The Vs indicates a supply voltage value in your environment.
	Overvoltage Category (IEC60664-1)		II
	Indicators		Refer to "LED Indicator Status".
	Protective Circuit		Output short protection, Power supply reverse polarity protection
	Insulation Resistance		20 MΩ or higher (500 VDC megger)
	Dielectric Strength		1,000 VAC, 50/60 Hz (1 min)
Func- tional	Test Function		Self-test (at power-on, and during operation)
Environ- mental	Ambient Temperature	Operating	-10 to 55°C (14 to 131°F) (non-icing)
		Storage	-25 to 70°C (-13 to 158°F)
	Ambient Humidity	Operating	35% to 85% (non-condensing)
		Storage	35% to 95%
	Ambient Illuminance		Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface
	Degree of Protection (IEC 60529)		IP65 and IP67
	Vibration Resistance (IEC 61496-1)		10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
	Shock Resistance (IEC 61496-1)		100 m/s2, 1000 shocks for all 3 axes
	Pollution Degree (IEC 60664-1)		Pollution Degree 3
Connec- tions	Power cable	Type of Connection	M12 connectors: 4-pin, IP67 rated when mated,Cables prewired to the sensors
		Number of Wires	Emitter: 4, Receiver: 4
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm

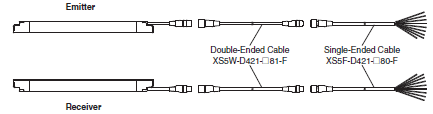

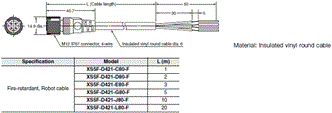

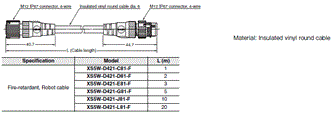

	Extension cable - Single- Ended Cable - Double- Ended Cable	Type of Connection	Use the XS5[]-D42[] series cables.
		Number of Wires
		Cable Length
		Cable Diameter
		Minimum Bending Radius
	Extension of Power Cable		100 m max.
Material	Material		Housing: Aluminum alloy Cap: PBT resin Front window: Acrylic resin Cable: Oil-resistant PVC resin Standard Fixed Bracket (F39-LGF): Zinc alloy FE plate: Stainless steel
	Weight		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Included Accessories		Safety Precautions, Quick Installation Manual, Standard Fixed Bracket*1, Troubleshooting Guide Sticker *1. The quantity of Standard Fixed Brackets included varies depending on the protective height. [F3SG-[]RE[][][][][]14] - Protective height of 0160 to 1200: 2 sets - Protective height of 1280 to 2080: 3 sets [F3SG-[]RE[][][][][]30] - Protective height of 0190 to 1230: 2 sets - Protective height of 1310 to 2270: 3 sets - Protective height of 2350 to 2510: 4 sets
Con- formity	Conforming standards		Refer to "Legislation and Standards".
	Performance Level (PL)/ Safety category	Type 4	PL e/Category 4 (EN ISO 13849-1:2015)
		Type 2	PL c/Category 2 (EN ISO 13849-1:2015)
	PFHD		9.1 × 10-9 (IEC 61508)
	Proof test interval TM		Every 20 years (IEC 61508)
	SFF		99% (IEC 61508)
	HFT		1 (IEC 61508)
	Classification		Type B (IEC 61508-2)

List of Models/Response Time/Current Consumption/Weight

F3SG-[]RE[][][][][]-14

Model	Number of Beams	Protective Height [mm]	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
			ON → OFF	OFF (Syn- chronized) → ON	OFF (Not syn- chronized) → ON	Emitter	Receiver	Net *2	Gross *3
F3SG-[]RE0160[]14	15	160	5	25	125	45	50	0.6	1.9
F3SG-[]RE0240[]14	23	240	5	25	125	55	55	0.8	2.2
F3SG-[]RE0320[]14	31	320	7	35	135	55	55	1.0	2.5
F3SG-[]RE0400[]14	39	400	7	35	135	65	60	1.2	2.9
F3SG-[]RE0480[]14	47	480	7	35	135	70	60	1.4	3.2
F3SG-[]RE0560[]14	55	560	7	35	135	80	60	1.6	3.5
F3SG-[]RE0640[]14	63	640	7	35	135	85	65	1.9	3.8
F3SG-[]RE0720[]14	71	720	9	45	145	80	65	2.1	4.1
F3SG-[]RE0800[]14	79	800	9	45	145	85	70	2.3	4.4
F3SG-[]RE0880[]14	87	880	9	45	145	90	70	2.5	4.7
F3SG-[]RE0960[]14	95	960	9	45	145	95	75	2.7	5.0
F3SG-[]RE1040[]14	103	1040	9	45	145	100	75	2.9	5.4
F3SG-[]RE1120[]14	111	1120	11	55	155	90	75	3.1	5.7
F3SG-[]RE1200[]14	119	1200	11	55	155	95	80	3.3	6.0
F3SG-[]RE1280[]14	127	1280	11	55	155	100	80	3.5	6.3
F3SG-[]RE1360[]14	135	1360	11	55	155	105	85	3.7	6.6
F3SG-[]RE1440[]14	143	1440	11	55	155	110	85	3.9	6.9
F3SG-[]RE1520[]14	151	1520	13	65	165	100	90	4.1	7.2
F3SG-[]RE1600[]14	159	1600	13	65	165	105	90	4.4	7.5
F3SG-[]RE1680[]14	167	1680	13	65	165	110	95	4.6	7.9
F3SG-[]RE1760[]14	175	1760	13	65	165	115	95	4.8	8.2
F3SG-[]RE1840[]14	183	1840	13	65	165	115	95	5.0	8.5
F3SG-[]RE1920[]14	191	1920	15	75	175	110	100	5.2	8.8
F3SG-[]RE2000[]14	199	2000	15	75	175	115	100	5.4	9.1
F3SG-[]RE2080[]14	207	2080	15	75	175	115	105	5.6	9.4

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The net weight is the weight of an emitter and a receiver.
*3. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

F3SG-[]RE[][][][][]30

Model	Number of Beams	Protective Height [mm]	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
			ON → OFF	OFF (Syn- chronized) → ON	OFF (Not syn- chronized) → ON	Emitter	Receiver	Net *2	Gross *3
F3SG-[]RE0190[]30	8	190	5	25	125	40	50	0.6	2.0
F3SG-[]RE0270[]30	12	270	5	25	125	45	50	0.8	2.3
F3SG-[]RE0350[]30	16	350	5	25	125	50	50	1.0	2.6
F3SG-[]RE0430[]30	20	430	5	25	125	55	55	1.2	2.9
F3SG-[]RE0510[]30	24	510	5	25	125	60	55	1.4	3.2
F3SG-[]RE0590[]30	28	590	7	35	135	50	55	1.6	3.5
F3SG-[]RE0670[]30	32	670	7	35	135	55	55	1.8	3.8
F3SG-[]RE0750[]30	36	750	7	35	135	60	60	2.0	4.1
F3SG-[]RE0830[]30	40	830	7	35	135	65	60	2.2	4.4
F3SG-[]RE0910[]30	44	910	7	35	135	65	60	2.4	4.7
F3SG-[]RE0990[]30	48	990	7	35	135	70	60	2.6	5.0
F3SG-[]RE1070[]30	52	1070	7	35	135	75	60	2.8	5.3
F3SG-[]RE1150[]30	56	1150	7	35	135	80	65	3.0	5.6
F3SG-[]RE1230[]30	60	1230	7	35	135	85	65	3.3	5.9
F3SG-[]RE1310[]30	64	1310	7	35	135	85	65	3.5	6.2
F3SG-[]RE1390[]30	68	1390	9	45	145	75	65	3.7	6.5
F3SG-[]RE1470[]30	72	1470	9	45	145	80	65	3.9	6.8
F3SG-[]RE1550[]30	76	1550	9	45	145	80	70	4.1	7.1
F3SG-[]RE1630[]30	80	1630	9	45	145	85	70	4.3	7.4
F3SG-[]RE1710[]30	84	1710	9	45	145	85	70	4.5	7.7
F3SG-[]RE1790[]30	88	1790	9	45	145	90	70	4.7	8.0
F3SG-[]RE1870[]30	92	1870	9	45	145	95	75	4.9	8.3
F3SG-[]RE1950[]30	96	1950	9	45	145	95	75	5.1	8.6
F3SG-[]RE2030[]30	100	2030	9	45	145	100	75	5.3	8.9
F3SG-[]RE2110[]30	104	2110	9	45	145	100	75	5.5	9.2
F3SG-[]RE2190[]30	108	2190	11	55	155	90	75	5.7	9.5
F3SG-[]RE2270[]30	112	2270	11	55	155	95	80	5.9	9.8
F3SG-[]RE2350[]30	116	2350	11	55	155	95	80	6.1	10.1
F3SG-[]RE2430[]30	120	2430	11	55	155	95	80	6.3	10.4
F3SG-[]RE2510[]30	124	2510	11	55	155	100	80	6.5	10.7

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The net weight is the weight of an emitter and a receiver.
*3. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

LED Indicator Status

Emitter

Name of Indicator		Color	Illuminated	Blinking
Operating range	LONG	Green	Long range mode is selected	Lockout state due to Operating range selection setting error
Power	POWER	Green	Power is ON.	Error due to noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in emitter

Receiver

Name of Indicator		Color	Illuminated	Blinking
Top-beam-state	TOP	Blue	The top beam is unblocked	-
Internal error	INTERNAL	Red	-	Lockout state due to Internal error, or error due to abnormal power supply or noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in receiver
Stable-state	STB	Green	Incident light level is 170% or higher of ON threshold	Safety output is instantaneously turned OFF due to ambient light or vibration
ON/OFF	ON/OFF	Green	Safety output is in ON state	-
		Red	Safety output is in OFF state	Lockout state due to Safety Output error, or error due to abnormal power supply or noise
Communication	COM	Green	Synchronization between emitter and receiver is maintained	Lockout state due to Communication error, or error due to abnormal power supply or noise
Bottom-beam- state	BTM	Blue	The bottom beam is unblocked	-

F3SG-RA-01TS

Main unit

The [][][][] in the model names indicate the protective heights in millimeters.

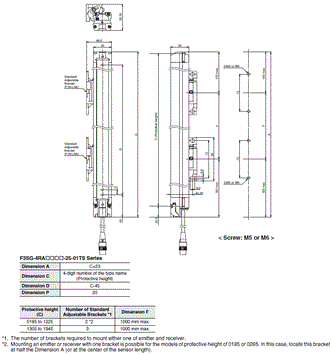

			F3SG-4RA[][][][]-25-01TS
Perform- ance	Object Resolution (Detection Capability)		Opaque objects
			25-mm dia.
	Beam Gap		20 mm
	Number of Beams		8 to 96
	Lens Size		6.0×5.0 (W×H) mm
	Protective Height		185 to 1945 mm (7.3 to 76.6 inch)
	Operating Range	Long	0.3 to 17.0 m (1 to 56 ft.)
		Short	0.3 to 5.0 m (1 to 16 ft.)
	Response Time	ON to OFF	8 to 13 ms *1
		OFF to ON	40 to 65ms *1
		*1.Response time when used in one segment system or in cascaded connection. Refer to the one segment system. Refer to Safety Light Curtain F3SG-4RA[][][][]-25-01TS Series User's Manual (ManNo.: Z380) for cascaded connection
	Effective Aperture Angle (EAA) (IEC 61496-2)	Type 4	±2.5° max., emitter and receiver at operating range of 3 m or greater
	Light Source		Infrared LEDs, Wavelength: 870 nm
	Startup Waiting Time		2 s max.
Elec- trical	Power Supply Voltage (Vs)		SELV/PELV 24 VDC±20% (ripple p-p 10% max.)
	Current Consumption		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Safety Outputs (OSSD)		Two PNP or NPN transistor outputs (PNP or NPN is selectable by DIP Switch.)
			Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension), Capacitive load of 1 μF max., Inductive load of 2.2 H max. *1 Leakage current of 1 mA max. (PNP), 2 mA max. (NPN) *2 *1.*The load inductance is the maximum value when the safety output frequently repeats ON and OFF. When you use the safety output at 4 Hz or less, the usable load inductance becomes larger. *2.*These values must be taken into consideration when connecting elements including a capacitive load such as a capacitor.
	Auxiliary Output		One PNP or NPN transistor output (Safety Output and homopolarity) Load current of 100 mA max., Residual voltage of 2 V max .
	Output Operation Mode	Safety Output	Light-ON (Safety output is enabled when the receiver receives an emitting signal.)
		Auxiliary Output	Reverse output of safety output
	Input Voltage	External device monitoring input (Lockout reset input)	PNP ON voltage: Vs-3 V to Vs (short circuit current: approx. 6.5 mA) * OFF voltage: 0 V to 1/2 Vs, or open (short circuit current: approx. 8.0 mA) * NPN ON voltage: 0 to 3 V (short circuit current: approx. 8.0 mA) * OFF voltage: 1/2 Vs to Vs, or open (short circuit current: approx. 6.5 mA) *
		Test input	24 V inactive setting ON voltage: 0 to 1.5 V or open (short circuit current: approx. 2.0 mA) OFF voltage: 9 V to Vs (short circuit current: approx. 2.5 mA) * 0 V inactive setting ON voltage: 9 V to Vs or open (short circuit current: approx. 2.5 mA) OFF voltage: 0 to 3 V (short circuit current: approx. 2.0 mA)
		* The Vs indicates a supply voltage value in your environment.
	Overvoltage Category (IEC 60664-1)		II
	Indicators		Refer to "Indicator".
	Protective Circuit		Output short protection, Power supply reverse polarity protection
	Insulation Resistance		20 MΩ or higher (500 VDC megger)
	Dielectric Strength		1,000 VAC, 50/60 Hz (1 min)
Func- tional	Mutual Interference Prevention (Scan Code)		This function prevents mutual interference in up to two F3SG-RA systems.
	Cascade Connection		Number of cascaded segments: 3 max. Total number of beams: 255 max. Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)
	Test Function		Self-test (at power-on, and during operation) External test (light emission stop function by test input)
	Safety-Related Functions		External device monitoring (EDM) Scan code selection PNP/NPN selection
Environ- mental	Ambient Temperature	Operating	-10 to 55°C (14 to 131°F) (non-icing)
		Storage	-25 to 70°C (-13 to 158°F)
	Ambient Humidity	Operating	35% to 85% (non-condensing)
		Storage	35% to 95%
	Ambient Illuminance		Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface
	Degree of Protection (IEC 60529)		IP65 and IP67
	Vibration Resistance (IEC 61496-1)		10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
	Shock Resistance (IEC 61496-1)		100 m/s2, 1000 shocks for all 3 axes
	Pollution Degree (IEC 60664-1)		Pollution Degree 3
Connec- tions	Power cable	Type of Connection	M12 connectors: 8-pin emitter and receiver, IP67 rated when mated, Cables pre-wired to the sensors
		Number of Wires	On emitter: 5-wire, On receiver: 8-wire
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm
	Cascading cable	Type of Connection	M12 connectors: 8-pin emitter and receiver, IP67 rated when mated
		Number of Wires	On emitter: 5-wire, On receiver: 8-wire
		Cable Length	0.2 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm
	Extension cable - Single- Ended Cable - Double- Ended Cable	Type of Connection	M12 connectors: 8-pin emitter and receiver, IP67 rated when mated
		Number of Wires	On emitter and receiver: 8-wire
		Cable Length	Refer to Lineup.
		Cable Diameter	6.6 mm
		Minimum Bending Radius	R36 mm
	Extension of Power Cable		100 m max.(Emitter/Receiver)
Material	Material		Housing: Aluminum alloy Cap: PBT resin Front window: Acrylic resin Cable: Oil-resistant PVC resin FE plate: Stainless steel
	Weight		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Included Accessories		Safety Precautions, Quick Installation Manual, Troubleshooting Guide Sticker,
Con- formity	Conforming standards		Refer to "Legislation and Standards".
	Type of ESPE (IEC 61496-1)		Type 4
	Performance Level (PL)/ Safety category		PL e/Category 4 (EN ISO 13849-1:2015)
	PFHD		1.1 × 10-8 (IEC 61508)
	Proof test interval TM		Every 20 years (IEC 61508)
	SFF		99% (IEC 61508)
	HFT		1 (IEC 61508)
	Classification		Type B (IEC 61508-2)

Bluetooth Communication Unit

Communication System	Bluetooth Version 3.0
Communication Profile	SPP (Serial Port Profile)
Transmission Distance	Approx. 10 m max. (Output power: Class 2) *

* It depends on use environment conditions.

List of Models/Response Time/Current Consumption/Weight

Model	Number of Beams	Pro- tective Height [mm]	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
			ON → OFF *2	OFF (Syn- chronized) → ON	OFF (Not synchro- nized) → ON	Emitter	Receiver	Net *3	Gross *4
F3SG-4RA0185-25-01TS	8	185	8	40	140	35	75	0.7	1.4
F3SG-4RA0265-25-01TS	12	265	8	40	140	35	75	0.9	1.6
F3SG-4RA0345-25-01TS	16	345	8	40	140	40	75	1.1	1.9
F3SG-4RA0425-25-01TS	20	425	8	40	140	45	75	1.3	2.2
F3SG-4RA0505-25-01TS	24	505	8	40	140	50	75	1.5	2.5
F3SG-4RA0585-25-01TS	28	585	8	40	140	50	75	1.7	2.7
F3SG-4RA0665-25-01TS	32	665	8	40	140	55	75	1.9	3.0
F3SG-4RA0745-25-01TS	36	745	8	40	140	60	80	2.1	3.3
F3SG-4RA0825-25-01TS	40	825	8	40	140	65	80	2.3	3.6
F3SG-4RA0905-25-01TS	44	905	13	65	165	50	80	2.5	3.8
F3SG-4RA0985-25-01TS	48	985	13	65	165	50	80	2.8	4.1
F3SG-4RA1065-25-01TS	52	1065	13	65	165	55	80	3.0	4.4
F3SG-4RA1145-25-01TS	56	1145	13	65	165	55	85	3.2	4.7
F3SG-4RA1225-25-01TS	60	1225	13	65	165	55	85	3.4	5.0
F3SG-4RA1305-25-01TS	64	1305	13	65	165	60	85	3.6	5.2
F3SG-4RA1385-25-01TS	68	1385	13	65	165	60	85	3.8	5.5
F3SG-4RA1465-25-01TS	72	1465	13	65	165	65	85	4.0	5.8
F3SG-4RA1545-25-01TS	76	1545	13	65	165	65	90	4.2	6.0
F3SG-4RA1625-25-01TS	80	1625	13	65	165	70	90	4.4	6.3
F3SG-4RA1705-25-01TS	84	1705	13	65	165	70	90	4.6	6.6
F3SG-4RA1785-25-01TS	88	1785	13	65	165	70	90	4.9	6.9
F3SG-4RA1865-25-01TS	92	1865	13	65	165	75	90	5.1	7.1
F3SG-4RA1945-25-01TS	96	1945	13	65	165	75	95	5.3	7.4

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.
*3. The net weight is the weight of an emitter and a receiver.
*4. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

Legislation and Standards

1. The F3SG-RA-01TS does not receive type approval provided by Article 44-2 of the Industrial Safety and Health Act of
      Japan. When using the F3SG-RA-01TS in Japan as a "safety system for pressing or shearing machines" prescribed in
      Article 42 of that law, the machine control system must receive type approval.

2. The F3SG-RA-01TS is electro-sensitive protective equipment (ESPE) in accordance with European Union (EU) Machinery
     Directive Index Annex V, Item 2.

3. EC Declaration of Conformity
     OMRON declares that the F3SG-RA-01TS is in conformity with the requirements of the following EC Directives:
     Machinery Directive 2006/42/EC
     EMC Directive 2014/30/EU

4. Conforming Standards
     (1) European standards
            EN61496-1 (Type 4 and Type 2 ESPE), EN 61496-2 (Type 4 and Type 2 AOPD), EN61508-1 through -4 (SIL 3 for
            Type 4 and SIL 1 for Type 2), EN ISO 13849-1:2015 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)
     (2) International standards
            IEC61496-1 (Type 4 and Type 2 ESPE), IEC61496-2 (Type 4 and Type 2 AOPD), IEC61508-1 through -4 (SIL 3 for
            Type 4 and SIL 1 for Type 2), ISO 13849-1:2015 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)
     (3) JIS standards
            JIS B 9704-1 (Type 4 and Type 2 ESPE), JIS B 9704-2 (Type 4 and Type 2 AOPD)
     (4) North American standards
            UL61496-1(Type 4 and Type 2 ESPE), UL61496-2(Type 4 and Type 2 AOPD), UL508, UL1998,
            CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

5. Third-Party Certifications
     (1) TÜV SÜD
            • EC Type-Examination certificate:
                EU Machinery Directive, Type 4 and Type 2 ESPE (EN61496-1), Type 4 and Type 2 AOPD (EN 61496-2)
            • Certificate:
                Type 4 and Type 2 ESPE (EN61496-1), Type 4 and Type 2 AOPD (EN61496-2), EN 61508-1 through -4 (SIL 3
                for Type 4 and SIL 1 for Type 2), EN ISO 13849-1:2015 (PL e, Category 4 for Type 4, and PL c, Category 2 for
                Type 2)
     (2) UL
            • UL Listing:
                Type 4 and Type 2 ESPE (UL61496-1), Type 4 and Type 2 AOPD (UL61496-2), UL508, UL1998, CAN/CSA C22.2
                No.14, CAN/CSA C22.2 No.0.8

6. Other Standards
      The F3SG-RA-01TS is designed according to the standards listed below. To make sure that the final system complies
      with the following standards and regulations, you are asked to design and use it in accordance with all other related
      standards, laws, and regulations. If you have any questions, consult with specialized organizations such as the body
      responsible for prescribing and/or enforcing machinery safety regulations in the location where the equipment is to
      be used.
       • European Standards: EN415-4, EN691-1, EN692, EN693, IEC 62046
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.212
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.217
       • American National Standards: ANSI B11.1 to B11.19
       • American National Standards: ANSI/RIA R15.06
       • Canadian Standards Association CSA Z142, Z432, Z434
       • SEMI Standards SEMI S2
       • Japan Ministry of Health, Labour and Welfare "Guidelines for Comprehensive Safety Standards of Machinery",
         Standard Bureau's Notification No. 0731001 dated July 31, 2007.rms and Conditions Agreement

Indicator

Emitter

Name of Indicator	Color	Illuminated	Blinking
TEST	Green	-	External Test is being performed
LONG	Green	Long range mode is selected	Lockout state due to DIP Switch setting error or Operating range selection setting error
POWER	Green	Power is ON.	Error due to noise
LOCKOUT	Red	-	Lockout state due to error in emitter

Receiver

Name of Indicator	Color	Illuminated	Blinking
TOP	Blue	The top beam is unblocked	Lockout state due to Cap error or Other sensor error
NPN	Green	NPN mode is selected by DIP Switch	-
CFG	Green	-	Lockout state due to Cascading Configuration error
EDM	Green	EDM input is in ON state *	Lockout state due to EDM error
INTERNAL	Red	-	Lockout state due to Internal error, or error due to abnormal power supply or noise
LOCKOUT	Red	-	Lockout state due to error in receiver
STB	Green	Incident light level is 170% or higher of ON-threshold	Safety output is instantaneously turned OFF due to ambient light or vibration.
ON/OFF	Green	Safety output is in ON state	-
	Red	Safety output is in OFF state	Lockout state due to Safety Output error, or error due to abnormal power supply or noise
COM	Green	Synchronization between emitter and receiver is maintained	Lockout state due to Communication error, or error due to abnormal power supply or noise
BTM	Blue	The bottom beam is unblocked	Lockout state due to DIP Switch setting error

* The LED is illuminated when the EDM input is in ON state regardless of wiring with EDM used or unused.

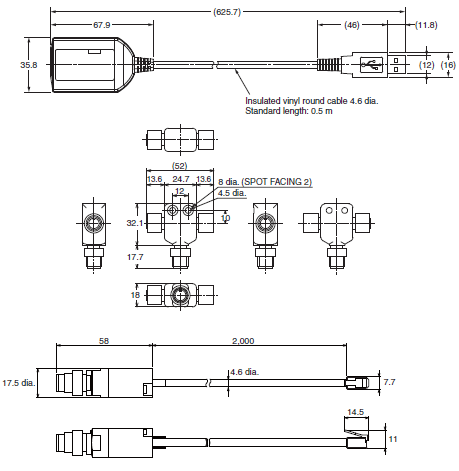

Interface Unit

Main unit	PC/AT compatible machine (computer that runs Microsoft Windows)
Operating system (OS)	Windows 7 (32-bit/64-bit), Windows 8, 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit)
Communication port	USB port ×1
Ambient temperature	Operating: -10 to 55°C, Storage: -30 to 70°C(non-icing and non-condensing)
Ambient humidity	Operating: 35% to 85%, Storage: 35% to 95%(non-condensing)

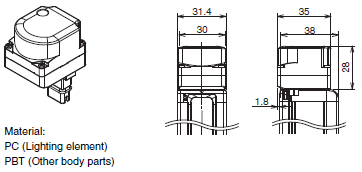

Lamp

Item	F39-LP
Applicable Sensor	F3SG-[]RA Series Safety Light Curtain (Receiver)
LED Light Color	Red/Orange/Green
Power Supply Voltage	24 VDC±20%, ripple p-p 10% max.(shares sensor's power supply)
Current Consumption	25 mA max. (shares sensor′s power supply.)
Ambient Temperature	Operating: -10 to 55°C, Storage: -25 to 70°C
Ambient Humidity	Operating: 35% to 85%, Storage: 35% to 95%
Vibration Resistance	10 to 55 Hz, Multiple amplitude of 0.7 mm,20 sweeps for all 3 axes
Shock Resistance	100 m/s2 , 1000 shocks for all 3 axes
Degree of Protection	IP65 and IP67(When attached to F3SG)
Type of Connection	Connectable to F3SG-RA's terminal connector
Material	Lighting element: PC, Other body parts: PBT
Weight	45 g (when packaged)

F3SG-RA-02TS

Main unit

The [][][][] in the model names indicate the protective heights in millimeters.

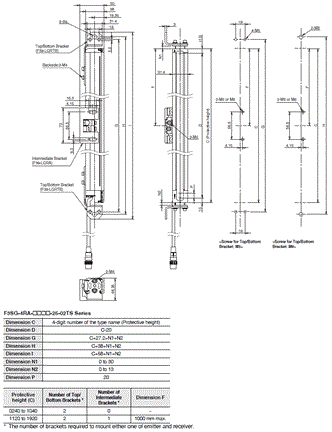

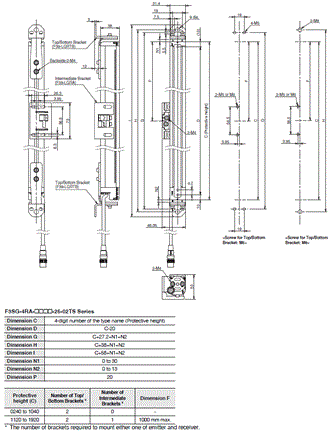

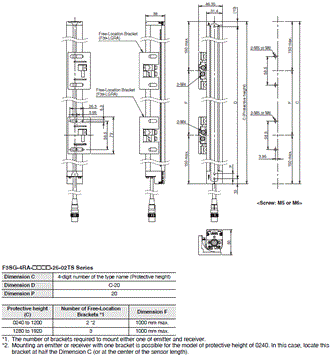

			F3SG-4RA[][][][]-25-02TS
Perform- ance	Object Resolution (Detection Capability)		Opaque objects
			25-mm dia.
	Beam Gap		20 mm
	Number of Beams		12 to 96
	Lens Size		6.0 × 5.0 (W × H) mm
	Protective Height		240 to 1920 mm
	Operating Range		0.3 to 17.0 m
	Response Time	ON to OFF	Normal mode: 8 to 13 ms *1
		OFF to ON	Normal mode: 40 to 90ms (synchronized), 140 to 190ms (not synchronized) *1
		*1.Response time when used in one segment system or in cascaded connection. Refer to the one segment system. Refer to Safety Light Curtain F3SG-4RA[][][][]-25-02TS Series User's Manual (ManNo.: Z391) for cascaded connection.
	EffectiveApertureAngle (EAA) (IEC 61496-2)		±2.5° max., emitter and receiver at operating range of 3 m or greater
	Light Source		Infrared LEDs, Wavelength: 870 nm
	Startup Waiting Time		2 s max.
Elec- trical	Power Supply Voltage (Vs)		SELV/PELV 24 VDC±20% (ripple p-p 10% max.)
	Current Consumption		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Safety Outputs (OSSD)		Two PNP transistor outputs
			Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension), Capacitive load of 1 μF max., Inductive load of 2.2 H max. *1 Leakage current of 1 mA max. *1. The load inductance is the maximum value when the safety output frequently repeats ON and OFF. When you use the safety output at 4 Hz or less, the usable load inductance becomes larger. *2. These values must be taken into consideration when connecting elements including a capacitive load such as a capacitor.
	Auxiliary Output		One PNP transistor output
			Load current of 100 mA max., Residual voltage of 2 V max .
	Output Operation Mode	Safety Output	Light-ON (Safety output is enabled when the receiver receives an emitting signal.)
		Auxiliary Output	Reverse output of safety output
	Input Voltage	External device monitoring input (Lockout reset input)	ON voltage: Vs-3 V to Vs (short circuit current: approx. 6.5 mA) * OFF voltage: 0 V to 1/2 Vs, or open (short circuit current: approx. 8.0 mA) *
		Test input	24 V Active setting: ON voltage: 9 V to Vs (short circuit current: approx. 2.5 mA) * OFF voltage: 0 V to 1.5 V or open (short circuit current: approx. 2.0 mA) 0 V Active setting: ON voltage: 0 V to 3 V (short circuit current: approx. 2.0 mA) OFF voltage: 9 V to Vs or open (short circuit current: approx. 2.5 mA) *
		* The Vs indicates a supply voltage value in your environment.
	Overvoltage Category (IEC 60664-1)		II
	Indicators		Refer to "Indicator".
	Protective Circuit		Output short protection, Power supply reverse polarity protection
	Insulation Resistance		20 MΩ or higher (500 VDC megger)
	Dielectric Strength		1,000 VAC, 50/60 Hz (1 min)
Func- tional	Mutual Interference Prevention (Scan Code)		This function prevents mutual interference in up to two F3SG-RA-25-02TS systems.
	Cascade Connection		Number of cascaded segments: 3 max. (only among F3SG-4RA[][][][]-25-02TS's)
			Total number of beams: 255 max. Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)
	Test Function		Self-test (at power-on, and during operation) External test (light emission stop function by test input)
	Safety-Related Functions		External device monitoring (EDM) Scan code selection
Environ- mental	Ambient Temperature	Operating	-10 to 55°C (14 to 131°F) (non-icing)
		Storage	-25 to 70°C (-13 to 158°F)
	Ambient Humidity	Operating	35% to 85% (non-condensing)
		Storage	35% to 95%
	Ambient Illuminance		Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface
	Degree of Protection (IEC 60529)		IEC 60529: IP65 and IP67, JIS C 0920 Annex 1: IP67G
	Vibration Resistance (IEC 61496-1)		10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
	Shock Resistance (IEC 61496-1)		100 m/s2, 1000 shocks for all 3 axes
	Pollution Degree (IEC 60664-1)		Pollution Degree 3
Connec- tions	Power cable	Type of Connection	M12 connectors: 8-pin emitter and receiver. Cables prewired to the sensors. IP67 and IP67G (JIS C 0920 Annex 1) * rated when mated. * F3SG-RA-25-02TS meets the degree of protection when it is correctly connected withan F39-JD[][]RA-[] Oil-Resistant extension cable.
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R36 mm
	Cascading cable	Type of Connection	M12 connectors: 8-pin emitter and receiver. IP67 rated when mated.
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	0.3 m
		Cable Diameter	6 mm
		Minimum Bending Radius	R5 mm
	F39-JD[]RA-[] Oil- Resistant cable - Single- Ended Cable	Type of Connection	M12 connectors: 8-pin emitter and receiver. Cables prewired to the sensors. IP67 and IP67G (JIS C 0920 Annex 1)* rated when mated. * F3SG-RA-25-02TS meets the degree of protection when it is correctly connected with the power cable. The degree of protection is not satisfied with the part where cable wires are uncovered.
		Number of Wires	Emitter: 5, Receiver: 8
		Cable Length	Refer to Lineup.
		Cable Diameter	6 mm
		Minimum Bending Radius	R36 mm
	Extension cable - Single- Ended Cable (F39-JD[]A) - Double- Ended Cable (F39-JD[]B)	Type of Connection	M12 connectors: 8-pin emitter and receiver. IP67 rated when mated.
		Number of Wires	Emitter: 8, Receiver: 8
		Cable Length	Refer to Lineup.
		Cable Diameter	6.6 mm
		Minimum Bending Radius	R36 mm
	Extension of Power Cable		100 m max. (Emitter/Receiver)
Material	Material		Housing: Aluminum alloy Cap: PBT resin Front window: Acrylic resin Cable: Fluororesin FE plate: Stainless steel
	Weight		Refer to "List of Models/Response Time/Current Consumption/Weight".
	Included Accessories		Safety Precautions, Quick Installation Manual, Troubleshooting Guide Sticker, End Cap (for switching External Test Input function)
Con- formity	Conforming standards		Refer to "Legislation and Standards".
	Performance Level (PL)/ Safety category		PL e/Category 4 (EN ISO 13849-1:2015)
	PFHD		1.1 × 10-8(IEC 61508)
	Proof test interval TM		Every 20 years (IEC 61508)
	SFF		99% (IEC 61508)
	HFT		1 (IEC 61508)
	Classification		Type B (IEC 61508-2)

Bluetooth Communication Unit

Communication System	Bluetooth Version 3.0
Communication Profile	SPP (Serial Port Profile)
Transmission Distance	Approx. 10 m max. (Output power: Class 2) *

* It depends on use environment conditions.

List of Models/Response Time/Current Consumption/Weight

Model	Number of Beams	Pro- tective Height [mm]	Response Time [ms] *1			Current Consumption [mA]		Weight [kg]
			ON → OFF *2	OFF (Syn- chronized) → ON	OFF (Not synchro- nized) → ON	Emitter	Receiver	Net *3	Gross *4
F3SG-4RA0240-25-02TS	12	240	8	40	140	35	75	0.7	1.6
F3SG-4RA0320-25-02TS	16	320	8	40	140	40	75	0.9	1.9
F3SG-4RA0400-25-02TS	20	400	8	40	140	45	75	1.1	2.1
F3SG-4RA0480-25-02TS	24	480	8	40	140	50	75	1.3	2.4
F3SG-4RA0560-25-02TS	28	560	8	40	140	50	75	1.5	2.7
F3SG-4RA0640-25-02TS	32	640	8	40	140	55	75	1.7	3.0
F3SG-4RA0720-25-02TS	36	720	8	40	140	60	80	1.9	3.2
F3SG-4RA0800-25-02TS	40	800	8	40	140	65	80	2.1	3.5
F3SG-4RA0880-25-02TS	44	880	13	65	165	50	80	2.3	3.8
F3SG-4RA0960-25-02TS	48	960	13	65	165	50	80	2.5	4.0
F3SG-4RA1040-25-02TS	52	1040	13	65	165	55	80	2.7	4.3
F3SG-4RA1120-25-02TS	56	1120	13	65	165	55	85	2.9	4.6
F3SG-4RA1200-25-02TS	60	1200	13	65	165	55	85	3.1	4.9
F3SG-4RA1280-25-02TS	64	1280	13	65	165	60	85	3.3	5.1
F3SG-4RA1360-25-02TS	68	1360	13	65	165	60	85	3.5	5.4
F3SG-4RA1440-25-02TS	72	1440	13	65	165	65	85	3.7	5.7
F3SG-4RA1520-25-02TS	76	1520	13	65	165	65	90	3.9	5.9
F3SG-4RA1600-25-02TS	80	1600	13	65	165	70	90	4.1	6.2
F3SG-4RA1680-25-02TS	84	1680	13	65	165	70	90	4.3	6.5
F3SG-4RA1760-25-02TS	88	1760	13	65	165	70	90	4.5	6.7
F3SG-4RA1840-25-02TS	92	1840	13	65	165	75	90	4.7	7.0
F3SG-4RA1920-25-02TS	96	1920	13	65	165	75	95	4.9	7.3

*1. The maximum speed of movement of a test rod up to which the detection capability is maintained is 2.0 m/s.
*2. The response times are values when Scan Code is set at Code B. The response times for Code A are 1 ms shorter than these values.
*3. The net weight is the weight of an emitter and a receiver.
*4. The gross weight is the weight of an emitter, a receiver, included accessories and a package.

Legislation and Standards

1. The F3SG-RA-02TS does not receive type approval provided by Article 44-2 of the Industrial Safety and Health Act of
     Japan. When using the F3SG-RA-02TS in Japan as a "safety system for pressing or shearing machines" prescribed in
     Article 42 of that law, the machine control system must receive type approval.

2. The F3SG-RA-02TS is electro-sensitive protective equipment (ESPE) in accordance with European Union (EU) Machinery
     Directive Index Annex V, Item 2.

3. EC/EU Declaration of Conformity
     OMRON declares that the F3SG-RA-02TS is in conformity with the requirements of the following EC/EU Directives:
     Machinery Directive 2006/42/EC
     EMC Directive 2014/30/EU

4. Conforming Standards
     (1) European standards
            EN61496-1 (Type 4 ESPE), EN 61496-2 (Type 4 AOPD), EN61508-1 through -4 (SIL 3),
            EN ISO 13849-1:2015 (PL e, Category 4)
     (2) International standards
            IEC61496-1 (Type 4 ESPE), IEC61496-2 (Type 4 AOPD), IEC61508-1 through -4 (SIL 3),
            ISO 13849-1:2015 (PL e, Category 4)
     (3) JIS standards
            JIS B 9704-1 (Type 4 ESPE), JIS B 9704-2 (Type 4 AOPD)
     (4) North American standards
            UL61496-1 (Type 4 ESPE), UL61496-2 (Type 4 AOPD), UL508, UL1998,
            CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

5. Third-Party Certifications
     (1) TÜV SÜD
            • EC Type-Examination certificate:
                EU Machinery Directive, Type 4 ESPE (EN61496-1), Type 4 AOPD (EN 61496-2)
            • Certificate:
                Type 4 ESPE (EN61496-1), Type 4 AOPD (EN61496-2), EN 61508-1 through -4 (SIL 3),
                EN ISO 13849-1:2015 (PL e, Category 4)
     (2) UL
            • UL Listing:
                Type 4 and ESPE (UL61496-1), Type 4 AOPD (UL61496-2), UL508, UL1998,
                CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

6. Other Standards
      The F3SG-RA-02TS is designed according to the standards listed below. To make sure that the final system complies
      with the following standards and regulations, you are asked to design and use it in accordance with all other related
      standards, laws, and regulations. If you have any questions, consult with specialized organizations such as the body
      responsible for prescribing and/or enforcing machinery safety regulations in the location where the equipment is to
      be used.
       • European Standards: EN415-4, EN691-1, EN692, EN693, IEC 62046
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.212
       • U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.217
       • American National Standards: ANSI B11.1 to B11.19
       • American National Standards: ANSI/RIA R15.06
       • Canadian Standards Association CSA Z142, Z432, Z434
       • SEMI Standards SEMI S2
       • Japan Ministry of Health, Labour and Welfare "Guidelines for Comprehensive Safety Standards of Machinery",
         Standard Bureau's Notification No. 0731001 dated July 31, 2007.rms and Conditions Agreement

Indicator

Emitter

Name of Indicator		Color	Illuminated	Blinking
Test	TEST	Green	-	External Test is being performed
Operating range	LONG	Green	Always illuminated	Lockout state due to Scan code setting error
Power	POWER	Green	Power is ON.	Error due to noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in emitter

Receiver

Name of Indicator		Color	Illuminated	Blinking
Top-beam-state	TOP	Blue	The top beam is unblocked	Lockout state due to Cap error or Other sensor error
PNP/NPN mode	NPN	Green	Always illuminated	-
Configuration	CFG	Green	-	Lockout state due to Parameter error or Cascading Configuration error
External device monitoring	EDM	Green	EDM input is in ON state *	Lockout state due to EDM error
Internal error	INTERNAL	Red	-	Lockout state due to Internal error, or error due to abnormal power supply or noise
Lockout	LOCKOUT	Red	-	Lockout state due to error in receiver
Stable-state	STB	Green	Incident light level is 170% or higher of ON-threshold	Safety output is instantaneously turned OFF due to ambient light or vibration
ON/OFF	ON/OFF	Green	Safety output is in ON state	-
		Red	Safety output is in OFF state	Lockout state due to Safety Output error, or error due to abnormal power supply or noise
Communication	COM	Green	Synchronization between emitter and receiver is maintained	Lockout state due to Communication error, or error due to abnormal power supply or noise
Bottom-beam state	BTM	Blue	The bottom beam is unblocked	Lockout state due to Scan code setting error

Note: TOP, CFG, LOCKOUT, STB and ON/OFF indicators are illuminated when the receiver of the F3SG-RA-02TS is in Setting mode.
* The EDM indicator is illuminated when the EDM input is in the ON state regardless of the use of the EDM function.

Interface Unit

Main Unit	PC/AT compatible machine (computer that runs Microsoft Windows)
Operating System (OS)	Windows 7 (32-bit/64-bit), Windows 8, 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit)
Communication Port	USB port ×1
Ambient Temperature	Operating: -10 to 55°C, Storage: -30 to 70°C (non-icing and non-condensing)
Ambient Humidity	Operating: 35% to 85%, Storage: 35% to 95% (non-condensing)

Lamp

Item	F39-LP
Applicable Sensor	F3SG-[]RA Series Safety Light Curtain (Receiver)
LED Light Color	Red/Green/Orange
Power Supply Voltage	24 VDC±20%, ripple p-p 10% max. (shares sensor’s power supply)
Current Consumption	25 mA max. (shares sensor’s power supply.)
Ambient Temperature	Operating: -10 to 55°C, Storage: -25 to 70°C
Ambient Humidity	Operating: 35% to 85%, Storage: 35% to 95%
Vibration Resistance	10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes
Shock Resistance	100 m/s2 , 1000 shocks for all 3 axes
Degree of Protection	IP65 and IP67 (When attached to F3SG)
Type of Connection	Connectable to F3SG-RA’s terminal connector
Material	Lighting element: PC, Other body parts: PBT
Weight	45 g (when packaged)

last update: November 1, 2018

OMRON F3SG-R Series catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
F3SG-R Series Catalog	F094-E1-10 [31303KB]	Nov 01, 201820181101	F3SG-R Series Catalog

OMRON F3SG-R Series dimension

• F3SG-RA Advanced type
• F3SG-RR Robust type
• F3SG-RE Easy type
• F3SG-RA-01TS
• F3SG-RA-02TS

last update: June 18, 2018

(Unit: mm)

F3SG-RA Advanced type

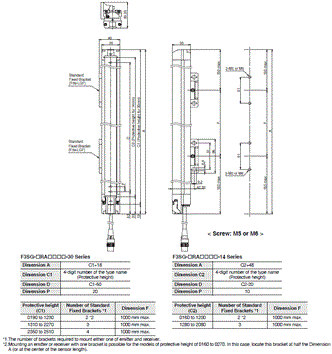

Mounted with Standard Fixed Brackets (F39-LGF)

Backside Mounting

Side Mounting

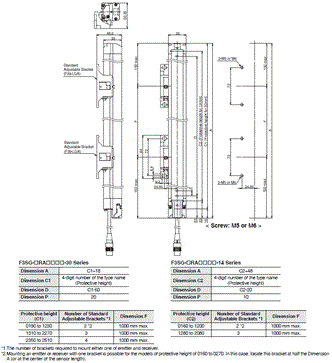

Mounted with Standard Adjustable Brackets (F39-LGA)

Backside Mounting

Side Mounting

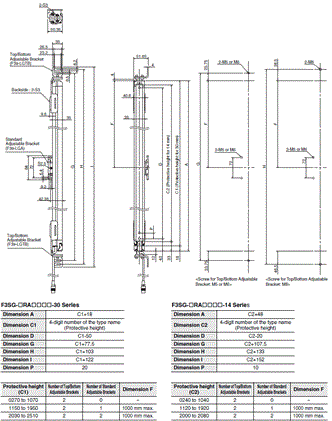

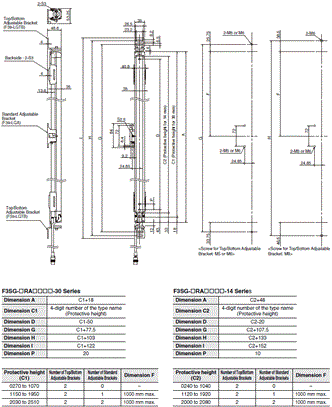

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)

Dimensions when using the F3SG-RA Series except the F3SG-4RA0190-30 and F3SG-4RA0160-14
Refer to Safety Light Curtain F3SG-R Series User's Manual for the dimensions when using the F3SG-4RA0190-30 and F3SG-4RA0160-14.

Backside Mounting

Side Mounting

Accessories

Sensor Mounting Brackets

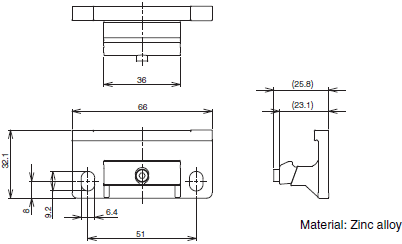

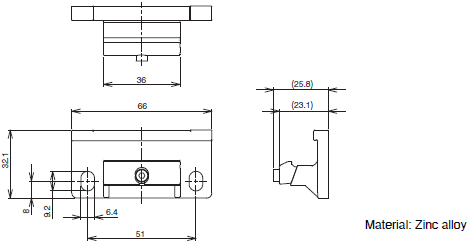

Standard Fixed Bracket (F39-LGF)

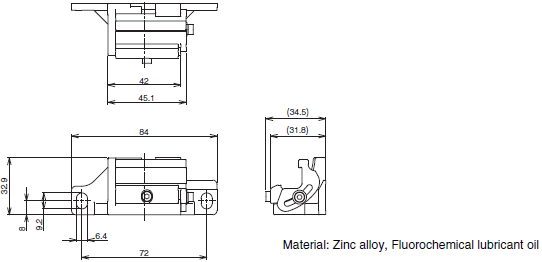

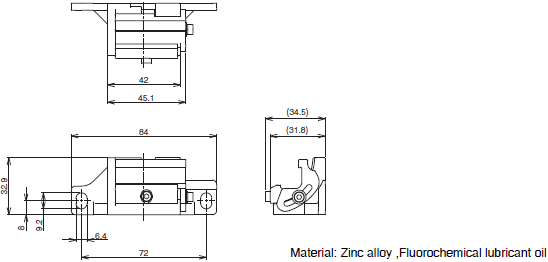

Standard Adjustable Bracket (F39-LGA, sold separately)

Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)

Safety light curtain connecting cable

Single-Ended Cable for Emitter (F39-JG[]A-L, sold separately)

Single-Ended Cable for Receiver (F39-JG[]A-D, sold separately)

Double-Ended Cable for Emitter: Cable for extension (F39-JG[]B-L, sold separately)

Double-Ended Cable for Receiver: Cable for extension (F39-JG[]B-D, sold separately)

Cascading Cable for Emitter (F39-JGR2W-L, sold separately)

Cascading Cable for Receiver (F39-JGR2W-D, sold separately)

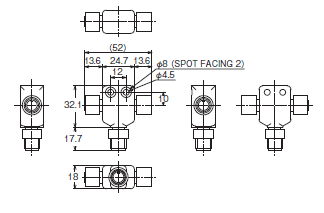

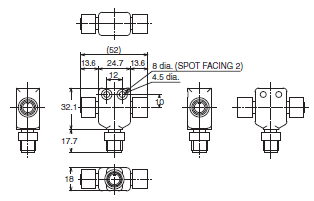

Y-Joint Plug/Socket Connector (F39-GCNY2, sold separately)

Interface Unit (F39-GIF, sold separately)

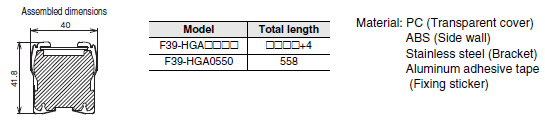

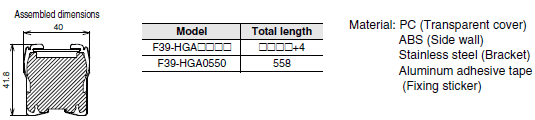

Spatter Protection Cover (F39-HGA, sold separately)

Bluetooth Communication Unit (F39-BT, sold separately)

Lamp and Bluetooth Communication Unit(F39-BTLP, sold separately)

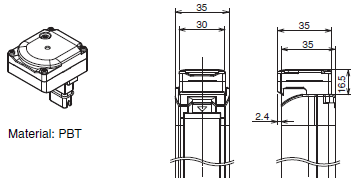

Lamp (F39-LP, sold separately)

F3SG-RR Robust type

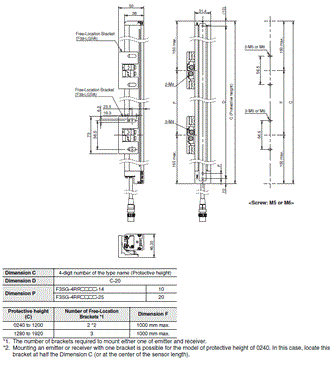

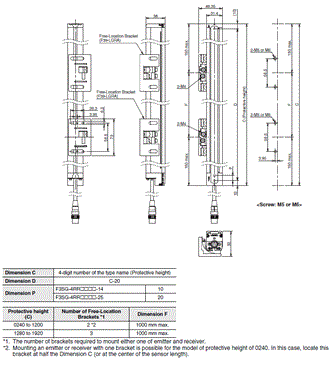

Mounted with Free-Location Brackets (F39-LGRA)

Backside Mounting

Side Mounting

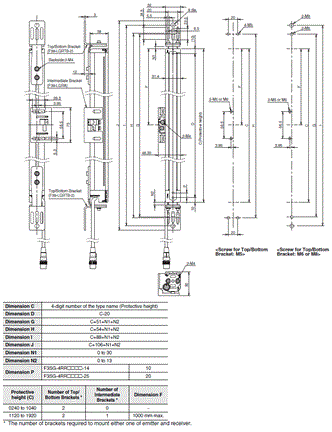

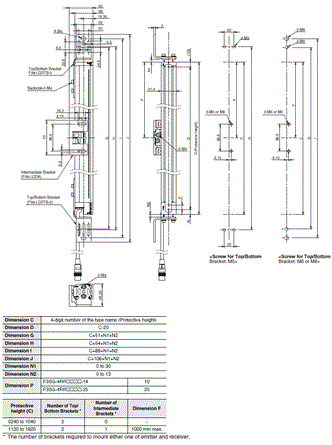

Mounted with Top/Bottom Brackets (F39-LGRTB) and Intermediate Bracket (F39-LGRA)

Backside Mounting

Side Mounting

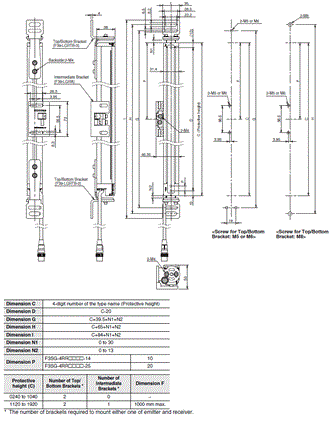

Mounted with Top/Bottom Brackets (F39-LGRTB-2) and Intermediate Bracket (F39-LGRA)

Backside Mounting

Side Mounting

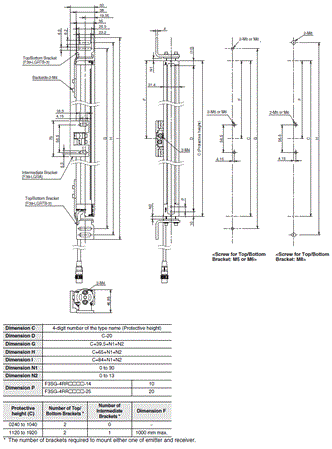

Mounted with Top/Bottom Brackets (F39-LGRTB-3) and Intermediate Bracket (F39-LGRA)

Backside Mounting

Side Mounting

Accessories

Sensor Mounting Brackets

Free-Location Bracket / Intermediate Bracket (F39-LGRA, sold separately)

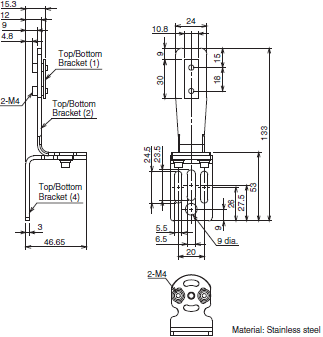

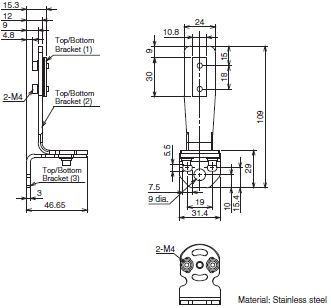

Top/Bottom Bracket (F39-LGRTB, sold separately)

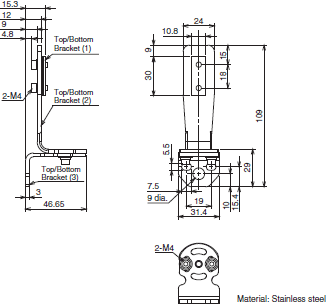

Top/Bottom Bracket (F39-LGRTB-2, sold separately)

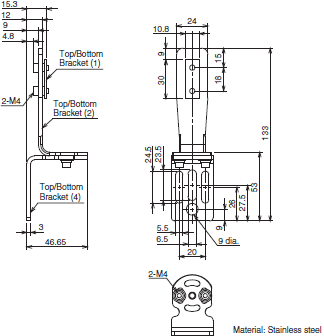

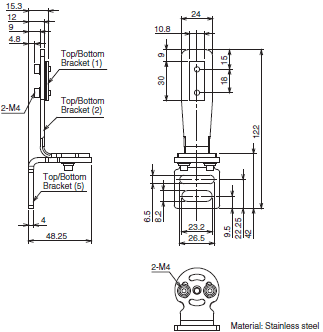

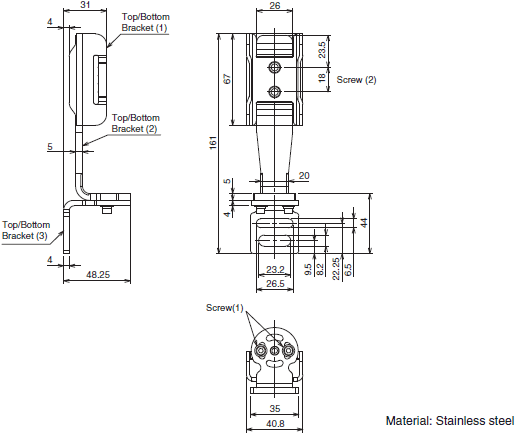

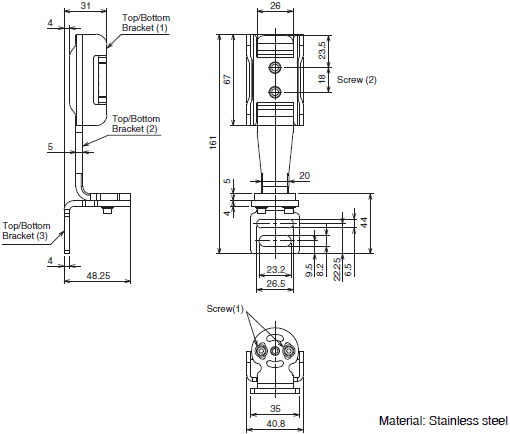

Top/Bottom Bracket (F39-LGRTB-3, sold separately)

Safety light curtain connecting cable

Single-Ended Cable for Emitter (Oil-Resistant Cable) (F39-JD[]RA-L, sold separately)

Single-Ended Cable for Receiver (Oil-Resistant Cable) (F39-JD[]RA-D, sold separately)

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)

Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

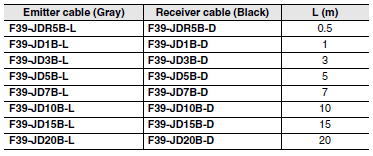

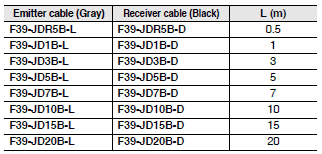

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)

Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)

Reduced Wiring Connector (F39-CN5, sold separately)

Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)

Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)

Interface Unit (F39-GIF-1, sold separately)

Bluetooth Communication Unit (F39-BT, sold separately)

Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately) Lamp (F39-LP, sold separately)

F3SG-RE Easy type

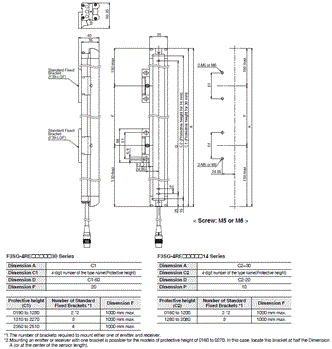

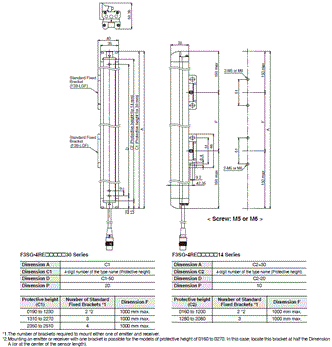

Mounted with Standard Fixed Brackets (F39-LGF)

Backside Mounting

Side Mounting

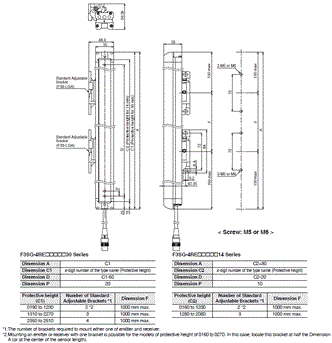

Mounted with Standard Fixed Brackets (F39-LGA)

Backside Mounting

Side Mounting

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)

Dimensions when using the F3SG-RE Series except the F3SG-4RE0190[]30 and F3SG-4RE0160[]14
Refer to Safety Light Curtain F3SG-R Series User's Manual for the dimensions when using the F3SG-4RE0190[]30 and F3SG-4RE0160[]14.

Backside Mounting

Side Mounting

Accessories

Sensor Mounting Brackets

Standard Fixed Bracket (F39-LGF)

Standard Fixed Bracket (F39-LGA, sold separately)

Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)

Safety light curtain connecting cable

Round Water-resistant Connector: Connector Connected to Cable, Socket on One Cable End (XS5F-D421-[]80-F, sold separately)

Round Water-resistant Connector: Connectors Connected to Cable, Socket and Plug on Cable Ends (XS5W-D421-[]81-F, sold separately)

Y-Joint Plug/Socket Connector (F39-GCNY1, sold separately)

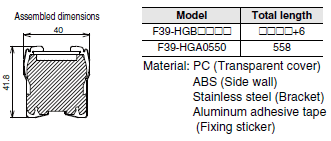

Spatter Protection Cover(F39-HGA/-HGB, sold separately)

F3SG-RA-01TS

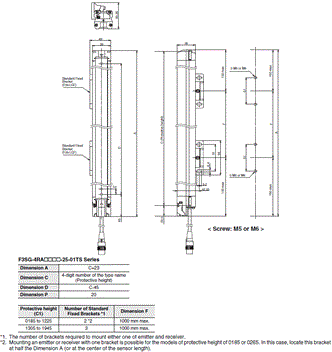

Mounted with Standard Fixed Brackets (F39-LGF)

Backside Mounting

Side Mounting

Mounted with Standard Adjustable Brackets (F39-LGA)

Backside Mounting

Side Mounting

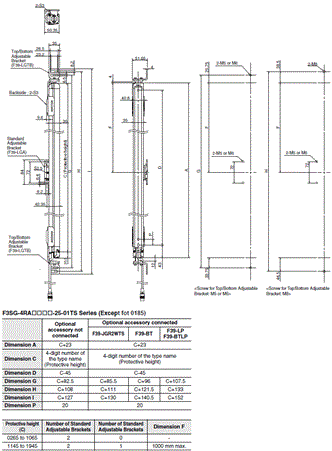

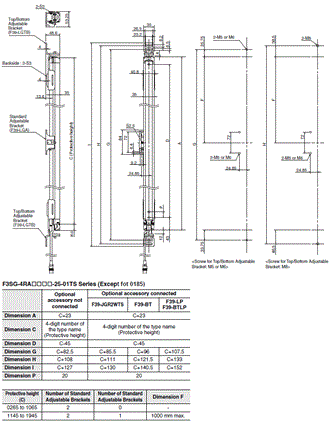

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)

Dimensions when using the F3SG-RA Series except the F3SG-4RA0185-25-01TS.
Refer to Safety Light Curtain F3SG-4RA[][][][]-25-01TS Series User's Manual for the dimensions when using the F3SG-4RA0185-25-01TS.

Backside Mounting

Side Mounting

Accessories

Sensor Mounting Brackets

Standard Fixed Bracket (F39-LGF, sold separately)

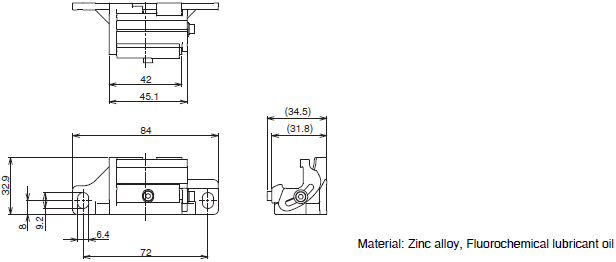

Standard Adjustable Bracket (F39-LGA, sold separately)

Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)

Safety light curtain connecting cable

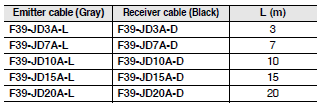

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)

Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)

Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)

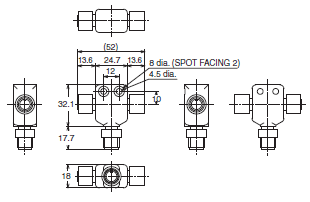

Reduced Wiring Connector (F39-CN5, sold separately)

Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)

Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)

Interface Unit (F39-GIF, sold separately)

Spatter Protection Cover (F39-HGA, sold separately)

Bluetooth Communication Unit (F39-BT, sold separately)

Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately)
Lamp (F39-LP, sold separately)

F3SG-RA-02TS

Mounted with Free-Location Brackets (F39-LGRA)

Backside Mounting

Side Mounting

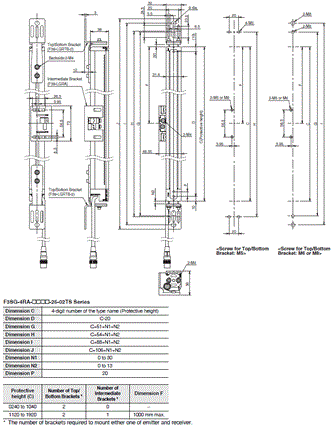

Mounted with Top/Bottom Brackets (F39-LGRTB) and Intermediate Bracket (F39-LGRA)

Backside Mounting

Side Mounting

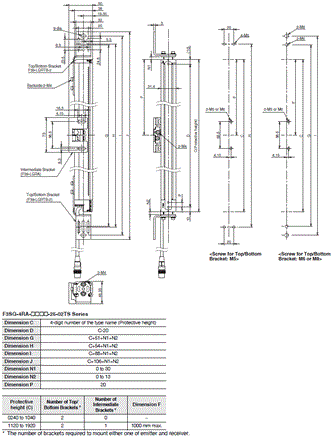

Mounted with Top/Bottom Brackets (F39-LGRTB-2) and Intermediate Bracket (F39-LGRA)

Backside Mounting

Side Mounting

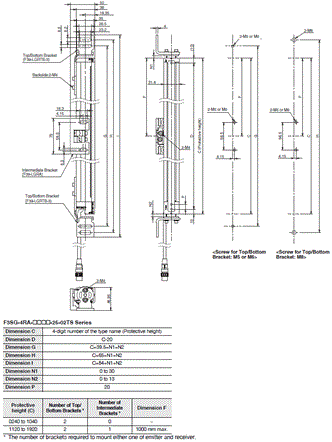

Mounted with Top/Bottom Brackets (F39-LGRTB-3) and Intermediate Bracket (F39-LGRA)

Backside Mounting

Side Mounting

Accessories

Sensor Mounting Brackets

Free-Location Bracket / Intermediate Bracket (F39-LGRA, sold separately

Top/Bottom Bracket (F39-LGRTB, sold separately)

Top/Bottom Bracket (F39-LGRTB-2, sold separately)

Top/Bottom Bracket (F39-LGRTB-3, sold separately)

Safety light curtain connecting cable

Single-Ended Cable for Emitter (Oil-Resistant Cable) (F39-JD[]RA-L, sold separately)

Single-Ended Cable for Receiver (Oil-Resistant Cable) (F39-JD[]RA-D, sold separately)

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)

Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)

Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)

Reduced Wiring Connector (F39-CN5, sold separately)

Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)

Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)

Interface Unit (F39-GIF-1, sold separately)

Bluetooth Communication Unit (F39-BT, sold separately)

Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately)
Lamp (F39-LP, sold separately)

last update: June 18, 2018

OMRON F3SG-R Series lineup

• F3SG-RA Advanced type
• F3SG-RR Robust type
• F3SG-RE Easy type
• F3SG-RA-01TS
• F3SG-RA-02TS

last update: November 1, 2018

F3SG-RA Advanced type

Main Units

Safety Light Curtain

Finger protection

Number of beams	Protective height (mm)	Model
15	160	F3SG-4RA0160-14
23	240	F3SG-4RA0240-14
31	320	F3SG-4RA0320-14
39	400	F3SG-4RA0400-14
47	480	F3SG-4RA0480-14
55	560	F3SG-4RA0560-14
63	640	F3SG-4RA0640-14
71	720	F3SG-4RA0720-14
79	800	F3SG-4RA0800-14
87	880	F3SG-4RA0880-14
95	960	F3SG-4RA0960-14
103	1040	F3SG-4RA1040-14
111	1120	F3SG-4RA1120-14
119	1200	F3SG-4RA1200-14
127	1280	F3SG-4RA1280-14
135	1360	F3SG-4RA1360-14
143	1440	F3SG-4RA1440-14
151	1520	F3SG-4RA1520-14
159	1600	F3SG-4RA1600-14
167	1680	F3SG-4RA1680-14
175	1760	F3SG-4RA1760-14
183	1840	F3SG-4RA1840-14
191	1920	F3SG-4RA1920-14
199	2000	F3SG-4RA2000-14
207	2080	F3SG-4RA2080-14

Hand and arm protection

Number of beams	Protective height (mm)	Model
8	190	F3SG-4RA0190-30
12	270	F3SG-4RA0270-30
16	350	F3SG-4RA0350-30
20	430	F3SG-4RA0430-30
24	510	F3SG-4RA0510-30
28	590	F3SG-4RA0590-30
32	670	F3SG-4RA0670-30
36	750	F3SG-4RA0750-30
40	830	F3SG-4RA0830-30
44	910	F3SG-4RA0910-30
48	990	F3SG-4RA0990-30
52	1070	F3SG-4RA1070-30
56	1150	F3SG-4RA1150-30
60	1230	F3SG-4RA1230-30
64	1310	F3SG-4RA1310-30
68	1390	F3SG-4RA1390-30
72	1470	F3SG-4RA1470-30
76	1550	F3SG-4RA1550-30
80	1630	F3SG-4RA1630-30
84	1710	F3SG-4RA1710-30
88	1790	F3SG-4RA1790-30
92	1870	F3SG-4RA1870-30
96	1950	F3SG-4RA1950-30
100	2030	F3SG-4RA2030-30
104	2110	F3SG-4RA2110-30
108	2190	F3SG-4RA2190-30
112	2270	F3SG-4RA2270-30
116	2350	F3SG-4RA2350-30
120	2430	F3SG-4RA2430-30
124	2510	F3SG-4RA2510-30

Accessories (Sold separately)

Safety light curtain connecting cable

Single-Ended Cable *

Appearance	Type	Cable length	Specifications	Model
	For emitter M12 connector (5-pin), 5 wires Color: Gray	3 m		F39-JG3A-L
		7 m		F39-JG7A-L
		10 m		F39-JG10A-L
		15 m		F39-JG15A-L
		20 m		F39-JG20A-L
	For receiver M12 connector (8-pin), 8 wires Color: Black	3 m		F39-JG3A-D
		7 m		F39-JG7A-D
		10 m		F39-JG10A-D
		15 m		F39-JG15A-D
		20 m		F39-JG20A-D

* A set of two Single-Ended Cables (one for emitter and one for receiver) is also available.
Model: Model number without the -L/-D at the end (F39-JG[]A)
Note: To extend the cable length to more than 20 m, add the F39-JG[]B Double-Ended Cable.

Double-Ended Cable *

For cable extension and simple wiring

Appearance	Type	Cable length	Specifications	Model
	For emitter M12 connector (5-pin) on both ends Color: Gray	0.5 m		F39-JGR5B-L
		1 m		F39-JG1B-L
		3 m		F39-JG3B-L
		5 m		F39-JG5B-L
		7 m		F39-JG7B-L
		10 m		F39-JG10B-L
		15 m		F39-JG15B-L
		20 m		F39-JG20B-L
	For receiver M12 connector (8-pin) on both ends Color: Black	0.5 m		F39-JGR5B-D
		1 m		F39-JG1B-D
		3 m		F39-JG3B-D
		5 m		F39-JG5B-D
		7 m		F39-JG7B-D
		10 m		F39-JG10B-D
		15 m		F39-JG15B-D
		20 m		F39-JG20B-D

* A set of two Double-Ended Cables (one for emitter and one for receiver) is also available.
  Model: Model number without the -L/-D at the end (F39-JG[]B)
Note: To extend the cable length to more than 20 m, add the F39-JG[]B Double-Ended Cable to the F39-JG[]A Single-
         Ended Cable.
         To extend the cable length to more than 40 m, add several Double-Ended Cables to the Single-Ended Cable.
         Example: To extend the cable length to 50 m, connect two F39-JG20B (20 m) cables and one F39-JG10A (10 m)
         cable.

Connection example

Y-Joint Plug/Socket Connector for F3SG-4RA[][][][]-14/-4RA[][][][]-30

For reduced wiring

Appearance	Type	Cable length	Specifications	Model
	M12 connectors. Used for reduced wiring.	0.5 m		F39-GCNY2

* Order the cable for emitter (end of model: -L) and the cable for receiver (end of model: -D).

Cascading Cable (2 cables per set, for emitter and receiver)

Appearance	Specifications	Cable length	Specifications	Model
	Emitter cable: Cap (5-pin), M12 connector (5-pin) Receiver cable: Cap (8-pin), M12 connector (8-pin)	0.2 m		F39-JGR2W

Note: The Double-Ended Cable (up to 10 m: F39-JG10B) can be added to extend the cable length between the series-connected sensors.
Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2W) and power cable)

Connection example

Sensor Mounting Brackets

Appearance	Specification	Application	Model
	Standard Fixed Bracket	Bracket to mount the F3SG-R. Side mounting and backside mounting possible. (This is included as a standard accessory with the product. It comes as a set of two Brackets. Refer to note *1 for the number of sets provided with each model.)	F39-LGF
	Standard Adjustable Bracket	Bracket to mount the F3SG-R. Beam alignment after mounting possible. The angle adjustment range is ±15°. Side mounting and backside mounting possible. (Sold separately as a set of two Brackets. Refer to note *1 for the number of sets required for each model.)	F39-LGA
	Top/Bottom Adjustable Bracket *2	Bracket to mount the F3SG-R. Use this bracket at the top and bottom positions of the F3SG-R. Beam alignment after mounting possible. The angle adjustment range is ±22.5°. Side mounting and backside mounting possible. (Sold separately. 4 brackets per set.)	F39-LGTB
	Top/Bottom Adjustable Bracket *2 (For user-made mounting part)	Top/Bottom Adjustable Bracket without a bracket to mount to the wall. Use the user's own wall mounting part to suit the machine. (Sold separately. 4 brackets per set.)	F39-LGTB-1

*1. [for F3SG-4RA[][][][]-14]
      - Protective height of 0160 to 1200: 2 sets, Protective height of 1280 to 2080: 3 sets
      [for F3SG-4RA[][][][]-30]
      - Protective height of 0190 to 1230: 2 sets, Protective height of 1310 to 2270: 3 sets, Protective height of 2350 to
         2510: 4 sets
*2. Top/Bottom Adjustable Bracket cannot be used with the Standard Fixed Bracket. Use with the Standard Adjustable
      Bracket.
      Using Top/Bottom Adjustable Brackets with Standard Adjustable Brackets
      F3SG-4RA[][][][]-14:
        Protective height of 1040 or less:
          The Standard Adjustable Bracket is not required.
          Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)).
        Protective height of 1120 to 1920:
          Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 1 set of Standard Adjustable
          Brackets (F39-LGA).
        Protective height of 2000 to 2080:
          Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 2 sets of Standard Adjustable
          Brackets (F39-LGA).
      F3SG-4RA[][][][]-30:
        Protective height of 1070 or less:
          The Standard Adjustable Bracket is not required.
          Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)).
        Protective height of 1150 to 1950:
          Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 1 set of Standard Adjustable
          Brackets (F39-LGA).
        Protective height of 2030 to 2510:
          Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 2 sets of Standard Adjustable
          Brackets (F39-LGA).

Interface units and configuration tool SD Manager 2

Appearance	Type	Specifications	Model
	SD Manager 2	The Configuration Tool SD Manager 2 is available to download from our website at http://www.ia.omron.com/f3sg-r_tool. To change the settings of the F3SG-RA using SD Manager 2, it is necessary to set the receiver's two DIP switches No. 8 to ON.	-
	Interface Unit	F39-GIF interface unit to connect the F3SG-RA receiver to a USB port of the PC Accessories: 0.3-m Dedicated Cable 1 (1), 2-m Dedicated Cable 2 (1), Instruction Manual	F39-GIF
	Bluetooth Communication Unit	F39-BT bluetooth unit to enable bluetooth on the F3SG-RA IP67 rated when mated.	F39-BT

Lamp

Appearance	Type	Specifications	Model
	Lamp unit	The lamp unit can be connected to a receiver and turned ON based on the operation of F3SG-RA/RR. The lamp can indicate red, orange, and green colors, to which three different states can be assigned. IP67 rated when mated.	F39-LP
	Lamp and Bluetooth Communication Unit		F39-BTLP

End Cap

Appearance	Specifications	Model
	Housing color: Black For both emitter and receiver (Attached to the F3SG-RA. The End Cap can be purchased if lost.) IP67 rated when mated.	F39-CNM

Laser Pointer for F3SG-R

Appearance	Specifications	Model
	The laser pointer is attached on the optical surface of the F3SG-R to help coarse adjustment of beams.	F39-PTG

Spatter Protection Cover (2 covers per set, one for emitter and one for receiver)

Spatter Protection Covers include mounting brackets.
For Safety Light Curtain models of the protective height of 2,000 mm or longer, use two Spatter Protection Covers of different lengths.

Appearance	Safety Light Curtain Model		Model
	Finger protection	Hand and arm protection
	F3SG-4RA0160-14	F3SG-4RA0190-30	F39-HGA0200
	F3SG-4RA0240-14	F3SG-4RA0270-30	F39-HGA0280
	F3SG-4RA0320-14	F3SG-4RA0350-30	F39-HGA0360
	F3SG-4RA0400-14	F3SG-4RA0430-30	F39-HGA0440
	F3SG-4RA0480-14	F3SG-4RA0510-30	F39-HGA0520
	F3SG-4RA0560-14	F3SG-4RA0590-30	F39-HGA0600
	F3SG-4RA0640-14	F3SG-4RA0670-30	F39-HGA0680
	F3SG-4RA0720-14	F3SG-4RA0750-30	F39-HGA0760
	F3SG-4RA0800-14	F3SG-4RA0830-30	F39-HGA0840
	F3SG-4RA0880-14	F3SG-4RA0910-30	F39-HGA0920
	F3SG-4RA0960-14	F3SG-4RA0990-30	F39-HGA1000
	F3SG-4RA1040-14	F3SG-4RA1070-30	F39-HGA1080
	F3SG-4RA1120-14	F3SG-4RA1150-30	F39-HGA1160
	F3SG-4RA1200-14	F3SG-4RA1230-30	F39-HGA1240
	F3SG-4RA1280-14	F3SG-4RA1310-30	F39-HGA1320
	F3SG-4RA1360-14	F3SG-4RA1390-30	F39-HGA1400
	F3SG-4RA1440-14	F3SG-4RA1470-30	F39-HGA1480
	F3SG-4RA1520-14	F3SG-4RA1550-30	F39-HGA1560
	F3SG-4RA1600-14	F3SG-4RA1630-30	F39-HGA1640
	F3SG-4RA1680-14	F3SG-4RA1710-30	F39-HGA1720
	F3SG-4RA1760-14	F3SG-4RA1790-30	F39-HGA1800
	F3SG-4RA1840-14	F3SG-4RA1870-30	F39-HGA1880
	F3SG-4RA1920-14	F3SG-4RA1950-30	F39-HGA1960
	F3SG-4RA2000-14	F3SG-4RA2030-30	F39-HGA1480
			F39-HGA0550
	F3SG-4RA2080-14	F3SG-4RA2110-30	F39-HGA1560
			F39-HGA0550
	-	F3SG-4RA2190-30	F39-HGA1640
			F39-HGA0550
	-	F3SG-4RA2270-30	F39-HGA1720
			F39-HGA0550
	-	F3SG-4RA2350-30	F39-HGA1800
			F39-HGA0550
	-	F3SG-4RA2430-30	F39-HGA1880
			F39-HGA0550
	-	F3SG-4RA2510-30	F39-HGA1960
			F39-HGA0550

Note:
1. The operating range of the Safety Light Curtain attached with the product is 10% shorter than the rating.
2. The product extends over the DIP Switch cover of the Safety Light Curtain. Be sure to use the product only after all required settings are made to the DIP Switch.

Test Rod

Diameter	Model
14 mm dia.	F39-TRD14
30 mm dia.	F39-TRD30

F3SG-RR Robust type

Main Units

Safety Light Curtain

Finger protection

Number of beams	Protective height (mm)	Model
23	240	F3SG-4RR0240-14
31	320	F3SG-4RR0320-14
39	400	F3SG-4RR0400-14
47	480	F3SG-4RR0480-14
55	560	F3SG-4RR0560-14
63	640	F3SG-4RR0640-14
71	720	F3SG-4RR0720-14
79	800	F3SG-4RR0800-14
87	880	F3SG-4RR0880-14
95	960	F3SG-4RR0960-14
103	1040	F3SG-4RR1040-14
111	1120	F3SG-4RR1120-14
119	1200	F3SG-4RR1200-14
127	1280	F3SG-4RR1280-14
135	1360	F3SG-4RR1360-14
143	1440	F3SG-4RR1440-14
151	1520	F3SG-4RR1520-14
159	1600	F3SG-4RR1600-14
167	1680	F3SG-4RR1680-14
175	1760	F3SG-4RR1760-14
183	1840	F3SG-4RR1840-14
191	1920	F3SG-4RR1920-14

Hand and arm protection

Number of beams	Protective height (mm)	Model
12	240	F3SG-4RR0240-25
16	320	F3SG-4RR0320-25
20	400	F3SG-4RR0400-25
24	480	F3SG-4RR0480-25
28	560	F3SG-4RR0560-25
32	640	F3SG-4RR0640-25
36	720	F3SG-4RR0720-25
40	800	F3SG-4RR0800-25
44	880	F3SG-4RR0880-25
48	960	F3SG-4RR0960-25
52	1040	F3SG-4RR1040-25
56	1120	F3SG-4RR1120-25
60	1200	F3SG-4RR1200-25
64	1280	F3SG-4RR1280-25
68	1360	F3SG-4RR1360-25
72	1440	F3SG-4RR1440-25
76	1520	F3SG-4RR1520-25
80	1600	F3SG-4RR1600-25
84	1680	F3SG-4RR1680-25
88	1760	F3SG-4RR1760-25
92	1840	F3SG-4RR1840-25
96	1920	F3SG-4RR1920-25

Accessories (Sold separately)

Safety light curtain connecting cable

Single-Ended Cable (Oil-Resistant Cable)

Appearance	Type	Cable length	Specifications	Model
	For emitter M12 connector (8-pin), 5 wires Color: Gray	3 m	IP67 and IP67G (JIS C 0920 Annex 1) * rated when mated. * F3SG-RR meets the degree of protection when this cable is correctly connected with the power cable of the F3SG-RR. The degree of protection is not satisfied with the part where cable wires are uncovered.	F39-JD3RA-L
		7 m		F39-JD7RA-L
	For receiver M12 connector (8-pin), 8 wires Color: Black	3 m		F39-JD3RA-D
		7 m		F39-JD7RA-D

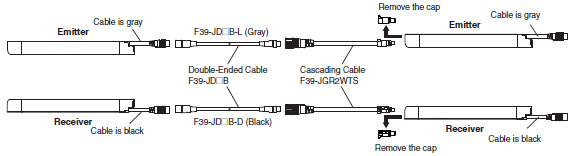

Note: To extend the cable length to more than 7 m, add the F39-JD[]B Double-Ended Cable.
When the Double-Ended Cable is used, protect it from cutting oil.

Single-Ended Cable (2 cables per set, one for emitter and one for receiver) *
