Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel *1 concept for the specifications of products used in control panels.
*1 Value Design for Panel
Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.
1. Alarms do not occur before equipment is damaged.
2. Protection is necessary because of poor power supply quality
overseas.
3. Preventing excessive temperature increases in heaters is
necessary.
4. Control panels for electrode-based water level control must
be downsized.
5. Measuring and Monitoring Relays that conform to international
safety standards are necessary.
[Input signal*] A voltage, current, temperature (thermocouple or platinum resistance thermometer), or water level
(electrode) can be input.
[Alarm output] You can select a relay or transistor output.
*There are different models for different inputs.
*According to OMRON investigation in November 2015.
The operating frequency of Measuring and Monitoring Relays is low, which means the surfaces of relay contacts can deteriorate and reduces reliability. Particularly for microcomputer board and PLC inputs, a microcurrent of 5 mA or less for switching reliability is required, making transistor outputs superior.
A lower power consumption means that internal heat generation is suppressed, which enables side-by-side mounting.
• The slim body is only 17.5 mm wide to enable control panel downsizing.
• To simplify wiring, Push-In Plus terminal blocks are positioned at the front.
• To simplify changing settings, the setting switches were placed on the front.
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
You can insert wires with pin terminals or ferrules, or you can also insert solid wires or stranded wires.
[Application] Ideal for water level detection and control in tanks (e.g., water processing and circulation equipment).
[Features] (1) The slim body helps you downsize control panels.
(2) Long-awaited models with long-life transistor outputs.
(3) ON-delay timer built in to eliminate contact chattering.
*When Holding Electrodes Are Not Used
last update: April 01, 2016
If you have just landed here, this product OMRON K8DT-LS Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the K8DT-LS We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON K8DT-LSPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R88M-K, R88D-KT G5-series AC Servomotors/Servo Drives with General-purpose Pulse Train or Analog ...
ZS Series Smart Sensors 2D CMOS Laser Type/Features
MK-S(X) Power Relays/Features
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Features
S8VK-X Switch Mode Power Supply (60/120/240/480-W Models)/Features
last update: April 01, 2016

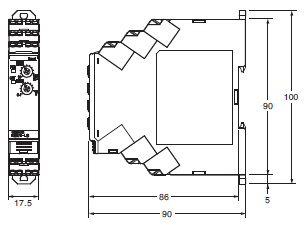

K8DT-LS
Y92A-D1A

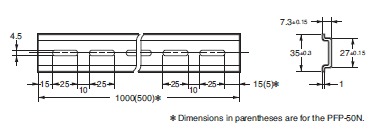

PFP-100N
PFP-50N
last update: April 01, 2016
last update: April 3, 2017
Power supply voltage | K8DT-LS1[]D: 24 VAC 50/60 Hz, 24 VDC K8DT-LS1[]A: 100 to 240 VAC 50/60 Hz |
---|---|
Voltage across electrodes | 5 V p-p (Approx. 20 Hz) |
Power consumption | 24 VAC/DC: 1.8 VA/1 W max. 100 to 240 VAC: 2.5 VA max. |
Rated insulation voltage | 253 VAC |
Operating resistance | 10 to 100 kΩ (variable) |
Reset resistance | 250 kΩ max. |
Response time | Approx. 0.1 to 10 s (variable) |
Length of cable | 100 m max. (fully insulated 3-core 0.75-mm2 cabtyre cable, 600 V) |
Indicators | power PWR: Green, output (OUT): Yellow |
Output form | Relay Output: SPDT contact Transistor Output: 1 |
Output contact ratings | Rated load 5 A at 250 VAC (Resistive load) 5 A at 30 VDC (Resistive load) 1 A at 250 VAC (Inductive load) 0.2 A at 48 VDC (Inductive load) Minimum load: 5 VDC, 10 mA (reference values) Mechanical life: 10 million operations min. Electrical life: 5 A at 250 VAC or 30 VDC: 50,000 operations 3 A at 250 VAC or 30 VDC: 100,000 operations |
Transistor output ratings | Rated voltage: 24 VDC (maximum voltage: 26.4 VDC) Maximum current: 50 mA DC |
Ambient operating temperature | -20 to 60°C (with no condensation or icing) |
Storage temperature | -25 to 65°C (with no condensation or icing) |
Ambient humidity | 25% to 85% RH (with no condensation) |
Storage humidity | 25% to 85% RH (with no condensation) |
Altitude | 2,000 m max. |
Applicable wires | Stranded wires, solid wires, or ferrules |
Applicable wire size | 0.25 to 1.5 mm2 (AWG24 to AWG16) |
Wire insertion force | 8 N max. for AWG20 wire |
Screwdriver insertion force | 15 N |
Wire stripping length | 8 mm |
Ferrule length | 8 mm |
Recommended flatblade screwdriver | XW4Z-00B (Omron) SZF 0.4 × 2.5 (Phoenix Contact) 210-719 (Wago) SDI 0.4 × 2.5 × 75 (Weidmuller) |
Current capacity | 10 A (per pole) |
Number of insertions | 50 times |
Case color | N1.5 |
Case material | PC, UL 94 V-0 |
Weight | Approx. 100 g |
Mounting | Mounts to DIN Track, or screw mounting |
Dimensions | 17.5 × 90 × 90 mm (W×D×H) |
Operating voltage range | 85% to 110% of rated voltage | |
---|---|---|
Applicable standards | Approved standards | EN 61010-1 Installation environment: pollution level 2, Overvoltage category II |
EMC | EN 61326-1 * | |
Safety standards | UL 61010-1 (Listing) Korean Radio Waves Act (Act 10564), CCC: GB14048.5 | |
Insulation resistance | 20 MΩ min. Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals | |
Dielectric strength | 3,000 VAC for 1 min Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals | |
Impulse withstand voltage | 6 kV (between live terminals and exposed, non-charged metal parts) | |
Noise immunity | Square-wave noise of 1-μs/100-ns pulse width with 1-ns rise time 100 to 240 VAC: 1,500 V power supply terminal common/normal mode 24 VAC: 1,500 V power supply terminal common/normal mode 24 VDC: 480 V power supply terminal common | |
Vibration resistance | Frequency: 10 to 55 Hz, 0.35-mm single amplitude 10 sweeps of 5 min each in X,Y, and Z directions | |
Shock resistance | 100 m/s2, 3 times each in 6 directions along 3 axes | |
Degree of protection | Terminals: IP20 |
* Industrial Electromagnetic Environment (EN/IEC 61326-1, Table 2)
last update: April 3, 2017
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | N205-E1-01 [3168KB] | Jul 10, 201720170710 | K8DT-LS Data Sheet |
![]() | N210-E1-01 [5229KB] | Oct 11, 201620161011 | K8DT Brochure |
![]() | Y218-E1-03 [13592KB] | Oct 02, 201720171002 | Innovation in Control Panel Building |
![]() | N217-E1-01 [2428KB] | Jun 12, 201720170612 | Device Selection Guide for Water Level Control Applications |
![]() | N222-E1-01 [1649KB] | Jun 01, 201820180601 | Measuring and Monitoring Relays Application Guide |
last update: September 01, 2016
Power supply voltage | Output | Model |
---|---|---|
24 VAC/DC | Relay: SPDT contact output | K8DT-LS1CD |
Transistor | K8DT-LS1TD | |
100 to 240 VAC | Relay: SPDT contact output | K8DT-LS1CA |
Transistor | K8DT-LS1TA |
Appearance | Model |
---|---|
![]() | Y92A-D1A |
Application | For generalpurpose use, such as water supply lines | For areas with limited space | For liquids with low resistance | When mounting strength is required |
---|---|---|---|---|
Model | PS-3S/-4S/-5S | PS-31 SUS304, 300 mm | BF-1 | BF-3/-5 |
Appearance | ![]() | ![]() | ![]() | ![]() |
Application | For resistance to high-temperature or high-pressure liquids | For resistance against corrosion | For installation at long distances from the liquid level |
---|---|---|---|
Model | BS-1 | BS-1T | PH-1/-2 |
Appearance | ![]() | ![]() | ![]() |
Electrode Rods are sets with the connection nuts, lock nuts, and tightening screws.
Application | Purified water service, industrial water, and sewage | Purified water service, industrial water, sewage, and weak alkaline solutions |
---|---|---|
Model | F03-60 SUS304 | F03-60 SUS316 |
Item | Model |
---|---|
Protective Cover (Electrode Holders for the PS or BF Series) ![]() | F03-11 |
Mounting Piece (Electrode Holder for the PS Series) ![]() | F03-12 |
Separator (to prevent contact between electrodes)![]() | F03-14 1P (one pole) F03-14 3P (three poles) F03-14 5P (five poles) |
