Various software components help reduce programming time

The Sysmac Library is a collection of software functional components that can be used in programs for the NJ/NX Machine Automation Controllers or Industrial PC Platform NY IPC Machine Controller.
Packed with Omron’s rich technical know-how on control programs, the Sysmac Library makes advanced control easy. Install the Sysmac Library to use it in the Sysmac Studio.

Components for various devices

Omron offers Function Blocks for a wide range of applications: advanced control such as vibration suppression and temperature control, motion control such as PID feedforward, and connection to servo drives or sensors.

Note. For controllers and versions that can be used for the Sysmac Library, refer to the Version Information.

[To production engineers]
Advanced control

Vibration suppression

Vibration suppression during and after high-speed material handling prevents vibration, slides, and spilling, significantly reducing machine cycle time.

Temperature control

In-furnace temperature variations can be reduced (temperature uniformity control), and the temperature can be distributed unevenly (temperature gradient control). A rapid increase in the temperature (rapid temperature increase) without overshooting stabilizes quality and reduces cycle time.

[To production engineers]
Various motion control

Easy access to connected devices

Integration of the controller, EtherCAT, and Sysmac Library makes various motion control possible.

[To maintenance engineers]
Productivity improvement

Device operation monitoring

You can easily monitor devices such as air cylinders, sensors, and servo systems that often cause intermittent stoppages. Detecting deterioration over time or errors of devices prevents machines from stopping suddenly in advance, improving operating efficiency. The status of devices before and after the occurrence of an error can be stored on an SD memory card. This allows you to identify the cause of the error.

Reduction of setup, changeover, and maintenance times

Function Blocks facilitate the connection of devices to the controller and provide Backup and Restoration functions for quick setting change and recovery.

Easy-to-obtain Library

The Sysmac Library is freely available to download from Omron website.
These software components can be used for the NJ/NX/NY Controller without debugging.

Download from

http://www.ia.omron.com/sysmac_library/

High quality products with reliable global support

With our worldwide network for support, Omron will support you to meet your control requirements and solve your problems by using the Sysmac Library.
We will provide technical support even after the shipment of your products using the Sysmac Library

last update: August 1, 2018

Purchase the OMRON Software Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON SYSMAC-XR[][][] Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the SYSMAC-XR[][][] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON SYSMAC-XR[][][]Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4A-[]N General-purpose Limit Switch/Features
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Features
H3CR-A Solid-state Multi-functional Timers/Features
CS1G, CS1H CS1G, CS1H Overview/Features
SRT2-R Relay-mounted Remote I/O Terminals/Features

OMRON SYSMAC-XR[][][] dimension
SYSMAC-XR[][][] Sysmac Library/Dimensions
last update: December 01, 2015

No information is provided on the Dimensions of this product.

last update: December 01, 2015

OMRON SYSMAC-XR[][][] specification
SYSMAC-XR[][][] Sysmac Library/Specifications
last update: August 1, 2018
Version Information

last update: August 1, 2018

OMRON SYSMAC-XR[][][] lineup
SYSMAC-XR[][][] Sysmac Library/Lineup
last update: August 1, 2018
Sysmac Library

Sysmac Library is POU Libraries (Function Block and Function) provided for NJ/NX/NY-series Controller.
Please download it from following URL and install to Sysmac Studio.
http://www.ia.omron.com/sysmac_library/

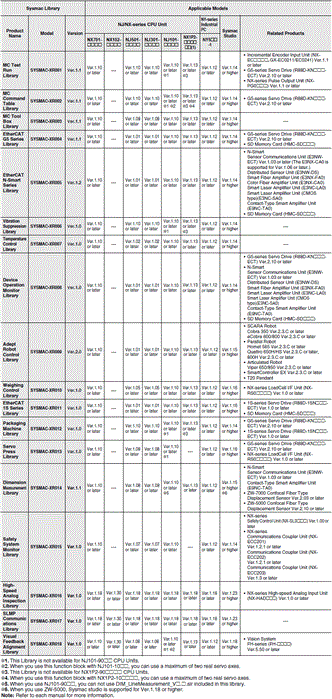

Product Features Model Stand-
ards
MC Test Run
Library The MC Test Run Library is used to perform a test run that the MC
Function Module is used.
In this library, a processing to operate axes that an MPG (i.e. a manual
pulse generator) was used is provided.
You can use this library to reduce manpower of programming when
creating a test run program that an MPG was used. SYSMAC-XR001 ---
MC Command
Table Library The MC Command Table Library is used to continuously perform
positioning that the MC Function Module is used. You can use this
library together with motion control instructions of the NJ/NX/NY-
series Controller.
The program that multiple motion control instructions are used will be
unnecessary by using this library. SYSMAC-XR002
MC Tool Box
Library The MC Tool Box Library is used to implement a program to perform
motor control in the user program.
The processings such as PID processing and filter processing are
provided in this library.
You can use this library to reduce manpower of programming when
creating a program to perform motor control. SYSMAC-XR003
EtherCAT
G5 Series
Library The EtherCAT G5 Series Library is used to initialize the absolute
encoder, back up and restore the parameters for an OMRON G5-
series Servo Drive with built-in EtherCAT communications.
You can use this library to reduce manpower of programming when
implementing the processing for a Servo Drive. SYSMAC-XR004
EtherCAT
N-Smart Series
Library The EtherCAT N-Smart Series Library is used to back up and restore
the parameters for an OMRON E3NW Sensor Communications Unit
(an EtherCAT type). You can use this library to reduce manpower
of programming when implementing the processing for a Sensor
Communications Unit. SYSMAC-XR005
Vibration
Suppression
Control Library The Vibration Suppression Library is used to suppress residual
vibration caused by the operation of machines.
You can use this library together with motion control instructions of
the NJ/NX/NY-series Controller. SYSMAC-XR006
Temperature
Control Library The Temperature Control Library is used to perform a high-level
temperature control.
You can use this library together with analog control instructions of
the NJ/NX/NY-series Controller. SYSMAC-XR007
Device
Operation
Monitor Library The Device Operation Monitor Library is used to monitor the
operation of devices such as air cylinders, sensors, motors, and other
devices. SYSMAC-XR008
Adept Robot
Control Library The Adept Robot Control Library is used to directly control Adept
Robots from NJ/NX-series CPU Unit or NY-series Industrial PC.
You can use this library to control any types of robots like parallel,
SCARA and articulated from PLC with common instructions and a
common programming method. SYSMAC-XR009
Weighing
Control Library The Weighing Control Library is used to perform weighing control of
raw materials for industrial products with NX-series Load Cell Input
Unit NX-RS1201. Also, functions that are used to display and correct
measurement values are included. You can use this Weighing Control
Library to reduce programming work when you implement processing
for weighing in each device. SYSMAC-XR010
EtherCAT
1S Series
Library The EtherCAT 1S Series Library is used to initialize the absolute
encoder, back up and restore the parameters for an OMRON 1S-
series Servo Drive with built-in EtherCAT communications.
You can use this library to reduce manpower of programming when
implementing the processing for a Servo Drive. SYSMAC-XR011
Packaging
Machine
Library The Packaging Machine Library is used to control various packaging
machines with NJ/NX-series CPU Unit or NY-series Industrial PC.
The Packaging Machine Library enables accurate and high-speed
packaging processing, and reduction of programming man-hour as well
as man-hour to start up packaging system.
The use of PackML-compliant PackML Support Function Blocks
facilitates compliance with the PackML standard. SYSMAC-XR012
Servo Press
Library The Servo Press Library is used to generate the operation commands
and monitor the operations of actuator for servo presses with NJ/
NX-series CPU Unit or NY-series Industrial PC. You can use the
Servo Press Library to realize the high-speed and high precision
servo press control and reduce programming work. SYSMAC-XR013
Dimension
Measurement
Library Dimension Measurement Library is the system which connects the
NJ/NX-series CPU Unit or NY-series Industrial PC, ZW-7000/5000
Confocal Fiber Displacement Sensor Controller, and E9NC-TA0
Contact-Type Smart Sensor through EtherCAT communications. It is
used when you perform various dimension measurements. When you
use the Dimension Measurement Library, you can improve
measurement accuracy, enlarge measurement range, and reduce
programming work. SYSMAC-XR014
Safety System
Monitor Library The Safety System Monitor Library is used to monitor the safety
system information.
You can use this library to manage the information of the running
safety system. SYSMAC-XR015
High-Speed
Analog
Inspection
Library The High-speed Analog Inspection Library records analog input values
acquired by the NX-series High-speed Analog Input Units in time. This
library provides functions required for product inspections during
production processes, including calculation of feature values (e.g.,
maximum, minimum, and mean), comparison with master data, and data
file storage. SYSMAC-XR016
SLMP
Communications
Library The SLMP Communications Library is a collection of functional
objects that uses the SLMP communications protocol for the
Sequencer made by Mitsubishi Electric to carry out communications
control.
Various FB types (Device Read, Device Write) are provided for easy
incorporation of the OMRON Machine Automation Controller in
networks configured by the Sequencer. SYSMAC-XR017
Visual Feedback
Alignment
Library The Visual Feedback Alignment Library is a set of software function
components for alignment applications employing visual feedback. SYSMAC-XR018

Automation Software

Please purchase a DVD and licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually.
The license does not include the DVD.

Product Specifications Model Stand-
ards
Number of
licenses Media
Sysmac
Studio
Standard
Edition
Ver.1.[][] The Sysmac Studio is the software that provides an
integrated environment for setting, programming,
debugging and maintenance of machine automation
controllers including the NJ/NX Series CPU Units,
NY-series Industrial PC, EtherCAT Slave, and the HMI.

Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64- bit version)/Windows 8 (32-
bit/64-bit version)/Windows 8.1 (32-bit/64-bit
version)/Windows 10 (32-bit/64-bit version)

The Sysmac Studio Standard Edition DVD includes
Support Software to set up EtherNet/IP Units,
DeviceNet slaves, Serial Communications Units, and
Support Software for creating screens on HMIs (CX-
Designer).
Refer to your OMRON website for details. ---
(Media only) DVD SYSMAC-SE200D ---
1 license
* - SYSMAC-SE201L ---

* Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

last update: August 1, 2018

OMRON SYSMAC-XR[][][] catalog
SYSMAC-XR[][][] Sysmac Library/Catalog

Catalog

Manual

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

SYSMAC-XR[][][] Sysmac Library Catalog P102-E1-09
[2916KB] Aug 01, 201820180801 SYSMAC-XR[][][] Sysmac Library Catalog

SYSMAC-XR001 MC Test Run Library Catalog P093-E1-01
[839KB] Nov 17, 201620161117 SYSMAC-XR001 MC Test Run Library Catalog

SYSMAC-XR002 MC Command Table Library Catalog P092-E1-01
[872KB] Nov 17, 201620161117 SYSMAC-XR002 MC Command Table Library Catalog

SYSMAC-XR003 MC Tool Box Library Catalog P098-E1-01
[1192KB] Nov 17, 201620161117 SYSMAC-XR003 MC Tool Box Library Catalog

SYSMAC-XR004 EtherCAT G5 Series Library Catalog P095-E1-01
[822KB] Nov 17, 201620161117 SYSMAC-XR004 EtherCAT G5 Series Library Catalog

SYSMAC-XR005 EtherCAT N-Smart Series Library Catalog P094-E1-02
[1137KB] Apr 03, 201720170403 SYSMAC-XR005 EtherCAT N-Smart Series Library Catalog

SYSMAC-XR006 Vibration Suppression Library Catalog P099-E1-01
[1359KB] Nov 17, 201620161117 SYSMAC-XR006 Vibration Suppression Library Catalog

SYSMAC-XR007 Temperature Control Library Catalog P100-E1-01
[1266KB] Nov 17, 201620161117 SYSMAC-XR007 Temperature Control Library Catalog

SYSMAC-XR008 Device Operation Monitor Library Catalog P101-E1-01
[1208KB] Nov 17, 201620161117 SYSMAC-XR008 Device Operation Monitor Library Catalog

SYSMAC-XR009 Adept Robot Control Library Catalog P106-E1-03
[2647KB] Apr 03, 201720170403 SYSMAC-XR009 Adept Robot Control Library Catalog

SYSMAC-XR010 Weighing Control Library Catalog P109-E1-01
[1036KB] Nov 17, 201620161117 SYSMAC-XR010 Weighing Control Library Catalog

SYSMAC-XR011 EtherCAT 1S Series Library Catalog P110-E1-01
[778KB] Nov 17, 201620161117 SYSMAC-XR011 EtherCAT 1S Series Library Catalog

SYSMAC-XR012 Packaging Machine Library Catalog P111-E1-01
[1111KB] Nov 17, 201620161117 SYSMAC-XR012 Packaging Machine Library Catalog

SYSMAC-XR013 Servo Press Library Catalog P112-E1-01
[810KB] Nov 17, 201620161117 SYSMAC-XR013 Servo Press Library Catalog

SYSMAC-XR014 Dimension Measurement Library Catalog P113-E1-02
[5850KB] Apr 03, 201720170403 SYSMAC-XR014 Dimension Measurement Library Catalog

SYSMAC-XR015 Safety System Monitor Library Catalog P119-E1-01
[975KB] Nov 17, 201620161117 SYSMAC-XR015 Safety System Monitor Library Catalog

SYSMAC-XR016 High-Speed Analog Inspection Library Catalog P132-E1-01
[934KB] May 14, 201820180514 SYSMAC-XR016 High-Speed Analog Inspection Library Catalog

SYSMAC-XR017 SLMP Communications Library Catalog P131-E1-01
[678KB] May 14, 201820180514 SYSMAC-XR017 SLMP Communications Library Catalog

SYSMAC-XR018 Visual Feedback Alignment Library Catalog P135-E1-01
[900KB] Dec 21, 201820181221 SYSMAC-XR018 Visual Feedback Alignment Library Catalog

SYSMAC-XR019 RFID Communication Library Catalog P136-E1-01
[834KB] Nov 01, 201820181101 SYSMAC-XR019 RFID Communication Library Catalog

NO. SYSMAC-XR[][][]

TYPE:Machine Automation Controllers Software Copyright Statement

DATE:2021-06-07

Associated products:
SYSMAC-SE2[][][] Automation Software Sysmac Studio/Features CXONE-AL[][]D-V4 FA Integrated Tool Package/Features

Product	Features	Model	Stand- ards
MC Test Run Library	The MC Test Run Library is used to perform a test run that the MC Function Module is used. In this library, a processing to operate axes that an MPG (i.e. a manual pulse generator) was used is provided. You can use this library to reduce manpower of programming when creating a test run program that an MPG was used.	SYSMAC-XR001	---
MC Command Table Library	The MC Command Table Library is used to continuously perform positioning that the MC Function Module is used. You can use this library together with motion control instructions of the NJ/NX/NY- series Controller. The program that multiple motion control instructions are used will be unnecessary by using this library.	SYSMAC-XR002
MC Tool Box Library	The MC Tool Box Library is used to implement a program to perform motor control in the user program. The processings such as PID processing and filter processing are provided in this library. You can use this library to reduce manpower of programming when creating a program to perform motor control.	SYSMAC-XR003
EtherCAT G5 Series Library	The EtherCAT G5 Series Library is used to initialize the absolute encoder, back up and restore the parameters for an OMRON G5- series Servo Drive with built-in EtherCAT communications. You can use this library to reduce manpower of programming when implementing the processing for a Servo Drive.	SYSMAC-XR004
EtherCAT N-Smart Series Library	The EtherCAT N-Smart Series Library is used to back up and restore the parameters for an OMRON E3NW Sensor Communications Unit (an EtherCAT type). You can use this library to reduce manpower of programming when implementing the processing for a Sensor Communications Unit.	SYSMAC-XR005
Vibration Suppression Control Library	The Vibration Suppression Library is used to suppress residual vibration caused by the operation of machines. You can use this library together with motion control instructions of the NJ/NX/NY-series Controller.	SYSMAC-XR006
Temperature Control Library	The Temperature Control Library is used to perform a high-level temperature control. You can use this library together with analog control instructions of the NJ/NX/NY-series Controller.	SYSMAC-XR007
Device Operation Monitor Library	The Device Operation Monitor Library is used to monitor the operation of devices such as air cylinders, sensors, motors, and other devices.	SYSMAC-XR008
Adept Robot Control Library	The Adept Robot Control Library is used to directly control Adept Robots from NJ/NX-series CPU Unit or NY-series Industrial PC. You can use this library to control any types of robots like parallel, SCARA and articulated from PLC with common instructions and a common programming method.	SYSMAC-XR009
Weighing Control Library	The Weighing Control Library is used to perform weighing control of raw materials for industrial products with NX-series Load Cell Input Unit NX-RS1201. Also, functions that are used to display and correct measurement values are included. You can use this Weighing Control Library to reduce programming work when you implement processing for weighing in each device.	SYSMAC-XR010
EtherCAT 1S Series Library	The EtherCAT 1S Series Library is used to initialize the absolute encoder, back up and restore the parameters for an OMRON 1S- series Servo Drive with built-in EtherCAT communications. You can use this library to reduce manpower of programming when implementing the processing for a Servo Drive.	SYSMAC-XR011
Packaging Machine Library	The Packaging Machine Library is used to control various packaging machines with NJ/NX-series CPU Unit or NY-series Industrial PC. The Packaging Machine Library enables accurate and high-speed packaging processing, and reduction of programming man-hour as well as man-hour to start up packaging system. The use of PackML-compliant PackML Support Function Blocks facilitates compliance with the PackML standard.	SYSMAC-XR012
Servo Press Library	The Servo Press Library is used to generate the operation commands and monitor the operations of actuator for servo presses with NJ/ NX-series CPU Unit or NY-series Industrial PC. You can use the Servo Press Library to realize the high-speed and high precision servo press control and reduce programming work.	SYSMAC-XR013
Dimension Measurement Library	Dimension Measurement Library is the system which connects the NJ/NX-series CPU Unit or NY-series Industrial PC, ZW-7000/5000 Confocal Fiber Displacement Sensor Controller, and E9NC-TA0 Contact-Type Smart Sensor through EtherCAT communications. It is used when you perform various dimension measurements. When you use the Dimension Measurement Library, you can improve measurement accuracy, enlarge measurement range, and reduce programming work.	SYSMAC-XR014
Safety System Monitor Library	The Safety System Monitor Library is used to monitor the safety system information. You can use this library to manage the information of the running safety system.	SYSMAC-XR015
High-Speed Analog Inspection Library	The High-speed Analog Inspection Library records analog input values acquired by the NX-series High-speed Analog Input Units in time. This library provides functions required for product inspections during production processes, including calculation of feature values (e.g., maximum, minimum, and mean), comparison with master data, and data file storage.	SYSMAC-XR016
SLMP Communications Library	The SLMP Communications Library is a collection of functional objects that uses the SLMP communications protocol for the Sequencer made by Mitsubishi Electric to carry out communications control. Various FB types (Device Read, Device Write) are provided for easy incorporation of the OMRON Machine Automation Controller in networks configured by the Sequencer.	SYSMAC-XR017
Visual Feedback Alignment Library	The Visual Feedback Alignment Library is a set of software function components for alignment applications employing visual feedback.	SYSMAC-XR018

Product	Specifications	Model	Stand- ards
	Number of licenses	Media
Sysmac Studio Standard Edition Ver.1.[][]	The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX Series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64- bit version)/Windows 8 (32- bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) The Sysmac Studio Standard Edition DVD includes Support Software to set up EtherNet/IP Units, DeviceNet slaves, Serial Communications Units, and Support Software for creating screens on HMIs (CX- Designer). Refer to your OMRON website for details.	--- (Media only)	DVD	SYSMAC-SE200D	---
1 license *	-	SYSMAC-SE201L	---

Return to OMRON

Catalog Name	Catalog Number [size]	Last Update
SYSMAC-XR[][][] Sysmac Library Catalog	P102-E1-09 [2916KB]	Aug 01, 201820180801	SYSMAC-XR[][][] Sysmac Library Catalog
SYSMAC-XR001 MC Test Run Library Catalog	P093-E1-01 [839KB]	Nov 17, 201620161117	SYSMAC-XR001 MC Test Run Library Catalog
SYSMAC-XR002 MC Command Table Library Catalog	P092-E1-01 [872KB]	Nov 17, 201620161117	SYSMAC-XR002 MC Command Table Library Catalog
SYSMAC-XR003 MC Tool Box Library Catalog	P098-E1-01 [1192KB]	Nov 17, 201620161117	SYSMAC-XR003 MC Tool Box Library Catalog
SYSMAC-XR004 EtherCAT G5 Series Library Catalog	P095-E1-01 [822KB]	Nov 17, 201620161117	SYSMAC-XR004 EtherCAT G5 Series Library Catalog
SYSMAC-XR005 EtherCAT N-Smart Series Library Catalog	P094-E1-02 [1137KB]	Apr 03, 201720170403	SYSMAC-XR005 EtherCAT N-Smart Series Library Catalog
SYSMAC-XR006 Vibration Suppression Library Catalog	P099-E1-01 [1359KB]	Nov 17, 201620161117	SYSMAC-XR006 Vibration Suppression Library Catalog
SYSMAC-XR007 Temperature Control Library Catalog	P100-E1-01 [1266KB]	Nov 17, 201620161117	SYSMAC-XR007 Temperature Control Library Catalog
SYSMAC-XR008 Device Operation Monitor Library Catalog	P101-E1-01 [1208KB]	Nov 17, 201620161117	SYSMAC-XR008 Device Operation Monitor Library Catalog
SYSMAC-XR009 Adept Robot Control Library Catalog	P106-E1-03 [2647KB]	Apr 03, 201720170403	SYSMAC-XR009 Adept Robot Control Library Catalog
SYSMAC-XR010 Weighing Control Library Catalog	P109-E1-01 [1036KB]	Nov 17, 201620161117	SYSMAC-XR010 Weighing Control Library Catalog
SYSMAC-XR011 EtherCAT 1S Series Library Catalog	P110-E1-01 [778KB]	Nov 17, 201620161117	SYSMAC-XR011 EtherCAT 1S Series Library Catalog
SYSMAC-XR012 Packaging Machine Library Catalog	P111-E1-01 [1111KB]	Nov 17, 201620161117	SYSMAC-XR012 Packaging Machine Library Catalog
SYSMAC-XR013 Servo Press Library Catalog	P112-E1-01 [810KB]	Nov 17, 201620161117	SYSMAC-XR013 Servo Press Library Catalog
SYSMAC-XR014 Dimension Measurement Library Catalog	P113-E1-02 [5850KB]	Apr 03, 201720170403	SYSMAC-XR014 Dimension Measurement Library Catalog
SYSMAC-XR015 Safety System Monitor Library Catalog	P119-E1-01 [975KB]	Nov 17, 201620161117	SYSMAC-XR015 Safety System Monitor Library Catalog
SYSMAC-XR016 High-Speed Analog Inspection Library Catalog	P132-E1-01 [934KB]	May 14, 201820180514	SYSMAC-XR016 High-Speed Analog Inspection Library Catalog
SYSMAC-XR017 SLMP Communications Library Catalog	P131-E1-01 [678KB]	May 14, 201820180514	SYSMAC-XR017 SLMP Communications Library Catalog
SYSMAC-XR018 Visual Feedback Alignment Library Catalog	P135-E1-01 [900KB]	Dec 21, 201820181221	SYSMAC-XR018 Visual Feedback Alignment Library Catalog
SYSMAC-XR019 RFID Communication Library Catalog	P136-E1-01 [834KB]	Nov 01, 201820181101	SYSMAC-XR019 RFID Communication Library Catalog
