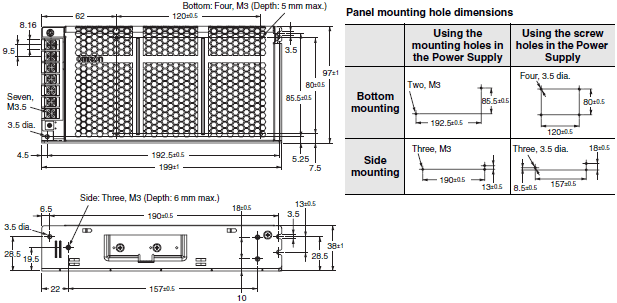

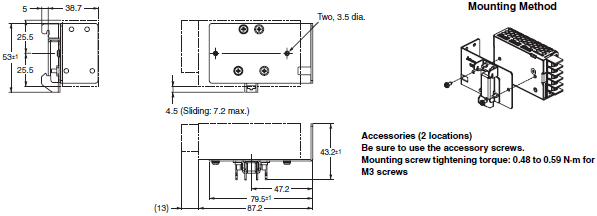

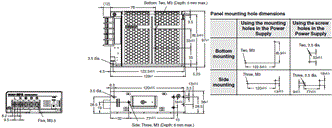

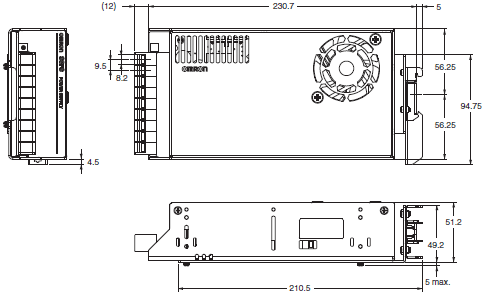

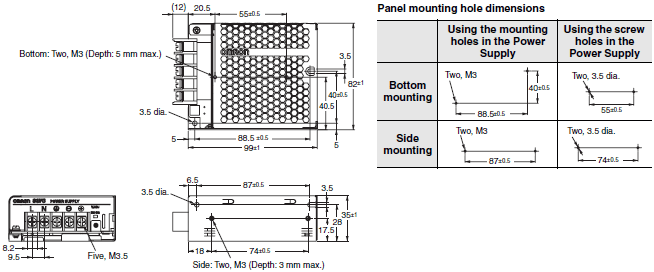

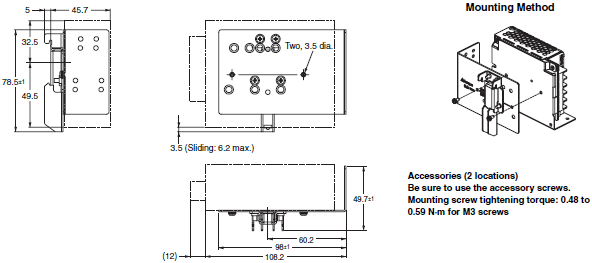

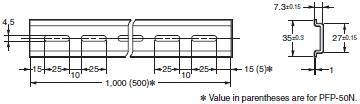

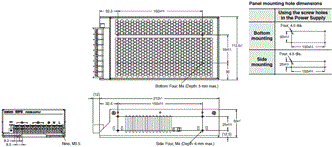

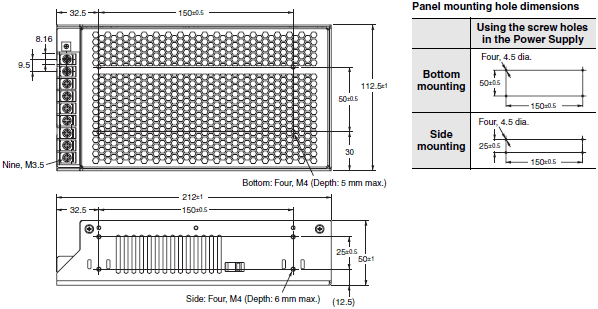

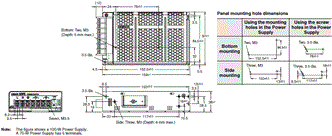

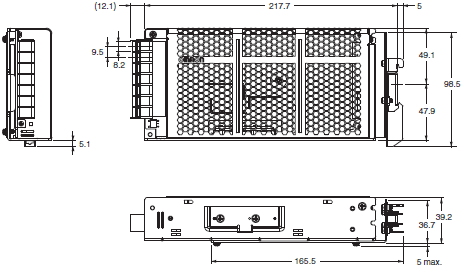

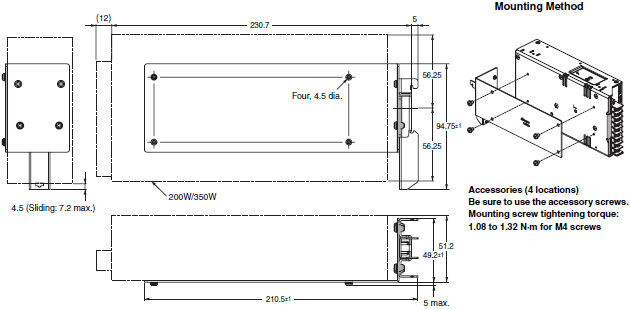

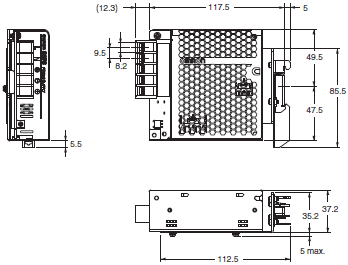

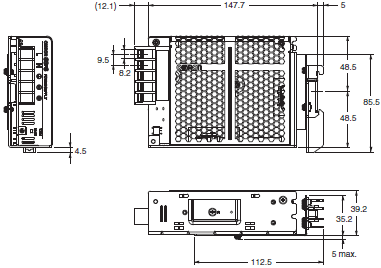

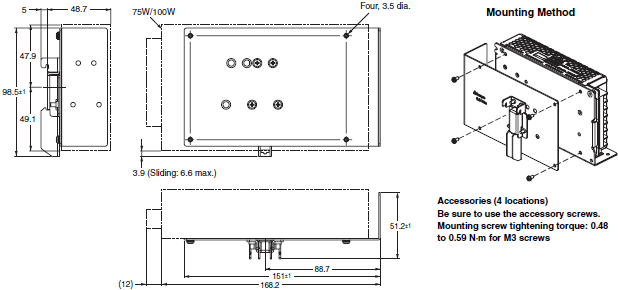

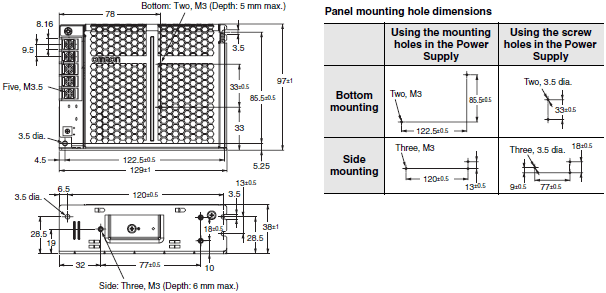

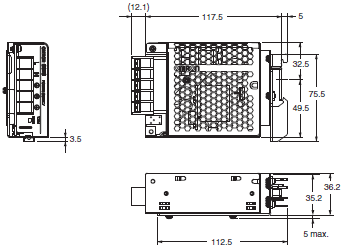

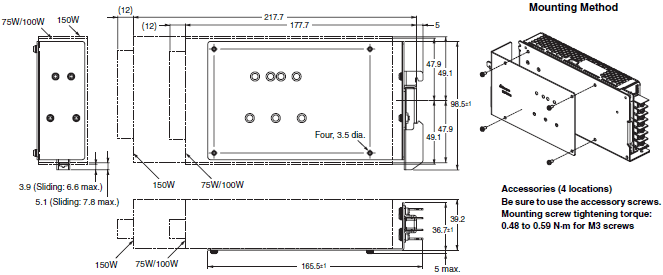

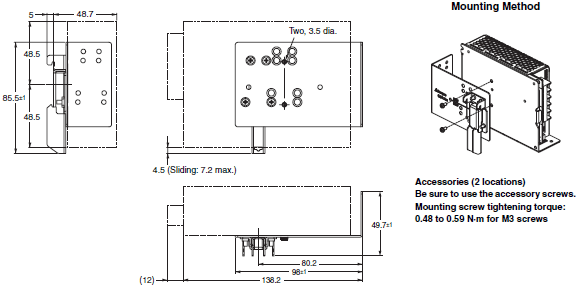

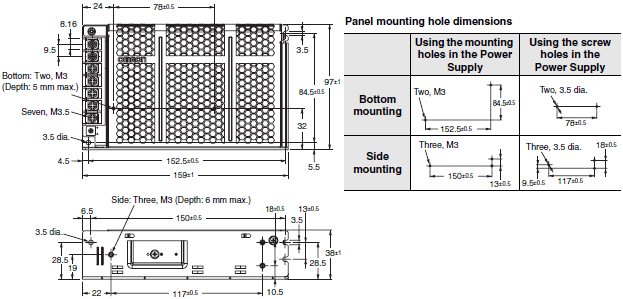

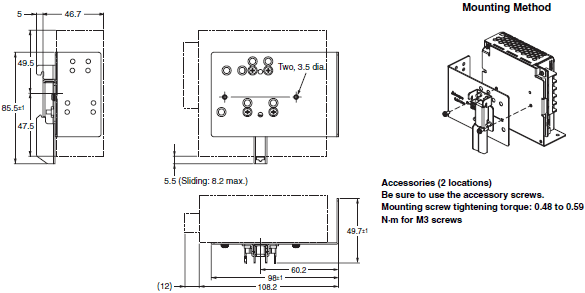

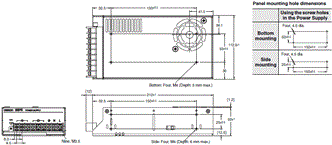

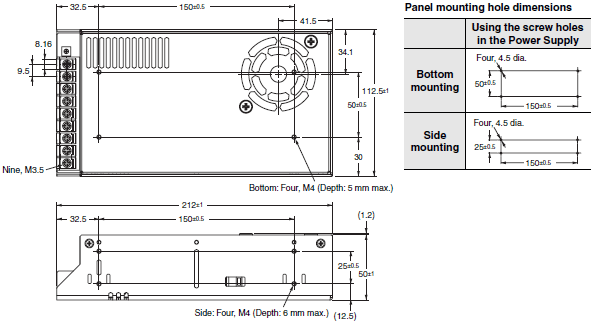

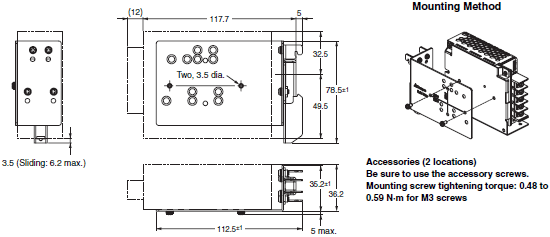

OMRON S8FS-C Dimensions

/Images/l_3460-25-251264-198x198.jpg

last update: October 01, 2015

To Improve Reliability of Euipment, Start with Power Supply Selection

How does a Power Supply contribute to stable equipment operation?

Do your power supplies stop due to unexpected external disturbances?
You can increase your equipment operating rates by selecting Power Supplies that have a high resistance to external disturbances.

Designed to Withstand Abnormal Input Voltages Up to 300 VAC*1

In locations where the supply of power is not stable, it is common for abnormal voltages around 300 VAC to be input momentarily. The S8FS withstands this type of momentary abnormal input voltage.
*1. It is not a guaranteed value.

Improved Resistance to Noise of Several Tens of kHz from Inverters

Malfunctions in power supplies can be caused by strong noise of several tens of kHz transmitted from inverters or motors on the same AC line. OMRON measured the noise frequencies and sizes that occurred in actual machines in the past and used them as a standard to improve the noise resistance of the S8FS by harnessing circuit design knowhow to prevent noise from reaching the control section

Lightening Surge Resistance of 1.5 Times*1 the Standard Value

The catalog value conforms to the value specified in IEC 61000-4-5, but it has been confirmed that the ability has a margin of 1.5 times that value.
*1. It is not a guaranteed value.

Design with details in mind provides stable quality and reliability.

*2. Valid only for the following operating conditions: Average ambient operating temperature of the product at 40°C max.,
average load rate of 80% max., and srandards mounting.

Automatic lines are used in the manufacturing processes to ensure stable Power Supply quality.

OMRON boasts a 38-year track record in Power Supplies.

last update: October 01, 2015

Purchase the OMRON Switch mode power supplies Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON S8FS-C Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8FS-C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8FS-CPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

CS1W-CIF31 USB-Serial Conversion Cable/Features
ZN-A Air Clean Units/Features
Z4D-F Micro Displacement Sensor/Features
E2EC Cable Amplifier Proximity Sensor/Features
CJ1W-INT01 CJ-series Interrupt Input Units/Features

OMRON S8FS-C catalog
S8FS-C Switch Mode Power Supply (15/25/35/50/75/100/150/200/350-W Models)/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

S8FS-C Data Sheet T062-E1-03
[9676KB] May 08, 201720170508 S8FS-C Data Sheet

S8FS-C Catalog T063-E1-01
[1711KB] Sep 25, 201520150925 S8FS-C Catalog

OMRON S8FS-C specification
S8FS-C Switch Mode Power Supply (15/25/35/50/75/100/150/200/350-W Models)/Specifications
last update: July 19, 2016
Ratings, Characteristics, and Functions

Power rating 15 W
Output voltage 5 V 12 V 15 V 24 V
Efficiency * 115 VAC input 80% typ. 84% typ. 84% typ. 85% typ.
230 VAC input 82% typ. 85% typ. 86% typ. 87% typ.
Input Voltage range * Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC
input is the positive side and safety standards do not apply.) (Derating is
required according to the input voltage. Refer to Derating Curves on
Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 0.3 A typ.
230 VAC input 0.19 A typ.
Power factor --
Leakage
current 115 VAC input 0.05 mA 0.05 mA 0.05 mA 0.05 mA
230 VAC input 0.10 mA 0.10 mA 0.10 mA 0.10 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 3 A 1.3 A 1 A 0.7 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 240
VAC input 30 mVp-p max. 30 mVp-p max. 40 mVp-p max. 30 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 240
VAC input 0.03%/°C max.
Startup
time * 115 VAC input 490 ms typ. 500 ms typ. 470 ms typ. 480 ms typ.
230 VAC input 470 ms typ. 480 ms typ. 450 ms typ. 460 ms typ.
Hold time * 115 VAC input 14 ms typ. 16 ms typ. 18 ms typ. 15 ms typ.
230 VAC input 83 ms typ. 87 ms typ. 92 ms typ. 79 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 150 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 25 W
Output voltage 5 V 12 V 15 V 24 V
Efficiency * 115 VAC input 80% typ. 84% typ. 85% typ. 86% typ.
230 VAC input 82% typ. 86% typ. 88% typ. 88% typ.
Input Voltage range * Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC
input is the positive side and safety standards do not apply.) (Derating is
required according to the input voltage. Refer to Derating Curves on
Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 0.49 A typ.
230 VAC input 0.3 A typ.
Power factor --
Leakage
current 115 VAC input 0.10 mA 0.10 mA 0.10 mA 0.10 mA
230 VAC input 0.20 mA 0.20 mA 0.20 mA 0.20 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 5 A 2.1 A 1.7 A 1.1 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 240
VAC input 20 mVp-p max. 20 mVp-p max. 30 mVp-p max. 40 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 240
VAC input 0.03%/°C max.
Startup
time * 115 VAC input 390 ms typ. 340 ms typ. 400 ms typ. 360 ms typ.
230 VAC input 360 ms typ. 350 ms typ. 400 ms typ. 360 ms typ.
Hold time * 115 VAC input 17 ms typ. 22 ms typ. 23 ms typ. 21 ms typ.
230 VAC input 103 ms typ. 113 ms typ. 117 ms typ. 112 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 250 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 35 W
Output voltage 5 V 12 V 15 V 24 V
Efficiency * 115 VAC input 81% typ. 83% typ. 84% typ. 87% typ.
230 VAC input 81% typ. 84% typ. 84% typ. 87% typ.
Input Voltage range * Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC
input is the positive side and safety standards do not apply.) (Derating is
required according to the input voltage. Refer to Derating Curves on
Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 0.66 A typ.
230 VAC input 0.41 A typ.
Power factor --
Leakage
current 115 VAC input 0.15 mA 0.15 mA 0.15 mA 0.15 mA
230 VAC input 0.30 mA 0.25 mA 0.25 mA 0.25 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 7 A 3 A 2.4 A 1.5 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 240
VAC input 80 mVp-p max. 90 mVp-p max. 90 mVp-p max. 80 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 240
VAC input 0.03%/°C max.
Startup
time * 115 VAC input 750 ms typ. 750 ms typ. 760 ms typ. 770 ms typ.
230 VAC input 700 ms typ. 690 ms typ. 710 ms typ. 720 ms typ.
Hold time * 115 VAC input 13 ms typ. 14 ms typ. 14 ms typ. 15 ms typ.
230 VAC input 74 ms typ. 75 ms typ. 75 ms typ. 79 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 250 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 50 W
Output voltage 5 V 12 V 15 V 24 V 48 V
Efficiency * 115 VAC input 79% typ. 83% typ. 84% typ. 86% typ. 87% typ.
230 VAC input 80% typ. 84% typ. 85% typ. 86% typ. 87% typ.
Input Voltage range * Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC
input is the positive side and safety standards do not apply.) (Derating is
required according to the input voltage. Refer to Derating Curves on
Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 0.97 A typ.
230 VAC input 0.59 A typ.
Power factor --
Leakage
current 115 VAC input 0.25 mA 0.25 mA 0.25 mA 0.25 mA 0.25 mA
230 VAC input 0.60 mA 0.55 mA 0.55 mA 0.55 mA 0.55 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 10 A 4.2 A 3.4 A 2.2 A 1.1 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 240
VAC input 80 mVp-p
max. 110 mVp-p
max. 100 mVp-p
max. 100 mVp-p
max. 120 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 240
VAC input 0.03%/°C max.
Startup
time * 115 VAC input 730 ms typ. 730 ms typ. 710 ms typ. 710 ms typ. 770 ms typ.
230 VAC input 680 ms typ. 670 ms typ. 610 ms typ. 640 ms typ. 690 ms typ.
Hold time * 115 VAC input 12 ms typ. 14 ms typ. 14 ms typ. 14 ms typ. 14 ms typ.
230 VAC input 71 ms typ. 77 ms typ. 78 ms typ. 77 ms typ. 80 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 300 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 75 W
Output voltage 5 V 12 V 15 V 24 V 48 V
Efficiency * 115 VAC input 75% typ. 83% typ. 84% typ. 87% typ. 87% typ.
230 VAC input 77% typ. 83% typ. 84% typ. 87% typ. 87% typ.
Input Voltage range * Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC
input is the positive side and safety standards do not apply.) (Derating is
required according to the input voltage. Refer to Derating Curves on
Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 1.4 A typ.
230 VAC input 0.83 A typ.
Power factor --
Leakage
current 115 VAC input 0.25 mA 0.25 mA 0.25 mA 0.25 mA 0.25 mA
230 VAC input 0.60 mA 0.60 mA 0.60 mA 0.60 mA 0.60 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 14 A 6.2 A 5 A 3.2 A 1.6 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 240
VAC input 80 mVp-p
max. 110 mVp-p
max. 90 mVp-p
max. 110 mVp-p
max. 140 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 240
VAC input 0.03%/°C max.
Startup
time * 115 VAC input 750 ms typ. 720 ms typ. 730 ms typ. 750 ms typ. 700 ms typ.
230 VAC input 710 ms typ. 680 ms typ. 690 ms typ. 690 ms typ. 730 ms typ.
Hold time * 115 VAC input 12 ms typ. 13 ms typ. 13 ms typ. 14 ms typ. 15 ms typ.
230 VAC input 75 ms typ. 74 ms typ. 74 ms typ. 76 ms typ. 78 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 350 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 100 W
Output voltage 5 V 12 V 15 V 24 V 36 V 48 V
Efficiency * 115 VAC input 80% typ. 82% typ. 83% typ. 85% typ. 86% typ. 87% typ.
230 VAC input 81% typ. 83% typ. 84% typ. 87% typ. 87% typ. 88% typ.
Input Voltage range * Single phase 85 to 132 VAC, 176 to 264 VAC, 248 to 373 VDC Select
with the switch. (The L terminal for the DC input is the positive side and
safety standards do not apply.) (Derating is required according to the input
voltage. Refer to Derating Curves on Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 2 A typ.
230 VAC input 1.1 A typ.
Power factor --
Leakage
current 115 VAC input 0.35 mA 0.35 mA 0.35 mA 0.35 mA 0.40 mA 0.40 mA
230 VAC input 0.60 mA 0.55 mA 0.60 mA 0.50 mA 0.60 mA 0.60 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 32 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 20 A 8.5 A 7 A 4.5 A 2.8 A 2.3 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 120
VAC/200 to
240 VAC input 70 mVp-p
max. 100 mVp-p
max. 70 mVp-p
max. 120 mVp-p
max. 90 mVp-p
max. 120 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 120
VAC/200 to
240 VAC input 0.03%/°C max.
Startup
time * 115 VAC input 710 ms typ. 440 ms typ. 440 ms typ. 430 ms typ. 450 ms typ. 430 ms typ.
230 VAC input 720 ms typ. 700 ms typ. 720 ms typ. 660 ms typ. 690 ms typ. 660 ms typ.
Hold time * 115 VAC input 23 ms typ. 37 ms typ. 36 ms typ. 34 ms typ. 36 ms typ. 34 ms typ.
230 VAC input 29 ms typ. 40 ms typ. 39 ms typ. 39 ms typ. 41 ms typ. 38 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 400 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 150 W
Output voltage 5 V 12 V 15 V 24 V 36 V 48 V
Efficiency * 115 VAC input 81% typ. 84% typ. 85% typ. 86% typ. 86% typ. 87% typ.
230 VAC input 82% typ. 85% typ. 86% typ. 87% typ. 87% typ. 88% typ.
Input Voltage range * Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373
VDC Select with the switch. (The L terminal for the DC input is the
positive side and safety standards do not apply.) (Derating is required
according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 2.8 A typ.
230 VAC input 1.6 A typ.
Power factor --
Leakage
current 115 VAC input 0.50 mA 0.50 mA 0.50 mA 0.50 mA 0.40 mA 0.50 mA
230 VAC input 0.75 mA 0.75 mA 0.75 mA 0.70 mA 0.60 mA 0.70 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 32 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 26 A 12.5 A 10 A 6.5 A 4.3 A 3.3 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 120
VAC/200 to
240 VAC input 50 mVp-p
max. 90 mVp-p
max. 110 mVp-p
max. 100 mVp-p
max. 200 mVp-p
max. 120 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 120
VAC/200 to
240 VAC input 0.03%/°C max.
Startup
time * 115 VAC input 770 ms typ. 730 ms typ. 740 ms typ. 770 ms typ. 730 ms typ. 760 ms typ.
230 VAC input 750 ms typ. 720 ms typ. 730 ms typ. 760 ms typ. 720 ms typ. 750 ms typ.
Hold time * 115 VAC input 29 ms typ. 24 ms typ. 27 ms typ. 23 ms typ. 23 ms typ. 21 ms typ.
230 VAC input 35 ms typ. 30 ms typ. 31 ms typ. 28 ms typ. 29 ms typ. 27 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 500 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions Conforms to EN 61000-3-2, GB17625.1
EMI Conducted
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated
Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
CCC: GB4943
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 200 W
Output voltage 5 V 12 V 24 V 36 V 48 V
Efficiency * 115 VAC input 81% typ. 85% typ. 88% typ. 89% typ. 88% typ.
230 VAC input 81% typ. 87% typ. 88% typ. 90% typ. 90% typ.
Input Voltage range * Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373
VDC Select with the switch. (The L terminal for the DC input is the
positive side and safety standards do not apply.) (Derating is required
according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 4 A typ.
230 VAC input 2.3 A typ.
Power factor --
Leakage
current 115 VAC input 0.35 mA 0.25 mA 0.40 mA 0.20 mA 0.40 mA
230 VAC input 0.60 mA 0.50 mA 0.75 mA 0.45 mA 0.80 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 40 A 17 A 8.8 A 5.9 A 4.43 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 120
VAC/200 to
240 VAC input 60 mVp-p
max. 60 mVp-p
max. 110 mVp-p
max. 130 mVp-p
max. 120 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence 100 to 120
VAC/200 to
240 VAC input 0.03%/°C max.
Startup
time * 115 VAC input 620 ms typ. 630 ms typ. 580 ms typ. 630 ms typ. 620 ms typ.
230 VAC input 600 ms typ. 610 ms typ. 550 ms typ. 600 ms typ. 600 ms typ.
Hold time * 115 VAC input 32 ms typ. 30 ms typ. 38 ms typ. 30 ms typ. 31 ms typ.
230 VAC input 37 ms typ. 35 ms typ. 45 ms typ. 37 ms typ. 37 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 50°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 700 g max.
Cooling fan No
Degree of protection --
Stan-
dards Harmonic current emissions --
EMI Conducted
Emissions Conforms to EN 61204-3 Class A, EN 55011 Class A
Radiated
Emissions Conforms to EN 61204-3 Class A, EN 55011 Class A
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Power rating 350 W
Output voltage 5 V 12 V 24 V 36 V 48 V
Efficiency * 115 VAC input 77% typ. 83% typ. 86% typ. 87% typ. 87% typ.
230 VAC input 78% typ. 85% typ. 88% typ. 88% typ. 88% typ.
Input Voltage range * Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373
VDC Select with the switch. (The L terminal for the DC input is the
positive side and safety standards do not apply.) (Derating is required
according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency * 50 /60 Hz (47 to 450 Hz)
Current * 115 VAC input 6.4 A typ.
230 VAC input 3.5 A typ.
Power factor --
Leakage
current 115 VAC input 0.40 mA 0.40 mA 0.40 mA 0.40 mA 0.40 mA
230 VAC input 0.75 mA 0.80 mA 0.75 mA 0.80 mA 0.80 mA
Inrush
current *
(for a cold
start at 25°) 115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output Rated Output Current 60 A 29 A 14.6 A 9.7 A 7.32 A
Voltage adjustment range * -10% to 10% (with V. ADJ)
Ripple & Noise
voltage * 100 to 120
VAC/200 to
240 VAC input 110 mVp-p
max. 130 mVp-p
max. 120 mVp-p
max. 180 mVp-p
max. 180 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 2.0% max. 1.0% max.
Temperature
variation
influence 100 to 120
VAC/200 to
240 VAC input 0.03%/°C max.
Startup
time * 115 VAC input 610 ms typ. 620 ms typ. 580 ms typ. 610 ms typ. 610 ms typ.
230 VAC input 570 ms typ. 590 ms typ. 560 ms typ. 590 ms typ. 590 ms typ.
Hold time * 115 VAC input 25 ms typ. 18 ms typ. 17 ms typ. 19 ms typ. 19 ms typ.
230 VAC input 31 ms typ. 25 ms typ. 23 ms typ. 25 ms typ. 24 ms typ.
Addi-
tional
func-
tions Overload protection Yes, automatic reset
Overvoltage protection * Yes, 115% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection Yes, power shut off (shut off the input voltage and turn on the input again)
(Overheat protection when the cooling fan is in an abnormal condition)
Series operation Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insula-
tion Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current
cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Envi-
ron-
ment Ambient operating temperature -20 to 60°C (Derating is required according to the temperature. Refer
to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z
directions
10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia-
bility MTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struc-
tion Dimensions (W × H × D) Refer to Dimensions.
Weight 800 g max.
Cooling fan Yes (ON/OFF control according to internal temperature)
Degree of protection --
Stan-
dards Harmonic current emissions --
EMI Conducted
Emissions Conforms to EN 61204-3 Class A, EN 55011 Class A
Radiated
Emissions Conforms to EN 61204-3 Class A, EN 55011 Class A
EMS Conforms to EN 61204-3 high severity levels
Safety Standards Approved Standards
UL: cURus UL 60950-1 (Recognition) OVC II Pol2
CSA: cURus C22.2 No60950-1
Conformed Standards
EN: EN 60950-1 OVC II Pol2
Marine Standards No
SEMI No

* Refer to Conditions of below.

Conditions

Efficiency The value is given for the rated output voltage and rated output current.
Input Voltage range Although some inverters give 50/60 Hz as the output frequency, do not use an
inverter output as the power source for the Power Supply. Doing so may result in
smoking or burning due to internal temperature increases in the Power Supply. If you
connect a UPS to the input, do not connect one with a square wave output.
Frequency
Current The value is given for the rated output voltage and rated output current.
Inrush current
(for a cold start
at 25°C) The value is given for a cold start at 25°C. Refer to following for details.
Output Voltage
adjustment range If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by 10% or
more over the voltage adjustment range.
When adjusting the output voltage, confirm the actual output voltage from the Power
Supply and be sure that load is not damaged.
Ripple & Noise
voltage The value is given for the rated output voltage and rated output current.
The value is for an ambient operating temperature of 25°C.
Input variation
influence This is the maximum variation in the output voltage when the input voltage is
gradually changed within the allowable input voltage range at the rated output voltage
and rated output current.
Load variation
influence This is the value when the output current is changed from 0 A to the rated output
current while the input voltage is within the allowable input voltage.
Startup time The value is given for the rated output voltage and rated output current.
The value is given for a cold start at 25°C. Refer to following for details.
Hold time The value is given for the rated output voltage and rated output current.
Refer to following for details.
Additional
functions Overvoltage
protection Refer to Overvoltage Protection on Data Sheet for information on resetting the
input power.
Reliability Life expectancy Refer to Recommended Replacement Periods and Periodic Replacement for
Preventive Maintenance on Data Sheet for details.

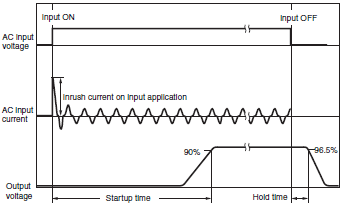

Inrush Current, Startup Time, and Output Hold Time

Note: Twice the normal input current will flow for a redundant system.
          Sufficiently check the fusing characteristics of fuses and the operating characteristics of breakers and select fuses
          and breakers so that external fuses will not burn out or breakers will not operate due to inrush current.

Ripple Noise Voltage

The specified standard for the ripple voltage noise was measured with the following measurement circuit.

last update: July 19, 2016

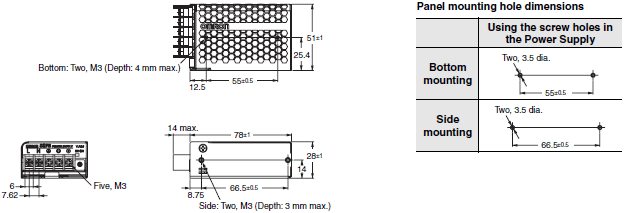

OMRON S8FS-C dimension
S8FS-C Switch Mode Power Supply (15/25/35/50/75/100/150/200/350-W Models)/Dimensions
last update: November 01, 2016
Power Supplies
Models with Terminal Block Facing Upward
S8FS-C025[][] (25 W)

S8FS-C035[][] (35 W)

S8FS-C050[][] (50 W)

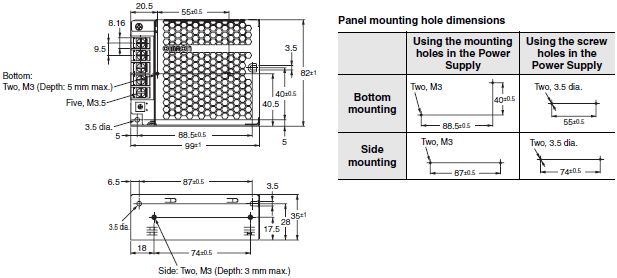

S8FS-C075[][] (75 W)

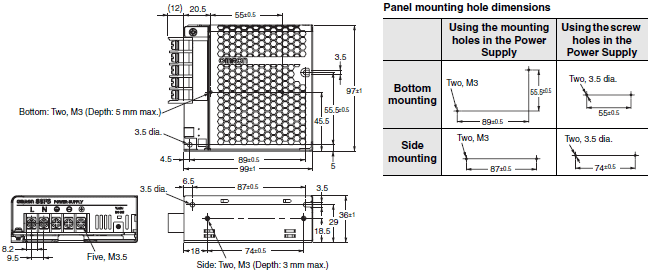

S8FS-C100[][] (100 W)

Note: The figure shows a 100-W Power Supply.
          A 75-W Power Supply has 5 terminals.

S8FS-C150[][] (150 W)

S8FS-C200[][] (200 W)

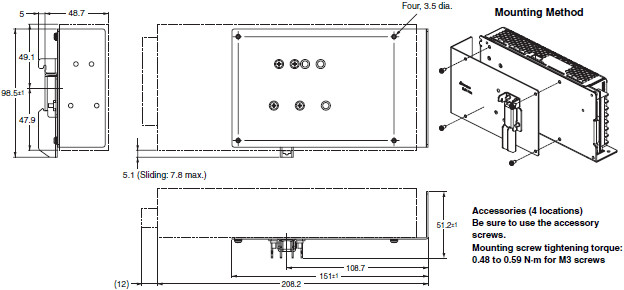

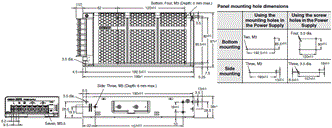

S8FS-C350[][] (350 W)

Models with Terminal Block Facing Forward
S8FS-C015[][]J (15 W)

S8FS-C025[][]J (25 W)

S8FS-C035[][]J (35 W)

S8FS-C050[][]J (50 W)

S8FS-C075[][]J (75 W)
S8FS-C100[][]J (100 W)

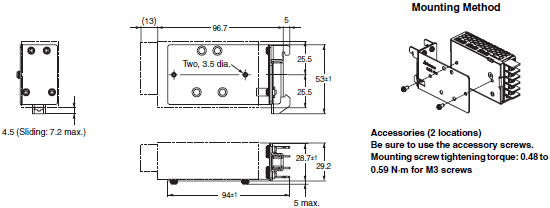

S8FS-C150[][]J (150 W)

S8FS-C200[][]J (200 W)

S8FS-C350[][]J (350 W)

Models with DIN rail
S8FS-C015[][]D (15 W)

S8FS-C025[][]D (25 W)

S8FS-C035[][]D (35 W)

S8FS-C050[][]D (50 W)

S8FS-C075[][]D (75 W)
S8FS-C100[][]D (100 W)

S8FS-C150[][]D (150 W)

S8FS-C200[][]D (200 W)

S8FS-C350[][]D (350 W)

Mounting Brackets
S82Y-FSC015DIN

S82Y-FSC025DIN

S82Y-FSC050DIN

S82Y-FSC150DIN

S82Y-FSC350DIN

S82Y-FSC015DIN-S

S82Y-FSC025DIN-S

S82Y-FSC035DIN-S

S82Y-FSC050DIN-S

S82Y-FSC100DIN-S

S82Y-FSC150DIN-S

S82Y-FSC350B (Four Brackets)

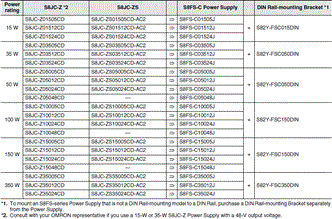

For Users of S8JC DIN Rail-mounting Power Supplies

If you are using a DIN Rail-mounting S8JC-series Power Supply, you can use a DIN Rail-mounting S8FS-C-series Power Supply or replace it with an S8FS-C-series Power Supply with a Forward-facing Terminal Block and a DIN Rail Mounting Bracket.

Table of Corresponding S8JC Power Supplies and S8FS-C[]J Power Supplies with DIN Rail Mounting Brackets

DIN Rail
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N

PFP-100N2

End Plate
PFP-M

last update: November 01, 2016

OMRON S8FS-C lineup
S8FS-C Switch Mode Power Supply (15/25/35/50/75/100/150/200/350-W Models)/Lineup
last update: November 01, 2016

Note: For details on normal stock models, contact your nearest OMRON representative.

Power
rating Input voltage Output
voltage
(VDC) Output
current Built-
in fan Model with
terminal block
facing upward Model with
terminal block
facing forward Model wtih
DIN rail
15 W 100 to 240 VAC
(allowable range:
85 to 264 VAC or
120 to 370 VDC
*1) 5 V 3 A None -- S8FS-C01505J S8FS-C01505D
12 V 1.3 A S8FS-C01512J S8FS-C01512D
15 V 1 A S8FS-C01515J S8FS-C01515D
24 V 0.7 A S8FS-C01524J S8FS-C01524D
25 W 5 V 5 A S8FS-C02505 S8FS-C02505J S8FS-C02505D
12 V 2.1 A S8FS-C02512 S8FS-C02512J S8FS-C02512D
15 V 1.7 A S8FS-C02515 S8FS-C02515J S8FS-C02515D
24 V 1.1 A S8FS-C02524 S8FS-C02524J S8FS-C02524D
35 W 5 V 7 A S8FS-C03505 S8FS-C03505J S8FS-C03505D
12 V 3 A S8FS-C03512 S8FS-C03512J S8FS-C03512D
15 V 2.4 A S8FS-C03515 S8FS-C03515J S8FS-C03515D
24 V 1.5 A S8FS-C03524 S8FS-C03524J S8FS-C03524D
50 W 5 V 10 A S8FS-C05005 S8FS-C05005J S8FS-C05005D
12 V 4.2 A S8FS-C05012 S8FS-C05012J S8FS-C05012D
15 V 3.4 A S8FS-C05015 S8FS-C05015J S8FS-C05015D
24 V 2.2 A S8FS-C05024 S8FS-C05024J S8FS-C05024D
48 V 1.1 A S8FS-C05048 S8FS-C05048J S8FS-C05048D
75 W 5 V 14 A S8FS-C07505 S8FS-C07505J S8FS-C07505D
12 V 6.2 A S8FS-C07512 S8FS-C07512J S8FS-C07512D
15 V 5 A S8FS-C07515 S8FS-C07515J S8FS-C07515D
24 V 3.2 A S8FS-C07524 S8FS-C07524J S8FS-C07524D
48 V 1.6 A S8FS-C07548 S8FS-C07548J S8FS-C07548D
100 W 100 to 120 VAC,
200 to 240 VAC
(allowable range:
85 to 132 VAC,
176 to 264 VAC, or
248 to 373 VDC
(Select with the
switch.) *2) 5 V 20 A S8FS-C10005 S8FS-C10005J S8FS-C10005D
12 V 8.5 A S8FS-C10012 S8FS-C10012J S8FS-C10012D
15 V 7 A S8FS-C10015 S8FS-C10015J S8FS-C10015D
24 V 4.5 A S8FS-C10024 S8FS-C10024J S8FS-C10024D
36 V 2.8 A S8FS-C10036 S8FS-C10036J S8FS-C10036D
48 V 2.3 A S8FS-C10048 S8FS-C10048J S8FS-C10048D
150 W 100 to 120 VAC,
200 to 240 VAC
(allowable range:
90 to 132 VAC,
180 to 264 VAC, or
254 to 373 VDC
(Select with the
switch.) *2) 5 V 26 A S8FS-C15005 S8FS-C15005J S8FS-C15005D
12 V 12.5 A S8FS-C15012 S8FS-C15012J S8FS-C15012D
15 V 10 A S8FS-C15015 S8FS-C15015J S8FS-C15015D
24 V 6.5 A S8FS-C15024 S8FS-C15024J S8FS-C15024D
36 V 4.3 A S8FS-C15036 S8FS-C15036J S8FS-C15036D
48 V 3.3 A S8FS-C15048 S8FS-C15048J S8FS-C15048D
200 W 5 V 40 A S8FS-C20005 S8FS-C20005J S8FS-C20005D
12 V 17 A S8FS-C20012 S8FS-C20012J S8FS-C20012D
24 V 8.8 A S8FS-C20024 S8FS-C20024J S8FS-C20024D
36 V 5.9 A S8FS-C20036 S8FS-C20036J S8FS-C20036D
48 V 4.43 A S8FS-C20048 S8FS-C20048J S8FS-C20048D
350 W 5 V 60 A Yes S8FS-C35005 S8FS-C35005J S8FS-C35005D
12 V 29 A S8FS-C35012 S8FS-C35012J S8FS-C35012D
24 V 14.6 A S8FS-C35024 S8FS-C35024J S8FS-C35024D
36 V 9.7 A S8FS-C35036 S8FS-C35036J S8FS-C35036D
48 V 7.32 A S8FS-C35048 S8FS-C35048J S8FS-C35048D

Note: You can use brackets that are sold separately to mount the Power Supplies to DIN Rail. Refer to Mounting Brackets
          (Order Separately) on Data Sheet.
*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC.
*2. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 120 VAC, 200 to 240 VAC.

Mounting Brackets (Order Separately)

Power rating Mounting direction Model
15 W DIN Rail S82Y-FSC015DIN
25 W S82Y-FSC025DIN
35 W S82Y-FSC050DIN
50 W
75 W S82Y-FSC150DIN
100 W
150 W
200 W S82Y-FSC350DIN
350 W
15 W Bottom-mounting to DIN Rail S82Y-FSC015DIN-S
25 W S82Y-FSC025DIN-S
35 W S82Y-FSC035DIN-S
50 W S82Y-FSC050DIN-S
75 W S82Y-FSC100DIN-S
100 W
150 W S82Y-FSC150DIN-S
200 W Bottom-mounting with L-brackets S82Y-FSC350B (4 brackets)
350 W

DIN Rail (Order Separately)
Mounting Rail (Material: Aluminum)

Model
PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

Model
PFP-100N2

End Plate

Model
PFP-M

Note: 1. If there is a possibility that the Power Supply will be subject to vibration or shock, use a steel DIN Rail. Otherwise,
              metallic filings may result from aluminum abrasion.
          2. If there is a possibility of the Power Supply sliding sideways, place an End Plate (PFP-M) on each end of the
                Power Supply.

Terminal Cover (Order Separately)

Terminal block direction Power rating Applicable models Terminal Cover model number
Models with terminal block
facing upward 25-W S8FS-C025[][] S82Y-FSC-C5
35-W S8FS-C035[][]
50-W S8FS-C050[][]
75-W S8FS-C075[][]
100-W S8FS-C100[][] S82Y-FSC-C7
150-W S8FS-C150[][]
200-W S8FS-C200[][] S82Y-FSC-C9
350-W S8FS-C350[][]
Models with terminal block
facing forward 15-W S8FS-C015[][]J/D S82Y-FSC-C5MF
25-W S8FS-C025[][]J/D S82Y-FSC-C5F
35-W S8FS-C035[][]J/D
50-W S8FS-C050[][]J/D
75-W S8FS-C075[][]J/D
100-W S8FS-C100[][]J/D S82Y-FSC-C7F
150-W S8FS-C150[][]J/D
200-W S8FS-C200[][]J/D S82Y-FSC-C9F
350-W S8FS-C350[][]J/D

last update: November 01, 2016

NO. S8FS-C

TYPE:Power Supplies Switch mode power supplies Copyright Statement

DATE:2021-06-09

Associated products:
S8FS-G Switch Mode Power Supply (15/30/50/100/150/300/600-W Models)/Features S8VK-G Switch Mode Power Supply (15/30/60/120/240/480-W Models)/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
S8FS-C Data Sheet	T062-E1-03 [9676KB]	May 08, 201720170508	S8FS-C Data Sheet
S8FS-C Catalog	T063-E1-01 [1711KB]	Sep 25, 201520150925	S8FS-C Catalog

Power rating	15 W
Output voltage	5 V	12 V	15 V	24 V
Efficiency *	115 VAC input	80% typ.	84% typ.	84% typ.	85% typ.
230 VAC input	82% typ.	85% typ.	86% typ.	87% typ.
Input	Voltage range *	Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	0.3 A typ.
230 VAC input	0.19 A typ.
Power factor	--
Leakage current	115 VAC input	0.05 mA	0.05 mA	0.05 mA	0.05 mA
230 VAC input	0.10 mA	0.10 mA	0.10 mA	0.10 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	3 A	1.3 A	1 A	0.7 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 240 VAC input	30 mVp-p max.	30 mVp-p max.	40 mVp-p max.	30 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	490 ms typ.	500 ms typ.	470 ms typ.	480 ms typ.
230 VAC input	470 ms typ.	480 ms typ.	450 ms typ.	460 ms typ.
Hold time *	115 VAC input	14 ms typ.	16 ms typ.	18 ms typ.	15 ms typ.
230 VAC input	83 ms typ.	87 ms typ.	92 ms typ.	79 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	150 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	25 W
Output voltage	5 V	12 V	15 V	24 V
Efficiency *	115 VAC input	80% typ.	84% typ.	85% typ.	86% typ.
230 VAC input	82% typ.	86% typ.	88% typ.	88% typ.
Input	Voltage range *	Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	0.49 A typ.
230 VAC input	0.3 A typ.
Power factor	--
Leakage current	115 VAC input	0.10 mA	0.10 mA	0.10 mA	0.10 mA
230 VAC input	0.20 mA	0.20 mA	0.20 mA	0.20 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	5 A	2.1 A	1.7 A	1.1 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 240 VAC input	20 mVp-p max.	20 mVp-p max.	30 mVp-p max.	40 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	390 ms typ.	340 ms typ.	400 ms typ.	360 ms typ.
230 VAC input	360 ms typ.	350 ms typ.	400 ms typ.	360 ms typ.
Hold time *	115 VAC input	17 ms typ.	22 ms typ.	23 ms typ.	21 ms typ.
230 VAC input	103 ms typ.	113 ms typ.	117 ms typ.	112 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	250 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	35 W
Output voltage	5 V	12 V	15 V	24 V
Efficiency *	115 VAC input	81% typ.	83% typ.	84% typ.	87% typ.
230 VAC input	81% typ.	84% typ.	84% typ.	87% typ.
Input	Voltage range *	Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	0.66 A typ.
230 VAC input	0.41 A typ.
Power factor	--
Leakage current	115 VAC input	0.15 mA	0.15 mA	0.15 mA	0.15 mA
230 VAC input	0.30 mA	0.25 mA	0.25 mA	0.25 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	7 A	3 A	2.4 A	1.5 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 240 VAC input	80 mVp-p max.	90 mVp-p max.	90 mVp-p max.	80 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	750 ms typ.	750 ms typ.	760 ms typ.	770 ms typ.
230 VAC input	700 ms typ.	690 ms typ.	710 ms typ.	720 ms typ.
Hold time *	115 VAC input	13 ms typ.	14 ms typ.	14 ms typ.	15 ms typ.
230 VAC input	74 ms typ.	75 ms typ.	75 ms typ.	79 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	250 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	50 W
Output voltage	5 V	12 V	15 V	24 V	48 V
Efficiency *	115 VAC input	79% typ.	83% typ.	84% typ.	86% typ.	87% typ.
230 VAC input	80% typ.	84% typ.	85% typ.	86% typ.	87% typ.
Input	Voltage range *	Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	0.97 A typ.
230 VAC input	0.59 A typ.
Power factor	--
Leakage current	115 VAC input	0.25 mA	0.25 mA	0.25 mA	0.25 mA	0.25 mA
230 VAC input	0.60 mA	0.55 mA	0.55 mA	0.55 mA	0.55 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	10 A	4.2 A	3.4 A	2.2 A	1.1 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 240 VAC input	80 mVp-p max.	110 mVp-p max.	100 mVp-p max.	100 mVp-p max.	120 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	730 ms typ.	730 ms typ.	710 ms typ.	710 ms typ.	770 ms typ.
230 VAC input	680 ms typ.	670 ms typ.	610 ms typ.	640 ms typ.	690 ms typ.
Hold time *	115 VAC input	12 ms typ.	14 ms typ.	14 ms typ.	14 ms typ.	14 ms typ.
230 VAC input	71 ms typ.	77 ms typ.	78 ms typ.	77 ms typ.	80 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	300 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	75 W
Output voltage	5 V	12 V	15 V	24 V	48 V
Efficiency *	115 VAC input	75% typ.	83% typ.	84% typ.	87% typ.	87% typ.
230 VAC input	77% typ.	83% typ.	84% typ.	87% typ.	87% typ.
Input	Voltage range *	Single phase 85 to 264 VAC, 120 to 370 VDC (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	1.4 A typ.
230 VAC input	0.83 A typ.
Power factor	--
Leakage current	115 VAC input	0.25 mA	0.25 mA	0.25 mA	0.25 mA	0.25 mA
230 VAC input	0.60 mA	0.60 mA	0.60 mA	0.60 mA	0.60 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	14 A	6.2 A	5 A	3.2 A	1.6 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 240 VAC input	80 mVp-p max.	110 mVp-p max.	90 mVp-p max.	110 mVp-p max.	140 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	750 ms typ.	720 ms typ.	730 ms typ.	750 ms typ.	700 ms typ.
230 VAC input	710 ms typ.	680 ms typ.	690 ms typ.	690 ms typ.	730 ms typ.
Hold time *	115 VAC input	12 ms typ.	13 ms typ.	13 ms typ.	14 ms typ.	15 ms typ.
230 VAC input	75 ms typ.	74 ms typ.	74 ms typ.	76 ms typ.	78 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	350 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	100 W
Output voltage	5 V	12 V	15 V	24 V	36 V	48 V
Efficiency *	115 VAC input	80% typ.	82% typ.	83% typ.	85% typ.	86% typ.	87% typ.
230 VAC input	81% typ.	83% typ.	84% typ.	87% typ.	87% typ.	88% typ.
Input	Voltage range *	Single phase 85 to 132 VAC, 176 to 264 VAC, 248 to 373 VDC Select with the switch. (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	2 A typ.
230 VAC input	1.1 A typ.
Power factor	--
Leakage current	115 VAC input	0.35 mA	0.35 mA	0.35 mA	0.35 mA	0.40 mA	0.40 mA
230 VAC input	0.60 mA	0.55 mA	0.60 mA	0.50 mA	0.60 mA	0.60 mA
Inrush current * (for a cold start at 25°)	115 VAC input	32 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	20 A	8.5 A	7 A	4.5 A	2.8 A	2.3 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 120 VAC/200 to 240 VAC input	70 mVp-p max.	100 mVp-p max.	70 mVp-p max.	120 mVp-p max.	90 mVp-p max.	120 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 120 VAC/200 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	710 ms typ.	440 ms typ.	440 ms typ.	430 ms typ.	450 ms typ.	430 ms typ.
230 VAC input	720 ms typ.	700 ms typ.	720 ms typ.	660 ms typ.	690 ms typ.	660 ms typ.
Hold time *	115 VAC input	23 ms typ.	37 ms typ.	36 ms typ.	34 ms typ.	36 ms typ.	34 ms typ.
230 VAC input	29 ms typ.	40 ms typ.	39 ms typ.	39 ms typ.	41 ms typ.	38 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	400 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	150 W
Output voltage	5 V	12 V	15 V	24 V	36 V	48 V
Efficiency *	115 VAC input	81% typ.	84% typ.	85% typ.	86% typ.	86% typ.	87% typ.
230 VAC input	82% typ.	85% typ.	86% typ.	87% typ.	87% typ.	88% typ.
Input	Voltage range *	Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373 VDC Select with the switch. (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	2.8 A typ.
230 VAC input	1.6 A typ.
Power factor	--
Leakage current	115 VAC input	0.50 mA	0.50 mA	0.50 mA	0.50 mA	0.40 mA	0.50 mA
230 VAC input	0.75 mA	0.75 mA	0.75 mA	0.70 mA	0.60 mA	0.70 mA
Inrush current * (for a cold start at 25°)	115 VAC input	32 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	26 A	12.5 A	10 A	6.5 A	4.3 A	3.3 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 120 VAC/200 to 240 VAC input	50 mVp-p max.	90 mVp-p max.	110 mVp-p max.	100 mVp-p max.	200 mVp-p max.	120 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 120 VAC/200 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	770 ms typ.	730 ms typ.	740 ms typ.	770 ms typ.	730 ms typ.	760 ms typ.
230 VAC input	750 ms typ.	720 ms typ.	730 ms typ.	760 ms typ.	720 ms typ.	750 ms typ.
Hold time *	115 VAC input	29 ms typ.	24 ms typ.	27 ms typ.	23 ms typ.	23 ms typ.	21 ms typ.
230 VAC input	35 ms typ.	30 ms typ.	31 ms typ.	28 ms typ.	29 ms typ.	27 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	500 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	Conforms to EN 61000-3-2, GB17625.1
EMI	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 CCC: GB4943 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	200 W
Output voltage	5 V	12 V	24 V	36 V	48 V
Efficiency *	115 VAC input	81% typ.	85% typ.	88% typ.	89% typ.	88% typ.
230 VAC input	81% typ.	87% typ.	88% typ.	90% typ.	90% typ.
Input	Voltage range *	Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373 VDC Select with the switch. (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	4 A typ.
230 VAC input	2.3 A typ.
Power factor	--
Leakage current	115 VAC input	0.35 mA	0.25 mA	0.40 mA	0.20 mA	0.40 mA
230 VAC input	0.60 mA	0.50 mA	0.75 mA	0.45 mA	0.80 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	40 A	17 A	8.8 A	5.9 A	4.43 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 120 VAC/200 to 240 VAC input	60 mVp-p max.	60 mVp-p max.	110 mVp-p max.	130 mVp-p max.	120 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	1.0% max.
Temperature variation influence	100 to 120 VAC/200 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	620 ms typ.	630 ms typ.	580 ms typ.	630 ms typ.	620 ms typ.
230 VAC input	600 ms typ.	610 ms typ.	550 ms typ.	600 ms typ.	600 ms typ.
Hold time *	115 VAC input	32 ms typ.	30 ms typ.	38 ms typ.	30 ms typ.	31 ms typ.
230 VAC input	37 ms typ.	35 ms typ.	45 ms typ.	37 ms typ.	37 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	No
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 50°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	700 g max.
Cooling fan	No
Degree of protection	--
Stan- dards	Harmonic current emissions	--
EMI	Conducted Emissions	Conforms to EN 61204-3 Class A, EN 55011 Class A
Radiated Emissions	Conforms to EN 61204-3 Class A, EN 55011 Class A
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Power rating	350 W
Output voltage	5 V	12 V	24 V	36 V	48 V
Efficiency *	115 VAC input	77% typ.	83% typ.	86% typ.	87% typ.	87% typ.
230 VAC input	78% typ.	85% typ.	88% typ.	88% typ.	88% typ.
Input	Voltage range *	Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373 VDC Select with the switch. (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on Data Sheet.)
Frequency *	50 /60 Hz (47 to 450 Hz)
Current *	115 VAC input	6.4 A typ.
230 VAC input	3.5 A typ.
Power factor	--
Leakage current	115 VAC input	0.40 mA	0.40 mA	0.40 mA	0.40 mA	0.40 mA
230 VAC input	0.75 mA	0.80 mA	0.75 mA	0.80 mA	0.80 mA
Inrush current * (for a cold start at 25°)	115 VAC input	16 A typ.
230 VAC input	32 A typ.
Output	Rated Output Current	60 A	29 A	14.6 A	9.7 A	7.32 A
Voltage adjustment range *	-10% to 10% (with V. ADJ)
Ripple & Noise voltage *	100 to 120 VAC/200 to 240 VAC input	110 mVp-p max.	130 mVp-p max.	120 mVp-p max.	180 mVp-p max.	180 mVp-p max.
Input variation influence *	0.5% max.
Load variation influence *	2.0% max.	1.0% max.
Temperature variation influence	100 to 120 VAC/200 to 240 VAC input	0.03%/°C max.
Startup time *	115 VAC input	610 ms typ.	620 ms typ.	580 ms typ.	610 ms typ.	610 ms typ.
230 VAC input	570 ms typ.	590 ms typ.	560 ms typ.	590 ms typ.	590 ms typ.
Hold time *	115 VAC input	25 ms typ.	18 ms typ.	17 ms typ.	19 ms typ.	19 ms typ.
230 VAC input	31 ms typ.	25 ms typ.	23 ms typ.	25 ms typ.	24 ms typ.
Addi- tional func- tions	Overload protection	Yes, automatic reset
Overvoltage protection *	Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Overheat protection	Yes, power shut off (shut off the input voltage and turn on the input again) (Overheat protection when the cooling fan is in an abnormal condition)
Series operation	Yes (For up to 2 Power Supplies, external diodes are required.)
Parallel operation	No (However, backup operation is possible, external diodes are required.)
Remote sensing	No
Remote control	No
Output indicator	Yes (LED: Green)
Insula- tion	Withstand voltage	3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
Insulation resistance	100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Envi- ron- ment	Ambient operating temperature	-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on Data Sheet.) (with no condensation or icing)
Storage temperature	-40 to 85°C (with no condensation or icing)
Ambient operating humidity	20% to 90% (Storage humidity: 10% to 95%)
Vibration resistance	10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Relia- bility	MTBF	135,000 hrs min.
Life expectancy *	10 years min.
Con- struc- tion	Dimensions (W × H × D)	Refer to Dimensions.
Weight	800 g max.
Cooling fan	Yes (ON/OFF control according to internal temperature)
Degree of protection	--
Stan- dards	Harmonic current emissions	--
EMI	Conducted Emissions	Conforms to EN 61204-3 Class A, EN 55011 Class A
Radiated Emissions	Conforms to EN 61204-3 Class A, EN 55011 Class A
EMS	Conforms to EN 61204-3 high severity levels
Safety Standards	Approved Standards UL: cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 Conformed Standards EN: EN 60950-1 OVC II Pol2
Marine Standards	No
SEMI	No

Efficiency	The value is given for the rated output voltage and rated output current.
Input	Voltage range	Although some inverters give 50/60 Hz as the output frequency, do not use an inverter output as the power source for the Power Supply. Doing so may result in smoking or burning due to internal temperature increases in the Power Supply. If you connect a UPS to the input, do not connect one with a square wave output.
Frequency
Current	The value is given for the rated output voltage and rated output current.
Inrush current (for a cold start at 25°C)	The value is given for a cold start at 25°C. Refer to following for details.
Output	Voltage adjustment range	If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by 10% or more over the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that load is not damaged.
Ripple & Noise voltage	The value is given for the rated output voltage and rated output current. The value is for an ambient operating temperature of 25°C.
Input variation influence	This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
Load variation influence	This is the value when the output current is changed from 0 A to the rated output current while the input voltage is within the allowable input voltage.
Startup time	The value is given for the rated output voltage and rated output current. The value is given for a cold start at 25°C. Refer to following for details.
Hold time	The value is given for the rated output voltage and rated output current. Refer to following for details.
Additional functions	Overvoltage protection	Refer to Overvoltage Protection on Data Sheet for information on resetting the input power.
Reliability	Life expectancy	Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on Data Sheet for details.

Power rating	Input voltage	Output voltage (VDC)	Output current	Built- in fan	Model with terminal block facing upward	Model with terminal block facing forward	Model wtih DIN rail
15 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 120 to 370 VDC *1)	5 V	3 A	None	--	S8FS-C01505J	S8FS-C01505D
12 V	1.3 A	S8FS-C01512J	S8FS-C01512D
15 V	1 A	S8FS-C01515J	S8FS-C01515D
24 V	0.7 A	S8FS-C01524J	S8FS-C01524D
25 W	5 V	5 A	S8FS-C02505	S8FS-C02505J	S8FS-C02505D
12 V	2.1 A	S8FS-C02512	S8FS-C02512J	S8FS-C02512D
15 V	1.7 A	S8FS-C02515	S8FS-C02515J	S8FS-C02515D
24 V	1.1 A	S8FS-C02524	S8FS-C02524J	S8FS-C02524D
35 W	5 V	7 A	S8FS-C03505	S8FS-C03505J	S8FS-C03505D
12 V	3 A	S8FS-C03512	S8FS-C03512J	S8FS-C03512D
15 V	2.4 A	S8FS-C03515	S8FS-C03515J	S8FS-C03515D
24 V	1.5 A	S8FS-C03524	S8FS-C03524J	S8FS-C03524D
50 W	5 V	10 A	S8FS-C05005	S8FS-C05005J	S8FS-C05005D
12 V	4.2 A	S8FS-C05012	S8FS-C05012J	S8FS-C05012D
15 V	3.4 A	S8FS-C05015	S8FS-C05015J	S8FS-C05015D
24 V	2.2 A	S8FS-C05024	S8FS-C05024J	S8FS-C05024D
48 V	1.1 A	S8FS-C05048	S8FS-C05048J	S8FS-C05048D
75 W	5 V	14 A	S8FS-C07505	S8FS-C07505J	S8FS-C07505D
12 V	6.2 A	S8FS-C07512	S8FS-C07512J	S8FS-C07512D
15 V	5 A	S8FS-C07515	S8FS-C07515J	S8FS-C07515D
24 V	3.2 A	S8FS-C07524	S8FS-C07524J	S8FS-C07524D
48 V	1.6 A	S8FS-C07548	S8FS-C07548J	S8FS-C07548D
100 W	100 to 120 VAC, 200 to 240 VAC (allowable range: 85 to 132 VAC, 176 to 264 VAC, or 248 to 373 VDC (Select with the switch.) *2)	5 V	20 A	S8FS-C10005	S8FS-C10005J	S8FS-C10005D
12 V	8.5 A	S8FS-C10012	S8FS-C10012J	S8FS-C10012D
15 V	7 A	S8FS-C10015	S8FS-C10015J	S8FS-C10015D
24 V	4.5 A	S8FS-C10024	S8FS-C10024J	S8FS-C10024D
36 V	2.8 A	S8FS-C10036	S8FS-C10036J	S8FS-C10036D
48 V	2.3 A	S8FS-C10048	S8FS-C10048J	S8FS-C10048D
150 W	100 to 120 VAC, 200 to 240 VAC (allowable range: 90 to 132 VAC, 180 to 264 VAC, or 254 to 373 VDC (Select with the switch.) *2)	5 V	26 A	S8FS-C15005	S8FS-C15005J	S8FS-C15005D
12 V	12.5 A	S8FS-C15012	S8FS-C15012J	S8FS-C15012D
15 V	10 A	S8FS-C15015	S8FS-C15015J	S8FS-C15015D
24 V	6.5 A	S8FS-C15024	S8FS-C15024J	S8FS-C15024D
36 V	4.3 A	S8FS-C15036	S8FS-C15036J	S8FS-C15036D
48 V	3.3 A	S8FS-C15048	S8FS-C15048J	S8FS-C15048D
200 W	5 V	40 A	S8FS-C20005	S8FS-C20005J	S8FS-C20005D
12 V	17 A	S8FS-C20012	S8FS-C20012J	S8FS-C20012D
24 V	8.8 A	S8FS-C20024	S8FS-C20024J	S8FS-C20024D
36 V	5.9 A	S8FS-C20036	S8FS-C20036J	S8FS-C20036D
48 V	4.43 A	S8FS-C20048	S8FS-C20048J	S8FS-C20048D
350 W	5 V	60 A	Yes	S8FS-C35005	S8FS-C35005J	S8FS-C35005D
12 V	29 A	S8FS-C35012	S8FS-C35012J	S8FS-C35012D
24 V	14.6 A	S8FS-C35024	S8FS-C35024J	S8FS-C35024D
36 V	9.7 A	S8FS-C35036	S8FS-C35036J	S8FS-C35036D
48 V	7.32 A	S8FS-C35048	S8FS-C35048J	S8FS-C35048D

Power rating	Mounting direction	Model
15 W	DIN Rail	S82Y-FSC015DIN
25 W	S82Y-FSC025DIN
35 W	S82Y-FSC050DIN
50 W
75 W	S82Y-FSC150DIN
100 W
150 W
200 W	S82Y-FSC350DIN
350 W
15 W	Bottom-mounting to DIN Rail	S82Y-FSC015DIN-S
25 W	S82Y-FSC025DIN-S
35 W	S82Y-FSC035DIN-S
50 W	S82Y-FSC050DIN-S
75 W	S82Y-FSC100DIN-S
100 W
150 W	S82Y-FSC150DIN-S
200 W	Bottom-mounting with L-brackets	S82Y-FSC350B (4 brackets)
350 W

Model
PFP-100N
PFP-50N

Model
PFP-100N2

Model
PFP-M

Terminal block direction	Power rating	Applicable models	Terminal Cover model number
Models with terminal block facing upward	25-W	S8FS-C025[][]	S82Y-FSC-C5
35-W	S8FS-C035[][]
50-W	S8FS-C050[][]
75-W	S8FS-C075[][]
100-W	S8FS-C100[][]	S82Y-FSC-C7
150-W	S8FS-C150[][]
200-W	S8FS-C200[][]	S82Y-FSC-C9
350-W	S8FS-C350[][]
Models with terminal block facing forward	15-W	S8FS-C015[][]J/D	S82Y-FSC-C5MF
25-W	S8FS-C025[][]J/D	S82Y-FSC-C5F
35-W	S8FS-C035[][]J/D
50-W	S8FS-C050[][]J/D
75-W	S8FS-C075[][]J/D
100-W	S8FS-C100[][]J/D	S82Y-FSC-C7F
150-W	S8FS-C150[][]J/D
200-W	S8FS-C200[][]J/D	S82Y-FSC-C9F
350-W	S8FS-C350[][]J/D

Return to OMRON

OMRON S8FS-CPower Supplies / In Addition/ Power Supplies/Switch mode power supplies

OMRON S8FS-C Dimensions

To Improve Reliability of Euipment, Start with Power Supply Selection

How does a Power Supply contribute to stable equipment operation?

Designed to Withstand Abnormal Input Voltages Up to 300 VAC*1

Improved Resistance to Noise of Several Tens of kHz from Inverters

Lightening Surge Resistance of 1.5 Times*1 the Standard Value

Design with details in mind provides stable quality and reliability.

Automatic lines are used in the manufacturing processes to ensure stable Power Supply quality.

OMRON boasts a 38-year track record in Power Supplies.

Purchase the OMRON Switch mode power supplies Please fill in the following

OMRON S8FS-C catalog

English

Global Edition

OMRON S8FS-C specification

Ratings, Characteristics, and Functions

Conditions

Inrush Current, Startup Time, and Output Hold Time

Ripple Noise Voltage

OMRON S8FS-C dimension

Power Supplies

Models with Terminal Block Facing Upward

S8FS-C025[][] (25 W)

S8FS-C035[][] (35 W)

S8FS-C050[][] (50 W)

S8FS-C075[][] (75 W)S8FS-C100[][] (100 W)

S8FS-C150[][] (150 W)

S8FS-C200[][] (200 W)

S8FS-C350[][] (350 W)

Models with Terminal Block Facing Forward

S8FS-C015[][]J (15 W)

S8FS-C025[][]J (25 W)

S8FS-C035[][]J (35 W)

S8FS-C050[][]J (50 W)

S8FS-C075[][]J (75 W)S8FS-C100[][]J (100 W)

S8FS-C150[][]J (150 W)

S8FS-C200[][]J (200 W)

S8FS-C350[][]J (350 W)

Models with DIN rail

S8FS-C015[][]D (15 W)

S8FS-C025[][]D (25 W)

S8FS-C035[][]D (35 W)

S8FS-C050[][]D (50 W)

S8FS-C150[][]D (150 W)

S8FS-C200[][]D (200 W)

S8FS-C350[][]D (350 W)

Mounting Brackets

S82Y-FSC015DIN

S82Y-FSC025DIN

S82Y-FSC050DIN

S82Y-FSC150DIN

S82Y-FSC350DIN

S82Y-FSC015DIN-S

S82Y-FSC025DIN-S

S82Y-FSC035DIN-S

S82Y-FSC050DIN-S

S82Y-FSC100DIN-S

S82Y-FSC150DIN-S

S82Y-FSC350B (Four Brackets)

For Users of S8JC DIN Rail-mounting Power Supplies

Table of Corresponding S8JC Power Supplies and S8FS-C[]J Power Supplies with DIN Rail Mounting Brackets

DIN Rail

Mounting Rail (Material: Aluminum)

PFP-100NPFP-50N

PFP-100N2

End Plate

PFP-M

OMRON S8FS-C lineup

Mounting Brackets (Order Separately)

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)

Mounting Rail (Material: Aluminum)

End Plate

Terminal Cover (Order Separately)

S8FS-C075[][] (75 W)
S8FS-C100[][] (100 W)

S8FS-C075[][]J (75 W)
S8FS-C100[][]J (100 W)

PFP-100N
PFP-50N
