[High Speed and High Quality in a Wide Variety of Applications] Marking Flexibility

Two Operating Modes Provide Fine Detail to Deep Engraving

Standard Mode

Our exclusive flexible pulse control (up to 1MHz, adjustable 1 - 20 pulses) enables optimum marking and processing for a variety of materials and applications, for a variety of materials and applications, including both heated and non-heated marking/processing, etc.

[NEW] Optional EE Mode (Energy Enhanced Mode)

Deep engraving of metal. rough polishing, and other energy-intense processing becomes possible with an expanded and enhanced flexible pulse control, which provides pulse streams of up to 30 pulses.

Marking 3D Objects Is Simple Even on Cones and Spheres

[NEW] High-precision Z-axis Flexibility

Clean marking is now possible for 3D surfaces, such as stepped, sloped, curved, conical and spherical surfaces without any additional software.

Mark Clearly and Cleanly Even at High Speed

G-DAC

G-DAC stands for the OMRON-developed Galvano Dynamic Acceleration Control.

The G-DAC feature adjusts the laser marking speed for optimum performance, based on the marking details.
This speed flexibility enables high-speed, clean marking.

Note: G-DAC performance depends on the application. Be sure to test your application in advance.

[Enhanced Functionality Improves Productivity] Connectivity & Traceability

Position-correction without the need of a PLC

[NEW] Direct Finder Link

The MX-Z2000H series enables direct connectivity between the image processing system and the laser marker that traditionally required PLC processing . This means, there is no need for a PLC to do the linking between the vision system and the laser marker.

Notes:
1. The optional finder feature is required to use this function.
2. As the end of April 2017, corresponding image processing system is OMRON FH series and part of FQ2 series.
Please refer to finder option catalogue Q255-E1 to select image processing system.

Example Application

To mark a product in the same area everytime, an image processing system measures the position reference, transfers the position coordinates and the laser marker adjusts itself to mark in the correct place. After the laser marking is completed, the image processing system can also read a 2D code or any other inspection of the data or images just marked on the product.

Easily Configure a Traceability System

[NEW] Traceability Log

Archive marking data, and other data to a log, etc. Simplify both traceability and preventive maintenance.

Smoothly Integrate External Control

[NEW] EtherNet/IP™ Compatibility

The MX-Z2000H series is compatible with various kinds of external control. Built-in I/O connections, RS-232C, Ethernet, and EtherNet/IP™ simplify programming to control the system from a PLC.

*Please check the user's manual before using available functions and commands.

Marking for Small Lots with Multiple Variants

Data can be shared with external storage

The MX-Z2000H series can access and marking data that is stored on an Ethernet server to keep up with the tremendous amount of data used for multi-variant, small lot productions. This simplifies the switching of marking data for each variant.

[Withstands Severe Conditions and Meets International Standards] Durability/Safety

Stable Operation Even in Dusty/Wet Environments

[NEW] Durable IP65 Head

The laser head (where the laser light is emitted) has a double glass cover to keep dust and moisture away and ensure air-tightness.

Meets Safety Requirements and Standards

[NEW] Built-in Safety Relay Circuit

When building a product to meet the ISO 13849-1 (JIS-B9705-1) criteria, you have to provide safety measures for the total device in which the laser marker is installed. The MX-Z2000H series has 2 safety relays in the controller, and sending an emergency stop signal from an external controller to the interlock terminals will absolutely stop the power supply to the laser.

[NEW] Meets International Standards and Regulations

The laser markers meet each standard and regulation. They can now be used internationally.
Note: For details about exact countries and areas, contact your local OMRON representative.

Operation Flexibility Increases Throughput With Less Effort

Edit the Marking Data Directly on the Laser Marker

Editing Data

There is no need to buy separate editing software, or a computer to edit data. Data editing functionality is built right into the laser marker itself, simplifying the process.

Offline Editing Software is Also Standard

You can also use a separate computer if you choose, to create and edit the print data, including graphics, with the same functionality as is built into the laser marker.

Simplifying Positioning and Other Floor Work

Optional Features

Finder (Vision Attachment)

The Finder feature enables visual positioning of small parts for marking/processing, as well as automated positioning and inspection with an image processing system.

Please refer to the catalogue Q255-E1

last update: June 21, 2018

Purchase the OMRON Copyright Statement Please fill in the following

---

OMRON MX-Z2000H Series lineup

MX-Z2000H Series Fiber Laser Marker/Lineup

last update: May 8, 2017

Model
MX-Z2000H
MX-Z2050H
MX-Z2055H

Items Sold Separately

MX-9301	Controller power supply cable (PSE,UL) plug type B
MX-9302	Controller power supply cable (VDE,AS) plug type F
MX-9230	EE mode activation key
Finder option	Please refer to the catalogue Q255-E1.
Other	Contact your local OMRON representative about details.

Note: Use commercially available products for the other devices required: USB keyboard, USB mouse< and monitor (VGA 3-row 15-pin, or DVI-D input with 1,024×768 minimum resolution).

last update: May 8, 2017

OMRON MX-Z2000H Series dimension

MX-Z2000H Series Fiber Laser Marker/Dimensions

last update: June 01, 2016

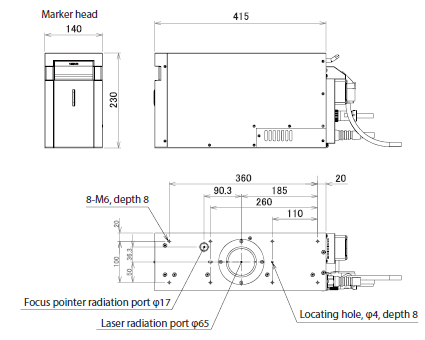

Marker head

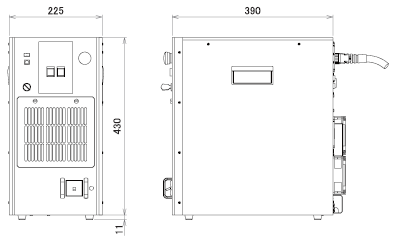

Controller

last update: June 01, 2016

OMRON MX-Z2000H Series catalog

MX-Z2000H Series Fiber Laser Marker/Catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
MX-Z2000H series Catalog	Q251-E1-03 [3838KB]	Jun 21, 201820180621	MX-Z2000H series Catalog

OMRON MX-Z2000H Series specification

MX-Z2000H Series Fiber Laser Marker/Specifications

last update: June 22, 2017

Item		MX-Z2000H	MX-Z2050H	MX-Z2055H*1
Processing laser	Type	Fiber laser Wavelength: 1,062nm
	Laser class	Class 4 (IEC60825-1)
	Average output	20W (Fiber laser transmitter output)
	Laser output mode	Standard mode/EE mode*2
	Repetition frequency	Standard mode 10 to 1,000kHz in 0.1-kHz steps/EE mode*2 10 to 100kHz in 0.1-kHz steps
	Pulse-train width(pattern)setting	Standard mode 7.5ns~300ns(15patterns)/EE mode*2 150ns~450ns (3patterns)
Guide laser and focus pointer	Type	Semiconductor laser wavelength: 655nm
	Laser class	Class 2 (IEC60825-1)
Optical specifications	Marking area	90×90mm	160×160mm	160×160mm
	Working distance	170±10mm	220±10mm	220±10mm
Scanning specifications	Scan speed	1~12,000mm/s
	Marking resolution	2μm	4μm	4μm
Detail of marking	Text	original / original2 / OCR-A / OCR-B / SEMI / LM font / True Type font
	Bar code	CODE39 / NW-7 / ITF / CODE128 / JAN GS1 Databar Omni-directional / GS1 Databar Truncated/GS1 Databar Limited / GS1 Databar Expanded
	2D code	QR code / Micro QR code / DataMatrix(ECC200)/ GS1 DataMatrix(ECC200)
	shape	Fixed point / Straight line / Rectangle / Circle / Arc
	3D shapes	Slope / Step / Cylinder / Truncated Cone / Sphere
	Image and CAD	BMP/JPG/PNG/DXF
Settings	No. of data/blocks	Marking data:10,000. ; blocks:2,048
	Text setting	0.1mm~120mm
Cables	Fiber cable	4.5m Minimum bending radius: 100mm
	Marker head control cable Marker head power supply cable	5m Minimum bending radius: 100mm
External interface*3	Terminal block and I/O connector	Terminal block input 20pins(NPN/PNP compatible); terminal block 14pins(NPN/PNP compatible) I/O connector 37pins(NPN/PNP compatible),interlock terminal I/O: 8pins
	Serial communications	RS-232C/RS-422A
	Ethernet communication	Ethernet(1000BASE-T/100BASE-TX/10BASE-T) / EtherNet/IP™
Power supply voltage		100 to 120VAC,50/60Hz ; 200 to 240VAC,50/60Hz
Over voltage category		CAT Ⅱ
Power consumption		at 100VAC: maxmum 390VA , at 200VAC: maxmum 420VA
Ambient conditions	Operating ambient temperature*4,humidity	0 to 40℃, 35 to 85%RH(no condensation)
	Strage ambient temperature,humidity	-10 to 60℃(no freezing) / 35 to 85%RH(no condensation)
	Installation environment	Indoor , 3,000m, max
Pollution degree		2
Protection structure(head)*5		IP65
Coolin method		Forced air cooling
Weight		Marker head Approx.15kg, Controller Approx.25kg
Size		Marker head W140×H230×D415mm(excluding projections), Controller W225×H430×D390mm(excluding projections)
Installation direction		Marker head All directions of up, down, left and right (intake vent on the left side face must not be blecked.)Controller Must be installed vertically.
USB interface*6		USB memory: Controller front panel, Type A connector, keyboard/mouse:controller back panel ,TypeA connector
Accessories		Marker head controll cable, Marker head power supply cable, System key , Removable terminals(input and output, 1each), Instruction sheet, CD-ROM(Office editing software*7, User's manual, Setup manual.,Translation table between Japanese and Chinese). Interlock release connector, Cable tie, Waring labels

Notes
*1 Faster marking for resins and plastics films (1.8x faster than MX-Z2050H, 2.0x faster than MX-Z2000H. In case of the fill marking on a plastic film )
*2 EE mode : Energy Enhanced mode (optional)
*3 There are restrictions on functions and commands that can be used by each external interface. Please check the user's manual before use.
*4 The operating temperature may be limited due to the processing conditions. When using ther laser continuously or close to continuously for laser processing,etc. ,please contact OMRON in advance.
*5 The head of this product is constructed for environmental protection under the conditions specified in IEC 60529(JIS C0920) , and is not guaranteed under any other conditions.
*6 Do not use the USB interfaces for anything other than ther specified applications.
*7 The following environment is required for using the offline editing software and font logo editor
   : Computer with a USB 2.0. or 1.1 port , Microsoft Windows® 8/Windows® 7 , Available hard disk space : 1GB, min. Display resolution : 1,024×768, min.
・From the production in end of April 2017, there are some external appearance changes, such as painting the bottom of the head.

last update: June 22, 2017
