OMRON SmartController EX Dimensions

/Images/l_3522-25-257441-198x198.jpg

last update: August 1, 2018

• Controls up to four robots

• Gigabit Ethernet

• 12 inputs/8 outputs

• Ultra-compact form factor for high footprint efficiency

• Integration with configuration software ACE to control complex mechanisms through user-friendly interface

last update: August 1, 2018

Purchase the OMRON Robot Controllers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON SmartController EX Robotics,Robotics is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Robotics at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the SmartController EX We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON SmartController EXRobotics tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E2K-X Cylindrical Proximity Sensor/Features
E6CP-A Low-cost Encoder with Diameter of 50 mm/Features
61F-AN / -APN2 Alternate Operation Relay/Features
D4NH Safety-door Hinge Switch/Features
XW2F Connector-Terminal Block Conversion Units with Push-in Terminals/Features

OMRON SmartController EX catalog
SmartController EX Robot Controllers/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Industrial Robots Datasheet I822-E1-07
[7789KB] Feb 07, 201920190207 Industrial Robots Datasheet

Robotic Automation Concept Book I824-E1-01
[1600KB] Jun 13, 201620160613 Robotic Automation Concept Book

Robot Care Pamphlet I829-E1-02
[1707KB] Nov 07, 201820181107 Robot Care Pamphlet

OMRON SmartController EX dimension
SmartController EX Robot Controllers/Dimensions
last update: April 01, 2016

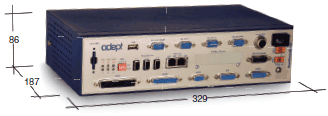

SmartController EX

Front panel

last update: April 01, 2016

OMRON SmartController EX lineup
SmartController EX Robot Controllers/Lineup
last update: October 10, 2017

Type Name/Specifications Model
Robot Controller SmartController EX 19300-000
Additional I/O
Options IO Blox (connect to robot), 8 inputs/8 outputs, 0.3 m cables included 90356-30200
IO Block (connect to previous IO Blox), 8 inputs/8 outputs, 0.3 m cables included 90356-30100
IO Blox-to-robot Cable, 3 m 04679-030
IO Blox-to-IO Blox Cable, 0.3 m 04679-003
IO Blox-to-IO Blox Cable, 3 m 04677-030
Termination Block, 12inputs/8 outputs, cables included (1.8 m) 90356-40100

last update: October 10, 2017

OMRON SmartController EX specification
SmartController EX Robot Controllers/Specifications
last update: November 21, 2016

Item Specifications
Model 19300-000
Grounding Method Ground to less than 100 Ω
Dimensions (Height x Depth x Width) 86 x 187 x 329 mm
Weight 2.6 kg
Power Supply 24 VDC±10%
Current Consumption 5 A
Power Consumption 120 W
Operation
Environment Ambient Temperature 5 to 40°C
Humidity Range 5 to 90% (non-condensing)
Mounting Panel mount, rack mount, stack mount, desktop
Communications Port RS-232 (115 kbps), RS422/485, Gigabit Ethernet, DeviceNet
On-board I/O (Input/Output) 12/8
Conveyor tracking input 4

Additional I/O Options
Input Specifications

Item Specifications
Model 90356-30200/-30100/-40100
ON Voltage 10 V min.
OFF Voltage 3 V max.
OFF Current 0.5 mA
Input Current 2.5 mA min.
7.5 mA max.
ON Delay Time 5 μs max.
OFF Delay Time 5 μs max.
Isolation Method Photocoupler isolation
Current Consumption from I/O Power Supply 6 mA max. (at power supply voltage of 24 VDC)

Output Specifications

Item Specifications
Model 90356-30200/-30100/-40100
Rated Output Current 700 mA/point
Maximum Output Current 2.5 A at 50°C ambient
3.7 mA at 25°C ambient
ON Delay Time 100 μs max.
OFF Delay Time 150 μs max.

last update: November 21, 2016

NO. SmartController EX

TYPE:Industrial Robots Robot Controllers Copyright Statement

DATE:2021-06-07

Associated products:
Automation Control Environment (ACE) Software/Features T20 Pendant Pendant/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
Industrial Robots Datasheet	I822-E1-07 [7789KB]	Feb 07, 201920190207	Industrial Robots Datasheet
Robotic Automation Concept Book	I824-E1-01 [1600KB]	Jun 13, 201620160613	Robotic Automation Concept Book
Robot Care Pamphlet	I829-E1-02 [1707KB]	Nov 07, 201820181107	Robot Care Pamphlet

Type	Name/Specifications	Model
Robot Controller	SmartController EX	19300-000
Additional I/O Options	IO Blox (connect to robot), 8 inputs/8 outputs, 0.3 m cables included	90356-30200
IO Block (connect to previous IO Blox), 8 inputs/8 outputs, 0.3 m cables included	90356-30100
IO Blox-to-robot Cable, 3 m	04679-030
IO Blox-to-IO Blox Cable, 0.3 m	04679-003
IO Blox-to-IO Blox Cable, 3 m	04677-030
Termination Block, 12inputs/8 outputs, cables included (1.8 m)	90356-40100

Item	Specifications
Model	19300-000
Grounding Method	Ground to less than 100 Ω
Dimensions (Height x Depth x Width)	86 x 187 x 329 mm
Weight	2.6 kg
Power Supply	24 VDC±10%
Current Consumption	5 A
Power Consumption	120 W
Operation Environment	Ambient Temperature	5 to 40°C
Humidity Range	5 to 90% (non-condensing)
Mounting	Panel mount, rack mount, stack mount, desktop
Communications Port	RS-232 (115 kbps), RS422/485, Gigabit Ethernet, DeviceNet
On-board I/O (Input/Output)	12/8
Conveyor tracking input	4

Item	Specifications
Model	90356-30200/-30100/-40100
ON Voltage	10 V min.
OFF Voltage	3 V max.
OFF Current	0.5 mA
Input Current	2.5 mA min. 7.5 mA max.
ON Delay Time	5 μs max.
OFF Delay Time	5 μs max.
Isolation Method	Photocoupler isolation
Current Consumption from I/O Power Supply	6 mA max. (at power supply voltage of 24 VDC)

Item	Specifications
Model	90356-30200/-30100/-40100
Rated Output Current	700 mA/point
Maximum Output Current	2.5 A at 50°C ambient 3.7 mA at 25°C ambient
ON Delay Time	100 μs max.
OFF Delay Time	150 μs max.
