• Absolute model.
• External diameter of 50 mm.
• Resolution: 256 (8-bit).
• Lightweight construction using plastic body.
last update: April 21, 2017
Purchase the OMRON Absolute Please fill in the following
If you have just landed here, this product OMRON E6CP-A Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E6CP-A We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E6CP-ASensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
OS32C Safety Laser Scanner/Features
ZN-A Air Clean Units/Features
H3Y-[]-B Solid-state Timer/Features
H5CN Digital Timer/Features
CK3W-AX1414[] / 1515[] CK3W Axial Interface Unit/Features
OMRON E6CP-A lineup
E6CP-A Low-cost Encoder with Diameter of 50 mm/Lineuplast update: April 14, 2016
Encoders
| Power supply voltage | Output configuration | Resolution (divisions) | Connector for H8PS Cam Positioner | Model |
|---|---|---|---|---|
| 5 to 12 VDC | Open-collector output | 256 (8-bit) | None | E6CP-AG3C 256P/R 2M |
| 12 to 24 VDC | E6CP-AG5C 256P/R 2M | |||
| Supported | E6CP-AG5C-C 256P/R 2M |
Note: When connecting to the H8PS, use the E6CP-AG5C-C, which is connected using a connector. It cannot be used on
other models.
Accessories (Order Separately)
| Name | Model | Remarks | |
|---|---|---|---|
| Couplings | E69-C06B | Provided with the E6CP-AG3C and E6CP-AG5C. | |
| E69-C68B | Different end diameter | ||
| E69-C610B | Different end diameter | ||
| E69-C06M | Metal construction | ||
| Servo Mounting Bracket | E69-2 | Provided with the product. (Three brackets in a set.) | |
| Extension Cable | E69-DF5 | 5 m | Models are also available with 15-m and 98-m cables. |
| E69-DF10 | 10 m | ||
| E69-DF20 | 20 m | ||
last update: April 14, 2016
OMRON E6CP-A catalog
E6CP-A Low-cost Encoder with Diameter of 50 mm/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E6CP-A Data Sheet | - [394KB] | Apr 11, 201620160411 | E6CP-A Data Sheet |
OMRON E6CP-A specification
E6CP-A Low-cost Encoder with Diameter of 50 mm/Specificationslast update: April 11, 2016
| Model | E6CP-AG3C | E6CP-AG5C | E6CP-AG5C-C | |
|---|---|---|---|---|
| Power supply voltage | 5 VDC -5% to 12 VDC +10%, ripple (p-p): 5% max. | 12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max. | ||
| Current consumption *1 | 90 mA max. | 70 mA max. | ||
| Resolution (rotations) | 256 (8-bit) | |||
| Output code | Gray code | |||
| Output configuration | Open-collector output | |||
| Output capacity | Applied voltage: 28 VDC max. Sink current: 16 mA max. Residual voltage: 0.4 V max. (at sink current of 16 mA) | |||
| Maximum response frequency *2 | 5 kHz | |||
| Logic | Negative logic (high = 0, low = 1) | |||
| Accuracy | ±1° max. | |||
| Direction of rotation | Output code incremented by CW (as viewed from the end of the shaft) | |||
| Rise and fall times of output | 1 μs max. (Control output voltage: 16 V, Load resistance: 1 kΩ, Output cable: 2 m max.) | |||
| Starting torque | 0.98 mN·m max. | |||
| Moment of inertia | 1 × 10-6kg·m2 max. | |||
| Shaft loading | Radial | 29.4 N | ||
| Thrust | 19.6 N | |||
| Maximum permissible speed | 1,000 r/min | |||
| Ambient temperature range | Operating: -10 to 55°C (with no icing), Storage: -25 to 85°C (with no icing) | |||
| Ambient humidity range | Operating/Storage: 35% to 85% (with no condensation) | |||
| Insulation resistance | 200 MΩ min. (at 500 VDC) between current-carrying parts and case | |||
| Dielectric strength | 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection*3 | IEC 60529 IP50 | |||
| Connection method | Pre-wired Models (Standard cable length: 2 m) | Connector Models (Standard cable length: 2 m) | ||
| Material | Case: ABS, Main unit: PPS, Shaft: SUS416, Mounting Bracket: Galvanized iron | |||
| Weight (packed state) | Approx. 200 g | |||
| Accessories | Coupling (excluding Connector Models), Servo Mounting Bracket, Hexagonal wrench (excluding Connector Models), Instruction manual | |||
*1. An inrush current of approximately 8 A will flow for approximately 0.3 ms when the power is turned ON.
*2. The maximum electrical response speed is determined by the resolution and maximum response frequency as
follows:
This means that the Rotary Encoder will not operate electrically if its speed exceeds the maximum electrical
response speed.
*3. No protection is provided against water or oil.
last update: April 11, 2016
OMRON E6CP-A dimension
E6CP-A Low-cost Encoder with Diameter of 50 mm/Dimensionslast update: November 12, 2012
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Encoder

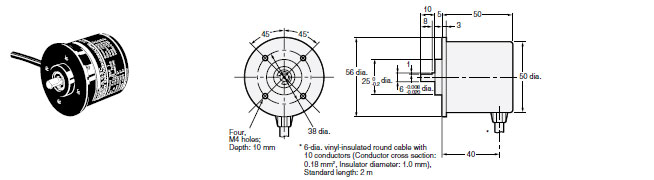

E6CP-AG3C
E6CP-AG5C
The E69-C06B Coupling is provided.

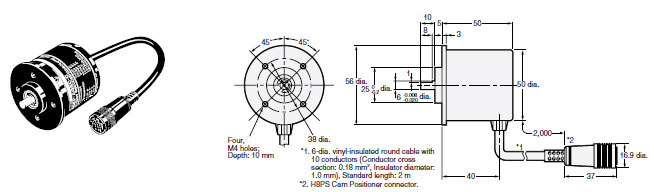

E6CP-AG5C-C
The E69-C06B Coupling is sold separately.
Accessories (Order Separately)
Servo Mounting Bracket
E69-2
Note: Provided with the product.
Extension Cable
E69-DF5
Note: 1. The E69-DF5 (5 m) is also available with the following cable lengths: 10 m, 15 m, 20 m, and 98 m.
2. Cable can be extended to 100 m when the H8PS Cam Positioner is connected.
