Downtime can be reduced.

Notifies you of faulty parts and such phenomena in the Sensor in real time.

The frequency of sudden failure can be decreased.

Condition monitoring of sensors and equipment to prevent troubles.

The efficiency of changeover can be improved.

The batch check for individual sensor IDs significantly decreases commissioning time.

[To those in charge of maintenance “Condition monitoring” for predictive maintenance (1)] Reduction of Sudden Stops by Grasping the Flow Rate Simultaneously with the Temperature of Cooling Water and Hydraulic Oil Circulating in Equipment

Existing problems

While the presence or absence of cooling water is checked by means of the ON/OFF-based pressure sensor, it is unable to detect any drop in the flow rate of the cooling water or any rise in the cooling water temperature. For that reason,

∙ The transformer is not cooled, and gets overheated, potentially leading to sudden stops of the equipment and the entire line.

∙ The tip may be deformed, causing defective products.

With an IO-Link IoT Flow Sensor

The flow rate and simultaneously the temperature of the circulation system are measured, substantially reducing sudden error.

Simultaneous monitoring of the flow rate and temperature changes, and informing of those changes, enable you to carry out predictive maintenance and reduce defective products.

[To those in charge of maintenance “Condition monitoring” for predictive maintenance (2)] The Proximity Sensor Indicates an Excessive Proximity to the Sensing Object. Understand the Changes in Equipment Condition in Advance and Reduce Sudden Stops

Existing problems

The detection position changes due to wear and vibration in the equipment’s mechanical parts and as a result, false detection and collision with the sensor have a negative impact on the equipment...

With an IO-Link Proximity Sensor

You are notified of excessive remoteness or proximity, and the occurrence of sudden defects is greatly reduced

Constantly monitoring the position of the sensing object and notifying of excessive remoteness or proximity can be used for predictive maintenance of the equipment.

[To those in charge of maintenance “Condition monitoring” for predictive maintenance (3)] Understand Unstable Situations in the Incident Level of the Photoelectric Sensor in Advance and Reduce Sudden Stops

Existing problems

∙ In a conveyance process operating for 24 hours, dust or dirt accumulated on the detection surface of the photoelectric sensor, leading to a decline in the light incident level that causes the sensor to make false detection and the equipment to stop...

∙ Water drops stick to the sensing surface of the reflective sensor causing reflected light to enter...

With an IO-Link Photoelectric Sensor

A light incident level monitor prevents false detection

With a response time of 1 ms, Photoelectric Sensor’s light incident level is output for monitoring. It is output when the light incident level exceeds the instability detection threshold, so you can check the site before false detection occurs and perform predictive maintenance.

[To those in charge of maintenance “Abnormality detection” for the shortest recovery] Detects Wiring Cable Disconnections and Errors and Improves Equipment Operation Rate Through Quick Maintenance

Existing problems

∙ An abnormality was displayed on the abnormality display screen, but upon going to look at the equipment, no external error was detected and the cause of the stop was not understood...

∙ Those responsible for maintenance investigated the cause of the abnormality from the activity of the stopped equipment, but because the maintenance person relied on the skill he or she has to identify the abnormality and replace the failed sensor, stoppages from 2 hours to several days occur...

With an IO-Link Sensor

Abnormal area and phenomenon of sensors are reported in real time

When an abnormality occurs in a sensor, because you can see where the abnormality occurred and the factors estimated for it, you can go to where the abnormality occurred and recover the equipment in the shortest amount of time.
Also with wire disconnection detection, not only output wires, but also power lines can be detected unconditionally.

Easy replacement of IO-Link sensors with Non-IO-Link sensors

You need a quick recovery but you have only Non-IO-Link sensors with no IO-Link sensors in stock. You probably think in such a case, the control program needs modifications, and requires additional time for the recovery.
With IO-Link Master, since the IO-Link ON/OFF data and the data for Non-IO-Link sensors are located in the same memory, replacement with Non-IO-Link sensors can be carried out without any modification of the control program, resulting in a reduction of the equipment downtime.

[To those in charge of production engineering “Individual identification” for the reduction of man-hours] Improving System Commissioning and Changeover Efficiency by Checking Identifications in Batches

Existing problems

∙ During system start-up or changeover, operators had to perform the I/O check for each of the thousands of sensors installed on the line, and it took an enormous amount of time...

∙ When a sensor is installed wrong or an error occurs, wasteful work occurred that would normally be unnecessary...

With an IO-Link Sensor

Without going to the site, you can check individual sensor identifications in batches, resulting in a sharp reduction of commissioning time

By checking the sensor identification (manufacturer/sensor type/model number), you can easily check mistakes such as misconnected or unconnected sensors and installation mistakes.
Also, because it is possible to program multiple sensors at once using the command language used only for the controller, it is also possible to reduce commissioning time sharply.

[Omron’s IO-Link Compliant Equipment] Masters and Sensors Can Be Chosen to Match Your Situation

For the connection of IO-Link Sensors and IO-Link Masters, two types are available: a screw-less clamp terminal block and an M12 connector.
In addition, NX-ILM400 IO-Link Master with screw-less clamp terminal block is connectable not only to EtherCAT, but also to EtherNet/IP communication coupler units, and you can choose between them according to the system configuration.

last update: July 17, 2018

Purchase the OMRON EtherCAT Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON GX-ILM08C Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GX-ILM08C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GX-ILM08CAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

F03-16PE / 16PT / 15 / 16PS Sensing Band/Liquid Leakage Point Sensor/Features
D4MC Enclosed Switch/Features
GRT1-PRT SmartSlice/Features
CJ1M-CPU1[] CJ-series CJ1M CPU Units/Features
DRT2-TS04[] Temperature Input Terminals/Features

OMRON GX-ILM08C catalog
GX-ILM08C GX-series IO-Link Master Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

IO-Link Series Catalog Y229-E1-02
[28505KB] Jul 17, 201820180717 IO-Link Series Catalog

OMRON GX-ILM08C lineup
GX-ILM08C GX-series IO-Link Master Unit/Lineup
last update: July 17, 2018
International Standards

• The standards are abbreviated as follows: U: UL, U1: UL(Class I Division 2 Products for Hazardous Locations),
    C: CSA, UC: cULus, UC1: cULus(Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd,
    CE: EU Directives, RCM: RCM mark, and KC: KC Registration.
• Contact your OMRON representative for further details and applicable conditions for these standards.

EtherCAT Slave Terminals IO-Link Master Unit

Product Name Specification Model Standards
Environmental
resistance Number of
IO-Link ports I/O connection
terminals
GX-series IO-Link
Master Unit IP67 8 M12 connector
(A-cording, female) GX-ILM08C CE, RCM, KC

Peripheral Devices
Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.

Item Appearance Recommended
manufacturer Cable
length
(m) Model
Cable with Connectors on Both Ends
Shield Strengthening cable
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black Smartclick
(M12 Straight/
M12 straight)
OMRON 0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Connectors on Both Ends
Rugged type
Shield Strengthening cable
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black Smartclick
(M12 Straight/
RJ45 straight)
OMRON 0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS

Note: For details, Contact your OMRON representative.

Power Supply Cables

Item Appearance Recommended
manufacturer Cable
length
(m) Model
Connector connected to cable,
socket on one cable end
Fire-retardant, Robot cable Smartclick (M12 Straight) OMRON 1 XS5F-D421-C80-F
2 XS5F-D421-D80-F
3 XS5F-D421-E80-F
5 XS5F-D421-G80-F
10 XS5F-D421-J80-F
Connectors connected to cable,
socket and plug on cable ends
Fire-retardant, Robot cable Smartclick
(M12 Straight/M12 straight) OMRON 1 XS5W-D421-C81-F
2 XS5W-D421-D81-F
3 XS5W-D421-E81-F
5 XS5W-D421-G81-F
10 XS5W-D421-J81-F

Note: Refer to the Round Water-resistant Connectors in the category of Sensor I/O Connector/Sensor Controller on your local OMRON website for details.

Sensor I/O Connectors

Order a cable with a connector on both ends to connect a sensor of connector type.

Item Appearance Recommended
manufacturer Cable
length
(m) Model
Connectors connected to cable,
M8 socket and M12 plug on cable ends
Fire-retardant, Robot cable M8 screw- M12 Smartclick
(M8 Straight/M12 straight) OMRON 0.2 XS3W-M42C-4C2-A
Connectors connected to cable,
socket and plug on cable ends
Fire-retardant, Robot cable Smartclick
(M12 Straight/M12 straight) OMRON 1 XS5W-D421-C81-F
2 XS5W-D421-D81-F
3 XS5W-D421-E81-F
5 XS5W-D421-G81-F
10 XS5W-D421-J81-F

Note: Refer to the Ordering Information in the catalog of the sensor to connect or the Sensor I/O Connectors/Sensor Controllers on your local OMRON website for details.

Power Supply T-Joint Connector

This connector is used when branching a GX-type Unit power supply.

Item Appearance Specification Connector type Model
XS5R Plug/Socket
T-Joint Connector M12 Smartclick connector XS5R-D427-5

Waterproof Cover for Connectors

This is a waterproof cover for unused M12 GX connectors (female).
When you use this waterproof cover, you can maintain the IP67 protective structure.
The following two types of covers are available. Either one can be mounted on an EtherCAT communications connector or I/O connector.

Item Appearance Specification Connector type Materials Model
M12 Threaded Waterproof
Cover *1 M12 Screw-type
connector Brass/
nickel plated XS2Z-22
Smartclick Waterproof Cover *2 M12 Smartclick
connector PBT XS5Z-11

*1. When mounting the M12 Threaded Waterproof Cover on a connector, always tighten it to a torque of 0.39 to 0.49 N·m.
*2. When mounting a Smartclick Waterproof Cover on a connector, torque management is not required.

Tool for M12 Threaded Connectors

The tool for tightening M12 Threaded Connectors is used when tightening to a specified torque.

Item Appearance Model
Torque Wrench
XY2F-0004

Software
Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product
name Specification Model Stand-
ards
Number of
licenses Media
Sysmac
Studio
Standard
Edition
Ver.1.[][] The Sysmac Studio is the software that provides an
integrated environment for setting, programming,
debugging and maintenance of machine automation
controllers including the NJ/NX-series CPU Units,
NY-series Industrial PC, EtherCAT Slave, and the HMI.

Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/
64-bit version)/Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

The Sysmac Studio Standard Edition DVD includes CX-
ConfiguratorFDT to set up IO-Link Master Units and
IO-Link devices.
Refer to your OMRON website for details. ---
(Media only) DVD SYSMAC-SE200D ---
1 license * --- SYSMAC-SE201L

* Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

last update: July 17, 2018

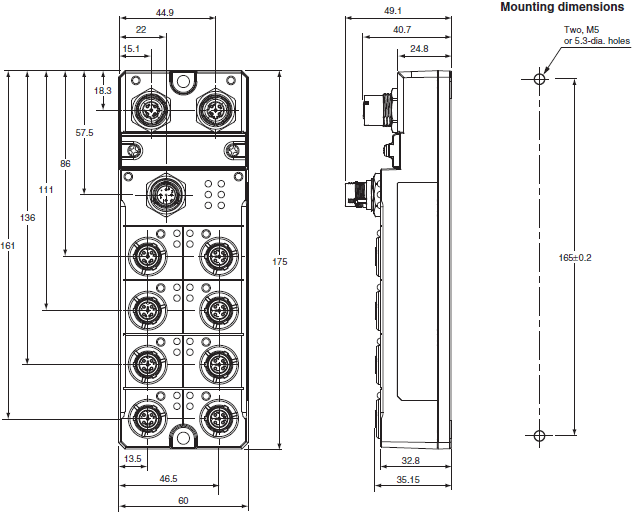

OMRON GX-ILM08C dimension
GX-ILM08C GX-series IO-Link Master Unit/Dimensions
last update: September 12, 2016

GX-ILM08C

last update: September 12, 2016

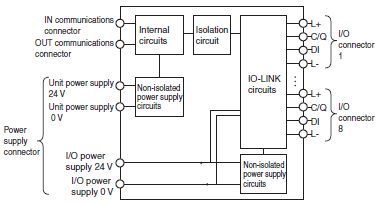

OMRON GX-ILM08C specification
GX-ILM08C GX-series IO-Link Master Unit/Specifications
last update: July 17, 2018
General Specification

Item Specification
Unit power supply
voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
I/O power supply 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise resistance Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance Malfunction: 10 to 60 Hz with amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² for 80 minutes
each in X, Y, and Z directions
Shock resistance 150 m/s² with amplitude of 0.7 mm
Dielectric strength 600 VAC (between isolated circuits)
Insulation resistance 20 MΩ min. (between isolated circuits)
Ambient operating
temperature -10 to 55°C
Ambient operating
humidity 25% to 85% (with no condensation)
Ambient operating
atmosphere No corrosive gases
Altitude 2,000 m max.
Storage temperature -25 to 65°C
Storage humidity 25% to 85% (with no condensation)
Degree of protection IP67
Mounting M5 screw mounting
Mounting strength 100 N
Communications
connector strength 30 N
Connector types Connectors for EtherCAT communications: M12 (D-coding, female) × 2
Power supply connector: M12 (A-coding, male) × 1
I/O connectors: M12 (A-coding, female) *1 × 8
Screw tightening torque
*2 Round connectors (communications connector, power supply, and I/O): 0.39 to 0.49 N·m
M5 (Unit mounted from the front): 1.47 to 1.96 N·m
Cover for node address setting switches: 0.4 to 0.6 N·m
Applicable standards *3 UL 61010-2-201, EU: EN 61131-2, RCM, KC, IO-Link conformance, and EtherCAT
conformance

*1. Confirms to Class A when used as an IO-Link connector.
*2. For SmartClick Connectors, insert the Connector all the way and turn it approx. 1/8 of a turn. Torque management is
       not required.
*3. Ask your OMRON representative for the most recent applicable standards for each model.

Unit Specification

Item Specification
Unit name IO-Link Master Unit
Model GX-ILM08C
Number of IO-Link ports 8
Communications
specifications Communications protocol IO-Link protocol
Baud rate COM1: 4.8 kbps
COM2: 38.4 kbps
COM3: 230.4 kbps
Topology 1:1
Compliant standards • IO-Link Interface and System Specification Version1.1.2
• IO-Link Test Specification Version1.1.2
Device power
supply* in
IO-Link Mode or
SIO (DI) Mode Rated voltage 24 VDC (20.4 to 26.4 VDC)
Maximum load current 0.2 A/port
Short-circuit protection Yes
Digital inputs
(in SIO (DI)
Mode) Internal I/O common PNP
Rated voltage 24 VDC (20.4 to 26.4 VDC)
Input current 5 mA typical (at 24 VDC)
ON voltage/ON current 15 VDC min., 5 mA min.
OFF voltage 5 VDC max.
Input filter time No filter, 0.25 ms, 0.5 ms, 1 ms (default), 2 ms, 4 ms, 8 ms, 16 ms,
32 ms, 64 ms, 128 ms, or 256 ms
Digital outputs
(in SIO (DIO)
Mode) Internal I/O common PNP
Output type Push-pull
Rated voltage 24 VDC (20.4 to 26.4 VDC)
Maximum load current 0.3 A/port
Short-circuit protection Provided.
Leakage current 0.1 mA max.
Residual voltage 1.5 V max.
Digital inputs for
pin 2
(in IO-Link
Mode) Internal I/O common PNP
Rated voltage 24 VDC (20.4 to 26.4 VDC)
Input current 2 mA (24 VDC)
ON voltage/ON current 15 VDC min., 2 mA min.
OFF voltage 5 VDC max.
Input filter time No filter, 0.25 ms, 0.5 ms, 1 ms (default), 2 ms, 4 ms, 8 ms, 16 ms,
32 ms, 64 ms, 128 ms, or 256 ms
Cable
specifications Cable type Unshielded
Cable length 20 m max.
Electrostatic capacity
between lines 3 nF max.
Loop resistance 6 Ω max.
Dimensions 175 × 33 × 60 mm (W × H × D)
(The height is 49.1 mm when the connectors are included.)
Isolation method Photocoupler isolation
I/O power supply method Supplied from the power supply connector.
Unit power supply current consumption 60 mA
I/O power supply current consumption 100 mA
Weight 430 g
Circuit layout
Installation orientation and restrictions Installation orientation: 6 possible orientations
Restrictions: No restrictions
Protective functions L+ terminal short-circuit protection
C/Q terminal short-circuit protection

Function Specification

Function Description
Communications Cyclic
communications I/O data (process data) in the IO-Link devices is cyclically exchanged with the IO-Link Master Unit as the IO-Link communications master.
At the same time, this data and the status of the IO-Link Master Unit is cyclically exchanged with the controller, with the IO-Link Master Unit operating as a slave of the controller.
Cyclic communications can be used to check the amount of detection performance deterioration in devices, and to check changes in usage conditions, such as the amount of incident light for photoelectric sensors, stability detection margins, and excessive proximity for proximity sensors.
Message
communications The controller can send messages (commands) to the IO-Link Master Unit and receive the response from the IO-Link Master Unit.
The IO-Link Master Unit can also function as a gateway to send messages (commands and responses) between the controller and the IO-Link devices.
During operation, you can change and adjust device parameters, such as threshold settings, tuning execution, and ON-delay time changes, from a program.
Or, during operation, you can check the internal status, such as the operating times of devices.
Communications mode settings You can select any of the following modes for each port:
IO-Link Mode, SIO (DI) Mode, SIO (DO) Mode, and Disable Port
This allows you to combine IO-Link communications and digital I/O in a single unit.
Digital inputs for pin 2 In IO-Link Mode, you can perform digital input with pin 2 while performing IO-Link communications.
Automatic baud rate setting for
IO-Link communications The IO-Link Master Unit automatically matches the specific baud rates (COM1, COM2, or COM3) of the IO-Link devices to communicate with the IO-Link devices.
Therefore, it is not necessary to set the baud rate of the connected device for each port.
Connected device verification This function is used to verify the configuration of IO-Link devices that are connected to the IO-Link Master Unit against the registered IO-Link device configuration settings when the power supply is turned ON.
The user can enable or disable connected device verification.
IO-Link communications error
detection This function detects I/O cable breaks, disconnections from IO-Link device ports, error-level device events, device configuration verification errors, and IO-Link device malfunctions.
Detection of short-circuits in I/O
cables This function detects short-circuits in I/O cables
Notification of input data validity The controller can use the Input Data Enabled Flags to determine whether the process input data for IO-Link communications is valid.
Load rejection for controller
communications error This function turns OFF outputs from the IO-Link Master Unit when a communications error occurs in communications with the controller in IO-Link Mode or in an SIO mode.
This prevents incorrect output operations when communications error occurs.
IO-Link total communications lost
frames The IO-Link total communications lost frames can be read from the CX-ConfiguratorFDT.
You can use this function to determine communications status as affected by I/O cable noise or other factors.
Digital input filter This function is used to eliminate chattering and noise of the input signal for digital inputs in SIO(DI) Mode or for digital inputs for pin 2 in IO-Link Mode. It prevents data change and stabilizes the input signal even in situations where the input data changes due to chattering or noise and the bit status is unstable.
Digital input collection* In IO-Link Mode, this function reflects the specified bit data in the input data from the IO-Link device on the digital input data of the IO-Link Master Unit. As a result, the bit data in the input data from the IO-Link device can be aggregated into the digital input data of the IO-Link Master Unit. One bit for each IO-Link port can be aggregated. This function cannot be used in SIO (DI) Mode and SIO (DO) Mode.
If you use this function, digital inputs with pin 2 cannot be used.
Backup and restoration of
parameter settings in IO-Link
devices This function is used to back up parameter settings in IO-Link devices in the IO-Link Master Unit or restore them to IO-Link devices.
This eliminates the need to set parameters again after replacing an IO-Link device.
Event log This function records events, such as errors and status changes, that occur in the IO-Link Master Unit and the IO-Link devices.

* This function is supported with the unit version 1.1 or later.

EtherCAT Communications Specifications

Item Specification
Communications protocol EtherCAT protocol
Modulation Baseband
Baud rate 100 Mbps
Physical layer 100BASE-TX (IEEE 802.3)
Connectors M12 (D-coding, female) × 2 (shielded)
CN IN: EtherCAT input
CN OUT: EtherCAT output
Communications media Category 5 or higher (cable with double, aluminum tape and braided shielding is
recommended.)
Communications distance Distance between nodes (Slave Units): 100 m max.
Noise resistance Conforms to IEC 61000-4-4, 1 kV or higher.
Node address setting method Set on hexadecimal node address switches or with a Configuration Tool.
Node address range 000 to FFF hex (0 to 4,095 decimal): Set on node address switches or with a
Configuration Tool.
Indicators UNIT PWR × 1
IO PWR × 1
L/A IN (Link/Activity IN) × 1
L/A OUT (Link/Activity OUT) × 1
RUN × 1
ERR × 1
Process data Variable PDO mapping
PDO size/node 2 to 270 bytes
Mailbox Emergency messages, SDO requests, SDO responses, and SDO information
Synchronization mode Free Run Mode (asynchronous)

Version Information

GX Unit Corresponding versions *
EtherCAT
Model Unit version CPU Units Sysmac Studio CX-ConfiguratorFDT
GX-ILM08C Ver.1.1 Ver.1.12 or later Ver.1.20 or higher Ver.2.2 or higher
Ver.1.0 Ver.1.12 or later Ver.1.16 or higher Ver.2.2 or higher

* Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version,
  support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the
  specific Units for the relation between models and versions.

last update: July 17, 2018

NO. GX-ILM08C

TYPE:Networks EtherCAT EtherCAT Remote I/O Terminals

DATE:2021-06-10

Associated products:
NX-ECC NX-series EtherCAT Coupler Unit/Features GX-[]D16[]1 / OC1601 Digital I/O Terminal 2-tier Terminal Block Type/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
IO-Link Series Catalog	Y229-E1-02 [28505KB]	Jul 17, 201820180717	IO-Link Series Catalog

Product Name	Specification	Model	Standards
Environmental resistance	Number of IO-Link ports	I/O connection terminals
GX-series IO-Link Master Unit	IP67	8	M12 connector (A-cording, female)	GX-ILM08C	CE, RCM, KC

Item	Appearance	Recommended manufacturer	Cable length (m)	Model
Cable with Connectors on Both Ends Shield Strengthening cable Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black	Smartclick (M12 Straight/ M12 straight)	OMRON	0.5	XS5W-T421-BM2-SS
1	XS5W-T421-CM2-SS
2	XS5W-T421-DM2-SS
3	XS5W-T421-EM2-SS
5	XS5W-T421-GM2-SS
10	XS5W-T421-JM2-SS
Cable with Connectors on Both Ends Rugged type Shield Strengthening cable Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black	Smartclick (M12 Straight/ RJ45 straight)	OMRON	0.5	XS5W-T421-BMC-SS
1	XS5W-T421-CMC-SS
2	XS5W-T421-DMC-SS
3	XS5W-T421-EMC-SS
5	XS5W-T421-GMC-SS
10	XS5W-T421-JMC-SS

Item	Appearance	Recommended manufacturer	Cable length (m)	Model
Connector connected to cable, socket on one cable end Fire-retardant, Robot cable	Smartclick (M12 Straight)	OMRON	1	XS5F-D421-C80-F
2	XS5F-D421-D80-F
3	XS5F-D421-E80-F
5	XS5F-D421-G80-F
10	XS5F-D421-J80-F
Connectors connected to cable, socket and plug on cable ends Fire-retardant, Robot cable	Smartclick (M12 Straight/M12 straight)	OMRON	1	XS5W-D421-C81-F
2	XS5W-D421-D81-F
3	XS5W-D421-E81-F
5	XS5W-D421-G81-F
10	XS5W-D421-J81-F

Item	Appearance	Recommended manufacturer	Cable length (m)	Model
Connectors connected to cable, M8 socket and M12 plug on cable ends Fire-retardant, Robot cable	M8 screw- M12 Smartclick (M8 Straight/M12 straight)	OMRON	0.2	XS3W-M42C-4C2-A
Connectors connected to cable, socket and plug on cable ends Fire-retardant, Robot cable	Smartclick (M12 Straight/M12 straight)	OMRON	1	XS5W-D421-C81-F
2	XS5W-D421-D81-F
3	XS5W-D421-E81-F
5	XS5W-D421-G81-F
10	XS5W-D421-J81-F

Item	Appearance	Specification	Connector type	Model
XS5R Plug/Socket T-Joint Connector		M12	Smartclick connector	XS5R-D427-5

Item	Appearance	Specification	Connector type	Materials	Model
M12 Threaded Waterproof Cover *1		M12	Screw-type connector	Brass/ nickel plated	XS2Z-22
Smartclick Waterproof Cover *2		M12	Smartclick connector	PBT	XS5Z-11

Item	Appearance	Model
Torque Wrench		XY2F-0004

Product name	Specification	Model	Stand- ards
	Number of licenses	Media
Sysmac Studio Standard Edition Ver.1.[][]	The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/ 64-bit version)/Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) The Sysmac Studio Standard Edition DVD includes CX- ConfiguratorFDT to set up IO-Link Master Units and IO-Link devices. Refer to your OMRON website for details.	--- (Media only)	DVD	SYSMAC-SE200D	---
1 license *	---	SYSMAC-SE201L

Item	Specification
Unit power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
I/O power supply	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise resistance	Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance	Malfunction: 10 to 60 Hz with amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² for 80 minutes each in X, Y, and Z directions
Shock resistance	150 m/s² with amplitude of 0.7 mm
Dielectric strength	600 VAC (between isolated circuits)
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10 to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Altitude	2,000 m max.
Storage temperature	-25 to 65°C
Storage humidity	25% to 85% (with no condensation)
Degree of protection	IP67
Mounting	M5 screw mounting
Mounting strength	100 N
Communications connector strength	30 N
Connector types	Connectors for EtherCAT communications: M12 (D-coding, female) × 2 Power supply connector: M12 (A-coding, male) × 1 I/O connectors: M12 (A-coding, female) *1 × 8
Screw tightening torque *2	Round connectors (communications connector, power supply, and I/O): 0.39 to 0.49 N·m M5 (Unit mounted from the front): 1.47 to 1.96 N·m Cover for node address setting switches: 0.4 to 0.6 N·m
*Applicable standards 3**	UL 61010-2-201, EU: EN 61131-2, RCM, KC, IO-Link conformance, and EtherCAT conformance

Item	Specification
Unit name	IO-Link Master Unit
Model	GX-ILM08C
Number of IO-Link ports	8
Communications specifications	Communications protocol	IO-Link protocol
Baud rate	COM1: 4.8 kbps COM2: 38.4 kbps COM3: 230.4 kbps
Topology	1:1
Compliant standards	• IO-Link Interface and System Specification Version1.1.2 • IO-Link Test Specification Version1.1.2
Device power supply* in IO-Link Mode or SIO (DI) Mode	Rated voltage	24 VDC (20.4 to 26.4 VDC)
Maximum load current	0.2 A/port
Short-circuit protection	Yes
Digital inputs (in SIO (DI) Mode)	Internal I/O common	PNP
Rated voltage	24 VDC (20.4 to 26.4 VDC)
Input current	5 mA typical (at 24 VDC)
ON voltage/ON current	15 VDC min., 5 mA min.
OFF voltage	5 VDC max.
Input filter time	No filter, 0.25 ms, 0.5 ms, 1 ms (default), 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, or 256 ms
Digital outputs (in SIO (DIO) Mode)	Internal I/O common	PNP
Output type	Push-pull
Rated voltage	24 VDC (20.4 to 26.4 VDC)
Maximum load current	0.3 A/port
Short-circuit protection	Provided.
Leakage current	0.1 mA max.
Residual voltage	1.5 V max.
Digital inputs for pin 2 (in IO-Link Mode)	Internal I/O common	PNP
Rated voltage	24 VDC (20.4 to 26.4 VDC)
Input current	2 mA (24 VDC)
ON voltage/ON current	15 VDC min., 2 mA min.
OFF voltage	5 VDC max.
Input filter time	No filter, 0.25 ms, 0.5 ms, 1 ms (default), 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, or 256 ms
Cable specifications	Cable type	Unshielded
Cable length	20 m max.
Electrostatic capacity between lines	3 nF max.
Loop resistance	6 Ω max.
Dimensions	175 × 33 × 60 mm (W × H × D) (The height is 49.1 mm when the connectors are included.)
Isolation method	Photocoupler isolation
I/O power supply method	Supplied from the power supply connector.
Unit power supply current consumption	60 mA
I/O power supply current consumption	100 mA
Weight	430 g
Circuit layout
Installation orientation and restrictions	Installation orientation: 6 possible orientations Restrictions: No restrictions
Protective functions	L+ terminal short-circuit protection C/Q terminal short-circuit protection

Function	Description
Communications	Cyclic communications	I/O data (process data) in the IO-Link devices is cyclically exchanged with the IO-Link Master Unit as the IO-Link communications master. At the same time, this data and the status of the IO-Link Master Unit is cyclically exchanged with the controller, with the IO-Link Master Unit operating as a slave of the controller. Cyclic communications can be used to check the amount of detection performance deterioration in devices, and to check changes in usage conditions, such as the amount of incident light for photoelectric sensors, stability detection margins, and excessive proximity for proximity sensors.
Message communications	The controller can send messages (commands) to the IO-Link Master Unit and receive the response from the IO-Link Master Unit. The IO-Link Master Unit can also function as a gateway to send messages (commands and responses) between the controller and the IO-Link devices. During operation, you can change and adjust device parameters, such as threshold settings, tuning execution, and ON-delay time changes, from a program. Or, during operation, you can check the internal status, such as the operating times of devices.
Communications mode settings	You can select any of the following modes for each port: IO-Link Mode, SIO (DI) Mode, SIO (DO) Mode, and Disable Port This allows you to combine IO-Link communications and digital I/O in a single unit.
Digital inputs for pin 2	In IO-Link Mode, you can perform digital input with pin 2 while performing IO-Link communications.
Automatic baud rate setting for IO-Link communications	The IO-Link Master Unit automatically matches the specific baud rates (COM1, COM2, or COM3) of the IO-Link devices to communicate with the IO-Link devices. Therefore, it is not necessary to set the baud rate of the connected device for each port.
Connected device verification	This function is used to verify the configuration of IO-Link devices that are connected to the IO-Link Master Unit against the registered IO-Link device configuration settings when the power supply is turned ON. The user can enable or disable connected device verification.
IO-Link communications error detection	This function detects I/O cable breaks, disconnections from IO-Link device ports, error-level device events, device configuration verification errors, and IO-Link device malfunctions.
Detection of short-circuits in I/O cables	This function detects short-circuits in I/O cables
Notification of input data validity	The controller can use the Input Data Enabled Flags to determine whether the process input data for IO-Link communications is valid.
Load rejection for controller communications error	This function turns OFF outputs from the IO-Link Master Unit when a communications error occurs in communications with the controller in IO-Link Mode or in an SIO mode. This prevents incorrect output operations when communications error occurs.
IO-Link total communications lost frames	The IO-Link total communications lost frames can be read from the CX-ConfiguratorFDT. You can use this function to determine communications status as affected by I/O cable noise or other factors.
Digital input filter	This function is used to eliminate chattering and noise of the input signal for digital inputs in SIO(DI) Mode or for digital inputs for pin 2 in IO-Link Mode. It prevents data change and stabilizes the input signal even in situations where the input data changes due to chattering or noise and the bit status is unstable.
Digital input collection*	In IO-Link Mode, this function reflects the specified bit data in the input data from the IO-Link device on the digital input data of the IO-Link Master Unit. As a result, the bit data in the input data from the IO-Link device can be aggregated into the digital input data of the IO-Link Master Unit. One bit for each IO-Link port can be aggregated. This function cannot be used in SIO (DI) Mode and SIO (DO) Mode. If you use this function, digital inputs with pin 2 cannot be used.
Backup and restoration of parameter settings in IO-Link devices	This function is used to back up parameter settings in IO-Link devices in the IO-Link Master Unit or restore them to IO-Link devices. This eliminates the need to set parameters again after replacing an IO-Link device.
Event log	This function records events, such as errors and status changes, that occur in the IO-Link Master Unit and the IO-Link devices.

Item	Specification
Communications protocol	EtherCAT protocol
Modulation	Baseband
Baud rate	100 Mbps
Physical layer	100BASE-TX (IEEE 802.3)
Connectors	M12 (D-coding, female) × 2 (shielded) CN IN: EtherCAT input CN OUT: EtherCAT output
Communications media	Category 5 or higher (cable with double, aluminum tape and braided shielding is recommended.)
Communications distance	Distance between nodes (Slave Units): 100 m max.
Noise resistance	Conforms to IEC 61000-4-4, 1 kV or higher.
Node address setting method	Set on hexadecimal node address switches or with a Configuration Tool.
Node address range	000 to FFF hex (0 to 4,095 decimal): Set on node address switches or with a Configuration Tool.
Indicators	UNIT PWR × 1 IO PWR × 1 L/A IN (Link/Activity IN) × 1 L/A OUT (Link/Activity OUT) × 1 RUN × 1 ERR × 1
Process data	Variable PDO mapping
PDO size/node	2 to 270 bytes
Mailbox	Emergency messages, SDO requests, SDO responses, and SDO information
Synchronization mode	Free Run Mode (asynchronous)

GX Unit	Corresponding versions *
EtherCAT
Model	Unit version	CPU Units	Sysmac Studio	CX-ConfiguratorFDT
GX-ILM08C	Ver.1.1	Ver.1.12 or later	Ver.1.20 or higher	Ver.2.2 or higher
Ver.1.0	Ver.1.12 or later	Ver.1.16 or higher	Ver.2.2 or higher

Return to OMRON
