F03-16PE [Sensing Band]

• SUS316 used for core and polyethylene used for sheath to ensure high resistance to both acidic and alkaline liquids.

• Sensing Band Stickers that use the same material as the Sensing Band’s insulating resin are available in 2 types: adhesivetape type and screw type.

F03-16PT [Sensing Band]

• Compared to the F03-16PE (polyethylene), the F03-16PT has higher resistance to both high temperatures and chemicals.

• Small holes enable the detection of leakage even when installed upside down.

F03-15 [Sensing Band]

• Ideal for harsh electrical room environments that are dusty and humid.

• For installation in locations requiring insulated materials.

F03-16PS [Liquid Leakage Point Sensor]

• Can be used in conjunction with Sensing Bands.

• Stud screw mounting requires no tools for installation.

• No tools means the Sensor can be wiped clean quickly and easily.

• The optional Mounting Bracket enables faster installation than three-screw mounting.

• Connect multiple Sensors to one K7L Amplifier for significant cost savings.

last update: December 19, 2013

Purchase the OMRON Liquid Leakage Sensors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON F03-16PE / 16PT / 15 / 16PS Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the F03-16PE / 16PT / 15 / 16PS We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON F03-16PE / 16PT / 15 / 16PSSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3NC-L Compact Smart Laser Sensor/Features
H3CR-H Solid-state Timer/Features
GX-JC03 / JC06 EtherCAT Junction Slave/Features
Hornet 565 Parallel Robots/Features
S8VK-WA Switch Mode Power Supply (240/480-W Models)/Features

OMRON F03-16PE / 16PT / 15 / 16PS catalog
F03-16PE / 16PT / 15 / 16PS Sensing Band/Liquid Leakage Point Sensor/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

F03-15 Data Sheet -
[557KB] Oct 25, 201320131025 F03-15 Data Sheet

F03-16PE Data Sheet -
[262KB] Mar 01, 201620160301 F03-16PE Data Sheet

F03-16PS Data Sheet -
[296KB] Dec 01, 201620161201 F03-16PS Data Sheet

F03-16PT Data Sheet -
[229KB] Jun 30, 201420140630 F03-16PT Data Sheet

OMRON F03-16PE / 16PT / 15 / 16PS dimension
F03-16PE / 16PT / 15 / 16PS Sensing Band/Liquid Leakage Point Sensor/Dimensions
last update: July 01, 2014
F03-16PE

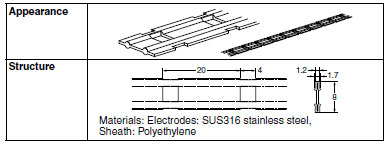

Sensing Band
Sensing Band

Sensing Band Stickers

Note: The shape of the adhesive tape shown above is for securing the F03-16PE.

F03-16PT

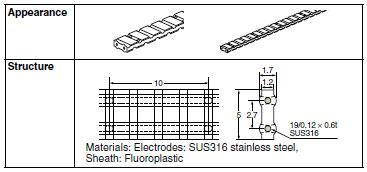

Sensing Band
Sensing Band

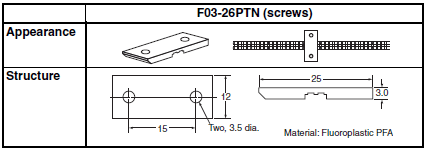

Sensing Band Stickers

Note: The shape of the adhesive tape shown above is for securing the F03-16PE.

F03-15

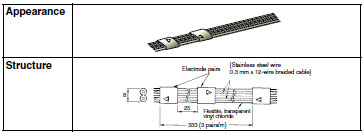

Sensing Band
Sensing Band

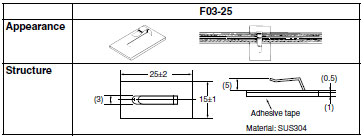

Sensing Band Stickers
