last update: September 01, 2016

No Cutting Oil Ingress by Any Path The Strongest Material Cables with Fluororesin Sheaths

The results of a thorough analysis of the ingress paths of cutting oil show that the deterioration of cable sheaths is a large factor.
The cable sheaths of OMRON’s Oil-resistant Components are made from fluororesin materials to provide maximum protection against the deterioration with a unique new concept. The result is an oil resistance impregnable to even highly aggressive cutting oils.

Fluororesin Blocks Ingress from Cables

[Patent Pending] Fluororesin Outer Cable Sheath

Fluororesin, which provides superior resistance to corrosion, is used for the outer cable sheath to suppress cable swelling and deterioration and prevent the ingress of cutting oil into the PCB inside the Sensor.

*The Strongest Material: Based on June 2016 OMRON investigation.

No Cutting Oil Ingress by Any Path The Strongest Material New Rubber Material Combining HNBR and Fluororubber

In addition to deterioration of cable sheaths, deterioration of the rubber used at joints and moving sections is also a major cause of ingress of cutting oil. In order to prevent rubber deterioration, OMRON’s Oil-resistant Components use a new fluorinated rubber at joints and moving sections. Combined with fluororesin cables, this double use of the strongest materials forms an impregnable wall of oil resistance.

OMRON-developed Rubber Blocks Ingress through Joints and Moving Sections

[Patented] New Rubber Material Combining HNBR and Fluororubber

Hydrogenated nitrile butadiene rubber (HNBR), which provides superior resistance to oil, was blended with fluororubber in a unique OMRON compound to develop a new rubber that provides superior resistance to both swelling and deterioration due to cutting oil.
It is used in seals for joints and moving sections that prevent ingress to prevent deterioration and destruction of the seal due to cutting oil, resulting in increased oil resistance performance.

This new material combines the benefits of HNBR and fluororubber

*The Strongest Material: Based on June 2016 OMRON investigation.

No Cutting Oil Ingress by Any Path Advanced Sealing Method

In addition to cable sheaths, joints, and moving sections, cutting oil enters most easily in gaps between different materials. OMRON’ s Oil-resistant Components completely block the ingress of cutting oil with a state-of-the-art sealing method that does not allow the creation of gaps.

Completely Sealed with Laser Welding

[Patent Pending] Method for Complete Sealing without Adhesive

The gaps at joints between metal parts are sealed by fusing the metal parts together with the laser beam.
At other joints, O-rings of the new material are used and the circumference is fastened with laser welding to prevent ingress of cutting oil without any adhesive which can cause swelling and deterioration.

The laser beam is controlled with high precision. This method of fusing metal at a precise location with a small laser beam spot enables application to sensors and other small electronic devices.

No Cutting Oil Ingress by Any Path Unique Structure

In addition to cable sheaths, joints, and moving sections, cutting oil enters most easily in gaps between different materials. OMRON’ s Oil-resistant Components completely block the ingress of cutting oil with a unique structure that does not allow the creation of gaps.

OMRON’s Unique Structure without Gaps Blocks Oil Ingress

Mechanical Seal Structure

A bushing made from the new material is compressed and deformed by pressing a metal ring against it to tighten and seal the fluororesin cable.
This prevents the ingress of cutting oil through the cable lead section.

last update: September 01, 2016

Purchase the OMRON Built-in Amplifier Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E3ZR-C Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3ZR-C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3ZR-CSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

PFP-[]N / -M / -S Optional DIN Track Products/Features
ZW-8000 / 7000 / 5000 Series Confocal Fiber Displacement Sensor/Features
MMK Latching Relay/Features
E5GN Basic-type Digital Temperature Controller (48 x 24 mm)/Features
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Features

OMRON E3ZR-C catalog
E3ZR-C Oil-resistant Photoelectric Sensors/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Environment-resistant Series Oil-resistant Components Catalog Y215-E1-06
[20561KB] Feb 01, 201920190201 Environment-resistant Series Oil-resistant Components Catalog

OMRON E3ZR-C lineup
E3ZR-C Oil-resistant Photoelectric Sensors/Lineup
last update: February 20, 2017
Sensors

Sensing
method Appearance Connection
method Sensing
distance Ope-
ration
mode Model
NPN output PNP output
Through-
beam
(Emitter +
Receiver)
*1
Pre-wired
(2 m)*4 [Red light]
30 m Light
ON E3ZR-CT61L 2M
Emitter E3ZR-CT61L-L 2M
Receiver E3ZR-CT61L-D 2M E3ZR-CT81L 2M
Emitter E3ZR-CT81L-L 2M
Receiver E3ZR-CT81L-D 2M
M12 Smartclick
pre-wired
connector
(0.3 m) E3ZR-CT61L-M1TJ 0.3M
Emitter E3ZR-CT61L-L-M1TJ 0.3M
Receiver E3ZR-CT61L-D-M1TJ 0.3M E3ZR-CT81L-M1TJ 0.3M
Emitter E3ZR-CT81L-L-M1TJ 0.3M
Receiver E3ZR-CT81L-D-M1TJ 0.3M
Pre-wired
(2 m)*4 Dark
ON E3ZR-CT61D 2M
Emitter E3ZR-CT61D-L 2M
Receiver E3ZR-CT61D-D 2M E3ZR-CT81D 2M
Emitter E3ZR-CT81D-L 2M
Receiver E3ZR-CT81D-D 2M
M12 Smartclick
pre-wired
connector
(0.3 m) E3ZR-CT61D-M1TJ 0.3M
Emitter E3ZR-CT61D-L-M1TJ 0.3M
Receiver E3ZR-CT61D-D-M1TJ 0.3M E3ZR-CT81D-M1TJ 0.3M
Emitter E3ZR-CT81D-L-M1TJ 0.3M
Receiver E3ZR-CT81D-D-M1TJ 0.3M
Retro-
reflective
with MSR
function
＊2 Pre-wired
(2 m)*4 [Red light]
2.5 m *3
(100 mm)
(When using
E39-R1R
Oil-resistant
Reflector) Light
ON E3ZR-CR61L 2M E3ZR-CR81L 2M
M12 Smartclick
pre-wired
connector
(0.3 m) E3ZR-CR61L-M1TJ 0.3M E3ZR-CR81L-M1TJ 0.3M
Pre-wired
(2 m)*4 Dark
ON E3ZR-CR61D 2M E3ZR-CR81D 2M
M12 Smartclick
pre-wired
connector
(0.3 m) E3ZR-CR61D-M1TJ 0.3M E3ZR-CR81D-M1TJ 0.3M
Diffuse-
reflective
Pre-wired
(2 m)*4 [Red light]
0.5 m Light
ON E3ZR-CD61L 2M E3ZR-CD81L 2M
M12 Smartclick
pre-wired
connector
(0.3 m) E3ZR-CD61L-M1TJ 0.3M E3ZR-CD81L-M1TJ 0.3M
Pre-wired
(2 m)*4 Dark
ON E3ZR-CD61D 2M E3ZR-CD81D 2M
M12 Smartclick
pre-wired
connector
(0.3 m) E3ZR-CD61D-M1TJ 0.3M E3ZR-CD81D-M1TJ 0.3M

*1. Through-beam Sensors are sold in sets that include both the Emitter and Receiver. An order for the Emitter or Receiver alone cannot be accepted.
*2. The Reflector is sold separately. Select the Reflector model most suited to the application.
*3. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*4. Models with 5-m cable length are also available with "5M" suffix. (Example: E3ZR-CT61L 5M)

Accessories (Sold Separately)
Sensor I/O Connectors (M12, Sockets on One Cable End)

(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.

Appearance Cable
diameter
(mm) Cable
length Sensor I/O Connector
model number Applicable Photoelectric
Sensor model number
Straight,
Smartclick Oil-resistant
Connectors

4 dia. 2 m XS5FR-D423-D80-RB1 E3ZR-C[][]1[]-M1TJ
5 m XS5FR-D423-G80-RB1
10 m XS5FR-D423-J80-RB1

Note: Refer to the XS5[]R on catalog for connector details and for information on cables with connectors on both ends.

Slit (A Slit is not provided with Through-beam Sensors) Order a Slit separately if required.

Slit width Sensing distance (Reference value) Model Contents
E3ZR-CT[]
1-mm dia. 0.2 m E39-S77A One set (contains Slits for both the
Emitter and Receiver)
2-mm dia. 0.8 m E39-S77B

Mounting Brackets

A Mounting Bracket is not provided with the Sensor. Order a Mounting Bracket separately if required.

Appearance Model (material) Quantity Remarks
E39-L153 (SUS304) 1 Mounting Brackets
E39-L104 (SUS304) 1
E39-L196 (SUS304) 1
E39-L197 (SUS304) 1
E39-L98 (SUS304)) 1 Metal Protective
Cover Bracket

Note:
1. When using Through-beam models, order one bracket for the Receiver and one for the Emitter.
2. Refer to Mounting Brackets on E39-L/E39-S/E39-R on your OMRON website for details.

Reflector

(A Reflector is required for each Retro-reflective Sensor: A Reflector is not provided with the Sensor. Be sure to order a Reflector.)

Name E3ZM-CR sensing distance Model Quantity Remarks
Rated value Reference value
Oil-resistant
Reflector 2.5 m (100 mm) * --- E39-R1R 1 · Reflectors are not provided with
　Retro-reflective models.
· The MSR function is enabled.

Note: Refer to Reflectors on E39-L/E39-S/E39-R on your OMRON website for details.
*Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

last update: February 20, 2017

OMRON E3ZR-C dimension
E3ZR-C Oil-resistant Photoelectric Sensors/Dimensions
last update: May 8, 2017

(Unit: mm)

Sensors

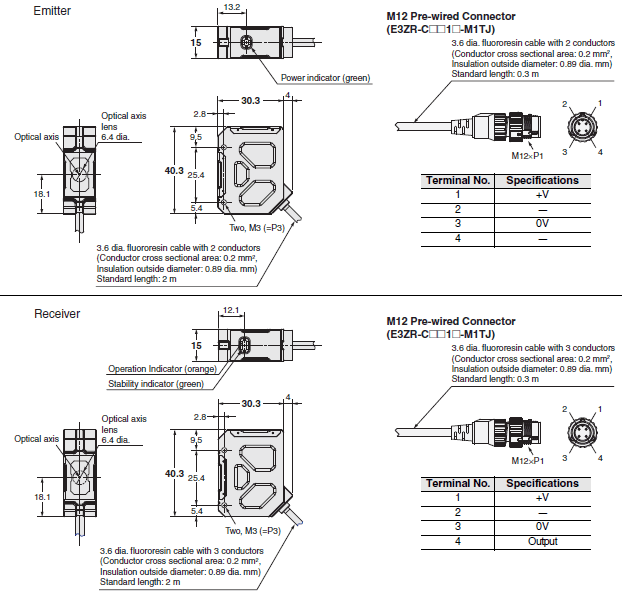

Through-beam Models*
Pre-wired Models
E3ZR-CT61[]
E3ZR-CT81[]

Retro-reflective Models
Pre-wired Models
E3ZR-CR61[]
E3ZR-CR81[]

Diffuse-reflective Models
Pre-wired Models
E3ZR-CD61[]
E3ZR-CD81[]

*Models numbers for Through-beam Sensors (E3ZR-CT[]1[](-M1TJ)) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3ZR-CT61L-L 2M), the model number of the Receiver, by adding "-D" (example: E3ZR-CT61L-D 2M.) Refer to Ordering Information to confirm model numbers for Emitters and Receivers.

Cable bend radius

Accessories (Sold Separately)

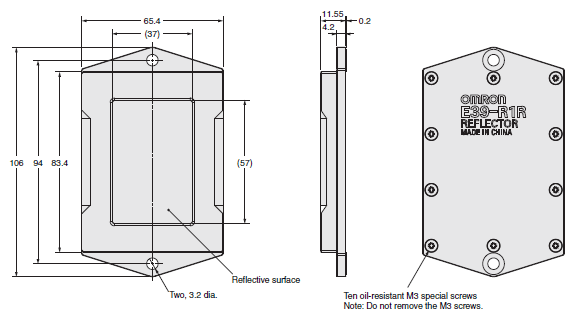

Oil-resistant Reflector
E39-R1R

Material
Reflective surface: Methacrylate resin (Oil-resistant high molecular weight type)
Rear surface: Aluminium
Oil-resistant M3 special screws: Stainless steel (SUS302)

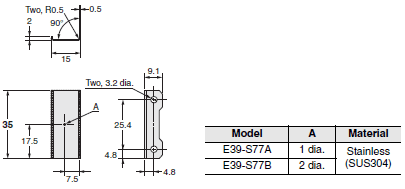

Slits
E39-S77A
E39-S77B

Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)

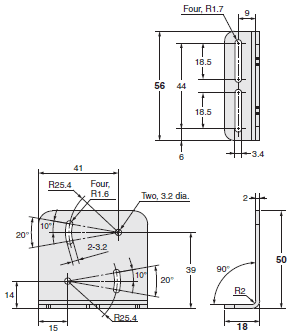

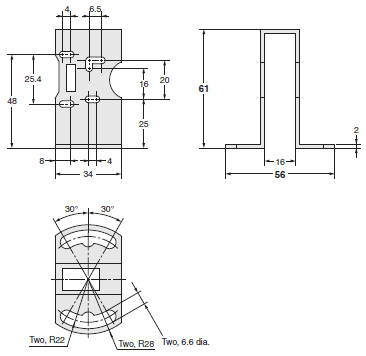

Mounting Bracket
E39-L153

Note: Material Stainless (SUS304)

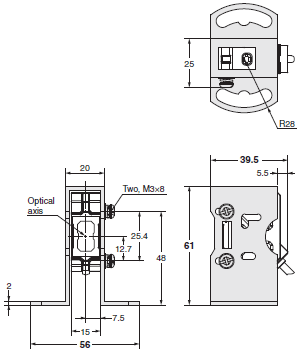

Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)

Mounting Bracket
E39-L104

Note: Material Stainless (SUS304)

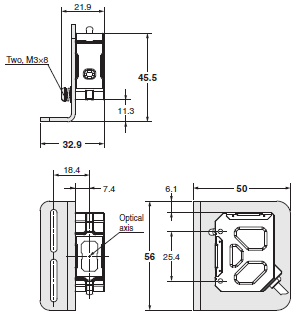

Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)

Mounting Bracket
E39-L98

Note: Material Stainless (SUS304)

Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)

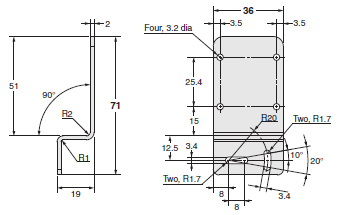

Mounting Bracket
E39-L196

Note: Material Stainless (SUS304)

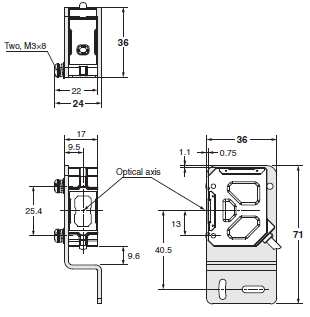

Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)

Mounting Bracket
E39-L197

Note: Material Stainless (SUS304)

Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)

last update: May 8, 2017

OMRON E3ZR-C specification
E3ZR-C Oil-resistant Photoelectric Sensors/Specifications
last update: September 01, 2016
Sensors

Sensing method Through-beam Retro-reflective with
MSR function Diffuse-reflective
Model NPN output E3ZR-CT61[] (-M1TJ) E3ZR-CR61[] (-M1TJ) E3ZR-CD61[] (-M1TJ)
PNP output E3ZR-CT81[] (-M1TJ) E3ZR-CR81[] (-M1TJ) E3ZR-CD81[] (-M1TJ)
Sensing distance 30 m 2.5 m [100 mm] *1
(Using E39-R1R) 0.5 m
(White paper 300 × 300 mm)
Standard sensing object Opaque: 12-mm dia. min. Opaque: 75-mm dia. min. ---
Differential travel --- 20% of sensing distance max.
Directional angle Emitter, Receiver: 3° to 15°
(Distance between emitter and receiver. Rated sensing distance) Sensor: 2° to 10°
Reflector: 30°
(Distance to
Reflector. Rated
sensing distance) ---
Light source (wavelength) Red LED (624 nm) Red LED (660 nm) Red LED (624 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption 35 mA max.
(Emitter 15 mA max., Receiver 20 mA max.) 30 mA max.
Control output Output power supply voltage: 26.4 VDC max., Output current: 100 mA max. (Residual voltage: 2 V max.)
Open-collector output (NPN/PNP output depending on model)
Protection circuits Reversed power supply polarity protection, output short-circuit protection, and reversed output polarity protection Reversed power supply polarity protection, output short-circuit protection, reversed output polarity protection, and mutual interference prevention function (with up to two Units)
Response time Operate or reset: 1 ms max.
Sensitivity adjustment None
Ambient illumination (Receiver side) Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection IP67 (IEC 60529) and IP67G *2 (JIS C 0920 Annex 1)
Passed OMRON's Oil-resistant Component Evaluation Standards *3
(Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.)
Connection method Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 0.3 m)
Indicators Operation indicator (orange) and stability indicator (green) (The Emitter has only a power indicator (green).)
Weight
(packed
state) Pre-wired
models Approx. 200 g Approx. 100 g
Pre-wired
connector Approx. 140 g Approx. 70 g
Housing material SUS316L
Cable material Fluororesin
Lens material Methacrylate resin (Oil-resistant high molecular weight type)
Indicator material Polyetherimide resin
Accessories Instruction manual

*1. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*2. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
     The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
     The Pre-wired Connector Model meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
     The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.
     And as for the Pre-wired Models, the degree of protection is not satisfied with the part where cable wires are uncovered.

Accessories (Sold Separately)
Reflector

Name Oil-resistant Reflector
Model E39-R1R
Directional angle 30° min.
Ambient temperature range Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Degree of protection IP67 (IEC 60529) and IP67G *1 (JIS C 0920 Annex 1)
Passed OMRON's Oil-resistant Component Evaluation Standards *2
(Cutting oil type: specified in JIS K 2241:2000, Temperature: 35°C max.)

*1. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
    The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*2. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.

last update: September 01, 2016

NO. E3ZR-C

TYPE:Photoelectric Sensors Built-in Amplifier Copyright Statement

DATE:2021-06-09

Associated products:
E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features E3Z-[]-IL[] IO-Link Photoelectric Sensor/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
Environment-resistant Series Oil-resistant Components Catalog	Y215-E1-06 [20561KB]	Feb 01, 201920190201	Environment-resistant Series Oil-resistant Components Catalog

Sensing method	Appearance	Connection method	Sensing distance	Ope- ration mode	Model
NPN output	PNP output
Through- beam (Emitter + Receiver) *1		Pre-wired (2 m)*4	[Red light] 30 m	Light ON	E3ZR-CT61L 2M Emitter E3ZR-CT61L-L 2M Receiver E3ZR-CT61L-D 2M	E3ZR-CT81L 2M Emitter E3ZR-CT81L-L 2M Receiver E3ZR-CT81L-D 2M
M12 Smartclick pre-wired connector (0.3 m)	E3ZR-CT61L-M1TJ 0.3M Emitter E3ZR-CT61L-L-M1TJ 0.3M Receiver E3ZR-CT61L-D-M1TJ 0.3M	E3ZR-CT81L-M1TJ 0.3M Emitter E3ZR-CT81L-L-M1TJ 0.3M Receiver E3ZR-CT81L-D-M1TJ 0.3M
Pre-wired (2 m)*4	Dark ON	E3ZR-CT61D 2M Emitter E3ZR-CT61D-L 2M Receiver E3ZR-CT61D-D 2M	E3ZR-CT81D 2M Emitter E3ZR-CT81D-L 2M Receiver E3ZR-CT81D-D 2M
M12 Smartclick pre-wired connector (0.3 m)	E3ZR-CT61D-M1TJ 0.3M Emitter E3ZR-CT61D-L-M1TJ 0.3M Receiver E3ZR-CT61D-D-M1TJ 0.3M	E3ZR-CT81D-M1TJ 0.3M Emitter E3ZR-CT81D-L-M1TJ 0.3M Receiver E3ZR-CT81D-D-M1TJ 0.3M
Retro- reflective with MSR function	＊2	Pre-wired (2 m)*4	[Red light] 2.5 m *3 (100 mm) (When using E39-R1R Oil-resistant Reflector)	Light ON	E3ZR-CR61L 2M	E3ZR-CR81L 2M
M12 Smartclick pre-wired connector (0.3 m)	E3ZR-CR61L-M1TJ 0.3M	E3ZR-CR81L-M1TJ 0.3M
Pre-wired (2 m)*4	Dark ON	E3ZR-CR61D 2M	E3ZR-CR81D 2M
M12 Smartclick pre-wired connector (0.3 m)	E3ZR-CR61D-M1TJ 0.3M	E3ZR-CR81D-M1TJ 0.3M
Diffuse- reflective		Pre-wired (2 m)*4	[Red light] 0.5 m	Light ON	E3ZR-CD61L 2M	E3ZR-CD81L 2M
M12 Smartclick pre-wired connector (0.3 m)	E3ZR-CD61L-M1TJ 0.3M	E3ZR-CD81L-M1TJ 0.3M
Pre-wired (2 m)*4	Dark ON	E3ZR-CD61D 2M	E3ZR-CD81D 2M
M12 Smartclick pre-wired connector (0.3 m)	E3ZR-CD61D-M1TJ 0.3M	E3ZR-CD81D-M1TJ 0.3M

Appearance	Cable diameter (mm)	Cable length	Sensor I/O Connector model number	Applicable Photoelectric Sensor model number
Straight, Smartclick Oil-resistant Connectors	4 dia.	2 m	XS5FR-D423-D80-RB1	E3ZR-C[][]1[]-M1TJ
5 m	XS5FR-D423-G80-RB1
10 m	XS5FR-D423-J80-RB1

Slit width	Sensing distance (Reference value)	Model	Contents
E3ZR-CT[]
1-mm dia.	0.2 m	E39-S77A	One set (contains Slits for both the Emitter and Receiver)
2-mm dia.	0.8 m	E39-S77B

Model (material)	Quantity	Remarks
E39-L153 (SUS304)	1	Mounting Brackets
E39-L104 (SUS304)	1
E39-L196 (SUS304)	1
E39-L197 (SUS304)	1
E39-L98 (SUS304))	1	Metal Protective Cover Bracket

Name	E3ZM-CR sensing distance	Model	Quantity	Remarks
Rated value	Reference value
Oil-resistant Reflector	2.5 m (100 mm) *	---	E39-R1R	1	· Reflectors are not provided with 　Retro-reflective models. · The MSR function is enabled.

Sensing method	Through-beam	Retro-reflective with MSR function	Diffuse-reflective
Model	NPN output	E3ZR-CT61[] (-M1TJ)	E3ZR-CR61[] (-M1TJ)	E3ZR-CD61[] (-M1TJ)
PNP output	E3ZR-CT81[] (-M1TJ)	E3ZR-CR81[] (-M1TJ)	E3ZR-CD81[] (-M1TJ)
Sensing distance	30 m	2.5 m [100 mm] *1 (Using E39-R1R)	0.5 m (White paper 300 × 300 mm)
Standard sensing object	Opaque: 12-mm dia. min.	Opaque: 75-mm dia. min.	---
Differential travel	---	20% of sensing distance max.
Directional angle	Emitter, Receiver: 3° to 15° (Distance between emitter and receiver. Rated sensing distance)	Sensor: 2° to 10° Reflector: 30° (Distance to Reflector. Rated sensing distance)	---
Light source (wavelength)	Red LED (624 nm)	Red LED (660 nm)	Red LED (624 nm)
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption	35 mA max. (Emitter 15 mA max., Receiver 20 mA max.)	30 mA max.
Control output	Output power supply voltage: 26.4 VDC max., Output current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model)
Protection circuits	Reversed power supply polarity protection, output short-circuit protection, and reversed output polarity protection	Reversed power supply polarity protection, output short-circuit protection, reversed output polarity protection, and mutual interference prevention function (with up to two Units)
Response time	Operate or reset: 1 ms max.
Sensitivity adjustment	None
Ambient illumination (Receiver side)	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection	IP67 (IEC 60529) and IP67G 2 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards 3 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.)
Connection method	Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 0.3 m)
Indicators	Operation indicator (orange) and stability indicator (green) (The Emitter has only a power indicator (green).)
Weight (packed state)	Pre-wired models	Approx. 200 g	Approx. 100 g
Pre-wired connector	Approx. 140 g	Approx. 70 g
Housing material	SUS316L
Cable material	Fluororesin
Lens material	Methacrylate resin (Oil-resistant high molecular weight type)
Indicator material	Polyetherimide resin
Accessories	Instruction manual

Name	Oil-resistant Reflector
Model	E39-R1R
Directional angle	30° min.
Ambient temperature range	Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Degree of protection	IP67 (IEC 60529) and IP67G 1 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards 2 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35°C max.)

Return to OMRON
