/Images/l_3503-25-258919-198x198.jpglast update: April 1, 2016
• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.
• Ideal for the thermal input devices of Temperature Controllers.
• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.
last update: April 1, 2016
Purchase the OMRON Input Equipments Please fill in the following
If you have just landed here, this product OMRON E52 with Ferrule (Low-cost Models) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 with Ferrule (Low-cost Models) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 with Ferrule (Low-cost Models)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R87B Box Fan/Features
M2S (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Features
E5CN-HT Programmable Temperature Controller (Digital Controller) (48 x 48 mm)/Features
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Features
Cobra 500 SCARA Robots/Features
OMRON E52 with Ferrule (Low-cost Models) catalog
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E52 Data Sheet | - [7536KB] | Feb 08, 201820180208 | E52 Data Sheet |
OMRON E52 with Ferrule (Low-cost Models) specification
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Specificationslast update: April 01, 2016
Low-cost Platinum Resistance Thermometers
Exposed-lead Models with Screws
E52-P6DF
| Element type | Pt100 |
|---|---|
| Conductor type | 3-conductor system |
| Class | Class B |
| Protective tubing material | SUS304 |
| Sensor length | 30 mm |
| Max. detectable temperature | 250°C |
| Temperature range | -50°C to 250°C |
| Lead wire | Fluororesin-covered wire (PFA) and approx. 1.0 dia. 7/0.18 -50°C to 150°C |
Exposed-lead Models with Flange
E52-P6FF
| Element type | Pt100 |
|---|---|
| Conductor type | 3-conductor system |
| Class | Class B |
| Protective tubing material | SUS304 |
| Sensor length | 30 mm |
| Max. detectable temperature | 250°C |
| Temperature range | -50°C to 250°C |
| Lead wire | Fluororesin-covered wire (PFA) and approx. 1.0 dia. 7/0.18 -50°C to 150°C |
Exposed-lead Models
E52-P10AEF
| Element type | Pt100 |
|---|---|
| Conductor type | 3-conductor system |
| Class | Class B |
| Protective tubing material | SUS316 |
| Max. detectable temperature | 250°C |
| Temperature range | 0°C to 250°C |
| Lead wire | Fluororesin-covered wire (PFA) and approx. 1.0 dia. 7/0.2 -50°C to 150°C |
Low-cost Thermocouples
Exposed-lead Models with Screw
E52-CA1DF
| Element type | K (CA) |
|---|---|
| Element dia. | 0.65 mm (single wire) |
| Class | Class 2 (0.75) |
| Protective tubing material | SUS304 |
| Thermal contact | Grounded type |
| Temperature range | 0°C to 400°C: K (CA) |
| Lead wire | Fully glass-wool-covered with external copper shield and external dimensions of approx. 3.1 x 2.0 1/0.65 0°C to 180°C |
| Terminal shape | Ferrule |
Note:
1. The thermocouple is a single wire from the tip to the terminal.
2. Specify the type of screw (i.e., M6, M8, or W1/4) when ordering.
3. The thermocouple is not of airtight construction.
4. OMRON recommends that the tip of the thermocouple is touching the sensing object.
Installation Example
Cut a thread into the workpiece, and screw in the thermocouple while pushing in so that the tip makes complete contact.
Note: E52-CA1DF with the same shape and multiple element wires are also available (E52-CA1DF-40).
last update: April 01, 2016
OMRON E52 with Ferrule (Low-cost Models) lineup
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Lineuplast update: April 01, 2016
| Classifi- cation | Descrip- tion | Model and appearance | Tempera- ture range (See note 3.) | Element type | Conduc- tor type | Class | Protective tubing material | Terminal type | |
|---|---|---|---|---|---|---|---|---|---|
| Low-cost Models | Low-cost platinum resistance thermometer | E52-P10AEF |  | 0°C to 250°C | Pt100 | 3-conduc- tor system | B | SUS316 | Exposed lead wires |
| E52-P6DF | -50°C to 250°C | SUS304 | |||||||
| E52-P6FF | |||||||||
| Low-cost thermo- couple | E52-CA1DF | 0°C to 400°C | K(CA) | Grounded type | 2 (0.75) | ||||
Note: 1. These tables provide general specifications only. Be sure to read the detailed specifications and precautions before use.
2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.
Low-cost Platinum Resistance Thermometers
Exposed-lead Models with Screws
E52-P6DF
| Lead wire length (m) | Model |
|---|---|
| 1 | E52-P6DF 1M |
| 2 | E52-P6DF 2M |
| 4 | E52-P6DF 4M |
Exposed-lead Models with Flange
E52-P6FF
| Lead wire length (m) | Model |
|---|---|
| 1 | E52-P6FF 1M |
| 2 | E52-P6FF 2M |
| 4 | E52-P6FF 4M |
Exposed-lead Models
E52-P10AEF
| Lead wire length (m) | Model |
|---|---|
| 1 | E52-P10AEF 1M |
| 2 | E52-P10AEF 2M |
| 4 | E52-P10AEF 4M |
Low-cost Thermocouples
Exposed-lead Models with Screw
E52-CA1DF
| Protective tubing length (mm) | Lead wire length (m) | Element type: K (CA) |
|---|---|---|
| Model | ||
| M6 screw | 1 | E52-CA1DF M6 1M |
| 2 | E52-CA1DF M6 2M | |
| 4 | E52-CA1DF M6 4M | |
| M8 screw | 1 | E52-CA1DF M8 1M |
| 2 | E52-CA1DF M8 2M | |
| 4 | E52-CA1DF M8 4M | |
| W1/4 screw | 1 | E52-CA1DF W1/4 1M |
| 2 | E52-CA1DF W1/4 2M | |
| 4 | E52-CA1DF W1/4 4M |
last update: April 01, 2016
OMRON E52 with Ferrule (Low-cost Models) dimension
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Dimensionslast update: February 8, 2018
(Unit: mm)
Low-cost Platinum Resistance Thermometers
Exposed-lead Models with Screws

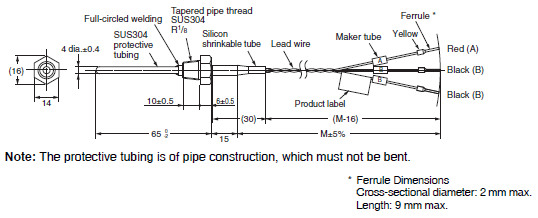

E52-P6DF
Exposed-lead Models with Flange
E52-P6FF
Exposed-lead Models

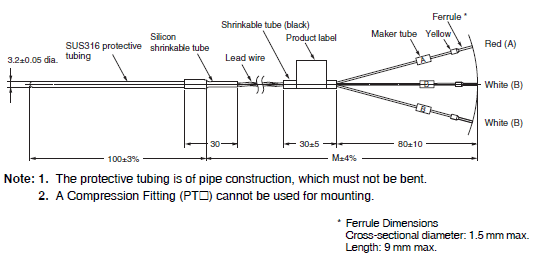

E52-P10AEF
Low-cost Thermocouples
Exposed-lead Models with Screw

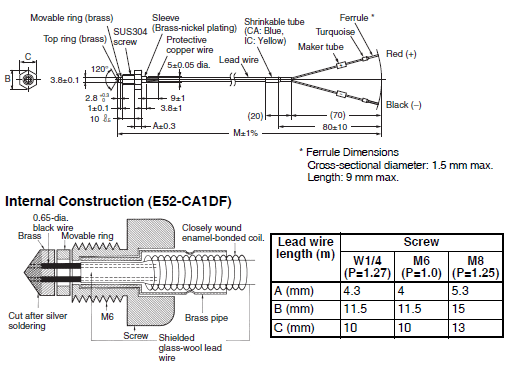

E52-CA1DF
