OMRON NB-S SeriesAutomation Systems/ Programmable Terminals/
Copyright Statement
OMRON NB-S Series Automation Systems
OMRON NB-S Series Dimensions
/Images/l_3652-25-270378-198x198.jpglast update: November 1, 2016
• More than 65,000 display colors TFT, color touch-screen for all models
• Available in sizes ranging from 3 to 10 inches
• Long-life LED backlight
• Serial, USB or Ethernet communication
3 benefits with Ethernet
Faster
Ethernet increases data transmission speed between PLC and HMI, enabling faster response. Larger amounts of data can be shared.
More information
Ethernet communications allow you to access all controllers on a production line and the PC from one HMI, which is impossible with serial communications.
More efficient
Just start your web browser to see from remote what’s going on your HMI.
Windows is registered trademarks of Microsoft Corporation in the USA and other countries.
Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
The product photographs and figures that are used in this catalog may vary somewhat from the actual products.
last update: November 1, 2016
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON NB-S Series Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NB-S Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NB-S SeriesAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
TM Series Collaborative Robots/Features
A3P (Super Luminosity Type) Lighted Pushbutton Switch (Square) Ultra Bright LED Type/Features
CS1W-PDC / PTW / PTR SYSMAC CS-series Process Analog I/O Units/Features
SRT2-R Relay-mounted Remote I/O Terminals/Features
VT-S730-H PCB Inspection System/Features
OMRON NB-S Series lineup
NB-S Series Programmable Terminal/Lineuplast update: November 21, 2016
Programmable Terminal
| Series | Specifications | Model |
|---|---|---|
| NB-S series | 7 inch, TFT LCD, Colors, 800 × 480 dots, RS-232C only | NB7W-TW10B |
| 7 inch, TFT LCD, Color, 800 × 480 dots, Ethernet only | NB7W-TW11B |
Options
| Product name | Specifications | Model |
|---|---|---|
| Software | Supported Operating Systems: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP (SP3 or higher). Note: Except for Windows XP 64-bit version Download from Omron's regional websites. | NB-Designer * |
| Display protective sheets | For the NB7W contains 5 sheets | NB7W-KBA04 |
Note: Use a standard USB cable (Type A male to Type B male) or standard Ethernet cable (10 BASE-T/100 BASE-TX twisted-pair cable) to connect the NB series to software (personal computer).
Use a standard Ethernet cable (10 BASE-T/100 BASE-TX twisted-pair cable) to connect the NB series to a PLC. For detail, refer to the NB Series Setup Manual (Cat. No. V107).
* The NB7W-TW1[]B are supported by NB-Designer version 1.40 or higher.
System Configuration
| Operating System (OS) | Microsoft Windows XP (SP3 or higher) Microsoft Windows Vista (32-bit or 64-bit edition) Microsoft Windows 7 (32-bit or 64-bit edition) Microsoft Windows 8 (32-bit or 64-bit edition) Microsoft Windows 8.1 (32-bit or 64-bit edition) Microsoft Windows 10 (32-bit or 64-bit edition) |
|---|---|
| CPU | Windows computers with CPU recommended for OS |
| Memory | 512 MB or more |
| Hard Disk | 2.5 GB or more, with the disk space more than 800 MB at least |
| Display | Supports the display with resolution of 800 × 600 and 16-bit high color (1024 × 768 and 32-bit true color are recommended.) . |
| Communication ports | RS-232C Port, USB Port, Ethernet Port |
Recommended USB Memory
| Product name | Specifications | Model |
|---|---|---|
| USB memory stick | Capacity: 2 GB | FZ-MEM2G |
| Capacity: 8 GB | FZ-MEM8G |
last update: November 21, 2016
OMRON NB-S Series specification
NB-S Series Programmable Terminal/Specificationslast update: April 23, 2018
HMI
| Specifications | NB7W | |
|---|---|---|
| TW10B | TW11B | |
| Display type | 7" TFT LCD | |
| Display resolution (H x V) | 800 × 480 | |
| Number of colors | 65536 | |
| Front-side LED | No | |
| Backlight Life | 50,000 hours (Typ) of operating time at the normal temperature (25°C) with 40% brightness * | |
| Touch panel | Type: resistive type Operation force: 0.5 to 0.8 N Press endurance: min. 1,000,000 times (at 25°C) | |
| Dimensions in mm (H × W × D) | 148 × 202 × 46 | |
| Weight | 603 g max. | 607 g max. |
* Standard value for brightness to decrease by 40% at the normal temperature and humidity.
Functionality
| NB-Simple Series | NB7W | |
|---|---|---|
| TW10B | TW11B | |
| Memory interface | No | |
| Serial (COM1) | RS-232C, Transmission distance: 15 m Max., Connector: D-Sub 9-pin | No |
| Serial (COM2) | No | |
| USB Host | No | |
| USB Slave | 1 port (for screen data transmission with a PC and Pictbridge printing) Equivalent to USB 2.0 full speed, type B, Transmission distance: 5 m | |
| Ethernet | No | 10/100 base-T |
General
| Specifications | NB7W | |
|---|---|---|
| TW10B | TW11B | |
| Line voltage | 20.4 to 27.6 VDC (24 VDC -15 to 15%) | |
| Power consumption | 7 W | 6 W |
| Battery lifetime | No | |
| Degree of protection | Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | |
| Applicable standards | EU Directives, UL61010-2-201 | |
| Operating environment | No corrosive gases. | |
| Noise immunity | Compliant with IEC61000-4-4, 2 KV (Power cable) | |
| Ambient operating temperature | 0 to 50°C | |
| Ambient operating humidity | 10% to 90% RH (without condensation) | |
Note: Flash memory can be written to up 100,000 times.
* OMRON accepts NB unit including the display device for repair and analysis within five years of the manufacture date.
last update: April 23, 2018
OMRON NB-S Series dimension
NB-S Series Programmable Terminal/Dimensionslast update: October 11, 2016

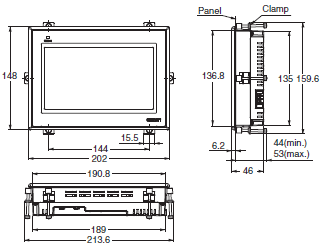

NB7W-TW10B/-TW11B
| Model | Panel cutout (H × V mm) |
|---|---|
| NB7W-TW10B/-TW11B | 191.0 (+0.5/-0) × 137.0 (+0.5/-0) |
last update: October 11, 2016
OMRON NB-S Series catalog
NB-S Series Programmable Terminal/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 NB/NB-S Data Sheet | V439-E1-03 [1513KB] | Nov 01, 201820181101 | NB/NB-S Data Sheet |
| NB-Simle Catalog | V438-E1-01 [472KB] | Nov 01, 201620161101 | NB-Simle Catalog |
| NS Series Catalog | V405-E1-16 [35366KB] | Oct 01, 201820181001 | NS Series Catalog |
| Packaging Machine Control Solutions Catalog | Y219-E1-02 [5264KB] | Jan 15, 201820180115 | Packaging Machine Control Solutions Catalog |
