OMRON A3P (Super Luminosity Type) Switches
last update: October 15, 2013
• New models with ultra bright LEDs added to single-screen models.
• Previous models not changed. Line up of models in seven colors (the previous red, orange, green, and white models, and the new yellow, blue, and pure white models).
• Popular maintenance lock added.
last update: October 15, 2013
If you have just landed here, this product OMRON A3P (Super Luminosity Type) Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A3P (Super Luminosity Type) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A3P (Super Luminosity Type)Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E8PC IoT Pressure Sensors/Features
E2E (Small-diameter) Small-diameter Proximity Sensor/Features
B7AP Power Couplers/Features
CS1W-EIP21 CS-series EtherNet/IP Unit/Features
ZN-DPX21-S Differential Pressure Station/Features
last update: February 1, 2019
The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.
(Not all combinations are possible. Ask your OMRON representative for details.)
Lighting method | Operation | Momentary operation (Self-resetting) | Alternate operation (Self-holding) | ||||
---|---|---|---|---|---|---|---|
Contact type | No. of outputs | Pushbutton color symbol | Case color | Black | Light gray | Black | Light gray |
Standard Loads | SPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PJ-90A11-05A(1) | A3PJ-90A12-05A(1) | A3PJ-90B11-05A(1) | A3PJ-90B12-05A(1) |
12 VAC/DC | A3PJ-90A11-12A(1) | A3PJ-90A12-12A(1) | A3PJ-90B11-12A(1) | A3PJ-90B12-12A(1) | |||
24 VAC/DC | A3PJ-90A11-24A(1) | A3PJ-90A12-24A(1) | A3PJ-90B11-24A(1) | A3PJ-90B12-24A(1) | |||
DPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PJ-90C11-05A(1) | A3PJ-90C12-05A(1) | A3PJ-90D11-05A(1) | A3PJ-90D12-05A(1) | |
12 VAC/DC | A3PJ-90C11-12A(1) | A3PJ-90C12-12A(1) | A3PJ-90D11-12A(1) | A3PJ-90D12-12A(1) | |||
24 VAC/DC | A3PJ-90C11-24A(1) | A3PJ-90C12-24A(1) | A3PJ-90D11-24A(1) | A3PJ-90D12-24A(1) | |||
Microloads | SPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PJ-90E11-05A(1) | A3PJ-90E12-05A(1) | --- | --- |
12 VAC/DC | A3PJ-90E11-12A(1) | A3PJ-90E12-12A(1) | --- | --- | |||
24 VAC/DC | A3PJ-90E11-24A(1) | A3PJ-90E12-24A(1) | --- | --- | |||
DPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PJ-90G11-05A(1) | A3PJ-90G12-05A(1) | --- | --- | |
12 VAC/DC | A3PJ-90G11-12A(1) | A3PJ-90G12-12A(1) | --- | --- | |||
24 VAC/DC | A3PJ-90G11-24A(1) | A3PJ-90G12-24A(1) | --- | --- |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.
Lighting method | Operation | Momentary operation (Self-resetting) | Alternate operation (Self-holding) | ||||
---|---|---|---|---|---|---|---|
Contact type | No. of outputs | Pushbutton color symbol | Case color | Black | Light gray | Black | Light gray |
Standard Loads | SPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PA-90A11-05A(1) | A3PA-90A12-05A(1) | A3PA-90B11-05A(1) | A3PA-90B12-05A(1) |
12 VAC/DC | A3PA-90A11-12A(1) | A3PA-90A12-12A(1) | A3PA-90B11-12A(1) | A3PA-90B12-12A(1) | |||
24 VAC/DC | A3PA-90A11-24A(1) | A3PA-90A12-24A(1) | A3PA-90B11-24A(1) | A3PA-90B12-24A(1) | |||
DPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PA-90C11-05A(1) | A3PA-90C12-05A(1) | A3PA-90D11-05A(1) | A3PA-90D12-05A(1) | |
12 VAC/DC | A3PA-90C11-12A(1) | A3PA-90C12-12A(1) | A3PA-90D11-12A(1) | A3PA-90D12-12A(1) | |||
24 VAC/DC | A3PA-90C11-24A(1) | A3PA-90C12-24A(1) | A3PA-90D11-24A(1) | A3PA-90D12-24A(1) | |||
Microloads | SPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PA-90E11-05A(1) | A3PA-90E12-05A(1) | --- | --- |
12 VAC/DC | A3PA-90E11-12A(1) | A3PA-90E12-12A(1) | --- | --- | |||
24 VAC/DC | A3PA-90E11-24A(1) | A3PA-90E12-24A(1) | --- | --- | |||
DPDT | Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | A3PA-90G11-05A(1) | A3PA-90G12-05A(1) | --- | --- | |
12 VAC/DC | A3PA-90G11-12A(1) | A3PA-90G12-12A(1) | --- | --- | |||
24 VAC/DC | A3PA-90G11-24A(1) | A3PA-90G12-24A(1) | --- | --- |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
Operation | Momentary operation (Self-resetting) | Alternate operation (Self-holding) | Pushbutton color symbol | |||
---|---|---|---|---|---|---|
Contact type | No. of outputs | Lighting method | Case color | Light gray | Light gray | |
Standard Loads | SPDT | LED lamp | 5 VDC | A3PT-90A12-05S(1) | A3PT-90B12-05S(1) | R O G W Y A PW |
12 VAC/DC | A3PT-90A12-12S(1) | A3PT-90B12-12S(1) | ||||
24 VAC/DC | A3PT-90A12-24S(1) | A3PT-90B12-24S(1) | ||||
DPDT | 5 VDC | A3PT-90C12-05S(1) | A3PT-90D12-05S(1) | |||
12 VAC/DC | A3PT-90C12-12S(1) | A3PT-90D12-12S(1) | ||||
24 VAC/DC | A3PT-90C12-24S(1) | A3PT-90D12-24S(1) | ||||
Microloads | SPDT | 5 VDC | A3PT-90E12-05S(1) | --- | ||
12 VAC/DC | A3PT-90E12-12S(1) | --- | ||||
24 VAC/DC | A3PT-90E12-24S(1) | --- | ||||
DPDT | 5 VDC | A3PT-90G12-05S(1) | --- | |||
12 VAC/DC | A3PT-90G12-12S(1) | --- | ||||
24 VAC/DC | A3PT-90G12-24S(1) | --- |
Note: Enter the desired color symbols for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
Accessories, Tools, and the replacement parts (caps only) are the same as those for the A3P. Refer to the A3P datasheet.
Individual colored plates and legend plates are not available.
last update: February 1, 2019
last update: October 15, 2013
Standard Load:
5 A at 125 VAC
3 A at 250 VAC
Microload:
0.1 A at 125 VAC
0.1 A at 30 VDC
Note: Certification has been obtained for the Switch Unit.
For detailed information on individual products that have received certification, consult your supplier.
Standard Load:
3 A at 250 VAC
4 A at 30 VAC
Microload:
0.1 A at 125 VAC
0.1 A at 30 VDC
Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | ||||||
---|---|---|---|---|---|---|---|---|
Resistive load | Lamp load | Inductive load | Motor load | |||||
NC | NO | NC | NO | NC | NO | NC | NO | |
125 VAC 250 VAC | 5 3 | 0.7 0.5 | 3 2 | 1.3 0.8 | ||||
8 VDC 14 VDC 30 VDC 125 VDC 250 VDC | 5 5 4 0.4 0.2 | 2 2 2 0.05 0.03 | 4 4 3 0.4 0.2 | 3 3 3 0.05 0.03 |
Note:
1. The above values are for steady-state currents.
2. Inductive load: Power factor = 0.4; time constant = 7 ms.
3. The lamp load has an inrush current of 10 times the steady-state current.
4. The motor load has an inrush current of 6 times the steady-state current.
Standard testing condition
(1) Ambient temperature: 20 ± 2°C
(2) Ambient humidity: 65 ± 5%RH
(3) Operating frequency: 20 times/min.
Rated voltage (V) | 0.1 A at 30 VDC (resistive load); 0.1 A at 125 VAC (resistive load) |
---|---|
Minimum applicable load | 1 mA at 5 VDC |
Model | A3PJ/M2PJ | A3PA/M2PA | |
---|---|---|---|
Rated current | Rated current | ||
Applied voltage | Rated voltage | Single screen | Single screen |
5 VDC ±5% | 5 VDC | 40 mA | 20 mA |
12 VDC ±5% | 12 VDC | 20 mA | 10 mA |
24 VDC ±5% | 24 VDC | 10 mA |
Applied voltage | Rated voltage | Rated current |
---|---|---|
5 VDC±5% | 5 VDC | 8 mA |
12 VAC/VDC±5% | 12 VDC | |
24 VAC/VDC±5% | 24 VDC |
Operating frequency | Mechanical | 120 operations/minute max. *1 | |
---|---|---|---|
Electrical | 30 operations/minute max. | ||
Insulation resistance | 100 MΩ min. (at 500 VDC) | ||
Contact resistance | Standard load | 40 mΩ max. (initial value) | |
Microload | 100 mΩ max. (initial value) | ||
Dielectric strength | Between terminals of same polarity | 1,000 VAC, 50/60 Hz for 1 minute *2 | |
Between terminals of different polarity | 2,000 VAC, 50/60 Hz for 1 minute | ||
Between current-carrying metal part and ground | 2,000 VAC, 50/60 Hz for 1 minute | ||
Between each terminal and non-current-carrying metal part | 2,000 VAC, 50/60 Hz for 1 minute | ||
Between lamp terminals | 1,000 VAC, 50/60 Hz for 1 minute *3 | ||
Vibration resistance | Malfunction | 10 to 55 Hz, 1.5 mm double amplitude (1 ms max.) | |
Shock resistance | Destruction | 500 m/s2 max. | |
Malfunction | 200 m/s2 max. (1 ms max.) | ||
Life expectancy | Mechanical | Momentary operation models: 1,000,000 operations min. Alternate operation models: 200,000 operations min. (One operation consists of set and reset operations.) | |
Electrical | 100,000 operations min. | ||
Weight | Approx. 30 g | ||
Inrush current | NC | Silver contact: 10 A max. | |
NO | Silver contact: 10 A max. | ||
Ambient operating temperature | Bullet Shape LEDs: -10°C to 40°C (with no icing or condensation) LED Lamps: -10°C to 50°C (with no icing or condensation) | ||
Ambient operating humidity | 35% to 85%RH | ||
Ambient storage temperature | -25°C to 65°C | ||
Degree of protection | IP40 | ||
Electric shock protection class | Class II | ||
PTI (proof tracking index) | 175 | ||
Pollution degree | 3 (IEC947-5-1) |
*1. With alternate operation models, 60 operations/minute max. One operation cycle consists of set and reset operations.
*2. 600 VAC for microloads.
*3. With no incandescent lamp or LED lamp mounted.
Model | A3PJ series | A3PA series | A3PT series | ||||
---|---|---|---|---|---|---|---|
Operating Characteristics | Momentary operation models | Alternate operation models | Momentary operation models | Alternate operation models | Momentary operation models | Alternate operation models | |
Operating force | OF max. | 5.88 N | 6.86 N | 5.88 N | 6.86 N | 3.92 N | 4.90 N |
Releasing force | RF min. | 0.39 N | 0.29 N | 0.39 N | 0.29 N | 0.39 N | 0.29 N |
Total travel | TT | Approx. 3.5 mm | Approx. 3.5 mm | Approx. 3.5 mm | Approx. 3.5 mm | Approx. 3.5 mm | Approx. 3.5 mm |
Pretravel | PT max. | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm |
Lock travel alternate | LTA min. | --- | 0.5 mm | --- | 0.5 mm | --- | 0.5 mm |
last update: October 15, 2013
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | A229-E1-01 [867KB] | Feb 01, 201920190201 | A3P Data Sheet |
last update: October 15, 2013

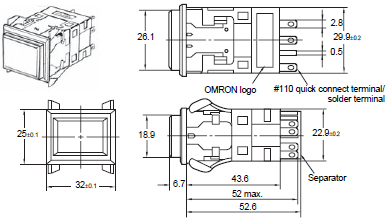

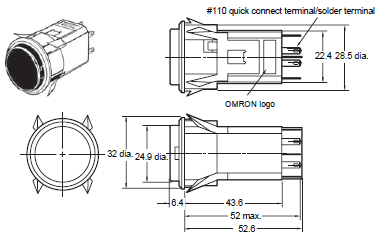

(If you use a Switch Guard or Seal Cover, refer to Switch and Guard Mounting Dimensions or Seal Cover Mounting Dimensions in the A3P datasheet.)

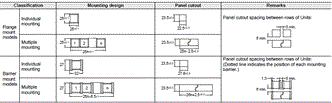

Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. Mount the panel before mounting the Switch Guard.
4. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.
Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. Mount the panel before mounting the Switch Guard.
4. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.
Note:
1. Recommended panel thickness: 1 to 5 mm
2. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.
last update: October 15, 2013
