OMRON E52 (For Packing Machine) Dimensions
/Images/l_3670-25-274778-198x198.jpglast update: October 2, 2017
• Heat resistance (sleeve: 0 to 260°C) and direct installation to heat bars.
• Greater flexibility in the movable section (models with 30 cores).
• Protective tubing diameter of 1 mm with ground for high-speed response.
• Usage together with the automatic filter adjustment function of E5[]D Digital Temperature Controllers is recommended.
• New models with ferrules to help reduce wiring work have been added to the previous models with M3 screw connections.
last update: October 2, 2017
Purchase the OMRON Input Equipments Please fill in the following
If you have just landed here, this product OMRON E52 (For Packing Machine) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 (For Packing Machine) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 (For Packing Machine)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3ZS, E3FS Single-beam Safety Sensor/Features
UMA Series Safety Mat/Features
G3J Simple Solid State Contactors/Features
H3DK-M / -S Multi-range, Multi-mode Timer/Features
CJ1W-CRM21 CJ-series CompoNet Master Units/Features
OMRON E52 (For Packing Machine) catalog
E52 (For Packing Machine) Temperature Sensors for Packaging Machines/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E5[]D Data Sheet | H223-E1-03 [14694KB] | Dec 20, 201820181220 | E5[]D Data Sheet |
| E5[]D/NX-TC Catalog | H222-E1-03 [3882KB] | Jan 07, 201920190107 | E5[]D/NX-TC Catalog |
OMRON E52 (For Packing Machine) lineup
E52 (For Packing Machine) Temperature Sensors for Packaging Machines/Lineuplast update: October 2, 2017
Temperature Sensors for Packaging Machines
| Classification | Description | Model and appearance | Temper- ature range | Element type | Con- ductor type | Class | Protective tubing material | Terminal type |
|---|---|---|---|---|---|---|---|---|
| Special models for packaging machines | Sheathed thermocouple | E52-CA[]A[] D=1 S[]  | 0 to 650°C | K (CA) | Grounded type | 2 (0.75) | ASTM316L | Exposed lead wires |

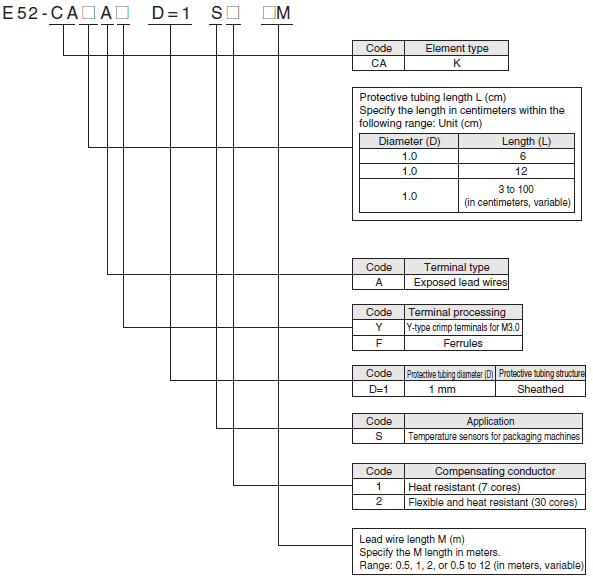

Model Number Legend
The type of protective tubing length, and lead length can be specified as shown below.
Example:
Element: K, protective tubing length: 12 cm, exposed leads, Y-type crimp terminals for M3.0, protective tubing diameter: 1 mm, flexible and heat resistive, lead length: 2 m
E52-CA12AY D=1 S2 2M
List of Models
Custom-made models are available on request. Refer to Model Number Legend for details.
Y-type crimp terminals for M3.0
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | |
|---|---|---|---|---|---|
| 0.5 | 1 | ||||
| Model | |||||
| Exposed- lead Models | 1 dia. | 6 | Heat resistive | E52-CA6AY D=1 S1 0.5M | E52-CA6AY D=1 S1 1M |
| Flexible Heat resistive | --- | E52-CA6AY D=1 S2 1M | |||
| 12 | Heat resistive | E52-CA12AY D=1 S1 0.5M | E52-CA12AY D=1 S1 1M | ||
| Flexible Heat resistive | --- | E52-CA12AY D=1 S2 1M | |||
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) |
|---|---|---|---|---|
| 2 | ||||
| Model | ||||
| Exposed-lead Models | 1 dia. | 6 | Heat resistive | --- |
| Flexible Heat resistive | E52-CA6AY D=1 S2 2M | |||
| 12 | Heat resistive | --- | ||
| Flexible Heat resistive | E52-CA12AY D=1 S2 2M |
Ferrules
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | |
|---|---|---|---|---|---|
| 0.5 | 1 | ||||
| Model | |||||
| Exposed- lead Models | 1 dia. | 6 | Heat resistive | E52-CA6AF D=1 S1 0.5M | E52-CA6AF D=1 S1 1M |
| Flexible Heat resistive | --- | E52-CA6AF D=1 S2 1M | |||
| 12 | Heat resistive | E52-CA12AF D=1 S1 0.5M | E52-CA12AF D=1 S1 1M | ||
| Flexible Heat resistive | --- | E52-CA12AF D=1 S2 1M | |||
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) |
|---|---|---|---|---|
| 2 | ||||
| Model | ||||
| Exposed-lead Models | 1 dia. | 6 | Heat resistive | --- |
| Flexible Heat resistive | E52-CA6AF D=1 S2 2M | |||
| 12 | Heat resistive | --- | ||
| Flexible Heat resistive | E52-CA12AF D=1 S2 2M |
last update: October 2, 2017
OMRON E52 (For Packing Machine) specification
E52 (For Packing Machine) Temperature Sensors for Packaging Machines/Specificationslast update: April 3, 2017
Please refer to the detail tab of Lineup of this product.
last update: April 3, 2017
OMRON E52 (For Packing Machine) dimension
E52 (For Packing Machine) Temperature Sensors for Packaging Machines/Dimensionslast update: October 2, 2017
(Unit: mm)

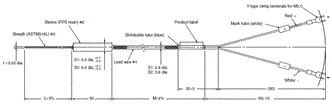

Y-type crimp terminals for M3.0

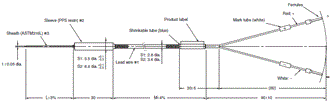

Ferrules
*1. Lead wires (compensating conductor) (excluding Y-type crimp terminals)
Heat-resistance model (0 to 200°C): PFA glass-wool sheath with stainless outer shield
Flexible, heat-resistance model (0 to 200°C): PFA glass-wool sheath with stainless outer shield
*2. Temperature range of sleeve: 0 to 260°C
*3. The sheath can be easily bent. Performance will not be adversely affected even if the sheath is bent somewhat.
Do not bend the sheath beyond the following value.
Minimum bending radius: 2 mm
Bendable section: 8 mm or farther from the end
last update: October 2, 2017
