High-precision Soldering Inspection [In common with VT-S730]
The VT-S7 series features 3D-SJI based on high-accuracy solder shape restoration.
Accurate quantitative inspection of solder bondability is now possible, greatly contributing to quality control requirements conforming to international standards such as IATF (ISO/TS)16949.
High-resolution inspection
With engineering specifications and high resolution compatible with the SEMI industry, the VT-S530 provides stable inspection of 0402/0603 microchip components!
High-productivity Inspection
The VT-S530 supports dual lane operation for higher production throughput.
Dual lane operation using various PCBs is possible, due to its handling capability up to the PCB size of 510 (W) x 330 (D) mm.
last update: January 15, 2018
Purchase the OMRON PCB Inspection System Please fill in the following
If you have just landed here, this product OMRON VT-S530 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the VT-S530 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON VT-S530Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
TL-W Flat Inductive Proximity Sensor/Features
D5F High-precision Optical Switch/Features
A22NN / A22NL Pushbutton Switches/Features
E5CN-HT Programmable Temperature Controller (Digital Controller) (48 x 48 mm)/Features
H3CR-G Solid-state Timer/Features
OMRON VT-S530 dimension

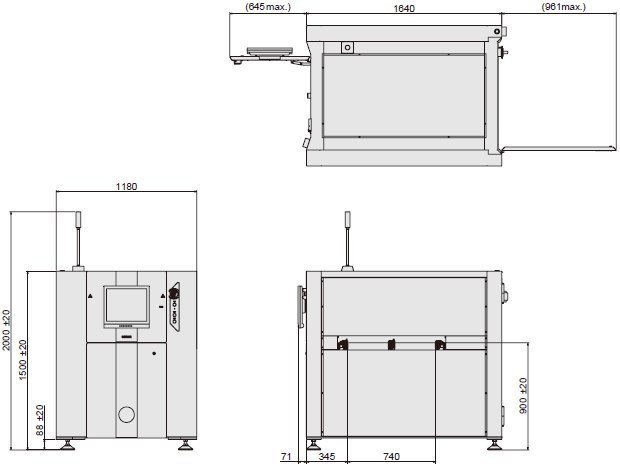

VT-S530 PCB Inspection System/Dimensionslast update: May 8, 2017
