last update: May 14, 2018

High-speed analog inspection with PLC system —No special devices and no PC required

Improving quality in parts inspections requires as detailed analog data as possible. Most automotive and other manufacturers are using PC and special measuring devices such as data loggers for measurements.
Being among the first to work on IoT at manufacturing sites, Omron now offers the High-speed Analog Input Unit that can reliably, precisely, and easily acquire synchronized analog data. It will help you improve quality.

Reliable

Industry's fastest*1 sampling speed of 5 μs to catch every minute change

Conventional PLC

Some data could not be obtained when an error occurred

NX-HAD

Sampling as fast as every 5 μs catches all changes in behavior

Industry's fastest sampling speed1: Same speed2 regardless of the number of channels

Conventional PLC

Sampling period becomes longer as data is obtained from multiple channels

NX-HAD

Achieves high-speed sampling every 5μs from 4 channels at the same time

*1. Based on Omron’s surveys as of January 2018.
*2. When using 4 channels.

Precise

Fully insulated channels to obtain precise data without noise

Conventional PLC

Mutual interference occurred between channels

NX-HAD

Precise data can be obtained from multiple channels

Easy comparative analysis of data obtained synchronously from multiple channels

Conventional PLC

Difficult to compare data obtained at different times

NX-HAD

Precise data can be obtained from multiple channels

Furthermore, the Time-Stamp function in EtherCAT® ensures accurate synchronization between units

Easy

Simple system configuration ideal for global manufacturing

Conventional system

・Special measuring devices don’t have flexibility in configuration
・PC requires programming skills in C
・Difficult to change programs concealed in dedicated controllers
・Some technical skills are required to configure PC that is connected to database

● Characteristic inspection of rotator

NX-HAD

・PLC system reduces initial costs
・Programs can be created without any special knowledge of PC
・Programs can be changed for additional inspection items
・Database connection controller *3 brings IoT into manufacturing sites without connecting PC

● Characteristic inspection of rotator

*3. When using the NJ/NX Machine Automation Controller Database Connection CPU Unit or the Industrial PC Platform NY
IPC Machine Controller.

last update: May 14, 2018

Purchase the OMRON NX-series I/O System Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON NX-HAD[][][] Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NX-HAD[][][] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NX-HAD[][][]Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

3Z4S-LE VS-TEV Series Ultra-high-resolution Telecentric Lens for C-mount Cameras/Features
TL-L Ultra-long Sensing-distance Proximity Sensor/Features
G3PE (Single-phase) Solid State Relays for Heaters/Features
3G8F7-CRM21 CompoNet Master Board for PCI Bus/CompactPCI Bus/Features
K8AK-AS Single-phase Current Relay/Features

OMRON NX-HAD[][][] dimension
NX-HAD[][][] NX-series High-speed Analog Input Unit/Dimensions
last update: May 14, 2018

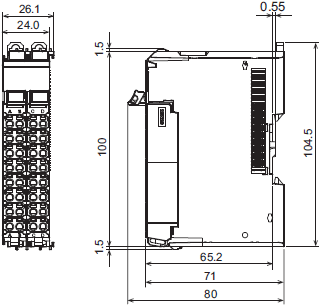

(Unit: mm)

24 mm Width

last update: May 14, 2018

OMRON NX-HAD[][][] lineup
NX-HAD[][][] NX-series High-speed Analog Input Unit/Lineup
last update: June 11, 2018
High-speed Analog Input Units

The models and outline of specifications are given below.

Analog input section Trigger input
section I/O
refreshing
method Model
Number
of
points Input
range Resolution Input
method Con-
version
time Number
of
points Internal
I/O
common
4 -10 to 10 V
-5 to 5 V
0 to 10 V
0 to 5 V
1 to 5 V
0 to 20 mA
4 to 20 mA • Input range of -10
to 10 V or -5 to 5 V:
1/64,000 (full scale)
• Other input range:
1/32,000 (full scale) Differential
input 5 μs per
channel 4 NPN Synchronous
I/O
refreshing NX-HAD401
PNP NX-HAD402

Optional Products

Product name Specifications Model
Unit/Terminal Block Coding Pin For 10 units (30 terminal block pins and 30 unit pins) NX-AUX02

Product name Specifications Model
No. of terminals Ground terminal mark Terminal current capacity
Terminal Block 16 None 10 A NX-TBA162
NX-TBB162

Accessories

Not included.

Collection of software functional components Sysmac Library

Please download it from following URL and install to Sysmac Studio.
http://www.ia.omron.com/sysmac_library/

Product Features Model
High-Speed Analog
Inspection Library The High-speed Analog Inspection Library records analog input values acquired
by the NX series High-speed Analog Input Units in time. This library provides
functions required for product inspections during production processes,
including calculation of feature values (e.g., maximum, minimum, and mean),
comparison with master data, and data file storage. SYSMAC-XR016

last update: June 11, 2018

OMRON NX-HAD[][][] specification
NX-HAD[][][] NX-series High-speed Analog Input Unit/Specifications
last update: May 14, 2018
General Specifications

This section provides the general specifications of the High-speed Analog Input Units.

Item Specification
Enclosure Mounted in a panel
Grounding methods Ground of 100 Ω or less
Operating
environment Ambient operating temperature 0 to 55°C
Ambient operating humidity 10% to 95% (with no condensation or icing)
Atmosphere Must be free from corrosive gases.
Ambient storage temperature -25 to 70°C (with no condensation or icing)
Altitude 2,000 m max.
Pollution degree 2 or less: Conforms to JIS B 3502 and IEC 61131-2.
Noise immunity Conforms to IEC 61000-4-4, 2 kV (power supply line)
Overvoltage category Category II: Conforms to JIS B 3502 and IEC 61131-2.
EMC immunity level Zone B
Vibration resistance Conforms to IEC 60068-2-6.
5 to 8.4 Hz with amplitude of 3.5 mm,
8.4 to 150 Hz, acceleration of 9.8 m/s²
100 min each in X, Y, and Z directions (10 sweeps of 10 min each =
100 min total)
Shock resistance Conforms to IEC 60068-2-27, 147 m/s², 3 times each in X, Y, and
Z directions
Insulation resistance Refer to the individual specifications of NX Units.
Dielectric strength Refer to the individual specifications of NX Units.
Applicable standards cULus: Listed (UL61010-2-201), ANSI/ISA 12.12.01,
EU: EN 61131-2, RCM, KC (KC Registration), and EAC

Note: 1. The specifications of insulation resistance and dielectric strength vary with NX Unit Models.
2. Ask your OMRON representative for the most recent applicable standards for each model.

Specifications of Individual Units
NX-HAD401

Unit name High-speed Analog Input Unit Model NX-HAD401
External connection
terminals Screwless clamping terminal block (16 terminals ×2)
I/O refreshing method Synchronous I/O refreshing
Indicators TS indicator, IN indicator
Analog
input
section Number of points 4 points Trigger
input
section Number of
points 4 points
Input method Differential input Internal I/O
common NPN
Input range Voltage:
• -10 to 10 V
• -5 to 5 V
• 0 to 10 V
• 0 to 5 V
• 1 to 5 V
Current:
• 0 to 20 mA
• 4 to 20 mA Rated input
voltage 24 VDC (20.4 to 28.8 VDC)
Input conversion
range • Input range of -10 to 10 V or
-5 to 5 V
-1% to 101% (full scale)
• Other input ranges
-2% to 102% (full scale) Input
current 3.5 mA typical (24 VDC)
Absolute
maximum rating Voltage: ±15 V
Input current: ±30 mA ON voltage/
ON current 15 VDC min./3 mA min.
(between IOV and each signal)
Input Impedance Voltage: 1 MΩ min.
Current: 250 Ω OFF voltage/
OFF current 5 VDC max./1 mA max.
(between IOV and each signal)
Resolution • Input range of -10 to 10 V or
-5 to 5 V
1/64000 (full scale)
• Other input ranges
1/32000 (full scale) ON/OFF
response
time 1 μs max./1 μs max.
Overall
accuracy 25°C ±0.1% (full scale) Input filter
time No filter, 4 μs, 8 μs (default),
16 μs, 32 μs, 64 μs, 128 μs,
256 μs
0 to
55°C ±0.2% (full scale)
Conversion time 5 μs per channel*1
Dimensions 24 (W) × 100 (H) × 71 (D) Isolation method Between the analog input and
the NX bus:
Power = Transformer, Signal =
Digital isolator
Between analog inputs:
Power = Transformer, Signal =
Digital isolator
Between the trigger input and
the NX bus:
Signal = Digital isolator
Between the analog input and
the trigger input:
Power = Transformer, Signal =
Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC) Dielectric strength 510 VAC between isolated
circuits for 1 minute at a
leakage current of 5 mA max.
I/O power supply method Supply from the NX Bus Current capacity of
I/O power supply
terminals IOV: 0.1 A max. per terminal
IOG: 0.1 A max. per terminal
NX Unit power
consumption • Connected to a CPU Unit
3.30 W max.
• Connected to a
Communications Coupler Unit
2.95 W max. Current consumption
from I/O power supply 30 mA max.
Weight 140 g max.

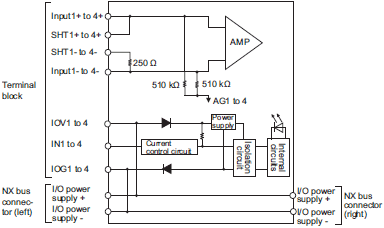

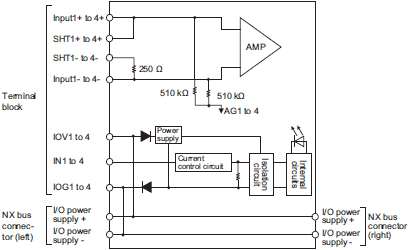

Circuit Configuration
The following channels are individually isolated.
• Input1+, Input1-, SHT1+, SHT1-
• Input2+, Input2-, SHT2+, SHT2-
• Input3+, Input3-, SHT3+, SHT3-
• Input4+, Input4-, SHT4+, SHT4-
Installation orientation
and restrictions*2 Installation orientation:
• Connected to a CPU Unit
Possible in upright installation.
• Connected to a Communications Coupler Unit
Possible in upright installation.
Restrictions: No restrictions

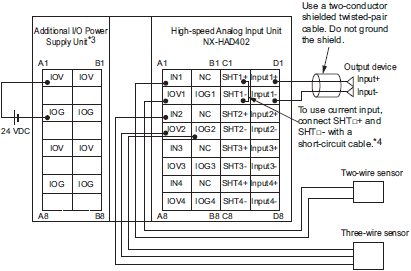

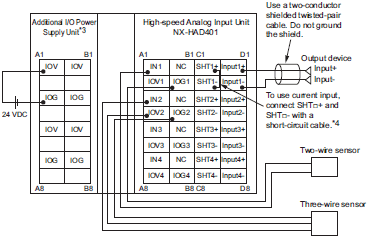

Terminal connection
diagram
Input disconnection
detection*5 • When the input range is 1 to 5 V or 4 to 20 mA: Supported
• Other input range: Not supported

*1. This is the minimum value. The Units perform conversion in the sampling period determined based on the Number of
Samplings Setting. The sampling period must be set to this value or longer.
*2. The following Unit cannot be connected next to the Unit.
· Relay Output Unit (NX-OC[][][][])
*3. Besides the Additional I/O Power Supply Unit, there are Units that can supply I/O power to the NX bus. For example,
you can use a Connected Communications Coupler Unit. If you use this Unit to supply I/O power to the High-speed
Analog Input Units, the Additional I/O Power Supply Unit is unnecessary. The Additional I/O Power Supply Unit is also
unnecessary if you do not use the trigger inputs of the High-speed Analog Input Units.
*4. Short-circuit cables are not included in the product. The cable length must be 4 cm or less and allow for wiring to the
screwless clamping terminal block. Be sure to use cables and ferrules that are applicable to the screwless clamping
terminal block.
If the cable is too long, the analog input values may not be accurate.
*5. To use this function, set the Disconnection Detection Enable/Disable to Enable.

NX-HAD402

Unit name High-speed Analog Input Unit Model NX-HAD402
External connection
terminals Screwless clamping terminal block (16 terminals ×2)
I/O refreshing method Synchronous I/O refreshing
Indicators TS indicator, IN indicator
Analog
input
section Number of points 4 points Trigger
input
section Number of
points 4 points
Input method Differential input Internal I/O
common PNP
Input range Voltage:
• -10 to 10 V
• -5 to 5 V
• 0 to 10 V
• 0 to 5 V
• 1 to 5 V
Current:
• 0 to 20 mA
• 4 to 20 mA Rated input
voltage 24 VDC (20.4 to 28.8 VDC)
Input conversion
range • Input range of -10 to 10 V or
-5 to 5 V
-1% to 101% (full scale)
• Other input ranges
-2% to 102% (full scale) Input
current 3.5 mA typical (24 VDC)
Absolute
maximum rating Voltage: ±15 V
Input current: ±30 mA ON voltage/
ON current 15 VDC min./3 mA min.
(between IOG and each signal)
Input Impedance Voltage: 1 MΩ min.
Current: 250 Ω OFF voltage/
OFF current 5 VDC max./1 mA max.
(between IOG and each signal)
Resolution • Input range of -10 to 10 V or
-5 to 5 V
1/64000 (full scale)
• Other input ranges
1/32000 (full scale) ON/OFF
response
time 1 μs max./1 μs max.
Overall
accuracy 25°C ±0.1% (full scale) Input filter
time No filter, 4 μs, 8 μs (default),
16 μs, 32 μs, 64 μs, 128 μs,
256 μs
0 to
55°C ±0.2% (full scale)
Conversion time 5 μs per channel*1
Dimensions 24 (W) × 100 (H) × 71 (D) Isolation method Between the analog input and
the NX bus:
Power = Transformer, Signal =
Digital isolator
Between analog inputs:
Power = Transformer, Signal =
Digital isolator
Between the trigger input and
the NX bus:
Signal = Digital isolator
Between the analog input and
the trigger input:
Power = Transformer, Signal =
Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC) Dielectric strength 510 VAC between isolated
circuits for 1 minute at a
leakage current of 5 mA max.
I/O power supply method Supply from the NX bus Current capacity of
I/O power supply
terminals IOV: 0.1 A max. per terminal
IOG: 0.1 A max. per terminal
NX Unit power
consumption • Connected to a CPU Unit
3.30 W max.
• Connected to a
Communications Coupler Unit
2.95 W max. Current consumption
from I/O power supply 30 mA max.
Weight 140 g max.
Circuit Configuration
The following channels are individually isolated.
• Input1+, Input1-, SHT1+, SHT1-
• Input2+, Input2-, SHT2+, SHT2-
• Input3+, Input3-, SHT3+, SHT3-
• Input4+, Input4-, SHT4+, SHT4-
Installation orientation
and restrictions*2 Installation orientation:
• Connected to a CPU Unit
Possible in upright installation.
• Connected to a Communications Coupler Unit
Possible in upright installation.
Restrictions: No restrictions
Terminal connection
diagram
Input disconnection
detection*5 • When the input range is 1 to 5 V or 4 to 20 mA: Supported
• Other input range: Not supported

*1. This is the minimum value. The Units perform conversion in the sampling period determined based on the Number of
Samplings Setting. The sampling period must be set to this value or longer.
*2. The following Unit cannot be connected next to the Unit.
· Relay Output Unit (NX-OC[][][][])
*3. Besides the Additional I/O Power Supply Unit, there are Units that can supply I/O power to the NX bus. For example,
you can use a Connected Communications Coupler Unit. If you use this Unit to supply I/O power to the High-speed
Analog Input Units, the Additional I/O Power Supply Unit is unnecessary. The Additional I/O Power Supply Unit is also
unnecessary if you do not use the trigger inputs of the High-speed Analog Input Units.
*4. Short-circuit cables are not included in the product. The cable length must be 4 cm or less and allow for wiring to the
screwless clamping terminal block. Be sure to use cables and ferrules that are applicable to the screwless clamping
terminal block.
If the cable is too long, the analog input values may not be accurate.
*5. To use this function, set the Disconnection Detection Enable/Disable to Enable.

Version Information
Connected to a CPU Unit

Refer to the user's manual for the CPU Unit for details on the CPU Units to which NX Units can be connected.

NX Unit Corresponding unit versions/versions *
Model Unit version CPU Unit Sysmac Studio
NX-HAD401 Ver.1.0 Ver. 1.18 Ver.1.23
NX-HAD402

* Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support
is provided by the oldest available version after the specified version. Refer to the user's manuals for the specific Units for
the relation between models and versions.

Connected to an EtherCAT Coupler Unit

The items that are used in the version combination table are given below.

NX Unit Corresponding unit versions/versions *
Model Unit version EtherCAT Coupler Unit CPU Unit or Industrial PC Sysmac Studio
NX-HAD401 Ver.1.0 Ver.1.0 Ver. 1.18 Ver.1.23
NX-HAD402

* Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support
is provided by the oldest available version after the specified version. Refer to the user's manuals for the specific Units for
the relation between models and versions.

last update: May 14, 2018

OMRON NX-HAD[][][] catalog
NX-HAD[][][] NX-series High-speed Analog Input Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

NX-HAD[][][] Data Sheet -
[2209KB] Jun 11, 201820180611 NX-HAD[][][] Data Sheet

NX-HAD401/HAD402 Catalog P128-E1-02
[8173KB] Aug 20, 201820180820 NX-HAD401/HAD402 Catalog

NX-series I/O System Catalog R183-E1-09
[6683KB] Nov 01, 201820181101 NX-series I/O System Catalog

SYSMAC-XR016 High-Speed Analog Inspection Library Catalog P132-E1-01
[934KB] May 14, 201820180514 SYSMAC-XR016 High-Speed Analog Inspection Library Catalog

NO. NX-HAD[][][]

TYPE:Machine Automation Controllers NX-series I/O System Analog Input / Output Unit

DATE:2021-06-09

Associated products:
NX-ID / IA / OD / OC / MD NX-series Digital I/O Unit/Features NX-AD / DA NX-series Analog I/O Unit/Features

Analog input section	Trigger input section	I/O refreshing method	Model
Number of points	Input range	Resolution	Input method	Con- version time	Number of points	Internal I/O common
4	-10 to 10 V -5 to 5 V 0 to 10 V 0 to 5 V 1 to 5 V 0 to 20 mA 4 to 20 mA	• Input range of -10 to 10 V or -5 to 5 V: 1/64,000 (full scale) • Other input range: 1/32,000 (full scale)	Differential input	5 μs per channel	4	NPN	Synchronous I/O refreshing	NX-HAD401
PNP	NX-HAD402

Product name	Specifications	Model
Unit/Terminal Block Coding Pin	For 10 units (30 terminal block pins and 30 unit pins)	NX-AUX02

Product name	Specifications	Model
No. of terminals	Ground terminal mark	Terminal current capacity
Terminal Block	16	None	10 A	NX-TBA162
NX-TBB162

Product	Features	Model
High-Speed Analog Inspection Library	The High-speed Analog Inspection Library records analog input values acquired by the NX series High-speed Analog Input Units in time. This library provides functions required for product inspections during production processes, including calculation of feature values (e.g., maximum, minimum, and mean), comparison with master data, and data file storage.	SYSMAC-XR016

Item	Specification
Enclosure	Mounted in a panel
Grounding methods	Ground of 100 Ω or less
Operating environment	Ambient operating temperature	0 to 55°C
Ambient operating humidity	10% to 95% (with no condensation or icing)
Atmosphere	Must be free from corrosive gases.
Ambient storage temperature	-25 to 70°C (with no condensation or icing)
Altitude	2,000 m max.
Pollution degree	2 or less: Conforms to JIS B 3502 and IEC 61131-2.
Noise immunity	Conforms to IEC 61000-4-4, 2 kV (power supply line)
Overvoltage category	Category II: Conforms to JIS B 3502 and IEC 61131-2.
EMC immunity level	Zone B
Vibration resistance	Conforms to IEC 60068-2-6. 5 to 8.4 Hz with amplitude of 3.5 mm, 8.4 to 150 Hz, acceleration of 9.8 m/s² 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)
Shock resistance	Conforms to IEC 60068-2-27, 147 m/s², 3 times each in X, Y, and Z directions
Insulation resistance	Refer to the individual specifications of NX Units.
Dielectric strength	Refer to the individual specifications of NX Units.
Applicable standards	cULus: Listed (UL61010-2-201), ANSI/ISA 12.12.01, EU: EN 61131-2, RCM, KC (KC Registration), and EAC

Unit name	High-speed Analog Input Unit	Model	NX-HAD401
External connection terminals	Screwless clamping terminal block (16 terminals ×2)
I/O refreshing method	Synchronous I/O refreshing
Indicators	TS indicator, IN indicator
Analog input section	Number of points	4 points	Trigger input section	Number of points	4 points
Input method	Differential input	Internal I/O common	NPN
Input range	Voltage: • -10 to 10 V • -5 to 5 V • 0 to 10 V • 0 to 5 V • 1 to 5 V Current: • 0 to 20 mA • 4 to 20 mA	Rated input voltage	24 VDC (20.4 to 28.8 VDC)
Input conversion range	• Input range of -10 to 10 V or -5 to 5 V -1% to 101% (full scale) • Other input ranges -2% to 102% (full scale)	Input current	3.5 mA typical (24 VDC)
Absolute maximum rating	Voltage: ±15 V Input current: ±30 mA	ON voltage/ ON current	15 VDC min./3 mA min. (between IOV and each signal)
Input Impedance	Voltage: 1 MΩ min. Current: 250 Ω	OFF voltage/ OFF current	5 VDC max./1 mA max. (between IOV and each signal)
Resolution	• Input range of -10 to 10 V or -5 to 5 V 1/64000 (full scale) • Other input ranges 1/32000 (full scale)	ON/OFF response time	1 μs max./1 μs max.
Overall accuracy	25°C	±0.1% (full scale)	Input filter time	No filter, 4 μs, 8 μs (default), 16 μs, 32 μs, 64 μs, 128 μs, 256 μs
0 to 55°C	±0.2% (full scale)
Conversion time	5 μs per channel*1
Dimensions	24 (W) × 100 (H) × 71 (D)	Isolation method	Between the analog input and the NX bus: Power = Transformer, Signal = Digital isolator Between analog inputs: Power = Transformer, Signal = Digital isolator Between the trigger input and the NX bus: Signal = Digital isolator Between the analog input and the trigger input: Power = Transformer, Signal = Digital isolator
Insulation resistance	20 MΩ min. between isolated circuits (at 100 VDC)	Dielectric strength	510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max.
I/O power supply method	Supply from the NX Bus	Current capacity of I/O power supply terminals	IOV: 0.1 A max. per terminal IOG: 0.1 A max. per terminal
NX Unit power consumption	• Connected to a CPU Unit 3.30 W max. • Connected to a Communications Coupler Unit 2.95 W max.	Current consumption from I/O power supply	30 mA max.
Weight	140 g max.
Circuit Configuration	The following channels are individually isolated. • Input1+, Input1-, SHT1+, SHT1- • Input2+, Input2-, SHT2+, SHT2- • Input3+, Input3-, SHT3+, SHT3- • Input4+, Input4-, SHT4+, SHT4-
Installation orientation and restrictions*2	Installation orientation: • Connected to a CPU Unit Possible in upright installation. • Connected to a Communications Coupler Unit Possible in upright installation. Restrictions: No restrictions
Terminal connection diagram
Input disconnection detection*5	• When the input range is 1 to 5 V or 4 to 20 mA: Supported • Other input range: Not supported

Unit name	High-speed Analog Input Unit	Model	NX-HAD402
External connection terminals	Screwless clamping terminal block (16 terminals ×2)
I/O refreshing method	Synchronous I/O refreshing
Indicators	TS indicator, IN indicator
Analog input section	Number of points	4 points	Trigger input section	Number of points	4 points
Input method	Differential input	Internal I/O common	PNP
Input range	Voltage: • -10 to 10 V • -5 to 5 V • 0 to 10 V • 0 to 5 V • 1 to 5 V Current: • 0 to 20 mA • 4 to 20 mA	Rated input voltage	24 VDC (20.4 to 28.8 VDC)
Input conversion range	• Input range of -10 to 10 V or -5 to 5 V -1% to 101% (full scale) • Other input ranges -2% to 102% (full scale)	Input current	3.5 mA typical (24 VDC)
Absolute maximum rating	Voltage: ±15 V Input current: ±30 mA	ON voltage/ ON current	15 VDC min./3 mA min. (between IOG and each signal)
Input Impedance	Voltage: 1 MΩ min. Current: 250 Ω	OFF voltage/ OFF current	5 VDC max./1 mA max. (between IOG and each signal)
Resolution	• Input range of -10 to 10 V or -5 to 5 V 1/64000 (full scale) • Other input ranges 1/32000 (full scale)	ON/OFF response time	1 μs max./1 μs max.
Overall accuracy	25°C	±0.1% (full scale)	Input filter time	No filter, 4 μs, 8 μs (default), 16 μs, 32 μs, 64 μs, 128 μs, 256 μs
0 to 55°C	±0.2% (full scale)
Conversion time	5 μs per channel*1
Dimensions	24 (W) × 100 (H) × 71 (D)	Isolation method	Between the analog input and the NX bus: Power = Transformer, Signal = Digital isolator Between analog inputs: Power = Transformer, Signal = Digital isolator Between the trigger input and the NX bus: Signal = Digital isolator Between the analog input and the trigger input: Power = Transformer, Signal = Digital isolator
Insulation resistance	20 MΩ min. between isolated circuits (at 100 VDC)	Dielectric strength	510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max.
I/O power supply method	Supply from the NX bus	Current capacity of I/O power supply terminals	IOV: 0.1 A max. per terminal IOG: 0.1 A max. per terminal
NX Unit power consumption	• Connected to a CPU Unit 3.30 W max. • Connected to a Communications Coupler Unit 2.95 W max.	Current consumption from I/O power supply	30 mA max.
Weight	140 g max.
Circuit Configuration	The following channels are individually isolated. • Input1+, Input1-, SHT1+, SHT1- • Input2+, Input2-, SHT2+, SHT2- • Input3+, Input3-, SHT3+, SHT3- • Input4+, Input4-, SHT4+, SHT4-
Installation orientation and restrictions*2	Installation orientation: • Connected to a CPU Unit Possible in upright installation. • Connected to a Communications Coupler Unit Possible in upright installation. Restrictions: No restrictions
Terminal connection diagram
Input disconnection detection*5	• When the input range is 1 to 5 V or 4 to 20 mA: Supported • Other input range: Not supported

NX Unit	Corresponding unit versions/versions *
Model	Unit version	CPU Unit	Sysmac Studio
NX-HAD401	Ver.1.0	Ver. 1.18	Ver.1.23
NX-HAD402

NX Unit	Corresponding unit versions/versions *
Model	Unit version	EtherCAT Coupler Unit	CPU Unit or Industrial PC	Sysmac Studio
NX-HAD401	Ver.1.0	Ver.1.0	Ver. 1.18	Ver.1.23
NX-HAD402

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
NX-HAD[][][] Data Sheet	- [2209KB]	Jun 11, 201820180611	NX-HAD[][][] Data Sheet
NX-HAD401/HAD402 Catalog	P128-E1-02 [8173KB]	Aug 20, 201820180820	NX-HAD401/HAD402 Catalog
NX-series I/O System Catalog	R183-E1-09 [6683KB]	Nov 01, 201820181101	NX-series I/O System Catalog
SYSMAC-XR016 High-Speed Analog Inspection Library Catalog	P132-E1-01 [934KB]	May 14, 201820180514	SYSMAC-XR016 High-Speed Analog Inspection Library Catalog

Return to OMRON

OMRON NX-HAD[][][]Automation Systems/ Machine Automation Controllers/NX-series I/O System

OMRON NX-HAD[][][] Dimensions

High-speed analog inspection with PLC system —No special devices and no PC required

Reliable

Industry's fastest*1 sampling speed of 5 μs to catch every minute change

Conventional PLC

NX-HAD

Industry's fastest sampling speed*1: Same speed*2 regardless of the number of channels

Conventional PLC

NX-HAD

Precise

Fully insulated channels to obtain precise data without noise

Conventional PLC

NX-HAD

Easy comparative analysis of data obtained synchronously from multiple channels

Conventional PLC

NX-HAD

Easy

Simple system configuration ideal for global manufacturing

Conventional system

NX-HAD

Purchase the OMRON NX-series I/O System Please fill in the following

OMRON NX-HAD[][][] dimension

24 mm Width

OMRON NX-HAD[][][] lineup

High-speed Analog Input Units

Optional Products

Accessories

Collection of software functional components Sysmac Library

OMRON NX-HAD[][][] specification

General Specifications

Specifications of Individual Units

NX-HAD401

NX-HAD402

Version Information

Connected to a CPU Unit

Connected to an EtherCAT Coupler Unit

OMRON NX-HAD[][][] catalog

English

Global Edition

Industry's fastest sampling speed1: Same speed2 regardless of the number of channels
