• Ultra-high-resolution telecentric lens for 1.1-inch cameras.
• Lineup of 3 models to meet various optical magnification requirements.
• Variable magnification for use at a wide range of working distances. Balance between depth of field and contrast can be adjusted.
• Low-distortion design.
• High-quality images can be obtained from any part of the area.
• Ideal for high-accuracy alignment.
last update: August 1, 2018
Purchase the OMRON Lens Please fill in the following
If you have just landed here, this product OMRON 3Z4S-LE VS-TEV Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 3Z4S-LE VS-TEV Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 3Z4S-LE VS-TEV SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E8F2 Digital Pressure Sensor/Features
EE-SPY31 / 41 Light Convergent Reflective Photomicrosensor/Features
NX-SI / SO Safety I/O Unit/Features
H3AM Mechatronic Analog Timer/Features
CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw T...
OMRON 3Z4S-LE VS-TEV Series specification
3Z4S-LE VS-TEV Series Ultra-high-resolution Telecentric Lens for C-mount Cameras/Specificationslast update: August 1, 2018
| Mounting | C mount |
|---|---|
| Ambient temperature | Operating: -5 to 50°C, Storage: -10 to 60°C (with no icing or condensation) |
| Ambient humidity | Operating: 0% to 80%, Storage: 0% to 90% (with no condensation) |
last update: August 1, 2018
OMRON 3Z4S-LE VS-TEV Series dimension
3Z4S-LE VS-TEV Series Ultra-high-resolution Telecentric Lens for C-mount Cameras/Dimensionslast update: August 1, 2018
(Unit: mm)
3Z4S-LE VS-TEV0305

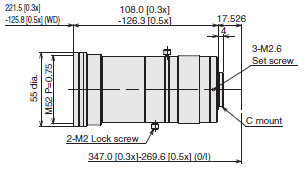

3Z4S-LE VS-TEV05075

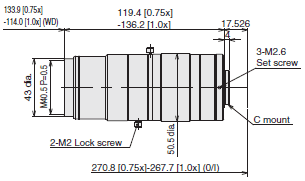

3Z4S-LE VS-TEV07510
