OMRON E8FC Sensors
OMRON E8FC Dimensions
/Images/l_3720-25-284598-198x198.jpglast update: July 2, 2018
Prevents sudden stops and molding defects due to cooling abnormalities
Multi-sensing technology
[Flow rate] Uses the "Thermal flow rate measurement algorithm". Detect the flow velocity of the fluid by measuring how fast heat is taken from the pulse heated Ta (heated temperature measurement area), and performs flow rate calculations based on the pipe diameter.
[Temp.] Uses the platinum element in Tb (liquid temperature measurement area) to directly measure the liquid temperature.
Welding machine
Problems
[Deformed welding tips and overheated transformers due to cooling performance degradation]
• If the cooling water temperature rises, the welding tip or welding transformer cannot be sufficiently cooled.
• If the welding tip gets overheated and deformed, welding defects occur.
• The welding transformer gets overheated, and the equipment suddenly stops.
• You cannot detect a temperature rise by monitoring temperature alone.
Solution from OMRON
You can detect signs even before welding tip deformation or sudden stops occur
Molding machine
Problems
[Molding defects due to cooling performance degradation]
• Even if the amount of cooling water is adequate, a rise in water temperature leads to a drop in cooling performance.
• If the cooling performance declines, the processed part on the mold cannot be adequately cooled, resulting in deformation, voids, or other molding defects.
• You cannot detect a temperature rise by flow rate monitoring alone.
Solution from OMRON
You can detect signs of cooling performance degradation even before occurrence of molding defects.
Monitor the "flow rate" and "temperature changes" in the same position, and quantify the optimum ranges for flow rate and temperature. You can detect signs of cooling performance degradation without relying on the experience or skills of maintenance personnel.
In addition, by mounting sensors on multiple pipes, you can quickly tell from the sensor LEDs what abnormality has occurred, in which pipe.
Notifications of changes in the cooling water or hydraulic oil states are easy to understand
You can see the cause of the abnormality Multi-sensing display [Patent pending]
The sensor judges by monitoring "Flow rate + Temperature" and "Pressure + Temperature". Since data outputs to a PLC by the IO-Link communications is possible, it is easy to perform maintenance before entering an abnormal state. For the display colors, you can set 3 patterns, or if combined with Not lit, a total of 4 patterns.
You can see the rate of change with a percentage Relative value display
With the flow rate at the time of setting as 100%, you can relatively measure the change in flow rate value. Smart Tuning function is convenient for cases where optimum value management of absolute values is difficult, such as when the operating environment is changing, and liquid types are changing, etc.
You can also see the sensor status Self-diagnostic outputs
Self-diagnoses the sensor's own status, and autonomously sends notification when signs of a connection error or a malfunction appears.
Easy to see High luminosity LED display
A high luminosity LED gives good visibility even at the back of equipment or in dark locations.
Easy to understand Display by unit
Converts to physical quantity units for display.
Adjust the angle according to the mounting position
Angle adjustment up to 330°
After fastening to the adapter, you can adjust the angle so that the display is easy to see.
180° reverse display
The display can rotate 180°.
Easy to use in various location
Compact and space-saving
You can even mount in narrow spaces with multiple pipes arrayed.
Direct setting
Button on the body for quick setting. After setting, you can use the key lock function to prevent operation in error.
Highly durable liquid contact part
Batch setting from host devices
During maintenance, the settings must be the same conditions as when the product was initially mounted. If you use the IO-Link function, you can perform batch setting from a host device. You can manage by quantifying the adjustment that is performed by skilled personnel to avoid affecting the manufacturing quality.
Easy-to-clean structure
Structure is easily removable from the piping for periodic inspections, etc., and easily cleaned.
Expanded cable and adapter lineups (sold separately)*
* Use our dedicated adapters. In addition, if there is a possibility of pulsations or vibrations to a Pressure Sensor, we recommend the attachment of a throttle (sold separately).
last update: July 2, 2018
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON E8FC Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E8FC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E8FCSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
H5AN Digital Timer/Features
H7CN Solid-state Counter/Features
CompoNet Open Network for High-Speed Control/Features
GRT1 Series SmartSlice CompoNet Communications Unit/Features
S82S Switch Mode Power Supply (3/7.5-W Models)/Features
OMRON E8FC specification
E8FC IoT Flow Sensors/Specificationslast update: February 1, 2019
Sensors
| Model | PNP (COM2) | E8FC-25D | |||
|---|---|---|---|---|---|
| PNP (COM3) | E8FC-25T | ||||
| NPN | E8FC-25 | ||||
| Applicable diameter | Nominal diameter B | 3/8" | 1/2" | 3/4" | 1" |
| Nominal diameter A | 10 A | 15 A | 20 A | 25 A | |
| Applicable fluid | The fluid must not corrode the material of the wetted part (for example, water or a fluid whose conductivity is equivalent to that of water). | ||||
| Permissible pressure *1 | 10 MPa | ||||
| Flow rate monitoring *2 | Rated flow rate range | 0.6 to 14 l/min | 1 to 30 l/min | 1.5 to 60 l/min | 2 to 100 l/min |
| Inner diameter setting (10 A, 15 A, 20 A, 25 A) | |||||
| Display range | 0 to 16 l/min | 0 to 33 l/min | 0 to 66 l/min | 0 to 110 l/min | |
| Zero cutting flow rate *3 | 0.6 l/min | 1 l/min | 1.5 l/min | 2 l/min | |
| Display resolution (l/min) | 0.1/1 (Selectable) | ||||
| Flow rate monitoring response time | Control output: 1.0, 2.5, 5, 10, 30, 60 s | ||||
| Flow rate monitoring precision | ± (7.0% of measured value + 2.0% F.S.) or less | ||||
| Flow rate repeatability / F.S. (prescribed for each response time) | 1 s: ±3.5%, 2.5 s: ±2.5%, 5 s: ±1.6%, 10 s: ±1%, 30 s: ±0.8%, 60 s: ±0.6% | ||||
| Ambient temperature characteristics *4 | ±1.0% F.S./10°C | ||||
| Hysteresis | Variable | ||||
| Temperature monitoring *5 | Temperature monitoring rated range | 0 to 85°C | |||
| Temperature monitoring precision | ±2.5°C | ||||
| Temperature repeatability | ±0.5°C | ||||
| Control output judgment (selectable) | Standard mode | Judge if the measured value is the threshold value or more (or less). | |||
| Window mode | Judge if the measured value is within the upper and lower limits. | ||||
| Display method | Numerical value indication: 4-digit 7-segment white LED with inverting function Status indicators: The content of indication is selectable from green, orange, red, and OFF. Output indicator: OUT1 operation (orange), OUT2 operation (orange) Unit indicator: l/min (White), % (White), °C (White), ST (White) Communication indicator: Lighting when communications are in progress (green) | ||||
| Delay setting | 1 to 9999 ms (Select a function from invalid, ON delay, OFF delay, and one-shot.) | ||||
| Connection method | M12, 4-pole connector type | ||||
| Output ch1 (selectable) | Control output | Flow rate control output (N.O./N.C.) E8FC-25D/-25T: PNP E8FC-25: NPN 30 VDC or less, Class 2, 100 mA max., residual voltage 1 V or less | |||
| Pulse output | 1/ 10/ 100/1000 l | ||||
| Output ch2 (selectable) | Control output | Flow rate control output (N.O./N.C.) / temperature control output (N.O./N.C.) E8FC-25D/-25T: PNP E8FC-25: NPN 30 VDC or less, Class 2, 100 mA max. residual voltage 1 V or less | |||
| Analog current output *7 | Flow rate analog output /temperature analog output Current output 4 to 20 mA (maximum load resistance 350Ω or less) (Display value ± 2% of F.S.) | ||||
| Pulse output | 1/ 10/ 100/1000 l | ||||
| External input | Smart tuning, One-point tuning, short-circuit current 1.5 mA or less, input time 20 ms or more | ||||
| IO-Link | IO-Link specification | Ver 1.1 | |||
| Baud rate | E8FC-25D: COM2 (38.4kbps) E8FC-25T: COM3 (230.4Kbps) | ||||
| Data length | PD Size: 6 byte OD Size: 1 byte (M-sequence type: TYPE_2_V) | ||||
| Minimum cycle time | E8FC-25D (COM2): 3.2 ms E8FC-25T(COM3): 2.0 ms | ||||
| Power supply | Power supply voltage | 15 to 30 VDC (including 10% ripple (p-p)), Class 2 | |||
| Power consumption | 2,880 mW or less (When power supply voltage is 30 V, current consumption must be 96 mA or less. When power supply voltage is 15 V, current consumption must be 192 mA or less.) | ||||
| Protection circuit | Power supply reverse connection protection, output short-circuit protection, and output reverse connection protection | ||||
| Environment resistance | Ambient temperature range | -20 to 80°C in operation and storage, respectively (no condensation) | |||
| Applicable fluid temperature | 0 to 85°C (no icing on the pipe surface) | ||||
| Ambient humidity range | 35 to 85%RH in operation and storage, respectively (no condensation) | ||||
| Withstand voltage | 500 VAC 50/60 Hz 1min | ||||
| Vibration resistance (destruction) | 10 to 2000 Hz, double amplitude 1.5 mm, 2 hours in X/Y/Z direction each | ||||
| Shock resistance (destruction) | 500 m/s2, three times in X/Y/Z direction each | ||||
| Protective structure | IP67 | ||||
| Pollution degree | 3 | ||||
| Altitude | 2,000 m or less | ||||
| Installation place | Indoor | ||||
| Materials | Wetted part | Detecting unit: SUS304L, O-ring: FKM | |||
| Other than wetted part | Head: PPSU, display unit: PES, button: PBT, chassis: SUS304L, nut: SUS304 | ||||
| Weight | Approx. 190 g | ||||
| Accessories | • Ferrite core x 1 (TDK's Model ZCAT1 730-0730A) • User's manual (Japanese, English, and Chinese), one each • Compliance sheet • Index list | ||||
*1. Even instantaneous pressure fluctuation such as water hammer must be within the permissible pressure.
*2. The flow rate precision is defined based on the values measured in Omron's pre-shipment adjustment facility using
water at the ordinary temperature (approx. 23°C).
In the ordinary temperature environment (approx. 23°C), install the product with the long side of the chassis
holding unit toward the upstream of the pipe.
The measured value might vary due to fluid pulsation or pipe clogging.
*3. Cutting to zero is the function outputting the flow rate less than the minimum rated flow rate as zero.
*4. The ambient temperature characteristics are defined based on the values measured in the following environment
using water at the ordinary temperature (approx. 23°C) flowing at 30 l/min.
In ordinary temperature environment (approx. 23°C) / pipe diameter 20A / straight pipe length 200 mm or
more / recommended joint (KITZ's PTZ-20A) / dedicated adapter (E8FC-YA-R20A) / Install the product with the
long side of the chassis holding unit toward the upstream of the pipe.
*5. The temperature precision is defined based on the values measured in the following environment using water.
In ordinary temperature environment (approx. 23°C) / pipe diameter 20A / straight pipe length 200 mm or
more / recommended joint (KITZ's PTZ-20A) / dedicated adapter (E8FC-YA-R20A) / Install the product with the
long side of the chassis holding unit toward the upstream of the pipe.
*6. If the pipe temperature exceeds 70°C, do not contact any cables with the pipe.
*7. Do not connect CH 2 (pin 2) with the IO-Link master unit in analog current output mode. Otherwise, the unit might fail.
last update: February 1, 2019
OMRON E8FC dimension
E8FC IoT Flow Sensors/Dimensionslast update: July 2, 2018
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors
IoT Flow Sensor
E8FC-25[]
Adapters

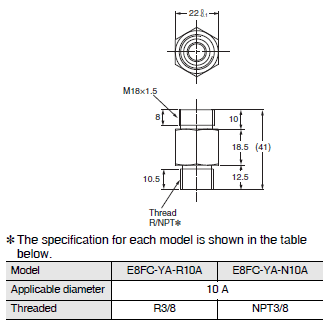

E8FC-YA-R10A
E8FC-YA-N10A

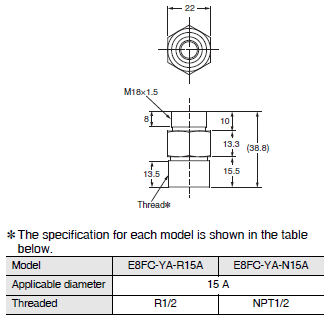

E8FC-YA-R15A
E8FC-YA-N15A

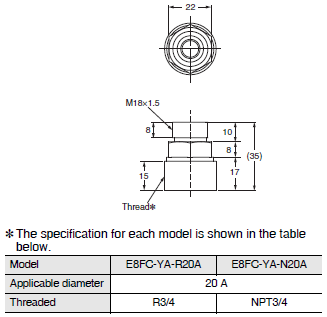

E8FC-YA-R20A
E8FC-YA-N20A

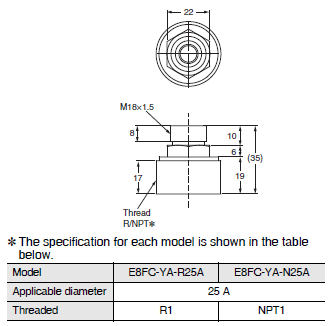

E8FC-YA-R25A
E8FC-YA-N25A
O-ring
E8FC-YL-1
Cables

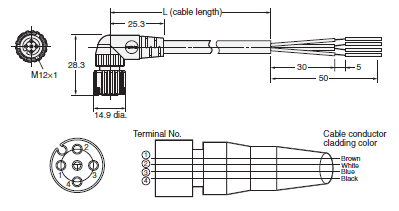

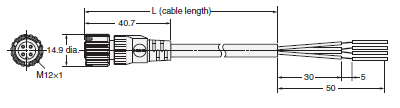

Sensor I/O Connectors (M12, Socket on one cable end)
Straight
XS5F-D421-D80-F
XS5F-D421-G80-F
L-shaped
XS5F-D422-D80-F
XS5F-D422-G80-F

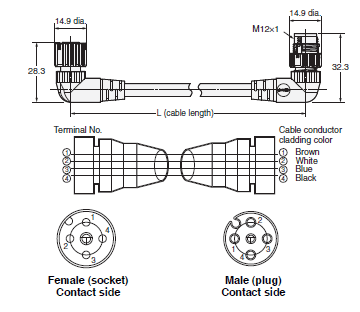

Sensor I/O Connectors (M12, Socket and plug on cable ends)
Straight/straight
XS5W-D421-D81-F
XS5W-D421-G81-F
L-shaped/L-shaped
XS5W-D422-D81-F
XS5W-D422-G81-F
last update: July 2, 2018
OMRON E8FC catalog
E8FC IoT Flow Sensors/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E8FC/E8PC Series Catalog | E472-E1-01 [17485KB] | Feb 07, 201920190207 | E8FC/E8PC Series Catalog |
| IO-Link Series Catalog | Y229-E1-02 [28505KB] | Jul 17, 201820180717 | IO-Link Series Catalog |
OMRON E8FC lineup
E8FC IoT Flow Sensors/Lineuplast update: February 7, 2019
Sensors
| Appearance | Applicable fluid * | Control output | Communication method | IO-Link baud rate | Model |
|---|---|---|---|---|---|
 | Liquid | PNP | IO-Link Analog | COM2 (38.4 kbps) | E8FC-25D |
| COM3 (230.4 kbps) | E8FC-25T | ||||
| NPN | Analog | --- | E8FC-25 |
Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).
* The applicable fluid is a liquid that does not erode the wetted part materials (for example, water or a fluid whose conductivity is equivalent to that of water).
Adapters
It must be selected from the adapters below.
| Appearance | Applicable diameter * | Thread type | Materials | Model | |
|---|---|---|---|---|---|
| Nominal diameter A | Nominal diameter B | ||||
 | 10 A | 3/8” | R (taper thread) | SUS304 | E8FC-YA-R10A |
| NPT (taper thread) | E8FC-YA-N10A | ||||
 | 15 A | 1/2” | R (taper thread) | E8FC-YA-R15A | |
| NPT (taper thread) | E8FC-YA-N15A | ||||
 | 20 A | 3/4” | R (taper thread) | E8FC-YA-R20A | |
| NPT (taper thread) | E8FC-YA-N20A | ||||
 | 25 A | 1” | R (taper thread) | E8FC-YA-R25A | |
| NPT (taper thread) | E8FC-YA-N25A | ||||

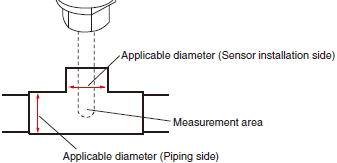

* It is recommended that the piping fitting diameters be theme on both the piping side and the sensor mounting side.
Because the sensor is designed so that the measurement area is in the center of the piping, correct measurement
may not be possible with different diameter fittings.
Refer to Piping Method on Catalog for the recommended pipe joint.
Cables (Sensor I/O Connectors)
A Cable is not provided with the Sensor. It must be ordered separately.
| Type | Appearance | Cable | Model |
|---|---|---|---|
| Socket on one cable end | Straight | 2 m | XS5F-D421-D80-F |
| 5 m | XS5F-D421-G80-F | ||
L-shaped | 2 m | XS5F-D422-D80-F | |
| 5 m | XS5F-D422-G80-F | ||
| Socket and plug on cable ends * | Straight/straight | 2 m | XS5W-D421-D81-F |
| 5 m | XS5W-D421-G81-F | ||
L-shaped/L-shaped | 2 m | XS5W-D422-D81-F | |
| 5 m | XS5W-D422-G81-F |
Note: Refer to Sensor I/O Connectors/Sensor Controllers on OMRON website for details.
* Straight type/L-shape type combinations are also available.
O-ring (for replacement)
| Appearance | Type | Model |
|---|---|---|
 | For E8FC-25[] | E8FC-YL-1 |
last update: February 7, 2019
