• Wired or Wireless
• Ultra-Rugged DPM Handheld
• Industry-Leading DPM Decoding Performance with X-Mode
• Intuitive WebLinkPC Interface
Ultra-Rugged
The HS-360X withstands multiple drops from 8’ and 5,000 tumbles.
X-Mode Decode Algorithms
The HS-360X includes industry-leading X-Mode decoding algorithms to consistently read damaged, distorted or otherwise challenging directly marked codes at high decode rates.
Performance Indicators
In addition to a beeper, visual and vibrating indicators provide silent confirmation of successful reads for noisy or sensitive environments.
Industrial Fluid and Chemical Tolerable
Many industrial fluids and chemicals deemed tolerable.
Charging Station
The charging station is IP65 and transmits and receives data over a Bluetooth class 1 or 2 out to 300 feet. It includes a Wi-Fi friendly mode and a paging button to locate a misplaced imager.
Ease of Use - WebLinkPC
Scanner configuration and deployment with browser based user interface and device discovery.
HS-360X:Available Codes
last update: December 3, 2018
Purchase the OMRON Code Readers Please fill in the following
If you have just landed here, this product OMRON HS-360X Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the HS-360X Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON HS-360X SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A165E Emergency Stop Switch (16-dia.)/Features
FLV Series Light Units/Features
3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Features
H5F Digital Daily Time Switch/Features
NX-PA / PD NX-Series Power Supply Unit/Features
OMRON HS-360X Series catalog
HS-360X Series Handheld DPM Scanner/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Code Reader Group Catalog | Q263-E1-01 [4236KB] | Jan 17, 201920190117 | Code Reader Group Catalog |
OMRON HS-360X Series specification
HS-360X Series Handheld DPM Scanner/Specificationslast update: December 3, 2018
| Applicable codes | 1D | UPC / EAN, UPC / EAN with supplementals, Bookland, EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, ISBT Concatenation, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 DataBar variants |
|---|---|---|
| 2D | PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, QR Code, MicroQR, Aztec, Han Xin, GS1-QR, GS1-DM | |
| Postal | US Postnet, US Planet, UK Postal, Japan Post, Australia Post, Royal Mail 4 State Customer, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3) | |
| Reading performance | Field of view (Horizontal x Vertical) nominal | 31º (H) × 23º (V) |
| Roll | 0 to 360º | |
| Pitch | ±60° | |
| Skew | ±60° | |
| Scans per charge | Up to 100,000 | |
| Minimum resolution | Code 39: 0.0762 mm PDF417: 0.1016 mm DataMatrix: 0.1016 mm | |
| Interface | USB, RS-232 The scanner supports the following protocols over USB: HID Keyboard (default mode), SNAPI, COM Port Emulation, USB CDC | |
| Power | 5 VDC + / - 10% @ 360 mA (RMS typical) | |
| Light source | Aiming pattern: Class 2 Laser 655nm Illumination: Exempt Risk Group, Warm white LED, Red 634nm LED | |
| Environmental specifications | Ambient temperature range | Wireless Scanner Operating: -20 to +50ºC, Storage: -40 to +70ºC Wired Scanner Operating: -30 to +50ºC, Storage: -40 to +70ºC |
| Ambient humidity range | 5%RH to 95%RH (with no icing or condensation), | |
| Drop specifications | Withstands multiple 8 ft. / 2.4 m drops to concrete at room temperature. | |
| Degree of protection | IP65 and IP67 | |
| ESD | 20 kV air discharge: 10 kV contact discharge | |
| Ambient light immunity | 0 to 10,037 foot-candles / 0 to 108,000 Lux (direct sunlight) | |
| Weight | Wireless Scanner: Approx. 402 g (with Battery) Wired Scanner: Approx. 304 g (without Cable) | |
| Dimensions | Wireless Scanner: 185 mm (H) × 143 mm (D) × 77 mm (W) Wired Scanner: 185 mm (H) × 132 mm (D) × 77 mm (W) | |
Cradle
| Power requirements for host-powered | 5.0V ± 10% |
|---|---|
| Power requirements for external power supply | 12.0V ± 5% |
| Typical current draw when not charging | 80mA @ 5V; 30mA @ 12V |
| Typical current draw in safe charging mode | 1200mA @ 5V (BC 1.2), 475mA (non-BC1.2); 700mA @ 12V |
| Typical current draw in safe charging mode | 400mA @ 5V; 200mA @ 12V |
| Interfaces | USB, RS-232 |
| Radio | Bluetooth, Up to 100 meters / 300 ft. in open air range / environment Serial Port & HID Profiles 2.402 to 2.480 GHz Adaptive Frequency Hopping (co-existence with 802.11 wireless networks) 3Mbit / s (2.1Mbit / s) for Classic Bluetooth 1Mbit / s (0.27Mbit / s) for Low Energy |
| Ambient temperature range | Operating: -20 to 50ºC,Storage: -40 to 70ºC |
| Charging temperature | 0 to 40°C nominal, 5 to 35°C ideal |
| Ambient humidity range | 5%RH to 95%RH (non-condensing) |
| ESD | 25 kV air discharge 10 kV contact discharge |
| Weight | Approx. 390 g |
| Dimensions | 82.6 mm (H) x 229.4 mm (D) x 99.8 mm (W) |
| Safety standards | UL / EN / IEC 60950-1 + AM2 |
| EMC | IEC61000-4-(2,3,4,5,6,11) |
| EMI | FCC Part 15 Class B, ICES-003 Class B Japan VCCI Class B |

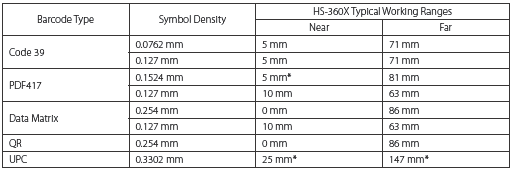

Read Ranges
* Field of view/barcode width limited. Decode ranges measured with DPM Mode Off, photographic paper barcodes and under 30fcd ambient light conditions.
last update: December 3, 2018
OMRON HS-360X Series dimension

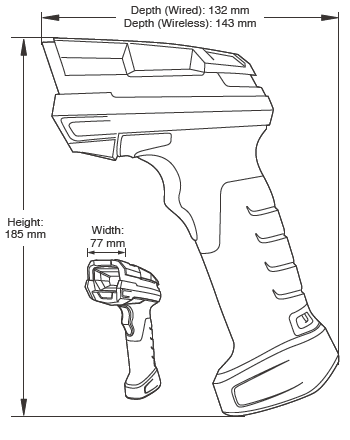

HS-360X Series Handheld DPM Scanner/Dimensionslast update: December 20, 2018
(Unit: mm)
Laser Label Indications
This warning label is attached to the Scanner.
Never remove this label or place objects in front of it.
last update: December 20, 2018
OMRON HS-360X Series lineup
HS-360X Series Handheld DPM Scanner/Lineuplast update: January 17, 2019
| Type | Applicable countries | Model |
|---|---|---|
| Handheld DPM Scanner, Wired, HDS-3608 | Common (except for India / Korea) | HDS-3608-0001 |
| Handheld DPM Scanner, Wireless, HDS-3678 | HDS-3678-0001 | |
| Battery Spare for HS-360X Wireless Type | 98-9000224-01 | |
| Handheld DPM Scanner, Wired, HDS-3608 INDIA / KOREA | India / Korea | HDS-3608-0002* |
| Handheld DPM Scanner, Wireless, HDS-3678 INDIA / KOREA | HDS-3678-0002* | |
| Battery Spare for HS-360X Wireless Type, INDIA / KOREA | 98-9000224-02* | |
| Cradle / Charger, HS-360X Wireless Type | Common | 12-9000937-01 |
| Cable, USB, Shielded, 2m (Power Supply Required) | 12-9000942-01 | |
| Cable, USB, Shielded, 4.6m (Power Supply Required) | 12-9000943-01 | |
| Cable, USB, Shielded, 2m | 12-9000946-01 | |
| Cable, USB, Shielded, 4.6m | 12-9000947-01 | |
| Cable, RS-232, DB9 Socket, 2M, Straight, HS-360X (Power Supply Required) | 12-9000953-01 | |
| AC power Cord, 1.8m, JAPAN, C13 connecter | Japan | 12-9001046-01 |
| AC power Cord, 1.9m, INDIA, C13 connecter | India | 12-9000963-01* |
| AC power Cord, 2.5m, US, C13 connecter | United States | 12-9000959-01 |
| AC power Cord, 2.5m, EU / Korea, C13 connecter | Europe / Korea | 12-9000960-01 |
| AC power Cord, 2.5m, UK, C13 connecter | UK | 12-9000961-01 |
| AC power Cord, 2.5m, CHINA, C13 connecter | China | 12-9000962-01 |
| KIT, Power Supply for Cradle / Charger, HS-360X Wireless Type (A / C Power Cord Required) | Common | 98-9000181-01 |
| KIT, Power Supply for Battery Charger, 4 Slot, HS-360X Wireless Type (A / C Power Cord Required) | 98-9000182-01 | |
| 4 Slot, Battery Charger, HS-360X Wireless Type (Power Supply Required) | 98-9000185-01 | |
| Intelligent Stand | 98-9000186-01 |
* These models are coming soon.
Ask your Omron representative for more information.
Note: Do not use the power supplies or power supply cords indicated in this catalog with any other electric or electronic equipment.
When using the HS-360X Series, please use the power supply and power supply cord indicated in this catalog.
last update: January 17, 2019
