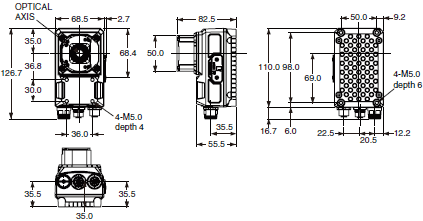

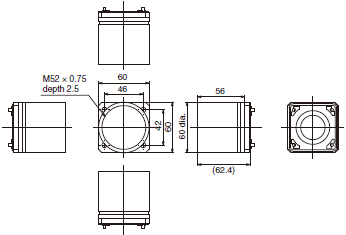

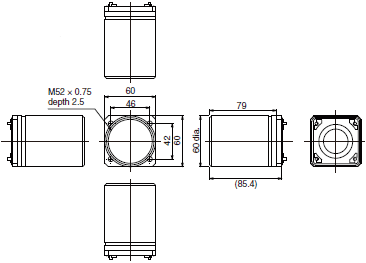

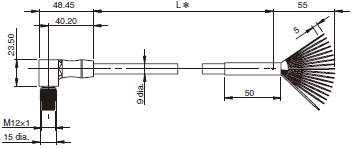

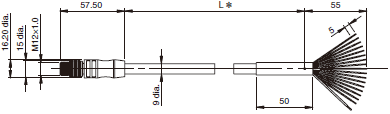

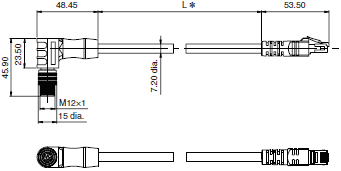

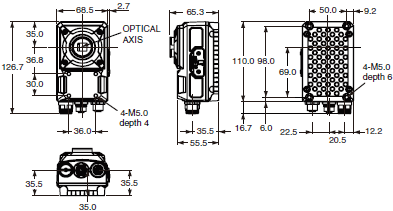

FHV7 Series Smart Camera/Dimensions
FHV7 Series Smart Camera/Lineup
Purchase the OMRON FHV7 Series Smart Camera

OMRON FHV7 Series Dimensions

/Images/l_3740-25-288249-198x198.jpg

last update: December 3, 2018

Nearly-infinite combination to fit any production scenes

The FHV7 Smart Camera provides several options for components, allowing you to freely combine the lens and light with the camera and easily adjust the optical conditions to specific products. The footprint of the camera is not affected by module replacement. Even if a sudden change occurs in the product specification, the system can be ready after minimum rearrangement.
An all-in-one models with lens modules and light modules are also available.

IP67 structure

Maintains IP67 waterproof structure even after module replacement, allowing use in wet conditions.

Captive screws

Captive screws are used in the modules.
The screws do not drop on products.

Easy addition of external lights

By connecting the lighting controller, you can, from FHV7's setting window, easily adjust the light emission intensity and set light emissions to synchronize with the release of the shutter.

Easy filter replacement

The light cover and optical filter are replaceable, so you don't need to prepare a protection cover against dirt.

Single camera for inspecting various products

Multi-color Light
Accommodates color variations

Multi-color light provides a quick solution to the issue of measuring different colors. For example, objects with variously colored packages on a production line are properly measured with the light that changes its illumination color to fit each object. When the product design is changed or a new models is added, you can simply change a parameter instead of replacing or fine-tuning lights. The production line is always ready for a wider variety of product.

When inspecting products of different colors

As a product has more color options, some of the colors may cause low contrast under a single color illumination. The multi-color illumination allows switching colors for different product color options, ensuring stable inspections.

Autofocus Lens
Accommodates size variations

The autofocus lens covers a focal length range from 59 mm to 2,000 mm*1. Even when products in different sizes are produced, the focus range can be changed easily by parameters. *2 This feature eliminates mechanical operation for changeover during product replacement, leading to a simpler system with higher productivity.
*1. Differs depending on the lens type. See the optical chart on Catalog for details.
*2. Set focuses for different product heights in advance and switch between them when you perform a changeover.

When inspecting products of different sizes

When inspecting products such as plastic bottles that come in different sizes, you can perform a changeover only by switching the setting of the autofocus lens. The autofocus lens does not need the mechanism for moving the camera.

Best-in-class resolution*3: 12 megapixels
Location variation

The image sensor with a 12 megapixels enables highprecision inspections for wider areas. This eliminates the need for installing multiple cameras or a mechanism to move a camera to capture different inspection points on different models on the same production line.
*3. Based on Omron investigation in October 2018.

Expanding the range of parts inspection

Accurate and extensive inspection of parts mounting points on different automobile models is enabled without moving cameras.

Raising production quality without sacrificing cycle time

Inspection time reduced to 1/4 *1

The inspection time can be reduced to 1/4 *1 of that required for existing sensors. You can carry out more precise, detailed quality inspection while keeping the same cycle time.

*1. Sample comparison to inspection time using vision sensors installed in customer's machine. Based on Omron
investigation in October 2018
*2. Based on Omron investigation in October 2018.

Clear images facilitate inspection

Precise inspection with high-resolution images is possible while keeping the same cycle time as before. The FHV7 Smart Camera raises production quality with its ability to detect tiny tears or scratches on labels, which could not be previously detected.

More inspection points

The FHV7 Smart Camera provides an optimal solution for a problem of longer cycle times caused by inspection points added to raise production quality. You don't need to divide the field of view into several parts and assign them to multiple cameras or install a high-speed vision system.

Settings can be adjusted with zero downtime

Measured values may change gradually due to workpiece variation or changes in external circumstance. Even in such cases, distributed processing across 2 cores allows you to perform cause analysis and setting adjustments as you make measurements. You can eliminate downtime and visual inspection of uninspected items.

last update: December 3, 2018

Purchase the OMRON Smart Camera Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON FHV7 Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the FHV7 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON FHV7 SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A7D / A7DP Thumbwheel Switch/Features
E3X-SD / NA Simple Fiber Amplifier Unit/Features
E6A2-C Incremental 25-mm-dia. Rotary Encoder/Features
CJ2H-CPU6[]-EIP CJ-series CJ2H (Built-in EtherNet/IP) CPU Units/Features
WS02-NX[]C1 NX-Server/Features

OMRON FHV7 Series specification
FHV7 Series Smart Camera/Specifications
last update: February 7, 2019
Smart Camera

Model FHV7H-
M004-C FHV7H-
C004-C FHV7H-
M016-C FHV7H-
C016-C FHV7H-
M032-C FHV7H-
C032-C
Specifi-
cations Operation
Mode Standard Yes
Double
speed
multi-input Yes
Non-stop
adjustment
mode Yes
Parallel processing Yes
Possible No. of
captured images 256 64 36
Possible No. of
logging images to
Smart Camera 214 52 25
Possible No. of scenes 128 *1
UI operation Remote Operation Tool
Setup Create the processing flow using Flow editing.
Language Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging CMOS Image elements 1/2.9-inch equivalent 1/2.9-inch equivalent 1/1.8-inch equivalent
Color/Monochrome Monochrome Color Monochrome Color Monochrome Color
Effective pixels (H x V) 720 × 540 1440 × 1080 2048 × 1536
Pixel size 6.9 × 6.9 µm 3.45 × 3.45 µm 3.45 × 3.45 µm
Imaging area H × V
(opposing corner) 5.0 × 3.8 (6.3 mm) 5.0 × 3.8 (6.3 mm) 7.1 × 5.3 (8.9 mm)
Shutter system Global Shutter
Shutter function Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.
Partial function 4 to 540 lines
(4-line increments) 4 to 1080 lines
(4-line increments) 4 to 1536 lines
(4-line increments)
Frame rate (image
acquisition time) 430 fps (2.3 ms) 224 fps (4.5 ms) 55 fps (18.0 ms)
Lens mounting C mount
Field of view,
Installation distance Selecting a lens according to the field of view and installation distance
External
Interface Serial RS-232C × 1
Ethernet Protocol: Non-procedure (TCP/UDP)
I/F: 1000BASE-T × 1
EtherNet/IP Yes (Target/Ethernet port)
PROFINET Yes (Slave/Ethernet port), Conformance class A
Parallel I/O NPN/PNP common
Parallel I/F High-speed input: 1, General input: 3, High-speed output: 1, General output: 4
Encoder I/F N/A
Monitor I/F N/A
USB I/F N/A
SD Card I/F microSD card: SDHC × 1
Indicator Lamps Main PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
SD SD ACCESS: Yellow
Supply Voltage 21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption With lighting modules: 4.2 A
Without lighting modules: 0.60 A
Usage
Environ
ment Ambient temperature
range Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
With lens modules: Half amplitude: 0.15 mm (Others are the same as above.)
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Noise immunity Fast transient burst
• DC power
Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
• I/O line
Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
Grounding Class D grounding (100 Ω or less grounding resistance) *2
External
shape Dimensions 110 mm × 68.5 mm × 55.5 mm (H × W × D)
Weight Approx. 670 g
Degree of protection With lighting modules or waterproof hoods: IEC60529 - IP67
(except a connector cap removed)
Other than the above: IEC60529 - IP40
Case material Aluminum die-casting (ADC12)
Accessories • Connector cap for Ethernet cable (mounted on the body): 1
• Connector cap for an external lighting (mounted on the body): 1
• C mount cap (mounted on the body): 1
• C mount cover (mounted on the body): 1
• Instruction sheet: 1
• Membership registration: 1
• Compliance sheet: 1

Model FHV7H-
M050-C FHV7H-
C050-C FHV7H-
M063R-C FHV7H-
C063R-C FHV7H-
M120R-C FHV7H-
C120R-C
Specifi-
cations Operation
Mode Standard Yes
Double
speed
multi-input Yes
Non-stop
adjustment
mode Yes
Parallel processing Yes
Possible No. of
captured images 25 19 10
Possible No. of
logging images to
Smart Camera 15 12 5
Possible No. of scenes 128 *1
UI operation Remote Operation Tool
Setup Create the processing flow using Flow editing.
Language Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging CMOS Image elements 2/3-inch equivalent 1/1.8-inch equivalent 1/1.7-inch equivalent
Color/Monochrome Monochrome Color Monochrome Color Monochrome Color
Effective pixels (H x V) 2448 × 2048 3072 × 2048 4000 × 3000
Pixel size 3.45 × 3.45 µm 2.4 × 2.4 µm 1.85 × 1.85 µm
Imaging area H × V
(opposing corner) 8.5 × 7.1 (11.1 mm) 7.4 × 5.0 (8.9 mm) 7.4 × 5.6 (9.3 mm)
Shutter system Global Shutter Rolling shutter
(Global reset mode compatible)
Shutter function Electronic shutter: Shutter speed can be set from 1 µs to 100 ms. Electronic shutter: Shutter speed can be set from 55 µs to 100 ms. Electronic shutter: Shutter speed can be set from 84 µs to 100 ms.
Partial function 4 to 2048 lines
(4-line increments) 4 to 2048 lines
(4-line increments) 4 to 3000 lines
(4-line increments)
Frame rate (image
acquisition time) 35 fps (28.0 ms) 59 fps (16.7 ms) 19 fps (25.0 ms)
Lens mounting C mount
Field of view,
Installation distance Selecting a lens according to the field of view and installation distance
External
Interface Serial RS-232C × 1
Ethernet Protocol: Non-procedure (TCP/UDP)
I/F: 1000BASE-T × 1
EtherNet/IP Yes (Target/Ethernet port)
PROFINET Yes (Slave/Ethernet port), Conformance class A
Parallel I/O NPN/PNP common
Parallel I/F High-speed input: 1, General input: 3, High-speed output: 1, General output: 4
Encoder I/F N/A
Monitor I/F N/A
USB I/F N/A
SD Card I/F microSD card: SDHC × 1
Indicator Lamps Main PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
SD SD ACCESS: Yellow
Supply Voltage 21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption With lighting modules: 4.2 A
Without lighting modules: 0.60 A
Usage
Environ
ment Ambient temperature
range Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
With lens modules: Half amplitude: 0.15 mm (Others are the same as above.)
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Noise immunity Fast transient burst
• DC power
Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
• I/O line
Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
Grounding Class D grounding (100 Ω or less grounding resistance) *2
External
shape Dimensions 110 mm × 68.5 mm × 55.5 mm (H × W × D)
Weight Approx. 670 g
Degree of protection With lighting modules or waterproof hoods: IEC60529 - IP67
(except a connector cap removed)
Other than the above: IEC60529 - IP40
Case material Aluminum die-casting (ADC12)
Accessories • Connector cap for Ethernet cable (mounted on the body): 1
• Connector cap for an external lighting (mounted on the body): 1
• C mount cap (mounted on the body): 1
• C mount cover (mounted on the body): 1
• Instruction sheet: 1
• Membership registration: 1
• Compliance sheet: 1

*1. The number of scenes can be increased up to 1,024 with the Conversion scene group data tool.
*2. Existing the third class grounding

Lens Modules

Item FHV-LEMS06 FHV-LEMS09 FHV-LEMS12 FHV-LEMS16 FHV-LEMS25
Focal length range *1 59 to 1,000 mm 60 to 1,000 mm 60 to 1,000 mm 110 to 2,000 mm 188 to 2,000 mm
Horizon-
tal field
of view
range
*1 0.4 million pixels 39 × 29 to
845 × 624 mm 24 × 18 to
543 × 407 mm 17 × 13 to
407 × 305 mm 27 × 20 to
614 × 461 mm 30 × 23 to
391 × 293 mm
1.6 million pixels
3.2 million pixels 57 × 42 to
1,234 × 905 mm 34 × 25 to
772 × 579 mm 24 × 18 to
579 × 434 mm 38 × 29 to
874 × 655 mm 43 × 33 to
556 × 417 mm
6.3 million pixels 60 × 39 to
1,293 × 836 mm 35 × 23 to
807 × 538 mm 25 × 17 to
606 × 404 mm 40 × 27 to
913 × 608 mm 45 × 30 to
581 × 387 mm
Focal length 6 mm 9 mm 12 mm 16 mm 25 mm
Usage
environ-
ment Ambient
temperature range Operating: 0 to +40°C,
Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range Operating & Storage: 35 to 85%RH (With no condensation)
Ambient
atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.15 mm *2, Vibration direction:
X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down,
front/behind, left/right)
External
shape Dimension 50 mm × 41 mm × 31 mm (H × W × D)
Weight Approx. 50 g
Case material Polycarbonate
Accessories • Special cover for FHV-LEM-S: 1
• Screws: M3 × 8 mm: 5 (including one spare piece)
• Instruction sheet: 1
• Compliance sheet: 1

*1. Refer to optical chart (Catalog) for details.
*2. When the lens module is mounted to the product, the vibration tolerance is applied for the specifications of the
smart camera.

Lighting Modules

Model FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC
Color White Red Infrared light Multi color
Peak wave length - Typ. 630 nm Typ. 850 nm R: Typ. 630 nm
G: Typ. 525 nm
B: Typ. 465 nm
IR: Typ. 850 nm
Light source LED LED LED LED
Risk group Group 2 Group 1 Group 1 R: Group 1
G: Group 2
B: Group 2
IR: Group 1
Usage
environment Ambient temperature
range Operating: 0 to +40°C,
Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Dimensions 52 mm × 91 mm × 77 mm (H × W × D)
Weight 270 g 270 g 270 g 270 g
Material Aluminum die-casting (ADC12), polycarbonate
Accessories • Waterproof packing (small) FHV-XWP-CAM:1
• Waterproof packing (large) FHV-XWP-LTM: 1
• Light shielding sheet FHV-XLS-LTM: 1
• Lighting cover FHV-XCV: 1
• Hexagonal wrench (length: 60 mm): 1
• Instruction sheet: 1
• Compliance sheet: 1

Optical Filters

Model FHV-XDF FHV-XPL FHV-XPL-IR
Filter type Diffusion filter Polarization filter Polarization filter
Wavelength Visible to infrared Visible Visible to infrared
Adapted lighting module FHV-LTM-W
FHV-LTM-R
FHV-LTM-IR
FHV-LTM-MC FHV-LTM-W
FHV-LTM-R
FHV-LTM-MC (Infrared
light is not used.) FHV-LTM-W
FHV-LTM-R
FHV-LTM-IR
FHV-LTM-MC
Usage
environment Ambient temperature
range Operating: 0 to +40°C,
Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range Operating & Storage: 35 to 85%RH (With no condensation)
Vibration tolerance No corrosive gases
Shock resistance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Vibration tolerance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Material Aluminum (A6061), polycarbonate
Weight Approx. 70 g Approx. 70 g Approx. 70 g

Waterproof Hoods

Model FHV-XHD-S FHV-XHD-L FHV-XHD-LEM
Suitable lens 3Z4S-LE SV-V series
SV-0614V
SV-0813V
SV-1214V
SV-1614V
SV-2514V 3Z4S-LE SV-H series
SV-0614H *1
SV-0814H *2
SV-1214H
SV-1614H
SV-2514H
SV-3514H
SV-5014H FHV-LEM-S series
FHV-LEM-S06
FHV-LEM-S09
FHV-LEM-S12
FHV-LEM-S16
FHV-LEM-S25
Usage
environment Ambient temperature
range Operating: 0 to +40°C,
Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Material Aluminum (A6061), polycarbonate
Weight Approx. 220 g Approx. 220 g Approx. 220 g

*1. This is not available in FHV7H-[]050, FHV7H-[]063R, FHV7H-[]120R.
*2. This is not available in FHV7H-[]050.

I/O cables

Item FHV-VDB 2M FHV-VDB 3M FHV-VDB 5M
Cable length 2 m 3 m 5 m
Cable type Bending resistance cable
Connector type Straight
connector Rightangle
connector Straight
connector Rightangle
connector Straight
connector Rightangle
connector
Size Power line AWG21
Others AWG26
Outer diameter 9.0±0.3 mm dia.
Min. bending radius Fixed use: 54 mm, Sliding use: 72 mm
Usage
environment Ambient temperature
range Operating: -30 to +80°C,
Storage: -30 to +100°C (with no icing or condensation)
Ambient humidity range Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Material Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight Approx. 270 g Approx. 390 g Approx. 620 g

Item FHV-VDB 10M FHV-VDB 20M
Cable length 10 m 20 m
Cable type Bending resistance cable
Connector type Straight
connector Rightangle
connector Straight
connector Rightangle
connector
Size Power line AWG21
Others AWG26
Outer diameter 9.0±0.3 mm dia.
Min. bending radius Fixed use: 54 mm, Sliding use: 72 mm
Usage
environment Ambient temperature range Operating: -30 to +80°C,
Storage: -30 to +100°C (with no icing or condensation)
Ambient humidity range Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Material Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight Approx. 1200 g Approx. 2350 g

Ethernet Cables

Item FHV-VNB 2M FHV-VNB 3M FHV-VNB 5M
Cable length 2 m 3 m 5 m
Cable type Bending resistance cable
Connector type Straight
connector Rightangle
connector Straight
connector Rightangle
connector Straight
connector Rightangle
connector
Outer diameter 7.2+0.3 mm dia.
Min. bending radius Fixed use: 35 mm, Sliding use: 70 mm
Usage
environment Ambient temperature
range Operating: -40 to +80°C,
Storage: -40 to +100°C (with no icing or condensation)
Ambient humidity range Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Material Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Polyurethane
Weight Approx. 210 g Approx. 240 g Approx. 310 g

Item FHV-VNB 10M FHV-VNB 20M
Cable length 10 m 20 m
Cable type Bending resistance cable
Connector type Straight
connector Rightangle
connector Straight
connector Rightangle
connector
Outer diameter 7.2+0.3 mm dia.
Min. bending radius Fixed use: 35 mm, Sliding use: 70 mm
Usage
environment Ambient temperature range Operating: -40 to +80°C,
Storage: -40 to +100°C (with no icing or condensation)
Ambient humidity range Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere No corrosive gases
Vibration tolerance Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration
direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance Impact force: 150 m/s², Test direction: 6 directions, three time each
(up/down, front/behind, left/right)
Material Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Polyurethane
Weight Approx. 380 g Approx. 730 g

last update: February 7, 2019

OMRON FHV7 Series catalog
FHV7 Series Smart Camera/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

FHV7 Series Catalog Q264-E1-02
[8910KB] Feb 07, 201920190207 FHV7 Series Catalog

OMRON FHV7 Series dimension
FHV7 Series Smart Camera/Dimensions
last update: December 3, 2018

(Unit: mm)

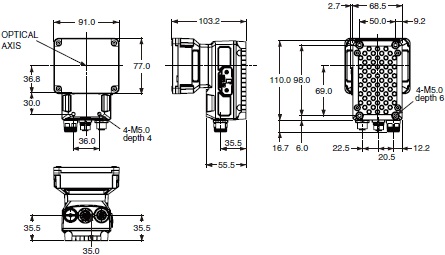

Smart Cameras
C Mount Models

FHV7H-[][][][][]-C

All-in-one Models with Lens Module

FHV7H-[][][][][]-S[][]

All-in-one Models with Lens and Lighting Modules

FHV7H-[][][][][]-S[][]-[][]

Lens Modules
Autofocus Lens

FHV-LEM-S[][]

Lighting Modules
FHV-LTM-[][]

Cables
I/O cable (Straight)

FHV-VDB []M

I/O cable (Right angle)

FHV-VDLB []M

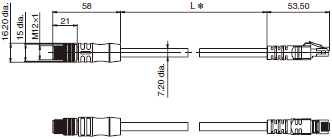

Ethernet cable (Straight)

FHV-VNB []M

Ethernet cable (Right angle)

FHV-VNLB []M

* Cable is available in 2m/3m/5m/10m/20m.

Optical Filters/Light Cover

Polarized Light Filter, Diffusion Filter
FHV-XDF/-XPL/-XPL-IR

FHV-XCV

Waterproof Hoods
for C-mount Lens (Short)

FHV-XHD-S

for C-mount Lens (Long)

FHV-XHD-L

for Lens Modules

FHV-XHD-LEM

last update: December 3, 2018

OMRON FHV7 Series lineup
FHV7 Series Smart Camera/Lineup
last update: February 7, 2019

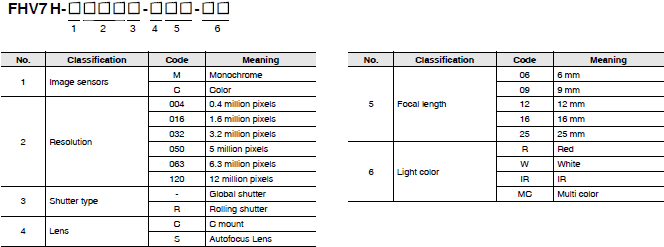

Model Number Structure
FHV7 Series Model Number Legend

Use this legend when determining the product specifications from the model number. When ordering, use a model number from the table in Ordering Information.

Configuration

For the Smart Camera FHV7 series, there are five configurations below by module combinations.

Smart camera Lens Internal
lighting Protective
structure Integrated
model Appearance Configura-
tion
0.4 million pixels
1.6 million pixels
3.2 million pixels
5 million pixels
6.3 million pixels
12 million pixels FHV7H-[]004-[]
FHV7H-[]016-[]
FHV7H-[]032-[]
FHV7H-[]050-[]
FHV7H-[]063R-[]
FHV7H-[]120R-[] C mount
lens
3Z4SLE
SV-[][][][]V
3Z4SLE
SV-[][][][]H N/A IP40 FHV7H-
[][][][][]-C C mount
lens/IP40
IP67

Waterproof
Hoods
required
FHV-XHD-S
FHV-XHD-L N/A C mount
lens/IP67
0.4 million pixels
1.6 million pixels
3.2 million pixels
6.3 million pixels FHV7H-[]004-[]
FHV7H-[]016-[]
FHV7H-[]032-[]
FHV7H-[]063R-[] FHV lens
module
FHV-LEM-
S[][] N/A IP40 FHV7H-
[][][][][]-
S[][] Lens
module/IP40
IP67

Waterproof
Hoods
required
FHV-XHD-LEM N/A Lens
module/IP67
FHV-
LTM-[][] IP67 FHV7H-
[][][][][]-
S[][]-[][] Lens module
/Internal
lighing - IP67

Ordering Information
Smart Cameras
C Mount Models

Item Resolution Model
Color Monochrome
0.4 million pixels FHV7H-C004-C FHV7H-M004-C
1.6 million pixels FHV7H-C016-C FHV7H-M016-C
3.2 million pixels FHV7H-C032-C FHV7H-M032-C
5 million pixels FHV7H-C050-C FHV7H-M050-C
6.3 million pixels FHV7H-C063R-C FHV7H-M063R-C
12 million pixels FHV7H-C120R-C FHV7H-M120R-C

Lens Modules

Item Focal length * Model
Autofocus Lens 6 mm FHV-LEM-S06
9 mm FHV-LEM-S09
12 mm FHV-LEM-S12
16 mm FHV-LEM-S16
25 mm FHV-LEM-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).
Refer to the Vision Accessory Catalog (Cat No. Q198) for details on C-mount lenses.

Lighting Modules

Item Light color Model
Multi color FHV-LTM-MC
Red FHV-LTM-R
White FHV-LTM-W
IR FHV-LTM-IR

All-in-one Models with Lens Module

Item Resolution Lens Focal length
* Model
Color Monochrome
0.4 million pixels Autofocus Lens 6 mm FHV7H-C004-S06 FHV7H-M004-S06
9 mm FHV7H-C004-S09 FHV7H-M004-S09
12 mm FHV7H-C004-S12 FHV7H-M004-S12
16 mm FHV7H-C004-S16 FHV7H-M004-S16
25 mm FHV7H-C004-S25 FHV7H-M004-S25
1.6 million pixels Autofocus Lens 6 mm FHV7H-C016-S06 FHV7H-M016-S06
9 mm FHV7H-C016-S09 FHV7H-M016-S09
12 mm FHV7H-C016-S12 FHV7H-M016-S12
16 mm FHV7H-C016-S16 FHV7H-M016-S16
25 mm FHV7H-C016-S25 FHV7H-M016-S25
3.2 million pixels Autofocus Lens 6 mm FHV7H-C032-S06 FHV7H-M032-S06
9 mm FHV7H-C032-S09 FHV7H-M032-S09
12 mm FHV7H-C032-S12 FHV7H-M032-S12
16 mm FHV7H-C032-S16 FHV7H-M032-S16
25 mm FHV7H-C032-S25 FHV7H-M032-S25
6.3 million pixels Autofocus Lens 6 mm FHV7H-C063R-S06 FHV7H-M063R-S06
9 mm FHV7H-C063R-S09 FHV7H-M063R-S09
12 mm FHV7H-C063R-S12 FHV7H-M063R-S12
16 mm FHV7H-C063R-S16 FHV7H-M063R-S16
25 mm FHV7H-C063R-S25 FHV7H-M063R-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

All-in-one Models with Lens and Lighting Modules

Item Reso-
lution Lens Focal
length * Light
color Model
Color Monochrome
0.4 million
pixels Autofocus
Lens 6 mm Multi color FHV7H-C004-S06-MC FHV7H-M004-S06-MC
Red --- FHV7H-M004-S06-R
White FHV7H-C004-S06-W FHV7H-M004-S06-W
IR --- FHV7H-M004-S06-IR
9 mm Multi color FHV7H-C004-S09-MC FHV7H-M004-S09-MC
Red --- FHV7H-M004-S09-R
White FHV7H-C004-S09-W FHV7H-M004-S09-W
IR --- FHV7H-M004-S09-IR
12 mm Multi color FHV7H-C004-S12-MC FHV7H-M004-S12-MC
Red --- FHV7H-M004-S12-R
White FHV7H-C004-S12-W FHV7H-M004-S12-W
IR --- FHV7H-M004-S12-IR
16 mm Multi color FHV7H-C004-S16-MC FHV7H-M004-S16-MC
Red --- FHV7H-M004-S16-R
White FHV7H-C004-S16-W FHV7H-M004-S16-W
IR --- FHV7H-M004-S16-IR
25 mm Multi color FHV7H-C004-S25-MC FHV7H-M004-S25-MC
Red --- FHV7H-M004-S25-R
White FHV7H-C004-S25-W FHV7H-M004-S25-W
IR --- FHV7H-M004-S25-IR
1.6 million
pixels Autofocus
Lens 6 mm Multi color FHV7H-C016-S06-MC FHV7H-M016-S06-MC
Red --- FHV7H-M016-S06-R
White FHV7H-C016-S06-W FHV7H-M016-S06-W
IR --- FHV7H-M016-S06-IR
9 mm Multi color FHV7H-C016-S09-MC FHV7H-M016-S09-MC
Red --- FHV7H-M016-S09-R
White FHV7H-C016-S09-W FHV7H-M016-S09-W
IR --- FHV7H-M016-S09-IR
12 mm Multi color FHV7H-C016-S12-MC FHV7H-M016-S12-MC
Red --- FHV7H-M016-S12-R
White FHV7H-C016-S12-W FHV7H-M016-S12-W
IR --- FHV7H-M016-S12-IR
16 mm Multi color FHV7H-C016-S16-MC FHV7H-M016-S16-MC
Red --- FHV7H-M016-S16-R
White FHV7H-C016-S16-W FHV7H-M016-S16-W
IR --- FHV7H-M016-S16-IR
25 mm Multi color FHV7H-C016-S25-MC FHV7H-M016-S25-MC
Red --- FHV7H-M016-S25-R
White FHV7H-C016-S25-W FHV7H-M016-S25-W
IR --- FHV7H-M016-S25-IR
3.2 million
pixels Autofocus
Lens 6 mm Multi color FHV7H-C032-S06-MC FHV7H-M032-S06-MC
Red --- FHV7H-M032-S06-R
White FHV7H-C032-S06-W FHV7H-M032-S06-W
IR --- FHV7H-M032-S06-IR
9 mm Multi color FHV7H-C032-S09-MC FHV7H-M032-S09-MC
Red --- FHV7H-M032-S09-R
White FHV7H-C032-S09-W FHV7H-M032-S09-W
IR --- FHV7H-M032-S09-IR
12 mm Multi color FHV7H-C032-S12-MC FHV7H-M032-S12-MC
Red --- FHV7H-M032-S12-R
White FHV7H-C032-S12-W FHV7H-M032-S12-W
IR --- FHV7H-M032-S12-IR
16 mm Multi color FHV7H-C032-S16-MC FHV7H-M032-S16-MC
Red --- FHV7H-M032-S16-R
White FHV7H-C032-S16-W FHV7H-M032-S16-W
IR --- FHV7H-M032-S16-IR
25 mm Multi color FHV7H-C032-S25-MC FHV7H-M032-S25-MC
Red --- FHV7H-M032-S25-R
White FHV7H-C032-S25-W FHV7H-M032-S25-W
IR --- FHV7H-M032-S25-IR
6.3 million
pixels Autofocus
Lens 6 mm Multi color FHV7H-C063R-S06-MC FHV7H-M063R-S06-MC
Red --- FHV7H-M063R-S06-R
White FHV7H-C063R-S06-W FHV7H-M063R-S06-W
IR --- FHV7H-M063R-S06-IR
9 mm Multi color FHV7H-C063R-S09-MC FHV7H-M063R-S09-MC
Red --- FHV7H-M063R-S09-R
White FHV7H-C063R-S09-W FHV7H-M063R-S09-W
IR --- FHV7H-M063R-S09-IR
12 mm Multi color FHV7H-C063R-S12-MC FHV7H-M063R-S12-MC
Red --- FHV7H-M063R-S12-R
White FHV7H-C063R-S12-W FHV7H-M063R-S12-W
IR --- FHV7H-M063R-S12-IR
16 mm Multi color FHV7H-C063R-S16-MC FHV7H-M063R-S16-MC
Red --- FHV7H-M063R-S16-R
White FHV7H-C063R-S16-W FHV7H-M063R-S16-W
IR --- FHV7H-M063R-S16-IR
25 mm Multi color FHV7H-C063R-S25-MC FHV7H-M063R-S25-MC
Red --- FHV7H-M063R-S25-R
White FHV7H-C063R-S25-W FHV7H-M063R-S25-W
IR --- FHV7H-M063R-S25-IR

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

Optical Filters

Item Model
Polarized Light Filter For visible light FHV-XPL
Polarized Light Filter For both infrared light and visible light FHV-XPL-IR
Diffusion Filter FHV-XDF

Waterproof Hoods

Required to ensure IP67 protection without using a lighting module.

Item Model
Waterproof Hood for Lens Modules FHV-XHD-LEM
Waterproof Hood for C-mount Lens (Short) *1 FHV-XHD-S
Waterproof Hood for C-mount Lens (Long) *2 FHV-XHD-L

*1. Can be used with the following lenses.
3Z4S-LE SV-0614V, 3Z4S-LE SV-0813V, 3Z4S-LE SV-1214V, 3Z4S-LE SV-1614V, 3Z4S-LE SV-2514V
*2. Can be used with the following lenses.
3Z4S-LE SV-0614H, 3Z4S-LE SV-0814H, 3Z4S-LE SV-1214H, 3Z4S-LE SV-1614H,
3Z4S-LE SV-2514H, 3Z4S-LE SV-3514H, 3Z4S-LE SV-5014H

Cables

Item Cable length Model
I/O Cable (Bend Resistant) 2 m FHV-VDB 2M
3 m FHV-VDB 3M
5 m FHV-VDB 5M
10 m FHV-VDB 10M
20 m FHV-VDB 20M
I/O Cable (Bend Resistant, Right-angle) 2 m FHV-VDLB 2M
3 m FHV-VDLB 3M
5 m FHV-VDLB 5M
10 m FHV-VDLB 10M
20 m FHV-VDLB 20M
Ethernet Cable (Bend Resistant) 2 m FHV-VNB 2M
3 m FHV-VNB 3M
5 m FHV-VNB 5M
10 m FHV-VNB 10M
20 m FHV-VNB 20M
Ethernet Cable (Bend Resistant, Right-angle) 2 m FHV-VNLB 2M
3 m FHV-VNLB 3M
5 m FHV-VNLB 5M
10 m FHV-VNLB 10M
20 m FHV-VNLB 20M

Accessories

Item Model
Base Mount for Smart Cameras and Lighting Controllers FHV-XMT-7
Base Mount for Lighting Controllers FHV-XMT-7-TCC
Light Cover (for replacement) *1 FHV-XCV
Waterproof Cap (for replacement) for Ethernet Connecter FHV-XWC-ECN
for Light Connecter FHV-XWC-LCN
Waterproof Packing *2
(for replacement, 5 pcs) for Camera FHV-XWP-CAM
for Lighting Module FHV-XWP-LTM
for Waterproof Hood FHV-XWP-HD-SL
Light-shielding for Lighting Module (for replacement, 3 pcs) *2 FHV-XLS-LTM
Facing cover for Lens Modules
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece)) FHV-XFC-LEM-S
Facing cover for C-mount Lens
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece)) FHV-XFC-C
--- Screw for microSD card cover (for replacement, 10 pcs) FHV-XSCR-MSD

*1. Adapted lighting module
FHV-LTM-W, FHV-LTM-R, FHV-LTM-IR, FHV-LTM-MC
*2. Always replace when a module is removed.

Accessories

Item Descriptions Model
--- External Lights External lighting controller LED FLV Series
High-brightness LED FL-BR/DR Series
Industrial Switching Hubs
for EtherNet/IP and
Ethernet 3 port Failure detection: None Current consumption:
0.08 A W4S1-03B
5 port Failure detection: None Current consumption:
0.12 A W4S1-05B
5 port Failure detection: Supported W4S1-05C

Lenses

Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.

Resolution Camera Model Size of image
element Recommended lens
Standard
Lens Telecentric
Lens Vibrations and Shocks
Resistant Lens
0.4 million-pixel FHV7H-[]004 1/2.9” equivalent SV-V Series VS-TCH Series VS-MCA Series
Non-telecentric Macro
VS-MC Series
1.6 million-pixel FHV7H-[]016 1/2.9” equivalent
3.2 million-pixel FHV7H-[]032 1/1.8” equivalent SV-H Series
5 million-pixel FHV7H-[]060 2/3” equivalent
6.3 million-pixel FHV7H-[]063R 1/1.8” equivalent
12 million-pixel FHV7H-[]120R 1/1.7” equivalent

last update: February 7, 2019

NO. FHV7 Series

TYPE:Vision Sensors / Machine Vision Systems Smart Camera Copyright Statement

DATE:2021-06-17

Associated products:
FJ Series (Camera and Software Vision Package) PC Vision System/Features FQ2 Smart Camera/Features

Model	FHV7H- M004-C	FHV7H- C004-C	FHV7H- M016-C	FHV7H- C016-C	FHV7H- M032-C	FHV7H- C032-C
Specifi- cations	Operation Mode	Standard	Yes
Double speed multi-input	Yes
Non-stop adjustment mode	Yes
Parallel processing	Yes
Possible No. of captured images	256	64	36
Possible No. of logging images to Smart Camera	214	52	25
Possible No. of scenes	128 *1
UI operation	Remote Operation Tool
Setup	Create the processing flow using Flow editing.
Language	Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging	CMOS Image elements	1/2.9-inch equivalent	1/2.9-inch equivalent	1/1.8-inch equivalent
Color/Monochrome	Monochrome	Color	Monochrome	Color	Monochrome	Color
Effective pixels (H x V)	720 × 540	1440 × 1080	2048 × 1536
Pixel size	6.9 × 6.9 µm	3.45 × 3.45 µm	3.45 × 3.45 µm
Imaging area H × V (opposing corner)	5.0 × 3.8 (6.3 mm)	5.0 × 3.8 (6.3 mm)	7.1 × 5.3 (8.9 mm)
Shutter system	Global Shutter
Shutter function	Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.
Partial function	4 to 540 lines (4-line increments)	4 to 1080 lines (4-line increments)	4 to 1536 lines (4-line increments)
Frame rate (image acquisition time)	430 fps (2.3 ms)	224 fps (4.5 ms)	55 fps (18.0 ms)
Lens mounting	C mount
Field of view, Installation distance	Selecting a lens according to the field of view and installation distance
External Interface	Serial	RS-232C × 1
Ethernet	Protocol: Non-procedure (TCP/UDP) I/F: 1000BASE-T × 1
EtherNet/IP	Yes (Target/Ethernet port)
PROFINET	Yes (Slave/Ethernet port), Conformance class A
Parallel I/O	NPN/PNP common
Parallel I/F	High-speed input: 1, General input: 3, High-speed output: 1, General output: 4
Encoder I/F	N/A
Monitor I/F	N/A
USB I/F	N/A
SD Card I/F	microSD card: SDHC × 1
Indicator Lamps	Main	PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
SD	SD ACCESS: Yellow
Supply Voltage	21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption	With lighting modules: 4.2 A Without lighting modules: 0.60 A
Usage Environ ment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 With lens modules: Half amplitude: 0.15 mm (Others are the same as above.)
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Noise immunity	Fast transient burst • DC power Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min. • I/O line Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
Grounding	Class D grounding (100 Ω or less grounding resistance) *2
External shape	Dimensions	110 mm × 68.5 mm × 55.5 mm (H × W × D)
Weight	Approx. 670 g
Degree of protection	With lighting modules or waterproof hoods: IEC60529 - IP67 (except a connector cap removed) Other than the above: IEC60529 - IP40
Case material	Aluminum die-casting (ADC12)
Accessories	• Connector cap for Ethernet cable (mounted on the body): 1 • Connector cap for an external lighting (mounted on the body): 1 • C mount cap (mounted on the body): 1 • C mount cover (mounted on the body): 1 • Instruction sheet: 1 • Membership registration: 1 • Compliance sheet: 1

Model	FHV7H- M050-C	FHV7H- C050-C	FHV7H- M063R-C	FHV7H- C063R-C	FHV7H- M120R-C	FHV7H- C120R-C
Specifi- cations	Operation Mode	Standard	Yes
Double speed multi-input	Yes
Non-stop adjustment mode	Yes
Parallel processing	Yes
Possible No. of captured images	25	19	10
Possible No. of logging images to Smart Camera	15	12	5
Possible No. of scenes	128 *1
UI operation	Remote Operation Tool
Setup	Create the processing flow using Flow editing.
Language	Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging	CMOS Image elements	2/3-inch equivalent	1/1.8-inch equivalent	1/1.7-inch equivalent
Color/Monochrome	Monochrome	Color	Monochrome	Color	Monochrome	Color
Effective pixels (H x V)	2448 × 2048	3072 × 2048	4000 × 3000
Pixel size	3.45 × 3.45 µm	2.4 × 2.4 µm	1.85 × 1.85 µm
Imaging area H × V (opposing corner)	8.5 × 7.1 (11.1 mm)	7.4 × 5.0 (8.9 mm)	7.4 × 5.6 (9.3 mm)
Shutter system	Global Shutter	Rolling shutter (Global reset mode compatible)
Shutter function	Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.	Electronic shutter: Shutter speed can be set from 55 µs to 100 ms.	Electronic shutter: Shutter speed can be set from 84 µs to 100 ms.
Partial function	4 to 2048 lines (4-line increments)	4 to 2048 lines (4-line increments)	4 to 3000 lines (4-line increments)
Frame rate (image acquisition time)	35 fps (28.0 ms)	59 fps (16.7 ms)	19 fps (25.0 ms)
Lens mounting	C mount
Field of view, Installation distance	Selecting a lens according to the field of view and installation distance
External Interface	Serial	RS-232C × 1
Ethernet	Protocol: Non-procedure (TCP/UDP) I/F: 1000BASE-T × 1
EtherNet/IP	Yes (Target/Ethernet port)
PROFINET	Yes (Slave/Ethernet port), Conformance class A
Parallel I/O	NPN/PNP common
Parallel I/F	High-speed input: 1, General input: 3, High-speed output: 1, General output: 4
Encoder I/F	N/A
Monitor I/F	N/A
USB I/F	N/A
SD Card I/F	microSD card: SDHC × 1
Indicator Lamps	Main	PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
SD	SD ACCESS: Yellow
Supply Voltage	21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption	With lighting modules: 4.2 A Without lighting modules: 0.60 A
Usage Environ ment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 With lens modules: Half amplitude: 0.15 mm (Others are the same as above.)
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Noise immunity	Fast transient burst • DC power Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min. • I/O line Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
Grounding	Class D grounding (100 Ω or less grounding resistance) *2
External shape	Dimensions	110 mm × 68.5 mm × 55.5 mm (H × W × D)
Weight	Approx. 670 g
Degree of protection	With lighting modules or waterproof hoods: IEC60529 - IP67 (except a connector cap removed) Other than the above: IEC60529 - IP40
Case material	Aluminum die-casting (ADC12)
Accessories	• Connector cap for Ethernet cable (mounted on the body): 1 • Connector cap for an external lighting (mounted on the body): 1 • C mount cap (mounted on the body): 1 • C mount cover (mounted on the body): 1 • Instruction sheet: 1 • Membership registration: 1 • Compliance sheet: 1

Item	FHV-LEMS06	FHV-LEMS09	FHV-LEMS12	FHV-LEMS16	FHV-LEMS25
*Focal length range 1**	59 to 1,000 mm	60 to 1,000 mm	60 to 1,000 mm	110 to 2,000 mm	188 to 2,000 mm
Horizon- tal field of view range *1	0.4 million pixels	39 × 29 to 845 × 624 mm	24 × 18 to 543 × 407 mm	17 × 13 to 407 × 305 mm	27 × 20 to 614 × 461 mm	30 × 23 to 391 × 293 mm
1.6 million pixels
3.2 million pixels	57 × 42 to 1,234 × 905 mm	34 × 25 to 772 × 579 mm	24 × 18 to 579 × 434 mm	38 × 29 to 874 × 655 mm	43 × 33 to 556 × 417 mm
6.3 million pixels	60 × 39 to 1,293 × 836 mm	35 × 23 to 807 × 538 mm	25 × 17 to 606 × 404 mm	40 × 27 to 913 × 608 mm	45 × 30 to 581 × 387 mm
Focal length	6 mm	9 mm	12 mm	16 mm	25 mm
Usage environ- ment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.15 mm *2, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
External shape	Dimension	50 mm × 41 mm × 31 mm (H × W × D)
Weight	Approx. 50 g
Case material	Polycarbonate
Accessories	• Special cover for FHV-LEM-S: 1 • Screws: M3 × 8 mm: 5 (including one spare piece) • Instruction sheet: 1 • Compliance sheet: 1

Model	FHV-LTM-W	FHV-LTM-R	FHV-LTM-IR	FHV-LTM-MC
Color	White	Red	Infrared light	Multi color
Peak wave length	-	Typ. 630 nm	Typ. 850 nm	R: Typ. 630 nm G: Typ. 525 nm B: Typ. 465 nm IR: Typ. 850 nm
Light source	LED	LED	LED	LED
Risk group	Group 2	Group 1	Group 1	R: Group 1 G: Group 2 B: Group 2 IR: Group 1
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Dimensions	52 mm × 91 mm × 77 mm (H × W × D)
Weight	270 g	270 g	270 g	270 g
Material	Aluminum die-casting (ADC12), polycarbonate
Accessories	• Waterproof packing (small) FHV-XWP-CAM:1 • Waterproof packing (large) FHV-XWP-LTM: 1 • Light shielding sheet FHV-XLS-LTM: 1 • Lighting cover FHV-XCV: 1 • Hexagonal wrench (length: 60 mm): 1 • Instruction sheet: 1 • Compliance sheet: 1

Model	FHV-XDF	FHV-XPL	FHV-XPL-IR
Filter type	Diffusion filter	Polarization filter	Polarization filter
Wavelength	Visible to infrared	Visible	Visible to infrared
Adapted lighting module	FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC	FHV-LTM-W FHV-LTM-R FHV-LTM-MC (Infrared light is not used.)	FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
Vibration tolerance	No corrosive gases
Shock resistance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Vibration tolerance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material	Aluminum (A6061), polycarbonate
Weight	Approx. 70 g	Approx. 70 g	Approx. 70 g

Model	FHV-XHD-S	FHV-XHD-L	FHV-XHD-LEM
Suitable lens	3Z4S-LE SV-V series SV-0614V SV-0813V SV-1214V SV-1614V SV-2514V	3Z4S-LE SV-H series SV-0614H 1 SV-0814H 2 SV-1214H SV-1614H SV-2514H SV-3514H SV-5014H	FHV-LEM-S series FHV-LEM-S06 FHV-LEM-S09 FHV-LEM-S12 FHV-LEM-S16 FHV-LEM-S25
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material	Aluminum (A6061), polycarbonate
Weight	Approx. 220 g	Approx. 220 g	Approx. 220 g

Item	FHV-VDB 2M	FHV-VDB 3M	FHV-VDB 5M
Cable length	2 m	3 m	5 m
Cable type	Bending resistance cable
Connector type	Straight connector	Rightangle connector	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Size	Power line	AWG21
Others	AWG26
Outer diameter	9.0±0.3 mm dia.
Min. bending radius	Fixed use: 54 mm, Sliding use: 72 mm
Usage environment	Ambient temperature range	Operating: -30 to +80°C, Storage: -30 to +100°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material	Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight	Approx. 270 g	Approx. 390 g	Approx. 620 g

Item	FHV-VDB 10M	FHV-VDB 20M
Cable length	10 m	20 m
Cable type	Bending resistance cable
Connector type	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Size	Power line	AWG21
Others	AWG26
Outer diameter	9.0±0.3 mm dia.
Min. bending radius	Fixed use: 54 mm, Sliding use: 72 mm
Usage environment	Ambient temperature range	Operating: -30 to +80°C, Storage: -30 to +100°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material	Mold part: Nylon, Thermoplastic polyurethane, Sheath part: PVC
Weight	Approx. 1200 g	Approx. 2350 g

Item	FHV-VNB 2M	FHV-VNB 3M	FHV-VNB 5M
Cable length	2 m	3 m	5 m
Cable type	Bending resistance cable
Connector type	Straight connector	Rightangle connector	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Outer diameter	7.2+0.3 mm dia.
Min. bending radius	Fixed use: 35 mm, Sliding use: 70 mm
Usage environment	Ambient temperature range	Operating: -40 to +80°C, Storage: -40 to +100°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material	Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Polyurethane
Weight	Approx. 210 g	Approx. 240 g	Approx. 310 g

Item	FHV-VNB 10M	FHV-VNB 20M
Cable length	10 m	20 m
Cable type	Bending resistance cable
Connector type	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Outer diameter	7.2+0.3 mm dia.
Min. bending radius	Fixed use: 35 mm, Sliding use: 70 mm
Usage environment	Ambient temperature range	Operating: -40 to +80°C, Storage: -40 to +100°C (with no icing or condensation)
Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
Ambient atmosphere	No corrosive gases
Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10
Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material	Mold part: Nylon, Thermoplastic polyurethane, Sheath part: Polyurethane
Weight	Approx. 380 g	Approx. 730 g

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
FHV7 Series Catalog	Q264-E1-02 [8910KB]	Feb 07, 201920190207	FHV7 Series Catalog

Smart camera	Lens	Internal lighting	Protective structure	Integrated model	Appearance
0.4 million pixels 1.6 million pixels 3.2 million pixels 5 million pixels 6.3 million pixels 12 million pixels	FHV7H-[]004-[] FHV7H-[]016-[] FHV7H-[]032-[] FHV7H-[]050-[] FHV7H-[]063R-[] FHV7H-[]120R-[]	C mount lens 3Z4SLE SV-[][][][]V 3Z4SLE SV-[][][][]H	N/A	IP40	FHV7H- [][][][][]-C	C mount lens/IP40
IP67 Waterproof Hoods required FHV-XHD-S FHV-XHD-L	N/A		C mount lens/IP67
0.4 million pixels 1.6 million pixels 3.2 million pixels 6.3 million pixels	FHV7H-[]004-[] FHV7H-[]016-[] FHV7H-[]032-[] FHV7H-[]063R-[]	FHV lens module FHV-LEM- S[][]	N/A	IP40	FHV7H- [][][][][]- S[][]	Lens module/IP40
IP67 Waterproof Hoods required FHV-XHD-LEM	N/A		Lens module/IP67
FHV- LTM-[][]	IP67	FHV7H- [][][][][]- S[][]-[][]		Lens module /Internal lighing - IP67

Item	Resolution	Model
Color	Monochrome
	0.4 million pixels	FHV7H-C004-C	FHV7H-M004-C
1.6 million pixels	FHV7H-C016-C	FHV7H-M016-C
3.2 million pixels	FHV7H-C032-C	FHV7H-M032-C
5 million pixels	FHV7H-C050-C	FHV7H-M050-C
6.3 million pixels	FHV7H-C063R-C	FHV7H-M063R-C
12 million pixels	FHV7H-C120R-C	FHV7H-M120R-C

Item	Focal length *	Model
	Autofocus Lens	6 mm	FHV-LEM-S06
9 mm	FHV-LEM-S09
12 mm	FHV-LEM-S12
16 mm	FHV-LEM-S16
25 mm	FHV-LEM-S25

Item	Light color	Model
	Multi color	FHV-LTM-MC
	Red	FHV-LTM-R
	White	FHV-LTM-W
	IR	FHV-LTM-IR

Item	Resolution	Lens	Focal length *	Model
Color	Monochrome
	0.4 million pixels	Autofocus Lens	6 mm	FHV7H-C004-S06	FHV7H-M004-S06
9 mm	FHV7H-C004-S09	FHV7H-M004-S09
12 mm	FHV7H-C004-S12	FHV7H-M004-S12
16 mm	FHV7H-C004-S16	FHV7H-M004-S16
25 mm	FHV7H-C004-S25	FHV7H-M004-S25
1.6 million pixels	Autofocus Lens	6 mm	FHV7H-C016-S06	FHV7H-M016-S06
9 mm	FHV7H-C016-S09	FHV7H-M016-S09
12 mm	FHV7H-C016-S12	FHV7H-M016-S12
16 mm	FHV7H-C016-S16	FHV7H-M016-S16
25 mm	FHV7H-C016-S25	FHV7H-M016-S25
3.2 million pixels	Autofocus Lens	6 mm	FHV7H-C032-S06	FHV7H-M032-S06
9 mm	FHV7H-C032-S09	FHV7H-M032-S09
12 mm	FHV7H-C032-S12	FHV7H-M032-S12
16 mm	FHV7H-C032-S16	FHV7H-M032-S16
25 mm	FHV7H-C032-S25	FHV7H-M032-S25
6.3 million pixels	Autofocus Lens	6 mm	FHV7H-C063R-S06	FHV7H-M063R-S06
9 mm	FHV7H-C063R-S09	FHV7H-M063R-S09
12 mm	FHV7H-C063R-S12	FHV7H-M063R-S12
16 mm	FHV7H-C063R-S16	FHV7H-M063R-S16
25 mm	FHV7H-C063R-S25	FHV7H-M063R-S25

Item	Reso- lution	Lens	Focal length *	Light color	Model
Color	Monochrome
	0.4 million pixels	Autofocus Lens	6 mm	Multi color	FHV7H-C004-S06-MC	FHV7H-M004-S06-MC
Red	---	FHV7H-M004-S06-R
White	FHV7H-C004-S06-W	FHV7H-M004-S06-W
IR	---	FHV7H-M004-S06-IR
9 mm	Multi color	FHV7H-C004-S09-MC	FHV7H-M004-S09-MC
Red	---	FHV7H-M004-S09-R
White	FHV7H-C004-S09-W	FHV7H-M004-S09-W
IR	---	FHV7H-M004-S09-IR
12 mm	Multi color	FHV7H-C004-S12-MC	FHV7H-M004-S12-MC
Red	---	FHV7H-M004-S12-R
White	FHV7H-C004-S12-W	FHV7H-M004-S12-W
IR	---	FHV7H-M004-S12-IR
16 mm	Multi color	FHV7H-C004-S16-MC	FHV7H-M004-S16-MC
Red	---	FHV7H-M004-S16-R
White	FHV7H-C004-S16-W	FHV7H-M004-S16-W
IR	---	FHV7H-M004-S16-IR
25 mm	Multi color	FHV7H-C004-S25-MC	FHV7H-M004-S25-MC
Red	---	FHV7H-M004-S25-R
White	FHV7H-C004-S25-W	FHV7H-M004-S25-W
IR	---	FHV7H-M004-S25-IR
1.6 million pixels	Autofocus Lens	6 mm	Multi color	FHV7H-C016-S06-MC	FHV7H-M016-S06-MC
Red	---	FHV7H-M016-S06-R
White	FHV7H-C016-S06-W	FHV7H-M016-S06-W
IR	---	FHV7H-M016-S06-IR
9 mm	Multi color	FHV7H-C016-S09-MC	FHV7H-M016-S09-MC
Red	---	FHV7H-M016-S09-R
White	FHV7H-C016-S09-W	FHV7H-M016-S09-W
IR	---	FHV7H-M016-S09-IR
12 mm	Multi color	FHV7H-C016-S12-MC	FHV7H-M016-S12-MC
Red	---	FHV7H-M016-S12-R
White	FHV7H-C016-S12-W	FHV7H-M016-S12-W
IR	---	FHV7H-M016-S12-IR
16 mm	Multi color	FHV7H-C016-S16-MC	FHV7H-M016-S16-MC
Red	---	FHV7H-M016-S16-R
White	FHV7H-C016-S16-W	FHV7H-M016-S16-W
IR	---	FHV7H-M016-S16-IR
25 mm	Multi color	FHV7H-C016-S25-MC	FHV7H-M016-S25-MC
Red	---	FHV7H-M016-S25-R
White	FHV7H-C016-S25-W	FHV7H-M016-S25-W
IR	---	FHV7H-M016-S25-IR
3.2 million pixels	Autofocus Lens	6 mm	Multi color	FHV7H-C032-S06-MC	FHV7H-M032-S06-MC
Red	---	FHV7H-M032-S06-R
White	FHV7H-C032-S06-W	FHV7H-M032-S06-W
IR	---	FHV7H-M032-S06-IR
9 mm	Multi color	FHV7H-C032-S09-MC	FHV7H-M032-S09-MC
Red	---	FHV7H-M032-S09-R
White	FHV7H-C032-S09-W	FHV7H-M032-S09-W
IR	---	FHV7H-M032-S09-IR
12 mm	Multi color	FHV7H-C032-S12-MC	FHV7H-M032-S12-MC
Red	---	FHV7H-M032-S12-R
White	FHV7H-C032-S12-W	FHV7H-M032-S12-W
IR	---	FHV7H-M032-S12-IR
16 mm	Multi color	FHV7H-C032-S16-MC	FHV7H-M032-S16-MC
Red	---	FHV7H-M032-S16-R
White	FHV7H-C032-S16-W	FHV7H-M032-S16-W
IR	---	FHV7H-M032-S16-IR
25 mm	Multi color	FHV7H-C032-S25-MC	FHV7H-M032-S25-MC
Red	---	FHV7H-M032-S25-R
White	FHV7H-C032-S25-W	FHV7H-M032-S25-W
IR	---	FHV7H-M032-S25-IR
6.3 million pixels	Autofocus Lens	6 mm	Multi color	FHV7H-C063R-S06-MC	FHV7H-M063R-S06-MC
Red	---	FHV7H-M063R-S06-R
White	FHV7H-C063R-S06-W	FHV7H-M063R-S06-W
IR	---	FHV7H-M063R-S06-IR
9 mm	Multi color	FHV7H-C063R-S09-MC	FHV7H-M063R-S09-MC
Red	---	FHV7H-M063R-S09-R
White	FHV7H-C063R-S09-W	FHV7H-M063R-S09-W
IR	---	FHV7H-M063R-S09-IR
12 mm	Multi color	FHV7H-C063R-S12-MC	FHV7H-M063R-S12-MC
Red	---	FHV7H-M063R-S12-R
White	FHV7H-C063R-S12-W	FHV7H-M063R-S12-W
IR	---	FHV7H-M063R-S12-IR
16 mm	Multi color	FHV7H-C063R-S16-MC	FHV7H-M063R-S16-MC
Red	---	FHV7H-M063R-S16-R
White	FHV7H-C063R-S16-W	FHV7H-M063R-S16-W
IR	---	FHV7H-M063R-S16-IR
25 mm	Multi color	FHV7H-C063R-S25-MC	FHV7H-M063R-S25-MC
Red	---	FHV7H-M063R-S25-R
White	FHV7H-C063R-S25-W	FHV7H-M063R-S25-W
IR	---	FHV7H-M063R-S25-IR

Model
Polarized Light Filter	For visible light	FHV-XPL
Polarized Light Filter	For both infrared light and visible light	FHV-XPL-IR
Diffusion Filter	FHV-XDF

Item	Model
	Waterproof Hood for Lens Modules	FHV-XHD-LEM
	Waterproof Hood for C-mount Lens (Short) *1	FHV-XHD-S
	Waterproof Hood for C-mount Lens (Long) *2	FHV-XHD-L

Item	Cable length	Model
	I/O Cable (Bend Resistant)	2 m	FHV-VDB 2M
3 m	FHV-VDB 3M
5 m	FHV-VDB 5M
10 m	FHV-VDB 10M
20 m	FHV-VDB 20M
	I/O Cable (Bend Resistant, Right-angle)	2 m	FHV-VDLB 2M
3 m	FHV-VDLB 3M
5 m	FHV-VDLB 5M
10 m	FHV-VDLB 10M
20 m	FHV-VDLB 20M
	Ethernet Cable (Bend Resistant)	2 m	FHV-VNB 2M
3 m	FHV-VNB 3M
5 m	FHV-VNB 5M
10 m	FHV-VNB 10M
20 m	FHV-VNB 20M
	Ethernet Cable (Bend Resistant, Right-angle)	2 m	FHV-VNLB 2M
3 m	FHV-VNLB 3M
5 m	FHV-VNLB 5M
10 m	FHV-VNLB 10M
20 m	FHV-VNLB 20M

Item	Model
	Base Mount for Smart Cameras and Lighting Controllers	FHV-XMT-7
	Base Mount for Lighting Controllers	FHV-XMT-7-TCC
	Light Cover (for replacement) *1	FHV-XCV
	Waterproof Cap (for replacement)	for Ethernet Connecter	FHV-XWC-ECN
	for Light Connecter	FHV-XWC-LCN
	Waterproof Packing *2 (for replacement, 5 pcs)	for Camera	FHV-XWP-CAM
	for Lighting Module	FHV-XWP-LTM
	for Waterproof Hood	FHV-XWP-HD-SL
	Light-shielding for Lighting Module (for replacement, 3 pcs) *2	FHV-XLS-LTM
	Facing cover for Lens Modules (for replacement, cover 1pcs, screws 5 pcs (including one spare piece))	FHV-XFC-LEM-S
	Facing cover for C-mount Lens (for replacement, cover 1pcs, screws 5 pcs (including one spare piece))	FHV-XFC-C
---	Screw for microSD card cover (for replacement, 10 pcs)	FHV-XSCR-MSD

Item	Descriptions	Model
---	External Lights	External lighting controller	LED	FLV Series
High-brightness LED	FL-BR/DR Series
	Industrial Switching Hubs for EtherNet/IP and Ethernet	3 port	Failure detection: None	Current consumption: 0.08 A	W4S1-03B
	5 port	Failure detection: None	Current consumption: 0.12 A	W4S1-05B
5 port	Failure detection: Supported	W4S1-05C

Resolution	Camera Model	Size of image element	Recommended lens
Standard Lens	Telecentric Lens	Vibrations and Shocks Resistant Lens
0.4 million-pixel	FHV7H-[]004	1/2.9” equivalent	SV-V Series	VS-TCH Series	VS-MCA Series Non-telecentric Macro VS-MC Series
1.6 million-pixel	FHV7H-[]016	1/2.9” equivalent
3.2 million-pixel	FHV7H-[]032	1/1.8” equivalent	SV-H Series
5 million-pixel	FHV7H-[]060	2/3” equivalent
6.3 million-pixel	FHV7H-[]063R	1/1.8” equivalent
12 million-pixel	FHV7H-[]120R	1/1.7” equivalent

Return to OMRON

OMRON FHV7 SeriesSensors/ Vision Sensors / Machine Vision Systems/Smart Camera

OMRON FHV7 Series Dimensions

Nearly-infinite combination to fit any production scenes

IP67 structure

Captive screws

Easy addition of external lights

Easy filter replacement

Single camera for inspecting various products

Multi-color LightAccommodates color variations

When inspecting products of different colors

Autofocus LensAccommodates size variations

When inspecting products of different sizes

Best-in-class resolution*3: 12 megapixelsLocation variation

Expanding the range of parts inspection

Raising production quality without sacrificing cycle time

Inspection time reduced to 1/4 *1

Clear images facilitate inspection

More inspection points

Settings can be adjusted with zero downtime

Purchase the OMRON Smart Camera Please fill in the following

OMRON FHV7 Series specification

Smart Camera

Lens Modules

Lighting Modules

Optical Filters

Waterproof Hoods

I/O cables

Ethernet Cables

OMRON FHV7 Series catalog

English

Global Edition

OMRON FHV7 Series dimension

Smart Cameras

C Mount Models

All-in-one Models with Lens Module

All-in-one Models with Lens and Lighting Modules

Lens Modules

Autofocus Lens

Lighting Modules

FHV-LTM-[][]

Cables

I/O cable (Straight)

I/O cable (Right angle)

Ethernet cable (Straight)

Ethernet cable (Right angle)

Optical Filters/Light Cover

Waterproof Hoods

for C-mount Lens (Short)

for C-mount Lens (Long)

for Lens Modules

OMRON FHV7 Series lineup

Model Number Structure

FHV7 Series Model Number Legend

Configuration

Ordering Information

Smart Cameras

C Mount Models

Lens Modules

Lighting Modules

All-in-one Models with Lens Module

All-in-one Models with Lens and Lighting Modules

Optical Filters

Waterproof Hoods

Cables

Accessories

Accessories

Lenses

Multi-color Light
Accommodates color variations

Autofocus Lens
Accommodates size variations

Best-in-class resolution*3: 12 megapixels
Location variation
