OMRON G3PJRelays/ Solid-state Relays/For Heater Control

OMRON G3PJ Relays

G3PJ Solid State Relays for Heaters/Dimensions
G3PJ Solid State Relays for Heaters/Lineup
G3PJ Solid State Relays for Heaters/Specifications
G3PJ Solid State Relays for Heaters/Catalog
Purchase the OMRON G3PJ For Heater Control

OMRON G3PJ Dimensions

/Images/l_3510-25-258408-198x198.jpg

last update: January 5, 2018

New Value For Control Panels

Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel concept for the specifications of products used in control panels.

Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

Easier Designing and Wiring While Maintaining the Previous 22.5-mm Width to Help Save Space

Close Mounting Even with this Top-class Slim Design

Size reductions in Solid State Relays mean you can downsize control panels and cooling equipment.
And close mounting helps you save even more space.

*Mounted either to DIN Tracks or with screws.

Note: A reduction of approx. 50% is achieved when comparing a system of three closely mounted OMRON G3PJ units and a system of three closely mounted conventional OMRON G3PE-245B (or G3PE-545B) units, with both systems carrying a current of 25 A at an ambient temperature of 40°C.

Control Panels That Use Many SSRs Can Be Greatly Downsized

Better Temperature Characteristics and Reinforced Insulation for Safety Standard Compliance

UL-listed components, so you can reduce the time required for the UL application process.

• Using new components or upgraded components is easy.
• You can procure the components even when an urgent need arises for adjustments or problem-solving.

Push-In Plus Terminal Blocks for Easy Wiring

Just Insert Wires: No Tools Required
Now you can use Push-In Plus terminals to reduce the time and work involved in wiring.

last update: January 5, 2018

Purchase the OMRON For Heater Control Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3PJ Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PJ We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PJRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

EE-SPW311 / 411 Long-distance Through-beam Photomicrosensor/Features
EE-SPZ-A Retroreflective Photomicrosensor with Lens/Features
61F-AN / -APN2 Alternate Operation Relay/Features
M22 Indicator (Cylindrical 22/25-dia.)/Features
GX-JC03 / JC06 EtherCAT Junction Slave/Features

OMRON G3PJ dimension
G3PJ Solid State Relays for Heaters/Dimensions
last update: April 01, 2016
Solid State Relays

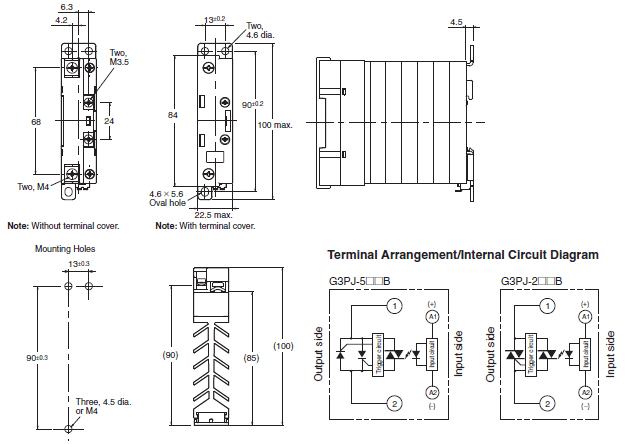

SSRs with Screw Terminals
G3PJ-215B
G3PJ-225B
G3PJ-515B
G3PJ-525B

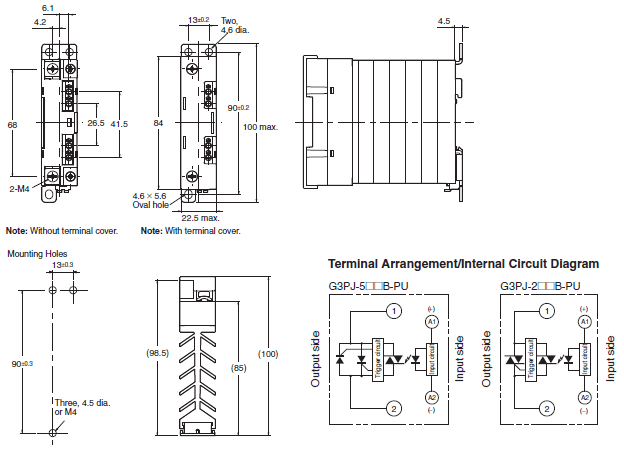

SSRs with Push-In Plus terminal blocks
G3PJ-215B-PU
G3PJ-225B-PU
G3PJ-515B-PU
G3PJ-525B-PU

last update: April 01, 2016

OMRON G3PJ lineup
G3PJ Solid State Relays for Heaters/Lineup
last update: April 01, 2016
Model Number Structure
Model Number Legend

Ordering Information

Input
terminal Output
terminal Insulation
method Operation
indicator Rated
input
voltage Zero
cross
function Rated load
voltage Rated load
current
(ambient
temperature
of 40°C) * Model
Close
mounting
(Three SSRs) Separate
mounting
Screw
terminals Screw
terminals Phototriac
coupler Yes
(orange) 12 to
24 VDC Yes 24 to 240 VAC 15 A 18 A G3PJ-215B DC12-24
25 A 27 A G3PJ-225B DC12-24
100 to 480 VAC 15 A 23 A G3PJ-515B DC12-24
25 A 27 A G3PJ-525B DC12-24
Push-In
Plus
terminal
blocks 24 to 240 VAC 15 A 18 A G3PJ-215B-PU DC12-24
25 A 27 A G3PJ-225B-PU DC12-24
100 to 480 VAC 15 A 23 A G3PJ-515B-PU DC12-24
25 A 27 A G3PJ-525B-PU DC12-24

* The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering Data on catalog.

last update: April 01, 2016

OMRON G3PJ specification
G3PJ Solid State Relays for Heaters/Specifications
last update: April 3, 2017
Ratings
Input (at an Ambient Temperature of 25°C)

Model Rated voltage Operating voltage
range Current Must operate
voltage Must release
voltage
G3PJ-2[][]B(-PU)/
G3PJ-5[][]B(-PU) 12 to 24 VDC 9.6 to 30 VDC 7 mA max. 9.6 VDC max. 1.0 VDC min.

Output

Model Rated load
voltage Load voltage
range Load current Inrush current
resistance I²t
G3PJ-215B(-PU) 24 to 240 VAC
50/60 Hz 19 to 264 VAC
50/60 Hz Close mounting *: 15 A,
Separate mounting: 18 A 150 A (60 Hz, 1 cycle) 260A²s
G3PJ-225B(-PU) Close mounting *: 25 A,
Separate mounting: 27 A 220 A (60 Hz, 1 cycle) 1,260A²s
G3PJ-515B(-PU) 100 to 480 VAC
50/60 Hz 75 to 528 VAC
50/60 Hz Close mounting *: 15 A,
Separate mounting: 23 A 150 A (60 Hz, 1 cycle) 1,350A²s
G3PJ-525B(-PU) Close mounting *: 25 A,
Separate mounting: 27 A 220 A (60 Hz, 1 cycle) 6,600A²s

* For close mounting of three SSRs.

Characteristics

Item G3PJ-2[][]B(-PU) G3PJ-5[][]B(-PU)
Operate time 1/2 of load power source cycle + 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6 V (RMS) max. 1.8 V (RMS) max.
Leakage current 10 mA max. (at 240 VAC) 20 mA max. (at 480 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC 50/60 Hz for 1 min 4,000 VAC 50/60 Hz for 1 min
Vibration resistance 10 to 55 to10 Hz, 0.35 mm single amplitude
(0.7 mm double amplitude) (Mounted to DIN track)
Shock resistance Destruction: 300 m/s² (Mounted to DIN track)
Ambient storage
temperature -30 to 100°C (with no icing or condensation)
Ambient operating
temperature -30 to 80°C (with no icing or condensation)
Ambient operating
humidity 45% to 85%
Weight Approx. 240 g
SCCR (UL508) 5 kA 10 kA

Applicable Standards

cULus and TÜV (EN 60947-4-3)
Pollution category 2
RoHS compliant

last update: April 3, 2017

OMRON G3PJ catalog
G3PJ Solid State Relays for Heaters/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3PJ Data Sheet J210-E1-01　
[2748KB] Jan 11, 201820180111 G3PJ Data Sheet

G3PJ Catalog J211-E1-01
[2879KB] Jan 05, 201820180105 G3PJ Catalog

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

NO. G3PJ

TYPE:Solid-state Relays For Heater Control Copyright Statement

DATE:2021-06-13

Associated products:
G9B Stepping Relay Unit/Features G3PH High-power Solid State Relays/Features

Input terminal	Output terminal	Insulation method	Operation indicator	Rated input voltage	Zero cross function	Rated load voltage	Rated load current (ambient temperature of 40°C) *	Model
Close mounting (Three SSRs)	Separate mounting
Screw terminals	Screw terminals	Phototriac coupler	Yes (orange)	12 to 24 VDC	Yes	24 to 240 VAC	15 A	18 A	G3PJ-215B DC12-24
25 A	27 A	G3PJ-225B DC12-24
100 to 480 VAC	15 A	23 A	G3PJ-515B DC12-24
25 A	27 A	G3PJ-525B DC12-24
Push-In Plus terminal blocks	24 to 240 VAC	15 A	18 A	G3PJ-215B-PU DC12-24
25 A	27 A	G3PJ-225B-PU DC12-24
100 to 480 VAC	15 A	23 A	G3PJ-515B-PU DC12-24
25 A	27 A	G3PJ-525B-PU DC12-24

Model	Rated voltage	Operating voltage range	Current	Must operate voltage	Must release voltage
G3PJ-2[][]B(-PU)/ G3PJ-5[][]B(-PU)	12 to 24 VDC	9.6 to 30 VDC	7 mA max.	9.6 VDC max.	1.0 VDC min.

Model	Rated load voltage	Load voltage range	Load current	Inrush current resistance	I²t
G3PJ-215B(-PU)	24 to 240 VAC 50/60 Hz	19 to 264 VAC 50/60 Hz	Close mounting *: 15 A, Separate mounting: 18 A	150 A (60 Hz, 1 cycle)	260A²s
G3PJ-225B(-PU)	Close mounting *: 25 A, Separate mounting: 27 A	220 A (60 Hz, 1 cycle)	1,260A²s
G3PJ-515B(-PU)	100 to 480 VAC 50/60 Hz	75 to 528 VAC 50/60 Hz	Close mounting *: 15 A, Separate mounting: 23 A	150 A (60 Hz, 1 cycle)	1,350A²s
G3PJ-525B(-PU)	Close mounting *: 25 A, Separate mounting: 27 A	220 A (60 Hz, 1 cycle)	6,600A²s

Item	G3PJ-2[][]B(-PU)	G3PJ-5[][]B(-PU)
Operate time	1/2 of load power source cycle + 1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.6 V (RMS) max.	1.8 V (RMS) max.
Leakage current	10 mA max. (at 240 VAC)	20 mA max. (at 480 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC 50/60 Hz for 1 min	4,000 VAC 50/60 Hz for 1 min
Vibration resistance	10 to 55 to10 Hz, 0.35 mm single amplitude (0.7 mm double amplitude) (Mounted to DIN track)
Shock resistance	Destruction: 300 m/s² (Mounted to DIN track)
Ambient storage temperature	-30 to 100°C (with no icing or condensation)
Ambient operating temperature	-30 to 80°C (with no icing or condensation)
Ambient operating humidity	45% to 85%
Weight	Approx. 240 g
SCCR (UL508)	5 kA	10 kA

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G3PJ Data Sheet	J210-E1-01　 [2748KB]	Jan 11, 201820180111	G3PJ Data Sheet
G3PJ Catalog	J211-E1-01 [2879KB]	Jan 05, 201820180105	G3PJ Catalog
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building
