• Clicking feel.
• Conforms to U.S. standards (ANSI/RIA R15.06-1999) for 3-position switches.
• Can be mounted in two directions.
last update: December 19, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON A4E Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A4E We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A4ESafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
OS32C Safety Laser Scanner/Features
G6B-4[][]ND Terminal Relay/Features
E39-L93[] / L150 / L151 / L98 Sensor Adjuster, Cover Fittings/Features
E4PA-N Ultrasonic Displacement Sensor/Features
E5CC-T Programmable Temperature Controller (Digital Controller) (48 × 48 mm)/Features
OMRON A4E catalog
A4E Enabling Switch/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 A4E Data Sheet | - [1059KB] | Oct 05, 201820181005 | A4E Data Sheet |
OMRON A4E lineup
A4E Enabling Switch/Lineuplast update: September 24, 2012
| Model | Specification |
|---|---|
| A4E-B200SS | Two contacts, no mounting bracket, no rubber seal |
| A4E-B200HS | Two contacts, horizontal mounting, no rubber seal |
| A4E-B200VS | Two contacts, vertical mounting, no rubber seal |
| A4E-B200VA | Two contacts, vertical mounting, with rubber seal |
| A4E-C211SS | Four contacts, no mounting bracket, no rubber seal |
| A4E-C211HS | Four contacts, horizontal mounting, no rubber seal |
| A4E-C211VS | Four contacts, vertical mounting, no rubber seal |
| A4E-C211VA | Four contacts, vertical mounting, with rubber seal |
last update: September 24, 2012
OMRON A4E specification
A4E Enabling Switch/Specificationslast update: October 5, 2018
Certified Standards
| Certification body | Standard | File No. |
|---|---|---|
| UL * | UL508 CSA C22.2 No.14 | E76675 |
| TÜV SÜD | EN60947 5-1 (certified direct opening) EN60947-5-8 | Consult your OMRON representative for details. |
| CQC (CCC) | GB/T 14048.5 | 2003010305070634 |
* Certification for CSA C22.2 No. 14 by UL has been obtained.
Certified Standard Ratings TÜV (EN60947-5-1)
| Utilization category | AC-15 | DC-13 |
|---|---|---|
| Rated operating current (Ie) | 0.75 A | 0.55 A |
| Rated operating voltage (Ue) | 240 V | 125 V |
UL/CSA (UL508, CSA C22.2 No.14),
CCC (GB/T 14048.5)
300 mA at 24 VDC (Inductive load)
1 A at 125 VAC (Resistive load)
Ratings
| Rated insulation voltage | 250 V |
|---|---|
| Rated ON current | 2.5 A |
| Rated load | 24 VDC, 300 mA (inductive load) 125 VAC, 1 A (resistive load) |
| Minimum applicable load | 24 VDC, 4 mA |
| Impulse withstand voltage | 4.0 kV between terminals of different polarity, 2.5 kV between terminals of same polarity |
| Ambient operating temperature | -10 to 55°C (with no icing) |
| Ambient operating humidity | 35% to 85% (with no condensation) |
| Ambient storage temperature | -25 to 65°C |
Characteristics
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
|---|---|
| Contact resistance | 100 mΩ max. (initial value) |
| Vibration resistance | 10 to 55 Hz, 0.75-mm single amplitude min. |
| Shock resistance | 150 m/s2 |
| Mechanical durability | OFF-ON: 1,000,000 operations min. OFF-ON-OFF (direct opening): 100,000 operations min. |
| Electrical durability | 100,000 operations min. |
| Degree of protection | IP65 (rubber seal type only) |
last update: October 5, 2018
OMRON A4E dimension
A4E Enabling Switch/Dimensionslast update: October 16, 2012
2-Contact Type
4-Contact Type
No mounting bracket
A4E-B200SS
No mounting bracket
A4E-C211SS

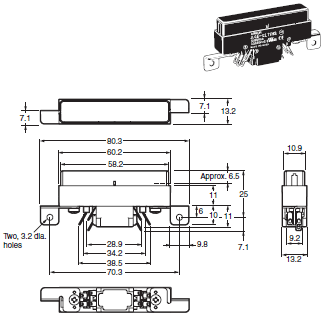

Horizontal mounting
A4E-B200HS

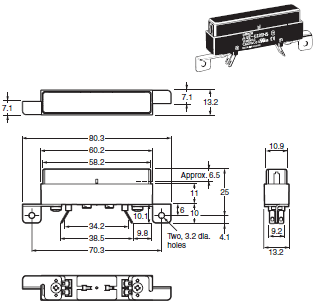

Horizontal mounting
A4E-C211HS

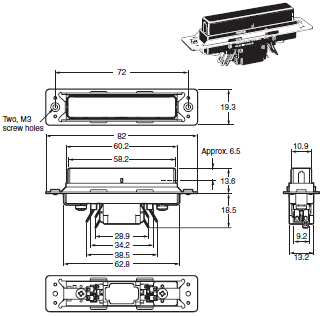

Vertical mounting
A4E-B200VS

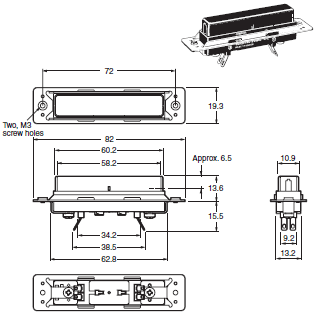

Vertical mounting
A4E-C211VS

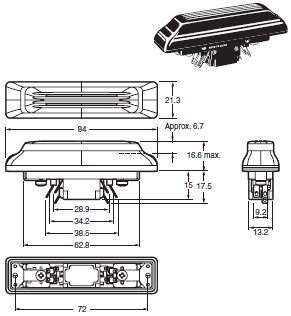

Vertical mounting with rubber seal
A4E-B200VA

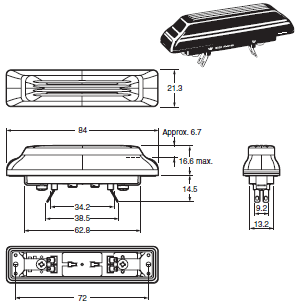

Vertical mounting with rubber seal
A4E-C211VA
last update: October 16, 2012
- NO. A4E
- TYPE:Safety Key Selector Switches / Enabling Grip Switches Copyright Statement Copyright Statement
- DATE:2021-06-14
- Associated products:
A4EG Enabling Grip Switch/Features G7SA Relays with Forcibly Guided Contacts/Features
