OMRON EE-SPX-WSensors/ Photomicro Sensors/Slot-type

OMRON EE-SPX-W Sensors

EE-SPX-W Slot-type Photomicrosensor with Cable/Catalog
EE-SPX-W Slot-type Photomicrosensor with Cable/Lineup
EE-SPX-W Slot-type Photomicrosensor with Cable/Specifications
EE-SPX-W Slot-type Photomicrosensor with Cable/Dimensions
Purchase the OMRON EE-SPX-W Slot-type

OMRON EE-SPX-W Dimensions

/Images/l_438-25-118805-198x198.jpg

last update: April 19, 2017

• Light modulation effectively reduces external light interference.

• Wide operation voltage range: 5 to 24 VDC

• Easy operation monitoring with bright light indicator.

last update: April 19, 2017

Purchase the OMRON Slot-type Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON EE-SPX-W Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SPX-W We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SPX-WSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E5ER-T Programmable Digital Controller/Features
NX-AD / DA NX-series Analog I/O Unit/Features
DRT2-[]D16TA(-1) Transistor Remote I/O Terminals with 3-tier Terminal Blocks/Features
SRT2-R Relay-mounted Remote I/O Terminals/Features
M7E (14 mm) Digital Display (14 mm)/Features

OMRON EE-SPX-W catalog
EE-SPX-W Slot-type Photomicrosensor with Cable/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

EE-SPX-W Data Sheet -
[487KB] Aug 24, 201220120824 EE-SPX-W Data Sheet

OMRON EE-SPX-W lineup
EE-SPX-W Slot-type Photomicrosensor with Cable/Lineup
last update: September 23, 2012

Appearance Sensing
method Sensing distance
(slot width) Output
type Output
configuration Cable
length Model
Through-beam
type 3.6 mm
(Infrared light) NPN
output Dark-ON 1 m EE-SPX302-W2A 1M
Light-ON EE-SPX402-W2A 1M
3.6 mm
(Infrared light) Dark-ON EE-SPX304-W2A 1M
Light-ON EE-SPX404-W2A 1M
3.6 mm
(Infrared light) Dark-ON EE-SPX306-W2A 1M
Light-ON EE-SPX406-W2A 1M
5 mm
(Infrared light) Dark-ON EE-SPX305-W2A 1M *
Light-ON EE-SPX405-W2A 1M *

* These models (EE-SPX305/405-W2A only) are not conformed to CE standards.

last update: September 23, 2012

OMRON EE-SPX-W specification
EE-SPX-W Slot-type Photomicrosensor with Cable/Specifications
last update: September 24, 2012

Models EE-SPX302-W2A, EE-SPX402-W2A
EE-SPX304-W2A, EE-SPX404-W2A
EE-SPX306-W2A, EE-SPX406-W2A EE-SPX305-W2A
EE-SPX405-W2A
Sensing distance 3.6 mm (slot width) 5 mm (slot width)
Sensing object Opaque: 1 × 0.5 mm min. Opaque: 2 × 0.8 mm min.
Differential distance 0.05 mm max.
Light source GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm
Indicator *1 Light indicator (red)
Supply voltage 5 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumption Average: 15 mA max.; Peak: 50 mA max.
Control output NPN voltage output:
Load power supply voltage: 5 to 24 VDC
Load current: 80 mA max.
OFF current: 0.5 mA max.
80 mA load current with a residual voltage of 1.0 V max.
10 mA load current with a residual voltage of 0.4 V max.
Response frequency *2 500 Hz min.
Ambient illumination 3,000 lx max. with incandescent light or sunlight on the surface of the receiver
Ambient temperature
range Operating: - 10 to +55 ° C
Storage: - 25 to +65 ° C
Ambient humidity range Operating: 5% to 85%
Storage: 5% to 95%
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection IEC IP50
Connecting method Pre-wired (standard cable length: 1 m)
Weight 18.5 g
Material Case Polycarbonate
Holder

*1. The indicator is a GaP red LED (peak wavelength: 700 nm).
*2. The response frequency was measured by detecting the following rotating disk.

last update: September 24, 2012

OMRON EE-SPX-W dimension
EE-SPX-W Slot-type Photomicrosensor with Cable/Dimensions
last update: October 12, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

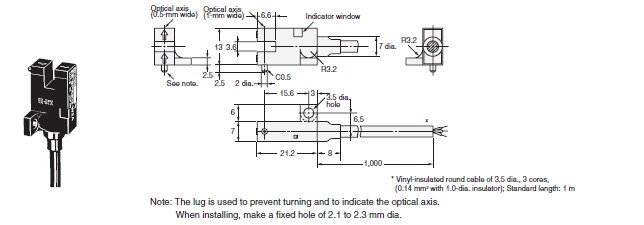

EE-SPX302-W2A
EE-SPX402-W2A

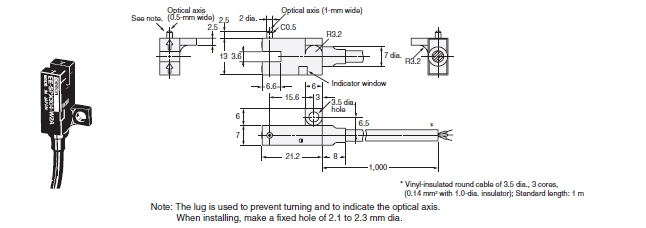

EE-SPX304-W2A
EE-SPX404-W2A

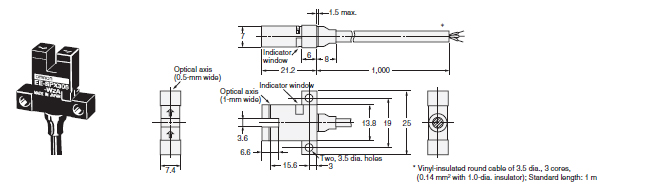

EE-SPX306-W2A
EE-SPX406-W2A

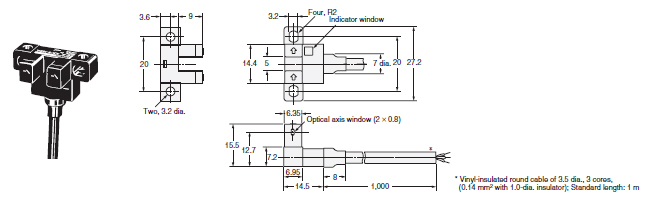

EE-SPX305-W2A
EE-SPX405-W2A

last update: October 12, 2012

NO. EE-SPX-W

TYPE:Photomicro Sensors Slot-type Copyright Statement

DATE:2021-06-19

Associated products:
EE-SPX74 / SPX84 Slot-type Photomicrosensor with Connector (Modulated)/Features EE-SPW311 / 411 Long-distance Through-beam Photomicrosensor/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
EE-SPX-W Data Sheet	- [487KB]	Aug 24, 201220120824	EE-SPX-W Data Sheet

Appearance	Sensing method	Sensing distance (slot width)	Output type	Output configuration	Cable length	Model
	Through-beam type	3.6 mm (Infrared light)	NPN output	Dark-ON	1 m	EE-SPX302-W2A 1M
Light-ON	EE-SPX402-W2A 1M
	3.6 mm (Infrared light)	Dark-ON	EE-SPX304-W2A 1M
Light-ON	EE-SPX404-W2A 1M
	3.6 mm (Infrared light)	Dark-ON	EE-SPX306-W2A 1M
Light-ON	EE-SPX406-W2A 1M
	5 mm (Infrared light)	Dark-ON	EE-SPX305-W2A 1M *
Light-ON	EE-SPX405-W2A 1M *

Models	EE-SPX302-W2A, EE-SPX402-W2A EE-SPX304-W2A, EE-SPX404-W2A EE-SPX306-W2A, EE-SPX406-W2A	EE-SPX305-W2A EE-SPX405-W2A
Sensing distance	3.6 mm (slot width)	5 mm (slot width)
Sensing object	Opaque: 1 × 0.5 mm min.	Opaque: 2 × 0.8 mm min.
Differential distance	0.05 mm max.
Light source	GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm
*Indicator 1**	Light indicator (red)
Supply voltage	5 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumption	Average: 15 mA max.; Peak: 50 mA max.
Control output	NPN voltage output: Load power supply voltage: 5 to 24 VDC Load current: 80 mA max. OFF current: 0.5 mA max. 80 mA load current with a residual voltage of 1.0 V max. 10 mA load current with a residual voltage of 0.4 V max.
*Response frequency 2**	500 Hz min.
Ambient illumination	3,000 lx max. with incandescent light or sunlight on the surface of the receiver
Ambient temperature range	Operating: - 10 to +55 ° C Storage: - 25 to +65 ° C
Ambient humidity range	Operating: 5% to 85% Storage: 5% to 95%
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection	IEC IP50
Connecting method	Pre-wired (standard cable length: 1 m)
Weight	18.5 g
Material	Case	Polycarbonate
Holder
