OMRON M7E (14 mm) lineup

last update: April 3, 2017

Display contents	Display color	Type	Model
			Model with Zero Suppression (See note 1.)	Model with Blanking (See note 2.)
±1	Red	Positive	---	M7E-01BRP2
		Negative	---	M7E-01BRN2
		Dynamic output	---	M7E-01BRD2
	Green	Positive	---	M7E-01BGP2
		Negative	---	M7E-01BGN2
		Dynamic output	---	M7E-01BGD2
Decimal	Red	Positive	M7E-01DRP2	M7E-01DRP2-B
		Negative	M7E-01DRN2	M7E-01DRN2-B
		Dynamic output	M7E-01DRD2	M7E-01DRD2-B
	Green	Positive	M7E-01DGP2	M7E-01DGP2-B
		Negative	M7E-01DGN2	M7E-01DGN2-B
		Dynamic output	M7E-01DGD2	M7E-01DGD2-B
	Red/green (two colors)	Negative	M7E-01DRGN2	M7E-01DRGN2-B
Hexadecimal	Red	Positive	M7E-01HRP2	M7E-01HRP2-B
		Negative	M7E-01HRN2	M7E-01HRN2-B
	Green	Positive	M7E-01HGP2	M7E-01HGP2-B
		Negative	M7E-01HGN2	M7E-01HGN2-B

Display contents	Display color	Logic	Model
Unit	Red	---	M7E-01UR2-[] (See note 3.)
	Green	---	M7E-01UG2-[] (See note 3.)

Connectable PLCs

M7E model		PLC output method
Display contents	Type	Static output		Dynamic output
		PNP output	NPN output
±1, decimal	Positive
	Negative
	Dynamic output
Hexadecimal	Positive
	Negative
Unit	---	(only voltage imposed)

Note: Connectable but an external resistor is required and only 24 VDC must be supplied.Refer to External Connections on Catalog for details.

Accessories (Order Separately)

End Plate

Case color	Model
Light gray	M7E-012M
Black	M7E-012M-1

Note: The Right and Left Plates form a pair.

Spacer

Case color	Model
Light gray	M7E-012PA
Black	M7E-012PA-1

Connector

Terminal		Model
Solder terminal		NRT-C
Solder terminal		NRT-CN
PCB terminal		NRT-CP

Mother Board

Type	Number of digits	Model
Static	4	M7E-01MB4-S2
Static	3	M7E-01MB3-S2
Static	2	M7E-01MB2-S2

Note: Refer to M7E Mother Board for Display Units (Character Height: 14 mm) for details.

Cable with Connectors (1 to 1)

L Dimension	Model
1,000 mm	XW2Z-R100C
1,500 mm	XW2Z-R150C
2,000 mm	XW2Z-R200C
3,000 mm	XW2Z-R300C
5,000 mm	XW2Z-R500C

Cable with Crimp-style Terminals

L Dimension	Model
1,000 mm	XW2Z-RY100C
1,500 mm	XW2Z-RY150C
2,000 mm	XW2Z-RY200C
3,000 mm	XW2Z-RY300C
5,000 mm	XW2Z-RY500C

Cable with Connectors (1 to 2)

L Dimension		Model (for output)
A	B	Model
1,000	750	XW2Z-RO100C-75
1,500	1,250	XW2Z-RO150C-125
2,000	1,750	XW2Z-RO200C-175
3,000	2,750	XW2Z-RO300C-275
5,000	4,750	XW2Z-RO500C-475

last update: April 3, 2017

OMRON M7E (14 mm) dimension

last update: November 06, 2012

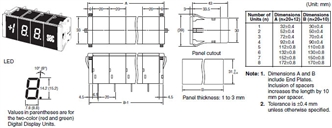

M7E-01[][][][]2

Accessories (Order Separately)

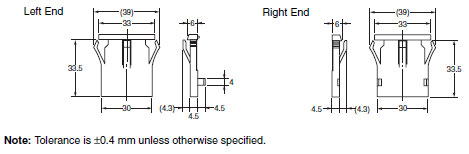

End Plate

M7E-012M(-1)

Spacer

M7E-012PA(-1)

Connector

NRT-C Soldered Terminal

NRT-CN Soldered Terminal

NRT-CP PCB Terminal

Face Plate

• The required face plate is used with the Unit Display Unit, which incorporates a surface-lighting LED.• The following face plates are available. When ordering the M7E-01U[]2-[*], add the suffix according to your
    requirement.• Custom face plates can be made.

Character Dimensions

(Unit: mm)

Example of Dimensions

last update: November 06, 2012

OMRON M7E (14 mm) specification

last update: November 06, 2012

Ratings

Rated power supply		Wide range from 12 to 24 VDC
Allowable voltage fluctuation range		90% to 110% of rated voltage
Current consumption (per Display Unit)		Red LED: 35 mA max. at 24 VDC, 60 mA max. at 12 VDC Greed LED: 40 mA max. at 24 VDC, 75 mA max. at 12 VDC Red/green LED: 45 mA max. at 24 VDC, 90 mA max. at 12 VDC
Input level	Positive logic	High: 9.6 V to power supply voltage Low: 0 to 3 V
	Negative logic	High: 4 V to power supply voltage Low: 0 to 1.5 V Residual voltage: 1.5 V max. OFF leakage current: 0.1 mA max.
	Dynamic output	High: 4 V to power supply voltage Low: 0 to 1.5 V
Ambient temperature		Operating: -10 to 55°C (with no icing) Storage: -25 to 70°C (with no icing)
Ambient humidity		Operating: 35% to 85% (with no condensation)

Characteristics

Insulation resistance	100 MΩ min. at 500 VDC (between each terminal and mounting panel)
Dielectric strength	500 VAC at 50/60 Hz for 1 minute (between each terminal and mounting panel)
Noise immunity (See note 2.)	Power terminal: ±500 V Input terminal: ±500 V (normal mode), ±1,500 V (common mode)
Vibration resistance	Destruction: 10 to 55 Hz, 0.75-mm double amplitude
Shock resistance	Destruction: 300 m/s2
Degree of protection	IEC IP40 (portion on panel surface)
Compatible connector	OMRON NRT-C/NRT-CN/NRT-CP

Note: 1. The above values are initial values.
          2. Impulse conditions
                Rise time: 1 ns + 10% max.
                Pulse width: 100 ms, 1 μs
                Polarity: Positive, negative, asynchronous to power frequency, 100-Hz repeat frequency.

last update: November 06, 2012

OMRON M7E (14 mm) catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
M7E (14 mm) Data Sheet	- [2609KB]	Apr 03, 201720170403	M7E (14 mm) Data Sheet
M7E Options Data Sheet	- [600KB]	Apr 03, 201720170403	M7E Options Data Sheet
Safety Precautions for M7E (Character Height:14 mm)	- [571KB]	Nov 17, 201420141117	Safety Precautions for M7E (Character Height:14 mm)
