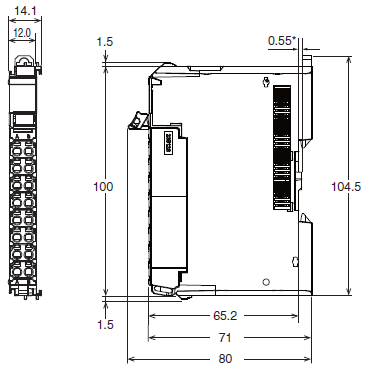

OMRON NX-AD / DA Dimensions

/Images/l_3187-25-171381-198x198.jpg

• Up to eight analog inputs per unit (NX-AD)

• Up to four analog outputs per unit (NX-DA)

• Free-run refreshing or synchronous I/O refreshing with the NX1P2 CPU Unit or EtherCAT Coupler Unit

• Sampling times down to 10 μs per channel and high resolution of 1/30,000

• Single-ended or differential input (NX-AD)

• Selecting channel to use, moving average, input disconnection detection, over range/under range detection, and user calibration

• Detachable front connector with screwless Push-In Plus terminals for easy installation and maintenance

• Compact with a width of 12 mm per unit

• Connect to the CJ PLC using the EtherNet/IPTM bus coupler

Sysmac is a trademark or registered trademark of OMRON Corporation in Japan and other countries for OMRON factory automation products.
EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
EtherNet/IPTM is a trademark of ODVA.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Purchase the OMRON NX-series I/O System Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON NX-AD / DA Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NX-AD / DA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NX-AD / DAAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZW-8000 / 7000 / 5000 Series Confocal Fiber Displacement Sensor/Features
A22 Pushbutton Switch (Cylindrical 22/25-dia.)/Features
E5GC Digital Temperature Controller (48 × 24 mm)/Features
CRT1-VID08S(-1) / VOD08S(-1) Digital I/O Slave Units with e-CON Connector (Vertical type)/Features
K8DS-PH Phase-sequence Phase-loss Relay/Features


OMRON NX-AD / DA specification

NX-AD / DA NX-series Analog I/O Unit/Specifications

General Specifications

ItemSpecification
EnclosureMounted in a panel
Grounding methodGround to 100 Ω or less
Operating
environment
Ambient operating temperature0 to 55°C
Ambient operating humidity10% to 95% (with no condensation or icing)
AtmosphereMust be free from corrosive gases.
Ambient storage temperature-25 to 70°C (with no condensation or icing)
Altitude2,000 m max.
Pollution degree2 or less: Conforms to JIS B3502 and IEC 61131-2.
Noise immunity2 kV on power supply line (Conforms to IEC61000-4-4.)
Overvoltage categoryCategory II: Conforms to JIS B3502 and IEC 61131-2.
EMC immunity levelZone B
Vibration resistanceConforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of
9.8 m/s2, 100 min each in X, Y, and Z directions
(10 sweeps of 10 min each = 100 min total)
Shock resistanceConforms to IEC 60068-2-27. 147 m/s2, 3 times each in X, Y, and
Z directions
Applicable standards *cULus: Listed (UL508), ANSI/ISA 12.12.01, EU: EN 61131-2, C-Tick
or RCM, KC Registration, NK, LR

* Ask your OMRON representative for the most recent applicable standards for each model.

Analog Input Unit Specifications

Analog Input Unit (voltage input type) 2 points NX-AD2603

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD2603
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_2_1
Input methodSingle-ended input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.35 W max.
• Connected to a Communi-
cations Coupler Unit
1.05 W max.
I/O current
consumption
No consumption
Weight70 g max.

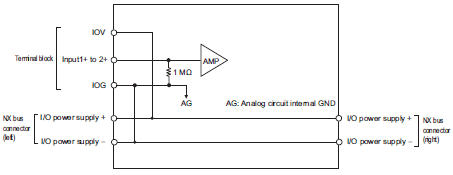

Circuit layout3187_sp_2_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

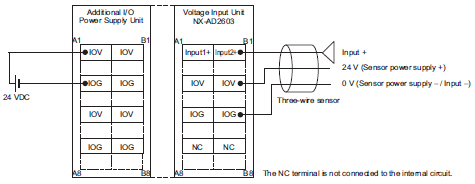

Terminal connection
diagram
3187_sp_2_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 2 points NX-AD2604

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD2604
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_3_1
Input methodDifferential Input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.35 W max.
• Connected to a Communi-
cations Coupler Unit
1.05 W max.
I/O current
consumption
No consumption
Weight70 g max.

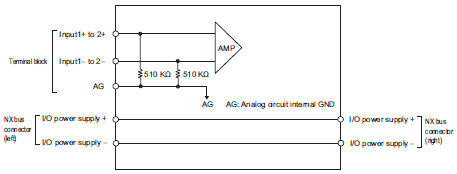

Circuit layout3187_sp_3_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

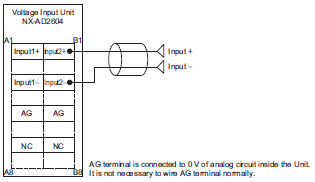

Terminal connection
diagram
3187_sp_3_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 2 points NX-AD2608

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD2608
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_4_1
Input methodDifferential Input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.2% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.35 W max.
• Connected to a Communi-
cations Coupler Unit
1.05 W max.
I/O current
consumption
No consumption
Weight70 g max.

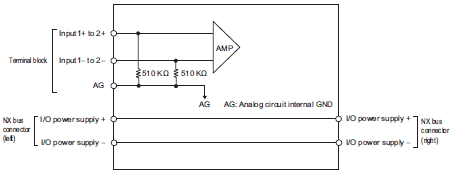

Circuit layout3187_sp_4_2
Installation orientation
and restrictions
Installation orientation:
• • Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

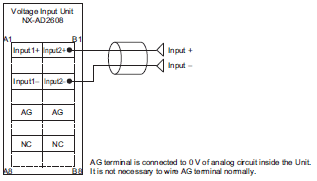

Terminal connection
diagram
3187_sp_4_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 4 points NX-AD3603

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD3603
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_5_1
Input methodSingle-ended input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.35 W max.
• Connected to a Communi-
cations Coupler Unit
1.10 W max.
I/O current
consumption
No consumption
Weight70 g max.

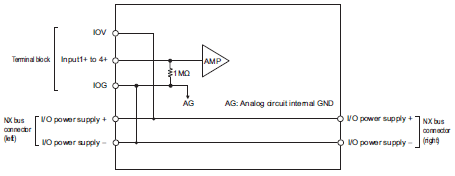

Circuit layout3187_sp_5_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

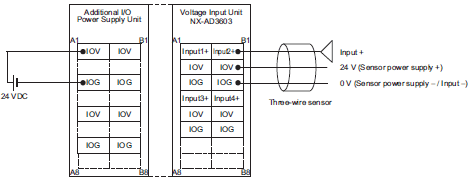

Terminal connection
diagram
3187_sp_5_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 4 points NX-AD3604

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD3604
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_6_1
Input methodDifferential Input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.35 W max.
• Connected to a Communi-
cations Coupler Unit
1.10 W max.
I/O current
consumption
No consumption
Weight70 g max.

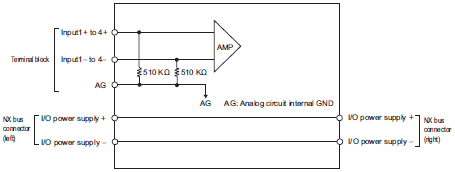

Circuit layout3187_sp_6_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

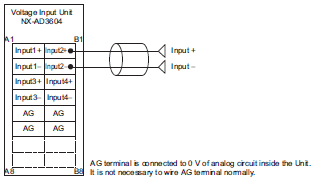

Terminal connection
diagram
3187_sp_6_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 4 points NX-AD3608

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD3608
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_7_1
Input methodDifferential Input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.2% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.45 W max.
• Connected to a Communi-
cations Coupler Unit
1.10 W max.
I/O current
consumption
No consumption
Weight70 g max.
Circuit layout3187_sp_7_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

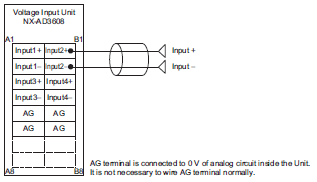

Terminal connection
diagram
3187_sp_7_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 8 points NX-AD4603

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD4603
Number of points8 pointsExternal connection
terminals
Screwless clamping terminal block
(16 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_8_1
Input methodSingle-ended input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.45 W max.
• Connected to a Communi-
cations Coupler Unit
1.15 W max.
I/O current
consumption
No consumption
Weight70 g max.

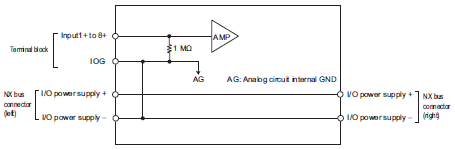

Circuit layout3187_sp_8_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

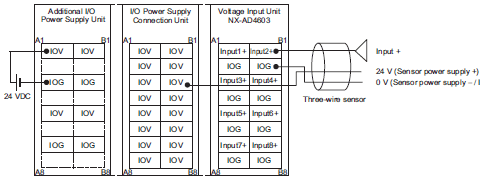

Terminal connection
diagram
3187_sp_8_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 8 points NX-AD4604

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD4604
Number of points8 pointsExternal connection
terminals
Screwless clamping terminal block
(16 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_9_1
Input methodDifferential Input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.45 W max.
• Connected to a Communi-
cations Coupler Unit
1.15 W max.
I/O current
consumption
No consumption
Weight70 g max.

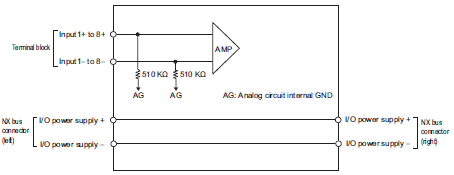

Circuit layout3187_sp_9_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
3187_sp_9_3
Input disconnection
detection
Not supported.

Analog Input Unit (voltage input type) 8 points NX-AD4608

Unit nameAnalog Input Unit
(voltage input type)
ModelNX-AD4608
Number of points8 pointsExternal connection
terminals
Screwless clamping terminal block
(16 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_10_1
Input methodDifferential Input
Input range-10 to +10 V
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance1 MΩ min.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.2% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.45 W max.
• Connected to a Communi-
cations Coupler Unit
1.15 W max.
I/O current
consumption
No consumption
Weight70 g max.

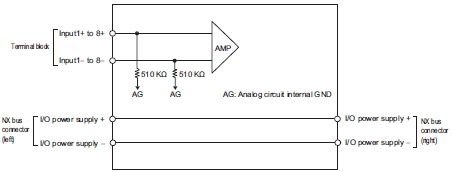

Circuit layout3187_sp_10_2
Installation orientation
and restrictions
Installation orientation:
• • Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
3187_sp_10_3
Input disconnection
detection
Not supported.

Analog Input Unit (current input type) 2 points NX-AD2203

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD2203
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_11_1
Input methodSingle-ended input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance250 Ω min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.25 W max.
• Connected to a Communi-
cations Coupler Unit
0.90 W max.
I/O current
consumption
No consumption
Weight70 g max.

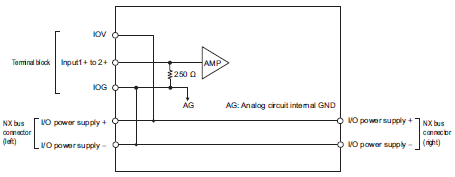

Circuit layout3187_sp_11_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

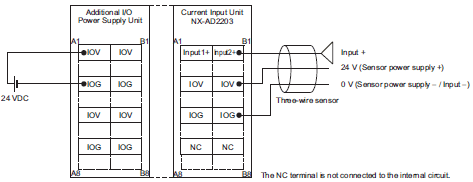

Terminal connection
diagram
3187_sp_11_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 2 points NX-AD2204

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD2204
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_12_1
Input methodDifferential Input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance250 Ω min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.25 W max.
• Connected to a Communi-
cations Coupler Unit
0.90 W max.
I/O current
consumption
No consumption
Weight70 g max.

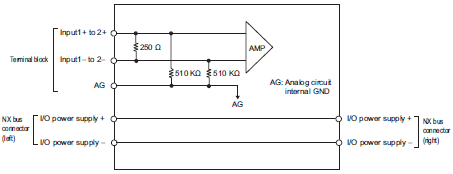

Circuit layout3187_sp_12_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

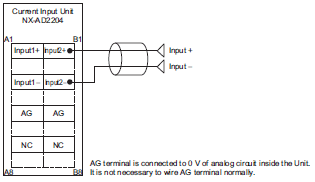

Terminal connection
diagram
3187_sp_12_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 2 points NX-AD2208

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD2208
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_13_1
Input methodDifferential Input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance250 Ω
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.2% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.25 W max.
• Connected to a Communi-
cations Coupler Unit
0.90 W max.
I/O current
consumption
No consumption
Weight70 g max.

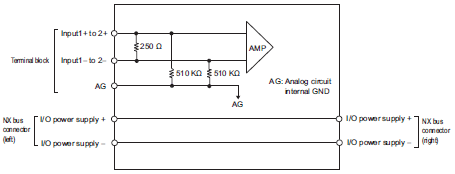

Circuit layout3187_sp_13_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
3187_sp_13_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 4 points NX-AD3203

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD3203
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_14_1
Input methodSingle-ended input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance250 Ω min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.25 W max.
• Connected to a Communi-
cations Coupler Unit
0.90 W max.
I/O current
consumption
No consumption
Weight70 g max.

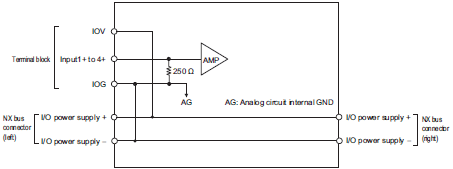

Circuit layout3187_sp_14_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

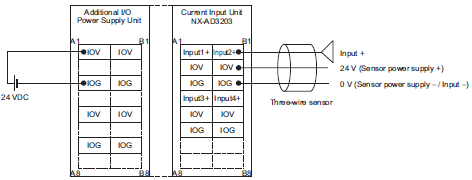

Terminal connection
diagram
3187_sp_14_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 4 points NX-AD3204

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD3204
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_15_1
Input methodDifferential Input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance250 Ω min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.25 W max.
• Connected to a Communi-
cations Coupler Unit
0.90 W max.
I/O current
consumption
No consumption
Weight70 g max.

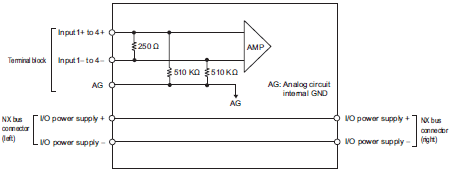

Circuit layout3187_sp_15_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
3187_sp_15_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 4 points NX-AD3208

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD3208
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_16_1
Input methodDifferential Input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance250 Ω min.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.2% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.30 W max.
• Connected to a Communi-
cations Coupler Unit
0.95 W max.
I/O current
consumption
No consumption
Weight70 g max.

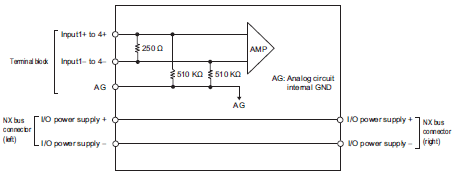

Circuit layout3187_sp_16_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

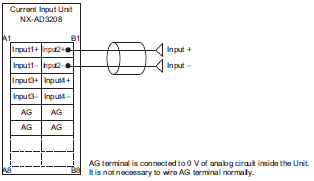

Terminal connection
diagram
3187_sp_16_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 8 points NX-AD4203

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD4203
Number of points8 pointsExternal connection
terminals
Screwless clamping terminal block
(16 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_17_1
Input methodSingle-ended input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance85 Ω
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.40 W max.
• Connected to a Communi-
cations Coupler Unit
1.05 W max.
I/O current
consumption
No consumption
Weight70 g max.

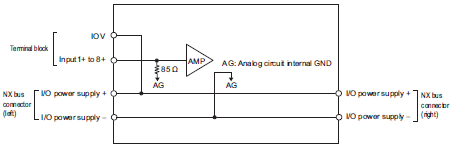

Circuit layout3187_sp_17_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

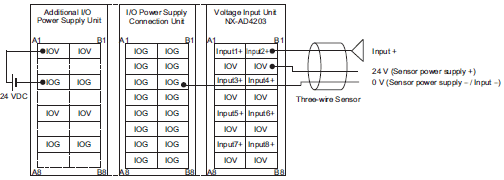

Terminal connection
diagram
3187_sp_17_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 8 points NX-AD4204

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD4204
Number of points8 pointsExternal connection
terminals
Screwless clamping terminal block
(16 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_18_1
Input methodDifferential Input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance85 Ω
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.2% (full scale)
0 to 55℃±0.4% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.40 W max.
• Connected to a Communi-
cations Coupler Unit
1.05 W max.
I/O current
consumption
No consumption
Weight70 g max.

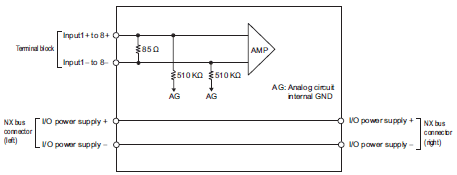

Circuit layout3187_sp_18_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
3187_sp_18_3
Input disconnection
detection
Supported.

Analog Input Unit (current input type) 8 points NX-AD4208

Unit nameAnalog Input Unit
(current input type)
ModelNX-AD4208
Number of points8 pointsExternal connection
terminals
Screwless clamping terminal block
(16 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_19_1
Input methodDifferential Input
Input range4 to 20 mA
Input conversion
range
-5 to 105% (full scale)
Absolute maximum
rating
±30 mA
Input impedance85 Ω
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.2% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
No supplyCurrent capacity of
I/O power supply
terminal
Without I/O power supply terminals
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.45 W max.
• Connected to a Communi-
cations Coupler Unit
1.10 W max.
I/O current
consumption
No consumption
Weight70 g max.

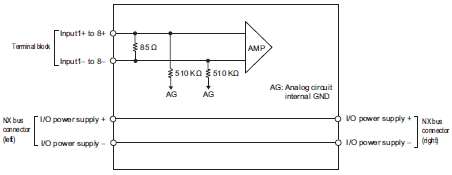

Circuit layout3187_sp_19_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
3187_sp_19_3
Input disconnection
detection
Supported.

Analog Output Unit Specifications

Analog Output Unit (voltage output type) 2 points NX-DA2603

Unit nameAnalog Output Unit
(voltage output type)
ModelNX-DA2603
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_20_1
Output range-10 to +10 V
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
5 kΩ min.
Output impedance0.5 Ω max.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.3% (full scale)
0 to 55℃±0.5% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.40 W max.
• Connected to a Communi-
cations Coupler Unit
1.10 W max.
I/O current
consumption
No consumption
Weight70 g max.

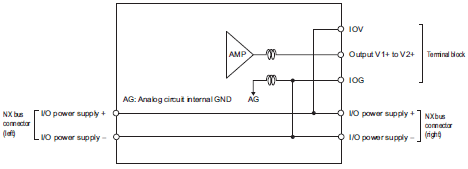

Circuit layout3187_sp_20_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

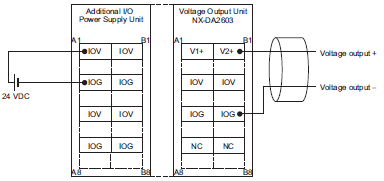

Terminal connection
diagram
3187_sp_20_3

Analog Output Unit (voltage output type) 2 points NX-DA2605

Unit nameAnalog Output Unit
(voltage output type)
ModelNX-DA2605
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_21_1
Output range-10 to +10 V
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
5 kΩ min.
Output impedance0.5 Ω max.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.3% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.40 W max.
• Connected to a Communi-
cations Coupler Unit
1.10 W max.
I/O current
consumption
No consumption
Weight70 g max.

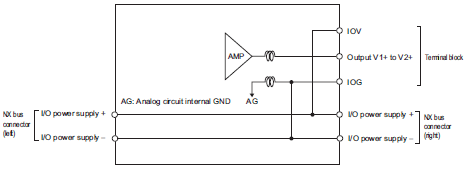

Circuit layout3187_sp_21_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

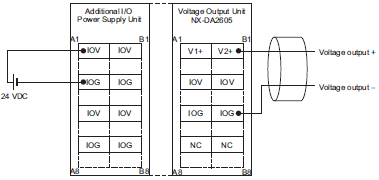

Terminal connection
diagram
3187_sp_21_3

Analog Output Unit (voltage output type) 4 points NX-DA3603

Unit nameAnalog Output Unit
(voltage output type)
ModelNX-DA3603
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_22_1
Output range-10 to +10 V
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
5 kΩ min.
Output impedance0.5 Ω max.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.3% (full scale)
0 to 55℃±0.5% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.35 W max.
• Connected to a Communi-
cations Coupler Unit
1.25 W max.
I/O current
consumption
No consumption
Weight70 g max.
Circuit layout3187_sp_22_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

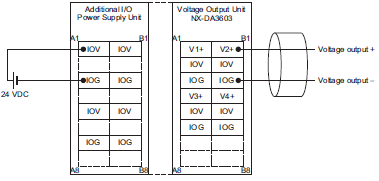

Terminal connection
diagram
3187_sp_22_3

Analog Output Unit (voltage output type) 4 points NX-DA3605

Unit nameAnalog Output Unit
(voltage output type)
ModelNX-DA3605
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_23_1
Output range-10 to +10 V
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
5 kΩ min.
Output impedance0.5 Ω max.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.3% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
1.60 W max.
• Connected to a Communi-
cations Coupler Unit
1.25 W max.
I/O current
consumption
No consumption
Weight70 g max.
Circuit layout3187_sp_23_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions

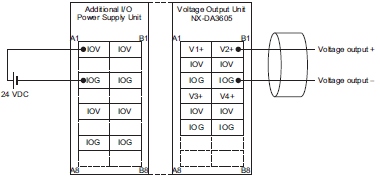

Terminal connection
diagram
3187_sp_23_3

Analog Output Unit (current output type) 2 points NX-DA2203

Unit nameAnalog Output Unit
(current output type)
ModelNX-DA2203
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_24_1
Output range4 to 20 mA
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
600 Ω min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.3% (full scale)
0 to 55℃±0.6% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
2.10 W max.
• Connected to a Communi-
cations Coupler Unit
1.75 W max.
I/O current
consumption
No consumption
Weight70 g max.

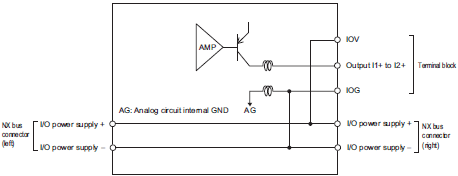

Circuit layout3187_sp_24_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions:
For upright installation: No restrictions
For any installation other than upright: Restricted as shown in the graph below.
3187_sp_24_3

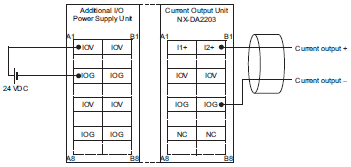

Terminal connection
diagram
3187_sp_24_4

Analog Output Unit (current output type) 2 points NX-DA2205

Unit nameAnalog Output Unit
(current output type)
ModelNX-DA2205
Number of points2 pointsExternal connection
terminals
Screwless clamping terminal block
(8 terminals)
I/O refreshing methodSelectable Synchronous I/O refreshing or Free-Run refreshing
IndicatorTS indicator
3187_sp_25_1
Output range4 to 20 mA
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
600 Ω min.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.3% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
2.10 W max.
• Connected to a Communi-
cations Coupler Unit
1.75 W max.
I/O current
consumption
No consumption
Weight70 g max.

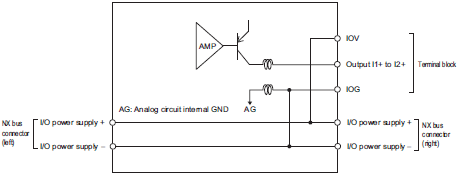

Circuit layout3187_sp_25_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions:
For upright installation: No restrictions
For any installation other than upright: Restricted as shown in the graph below.
3187_sp_25_3

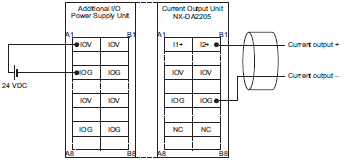

Terminal connection
diagram
3187_sp_25_4

Analog Output Unit (current output type) 4 points NX-DA3203

Unit nameAnalog Output Unit
(current output type)
ModelNX-DA3203
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_26_1
Output range4 to 20 mA
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
350 Ω min.
Resolution1/8000 (full scale)
Overall
accuracy
25℃±0.3% (full scale)
0 to 55℃±0.6% (full scale)
Conversion time250 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
2.10 W max.
• Connected to a Communi-
cations Coupler Unit
1.80 W max.
I/O current
consumption
No consumption
Weight70 g max.
Circuit layout3187_sp_26_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions:
For upright installation: No restrictions
For any installation other than upright: Restricted as shown in the graph below.

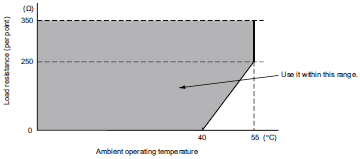

3187_sp_26_3

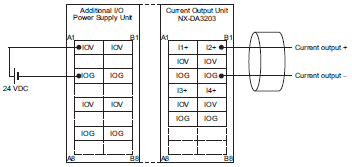

Terminal connection
diagram
3187_sp_26_4

Analog Output Unit (current output type) 4 points NX-DA3205

Unit nameAnalog Output Unit
(current output type)
ModelNX-DA3205
Number of points4 pointsExternal connection
terminals
Screwless clamping terminal block
(12 terminals)
I/O refreshing methodFree-Run refreshing
IndicatorTS indicator
3187_sp_27_1
Output range4 to 20 mA
Output conversion
range
-5 to 105% (full scale)
Allowable load
resistance
350 Ω min.
Resolution1/30000 (full scale)
Overall
accuracy
25℃±0.1% (full scale)
0 to 55℃±0.3% (full scale)
Conversion time10 μs/point
Dimensions12 (W) x 100 (H) x 71 (D)Isolation methodBetween the input and the NX bus:
Power = Transformer, Signal =
Digital isolator (no isolation between
inputs)
Insulation resistance20 MΩ min. between isolated
circuits (at 100 VDC)
Dielectric strength510 VAC between isolated circuits
for 1 minute at a leakage current of
5 mA max.
I/O power supply
method
Supply from the NX busCurrent capacity of
I/O power supply
terminal
IOV: 0.1 A/terminal max.,
IOG: 0.1 A/terminal max.
NX Unit power
consumption
• Connected to a CPU Unit or
Communication Control Unit
2.10 W max.
• Connected to a Communi-
cations Coupler Unit
1.80 W max.
I/O current
consumption
No consumption
Weight70 g max.

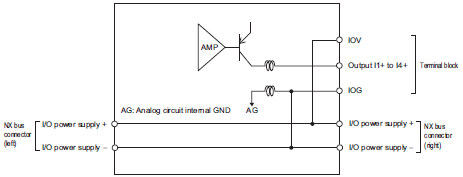

Circuit layout3187_sp_27_2
Installation orientation
and restrictions
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions:
For upright installation: No restrictions
For any installation other than upright: Restricted as shown in the graph below.
3187_sp_27_3
Terminal connection
diagram
3187_sp_27_4

Version Information

Connected to a CPU Unit

Refer to the user's manual for the CPU Unit details on the CPU Units to which NX Units can be connected.

NX UnitsCorresponding unit versions/versions
ModelUnit versionCPU UnitSysmac Studio
NX-AD[][][][]
NX-DA[][][][]
Ver.1.0Ver.1.13Ver.1.17

Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version,
         support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the
         specific Units for the relation between models and versions.

Connected to an EtherCAT Coupler Unit

NX UnitsCorresponding unit versions/versions
ModelUnit versionEtherCAT Coupler UnitCPU Unit or Industrial PCSysmac Studio
NX-AD[][][][]
NX-DA[][][][]
Ver.1.0Ver.1.0Ver.1.05Ver.1.06

Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version,
         support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the
         specific Units for the relation between models and versions.

Connected to an EtherNet/IP Coupler Unit

NX UnitsCorresponding unit versions/versions
ModelUnit
version
Application with an NJ/NX/NY-series
Controller *1
Application with a CS/CJ/CP-series
PLC *2
EtherNet/IP
Coupler Unit
CPU Unit or
Industrial PC
Sysmac
Studio
EtherNet/IP
Coupler Unit
Sysmac
Studio
NX-IO
Configurator *3
NX-AD[][][][]
NX-DA[][][][]
Ver.1.0Ver. 1.2Ver. 1.14Ver. 1.19Ver. 1.0Ver. 1.10Ver. 1.00

Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version,
         support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the
         specific Units for the relation between models and versions.
*1 Refer to the user’s manual for the EtherNet/IP Coupler Units for information on the unit versions of EtherNet/IP Units
     that are compatible with EtherNet/IP Coupler Units.
*2 Refer to the user’s manual for the EtherNet/IP Coupler Units for information on the unit versions of CPU Units and
     EtherNet/IP Units that are compatible with EtherNet/IP Coupler Units.
*3 For connection to an EtherNet/IP Coupler Unit with unit version 1.0, connection is supported only for a connection to the
     peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect by any other path. If you need to connect by
     another path, use an EtherNet/IP Coupler Unit with unit version 1.2 or later.

Connected to Communication Control Units

NX UnitsCorresponding unit versions/versions
ModelUnit versionCommunication Control UnitSysmac Studio
NX-AD[][][][]
NX-DA[][][][]
Ver.1.0Ver.1.00Ver.1.24

Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version,
         support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the
         specific Units for the relation between models and versions.


OMRON NX-AD / DA lineup

NX-AD / DA NX-series Analog I/O Unit/Lineup

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

Analog Input Units

Product
name
SpecificationModel
Num-
ber
of
points
Input
range
Reso-
lution
Conver-
sion
value,
decimal
number
(0 to
100%)
Over all
accuracy
(25°C)
Input
method
Con-
ver-
sion
time
Input
impe-
dance
I/O
refre-
shing
method
Voltage
Input
type
3187_lu_1_1
2
points
-10 to
+10 V
1/8000-4000 to
4000
±0.2%
(full
scale)
Single-
ended input
250
μs/
point
1 MΩ
min.
Free-Run
refreshing
NX-AD2603
Differential
Input
NX-AD2604
1/30000-15000
to 15000
±0.1%
(full
scale)
Differential
Input
10
μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-AD2608
4
points
1/8000-4000 to
4000
±0.2%
(full
scale)
Single-
ended input
250
μs/
point
Free-Run
refreshing
NX-AD3603
Differential
Input
NX-AD3604
1/30000-15000
to 15000
±0.1%
(full
scale)
Differential
Input
10
μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-AD3608
8
points
1/8000-4000 to
4000
±0.2%
(full
scale)
Single-
ended input
250
μs/
point
Free-Run
refreshing
NX-AD4603
Differential
Input
NX-AD4604
1/30000-15000
to 15000
±0.1%
(full
scale)
Differential
Input
10
μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-AD4608
Current
Input
type
3187_lu_1_2
2
points
4 to
20 mA
1/80000 to 8000±0.2%
(full
scale)
Single-
ended input
250
μs/
point
250 ΩFree-Run
refreshing
NX-AD2203
Differential
Input
NX-AD2204
1/300000 to
30000
±0.1%
(full
scale)
Differential
Input
10
μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-AD2208
4
points
1/80000 to 8000±0.2%
(full
scale)
Single-
ended input
250
μs/
point
Free-Run
refreshing
NX-AD3203
Differential
Input
NX-AD3204
1/300000 to
30000
±0.1%
(full
scale)
Differential
Input
10
μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-AD3208
8
points
1/80000 to 8000±0.2%
(full
scale)
Single-
ended input
250
μs/
point
85 ΩFree-Run
refreshing
NX-AD4203
Differential
Input
NX-AD4204
1/300000 to
30000
±0.1%
(full
scale)
Differential
Input
10
μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-AD4208

Analog Output Units

Product
name
SpecificationModel
Num-
ber
of
points
Output
range
Reso-
lution
Output setting
value, decimal
number
(0 to 100%)
Over all
accuracy
(25°C)
Con-
version
time
I/O
refreshing
method
Voltage
Output
type
3187_lu_2_1
2
points
-10 to
+10V
1/8000-4000 to 4000±0.3%
(full scale)
250 μs/
point
Free-Run
refreshing
NX-DA2603
1/30000-15000 to
15000
±0.1%
(full scale)
10 μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-DA2605
4
points
1/8000-4000 to 4000±0.3%
(full scale)
250 μs/
point
Free-Run
refreshing
NX-DA3603
1/30000-15000 to
15000
±0.1%
(full scale)
10 μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-DA3605
Current
Output
type
3187_lu_2_2
2
points
4 to
20 mA
1/80000 to 8000±0.3%
(full scale)
250 μs/
point
Free-Run
refreshing
NX-DA2203
1/300000 to 30000±0.1%
(full scale)
10 μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-DA2205
4
points
1/80000 to 8000±0.3%
(full scale)
250 μs/
point
Free-Run
refreshing
NX-DA3203
1/300000 to 30000±0.1%
(full scale)
10 μs/
point
Selectable
Synchronous
I/O refreshing
or Free-Run
refreshing
NX-DA3205

Optional Products

Product nameSpecificationModel
Unit/Terminal Block Coding PinsFor 10 Units (Terminal Block: 30 pins, Unit: 30 pins)NX-AUX02

Product nameSpecificationModel
No. of terminalsTerminal number
indications
Ground terminal
mark
Terminal current
capacity
Terminal Block8A/BNone10 ANX-TBA082
12NX-TBA122
16NX-TBA162

Accessories

Not included.


OMRON NX-AD / DA dimension

NX-AD / DA NX-series Analog I/O Unit/Dimensions

(Unit: mm)

Screwless Clamping Terminal Block Type

12 mm Width

NX-AD / DA Dimensions 2

* The dimension is 1.35 mm for Units with lot numbers through December 2014.


OMRON NX-AD / DA catalog

NX-AD / DA NX-series Analog I/O Unit/Catalog

  • Catalog
  • Manual
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size]
Last Update
NX-AD/DA Data Sheet -
[5946KB]
Aug 01, 201820180801 NX-AD/DA Data Sheet
NX-series I/O System Catalog R183-E1-09
[6683KB]
Nov 01, 201820181101 NX-series I/O System Catalog


Return to OMRON
