OMRON TL-N / -Q lineup
TL-N / -Q Rectangular Standard Proximity Sensor/Lineup
last update: May 10, 2017
Sensors
DC 2-Wire Models

Appearance Sensing distance Model
Operation mode
NO NC
Unshielded
17 × 17 5 mm TL-Q5MD1 2M *1 *2 TL-Q5MD2 2M *1
25 × 25 7 mm TL-N7MD1 2M *1 TL-N7MD2 2M *1
30 × 30 12 mm TL-N12MD1 2M *1 TL-N12MD2 2M *1
40 × 40 20 mm TL-N20MD1 2M *1 TL-N20MD2 2M *1

*1. Models with a different frequency are available to prevent mutual interference. The model numbers are TL-N[]MD[]5 and
TTL-Q5MD[]5 (e.g., TL-N7MD15).
*2. Models are also available with robotics (bend resistant) cables . Add “-R” to the model number. (e.g., TL-Q5MD1-R 2M)

DC 3-Wire and AC 2-Wire Models

Appearance Sensing distance Output configuration Model
Operation mode
NO NC
Unshielded
8 × 9 2 mm DC 3-wire, NPN TL-Q2MC1 2M --
17 × 17 5 mm TL-Q5MC1 2M *1 *2 TL-Q5MC2 2M
DC 3-wire, PNP TL-Q5MB1 2M —
25 × 25 5 mm DC 3-wire, NPN TL-N5ME1 2M *1 *2 TL-N5ME2 2M *1
AC 2-wire TL-N5MY1 2M *1 TL-N5MY2 2M *1
30 × 30 10 mm DC 3-wire, NPN TL-N10ME1 2M *1 *2 TL-N10ME2 2M *1
DC 3-wire, PNP TL-N10MF1 2M *1 —
AC 2-wire TL-N10MY1 2M *1 TL-N10MY2 2M *1
40 × 40 20 mm DC 3-wire, NPN TL-N20ME1 2M *1 *2 TL-N20ME2 2M *1
AC 2-wire TL-N20MY1 2M *1 TL-N20MY2 2M *1

*1. Models with a different frequency are available to prevent mutual interference. The model numbers are TL-[][]M[][]5
(e.g., TL-N5ME15).
*2. Models are also available with robotics (bend resistant) cables . Add “-R” to the model number. (e.g., TL-Q5MC1-R 2M)

Accessories (Order Separately)
Mounting Brackets

A Mounting Bracket is provided with the Sensor depending on the model number. Check the column for the applicable Sensor.

Type Model Applicable Sensors
Provided with these Sensors Order separately
Mounting Brackets Y92E-C5 TL-N5ME[], TL-N7MD[] TL-N5MY[]
Y92E-C10 TL-N10ME[], TL-N12MD[],
TL-N10MF1[] TL-N10MY[]
Y92E-C20 TL-N20ME[], TL-N20MD[] TL-N20MY[]
Mounting Brackets for Conduits Y92E-N5C15 --- TL-N5ME[], TL-N5MY[]
Y92E-N10C15 --- TL-N10ME[], TL-N10MY[]

last update: May 10, 2017

OMRON TL-N / -Q catalog
TL-N / -Q Rectangular Standard Proximity Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

TL-N/-Q Data Sheet -
[1195KB] Jul 19, 201720170719 TL-N/-Q Data Sheet

OMRON TL-N / -Q specification
TL-N / -Q Rectangular Standard Proximity Sensor/Specifications
last update: May 10, 2017
DC 2-Wire Models

Model TL-Q5MD[] TL-N7MD[] TL-N12MD[] TL-N20MD[]
Sensing distance 5 mm ±10% 7 mm ±10% 12 mm ±10% 20 mm ±10%
Set distance 0 to 4 mm 0 to 5.6 mm 0 to 9.6 mm 0 to 16 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron, 18 × 18 ×
1 mm Iron, 30 × 30 ×
1 mm Iron, 40 × 40 ×
1 mm Iron, 50 × 50 ×
1 mm
Response frequency * 500 Hz 300 Hz
Power supply voltage
(operating voltage range) 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current 0.8 mA max.
Control
output Load current 3 to 100 mA
Residual
voltage 3.3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators D1 Models: Operation indicator (red), Setting indicator (green)
D2 Models: Operation indicator (red)
Operation mode (with
sensing object approaching) D1 Models: NO, D2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits Load short-circuit protection, Surge suppressor
Ambient temperature range Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC for 1 min between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500
m/s² 3 times
each in X, Y,
and Z directions Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant
Connection method Pre-wired Models (Standard cable length: 2 m)
Weight (packed state) Approx. 85 g Approx. 165 g Approx. 235 g Approx. 330 g
Materials Case Heat-resistant ABS
Sensing
surface
Accessories Instruction manual Mounting Bracket,
Mounting phillips
screws (M4 × 25),
Instruction manual Mounting Bracket,
Mounting phillips
screws (M4 × 30),
Instruction manual Mounting Bracket,
Mounting phillips
screws (M5 × 40),
Instruction manual

* The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and
a set distance of half the sensing distance.

DC 3-Wire Models

Model TL-Q2MC1 TL-Q5MC[]/TL-Q5MB1
Sensing distance 2 mm ±15% 5 mm ±10%
Set distance 0 to 1.5 mm 0 to 4 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron, 8 × 8 × 1 mm Iron, 15 × 15 × 1 mm
Response time --- 2 ms max.
Response frequency * 500 Hz
Power supply voltage
(operating voltage range) 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption 15 mA max. at 24 VDC (no-load) 10 mA max. at 24 VDC
Control
output Load current NPN open collector
100 mA max. at 30 VDC max. TL-Q5MC[]:
NPN open collector,
50 mA max. at 30 VDC max.
TL-Q5MB[]:
PNP open collector,
50 mA max. at 30 VDC max.
Residual voltage 1 V max. (under load current of 100 mA with
cable length of 2 m) 1 V max. (under load current of 50 mA with
cable length of 2 m)
Indicators Detection indicator (red)
Operation mode (with
sensing object approaching) NO B1/C1 Models: NO
C2 Models: NC
Refer to the timing charts under DC 3-Wire Models on Catalog for details.
Protection circuits Reverse polarity protection, Surge suppressor
Ambient temperature range Operating/Storage: -10 to 60°C
(with no icing or condensation) Operating/Storage: -25 to 70°C
(with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in
the temperature range of -10 to 60°C ±20% max. of sensing distance at 23°C in
the temperature range of -25 to 70°C
Voltage influence ±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-
carrying parts and case 5 MΩ min. (at 500 VDC) between current-
carrying parts and case
Dielectric strength 1,000 VAC for 1 min between current-
carrying parts and case 500 VAC, 50/60 Hz for 1 min between
current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 1,000 m/s² 10 times each in X,
Y, and Z directions Destruction: 200 m/s² 10 times each in X,
Y, and Z directions
Degree of protection IEC 60529 IP67,
in-house standards: oil-resistant IEC IP67
Connection method Pre-wired Models (Standard cable length: 2 m)
Weight (packed state) Approx. 60 g Approx. 90 g
Materials Case Heat-resistant ABS
Sensing surface
Accessories Instruction manual ---

* The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
distance of twice the standard sensing object, and a set distance of half the sensing distance.

Model TL-N5ME[]
TL-N5MY[] TL-N10ME[]
TL-N10MY[]
TL-N10MF1 TL-N20ME[]
TL-N20MY[]
Sensing distance 5 mm ±10% 10 mm ±10% 20 mm ±10%
Set distance 0 to 4 mm 0 to 8 mm 0 to 16 mm
Differential travel 15% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron, 30 × 30 × 1 mm Iron, 40 × 40 × 1 mm Iron, 50 × 50 × 1 mm
Response frequency *1 E/F Models: 500 Hz
Y Models: 10 Hz E Models: 40 Hz
Y Models: 10 Hz
Power supply voltage *2
(operating voltage range) E/F Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Y Models: 100 to 220 VAC (90 to 250 VAC), 50/60 Hz
Current consumption E/F Models: 8 mA max. at 12 VDC, 15 mA max. at 24 VDC
Leakage current Y Models: Refer to Engineering Data on Catalog.
Control
output Load current E/F Models: 100 mA max. at 12 VDC, 200 mA max. at 24 VDC
Y Models: 10 to 200 mA
Residual voltage E/F Models: 1 V max. (load current: 200 mA)
Y Models: Refer to Engineering Data on Catalog.
Indicators E/F Models: Detection indicator (red)
Y Models: Operation indicator (red)
Operation mode (with
sensing object approaching) E1/F1/Y1 Models: NO
E2/Y2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams onCatalog for details.
Protection circuits E Models: Reverse polarity protection, Surge suppressor
Y Models: Surge suppressor
Ambient temperature range Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence E/F Models:
±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range
Y Models:
±1% max. of sensing distance at rated voltage in rated voltage ±10% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength E/F Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Y Models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 500 m/s² 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant
Connection method Pre-wired Models (Standard cable length: 2 m)
Weight (packed state) Approx. 190 g Approx. 240 g Approx. 340 g
Materials Case Heat-resistant ABS
Sensing surface
Accessories E Models:
Mounting Bracket,
Mounting phillips
screws (M4 × 25),
Instruction manual
Y Models:
Instruction manual E/F Models:
Mounting Bracket,
Mounting phillips
screws (M4 × 30),
Instruction manual
Y Models:
Instruction manual E Models:
Mounting Bracket,
Mounting phillips
screws (M5 × 40),
Instruction manual
Y Models:
Instruction manual

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. E Models (DC switching models): A full-wave rectification power supply of 24 VDC ±10% (average value) can be used.

last update: May 10, 2017

OMRON TL-N / -Q dimension
TL-N / -Q Rectangular Standard Proximity Sensor/Dimensions
last update: July 19, 2017

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

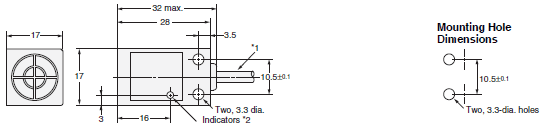

TL-Q2MC1

* 2.9-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.15 mm², Insulator diameter: 0.9 mm), Standard length: 2 m

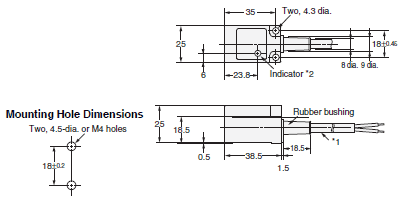

TL-Q5M[][]

*1. B/C Models: 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2 mm²,
Insulator diameter: 1.2 mm), Standard length: 2 m
D Models: 4-dia. vinyl-insulated round cable with 2 conductors (Conductor cross section: 0.3 mm²,
Insulator diameter: 1.3 mm), Standard length: 2 m
*2. B/C Models: Detection indicator (red)
D Models: Operation indicator (red), Setting indicator (green)

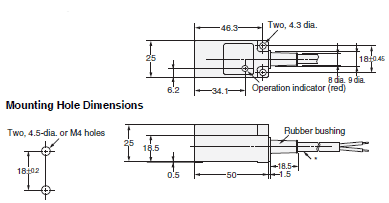

TL-N7MD[], TL-N5ME[]

*1. D Models: 6-dia. vinyl-insulated round cable with 2 conductors (Conductor cross section: 0.5 mm²,
Insulator diameter: 1.9 mm), Standard length: 2 m
E Models: 6-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.5 mm²,
Insulator diameter: 1.9 mm), Standard length: 2 m
*2. D1 Models: Operation indicator (red), Setting indicator (green)
D2 Models: Operation indicator (red)
E Models: Detection indicator (red)

TL-N5MY[]

* 6-dia. vinyl-insulated round cable with 2 conductors
(Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m

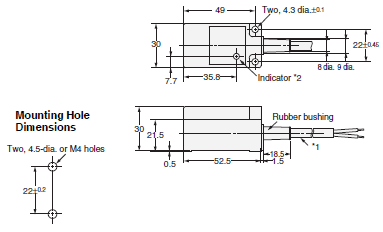

TL-N12MD[], TL-N10ME[], TL-N10MY[]

*1. D/Y Models: 6-dia. vinyl-insulated round cable with 2 conductors
(Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
E/Y Models: 6-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
*2. D1 Models: Operation indicator (red) and Setting indicator (green)
D2 Models: Operation indicator (red)
E/Y Models: Detection indicator (red)
Y Models: Operation indicator (red)

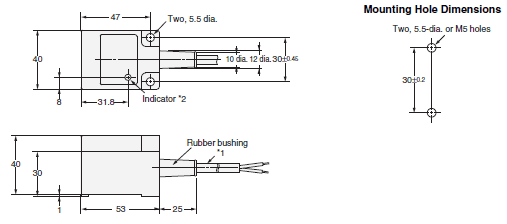

TL-N20MD[], TL-N20ME[], TL-N20MY[]

*1. D/Y Models: 6-dia. vinyl-insulated round cable with 2 conductors
(Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
E Models: 6-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
*2. D1 Models: Operation indicator (red) and Setting indicator (green)
D2 Models: Operation indicator (red)
E Models: Detection indicator (red)
Y Models: Operation indicator (red)

Accessories (Order Separately)
Mounting Bracket
Y92E-C5

Applicable Models: TL-N5ME[] *2
Applicable Models: TL-N5MY[]
Applicable Models: TL-N7MD[] *2
Material: Mounting Bracket: Zinc-plated iron
Mounting Pan-head Phillips Screws: Nickel-plated iron (Size: M4, Length: 25 mm)

Y92E-C10

Applicable Models: TL-N10ME[] *2
Applicable Models: TL-N10MY[]
Applicable Models: TL-N12MD[] *2
Material: Mounting Bracket: Zinc-plated iron
Mounting Pan-head Phillips Screws: Nickel-plated iron (Size: M4, Length: 30 mm)

Y92E-C20

Applicable Models: TL-N20ME[] *2
Applicable Models: TL-N20MY[]
Applicable Models: TL-N20MD[] *2
Material: Mounting Bracket: Zinc-plated iron
Mounting Pan-head Phillips Screws: Nickel-plated iron (Size: M5, Length: 40 mm)

*1. These are the mounting dimensions of the base of the Mounting Bracket.
*2. Provided with the product.

Mounting Brackets for Wiring Conduit Use (Sold Separately)
Y92E-N5C15

Applicable Models: TL-N5ME[]Applicable Models: TL-N5MY[]Applicable Models: TL-N7MD[]Material: Zinc-plated iron

Y92E-N10C15

Applicable Models: TL-N10ME[]Applicable Models: TL-N10MY[]Applicable Models: TL-N12MD[]Material: Zinc-plated iron

last update: July 19, 2017

NO. TL-N / -Q

TYPE:Proximity Sensors Rectangular Copyright Statement

DATE:2021-06-13

Associated products:
TL-W Flat Inductive Proximity Sensor/Features E2NC Smart Proximity Sensor/Features

Appearance	Sensing distance	Model
Operation mode
NO	NC
Unshielded	17 × 17	5 mm	*TL-Q5MD1 2M 1 2*	*TL-Q5MD2 2M 1**
25 × 25	7 mm	*TL-N7MD1 2M 1**	*TL-N7MD2 2M 1**
30 × 30	12 mm	*TL-N12MD1 2M 1**	*TL-N12MD2 2M 1**
40 × 40	20 mm	*TL-N20MD1 2M 1**	*TL-N20MD2 2M 1**

Appearance	Sensing distance	Output configuration	Model
Operation mode
NO	NC
Unshielded	8 × 9	2 mm	DC 3-wire, NPN	TL-Q2MC1 2M	--
17 × 17	5 mm	*TL-Q5MC1 2M 1 2*	TL-Q5MC2 2M
DC 3-wire, PNP	TL-Q5MB1 2M	—
25 × 25	5 mm	DC 3-wire, NPN	*TL-N5ME1 2M 1 2*	*TL-N5ME2 2M 1**
AC 2-wire	*TL-N5MY1 2M 1**	*TL-N5MY2 2M 1**
30 × 30	10 mm	DC 3-wire, NPN	*TL-N10ME1 2M 1 2*	*TL-N10ME2 2M 1**
DC 3-wire, PNP	*TL-N10MF1 2M 1**	—
AC 2-wire	*TL-N10MY1 2M 1**	*TL-N10MY2 2M 1**
40 × 40	20 mm	DC 3-wire, NPN	*TL-N20ME1 2M 1 2*	*TL-N20ME2 2M 1**
AC 2-wire	*TL-N20MY1 2M 1**	*TL-N20MY2 2M 1**

Type	Model	Applicable Sensors
Provided with these Sensors	Order separately
Mounting Brackets	Y92E-C5	TL-N5ME[], TL-N7MD[]	TL-N5MY[]
Y92E-C10	TL-N10ME[], TL-N12MD[], TL-N10MF1[]	TL-N10MY[]
Y92E-C20	TL-N20ME[], TL-N20MD[]	TL-N20MY[]
Mounting Brackets for Conduits	Y92E-N5C15	---	TL-N5ME[], TL-N5MY[]
Y92E-N10C15	---	TL-N10ME[], TL-N10MY[]

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
TL-N/-Q Data Sheet	- [1195KB]	Jul 19, 201720170719	TL-N/-Q Data Sheet

Model	TL-Q5MD[]	TL-N7MD[]	TL-N12MD[]	TL-N20MD[]
Sensing distance	5 mm ±10%	7 mm ±10%	12 mm ±10%	20 mm ±10%
Set distance	0 to 4 mm	0 to 5.6 mm	0 to 9.6 mm	0 to 16 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 40 × 40 × 1 mm	Iron, 50 × 50 × 1 mm
Response frequency *	500 Hz	300 Hz
Power supply voltage (operating voltage range)	12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current	0.8 mA max.
Control output	Load current	3 to 100 mA
Residual voltage	3.3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators	D1 Models: Operation indicator (red), Setting indicator (green) D2 Models: Operation indicator (red)
Operation mode (with sensing object approaching)	D1 Models: NO, D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits	Load short-circuit protection, Surge suppressor
Ambient temperature range	Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y, and Z directions	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67, in-house standards: oil-resistant
Connection method	Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)	Approx. 85 g	Approx. 165 g	Approx. 235 g	Approx. 330 g
Materials	Case	Heat-resistant ABS
Sensing surface
Accessories	Instruction manual	Mounting Bracket, Mounting phillips screws (M4 × 25), Instruction manual	Mounting Bracket, Mounting phillips screws (M4 × 30), Instruction manual	Mounting Bracket, Mounting phillips screws (M5 × 40), Instruction manual

Model	TL-Q2MC1	TL-Q5MC[]/TL-Q5MB1
Sensing distance	2 mm ±15%	5 mm ±10%
Set distance	0 to 1.5 mm	0 to 4 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 8 × 8 × 1 mm	Iron, 15 × 15 × 1 mm
Response time	---	2 ms max.
Response frequency *	500 Hz
Power supply voltage (operating voltage range)	12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption	15 mA max. at 24 VDC (no-load)	10 mA max. at 24 VDC
Control output	Load current	NPN open collector 100 mA max. at 30 VDC max.	TL-Q5MC[]: NPN open collector, 50 mA max. at 30 VDC max. TL-Q5MB[]: PNP open collector, 50 mA max. at 30 VDC max.
Residual voltage	1 V max. (under load current of 100 mA with cable length of 2 m)	1 V max. (under load current of 50 mA with cable length of 2 m)
Indicators	Detection indicator (red)
Operation mode (with sensing object approaching)	NO	B1/C1 Models: NO C2 Models: NC
Refer to the timing charts under DC 3-Wire Models on Catalog for details.
Protection circuits	Reverse polarity protection, Surge suppressor
Ambient temperature range	Operating/Storage: -10 to 60°C (with no icing or condensation)	Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±10% max. of sensing distance at 23°C in the temperature range of -10 to 60°C	±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current- carrying parts and case	5 MΩ min. (at 500 VDC) between current- carrying parts and case
Dielectric strength	1,000 VAC for 1 min between current- carrying parts and case	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions	Destruction: 200 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67, in-house standards: oil-resistant	IEC IP67
Connection method	Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)	Approx. 60 g	Approx. 90 g
Materials	Case	Heat-resistant ABS
Sensing surface
Accessories	Instruction manual	---

Model	TL-N5ME[] TL-N5MY[]	TL-N10ME[] TL-N10MY[] TL-N10MF1	TL-N20ME[] TL-N20MY[]
Sensing distance	5 mm ±10%	10 mm ±10%	20 mm ±10%
Set distance	0 to 4 mm	0 to 8 mm	0 to 16 mm
Differential travel	15% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 30 × 30 × 1 mm	Iron, 40 × 40 × 1 mm	Iron, 50 × 50 × 1 mm
*Response frequency 1**	E/F Models: 500 Hz Y Models: 10 Hz	E Models: 40 Hz Y Models: 10 Hz
Power supply voltage *2 (operating voltage range)	E/F Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. Y Models: 100 to 220 VAC (90 to 250 VAC), 50/60 Hz
Current consumption	E/F Models: 8 mA max. at 12 VDC, 15 mA max. at 24 VDC
Leakage current	Y Models: Refer to Engineering Data on Catalog.
Control output	Load current	E/F Models: 100 mA max. at 12 VDC, 200 mA max. at 24 VDC Y Models: 10 to 200 mA
Residual voltage	E/F Models: 1 V max. (load current: 200 mA) Y Models: Refer to Engineering Data on Catalog.
Indicators	E/F Models: Detection indicator (red) Y Models: Operation indicator (red)
Operation mode (with sensing object approaching)	E1/F1/Y1 Models: NO E2/Y2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams onCatalog for details.
Protection circuits	E Models: Reverse polarity protection, Surge suppressor Y Models: Surge suppressor
Ambient temperature range	Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	E/F Models: ±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range Y Models: ±1% max. of sensing distance at rated voltage in rated voltage ±10% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	E/F Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67, in-house standards: oil-resistant
Connection method	Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)	Approx. 190 g	Approx. 240 g	Approx. 340 g
Materials	Case	Heat-resistant ABS
Sensing surface
Accessories	E Models: Mounting Bracket, Mounting phillips screws (M4 × 25), Instruction manual Y Models: Instruction manual	E/F Models: Mounting Bracket, Mounting phillips screws (M4 × 30), Instruction manual Y Models: Instruction manual	E Models: Mounting Bracket, Mounting phillips screws (M5 × 40), Instruction manual Y Models: Instruction manual

Return to OMRON
