OMRON XW2E Dimensions
/Images/l_867-25-119067-198x198.jpglast update: December 19, 2013
• For 16 inputs only.
• The three-tiered terminal block simplifies wiring because the power supply terminal block is wired with just one crimp terminal.
last update: December 19, 2013
Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following
If you have just landed here, this product OMRON XW2E Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2E We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2EPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NX701-[][][][] NX-Series NX701 CPU Units/Features
NJ501-5300 NJ-series NC Integrated Controller/Features
ZX-E Smart Sensors (Inductive Displacement Type)/Features
G9SX-GS Safety Guard Switching Unit/Features
Hornet 565 Parallel Robots/Features

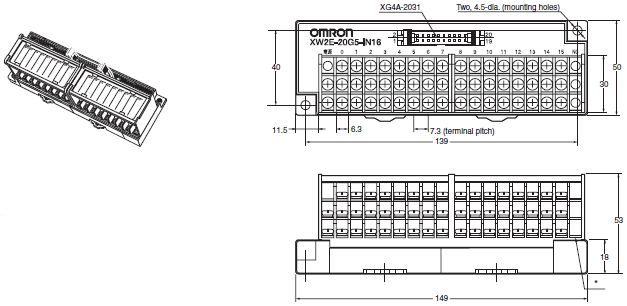

OMRON XW2E dimension
XW2E Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common/Dimensionslast update: November 12, 2012
XW2E-20G5-IN16
* This is not a row of terminals.
last update: November 12, 2012
OMRON XW2E specification
XW2E Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common/Specificationslast update: September 24, 2012
| Rated current | 1 A |
|---|---|
| Rated voltage | 12 to 24 VDC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) |
| Ambient operating temperature | 0 to 55 ° C |
last update: September 24, 2012
OMRON XW2E catalog
XW2E Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW2E Data Sheet | - [344KB] | Nov 26, 200820081126 | XW2E Data Sheet |
OMRON XW2E lineup
XW2E Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common/Lineuplast update: September 24, 2012
Connector-Terminal Block Conversion Unit
| No. of inputs | No. of poles | Model | Mounted Connector model | Cable Connector model |
|---|---|---|---|---|
| 16 | 20 | XW2E-20G5-IN16 | XG4A-2031 | XG4M-2030-T |
last update: September 24, 2012
