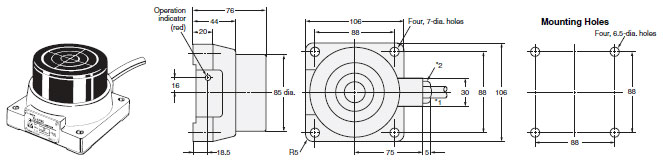

OMRON TL-LP / LY dimension

last update: November 12, 2012

Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.

TL-LP50
TL-LY50

*1. Vinyl cabtire cable: TL-LP50: 9.4-dia. vinyl-insulated round cable with 3 conductors
                                                           (Conductor cross section: 0.75 mm², Insulator diameter: 2.8 mm), Standard length: 1 m
                                        TL-LY50: 9.0-dia. vinyl-insulated round cable with 2 conductors
                                                           (Conductor cross section: 0.75 mm², Insulator diameter: 2.8 mm), Standard length: 1 m
*2. Remove the hexagon nut if a PF1/2 cable protective tube is applied.

last update: November 12, 2012

OMRON TL-LP / LY specification

last update: September 24, 2012

Model		TL-LP50	TL-LY50
Sensing distance		50 mm ± 10%
Set distance		0 to 40 mm
Differential travel		10% max. of sensing distance
Sensing object		Ferrous metals (The sensing distance decreases with non-ferrous metal. Refer to Datasheet.)
Standard sensing object		Iron, 100 × 100 × 1 mm
Response time		15 ms max.	25 ms max.
Power supply voltage (operating voltage range * )		12 to 24 VDC (10 to 30 VDC), ripple (p-p) 10% max.	100 to 220 VAC (90 to 250 VAC), 50/60 Hz
Current consumption		10 mA max. (with no load)	---
Leakage current		---	Refer to Datasheet.
Control output	Switching capacity	NPN open collector with a maximum current of 200 mA at 30 VDC	10 to 200 mA
	Residual voltage	3 V max. under a load current of 200 mA and a cable length of 2 m	Refer to Datasheet.
Indicators		Operation indicator (red)
Operation mode (with sensing object approaching)		NO. Refer to Datasheet.
Ambient temperature		Operating/Storage: - 25 to 70 ° C (with no icing or condensation)
Ambient humidity		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		± 10% max. of sensing distance at 23 ° C in the temperature range of - 25 to 70 ° C
Voltage influence		± 2% max. of sensing distance within a range of ±10% of rated power supply voltage
Insulation resistance		50 M Ω min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		500 VAC (50/60 Hz) for 1min between current- carrying parts and case	2,000 VAC (50/60 Hz) for 1 min between current- carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		1,000m/s2 10 times each in X, Y, and Z directions
Degree of protection		IEC IP67
Connection method		Pre-wired Models (Standard cable length: 1 m)
Weight (packed state)		Approx. 1.4 kg
Materials	Case	Die-cast aluminum
	Sensing surface	Polyester
Accessories		Instruction sheet

* Full-wave rectified power supplies with a mean output of 24 VDC ±10% are available for the TL-LP50.

last update: September 24, 2012

OMRON TL-LP / LY lineup

last update: July 08, 2015

Appearance	Sensing distance	Output configuration	Model
Column type (flat-surface mounting)	50 mm	3-wire DC (normally open)	TL-LP50 1M
		2-wire AC (normally open)	TL-LY50 1M

Note: Models with different frequencies are available. The model numbers are TL-L[]50B.

last update: July 08, 2015
