• The series includes Slave Units with a width of only 15 mm, the narrowest in the industry. Models with e-CON connectors boast a width of only 23 mm, making them the smallest in their class to save even more space.
• I/O interface wiring can be performed easily with either MIL connectors or e-CON connectors.
• Just make a few switch settings to complete Unit setup.
• Enhanced Smart functions in a slim body. Reduce your total cost of operation by collecting maintenance data by using only the Slave Unit.
last update: April 25, 2017
Purchase the OMRON CompoNet Please fill in the following
If you have just landed here, this product OMRON CRT1-VAD04[][] / VDA02[][] Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CRT1-VAD04[][] / VDA02[][] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CRT1-VAD04[][] / VDA02[][]Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CP1H CP series CP1H CPU Unit/Features
R87B Box Fan/Features
A22[] Knob-type Selector Switch (Cylindrical 22/25-dia.)/Features
H3DK-G Star-delta Timer/Features
M7E (14 mm) Digital Display (14 mm)/Features
OMRON CRT1-VAD04[][] / VDA02[][] lineup
CRT1-VAD04[][] / VDA02[][] Analog I/O Slave Units with MIL Connectors/e-CON Connectors/Lineuplast update: September 24, 2012
| Name | Specifications | Model | |
|---|---|---|---|
| Input/Output | Points | ||
| MIL Connector Type | Analog Inputs | 4 inputs | CRT1-VAD04ML |
| Analog Outputs | 2 outputs | CRT1-VDA02ML | |
| e-CON Connector Type | Analog Inputs | 4 inputs | CRT1-VAD04S |
| Analog Outputs | 2 outputs | CRT1-VDA02S | |
| Mounting Bracket | Unit with MIL Connectors | CRT1-ATT01 | |
| Unit with e-CON Connectors | CRT1-ATT02 | ||
last update: September 24, 2012
OMRON CRT1-VAD04[][] / VDA02[][] dimension
CRT1-VAD04[][] / VDA02[][] Analog I/O Slave Units with MIL Connectors/e-CON Connectors/Dimensionslast update: November 12, 2012

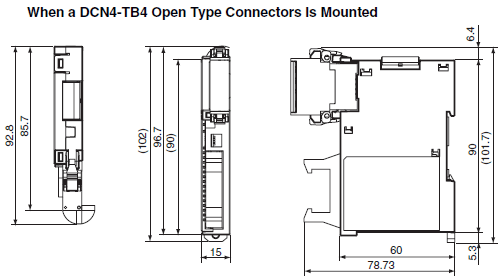

Four-point Analog Input Unit (with MIL Connectors)
CRT1-VAD04ML
![CRT1-VAD04[][] / VDA02[][] Dimensions 1](/images/8767/2042_dm_125-108858.gif)
Note: The numbers inside the parentheses are reference dimensions.

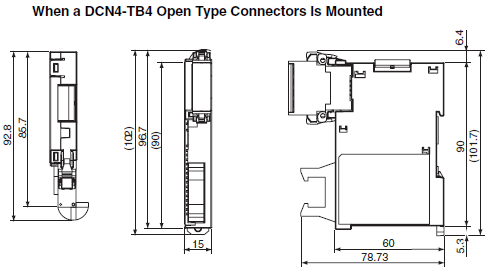

Two-point Analog Output Unit (with MIL Connectors)
CRT1-VDA02ML
![CRT1-VAD04[][] / VDA02[][] Dimensions 2](/images/8767/2042_dm_225-108859.gif)
Note: The numbers inside the parentheses are reference dimensions.

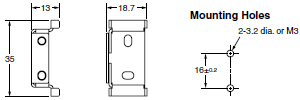

Mounting Bracket
CRT1-ATT01
![CRT1-VAD04[][] / VDA02[][] Dimensions 3](/images/8767/2042_dm_325-108861.gif)

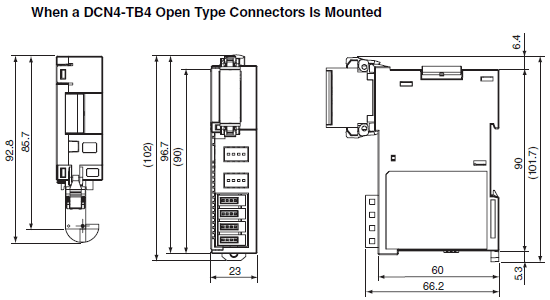

Four-point Analog Input Unit (with e-CON Connectors)
CRT1-VAD04S
![CRT1-VAD04[][] / VDA02[][] Dimensions 4](/images/8767/2042_dm_425-108863.gif)
Note: The numbers inside the parentheses are reference dimensions.

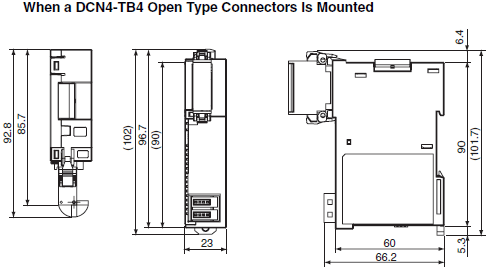

Two-point Analog Output Unit (with e-CON Connectors)
CRT1-VDA02S
![CRT1-VAD04[][] / VDA02[][] Dimensions 5](/images/8767/2042_dm_525-108864.gif)
Note: The numbers inside the parentheses are reference dimensions.

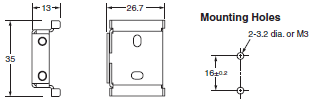

Mounting Bracket
