• Built-in connectors
• Select from four easy-to-use shapes for efficient space utilization.
• Connectors with locks for safety against vibration.
• Convenient mounting method using M3 screws.
• Wide operating voltage range: 5 to 24 VDC
last update: April 19, 2017
Purchase the OMRON Slot-type Please fill in the following
If you have just landed here, this product OMRON EE-SPX74 / SPX84 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SPX74 / SPX84 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SPX74 / SPX84Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
FLV Series Light Units/Features
EE-SX95 Ultra-compact Pre-wired Photomicrosensor (Non-modulated)/Features
HL-5000 General-purpose Limit Switch/Features
KM50-E Smart Power Monitor/Features
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Features
OMRON EE-SPX74 / SPX84 dimension

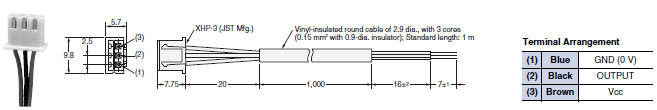

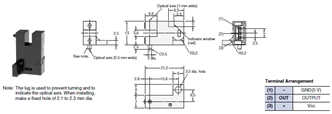

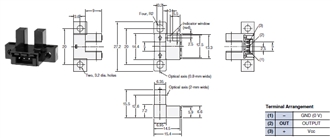

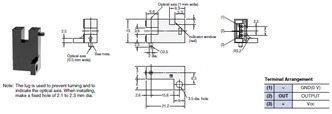

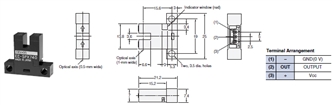

EE-SPX74 / SPX84 Slot-type Photomicrosensor with Connector (Modulated)/Dimensionslast update: October 12, 2012
