• Selectable Operation Key insertion direction and adjustable mounting ensure installation flexibility.

• Built-in switches with multiple-contact construction are available.

• Key holding force of 1,300 N minimum.

• Can be used for either standard loads or microloads.

• Lineup includes models with a conduit outlet of M20.

• IP67 degree of protection.

• Variety of Metallic Heads Available.

last update: February 7, 2018

Purchase the OMRON Guard Lock Safety-door Switches Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON D4NL Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D4NL We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D4NLSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZJ-FW Fan Ionizer (Area fan type)/Features
DZ Special-purpose Basic Switch/Features
A22NS / A22NW Selector Switches/Features
F3SR-B Safety Light Curtain/Features
M7E (25 mm) Digital Display (25 mm)/Features

OMRON D4NL dimension

D4NL Guard Lock Safety-door Switch/Dimensions

last update: February 7, 2018

(Unit: mm)

Switches

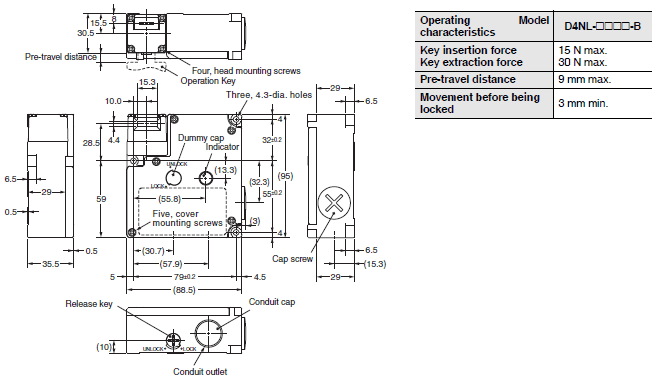

D4NL-[][][][]-B

D4NL Dimensions 2

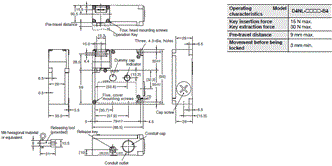

D4NL-[][][][]-B4

D4NL Dimensions 3

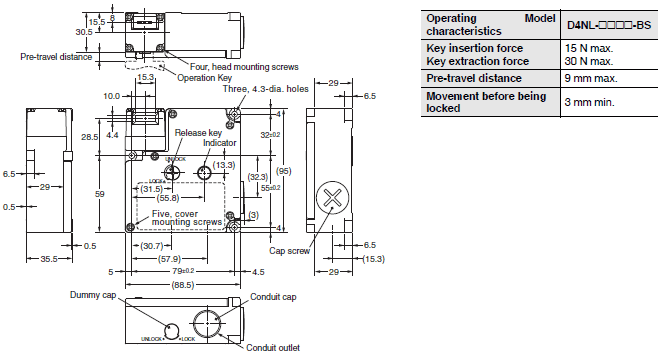

D4NL-[][][][]-BS

D4NL Dimensions 4

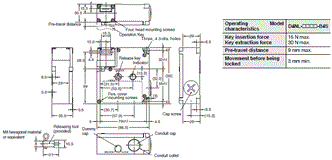

D4NL-[][][][]-B4S

D4NL Dimensions 5

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
           2. There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC).
                Confirm performance before application.

Operation Keys

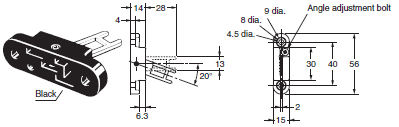

D4DS-K1

D4NL Dimensions 8

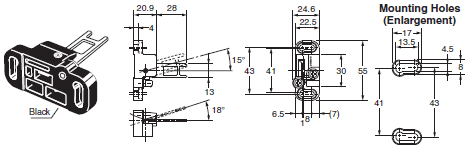

D4DS-K2

D4NL Dimensions 9

D4DS-K3

D4NL Dimensions 10

D4DS-K5

D4NL Dimensions 11

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

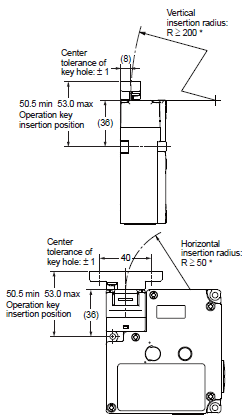

With Operation Key Inserted

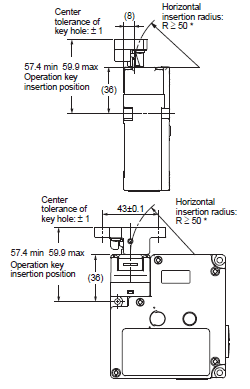

D4NL + D4DS-K1
(with Front-inserted Operation Key)

D4NL Dimensions 14

D4NL + D4DS-K1
(with Top-inserted Operation Key)

D4NL Dimensions 15

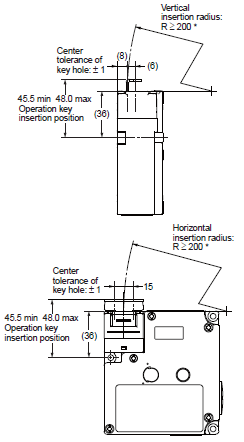

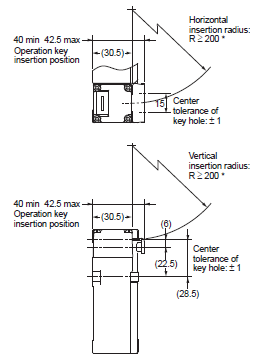

D4NL + D4DS-K2
(with Front-inserted Operation Key)

D4NL Dimensions 16

D4NL + D4DS-K2
(with Top-inserted Operation Key)

D4NL Dimensions 17

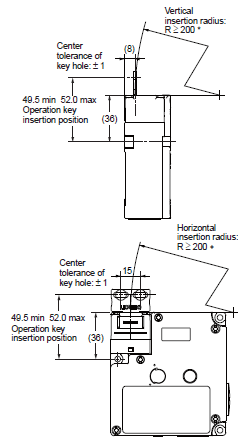

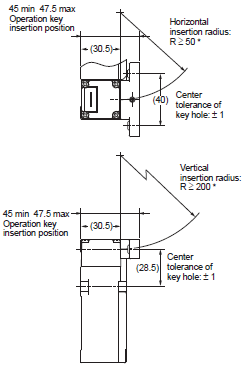

D4NL + D4DS-K3
(with Front-inserted Operation Key)

D4NL Dimensions 18

D4NL + D4DS-K3
(with Top-inserted Operation Key)

D4NL Dimensions 19

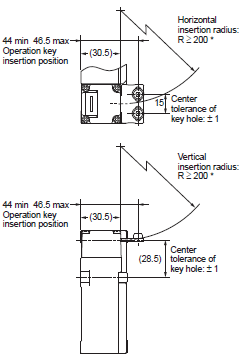

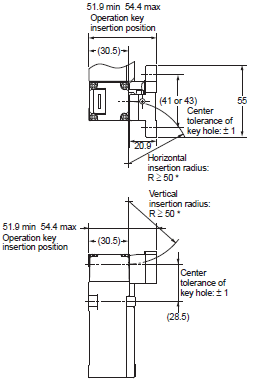

D4NL + D4DS-K5
(with Front-inserted Operation Key)

D4NL Dimensions 20

D4NL + D4DS-K5
(with Top-inserted Operation Key)

D4NL Dimensions 21

* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.

last update: February 7, 2018


OMRON D4NL lineup

D4NL Guard Lock Safety-door Switch/Lineup

last update: February 7, 2018

Switches (Operation Keys are sold separately.)

Consult with your OMRON representative when ordering any models that are not listed in this table.

Head
material		Release
key
position		Release
key type		Solenoid
voltage/
indicator		Lock and
release
types		Contact configuration
(door open/closed
detection switch and
lock monitor switch
contacts)
(slow-action)
Certified direct
opening NC contact		Conduit
outlet		Model
Plastic
*1		BottomStandard
(resin)		Solenoid:
24 VDC
Orange LED:
10 to 115
VAC/VDC		Mechanical
lock
Solenoid
release		1NC/1NO+1NC/1NOPg13.5D4NL-1AFA-B
G1/2D4NL-2AFA-B
M20D4NL-4AFA-B
1NC/1NO+2NCPg13.5D4NL-1BFA-B
G1/2D4NL-2BFA-B
M20D4NL-4BFA-B
2NC+1NC/1NOPg13.5D4NL-1CFA-B
G1/2D4NL-2CFA-B
M20D4NL-4CFA-B
2NC+2NCPg13.5D4NL-1DFA-B
G1/2D4NL-2DFA-B
M20D4NL-4DFA-B
2NC/1NO+1NC/1NOPg13.5D4NL-1EFA-B
G1/2D4NL-2EFA-B *2
M20D4NL-4EFA-B *2
2NC/1NO+2NCPg13.5D4NL-1FFA-B
G1/2D4NL-2FFA-B *2
M20D4NL-4FFA-B *2
3NC+1NC/1NOPg13.5D4NL-1GFA-B
G1/2D4NL-2GFA-B *2
M20D4NL-4GFA-B *2
3NC+2NCPg13.5D4NL-1HFA-B
G1/2D4NL-2HFA-B *2
M20D4NL-4HFA-B *2
Solenoid
lock
Mechanical
release		1NC/1NO+1NC/1NOPg13.5D4NL-1AFG-B
G1/2D4NL-2AFG-B
M20D4NL-4AFG-B
1NC/1NO+2NCPg13.5D4NL-1BFG-B
G1/2D4NL-2BFG-B
M20D4NL-4BFG-B
2NC+1NC/1NOPg13.5D4NL-1CFG-B
G1/2D4NL-2CFG-B
M20D4NL-4CFG-B
2NC+2NCPg13.5D4NL-1DFG-B
G1/2D4NL-2DFG-B
M20D4NL-4DFG-B
2NC/1NO+1NC/1NOPg13.5D4NL-1EFG-B
G1/2D4NL-2EFG-B *2
M20D4NL-4EFG-B *2
2NC/1NO+2NCPg13.5D4NL-1FFG-B
G1/2D4NL-2FFG-B *2
M20D4NL-4FFG-B *2
3NC+1NC/1NOPg13.5D4NL-1GFG-B
G1/2D4NL-2GFG-B *2
M20D4NL-4GFG-B *2
3NC+2NCPg13.5D4NL-1HFG-B
G1/2D4NL-2HFG-B *2
M20D4NL-4HFG-B *2
Special
release
key
(resin)		Solenoid:
24 VDC
Orange LED:
10 to 115
VAC/VDC		Mechanical
lock
Solenoid
release		1NC/1NO+1NC/1NOPg13.5D4NL-1AFA-B4
G1/2D4NL-2AFA-B4
M20D4NL-4AFA-B4
1NC/1NO+2NCPg13.5D4NL-1BFA-B4
G1/2D4NL-2BFA-B4
M20D4NL-4BFA-B4
2NC+1NC/1NOPg13.5D4NL-1CFA-B4
G1/2D4NL-2CFA-B4
M20D4NL-4CFA-B4
2NC+2NCPg13.5D4NL-1DFA-B4
G1/2D4NL-2DFA-B4
M20D4NL-4DFA-B4
2NC/1NO+1NC/1NOPg13.5D4NL-1EFA-B4
G1/2D4NL-2EFA-B4 *2
M20D4NL-4EFA-B4 *2
2NC/1NO+2NCPg13.5D4NL-1FFA-B4
G1/2D4NL-2FFA-B4 *2
M20D4NL-4FFA-B4 *2
3NC+1NC/1NOPg13.5D4NL-1GFA-B4
G1/2D4NL-2GFA-B4 *2
M20D4NL-4GFA-B4 *2
3NC+2NCPg13.5D4NL-1HFA-B4
G1/2D4NL-2HFA-B4 *2
M20D4NL-4HFA-B4 *2
Solenoid
lock
Mechanical
release		1NC/1NO+1NC/1NOPg13.5D4NL-1AFG-B4
G1/2D4NL-2AFG-B4
M20D4NL-4AFG-B4
1NC/1NO+2NCPg13.5D4NL-1BFG-B4
G1/2D4NL-2BFG-B4
M20D4NL-4BFG-B4
2NC+1NC/1NOPg13.5D4NL-1CFG-B4
G1/2D4NL-2CFG-B4
M20D4NL-4CFG-B4
2NC+2NCPg13.5D4NL-1DFG-B4
G1/2D4NL-2DFG-B4
M20D4NL-4DFG-B4
2NC/1NO+1NC/1NOPg13.5D4NL-1EFG-B4
G1/2D4NL-2EFG-B4 *2
M20D4NL-4EFG-B4 *2
2NC/1NO+2NCPg13.5D4NL-1FFG-B4
G1/2D4NL-2FFG-B4 *2
M20D4NL-4FFG-B4 *2
3NC+1NC/1NOPg13.5D4NL-1GFG-B4
G1/2D4NL-2GFG-B4 *2
M20D4NL-4GFG-B4 *2
3NC+2NCPg13.5D4NL-1HFG-B4
G1/2D4NL-2HFG-B4 *2
M20D4NL-4HFG-B4 *2
PlasticStandard
(metal)		Solenoid:
24 VDC
Orange LED:
10 to 115
VAC/VDC		Mechanical
lock
Solenoid
release		2NC/1NO+1NC/1NOG1/2D4NL-2EFA-B-SJ *2
M20D4NL-4EFA-B-SJ *2
2NC/1NO+2NCG1/2D4NL-2FFA-B-SJ *2
M20D4NL-4FFA-B-SJ *2
3NC+1NC/1NOG1/2D4NL-2GFA-B-SJ *2
M20D4NL-4GFA-B-SJ *2
3NC+2NCG1/2D4NL-2HFA-B-SJ *2
M20D4NL-4HFA-B-SJ *2
Solenoid
lock
Mechanical
release		2NC/1NO+1NC/1NOG1/2D4NL-2EFG-B-SJ *2
M20D4NL-4EFG-B-SJ *2
2NC/1NO+2NCG1/2D4NL-2FFG-B-SJ *2
M20D4NL-4FFG-B-SJ *2
3NC+1NC/1NOG1/2D4NL-2GFG-B-SJ *2
M20D4NL-4GFG-B-SJ *2
3NC+2NCG1/2D4NL-2HFG-B-SJ *2
M20D4NL-4HFG-B-SJ *2

*1. Switches with metal heads can also be manufactured upon request. Ask your OMRON representative for details.
*2. Models with Korean S-mark certification.

Operation Keys

TypeModel
Horizontal mounting1357_lu_2_1D4DS-K1
Vertical mounting1357_lu_2_2D4DS-K2
Adjustable mounting (Horizontal)1357_lu_2_3D4DS-K3
Adjustable mounting (Horizontal/Vertical)1357_lu_2_4D4DS-K5

last update: February 7, 2018


OMRON D4NL specification

D4NL Guard Lock Safety-door Switch/Specifications

last update: October 5, 2018

Standards and EC Directives

Conforms to the following EC Directives:

• Machinery Directive
• Low Voltage Directive
• EN ISO 14119
• EN60947-5-1

Certified Standards

Standard type

Certification bodyStandardFile No.
TÜV SÜDEN60947-5-1
(certified direct opening)		Consult your OMRON representative for details.
UL *1UL508, CSA C22.2 No.14E76675
CQC (CCC)GB/T 14048.5Consult your OMRON representative for details.
KOSHA *2EN60947-5-1Consult your OMRON representative for details.

*1. Certification for CSA C22.2 No. 14 is authorized by the UL mark.
*2. Only certain models have been certified.

Metallic release key type

Certification bodyStandardFile No.
TÜV SÜDEN60947-5-1
(certified direct opening)		Consult your OMRON representative for details.
KOSHAEN60947-5-1Consult your OMRON representative for details.

Certified Standard Ratings

TÜV (EN60947-5-1), CCC (GB/T 14048.5)

Utilization categoryAC-15DC-13
Rated operating current (Ie)3 A0.27 A
Rated operating voltage (Ue)240 V250 V

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not built
           into the Switch.

UL/CSA (UL508, CSA C22.2 No. 14)

A300

Rated voltageCarry currentCurrent (A)Volt-amperes (VA)
MakeBreakMakeBreak
120 VAC10 A6067,200720
240 VAC303

Q300

Rated voltageCarry currentCurrent (A)Volt-amperes (VA)
MakeBreakMakeBreak
125 VDC2.5 A0.550.556969
250 VDC0.270.27

Solenoid Coil Characteristics

Type24 VDC110 VAC
Rated operating voltage (100% ED)24 VDC +10%, -15%110 VAC ±10%
Current consumptionApprox. 200 mAApprox. 50 mA
Insulation ClassClass B (130°C max.)

Indicator Characteristics

TypeLED
Rated voltage10 to 115 VAC/VDC
Current leakageApprox. 1 mA
Color (LED)Orange

Characteristics

Interlock typeType 2 (EN ISO 14119)
Coding levelLow level coded (EN ISO 14119)
Degree of protection *1IP67 (EN60947-5-1)
Durability *2Mechanical1,000,000 operations min.
Electrical500,000 operations min. (3 A resistive load at 250 VAC) *3
Operating speed0.05 to 0.5 m/s
Operating frequency30 operations/minute max.
Direct opening force *460 N min. (EN60947-5-1)
Direct opening travel *410 mm min. (EN60947-5-1)
Holding force (Fzh) *51,300 N min.
Contact resistance25 mΩ max. (per contact)
Minimum applicable load *61 mA resistive load at 5 VDC (N-level reference value)
Rated insulation voltage (Ui)300 V (EN60947-5-1)
Rated frequency50/60 Hz
Protection against electric shockClass II (double insulation) 1357_sp_8_1
Pollution degree (operating environment)3 (EN60947-5-1)
Impulse withstand
voltage (Uimp)
(EN60947-5-1)		Between terminals of same
polarity		2.5 kV
Between terminals of different
polarity		4 kV
Between each terminal and
non-current carrying metallic
parts		6 kV
Insulation resistance100 MΩ min. (at 500 VDC)
Contact gap2 × 2 mm min.
Vibration resistanceMalfunction10 to 55 Hz, 0.75 mm single amplitude
Shock resistanceDestruction1,000 m/s2 min.
Malfunction100 m/s2 min.
Conditional short-circuit current100 A (EN60947-5-1)
Conventional free air thermal current (Ith)10 A (EN60947-5-1)
Ambient operating temperature-10 to 55°C (with no icing)
Ambient operating humidity95% max.
WeightApprox. 370 g (D4NL-1AFA-B)

Note: 1. The above values are initial values.
           2. The Switch contacts can be used with either standard loads or microloads. Once the contacts have been used to
              switch a load, however, they cannot be used to switch smaller loads. The contact surfaces will become rough
              once they have been used and contact reliability for smaller loads may be reduced.
*1. The degree of protection is tested using the method specified by the standard (EN60947-5-1). Confirm that sealing
       properties are sufficient for the operating conditions and environment beforehand. Although the switch box is
       protected from dust or water penetration, do not use the D4NL in places where foreign material may enter through
       the key hole on the head, otherwise Switch damage or malfunctioning may occur.
*2. The durability is for an ambient temperature of 5 to 35°C and an ambient humidity of 40% to 70%. For more details,
       consult your OMRON representative.
*3. Do not pass the 3 A, 250 VAC load through more than 2 circuits.
*4. These figures are minimum requirements for safe operation.
*5. This figure is based on the EN ISO 14119 evaluation method.
*6. This value will vary with the switching frequency, environment, and reliability level. Confirm that correct operation is
       possible with the actual load beforehand.

last update: October 5, 2018


OMRON D4NL catalog

D4NL Guard Lock Safety-door Switch/Catalog

  • Catalog
  • Manual
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
D4NL Data Sheet -
[4410KB] 		Oct 05, 201820181005 D4NL Data Sheet


Return to OMRON
