OMRON CJ1W-NC[]81 / []82 specification

last update: October 01, 2015

General Specifications

Item	CJ1W-NC281/-NC481/-NC881/-NCF81/-NC482/-NC882/-NCF82

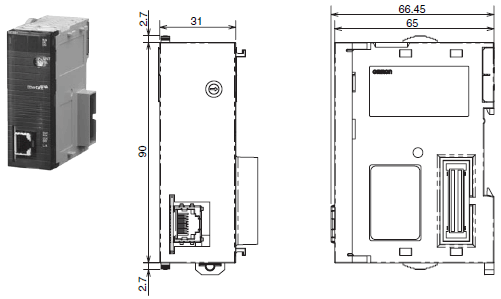

Dimensions	90 × 65 × 31 mm (H × D × W)
Weight	110 g max.
Internal current consumption	460 mA max. at 5 VDC
Ambient operating temperature	0 to 55°C
Applicable standards	Conforms to cULus and EC Directives.

Note: All other specifications conform to the general specifications of the CJ Series.

Characteristics

Item			Models
			Servo control only
			CJ1W-NC281	CJ1W-NC481	CJ1W-NC881	CJ1W-NCF81
Applicable PLCs			CJ Series
Settable unit numbers			0 to F (unit number as a CPU Bus Unit)
Maximum number of Units			10 Units per Rack, 16 Units per PLC (Can be used on Expansion Racks.)
Allocated I/O words	Position Control Unit Control Memory Areas		25 words in CPU Bus Unit Area
	Axis Operation Memory Areas		43 words for each control axis (2 + 12 output words and 13 + 16 input words) in specified words in the CIO, Work, DM, or EM Area.
	Memory Operation Memory Areas		7 words for each task (3 output words and 4 input words) in specified words in the CIO, Work, DM, or EM Area
	I/O Memory Areas		---
Controllable Servo Drives *1			G5-series Servo Drives with Built-in EtherCAT Communications
Controllable encoder input terminal *2 *3			---
Control method			Control commands using EtherCAT communication
Number of controlled axes			2 axes	4 axes	8 axes	16 axes
Maximum command output speed			104 Mpps *4
Control units	Setting unit		Pulses, millimeters, inches, or degrees
	Unit multiplier *5		×1, ×10, ×100, ×1,000, or ×10,000
	Electronic gear ratio *5		Unit version 1.1 or earlier: 1/1 to 1,048,576/1,048,576 Unit version 1.3 or later: 1/1 to 4,294,967,295/4,294,967,295
Positioning functions			Memory operation or direct operation
	Single axis control	Position control	2 axes	4 axes	8 axes	16 axes
		Speed control	2 axes	4 axes	8 axes	16 axes
	Inter- polated control	Linear interpolation	2 axes max.	4 axes max.	4 axes max.	4 axes max.
		Circular interpolation	2 axes	2 axes	2 axes	2 axes
		Helical interpolation *3	---	---	---	---
	Memory operation	Maximum number of tasks	2	4	4 *6	4 *6
		Sequence functions	JUMP, FOR-NEXT (50 layers/task), PSET, and PRSET
		Dwell timers	500/task, 0 to 10.00 s (Set in increments of 0.01 s.)
Position command values	Data		-2,147,483,648 to 2,147,483,647 command units *7
	Number of position command values		500/task
Speed command values	Data *8		Position control: 1 to 2,147,483,647 command units/s Speed control: -2,147,483,648 to 2,147,483,647 command units/s
	Number of speed command values		500/task
Accel- eration times	Data		0 to 250,000 ms
	Number of acceleration times		500/task
Decel- eration times	Data		0 to 250,000 ms
	Number of deceleration times		500/task
Auxiliary functions	Overrides		0.01% to 500.00% (Can be set for each axis.)
	Software limits		-2,147,483,647 to 2,147,483,646 command units (Can be set for each axis.)
	Backlash compensation		Backlash compensation is performed using the compensation function in the Servo Drive. The setting range depends on the specifications of the Servo Drive.
	Torque Limits		Unit version 1.1 or earlier: Supports only the ability to enable or disable the torque limits by turning ON or OFF the command bits. Unit version 1.3 or later: Supports the ability to change the torque limit data via the Memory Area/Synchronous Data Link in addition to the ability to enable or disable the torque limits by turning ON or OFF the command bits.
Synchronous Data Link function			None
Control perfor- mance	Control cycle		0.5 ms	0.5 ms when using 1 to 2 axes 1 ms when using 3 to 4 axes	0.5 ms when using 1 to 2 axes 1 ms when using 3 to 4 axes 2 ms when using 5 to 8 axes	0.5 ms when using 1 to 2 axes 1 ms when using 3 to 4 axes 2 ms when using 5 to 16 axes
	Communications cycle		250 µs		250 µs when using 1 to 4 axes 500 µs when using 5 to 8 axes	250 µs when using 1 to 4 axes 500 µs when using 5 to 10 axes 1.0 ms when using 11 to 16 axes
	Starting time *9	Direct operation (high-speed PTP) *10	0.15 to 0.4 ms		0.15 to 0.4 ms when using 1 to 4 axes 0.15 to 0.8 ms when using 5 to 8 axes	0.15 to 0.4 ms when using 1 to 4 axes 0.15 to 0.8 ms when using 5 to 10 axes 0.15 to 1.2 ms when using 11 to 16 axes
		Direct operation (bits) *11	0.75 to 1.25 ms	1.25 to 2.25 ms	2.5 to 4.5 ms	3.0 to 5.0 ms
		Memory operation (linear interpolation) *11	1.75 to 2.25 ms	3.25 to 4.25 ms	6.5 to 8.5 ms	7.0 to 9.0 ms
Control I/O	Servo Drive interface	Communications port	EtherCAT port × 1
		Output signals	There are no external output signals for external outputs. The following command bits are provided for each axis for Servo Drive control: Deviation Counter Reset Bit, Alarm Reset Bit, Servo Lock Bit, Servo Unlock Bit, and Torque Limit Bits.
		Input signals	There are no external input signals for external inputs. The following status flags are provided for each axis for Servo Drive control: Origin Input Flag, Servo Drive Alarm Input Flag, and Positioning Completed Input Flag.
		External interface signals *12	6 signals (external origin signal, origin proximity signal, forward limit signal, reverse limit signal, emergency stop signal, and interrupt input signal) for each axis

Item			Models
			Servo control + I/O communications
			CJ1W-NC482	CJ1W-NC882	CJ1W-NCF82
Applicable PLCs			CJ Series
Settable unit numbers			0 to F (unit number as a CPU Bus Unit)
Maximum number of Units			10 Units per Rack, 16 Units per PLC (Can be used on Expansion Racks.)
Allocated I/O words	Position Control Unit Control Memory Areas		25 words in CPU Bus Unit Area
	Axis Operation Memory Areas		43 words for each control axis (2 + 12 output words and 13 + 16 input words) in specified words in the CIO, Work, DM, or EM Area.
	Memory Operation Memory Areas		7 words for each task (3 output words and 4 input words) in specified words in the CIO, Work, DM, or EM Area
	I/O Memory Areas		1,300 words maximum (Outputs: 640 words, inputs: 640 words, communications status: 20 words) in specified words in the CIO, Work, DM, or EM Area
Controllable Servo Drives *1			G5-series Servo Drives with Built-in EtherCAT Communications
Controllable encoder input terminal *2 *3			OMRON encoder input terminal GX-EC02[]1
Control method			Control commands using EtherCAT communication
Number of controlled axes			4 axes	8 axes	16 axes
Maximum command output speed			104 Mpps *4
Control units	Setting unit		Pulses, millimeters, inches, or degrees
	Unit multiplier *5		×1, ×10, ×100, ×1,000, or ×10,000
	Electronic gear ratio *5		Unit version 1.1 or earlier: 1/1 to 1,048,576/1,048,576 Unit version 1.3 or later: 1/1 to 4,294,967,295/4,294,967,295
Positioning functions			Memory operation or direct operation
	Single axis control	Position control	4 axes	8 axes	16 axes
		Speed control	4 axes	8 axes	16 axes
	Inter- polated control	Linear interpolation	4 axes max.	4 axes max.	4 axes max.
		Circular interpolation	2 axes	2 axes	2 axes
		Helical interpolation *3	3 axes	3 axes	3 axes
	Memory operation	Maximum number of tasks	4	4 *6	4 *6
		Sequence functions	JUMP, FOR-NEXT (50 layers/task), PSET, and PRSET
		Dwell timers	500/task, 0 to 10.00 s (Set in increments of 0.01 s.)
Position command values	Data		-2,147,483,648 to 2,147,483,647 command units *7
	Number of position command values		500/task
Speed command values	Data *8		Position control: 1 to 2,147,483,647 command units/s Speed control: -2,147,483,648 to 2,147,483,647 command units/s
	Number of speed command values		500/task
Accel- eration times	Data		0 to 250,000 ms
	Number of acceleration times		500/task
Decel- eration times	Data		0 to 250,000 ms
	Number of deceleration times		500/task
Auxiliary functions	Overrides		0.01% to 500.00% (Can be set for each axis.)
	Software limits		-2,147,483,647 to 2,147,483,646 command units (Can be set for each axis.)
	Backlash compensation		Backlash compensation is performed using the compensation function in the Servo Drive. The setting range depends on the specifications of the Servo Drive.
	Torque Limits		Unit version 1.1 or earlier: Supports only the ability to enable or disable the torque limits by turning ON or OFF the command bits. Unit version 1.3 or later: Supports the ability to change the torque limit data via the Memory Area/Synchronous Data Link in addition to the ability to enable or disable the torque limits by turning ON or OFF the command bits.
Synchronous Data Link function			Unit version 1.1 or earlier: None. Unit version 1.3 or later: Provides command support for velocity command data, torque command data, torque feedforward data, torque limit data, and velocity limitation value when used in conjunction with a CJ2H-CPU (unit version 1.4 or later). Unit version 1.5 or later: Provides command support for electronic cam operation.
Control perfor- mance	Control cycle		0.5 ms when using 1 to 2 axes 1 ms when using 3 to 4 axes	0.5 ms when using 1 to 2 axes 1 ms when using 3 to 4 axes 2 ms when using 5 to 8 axes	0.5 ms when using 1 to 2 axes 1 ms when using 3 to 4 axes 2 ms when using 5 to 16 axes
	Communications cycle		250 µs	250 µs when using 1 to 4 axes 500 µs when using 5 to 8 axes	250 μs min. when using 1 to 4 axes 500 μs min. when using 5 to 10 axes 1.0 ms when using 11 to 16 axes
	Starting time *9	Direct operation (high-speed PTP) *10	0.15 to 0.4 ms	0.15 to 0.4 ms when using 1 to 4 axes 0.15 to 0.8 ms when using 5 to 8 axes	0.15 to 0.4 ms when using 1 to 4 axes 0.15 to 0.8 ms when using 5 to 10 axes 0.15 to 1.2 ms when using 11 to 16 axes
		Direct operation (bits) *11	1.25 to 2.25 ms	2.5 to 4.5 ms	3.0 to 5.0 ms
		Memory operation (linear interpolation) *11	3.25 to 4.25 ms	6.5 to 8.5 ms	7.0 to 9.0 ms
Control I/O	Servo Drive interface	Communications port	EtherCAT port × 1
		Output signals	There are no external output signals for external outputs. The following command bits are provided for each axis for Servo Drive control: Deviation Counter Reset Bit, Alarm Reset Bit, Servo Lock Bit, Servo Unlock Bit, and Torque Limit Bits.
		Input signals	There are no external input signals for external inputs. The following status flags are provided for each axis for Servo Drive control: Origin Input Flag, Servo Drive Alarm Input Flag, and Positioning Completed Input Flag.
		External interface signals *12	6 signals (external origin signal, origin proximity signal, forward limit signal, reverse limit signal, emergency stop signal, and interrupt input signal) for each axis

*1. A controllable Servo Drive is Servo Drive for which you can use the position control functions of the Position Control
       Unit.
*2. A controllable encoder input terminal is a slave for which you can use the encoder axis function of the Position
       Control Unit.
*3. Available with unit version 1.5 or later.
*4. This is the maximum speed command when converted to pulses.
*5. Command units can be set for each axis according to the electronic gear ratio and unit multiplier.
*6. Up to four axes can be controlled by each task.
*7. Setting is possible between -2,147,483,648 and 2,147,483,647 pulses.
*8. The command can be set to up to 104,857,600 pps when converted to pulses.
*9. This is the time from executing a command at the PLC until the command is output on EtherCAT communications.
       Execution for command bits is in the I/O refresh period.
       The starting time depends on the control cycle, communications cycle, and operating conditions.
       Refer to Position Control Units Operation Manual (Cat. No. W487) for details.
*10. The starting time applies when starting one axis with a special Position Control Unit instruction and a CJ2M or CJ2H
       CPU Unit with unit version 1.3 or later.
*11. These are the internal Position Control Unit processing times.
*12.Servo Drive inputs are used.

EtherCAT Communications Specifications

Item	Characteristics
	Servo control only				Servo control + I/O communications
	CJ1W- NC281	CJ1W- NC481	CJ1W- NC881	CJ1W- NCF81	CJ1W- NC482	CJ1W- NC882	CJ1W- NCF82
Communications standard	IEC 61158 Type12
Physical layer	100Base-TX (IEEE802.3)
Connector	RJ45 shielded connector × 1
Communications media	Category 5 or higher (Recommended: cable with double, aluminum tape and braided shielding)
Communications distance	100 m max. between nodes
Topology	Daisy chain only *1
EtherCAT Master Specifications	Class B (minimum master-CoE compatible (no information service for SDO))
Maximum number of slaves *2	2	4	8	16	68	72	80
Node address setting range	1 to 2	1 to 4	1 to 8	1 to 16	1 to 4 and 17 to 80 *3	1 to 8 and 17 to 80 *3	1 to 16 and 17 to 80 *3
Communications cycle *4	250 µs, 500 µs, 1 ms, or 2 ms
Process data	Fixed PDO mappings specified for the slaves are used (set using Support Software).
Mail box (CoE)	Emergency messages, SDO requests, SDO responses, and SDO information (Used for Position Control Unit communications control and slave device parameter transfers.)
LED indicators	ECAT RUN × 1 ECAT ERR × 1 L/A (Link/Activity) × 1
CiA402 drive profile *5	• Cyclic synchronous position mode • Cyclic synchronous velocity mode • Cyclic synchronous torque mode • Touch probe function • Torque limit function

*1. Ethernet hubs cannot be used.
*2. This is the number of slaves, including Servo Drives and remote I/O slaves. The number of slaves that can be
       connected is limited. Refer to Number of Remote I/O Connections for details.
*3. Node addresses 17 to 80 are reserved for remote I/O slaves.
*4. The setting range depends on the number of slaves that are connected and the slave specifications.
       Refer to Position Control Units Operation Manual (Cat. No. W487) for details.
*5. This drive profile is used when connected to a G5-series Servo Drive.

Number of Remote I/O Connections

The Position Control Unit has the memory of up to 640 bytes for inputs and 640 bytes for outputs to be used for PDO communications.
The number of slaves that can be connected to the CJ1W-NC482/NC882/NCF82 is determined by the maximum memory size for PDO communications.
The memory of the PDO communication is shared with the Servo Drives; therefore, the number of I/O slaves that can be connected changes with the number of G5 Series Servo Drive (number of use axes) that are connected to the Position Control Unit.

Number of Servo Drive axes	Size used by Servo Drive axes (bytes) *	Remaining PDO communications memory size (bytes)		Number of slaves that can be connected according to slave I/O size (guidelines)
		IN	OUT	8 bytes of I/O (4 input and 4 output bytes)	16 bytes of I/O (8 input and 8 output bytes)	32 bytes of I/O (16 input and 16 output bytes)	64 bytes of I/O (32 input and 32 output bytes)
0 axis	0	640	640	64	64	40	20
1 axis	29	611	611	64	64	38	19
2 axes	58	582	582	64	64	36	18
4 axes	116	524	524	64	64	32	16
8 axes	232	408	408	64	51	25	12
16 axes	464	176	176	64	22	11	5

* The G5-series Servo Drives also use IN and OUT bytes. The factory default of the PDO communications size is 29 bytes.

Functional Specifications

The following functions are supported when the Position Control Unit is connected to an EtherCAT-compatible OMNUC G5-series Servo Drive.

Function			Description
Control functions	Single axis control	Absolute movements	Positioning is performed by specifying the absolute or relative target position and target speed directly from the ladder program.
		Relative movements
		Speed control	Feeding at a specified speed is performed by specifying the target speed directly from the ladder program. Speed control is implemented using speed feeding with position control.
		Interrupt feeding	Interrupt feeding can be used to move a specified amount when an interrupt input is received during an absolute movement, a relative movement, or speed control.
		Rotation axis control	Rotation axes that are suitable for feeder and index table control can be controlled. Forward and reverse positioning and shortest route operations are possible.
		Changing target positions and target speeds	The target position or target speed can be changed during an absolute movement, a relative movement, or speed control.
	Multi-axis control	Linear interpolation	The operation of more than one axis is started and stopped simultaneously to move in a straight line to the target position from the starting point of each axis. Linear interpolation is possible for up to four axes.
		Circular interpolation	The operation of any two axes is controlled to move in a circular arc. Any of three methods can be used to specify a circular arc: specifying the target position and center point, specifying the target position, radius, and direction and specifying the target position and passing point.
		Helical interpolation	Helical interpolation is performed by giving one more axis to circular interpolation. The number of turns can be specified. This function is available with CJ1W-NC[]82 (unit version 1.5 or later).
	Memory operation	Automatic continuous operation	The target positions, speeds, and operation patterns can be set in advance in the Position Control Unit to automatically perform a series of operations. Continuous positioning and speed changes are also possible.
		Sequence functions	Memory operation data provides sequence functions, including repetition of a given operation and starting/stopping operation data by using external inputs. Therefore, the Position Control Unit can perform various operation sequences without affecting the ladder programming in the CPU Unit.
Manual operation	Origin searches		External sensors and other means are used to detect the mechanical origin of the system. You can select the origin search operation that is best for your system from 15 different origin search operation patterns.
	Origin returns		You can return to the point that was defined as the mechanical origin.
	Presetting the present position		The present position can be changed to a specified value to define the origin.
	Deceleration stops and emergency stops		An axis that is in operation can be decelerated to a stop or stopped immediately.
	Jogging		You can jog either forward or in reverse.
	Inching		You can inch either forward or in reverse.
Synchronous Data Link			The CJ1W-NC[]82 (unit version 1.3 or later) can perform data exchange between the CPU and Position Control Unit at regular intervals when used in conjunction with a CJ2H CPU (unit version 1.4 or later). In addition, you can use this function to perform synchronous feeding position, synchronous feeding velocity, and synchronous feeding torque control. Also, optional commands are available for torque feedforward data, torque limit data, and velocity limitation value. CJ1W-NC[]82 (unit version 1.5 or later) supports command for electronic cam operation as well.
Auxiliary control functions	Command unit setting		You can set the unit of control for each axis according to the machine.
	Acceler- ation/ deceler- ation control	Automatic acceleration/ deceleration control	The acceleration/deceleration curve can be automatically created during operation. You can select either a trapezoidal curve or an S curve based on a tertiary function.
		Changing acceleration/ deceleration rates	You can change the rate of acceleration/deceleration during acceleration/deceleration.
		Switching acceleration/ deceleration points	You can select one of three methods to connect speeds between different operation patterns during continuous memory operation.
	Overrides		You can increase or decrease the operating speed of the system by a specified factor.
	Backlash compensation		You can compensate for mechanical play using a parameter.
	M codes		M codes can be output during memory operation to interlock with external devices.
	Zone settings		You can set zones and assess when the present position is in a zone. Up to three zones can be set for each axis.
	Support for absolute encoders		You can build an absolute positioning system by using a Servomotor with an Absolute Encoder. The Position Control Units can be used together with OMRON's G5-series Servomotors with Absolute Encoders.
	Teaching		You can save the present position as position data for memory operation.You can use either the command present position or feedback present position.
	Torque limit outputs		The torque limit outputs can be used to switch the torque limits of the Servo Drive. They can be turned ON and OFF directly from a ladder program. Torque limits can be automatically switched by using holding for an origin search operation. In addition, you can change the torque limit data via the Synchronous Data Link by using the CJ1W-NC[]82 (unit version 1.3 or later) in conjunction with a CJ2H-CPU (unit version 1.4 or later) and G5-series Servo Drive (version 2.0 or later). Also, you can change the torque limit data via the Memory Area by using the CJ1W-NC[]81/-NC[]82 (unit version 1.3 or later) in conjunction with a G5-series Servo Drive (version 2.0 or later).
	Monitoring functions	Software limits	You can set forward and reverse software limits for axis operation. If the target position exceeds a software limit, it will be detected in the command value check that is performed at startup.
		Monitoring position/ speed deviations	The Position Control Unit monitors the position or speed deviation between the present command position and present feedback position. You can stop axis operation if the deviation is too large.
		Monitoring deviation between axes	The deviation between axes is also monitored during linear interpolation. You can stop axis operation if the deviation is too large.

Functions available when connected with OMRON encoder input terminal GX-EC02[]1 are as shown below.
They are available with CJ1W-NC[]82, unit version 1.5 or later.

Function		Description
Manual operation	Present position preset	The present position can be changed to a specified value to define the origin.
Auxiliary control functions	Command unit setting	You can set the unit of control for each axis according to the machine.
	Zone settings	You can set a zone to check if the present position is in the set zone. Up to three zones can be set for each axis.
	Present position latch	The position data when an external control input (latch A) is detected at the encoder input terminal is stored in the Position Control Unit.
	Origin position latch	The position data when an external control input (latch B) is detected at the encoder input terminal is stored in the Position Control Unit.

last update: October 01, 2015

OMRON CJ1W-NC[]81 / []82 lineup

last update: January 17, 2019

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL(Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Position Control Units with EtherCAT interface

Unit type	Product Name	Specifications		No. of unit numbers allocated	Current consump- tion (A)		Model	Stand- ards
		Control output interface	No. of axes		5 V	24 V
CJ1 CPU Bus Units	Position Control Units with EtherCAT interface	Control commands executed by EtherCAT communications. Positioning functions: Memory operation, Direct operation by ladder programming	2 axes	1	0.46	-	CJ1W-NC281	UC1, CE
			4 axes				CJ1W-NC481
			8 axes				CJ1W-NC881
			16 axes				CJ1W-NCF81
		Control commands executed by EtherCAT communications. Positioning functions: Memory operation, Direct operation by ladder programming I/O communications: 64 nodes	4 axes	1	0.46	-	CJ1W-NC482
			8 axes				CJ1W-NC882
			16 axes				CJ1W-NCF82

Note: 1. There is no accessory for the CJ-series Position Control Unit with EtherCAT interface.
           2. This unit cannot be used, with the Machine Automation Controller NJ-series.

Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.

Cabel with Connectors

Item	Appearance	Recommended manufacturer	Cable length (m)	Model
Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH *2 Cable color: Yellow *3		OMRON	0.3	XS6W-6LSZH8SS30CM-Y
			0.5	XS6W-6LSZH8SS50CM-Y
			1	XS6W-6LSZH8SS100CM-Y
			2	XS6W-6LSZH8SS200CM-Y
			3	XS6W-6LSZH8SS300CM-Y
			5	XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Light blue		OMRON	0.3	XS5W-T421-AMD-K
			0.5	XS5W-T421-BMD-K
			1	XS5W-T421-CMD-K
			2	XS5W-T421-DMD-K
			5	XS5W-T421-GMD-K
			10	XS5W-T421-JMD-K
Cable with Connectors on Both Ends (M12 Straight/M12 Straight) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black		OMRON	0.5	XS5W-T421-BM2-SS
			1	XS5W-T421-CM2-SS
			2	XS5W-T421-DM2-SS
			3	XS5W-T421-EM2-SS
			5	XS5W-T421-GM2-SS
			10	XS5W-T421-JM2-SS
Cable with Connectors on Both Ends (M12 Straight/RJ45) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black		OMRON	0.5	XS5W-T421-BMC-SS
			1	XS5W-T421-CMC-SS
			2	XS5W-T421-DMC-SS
			3	XS5W-T421-EMC-SS
			5	XS5W-T421-GMC-SS
			10	XS5W-T421-JMC-SS

*1. Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available.
     Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available.
     For details, refer to Cat.No.G019.
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
     Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3. Cables colors are available in blue, yellow, or Green.
*4. For details, contact your OMRON representative.

Cables/Connectors

Wire Gauge and Number of Pairs: AWG24, 4-pair Cable

Item	Appearance	Recommended manufacturer	Model
Cable	-	Hitachi Metals, Ltd.	NETSTAR-C5E SAB 0.5✕4P CP *
	-	Kuramo Electric Co.	KETH-SB *
	-	SWCC Showa Cable Systems Co.	FAE-5004 *
RJ45 Connectors	-	Panduit Corporation	MPS588-C *

* We recommend you to use above cable and connector together.

Wire Gauge and Number of Pairs: AWG22, 2-pair Cable

Item	Appearance	Recommended manufacturer	Model
Cable	-	Kuramo Electric Co.	KETH-PSB-OMR *
	-	JMACS Japan Co., Ltd.	PNET/B *
RJ45 Assembly Connector		OMRON	XS6G-T421-1 *

Note: Connect both ends of cable shielded wires to the connector hoods.
* We recommend you to use above cable and connector together.

Support Software

Product name	Specifications			Model	Stand- ards
		Number of licenses	Media
FA Integrated Tool Package CX-One Ver.4.[]	The CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One runs on the following OS. OS: Windows XP (Service Pack 3 or higher, 32-bit version) / Windows Vista (32-bit/64-bit version) / Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Version 4.[] includes CX-Programmer Ver.9.[].	1 license *	DVD	CXONE-AL01D-V4	-

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

last update: January 17, 2019

OMRON CJ1W-NC[]81 / []82 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
CJ1W-NC[]81/[]82 Data Sheet	- [1122KB]	Jan 17, 201920190117	CJ1W-NC[]81/[]82 Data Sheet

OMRON CJ1W-NC[]81 / []82 dimension

last update: August 07, 2013

CJ1W-NC281/-NC481/-NC881/-NCF81/-NC482/-NC882/-NCF82

last update: August 07, 2013

• NO. CJ1W-NC[]81 / []82
• TYPE:Programmable Controllers CJ1 CPU Bus Units
• DATE:2021-06-15
• Associated products:
  R88M-KE, R88D-KP G5-series Pulse Train Input Type AC Servomotors/Servo Drives/Features CJ2M-CPU3[] / CPU1[] / MD21[] CJ-series CJ2M CPU Units, Pulse I/O Modules/Features
