• Multi-range DC voltage/current input.
• Front-panel key operation for easy setting.
• Average processing function suppresses flicker.
• Scaling, front-panel forced-zero, zero-limit functions.
• Easy confirmation of max/min display.
• Short 80-mm depth (measured from edge of face plate).
• Finger protective cover (standard equipment) guards against electric shock.
• Water- and dust-proof NEMA TYPE 4X (IP66 equivalent) front panel.
• Recognized to U.S. and Canadian requirements under the Component Recognition Program of UL.
• CE marking.
last update: June 18, 2018
Purchase the OMRON Voltage / Current Input Please fill in the following
If you have just landed here, this product OMRON K3MA-J Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the K3MA-J We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON K3MA-JControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
LVS-9510 Series Code Verification System/Features
TL-W Flat Inductive Proximity Sensor/Features
G3NA Solid State Relays/Features
CRT1-[]D16S(-1) / []D32S(-1) / []D16SH(-1) / []D32SH(-1) Digital I/O Slave Units with e-CON Conne...
ZN-PD Air Particle Sensor/Features

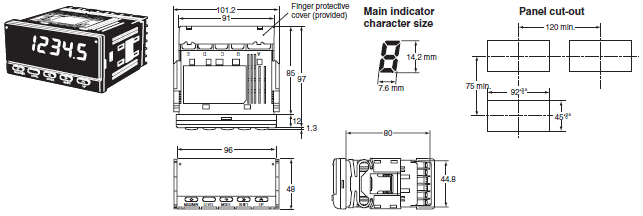

OMRON K3MA-J dimension
