last update: December 19, 2013

A high-performance fan for external air suction enables constant measuring over long periods. Semiconductor lasers and high-sensitivity optical design in the sensing section enable measurement of 0.3-μm particles.

Particle Trend Indicator

The sensing section has a particle trend display for quick visual confirmation of the degree of cleanliness. The Amplifier provides numeric indication of the number of 0.3-, 0.5-, and 1.0-μm particles. A signal can be output at any level of particles if a threshold has been set.

On-screen Indication and Data Logging of Particle Amount

Measurement values can be easily logged on a personal computer by using the Interface Unit and special software (sold separately). Data from sequential sensing of particles can be used to improve quality.

Realtime Clean Air Monitor

A variety of displays (including color graphs for visual confirmation by color of particle densities, indication of the number of particles, and trend graphs) can be set. Particle Sensors and Interface Units can also be set from the personal computer. Measurement data is logged in realtime and can be manipulated in CSV-format files using spreadsheet software.

Quality Control with Multi-point Measurement (Patent Pending)

Up to ten Particle Sensors and up to nine Air Clean Units can be controlled through one Interface Unit and Real Time Clean Air Monitor. There are no time-consuming restrictions, such as the order that power is turned ON. The level of cleanliness can be controlled for each process and constant monitoring is possible in relation to quality data.

For In-line Applications

Installation is simple with DIN Track mounting. The In-line Air Particle Sensor was developed for in-line applications, with a 24-VDC power supply. External outputs can be at two levels: warnings and alarms. Suitable for in-line trend management applications.

last update: December 19, 2013

Purchase the OMRON Air Particle Sensor Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON ZN-PD Energy Conservation Support / Environment Measure Equipment,Energy Conservation Support / Environment Measure Equipment is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Energy Conservation Support / Environment Measure Equipment at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZN-PD We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZN-PDEnergy Conservation Support / Environment Measure Equipment tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3C-VS / VM Small Spot/Mark (Separate Amplifier)/Features
E5AN-H, E5EN-H Advanced Digital Temperature Controller (96 x 96 mm and 48 x 96 mm)/Features
EWS-DE10 Energy Savings Analysis Software/Features
S8VK-S S8VK-S (30/60/120/240/480-W Models)/Features
XW2D Slim Connector-Terminal Block Conversion Units/Features

OMRON ZN-PD catalog
ZN-PD Air Particle Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

ZN Series Catalog E383-E1-01
[2417KB] Jul 03, 201720170703 ZN Series Catalog

OMRON ZN-PD dimension
ZN-PD Air Particle Sensor/Dimensions
last update: September 24, 2012
Air Particle Sensors

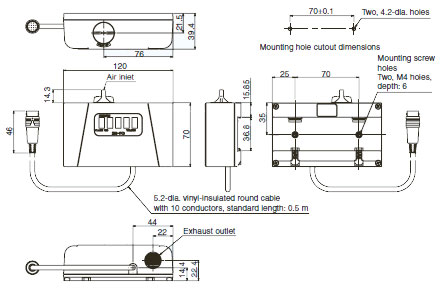

ZN-PD03

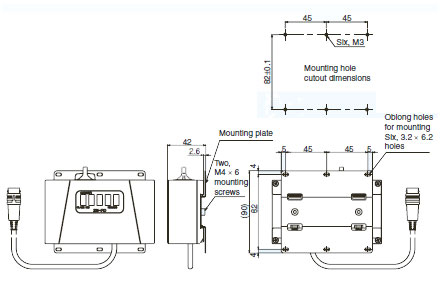

Sensor Head Mounting Tool
When ZN9-PB1 is used (Optional)

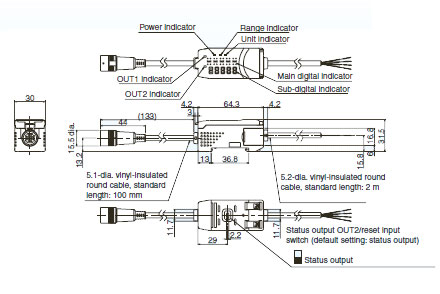

ZN-PDA11

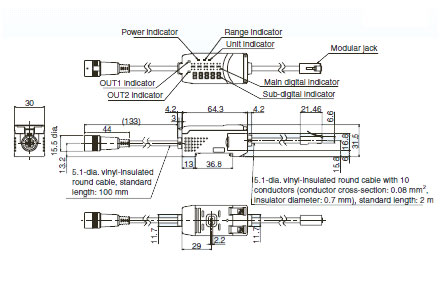

ZN-PDA12

Interface Unit

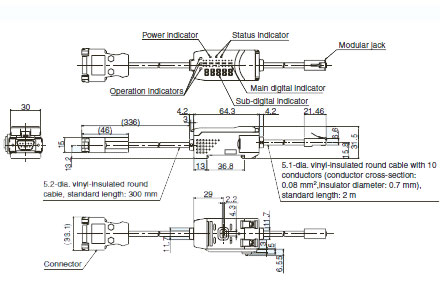

ZN-SF11

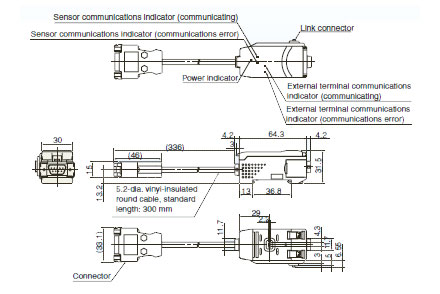

ZN-SF12

last update: September 24, 2012

OMRON ZN-PD lineup
ZN-PD Air Particle Sensor/Lineup
last update: December 01, 2016
Sensor Head

Appearance Measured particle diameter Model
0.3, 0.5, and 1.0 μm ZN-PD03

Amplifiers

Appearance Power supply Connection method Model
24 VDC Cable connection ZN-PDA11 2M
Supplied from the Air Clean Unit. Connector connection
(Air Clean Unit feedback connection) ZN-PDA12 2M

Calculating Unit

Appearance Model
ZX-CAL2

Clean Monitoring Systems

Appearance Contents Connection method Model
ZN-SF11 Interface Unit
+ Realtime Clean Air Monitor For RS-232C connection with personal computer only ZN-SFW11
ZN-SF12 Interface Unit
+ Realtime Clean Air Monitor For RS-232C connection with personal computer or
Air Clean Unit　feedback connection ZN-SFW12

An Interface Unit is not available by itself.

Double-sided Connector Cable
(for extension between Sensor Head and Amplifier)

Cable length Model Qty.
1 m ZX-XC1A 1
4 m ZX-XC4A 1
8 m ZX-XC8A 1

Model Qty.
Sensor Head Replacement Filter Set ZN9-PF1 1
Cleaning Filter ZN9-PC1 1
Head Attachment Tool ZN9-PB1 1

last update: December 01, 2016

OMRON ZN-PD specification
ZN-PD Air Particle Sensor/Specifications
last update: December 01, 2016
Sensor Head

Model ZN-PD03
Applicable Amplifier ZN-PDA11/ZN-PDA12
Measurement method 90° sideways light-scattering method
Light source Semiconductor laser
Applicable particle size 0.3, 0.5, or 1.0 μm min.
Applicable cleanliness class Equivalent to Class 100 to 100,000 (FED-STD-209D)
Indicator Level indicator for Class 100 to 100,000 (FED-STD-209D)
Connection tube Inner diameter: 4, Length: 1 m max.
Ambient temperature range Operating: 0 to 40°C, Storage: -15 to 50°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance 10 to 55 Hz, 0.7-mm double amplitude 80 min each in X, Y, and Z directions
Shock resistance 150 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Connection method Connector cable (standard cable length: 0.5 m)
Material ABS
Weight Approx. 300 g (Packed state: Approx. 450 g)
Accessories Instruction Sheet, connection tube

Amplifiers

Model ZN-PDA11 ZN-PDA12
Sampling time 1 to 599 s (selectable)
Average count setting 1, 2, 4, 8, 16, 32, or 64
Indicators Operation indicators: OUT1 (orange), OUT2 (yellow), 7-segment main display (red), 7-segment sub-display (yellow), power (green), wide range display (green), unit selection display (green) 7-segment main display (red), 7-segment sub-display (yellow), power (green), wide range display (green), unit selection display (green)
Status outputs
(2 outputs:
OUT1/OUT2)
(See note.) NPN open-collector outputs, 30 VDC, 30 mA max., Residual voltage: 1.2 V max. ---
Reset input
(See note.) ON: Short-circuited with 0-V terminal or 1.5 V or less,
OFF: Open ---
Functions Measurement result display, Setting value display, Unit selection, Scaling, Peak hold, Hysteresis setting, Threshold level selection, Wide range display, Key lock, ECO mode, Display reverse, Display digit change, Initialize Measurement result display, Communications condition display, Unit selection, Scaling, Air Clean Unit automatic control, Air Clean Unit air level change, Threshold level selection, Wide range display, Key lock, ECO mode, Display reverse, Display digit change, Initialize
Communications with Air Clean Unit --- Unique communications specifications (RJ-45 connector and straight LAN cable)
Power supply voltage 24 VDC ±10%, Ripple (p-p): 10% max. 24 VDC ±10%, Ripple (p-p): 10% max. (Supplied from Air Clean Unit.)
Current consumption 300 mA max.
Ambient temperature range Operating: 0 to 40°C , Storage: -15 to 50°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance 10 to 150 Hz, 0.7-mm double amplitude 80 min each in X, Y, and Z directions
Shock resistance 300 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Connection method Cable (standard cable length: 2 m) Connector cable (standard cable length: 2 m)
Materials Case: PBT (polybutylene terephthalate), Cover: Polycarbonate
Weight Approx. 180 g (Packed state: Approx. 350 g)
Accessories Instruction Sheet

Note: OUT2 and the reset input are switched by using the DIP switch on the bottom of the Amplifier.

Clean Monitoring Systems

Model ZN-SFW11 ZN-SFW12
Power supply voltage Supplied from the ZN-PDA.
Current consumption 45 mA max. with 24-VDC power supply voltage (excluding current consumption and current
output of the Amplifier)
Applicable Amplifiers ZX Series, ZJ-SD Series, ZN-PD Series
Applicable Amplifier Unit
software versions ZX-LDA[][]-N V1.000 or higher, ZX-EDA[][] V1.300 or higher, ZX-TDA[][] V1.100 or higher,
ZJ-SDA[][] V1.000 or higher, or ZN-PDA[][] V1.000 or higher
No. of connectable Amplifiers 10 max. (For ZN-PDA)
Indicator Power: Green, Sensor communications:
Green, Sensor communications error: Red,
External terminal communications: Green,
External terminal communications error: Red Power (POWER: Green),
Serial communications (STA1: Green)
Not clean (OPE1: Orange),
Clean (OPE2: Green)
Functions --- Automatic control for Air Clean Units (multi-
unit system control), Air level change for Air
Clean Units
Commu-
nications Communications
port RS-232C (9-pin, D-Sub connector)
Protocol CompoWay/F
Baud rate 38,400 bps
Data configuration Data bits: 8, Parity: None, Start bits: 1, Stop bits: 1, Flow control: None
For external
device 2 --- Unique communications specifications
(RJ-45 connector and straight LAN cable)
Ambient temperature range Operating: 0 to 40°C, Storage: -15 to 50°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance 10 to 150 Hz, 0.7-mm double amplitude 80 min each in X, Y, and Z directions
Shock resistance 300 m/s² 3 times each in six directions (up/down, left/right, forward/backward)
Connection method --- Connector cable (standard cable length: 2 m)
Materials Case: PBT (polybutylene terephthalate), Cover: Polycarbonate
Weight Approx. 100 g (Packed state: Approx. 480 g) Approx. 200 g (Packed state: Approx. 550 g)
Accessories Instruction Sheet, Two clamps

last update: December 01, 2016
