OMRON XS3 Power Supplies / In Addition

XS3 Round Water-resistant Connectors (M8/S8)/Dimensions
XS3 Round Water-resistant Connectors (M8/S8)/Lineup
XS3 Round Water-resistant Connectors (M8/S8)/Specifications
XS3 Round Water-resistant Connectors (M8/S8)/Catalog
Purchase the OMRON XS3 Sensor I/O Connectors

OMRON XS3 Dimensions

/Images/l_781-25-119060-198x198.jpg

last update: April 9, 2018

• Water-resistive, compact connector meets IP67 requirements.

• Conventional M8 screw-on models are available along with S8 snap-in models that connect and disconnect with one touch.

• Ideal for a wide variety of FA and OA applications.

• Connectors on both cable ends require no harness work.

• Some new M8 models with 3 or 5 poles.

• Oil-resistant Polyurethane Robot Cables added.

• M8-M12 conversion cables are also available.

last update: April 9, 2018

Purchase the OMRON Sensor I/O Connectors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON XS3 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XS3 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XS3Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E8FC IoT Flow Sensors/Features
CS1W-NC[]71 SYSMAC CS-series MECHATROLINK-II-compatible Position Control Units/Features
ZX-GT Smart Sensor (Wide Laser Beam CCD Measurement Sensor)/Features
61F-UHS / HSL Floatless Level Switch (Ultra High-sensitivity Type)/Features
H7GP Total Counter/Time Counter (DIN 48 x 24)/Features

OMRON XS3 dimension
XS3 Round Water-resistant Connectors (M8/S8)/Dimensions
last update: December 6, 2018

(Unit: mm)

XS3W Connectors with Cables, Connectors on Both Cable Ends (Socket/Plug)
M8 Screw-on Connectors with Vibration-proof Robot Cable

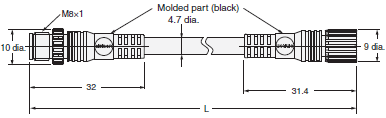

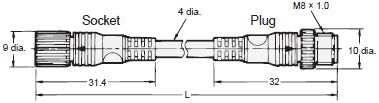

Straight (Socket)/Straight (Plug)
XS3W-M321-3[][]-R (3-core)
XS3W-M421-4[][]-R (4-core)

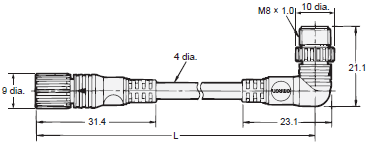

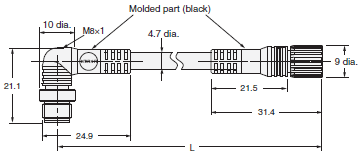

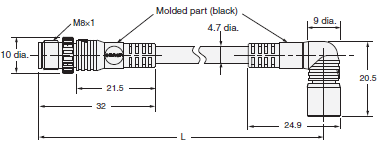

Straight (Socket)/Right-angle (Plug)
XS3W-M423-4[][]-R (4-core)

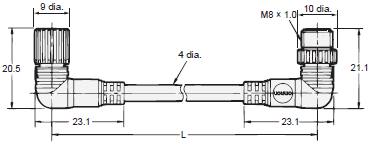

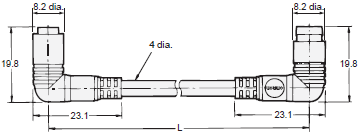

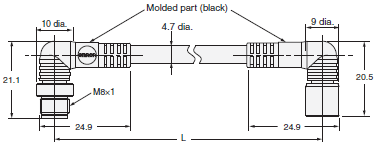

Right-angle (Socket)/Right-angle (Plug)
XS3W-M422-4[][]-R (4-core)

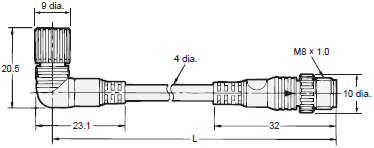

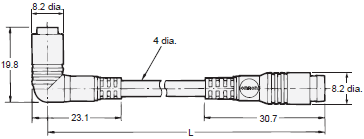

Right-angle (Socket)/Straight (Plug)
XS3W-M424-4[][]-R (4-core)

M8 Screw-on Connectors with Oil-resistant Polyurethane Robot Cable

Straight (Socket)/Straight (Pug)
XS3W-M421-4[][]-PR (4-core)

Straight (Socket)/Right-angle (Plug)
XS3W-M423-4[][]-PR (4-core)

Right-angle (Socket)/Right-angle (Plug)
XS3W-M422-4[][]-PR (4-core)

Right-angle (Socket)/Straight (Plug)
XS3W-M424-4[][]-PR (4-core)

S8 4 pin Snap-in Connectors with Vibration-proof Robot Cable

Straight (Socket)/Straight (Plug)
XS3W-S421-4[][]-R

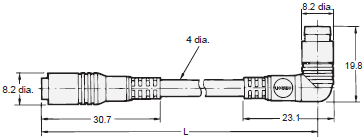

Straight (Socket)/Right-angle (Plug)
XS3W-S423-4[][]-R

Right-angle (Socket)/Right-angle (Plug)
XS3W-S422-4[][]-R

Right-angle (Socket)/Straight (Plug)
XS3W-S424-4[][]-R

XS3W Connectors with Cables, Connectors on Both Cable Ends (M8 Socket/M12 Plug or M8 Plug/M12 Socket)
M8 Screw-on Connectors, Straight (Socket)/M12 Smartclick Connectors, Straight (Plug)

XS3W-M32C-3C2-A (3-core)
XS3W-M42C-4C2-A (4-core)

M12 Smartclick Connectors, Straight (Socket)/M8 screw-on Connectors, Straight (Plug)

XS3W-M32D-3C2-A (3-core)
XS3W-M42D-4C2-A (4-core)

Note: For 3-core, M12 connectors, pin 2 is not connected internally.

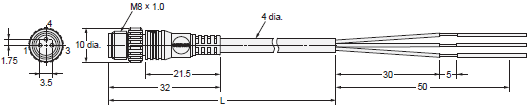

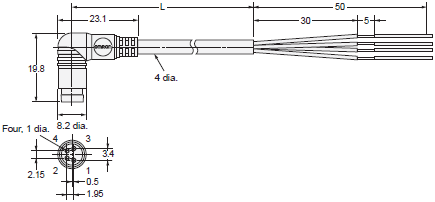

XS3F Connectors with Cables, Sockets on One Cable End

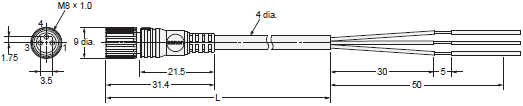

M8 Screw-on Connectors (3-core)

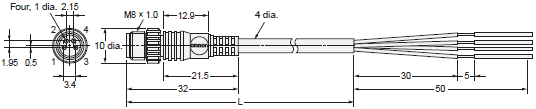

Straight
XS3F-M321-3[][]-A Vibration-proof robot cable
XS3F-M321-3[][]-R Standard cable

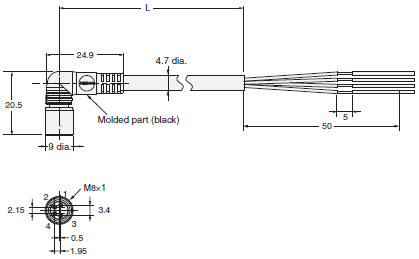

Right-angle
XS3F-M322-3[][]-A Vibration-proof robot cable
XS3F-M322-3[][]-R Standard cable

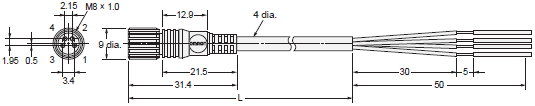

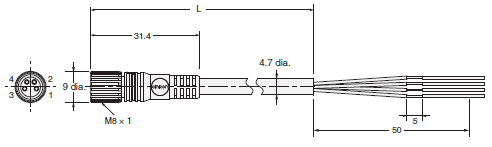

M8 Screw-on Connectors (4-core)

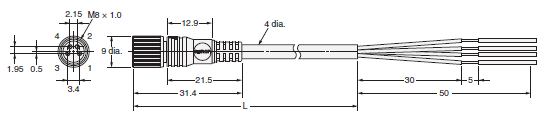

Straight
XS3F-M421-4[][]-A Vibration-proof robot cable
XS3F-M421-4[][]-R Standard cable

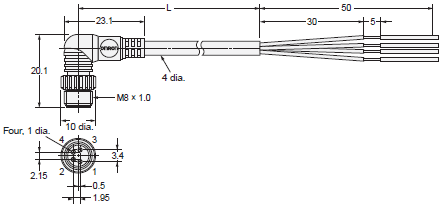

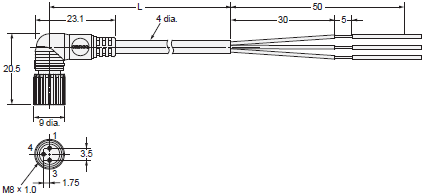

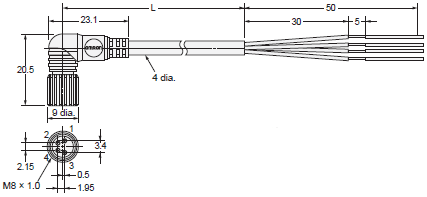

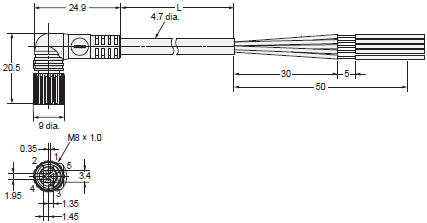

Right-angle
XS3F-M422-4[][]-A Vibration-proof robot cable
XS3F-M422-4[][]-R Standard cable

M8 SUS316L Lock (4-core)

Straight
XS3F-E421-402-A
XS3F-E421-405-A

Right-angle
XS3F-E422-402-A
XS3F-E422-405-A

M8 Screw-on Connectors (4-core)

Straight
Oil-resistant polyurethane robot cable
XS3F-M421-4[][]-PR
PUR cable
XS3F-M421-4[][]-L

Right-angle
Oil-resistant polyurethane robot cable
XS3F-M422-4[][]-PR
PUR cable
XS3F-M422-4[][]-L

M8 Screw-on Connectors (5-core) Oil-resistant Standard Cable

Straight
XS3F-M521-5[][]-A

Right-angle
XS3F-M522-5[][]-A

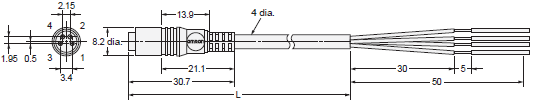

S8 4 pin Snap-in Connectors with Vibration-proof Robot Cable

Straight
XS3F-S421-4[][]-R

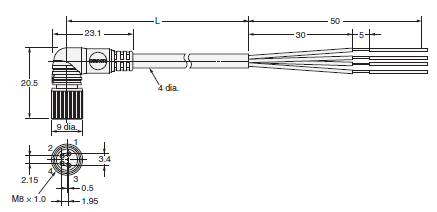

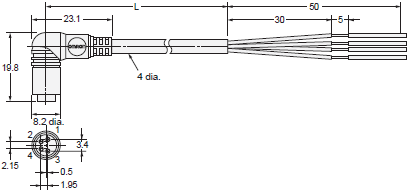

Right-angle
XS3F-S422-4[][]-R

XS3H Plugs on One Cable End
M8 3 pin Screw-on Connectors with Vibration-proof Robot Cable

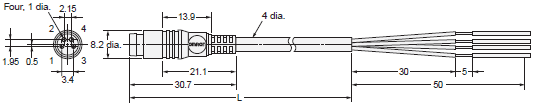

Straight
XS3H-M321-3[][]-R

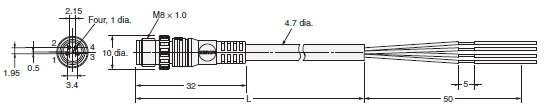

M8 4 pin Screw-on Connectors with Vibration-proof Robot Cable

Straight
XS3H-M421-4[][]-R

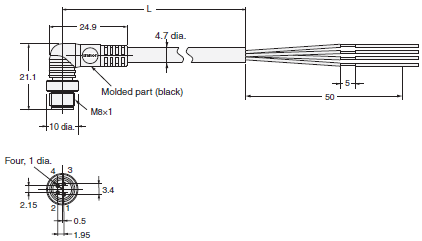

Right-angle
XS3H-M422-4[][]-R

M8 4 pin Screw-on Connectors with Oil-resistant Polyurethane Robot Cable

Straight
XS3H-M421-4[][]-PR

Right-angle
XS3H-M422-4[][]-PR

S8 4 pin Snap-in Connectors with Vibration-proof Robot Cable

Straight
XS3H-S421-4[][]-R

Right-angle
XS3H-S422-4[][]-R

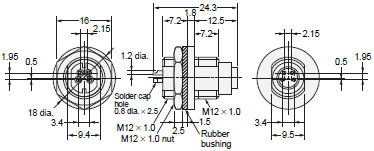

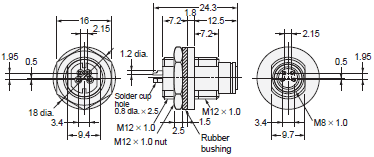

XS3P Panel-mounting Sockets for Terminal Boxes
M8 Screw-on Connectors

XS3P-M421-1 (DIP Pins)
Front lock or rear lock

XS3P-M421-2 (Solder Cup Pins)
Front lock or rear lock

XS3P-M422-2 (Solder Cup Pins),
Rear Lock Slim Models

S8 Snap-in Connectors

XS3P-S421-1 (DIP Pins)
Front lock or rear lock

XS3P-S421-2 (Solder Cup Pins)
Front lock or rear lock

Mounting Dimensions for XS3P Screw-on Models and Snap-in Models
Panel Cutout
XS3P-[]421-[]

Note: The panel thickness is 1 to 3 mm.

XS3P-M422-2

PCB-mounting Dimensions

Note: The panel thickness is 2.4 mm maximum.

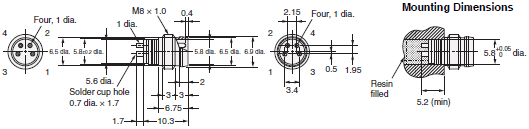

XS3M Sensor-Embedded Plugs

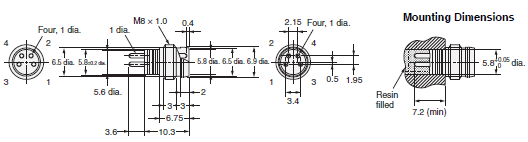

Embedded Plug with Screw Threads

DIP Pins
XS3M-K421-1

Solder Cup Pins
XS3M-K421-2

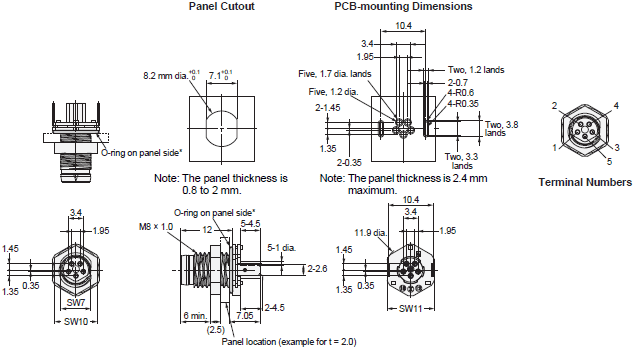

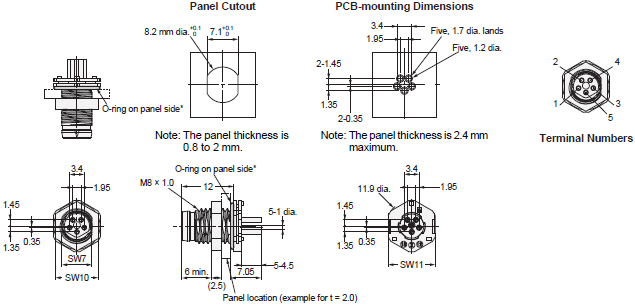

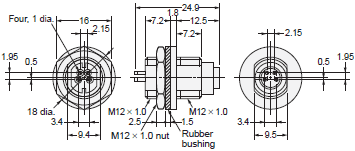

XS3M Panel-mounting Plugs
Front lock (5 pins)

DIP Pins 4.5 mm (for Either Round Holes or Solder Cups), Without Shield Pin
XS3M-M524-10

* The O-ring on the panel side maintains a waterproof structure (IP67) between the panel and Connector.

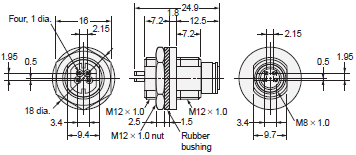

DIP Pins 4.5 mm (for Either Round Holes or Solder Cups), With Shield Pin
XS3M-M524-11

* The O-ring on the panel side maintains a waterproof structure (IP67) between the panel and Connector.

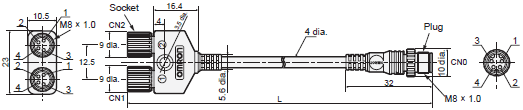

XS3R Y-Joint Plug/Socket Connectors
M8 Screw-on Connectors

Connectors on Both Cable Ends (Y-Joint Plug/Socket)
XS3R-M426-1[][]1-A

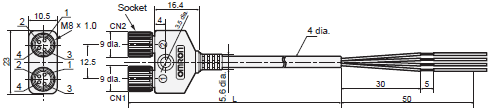

Connector on One Cable End (Y-Joint Plug/Socket)
XS3R-M426-1[][]0-A

Connector on Both Ends (Y-Joint Plug/Socket) without Cable
XS3R-M426-[]

last update: December 6, 2018

OMRON XS3 lineup
XS3 Round Water-resistant Connectors (M8/S8)/Lineup
last update: December 6, 2018

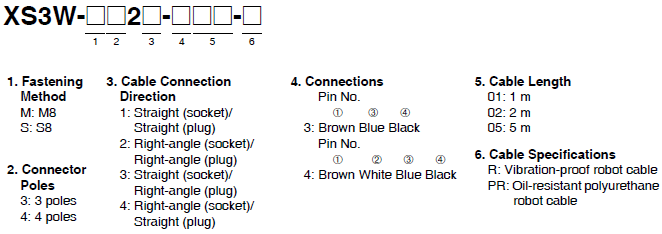

XS3W Connectors with Cables, Connectors on Both Cable Ends (Socket/Plug)

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.

M8 Screw-on Connectors

Cable
specifications No. of cable cores Cable connection direction Cable length
L (m) Model
Vibration-proof
robot cable 3 Straight (Socket)/
Straight (Plug) 1 XS3W-M321-301-R
2 XS3W-M321-302-R
5 XS3W-M321-305-R
4 Straight (Socket)/
Straight (Plug) 1 XS3W-M421-401-R
2 XS3W-M421-402-R
5 XS3W-M421-405-R
Right-angle (Socket)/
Right-angle (plug) 2 XS3W-M422-402-R
5 XS3W-M422-405-R
Straight (Socket)/
Right-angled (Plug) 2 XS3W-M423-402-R
5 XS3W-M423-405-R
Right-angle (Socket)/
Straight (Plug) 2 XS3W-M424-402-R
5 XS3W-M424-405-R
Oil-resistant
polyurethane
robot cable 4 Straight (Socket)/
Straight (plug) 1 XS3W-M421-401-PR
2 XS3W-M421-402-PR
5 XS3W-M421-405-PR
Right-angle (Socket)/
Right-angle (Plug) 1 XS3W-M422-401-PR
2 XS3W-M422-402-PR
5 XS3W-M422-405-PR
Straight (Socket)/
Right-angled (Plug) 1 XS3W-M423-401-PR
2 XS3W-M423-402-PR
5 XS3W-M423-405-PR
Right-angle (socket)/
Straight (Plug) 1 XS3W-M424-401-PR
2 XS3W-M424-402-PR
5 XS3W-M424-405-PR

S8 Snap-in Connectors

Cable
specifications No. of cable cores Cable connection direction Cable length
L (m) Model
Vibration-proof
robot cable 4 Straight (Socket)/
Straight (Plug) 1 XS3W-S421-401-R
2 XS3W-S421-402-R
5 XS3W-S421-405-R
Right-angle (Socket)/
Right-angle (Plug) 2 XS3W-S422-402-R
5 XS3W-S422-405-R
Straight (Socket)/
Right-angled (Plug) 2 XS3W-S423-402-R
5 XS3W-S423-405-R
Right-angle (Socket)/
Straight (Plug) 2 XS3W-S424-402-R
5 XS3W-S424-405-R

Note: Ask your OMRON representative about other cable lengths.

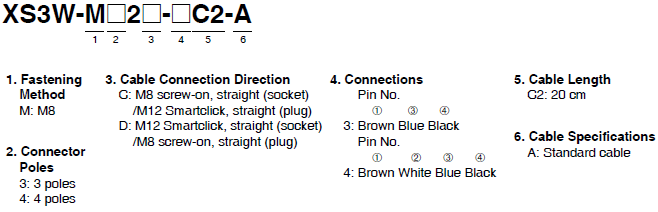

XS3W Connectors with Cables, Connectors on Both Cable Ends (M8 Socket/M12 Plug or M8 Plug/M12 Socket)

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.

Cable
specifications No. of cable cores Cable connection
direction Cable length
L (m) Model
Standard cable 3 M8 screw-on, straight (Socket)/
M12 Smartclick, straight (Plug) 0.2 XS3W-M32C-3C2-A
M12 Smartclick, straight (Socket)/
M8 screw-on, straight (Plug) XS3W-M32D-3C2-A
4 M8 screw-on, straight (Socket)/
M12 Smartclick, straight (Plug) XS3W-M42C-4C2-A
M12 Smartclick, straight (Socket)/
M8 screw-on, straight (Plug) XS3W-M42D-4C2-A

XS3F Connectors with Cables, Sockets on One Cable End

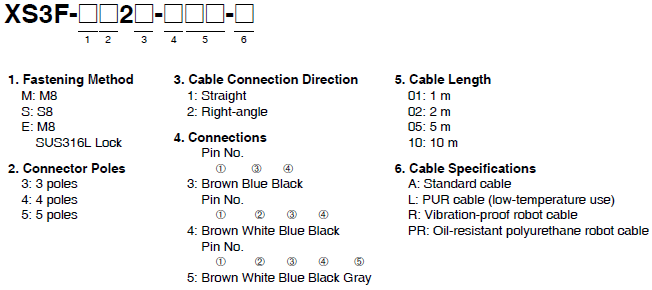

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.

M8 Screw-on Connectors

Cable
specifications No. of cable
cores Cable connection
direction Cable length L (m) Model
Standard cable 3 Straight 2 XS3F-M321-302-A
5 XS3F-M321-305-A
Right-angle 2 XS3F-M322-302-A
5 XS3F-M322-305-A
Vibration-proof robot
cable Straight 1 XS3F-M321-301-R
2 XS3F-M321-302-R
5 XS3F-M321-305-R
10 XS3F-M321-310-R
Right-angle 2 XS3F-M322-302-R
5 XS3F-M322-305-R
Standard cable 4 Straight 2 XS3F-M421-402-A
5 XS3F-M421-405-A
10 XS3F-M421-410-A
Right-angle 2 XS3F-M422-402-A
5 XS3F-M422-405-A
10 XS3F-M422-410-A
Standard SUS316L cable
lock Straight 2 XS3F-E421-402-A
5 XS3F-E421-405-A
Right-angle 2 XS3F-E422-402-A
5 XS3F-E422-405-A
Vibration-proof robot
cable Straight 1 XS3F-M421-401-R
2 XS3F-M421-402-R
5 XS3F-M421-405-R
10 XS3F-M421-410-R
Right-angle 1 XS3F-M422-401-R
2 XS3F-M422-402-R
5 XS3F-M422-405-R
10 XS3F-M422-410-R
Oil-resistant
polyurethane
robot cable Straight 2 XS3F-M421-402-PR
5 XS3F-M421-405-PR
Right-angle 1 XS3F-M422-401-PR
2 XS3F-M422-402-PR
5 XS3F-M422-405-PR
PUR cable
(low-temperature use) Straight 2 XS3F-M421-402-L
5 XS3F-M421-405-L
Right-angle 2 XS3F-M422-402-L
5 XS3F-M422-405-L
Standard cable 5 Straight 2 XS3F-M521-502-A
5 XS3F-M521-505-A
10 XS3F-M521-510-A
Right-angle 2 XS3F-M522-502-A
5 XS3F-M522-505-A
10 XS3F-M522-510-A

S8 Snap-in Connectors

Cable
specifications No. of cable cores Cable connection
direction Cable length L (m) Model
Vibration-proof
robot cable 4 Straight 1 XS3F-S421-401-R
2 XS3F-S421-402-R
5 XS3F-S421-405-R
Right-angle 1 XS3F-S422-401-R
2 XS3F-S422-402-R
5 XS3F-S422-405-R

Note: Ask your OMRON representative about other cable lengths.

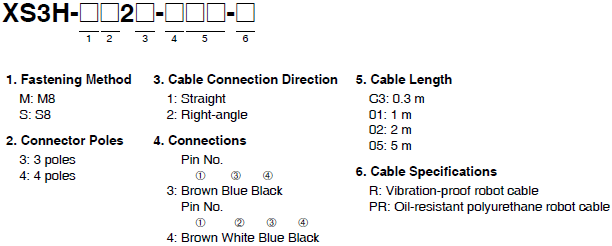

XS3H Plugs on One Cable End

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.

M8 Screw-on Connectors

Cable
specifications No. of cable cores Cable connection
direction Cable length
L (m) Model
Vibration-proof
robot cable 3 Straight 0.3 XS3H-M321-3C3-R
1 XS3H-M321-301-R
4 Straight 0.3 XS3H-M421-4C3-R
1 XS3H-M421-401-R
Right-angle 0.3 XS3H-M422-4C3-R
1 XS3H-M422-401-R
Oil-resistant
polyurethane
robot cable 4 Straight 2 XS3H-M421-402-PR
5 XS3H-M421-405-PR
Right-angle 1 XS3H-M422-401-PR
2 XS3H-M422-402-PR
5 XS3H-M422-405-PR

Note: Ask your OMRON representative about other cable lengths.

S8 Snap-in Connectors

Cable
specifications No. of cable cores Cable connection direction Cable length L (m) Model
Vibration-proof
robot cable 4 Straight 0.3 XS3H-S421-4C3-R
1 XS3H-S421-401-R
Right-angle 0.3 XS3H-S422-4C3-R
1 XS3H-S422-401-R

XS3P Panel-mounting Sockets for Terminal Boxes

Connection
method Connector
Poles Panel mounting Pin shape Applicable
wires Model
M8 screw-on 4 Front lock or rear lock DIP pins --- XS3P-M421-1
Solder cup pins AWG24 max. XS3P-M421-2
Rear lock Solder cup pins AWG24 max. XS3P-M422-2
S8 snap-in Front lock or rear lock DIP pins --- XS3P-S421-1
Solder cup pins AWG24 max. XS3P-S421-2

XS3M Sensor-Embedded Plugs

Mounting method Connector Poles Pin shape Applicable wires Model
Embedded model 4 DIP pins — XS3M-K421-1
Solder cup pins AWG26 max. XS3M-K421-2

XS3M Panel-mounting Plugs

Mounting method Connector Poles Pin shape Shield pin Applicable wires Model
Front Lock 5 DIP pins 4.5 mm
(for either round
holes or solder cups) No AWG26 max. XS3M-M524-10
Yes XS3M-M524-11

XS3R Y-Joint Plug/Socket Connectors
For M8 Connectors

Cable Connector Cable length L (m) Model
With cable Connectors on both cable ends 0.5 XS3R-M426-1C51-A
1 XS3R-M426-1011-A
2 XS3R-M426-1021-A
3 XS3R-M426-1031-A
Connector on one cable end 2 XS3R-M426-1020-A
5 XS3R-M426-1050-A
Without cable Connectors on both cable ends --- XS3R-M426-1
XS3R-M426-5

XS3 M8/S8 Connector Cover

Model Material Suitable connector
Model Mounting portion
XS3Z-13 PVC resin/red XS3H/XS3W/XS3R M8 plug
XS3F/XS3W S8 socket
XS3H/XS3W S8 plug
XS3M M8/S8 plug
XS3Z-15 XS3F/XS3W/XS3R M8 socket

last update: December 6, 2018

OMRON XS3 specification
XS3 Round Water-resistant Connectors (M8/S8)/Specifications
last update: April 9, 2018
Ratings and Specifications

Model XS3F/H/W/P/M XS3F-M52[]-5[][]-A XS3M-M524-1[] XS3R
Rated current 1 ADC 3 ADC 1 ADC
Rated voltage 125 VDC *2 30 VDC 125 VDC
Contact resistance
(connector) 40 mΩ max.
(20 mV max., 100mA max.) 60 mΩ max.
(20 mV max.,
100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength
(connector) 1,000 VAC for 1 min
(leakage current:
1 mA max.) 650 VAC for 1 min
(leakage current: 1 mA max.) 1,000 VAC for 1 min
(leakage current:
1 mA max.)
Degree of protection IP67 (IEC60529)
Insertion tolerance 200 times
Cable tensile strength *1 49 N/15 s
Ambient operating
temperature range -25 to 70°C *3 -25 to 85°C -25 to 70°C
Ambient humidity range 20 to 85%RH

*1. Models with cable only
*2. Except 5 poles
*3. Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from being broken when bending it.

Materials and Finish
Connector

Type M8 S8
Model XS3F/H/W/R XS3P/M * XS3M-M524-1[] XS3F/W
(Socket side) XS3H/W
(Plug side) XS3P
Contact
block PBT resin (UL94 V-0) light gray or black
Contacts Phosphor bronze/
nickel base, 0.4-
μm gold plating Brass/nickel base,
0.4-μm gold plating Phosphor bronze/
nickel base, 0.4-
μm gold plating Brass/nickel base,
0.4-μm gold　plating
Fixture Brass/nickel plating or SUS316L — Brass/
nickel plating —
Body — Brass/
nickel plating Nickel-plated zinc
alloy —
Shell — TPEE
C-Ring — Phosphor bronze/
tin plating —
Grounding fixture — Phosphor bronze/
tin plating —
Nut — Brass/nickel plating — Brass/
nickel plating
Cover Soft PBT resin
(UL94V-0) — TPEE —
O-ring Rubber

*Except 5 poles
Note: The XS3M is for both M8 and S8.

Cables

Poles 3 poles 4 poles 5 poles
Standard cable 4 mm dia,
AWG24 (0.2 mm²)
Structure: 0.12 mm/18 4.7 mm dia,
AWG24 (0.2 mm²)
Structure: 0.16 mm/11
Robot Cable 4 mm dia,
AWG24 (0.2 mm²)
Structure: 0.08 mm/40 —
Oil-resistant
polyurethane
robot cable — 4.7 mm dia,
AWG22 (0.3 mm²)
Structure: 0.08 mm/60 —

Note: Only the XS3F (socket) is available with 5 poles.

Pin Arrangement (Engaged Side)

Poles 3 poles 4 poles 5 poles
DC Male
(plug)
contacts
Female
(socket)
contacts

last update: April 9, 2018

OMRON XS3 catalog
XS3 Round Water-resistant Connectors (M8/S8)/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

XS3 Data Sheet -
[7236KB] Dec 06, 201820181206 XS3 Data Sheet

Sensor I/O Connector Over -
[3203KB] Apr 02, 201820180402 Sensor I/O Connector Over

NO. XS3

TYPE:Sensor I/O Connectors / Sensor Controllers Sensor I/O Connectors Copyright Statement

DATE:2021-06-07

Associated products:
XW3B Connector Terminal Boxes/Features S3D2 Sensor Controller/Features

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Vibration-proof robot cable	3	Straight (Socket)/ Straight (Plug)	1	XS3W-M321-301-R
2	XS3W-M321-302-R
5	XS3W-M321-305-R
4	Straight (Socket)/ Straight (Plug)	1	XS3W-M421-401-R
2	XS3W-M421-402-R
5	XS3W-M421-405-R
Right-angle (Socket)/ Right-angle (plug)	2	XS3W-M422-402-R
5	XS3W-M422-405-R
Straight (Socket)/ Right-angled (Plug)	2	XS3W-M423-402-R
5	XS3W-M423-405-R
Right-angle (Socket)/ Straight (Plug)	2	XS3W-M424-402-R
5	XS3W-M424-405-R
Oil-resistant polyurethane robot cable	4	Straight (Socket)/ Straight (plug)	1	XS3W-M421-401-PR
2	XS3W-M421-402-PR
5	XS3W-M421-405-PR
Right-angle (Socket)/ Right-angle (Plug)	1	XS3W-M422-401-PR
2	XS3W-M422-402-PR
5	XS3W-M422-405-PR
Straight (Socket)/ Right-angled (Plug)	1	XS3W-M423-401-PR
2	XS3W-M423-402-PR
5	XS3W-M423-405-PR
Right-angle (socket)/ Straight (Plug)	1	XS3W-M424-401-PR
2	XS3W-M424-402-PR
5	XS3W-M424-405-PR

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Vibration-proof robot cable	4	Straight (Socket)/ Straight (Plug)	1	XS3W-S421-401-R
2	XS3W-S421-402-R
5	XS3W-S421-405-R
Right-angle (Socket)/ Right-angle (Plug)	2	XS3W-S422-402-R
5	XS3W-S422-405-R
Straight (Socket)/ Right-angled (Plug)	2	XS3W-S423-402-R
5	XS3W-S423-405-R
Right-angle (Socket)/ Straight (Plug)	2	XS3W-S424-402-R
5	XS3W-S424-405-R

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Standard cable	3	M8 screw-on, straight (Socket)/ M12 Smartclick, straight (Plug)	0.2	XS3W-M32C-3C2-A
M12 Smartclick, straight (Socket)/ M8 screw-on, straight (Plug)	XS3W-M32D-3C2-A
4	M8 screw-on, straight (Socket)/ M12 Smartclick, straight (Plug)	XS3W-M42C-4C2-A
M12 Smartclick, straight (Socket)/ M8 screw-on, straight (Plug)	XS3W-M42D-4C2-A

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Standard cable	3	Straight	2	XS3F-M321-302-A
5	XS3F-M321-305-A
Right-angle	2	XS3F-M322-302-A
5	XS3F-M322-305-A
Vibration-proof robot cable	Straight	1	XS3F-M321-301-R
2	XS3F-M321-302-R
5	XS3F-M321-305-R
10	XS3F-M321-310-R
Right-angle	2	XS3F-M322-302-R
5	XS3F-M322-305-R
Standard cable	4	Straight	2	XS3F-M421-402-A
5	XS3F-M421-405-A
10	XS3F-M421-410-A
Right-angle	2	XS3F-M422-402-A
5	XS3F-M422-405-A
10	XS3F-M422-410-A
Standard SUS316L cable lock	Straight	2	XS3F-E421-402-A
5	XS3F-E421-405-A
Right-angle	2	XS3F-E422-402-A
5	XS3F-E422-405-A
Vibration-proof robot cable	Straight	1	XS3F-M421-401-R
2	XS3F-M421-402-R
5	XS3F-M421-405-R
10	XS3F-M421-410-R
Right-angle	1	XS3F-M422-401-R
2	XS3F-M422-402-R
5	XS3F-M422-405-R
10	XS3F-M422-410-R
Oil-resistant polyurethane robot cable	Straight	2	XS3F-M421-402-PR
5	XS3F-M421-405-PR
Right-angle	1	XS3F-M422-401-PR
2	XS3F-M422-402-PR
5	XS3F-M422-405-PR
PUR cable (low-temperature use)	Straight	2	XS3F-M421-402-L
5	XS3F-M421-405-L
Right-angle	2	XS3F-M422-402-L
5	XS3F-M422-405-L
Standard cable	5	Straight	2	XS3F-M521-502-A
5	XS3F-M521-505-A
10	XS3F-M521-510-A
Right-angle	2	XS3F-M522-502-A
5	XS3F-M522-505-A
10	XS3F-M522-510-A

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Vibration-proof robot cable	4	Straight	1	XS3F-S421-401-R
2	XS3F-S421-402-R
5	XS3F-S421-405-R
Right-angle	1	XS3F-S422-401-R
2	XS3F-S422-402-R
5	XS3F-S422-405-R

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Vibration-proof robot cable	3	Straight	0.3	XS3H-M321-3C3-R
1	XS3H-M321-301-R
4	Straight	0.3	XS3H-M421-4C3-R
1	XS3H-M421-401-R
Right-angle	0.3	XS3H-M422-4C3-R
1	XS3H-M422-401-R
Oil-resistant polyurethane robot cable	4	Straight	2	XS3H-M421-402-PR
5	XS3H-M421-405-PR
Right-angle	1	XS3H-M422-401-PR
2	XS3H-M422-402-PR
5	XS3H-M422-405-PR

Cable specifications	No. of cable cores	Cable connection direction	Cable length L (m)	Model
Vibration-proof robot cable	4	Straight	0.3	XS3H-S421-4C3-R
1	XS3H-S421-401-R
Right-angle	0.3	XS3H-S422-4C3-R
1	XS3H-S422-401-R

Connection method	Connector Poles	Panel mounting	Pin shape	Applicable wires	Model
M8 screw-on	4	Front lock or rear lock	DIP pins	---	XS3P-M421-1
Solder cup pins	AWG24 max.	XS3P-M421-2
Rear lock	Solder cup pins	AWG24 max.	XS3P-M422-2
S8 snap-in	Front lock or rear lock	DIP pins	---	XS3P-S421-1
Solder cup pins	AWG24 max.	XS3P-S421-2

Mounting method	Connector Poles	Pin shape	Applicable wires	Model
Embedded model	4	DIP pins	—	XS3M-K421-1
Solder cup pins	AWG26 max.	XS3M-K421-2

Mounting method	Connector Poles	Pin shape	Shield pin	Applicable wires	Model
Front Lock	5	DIP pins 4.5 mm (for either round holes or solder cups)	No	AWG26 max.	XS3M-M524-10
Yes	XS3M-M524-11

Cable	Connector	Cable length L (m)	Model
With cable	Connectors on both cable ends	0.5	XS3R-M426-1C51-A
1	XS3R-M426-1011-A
2	XS3R-M426-1021-A
3	XS3R-M426-1031-A
Connector on one cable end	2	XS3R-M426-1020-A
5	XS3R-M426-1050-A
Without cable	Connectors on both cable ends	---	XS3R-M426-1
XS3R-M426-5

Model	Material	Suitable connector
Model	Mounting portion
XS3Z-13	PVC resin/red	XS3H/XS3W/XS3R	M8 plug
XS3F/XS3W	S8 socket
XS3H/XS3W	S8 plug
XS3M	M8/S8 plug
XS3Z-15	XS3F/XS3W/XS3R	M8 socket

Model	XS3F/H/W/P/M	XS3F-M52[]-5[][]-A	XS3M-M524-1[]	XS3R
Rated current	1 ADC	3 ADC	1 ADC
Rated voltage	125 VDC *2	30 VDC	125 VDC
Contact resistance (connector)	40 mΩ max. (20 mV max., 100mA max.)	60 mΩ max. (20 mV max., 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,000 VAC for 1 min (leakage current: 1 mA max.)	650 VAC for 1 min (leakage current: 1 mA max.)	1,000 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection	IP67 (IEC60529)
Insertion tolerance	200 times
*Cable tensile strength 1**	49 N/15 s
Ambient operating temperature range	-25 to 70°C *3	-25 to 85°C	-25 to 70°C
Ambient humidity range	20 to 85%RH

Type	M8	S8
Model	XS3F/H/W/R	XS3P/M *	XS3M-M524-1[]	XS3F/W (Socket side)	XS3H/W (Plug side)	XS3P
Contact block	PBT resin (UL94 V-0) light gray or black
Contacts	Phosphor bronze/ nickel base, 0.4- μm gold plating	Brass/nickel base, 0.4-μm gold plating	Phosphor bronze/ nickel base, 0.4- μm gold plating	Brass/nickel base, 0.4-μm gold　plating
Fixture	Brass/nickel plating or SUS316L	—	Brass/ nickel plating	—
Body	—	Brass/ nickel plating	Nickel-plated zinc alloy	—
Shell	—	TPEE
C-Ring	—	Phosphor bronze/ tin plating	—
Grounding fixture	—	Phosphor bronze/ tin plating	—
Nut	—	Brass/nickel plating	—	Brass/ nickel plating
Cover	Soft PBT resin (UL94V-0)	—	TPEE	—
O-ring	Rubber

Poles	3 poles	4 poles	5 poles
Standard cable	4 mm dia, AWG24 (0.2 mm²) Structure: 0.12 mm/18	4.7 mm dia, AWG24 (0.2 mm²) Structure: 0.16 mm/11
Robot Cable	4 mm dia, AWG24 (0.2 mm²) Structure: 0.08 mm/40	—
Oil-resistant polyurethane robot cable	—	4.7 mm dia, AWG22 (0.3 mm²) Structure: 0.08 mm/60	—

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
XS3 Data Sheet	- [7236KB]	Dec 06, 201820181206	XS3 Data Sheet
Sensor I/O Connector Over	- [3203KB]	Apr 02, 201820180402	Sensor I/O Connector Over

Return to OMRON
