• Connects to a PLC with a simple snap-in connector.

• The G70A-ZOC16-3 cab be combined with a DRT1-OD32ML I/O Terminal for DeviceNet connectivity or an SRT2-VOD16ML Connector Terminal for CompoBus/S connectivity.

• SPDT relays can be mounted.

• Conforms to VDE (VDE0106) and CE standards.

• Electric-shock preventive (finger-touch protection) terminal socket.

• DIN rail mountable.

• High-capacity (10 A) terminal socket.

• Excellent noise resistance characteristics.

• Built-in diodes for coil surge suppression.

last update: February 13, 2017

Purchase the OMRON I/O Relay Terminals Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G70A Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G70A We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G70APower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

61F-G[] Floatless Level Switch (Basic Type)/Features
E5CD / E5CD-B Digital Temperature Controller (48 x 48 mm)/Features
E5CS Temperature Controllers/Features
E58-CIFQ1 USB-Serial Conversion Cable/Features
GT1-AD / DA Analog I/O Units/Features

OMRON G70A lineup
G70A I/O Terminal Socket/Lineup
last update: April 23, 2018
I/O Terminal Socket

Classification Internal I/O common Rated voltage Model
Output NPN (+ common) 24 VDC G70A-ZOC16-3
PNP (- common) 24 VDC G70A-ZOC16-4
Input NPN/PNP 110 VDC max., 240 VAC max. * G70A-ZIM16-5

* Each relay to be mounted must incorporate a coil that has proper specifications within the maximum rated voltage range.

Suitable Relay/Solid State Relay/Solid-State Timer

Classification I/O Terminal Socket Relay Solid State Relay (SSR) Solid-State Timer
Output NPN: G70A-ZOC16-3
PNP: G70A-ZOC16-4
G2R-1-S
G2R-1-SN
G2R-1-S (S)
G2R-1-SN (S)
G3R-OA202SZN
G3R-OA202SLN
G3R-ODX02SN
G3R-OD201SN

G3RZ-201SLN H3RN-1
H3RN-11
Input G70A-ZIM16-5 G2R-1A3-SN *1, *2
G2R-13-SN *1, *2
G2R-1A3-SND *1, *2
G2R-13-SND *1, *2 G3R-IAZR1SN
G3R-IDZR1SN
G3R-IDZR1SN-1 ---

*1. G2R-13-SN has twin cross-bar contacts.
*2. Manufacturing of the G2R-1A3-S[] and G2R-13-S[] was discontinued at the end of March 2014.

Accessories (Order Separately)
Short Bar

Applicable model Model
G70A-ZOC16-3
G70A-ZOC16-4 G78-16-E
G70A-ZIM16-5

Connecting Sockets for I/O Terminal Expansion

Number of poles Model
1 pole (G2R: 1 pole usage) P2RF-05-E
2 poles (G2R: 2 poles usage) P2RF-08-E

Cables for I/O Relay Terminals XW2Z-R

• Cable with Loose Wire and Crimp Terminals: XW2Z-RY[]C
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with connectors
• Fujitsu connectors (1:1): XW2Z-R[]C
                           (1:2): XW2Z-RI[]C-[]
                                        XW2Z-RO[]C-[]
                                 (1:3): XW2Z-R[]C-[]-[]
• MIL connectors (1:1): XW2Z-RI[]C
                                     XW2Z-RO[]C
                            (1:2): XW2Z-RI[]-[]-D[]
                                     XW2Z-RM[]-[]-D[]
                                     XW2Z-RO[]-[]-D1
Refer to “Connecting Cables” on Data Sheet for details.

Accessories for DIN Track Mounting

Appearance Name Model
DIN Tracks 1 m PFP-100N
0.5 m PFP-50N
End Plate PFP-M
Spacer PFP-S

last update: April 23, 2018

OMRON G70A catalog
G70A I/O Terminal Socket/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G70A Data Sheet J087-E1-05
[2578KB] Apr 23, 201820180423 G70A Data Sheet

XW2Z-R Data Sheet G126-E1-02
[2435KB] Apr 03, 201720170403 XW2Z-R Data Sheet

G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations J217-E1-02
[1206KB] Jun 01, 201820180601 G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations

OMRON G70A dimension
G70A I/O Terminal Socket/Dimensions
last update: April 23, 2018

(Unit: mm)

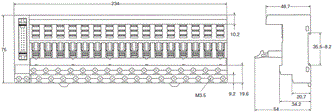

G70A-ZOC16 (Output)

G70A-ZIM16 (Input)

Short Bar

G78-16-E

Parts for Rail Mounting
DIN Track

PFP-100N
PFP-50N

End Plate

PFP-M

Spacer

PFP-S

last update: April 23, 2018

OMRON G70A specification
G70A I/O Terminal Socket/Specifications
last update: April 23, 2018
Ratings/Characteristics

Item G70A-ZOC16-3 G70A-ZOC16-4 G70A-ZIM16-5
Contact resistance 10 mΩ (excluding the resistance of the relay to be used)
Permissible current 10 A 100 mA
Max. operating voltage 380 VAC, 125 VDC 30 VDC
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between connector
and output terminals
2,000 VAC, 50/60 Hz for 1 min between output
terminals
250 VAC, 50/60 Hz for 1 min between connectors 4,000 VAC, 50/60 Hz for 1 min between
connector and input terminals
2,000 VAC, 50/60 Hz for 1 min between
coil terminals
250 VAC, 50/60 Hz for 1 min between
connectors
Insulation resistance Between connector and I/O terminals: 1,000 MΩ (at 500 V)
Other: 100 MΩ (at 500 V)
Vibration resistance Malfunction: 10 to 61.2 to 10 Hz, 0.1-mm single amplitude (0.2-mm double amplitude); 61.2 to
150 to 61.2 Hz, 14.7 m/s²
Shock resistance Malfunction: 200 m/s²
Noise immunity Noise level: 2.0 kV; pulse width: 100 ns to 1 μs
Ambient temperature Operating: 0 to 55°C (with no condensation or icing)
Ambient humidity Operating: 35% to 85%
Coil surge absorption
element Diode: 1 A, 400 V Varistor *
Protection diode for
inverse connection Diode (2 A, withstand inverse voltage: 40 V)
Tensile strength No damage when a tensile force of 49 N is applied for 1 second in any direction
I/O terminal
tightening torque Tightening strength: 0.59 N·m;
Tensile strength 49 N for 1 min.
Weight Approx. 400 g

* Use a DC relay with a built-in diode because a DC relay without a built-in diode does not absorb any coil surge.

Approved Standards

The rated values for safety standard certification are not the same as individually defined performance values. Always check the specifications before use.

UL standard certification (File No. E95399)

Model Ratings Standard number Category Listed/Recognized Contact ratings
G70A-ZOC16-3
G70A-ZOC16-4 --- UL508 NRAQ2 Recognized 10 A 250 VAC

CSA certified (File No. LR35535)

Model Ratings Standard number Class number Contact ratings
G70A-ZOC16-3
G70A-ZOC16-4 --- CSA C22.2
No.14 3211 04 10 A 250 VAC
10 A 30 VDC

VDE Standards

Model Standard number Certification No.
G70A-ZOC16-3
G70A-ZOC16-4 VDE0160 124796

Relay (G2R-1-S, G2R-1-SN, G2R-1-S (S), G2R-1-SN (S))
Coil Ratings

Rated voltage 24 VDC
Rated current 21.8 mA
Coil resistance 1,100 Ω
Coil inductance Armature OFF 4.27
(H) (ref. value) Armature ON 8.55
Must operate voltage 70% min. of rated voltage
Must release voltage 15% min. of rated voltage
Max. voltage 110% of rated voltage
Power consumption Approx. 0.53 W

Contact Ratings

Number of poles 1 pole
Load Resistive load (cosφ = 1) Inductive load (cosφ = 0.4; L/R = 7 ms)
Rated load 10 A at 250 VAC; 10 A at 30 VDC 7.5 A at 250 VAC; 5 A at 30 VDC
Rated carry current 10 A
Max. operating voltage 380 VAC, 125 VDC
Max. operating current 10 A
Max. switching capacity 2,500 VA, 300 W 1,875 VA, 150 W
Min. permissible load 100 mA at 5 VDC

Relay (G2R-1A3-SN (SND), G2R-13-SN (SND))
Coil Ratings

Rated voltage 230 VAC 12 VDC 24 VDC
Rated current 50 Hz 3.7 mA 43.6 mA 21.8 mA
60 Hz 3.1 mA
Coil resistance 30,000 Ω 275 Ω 1,100 Ω
Must operate voltage 80% max. of rated voltage 70% max. of rated voltage
Must release voltage 30% min. of rated voltage 15% min. of rated voltage
Max. voltage 110% of rated voltage
Power consumption Approx. 0.7 W (60 Hz) Approx. 0.53 W

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of +15%/–20%
             (AC rated current) or ±10% (DC coil resistance).
         2. LEDs are used for the built-in operation indicator. For models equipped with these indications, the VAC rated
             current must be increased by approximately 1 mA; the VDC rated current, by approximately 4 mA.
         3. Operating characteristics are measured at a coil temperature of 23°C.

Contact Ratings

Refer to Ratings/Characteristics of G70A-ZIM16-5.

Solid State Relay (G3R-I/O)
Ratings
Input Module
Input

Model Rated voltage Operating voltage Input current Must operate
voltage Must release
voltage
G3R-IAZR1SN 100 to 240 VAC 60 to 264 VAC 15 mA max. 60 VAC max. 20 VAC min.
G3R-IDZR1SN 5 VDC 4 to 6 VDC 8 mA max. 4 VDC max. 1 VDC min.
12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.
G3R-IDZR1SN-1 5 VDC 4 to 6 VDC 4 VDC max. 1 VDC min.
12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.

Output

Model Load voltage Load current
G3R-IAZR1SN 4 to 32 VDC 0.1 to 100 mA
G3R-IDZR1SN
G3R-IDZR1SN-1

Output Module
Input

Model Rated voltage Operating voltage Input current Must operate
voltage Must release
voltage
G3R-OA202SZN 5 to 24 VDC 4 to 32 VDC 15 mA max.
(at 25°C) 4 VDC max. 1 VDC min.
G3R-OA202SLN
G3R-ODX02SN 8 mA max.
G3R-OD201SN

Output

Model Load voltage Load current *1, *2 Inrush current
G3R-OA202SZN 75 to 264 VAC 0.05 to 2 A 30 A (60 Hz, 1 cycle)
G3R-OA202SLN
G3R-ODX02SN 4 to 60 VDC 0.01 to 2 A 8 A (10 ms)
G3R-OD201SN 40 to 200 VDC 0.01 to 1.5 A 8 A (10 ms)

*1. Depends on the ambient temperature. Refer to the Engineering Data (Reference Value) Load Current vs. Ambient
      Temperature Rating on Data Sheet for details.
*2. The minimum current value is measured at 10°C min.

Characteristics
Input Module

Item G3R-IAZR1SN G3R-IDZR1SN G3R-IDZR1SN-1
Operate time 20 ms max. 0.1 ms max. 15 ms max.
Release time 20 ms max. 0.1 ms max. 15 ms max.
Response frequency 10 Hz 1 kHz 10 Hz
Output ON voltage drop 1.6 V max.
Leakage current 5 μA max.
Insulation resistance 100 MΩ min. between input and output
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000 m/s²
Ambient temperature Operating: -30 to 80°C (with no icing)
Storage: -30 to 100°C (with no icing)
Ambient humidity Operating: 45% to 85%
Weight Approx. 18 g

Output Module

Item G3R-OA202SZN G3R-OA202SLN G3R-ODX02SN G3R-OD201SN
Operate time 1/2 of load power source
cycle + 1 ms max. 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max. 2 ms max.
Response frequency 20 Hz 100 Hz
Output ON voltage drop 1.6 V max. 2.5 V max.
Leakage current 1.5 mA max. 1 mA max.
Insulation resistance 100 MΩ min. between input and output
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000 m/s²
Ambient temperature Operating: -30 to 80°C (with no icing)
Storage: -30 to 100°C (with no icing)
Ambient humidity Operating: 45% to 85%
Weight Approx. 18 g

Solid State Relay (G3RZ)
Ratings

Model Input Output
Rated
voltage Operating
voltage Impedance Voltage level Rated
load
voltage Load
voltage
range Load
current
* Surge
withstand
current
Must-
operate
voltage Must-
release
voltage
G3RZ-
201SLN 5 VDC 4 to 6 VDC 400 Ω ±20% 4 VDC max. 1 VDC
min. 5 to 240
VAC
5 to 100
VDC 3 to 264
VAC
3 to 125
VDC 100 μA
to 1.0 A 10 A
(10 ms)
12 VDC 9.6 to 14.4
VDC 1.1 kΩ ±20% 9.6 VDC max.
24 VDC 19.2 to 28.8
VDC 2.2 kΩ ±20% 19.2 VDC max.

* Depends on the ambient temperature. Refer to the reference data Load Current vs. Ambient Temperature Rating on Data
Sheet for details.

Characteristics

Operation time 6 ms max.
Release time 10 ms max.
Output ON resistance 2.4 Ω max.
OFF leakage current 10 μA max. (at 125 VDC)
100 μA max. (at 200 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC at 50/60 Hz for 1 min. between inputs and outputs
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000 m/s²
Storage temperature -30 to 100°C (with no icing or condensation)
Ambient operating temperature -30 to 85°C (with no icing or condensation)
Ambient operating humidity 45% to 85%
Weight Approx. 20 g

Solid-State Timer (H3RN)

For H3RN specifications, refer to the H3RN Datasheet.

last update: April 23, 2018

NO. G70A

TYPE:Wiring Systems I/O Relay Terminals Copyright Statement

DATE:2021-06-13

Associated products:
G7TC I/O Relay Terminal/Features G70D-SOC08 Relay Terminal/Features

Classification	Internal I/O common	Rated voltage	Model
Output	NPN (+ common)	24 VDC	G70A-ZOC16-3
PNP (- common)	24 VDC	G70A-ZOC16-4
Input	NPN/PNP	110 VDC max., 240 VAC max. *	G70A-ZIM16-5

Classification	I/O Terminal Socket	Relay	Solid State Relay (SSR)	Solid-State Timer
Output	NPN: G70A-ZOC16-3 PNP: G70A-ZOC16-4	G2R-1-S G2R-1-SN G2R-1-S (S) G2R-1-SN (S)	G3R-OA202SZN G3R-OA202SLN G3R-ODX02SN G3R-OD201SN G3RZ-201SLN	H3RN-1 H3RN-11
Input	G70A-ZIM16-5	G2R-1A3-SN 1, 2 G2R-13-SN 1, 2 G2R-1A3-SND 1, 2 G2R-13-SND 1, 2	G3R-IAZR1SN G3R-IDZR1SN G3R-IDZR1SN-1	---

Applicable model	Model
G70A-ZOC16-3 G70A-ZOC16-4	G78-16-E
G70A-ZIM16-5

Number of poles	Model
1 pole (G2R: 1 pole usage)	P2RF-05-E
2 poles (G2R: 2 poles usage)	P2RF-08-E

Appearance	Name	Model
	DIN Tracks	1 m	PFP-100N
0.5 m	PFP-50N
	End Plate	PFP-M
	Spacer	PFP-S

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G70A Data Sheet	J087-E1-05 [2578KB]	Apr 23, 201820180423	G70A Data Sheet
XW2Z-R Data Sheet	G126-E1-02 [2435KB]	Apr 03, 201720170403	XW2Z-R Data Sheet
G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations	J217-E1-02 [1206KB]	Jun 01, 201820180601	G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations

Item	G70A-ZOC16-3	G70A-ZOC16-4	G70A-ZIM16-5
Contact resistance	10 mΩ (excluding the resistance of the relay to be used)
Permissible current	10 A	100 mA
Max. operating voltage	380 VAC, 125 VDC	30 VDC
Dielectric strength	4,000 VAC, 50/60 Hz for 1 min between connector and output terminals 2,000 VAC, 50/60 Hz for 1 min between output terminals 250 VAC, 50/60 Hz for 1 min between connectors	4,000 VAC, 50/60 Hz for 1 min between connector and input terminals 2,000 VAC, 50/60 Hz for 1 min between coil terminals 250 VAC, 50/60 Hz for 1 min between connectors
Insulation resistance	Between connector and I/O terminals: 1,000 MΩ (at 500 V) Other: 100 MΩ (at 500 V)
Vibration resistance	Malfunction: 10 to 61.2 to 10 Hz, 0.1-mm single amplitude (0.2-mm double amplitude); 61.2 to 150 to 61.2 Hz, 14.7 m/s²
Shock resistance	Malfunction: 200 m/s²
Noise immunity	Noise level: 2.0 kV; pulse width: 100 ns to 1 μs
Ambient temperature	Operating: 0 to 55°C (with no condensation or icing)
Ambient humidity	Operating: 35% to 85%
Coil surge absorption element	Diode: 1 A, 400 V	Varistor *
Protection diode for inverse connection	Diode (2 A, withstand inverse voltage: 40 V)
Tensile strength	No damage when a tensile force of 49 N is applied for 1 second in any direction
I/O terminal tightening torque	Tightening strength: 0.59 N·m; Tensile strength 49 N for 1 min.
Weight	Approx. 400 g

Model	Ratings	Standard number	Category	Listed/Recognized	Contact ratings
G70A-ZOC16-3 G70A-ZOC16-4	---	UL508	NRAQ2	Recognized	10 A 250 VAC

Model	Ratings	Standard number	Class number	Contact ratings
G70A-ZOC16-3 G70A-ZOC16-4	---	CSA C22.2 No.14	3211 04	10 A 250 VAC
10 A 30 VDC

Model	Standard number	Certification No.
G70A-ZOC16-3 G70A-ZOC16-4	VDE0160	124796

Rated voltage	24 VDC
Rated current	21.8 mA
Coil resistance	1,100 Ω
Coil inductance	Armature OFF	4.27
(H) (ref. value)	Armature ON	8.55
Must operate voltage	70% min. of rated voltage
Must release voltage	15% min. of rated voltage
Max. voltage	110% of rated voltage
Power consumption	Approx. 0.53 W

Number of poles	1 pole
Load	Resistive load (cosφ = 1)	Inductive load (cosφ = 0.4; L/R = 7 ms)
Rated load	10 A at 250 VAC; 10 A at 30 VDC	7.5 A at 250 VAC; 5 A at 30 VDC
Rated carry current	10 A
Max. operating voltage	380 VAC, 125 VDC
Max. operating current	10 A
Max. switching capacity	2,500 VA, 300 W	1,875 VA, 150 W
Min. permissible load	100 mA at 5 VDC

Rated voltage	230 VAC	12 VDC	24 VDC
Rated current	50 Hz	3.7 mA	43.6 mA	21.8 mA
60 Hz	3.1 mA
Coil resistance	30,000 Ω	275 Ω	1,100 Ω
Must operate voltage	80% max. of rated voltage	70% max. of rated voltage
Must release voltage	30% min. of rated voltage	15% min. of rated voltage
Max. voltage	110% of rated voltage
Power consumption	Approx. 0.7 W (60 Hz)	Approx. 0.53 W

Model	Rated voltage	Operating voltage	Input current	Must operate voltage	Must release voltage
G3R-IAZR1SN	100 to 240 VAC	60 to 264 VAC	15 mA max.	60 VAC max.	20 VAC min.
G3R-IDZR1SN	5 VDC	4 to 6 VDC	8 mA max.	4 VDC max.	1 VDC min.
12 to 24 VDC	6.6 to 32 VDC	6.6 VDC max.	3.6 VDC min.
G3R-IDZR1SN-1	5 VDC	4 to 6 VDC	4 VDC max.	1 VDC min.
12 to 24 VDC	6.6 to 32 VDC	6.6 VDC max.	3.6 VDC min.

Model	Load voltage	Load current
G3R-IAZR1SN	4 to 32 VDC	0.1 to 100 mA
G3R-IDZR1SN
G3R-IDZR1SN-1

Model	Rated voltage	Operating voltage	Input current	Must operate voltage	Must release voltage
G3R-OA202SZN	5 to 24 VDC	4 to 32 VDC	15 mA max. (at 25°C)	4 VDC max.	1 VDC min.
G3R-OA202SLN
G3R-ODX02SN	8 mA max.
G3R-OD201SN

Model	Load voltage	*Load current 1, 2*	Inrush current
G3R-OA202SZN	75 to 264 VAC	0.05 to 2 A	30 A (60 Hz, 1 cycle)
G3R-OA202SLN
G3R-ODX02SN	4 to 60 VDC	0.01 to 2 A	8 A (10 ms)
G3R-OD201SN	40 to 200 VDC	0.01 to 1.5 A	8 A (10 ms)

Item	G3R-IAZR1SN	G3R-IDZR1SN	G3R-IDZR1SN-1
Operate time	20 ms max.	0.1 ms max.	15 ms max.
Release time	20 ms max.	0.1 ms max.	15 ms max.
Response frequency	10 Hz	1 kHz	10 Hz
Output ON voltage drop	1.6 V max.
Leakage current	5 μA max.
Insulation resistance	100 MΩ min. between input and output
Dielectric strength	4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	1,000 m/s²
Ambient temperature	Operating: -30 to 80°C (with no icing) Storage: -30 to 100°C (with no icing)
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 18 g

Item	G3R-OA202SZN	G3R-OA202SLN	G3R-ODX02SN	G3R-OD201SN
Operate time	1/2 of load power source cycle + 1 ms max.	1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.	2 ms max.
Response frequency	20 Hz	100 Hz
Output ON voltage drop	1.6 V max.	2.5 V max.
Leakage current	1.5 mA max.	1 mA max.
Insulation resistance	100 MΩ min. between input and output
Dielectric strength	4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	1,000 m/s²
Ambient temperature	Operating: -30 to 80°C (with no icing) Storage: -30 to 100°C (with no icing)
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 18 g

Model	Input	Output
Rated voltage	Operating voltage	Impedance	Voltage level	Rated load voltage	Load voltage range	Load current *	Surge withstand current
Must- operate voltage	Must- release voltage
G3RZ- 201SLN	5 VDC	4 to 6 VDC	400 Ω ±20%	4 VDC max.	1 VDC min.	5 to 240 VAC 5 to 100 VDC	3 to 264 VAC 3 to 125 VDC	100 μA to 1.0 A	10 A (10 ms)
12 VDC	9.6 to 14.4 VDC	1.1 kΩ ±20%	9.6 VDC max.
24 VDC	19.2 to 28.8 VDC	2.2 kΩ ±20%	19.2 VDC max.

Operation time	6 ms max.
Release time	10 ms max.
Output ON resistance	2.4 Ω max.
OFF leakage current	10 μA max. (at 125 VDC) 100 μA max. (at 200 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC at 50/60 Hz for 1 min. between inputs and outputs
Vibration resistance	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	1,000 m/s²
Storage temperature	-30 to 100°C (with no icing or condensation)
Ambient operating temperature	-30 to 85°C (with no icing or condensation)
Ambient operating humidity	45% to 85%
Weight	Approx. 20 g

Return to OMRON
