G3PC Solid State Relays with Failure Detection Function/Specifications
G3PC Solid State Relays with Failure Detection Function/Dimensions
G3PC Solid State Relays with Failure Detection Function/Catalog
G3PC Solid State Relays with Failure Detection Function/Lineup
Purchase the OMRON G3PC For Heater Control

OMRON G3PC Dimensions

/Images/l_1011-25-118864-198x198.jpg

last update: December 19, 2013

• Main detection items: SSR short-circuits and SSR open-circuits

• Alarm output possible to NPN/PNP-input devices.

• The failure-detection function is built-in and power is supplied from the main circuit power supply making wiring simple.

• Slim design (width: 22.5 mm) incorporating a heat sink.

• In addition to screw mounting, DIN track mounting is also possible.

• Certified by EC, UL, and CSA.

last update: December 19, 2013

Purchase the OMRON For Heater Control Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3PC Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PCRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

R6Y3 Delta robot/Features
LY Bi-power Relays/Features
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Features
H3CR-A Solid-state Multi-functional Timers/Features
H8BM-R Multi-maintenance Counter/Timer (DIN 72 x 72)/Features

OMRON G3PC specification
G3PC Solid State Relays with Failure Detection Function/Specifications
last update: September 24, 2012
Ratings (at an Ambient Temperature of 25°C)
Detection Power Supply

Rated power supply voltage 100 to 240 VAC (50/60 Hz)

Operating voltage range 75 to 264 VAC (50/60 Hz)

Current consumption 15 mA AC max. (at 200 VAC)

Main Circuit

Rated load voltage 100 to 240 VAC (50/60 Hz)

Operating voltage range 75 to 264 VDC (50/60 Hz)

Applicable load current 20 A (Ta = 40)

Minimum load current 0.1 A

Inrush current resistance (peak value) 220 A (60 Hz, 1 cycle)

Permissible (I²t) 260 A²s

Applicable load
(with Class-1 AC resistive load) 4 kW (at 200 VAC)

Operating Circuit

Input method Voltage input

Rated input voltage 12 to 24 VDC

Operating input voltage range 9.6 to 30 VDC

Must operate voltage 9.6 VDC max.

Must release voltage 1 VDC min.

Input current 7 mA DC max. (at rated input voltage)

Alarm Output

Output OFF collector voltage 30 VDC max.

Maximum carry current 0.1 A

Output form Independent NPN open collector

Characteristics

Operate time 1/2 of load power source cycle + 1 ms max.

Release time 1/2 of load power source cycle + 1 ms max.

Main circuit Output ON voltage drop 1.6 V rms max.

OFF leakage current 10 mA max. (at 200 VAC)

Alarm output Output ON voltage drop 1.5 V max.

OFF leakage current 0.1 mA max.

Insulation resistance 100 MΩ min. (at 500 VDC)

Dielectric strength 2,500 VAC, 50/60 Hz for 1 min

Vibration resistance Destruction: 10 to 55 to10 Hz, 0.35-mm single amplitude

Shock resistance Destruction: 294 m/s²

Ambient temperature Operating: -20 to 60°C (with no icing or condensation)
Storage: -30 to 70°C (with no icing or condensation)

Ambient humidity 45% to 85%

Weight Approx. 300 g

Certified standards UL508, CSA22.2 No. 14, EN60947-4-3 (IEC947-4-3); Certified by VDE

EMC Emission: EN55011 Group 1 Class B
Immunity: EN61000-6-2

last update: September 24, 2012

OMRON G3PC dimension
G3PC Solid State Relays with Failure Detection Function/Dimensions
last update: January 05, 2017

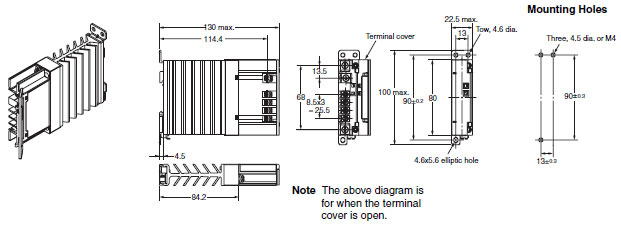

G3PC-220B-VD-X

Accessories (Order Separately)

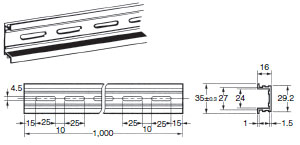

Mounting Tracks
PFP-100N, PFP-50N

Note: Values in parentheses indicate dimensions for the PFP-50N.

PFP-100N2

last update: January 05, 2017

OMRON G3PC catalog
G3PC Solid State Relays with Failure Detection Function/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3PC Data Sheet -
[617KB] Jan 05, 201720170105 G3PC Data Sheet

OMRON G3PC lineup
G3PC Solid State Relays with Failure Detection Function/Lineup
last update: January 05, 2017

Insulation method Zero cross function Indicators Rated output load *1 Model number
Phototriac coupler Yes Yes 20 A, 100 to 240 VAC
(resistive load: AC, Class1) G3PC-220B-VD-X
G3PC-220B-VD *2

*1. When ordering, specify the rated input voltage.
*2. Manufacture will be discontinued at the end of March 2017.

Accessories (Order Separately)

Name Dimensions Model number
Mounting Track 50 cm (l) × 7.3 mm (t) PFP-50N
1 m (l) × 7.3 mm (t) PFP-100N
1 m (l) × 16 mm (t) PFP-100N2

last update: January 05, 2017

NO. G3PC

TYPE:Solid-state Relays For Heater Control Copyright Statement

DATE:2021-06-15

Associated products:
G3PA Solid State Relays/Features G3NA Solid State Relays/Features

Operate time	1/2 of load power source cycle + 1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Main circuit	Output ON voltage drop	1.6 V rms max.
OFF leakage current	10 mA max. (at 200 VAC)
Alarm output	Output ON voltage drop	1.5 V max.
OFF leakage current	0.1 mA max.
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 to10 Hz, 0.35-mm single amplitude
Shock resistance	Destruction: 294 m/s²
Ambient temperature	Operating: -20 to 60°C (with no icing or condensation) Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity	45% to 85%
Weight	Approx. 300 g
Certified standards	UL508, CSA22.2 No. 14, EN60947-4-3 (IEC947-4-3); Certified by VDE
EMC	Emission: EN55011 Group 1 Class B Immunity: EN61000-6-2

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G3PC Data Sheet	- [617KB]	Jan 05, 201720170105	G3PC Data Sheet

Insulation method	Zero cross function	Indicators	*Rated output load 1**	Model number
Phototriac coupler	Yes	Yes	20 A, 100 to 240 VAC (resistive load: AC, Class1)	G3PC-220B-VD-X
*G3PC-220B-VD 2**

Name	Dimensions	Model number
Mounting Track	50 cm (l) × 7.3 mm (t)	PFP-50N
1 m (l) × 7.3 mm (t)	PFP-100N
1 m (l) × 16 mm (t)	PFP-100N2
