last update: April 1, 2016

• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.

• Ideal for the thermal input devices of Temperature Controllers.

• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.

last update: April 1, 2016

Purchase the OMRON Input Equipments Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E52 (Low-cost Models) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 (Low-cost Models) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 (Low-cost Models)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G3PH High-power Solid State Relays/Features
G3PE (Three-phase) Solid State Contactors for Heaters/Features
GT1-ID / OD Digital I/O Units/Features
M7E (14 mm) Digital Display (14 mm)/Features
K8AK-PH Phase-sequence Phase-loss Relay/Features

OMRON E52 (Low-cost Models) catalog
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Catalog

Catalog

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E52 Data Sheet -
[7536KB] Feb 08, 201820180208 E52 Data Sheet

OMRON E52 (Low-cost Models) lineup
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Lineup
last update: January 5, 2018

Description Model and appearance Temperature
range (See
note 3.) Element
type Conductor
type Class Protective
tubing
material Terminal
type
Low-cost
platinum
resistance
thermometer E52-P10AEY 0°C to 250°C Pt100 3-
conductor
system B SUS316 Exposed
lead
wires
E52-P6DY -50°C to
250°C SUS304
E52-P6FY
Low-cost
thermocouple E52-CA[]ASY
E52-IC[]ASY 0°C to
400°C K (CA)
J (IC) Non-
grounded
type 2
(0.75)
E52-CA1DY
E52-IC1DY Grounded
type
E52-CA6F-N
E52-CA6F-N-25
E52-IC6F-N
E52-CA6D-N
E52-CA6D-N-25
E52-IC6D-N
E52-CA10AE-N
E52-IC10AE-N Non-
grounded
type

Low-cost Platinum Resistance Thermometers
Exposed-lead Models with Screws
E52-P6DY

Lead wire length (m) Model
1 E52-P6DY 1M
2 E52-P6DY 2M
4 E52-P6DY 4M

Exposed-lead Models with Flange
E52-P6FY

Lead wire length (m) Model
1 E52-P6FY 1M
2 E52-P6FY 2M
4 E52-P6FY 4M

Exposed-lead Models
E52-P10AEY

Lead wire length (m) Model
1 E52-P10AEY 1M
2 E52-P10AEY 2M
4 E52-P10AEY 4M

Low-cost Thermocouples
Exposed-lead Models with Spring
E52-CA[]ASY, E52-IC[]ASY

Protective tubing length
(mm) Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
65 1 E52-CA6ASY 1M E52-IC6ASY 1M
2 E52-CA6ASY 2M E52-IC6ASY 2M
4 E52-CA6ASY 4M E52-IC6ASY 4M
100 1 E52-CA10ASY 1M E52-IC10ASY 1M
2 E52-CA10ASY 2M E52-IC10ASY 2M
4 E52-CA10ASY 4M E52-IC10ASY 4M
150 1 E52-CA15ASY 1M E52-IC15ASY 1M
2 E52-CA15ASY 2M E52-IC15ASY 2M
4 E52-CA15ASY 4M E52-IC15ASY 4M
200 1 E52-CA20ASY 1M E52-IC20ASY 1M
2 E52-CA20ASY 2M E52-IC20ASY 2M
4 E52-CA20ASY 4M E52-IC20ASY 4M

Exposed-lead Models with Screw
E52-CA1DY, E52-IC1DY

Protective tubing length
(mm) Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
M6 screw 1 E52-CA1DY M6 1M E52-IC1DY M6 1M
2 E52-CA1DY M6 2M E52-IC1DY M6 2M
4 E52-CA1DY M6 4M E52-IC1DY M6 4M
M8 screw 1 E52-CA1DY M8 1M E52-IC1DY M8 1M
2 E52-CA1DY M8 2M E52-IC1DY M8 2M
4 E52-CA1DY M8 4M E52-IC1DY M8 4M
W1/4 screw 1 E52-CA1DY W1/4 1M E52-IC1DY W1/4 1M
2 E52-CA1DY W1/4 2M E52-IC1DY W1/4 2M
4 E52-CA1DY W1/4 4M E52-IC1DY W1/4 4M

Exposed-lead Models with Flange
E52-CA6F-N, E52-IC6F-N

Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
1 E52-CA6F-N 1M E52-IC6F-N 1M
2 E52-CA6F-N 2M E52-IC6F-N 2M
4 E52-CA6F-N 4M E52-IC6F-N 4M

E52-CA6F-N-25

Lead wire length (m) Element type: K (CA)
Model
1 E52-CA6F-N-25 1M
2 E52-CA6F-N-25 2M
4 E52-CA6F-N-25 4M

Exposed-lead Models with Screws
E52-CA6D-N, E52-IC6D-N

Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
1 E52-CA6D-N 1M E52-IC6D-N 1M
2 E52-CA6D-N 2M E52-IC6D-N 2M
4 E52-CA6D-N 4M E52-IC6D-N 4M

E52-CA6D-N-25

Lead wire length (m) Element type: K (CA)
Model
1 E52-CA6D-N-25 D4.0 1M
2 E52-CA6D-N-25 D4.0 2M
4 E52-CA6D-N-25 D4.0 4M

Exposed-lead Models
E52-CA10AE-N, E52-IC10AE-N

Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
1 E52-CA10AE-N 1M E52-IC10AE-N 1M
2 E52-CA10AE-N 2M E52-IC10AE-N 2M
4 E52-CA10AE-N 4M E52-IC10AE-N 4M

last update: January 5, 2018

OMRON E52 (Low-cost Models) dimension
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Dimensions
last update: February 8, 2018

(Unit: mm)

Low-cost Platinum Resistance Thermometers

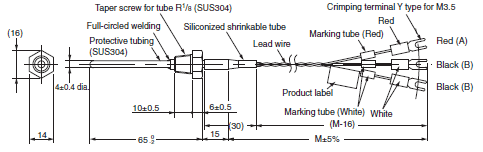

Exposed-lead Models with Screws
E52-P6DY

Note: The protective tubing is of pipe construction, which must not be bent.

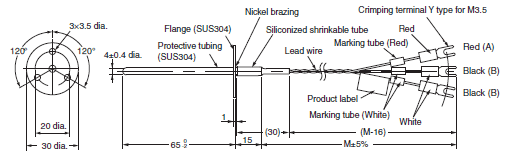

Exposed-lead Models with Flange
E52-P6FY

Note: The protective tubing is of pipe construction, which must not be bent.

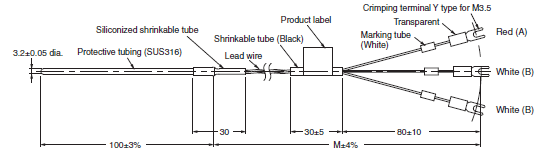

Exposed-lead Models
E52-P10AEY

Note: 1. The protective tubing is of pipe construction, which must not be bent.
2. A Compression Fitting (PT[]) cannot be used for mounting.

Low-cost Thermocouples

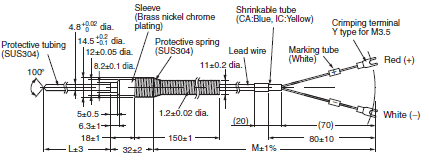

Exposed-lead Models with Spring
E52-CA[]ASY, E52-IC[]ASY

L: Protective tubing lengthM: Lead wire lengthNote: The protective tubing is of pipe construction, which must not be bent.

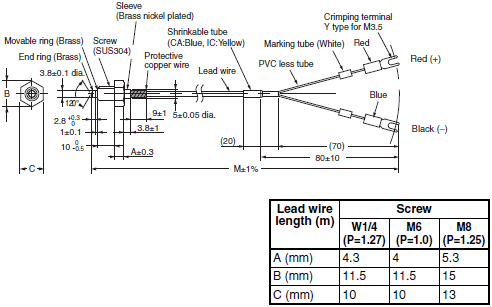

Exposed-lead Models with Screw
E52-CA1DY, E52-IC1DY

Internal Construction (E52-CA1DY)

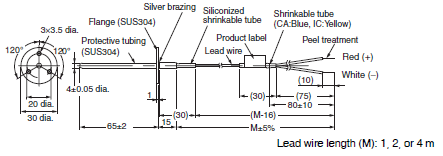

Exposed-lead Models with Flange
E52-CA6F-N, E52-IC6F-N

Note: 1. The thermocouple is a single wire from the tip to the terminal.
        2. The protective tubing is of pipe construction, which must not be bent.
        3. Do not use in locations subject to excessive vibration and shock. Doing so may cause disconnection.

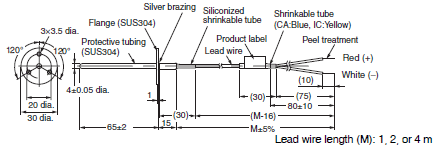

E52-CA6F-N-25

Note: 1. The thermocouple is a single wire from the tip to the terminal.
        2. The protective tubing is of pipe construction, which must not be bent.

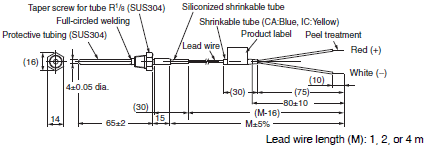

Exposed-lead Models with Screws
E52-CA6D-N, E52-IC6D-N

Note: 1. The thermocouple is a single wire from the tip to the terminal. 2. The protective tubing is of pipe construction, which must not be bent.          3. Do not use in locations subject to excessive vibration and shock. Doing so may cause disconnection.

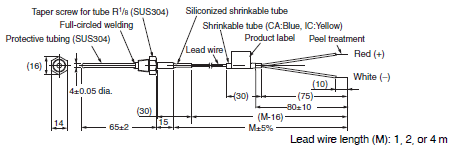

E52-CA6D-N-25

Note: 1. The thermocouple is a single wire from the tip to the terminal.
      2. The protective tubing is of pipe construction, which must not be bent.

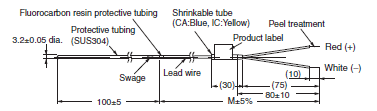

Exposed-lead Models
E52-CA10AE-N, E52-IC10AE-N

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. Lead wire length M: 1, 2, or 4 m
3. The protective tubing is of pipe construction, which must not be bent.
4. The thermocouple cannot be mounted using a PT[] Compression Fitting.

last update: February 8, 2018

OMRON E52 (Low-cost Models) specification
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Specifications
last update: January 5, 2018
Low-cost Platinum Resistance Thermometers
Exposed-lead Models with Screws
E52-P6DY

Element type Pt100
Conductor type 3-conductor system
Class Class B
Protective tubing material SUS304
Sensor length 30 mm
Max. detectable temperature 250°C
Temperature range -50°C to 250°C
Lead wire Fluororesin-covered wire (PFA) with 1.0 outer dia.
7/0.18
-50°C to 150°C

Exposed-lead Models with Flange
E52-P6FY

Element wire Pt100
Conductor type 3-conductor system
Class Class B
Protective tubing material SUS304
Sensor length 30 mm
Max. detectable temperature 250°C
Temperature range -50°C to 250°C
Lead wire Fluororesin-covered wire (PFA) with 1.0 outer dia.
7/0.18
-50°C to 150°C

Exposed-lead Models
E52-P10AEY

Element type Pt100
Conductor type 3-conductor system
Class Class B
Protective tubing material SUS316
Max. detectable temperature 250°C
Temperature range 0°C to 250°C
Lead wire Fluororesin-covered wire (PFA) with 1.0 outer dia.
7/0.18
-50°C to 150°C

Low-cost Thermocouples
Exposed-lead Models with Spring
E52-CA[]ASY, E52-IC[]ASY

Element type K (CA), J (IC)
Element dia. 0.65 mm (single wire)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Non-grounded type
Temperature range 0°C to 400°C: K (CA)
0°C to 350°C: J (IC)
Lead wire Fully glass-wool-covered compensating cable and external dimensions of approx. 5.1 x 3.0
4/0.65
0°C to 180°C

Note: The sleeve resists temperatures ranging between 0°C and 100°C.

Exposed-lead Models with Screw
E52-CA1DY, E52-IC1DY

Element type K (CA), J (IC)
Element dia. 0.65 mm (single wire)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Grounded type
Temperature range 0°C to 400°C: K (CA)
0°C to 350°C: J (IC)
Lead wire Fully glass-wool-covered with external copper shield and external dimensions of
approx. 3.1 x 2.0
1/0.65
0°C to 180°C
Terminal shape Y-type crimp terminal for M3.5

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. Specify the type of screw (i.e., M6, M8, or W1/4) when ordering.
3. The thermocouple is not of airtight construction.
4. OMRON recommends that the tip of the thermocouple is touching the sensing object.

Installation Example

Cut a thread into the workpiece, and screw in the thermocouple while pushing in so that the tip makes complete contact.

Note: E52-CA1DY with the same shape and multiple element wires are also available (E52-CA1DY-40).

Exposed-lead Models with Flange
E52-CA6F-N, E52-IC6F-N

Element type K (CA), J (IC)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Grounded type
Temperature range 0°C to 350°C: K (CA)
0°C to 350°C: J (IC)
Lead wire Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0
1/0.32
0°C to 150°C

E52-CA6F-N-25

Element type K (CA)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Grounded type
Temperature range 0°C to 350°C: K (CA)
Lead wire Fluororesin-covered thermocouple wire (PFA) with external dimensions of 2.5 x 1.5
1/0.65
0°C to 150°C

Exposed-lead Models with Screws
E52-CA6D-N, E52-IC6D-N

Element type K (CA), J (IC)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Grounded type
Temperature range 0°C to 350°C: K (CA)
0°C to 350°C: J (IC)
Lead wire Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0
1/0.3
0°C to 150°C

E52-CA6D-N-25

Element type K (CA)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Grounded type
Temperature range 0°C to 350°C: K (CA)
Lead wire Fluororesin-covered thermocouple wire (PFA) with external dimensions of 2.5 x 1.5
1/0.65
0°C to 150°C

Exposed-lead Models
E52-CA10AE-N, E52-IC10AE-N

Element type K (CA), J (IC)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Non-grounded type
Temperature range 0°C to 350°C: K (CA)
0°C to 200°C: J (IC)
Lead wire Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0
1/0.32
0°C to 180°C

last update: January 5, 2018

NO. E52 (Low-cost Models)

TYPE:Temperature Controllers Input Equipments Copyright Statement

DATE:2021-06-07

Associated products:
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Features E52 (Exclusive Models) Temperature Sensor (Exclusive Models)/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E52 Data Sheet	- [7536KB]	Feb 08, 201820180208	E52 Data Sheet

Description	Model and appearance	Temperature range (See note 3.)	Element type	Conductor type	Class	Protective tubing material	Terminal type
Low-cost platinum resistance thermometer	E52-P10AEY		0°C to 250°C	Pt100	3- conductor system	B	SUS316	Exposed lead wires
E52-P6DY	-50°C to 250°C	SUS304
E52-P6FY
Low-cost thermocouple	E52-CA[]ASY E52-IC[]ASY	0°C to 400°C	K (CA) J (IC)	Non- grounded type	2 (0.75)
E52-CA1DY E52-IC1DY	Grounded type
E52-CA6F-N E52-CA6F-N-25 E52-IC6F-N E52-CA6D-N E52-CA6D-N-25 E52-IC6D-N
E52-CA10AE-N E52-IC10AE-N	Non- grounded type

Lead wire length (m)	Model
1	E52-P6DY 1M
2	E52-P6DY 2M
4	E52-P6DY 4M

Lead wire length (m)	Model
1	E52-P6FY 1M
2	E52-P6FY 2M
4	E52-P6FY 4M

Lead wire length (m)	Model
1	E52-P10AEY 1M
2	E52-P10AEY 2M
4	E52-P10AEY 4M

Protective tubing length (mm)	Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
65	1	E52-CA6ASY 1M	E52-IC6ASY 1M
2	E52-CA6ASY 2M	E52-IC6ASY 2M
4	E52-CA6ASY 4M	E52-IC6ASY 4M
100	1	E52-CA10ASY 1M	E52-IC10ASY 1M
2	E52-CA10ASY 2M	E52-IC10ASY 2M
4	E52-CA10ASY 4M	E52-IC10ASY 4M
150	1	E52-CA15ASY 1M	E52-IC15ASY 1M
2	E52-CA15ASY 2M	E52-IC15ASY 2M
4	E52-CA15ASY 4M	E52-IC15ASY 4M
200	1	E52-CA20ASY 1M	E52-IC20ASY 1M
2	E52-CA20ASY 2M	E52-IC20ASY 2M
4	E52-CA20ASY 4M	E52-IC20ASY 4M

Protective tubing length (mm)	Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
M6 screw	1	E52-CA1DY M6 1M	E52-IC1DY M6 1M
2	E52-CA1DY M6 2M	E52-IC1DY M6 2M
4	E52-CA1DY M6 4M	E52-IC1DY M6 4M
M8 screw	1	E52-CA1DY M8 1M	E52-IC1DY M8 1M
2	E52-CA1DY M8 2M	E52-IC1DY M8 2M
4	E52-CA1DY M8 4M	E52-IC1DY M8 4M
W1/4 screw	1	E52-CA1DY W1/4 1M	E52-IC1DY W1/4 1M
2	E52-CA1DY W1/4 2M	E52-IC1DY W1/4 2M
4	E52-CA1DY W1/4 4M	E52-IC1DY W1/4 4M

Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
1	E52-CA6F-N 1M	E52-IC6F-N 1M
2	E52-CA6F-N 2M	E52-IC6F-N 2M
4	E52-CA6F-N 4M	E52-IC6F-N 4M

Lead wire length (m)	Element type: K (CA)
Model
1	E52-CA6F-N-25 1M
2	E52-CA6F-N-25 2M
4	E52-CA6F-N-25 4M

Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
1	E52-CA6D-N 1M	E52-IC6D-N 1M
2	E52-CA6D-N 2M	E52-IC6D-N 2M
4	E52-CA6D-N 4M	E52-IC6D-N 4M

Lead wire length (m)	Element type: K (CA)
Model
1	E52-CA6D-N-25 D4.0 1M
2	E52-CA6D-N-25 D4.0 2M
4	E52-CA6D-N-25 D4.0 4M

Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
1	E52-CA10AE-N 1M	E52-IC10AE-N 1M
2	E52-CA10AE-N 2M	E52-IC10AE-N 2M
4	E52-CA10AE-N 4M	E52-IC10AE-N 4M

Element type	Pt100
Conductor type	3-conductor system
Class	Class B
Protective tubing material	SUS304
Sensor length	30 mm
Max. detectable temperature	250°C
Temperature range	-50°C to 250°C
Lead wire	Fluororesin-covered wire (PFA) with 1.0 outer dia. 7/0.18 -50°C to 150°C

Element wire	Pt100
Conductor type	3-conductor system
Class	Class B
Protective tubing material	SUS304
Sensor length	30 mm
Max. detectable temperature	250°C
Temperature range	-50°C to 250°C
Lead wire	Fluororesin-covered wire (PFA) with 1.0 outer dia. 7/0.18 -50°C to 150°C

Element type	Pt100
Conductor type	3-conductor system
Class	Class B
Protective tubing material	SUS316
Max. detectable temperature	250°C
Temperature range	0°C to 250°C
Lead wire	Fluororesin-covered wire (PFA) with 1.0 outer dia. 7/0.18 -50°C to 150°C

Element type	K (CA), J (IC)
Element dia.	0.65 mm (single wire)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Non-grounded type
Temperature range	0°C to 400°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fully glass-wool-covered compensating cable and external dimensions of approx. 5.1 x 3.0 4/0.65 0°C to 180°C

Element type	K (CA), J (IC)
Element dia.	0.65 mm (single wire)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 400°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fully glass-wool-covered with external copper shield and external dimensions of approx. 3.1 x 2.0 1/0.65 0°C to 180°C
Terminal shape	Y-type crimp terminal for M3.5

Element type	K (CA), J (IC)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0 1/0.32 0°C to 150°C

Element type	K (CA)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C: K (CA)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 2.5 x 1.5 1/0.65 0°C to 150°C

Element type	K (CA), J (IC)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0 1/0.3 0°C to 150°C

Element type	K (CA)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C: K (CA)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 2.5 x 1.5 1/0.65 0°C to 150°C

Element type	K (CA), J (IC)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Non-grounded type
Temperature range	0°C to 350°C: K (CA) 0°C to 200°C: J (IC)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0 1/0.32 0°C to 180°C

Return to OMRON
