• Two counter function available. Pulse count within 32 bit range.

• Maximum input pulse frequency of 4MHz (Line driver input after quadrature). High-speed network EtherCAT enables high-speed and accurate control.

• Selectable two input types: Open collector input and line driver input.

• Built-in two external latch inputs and one reset input .

• Selectable node address settings: setting with rotary switches and setting on tool software.

• Detachable screw terminal will facilitate the maintenance work.

last update: December 20, 2012

Purchase the OMRON EtherCAT Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON GX-EC0211 / EC0241 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GX-EC0211 / EC0241 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GX-EC0211 / EC0241Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4N-[]R Pull-reset Safety Limit Switch/Features
FQM1 Series Flexible Motion Controllers/Features
E3X-HD Smart Fiber Sensor/Features
E3ZR-C Oil-resistant Photoelectric Sensors/Features
61F-G[]P Floatless Level Switch (Plug-in Type)/Features

OMRON GX-EC0211 / EC0241 catalog
GX-EC0211 / EC0241 Encoder Input Terminal 3-tier Terminal Block Type/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

GX Series Data Sheet -
[5900KB] Jan 17, 201920190117 GX Series Data Sheet

OMRON GX-EC0211 / EC0241 specification
GX-EC0211 / EC0241 Encoder Input Terminal 3-tier Terminal Block Type/Specifications
last update: December 20, 2012
General Specifications

Item Specification
Unit power supply voltage 20.4 to 26.4 VDC (24 VDC - 15% to +10%)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC - 15% to +10%)
Noise resistance Conforms to IEC 61000-4-4, 2 kV (power line)
Vibration resistance Malfunction 10 to 60 Hz with amplitude of 0.7 mm, 60 to 150Hz and 50 m/s² in X, Y,
and Z directions for 80 minutes
＜Relay Output Unit GX-OC1601 only＞
10 to 55 Hz with double-amplitude of 0.7 mm
Impact resistance 150 m/s² with amplitude of 0.7 mm
＜Relay Output Unit GX-OC1601 only＞
100 m/s² (3 times each in 6 directions on 3 axes)
Dielectric strength 600 VAC (between isolated circuits)
Isolation resistance 20 MΩ or more (between isolated circuits)
Ambient operating temperature - 10 to 55 °C
Operating humidity 25% to 85% (with no condensation)
Operating atmosphere No corrosive gases
Storage temperature - 25 to 65 °C
Storage humidity 25% to 85% (with no condensation)
Terminal block screws
tightening torque * M3 wiring screws: 0.5 Nm
M3 terminal block mounting screws: 0.5 Nm
Mounting method 35-mm DIN track mounting
* Applicable only to 2-tier terminal block and 3-tier terminal block type slaves.

Open collector inputs Type
Terminal specifications

Item Specification
Counter point 2 points
Input signal Counter phase A
Counter phase B
Counter phase Z
Latch input (A/B)
Counter reset input
Counter enabled status display LED display (green)
Input indicators LED display (yellow)
Unit power supply current consumption 130 mA max. (for 20.4 to 26.4 VDC power supply voltage)
Weight 390 g max.

Pulse input specifications

Item Specification
Counter phase A/B Counter phase Z
Input voltage 20.4 to 26.4 VDC
(24 VDC - 15 to +10%) 4.5 to 5.5 VDC
(5 VDC ± 5%) 20.4 to 26.4 VDC
(24 VDC - 15 to +10%) 4.5 to 5.5 VDC
(5 VDC ± 5%)
Input current 8.4 mA (at 24 VDC) 8.6 mA (at 5 VDC) 8.4 mA (at 24 VDC) 8.6 mA (at 5 VDC)
ON voltage 19.6 V min. 4.5 V min. 18.6 V min. 4.5 V min.
OFF voltage 4 V max. 1.5 V max. 4 V max. 1.5 V max.
Input restriction resistance 2.7 kΩ 430 Ω 2.7 kΩ 430 Ω
Maximum response
frequency Single phase 500 kHz
(phase difference Multiplication × 4, 125 kHz) 125 kHz
Filter switching NA NA

Latch/reset input specifications

Item Specification
Latch input (A/B) Reset input
Internal I/O common NPN
Input voltage 20.4 to 26.4 VDC (24 VDC - 15 to +10%) 20.4 to 26.4 VDC (24 VDC - 15 to +10%)
Input impedance 4.0 kΩ 3.3 kΩ
Input current 5.5 mA (at 24 VDC) 7 mA (at 24 VDC)
ON voltage/ON current 17.4 VDC min./3 mA min. 14.4 VDC min./3 mA min.
OFF voltage/OFF current 5 VDC max./1 mA max. 5 VDC max./1 mA max.
ON response time 3 μs max. 15 μs max.
OFF response time 3 μs max. 90 μs max.
Note: For the pulse input timing specifications, refer to USER’S MANUAL (Cat. No. W488).

Line Driver inputs Type
Terminal specifications

Item Specification
Counter point 2 points
Input signal Counter phase A
Counter phase B
Counter phase Z
Latch input (A/B)
Counter reset input
Counter enabled status display LED display (green)
Input indicators LED display (yellow)
Unit power supply current consumption 100 mA max. (for 20.4 to 26.4 VDC power supply voltage)
Weight 390 g max.

Pulse input specifications

Item Specification
Counter phase A/B Counter phase Z
Input voltage EIA standard RS-422-A line driver level
Input impedance 120 Ω ± 5%
gH level input voltage 0.1 V
gL level input voltage - 0.1 V
Hysteresis voltage 60 mV
Maximum response frequency Single phase 4 MHz
(phase difference Multiplication × 4, 1 MHz) 1 MHz
Filter switching NA

Latch/reset input specifications

Item Specification
Latch input (A/B) Reset input
Internal I/O common PNP
Input voltage 20.4 to 26.4 VDC (24 VDC - 15 to +10%) 20.4 to 26.4 VDC (24 VDC - 15 to +10%)
Input impedance 4.0 kΩ 3.3 kΩ
Input current 5.5 mA (at 24 VDC) 7 mA (at 24 VDC)
ON voltage/ON current 17.4 VDC min./3 mA min. 14.4 VDC min./3 mA min.
OFF voltage/OFF current 5 VDC max./1 mA max. 5 VDC max./1 mA max.
ON response time 3 μs max. 15 μs max.
OFF response time 3 μs max. 90 μs max.
Note: For the pulse input timing specifications, refer to USER'S MANUAL (Cat. No. W488).

last update: December 20, 2012

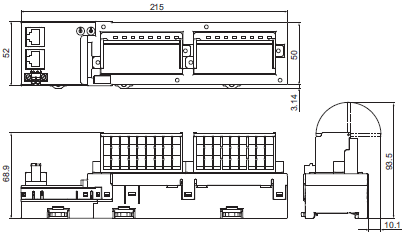

OMRON GX-EC0211 / EC0241 dimension
