In addition to the Digital I/O Slave Unit's basic digital ON/OFF signals, collect useful information from the Slave Unit to improve equipment operating rates and maintainability.
Communications connector and removable I/O terminal block enable faster startup times and improved maintainability.
One Expansion Unit can be added to each Digital I/O Slave Unit to increase system configuration flexibility.
Collect various preventive maintenance data required to improve productivity, such as information on equipment deterioration due to aging and equipment operating time data.
Simplify startup with the communications power supply monitoring function.
last update: December 19, 2013
Purchase the OMRON CompoNet Please fill in the following
If you have just landed here, this product OMRON CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[]Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G70A I/O Terminal Socket/Features
KS1 Ionizer (Air Push Type)/Features
GLS Magnetic Proximity Sensor/Features
H7GP Total Counter/Time Counter (DIN 48 x 24)/Features
S8VK-X Switch Mode Power Supply (60/120/240/480-W Models)/Features
OMRON CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] specification
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-tier Terminal Block/Relay Output/SSR Output)/Specificationslast update: January 05, 2017
Basic Performance Specifications
| Item | Specification |
|---|---|
| Communications power supply voltage | 14 to 26.4 VDC |
| I/O power supply voltage *1 | 20.4 to 26.4 VDC (24 VDC -15%/+10%) |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line). |
| Vibration resistance | 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s2 in X, Y, and Z directions for 80 min each |
| Shock resistance | 150 m/s2 (3 times each in 6 directions on 3 axes) |
| Dielectric strength | 500 VAC (between isolated circuits) |
| Insulation resistance | 20 MΩ min. (between isolated circuits) |
| Ambient operating temperature | -10 to 55°C |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Ambient operating atmosphere | No corrosive gases |
| Storage temperature | -25 to 65°C |
| Storage humidity | 25% to 85% (with no condensation) |
| Terminal block screw tightening torque *2 | M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm |
| Installation | Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws (depending on model) |
*1 The I/O power supply is called the sensor power supply in information for the CRT1-VAD04S.
*2 Applicable only to Slaves to which screw terminal blocks are mounted.
Some of the specifications are different for the CRT1-ROS08/ROS16 (with relay outputs) and the CRT1-ROF08/ROF16 (with SSR outputs).
Performance Specifications
for CRT1-ROS08/ROS16 (with relay outputs) and CRT1-ROF08/ROF16 (with SSR outputs)
Relay Output
| Item | Specification |
|---|---|
| Communications power supply voltage | 14 to 26.4 VDC |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line). |
| Vibration resistance | 10 to 55 Hz with double-amplitude of 0.7 mm X, Y, and Z directions for 80 min each |
| Shock resistance | 100 m/s2 (3 times in 6 directions on 3 axes) |
| Dielectric strength | 500 VAC (between isolated circuits) |
| Insulation resistance | 20 MΩ min. (between isolated circuits) |
| Ambient operating temperature | -10 to 55°C |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Ambient operating atmosphere | No corrosive gases |
| Storage temperature | -25 to 65°C |
| Storage humidity | 25% to 85% (with no condensation) |
| Terminal block screws tightening torque | M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm |
SSR Output
| Item | Specification |
|---|---|
| Communications power supply voltage | 14 to 26.4 VDC |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line). |
| Vibration resistance | 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s2 in X, Y, and Z directions for 80 min each |
| Shock resistance | 150 m/s2 (3 times in 6 directions on 3 axes) |
| Dielectric strength | 500 VAC (between isolated circuits) |
| Insulation resistance | 20 MΩ min. (between isolated circuits) |
| Ambient operating temperature | -10 to 55°C |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Ambient operating atmosphere | No corrosive gases |
| Storage temperature | -25 to 65°C |
| Storage humidity | 25% to 85% (with no condensation) |
| Terminal block screws tightening torque | M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm |
Input Section Specifications
Eight-point Input Units (2-tier Terminal Block)
| Item | Specification | |
|---|---|---|
| Model | CRT1-ID08 | CRT1-ID08-1 |
| I/O capacity | 8 inputs | |
| Internal I/O common | NPN | PNP |
| ON voltage | 15 VDC min. (between each input terminal and the V terminal) | 15 VDC min. (between each input terminal and the G terminal) |
| OFF voltage | 5 VDC max. (between each input terminal and the V terminal) | 5 VDC max. (between each input terminal and the G terminal) |
| OFF current | 1.0 mA max. | |
| Input current | At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA min./input | |
| ON delay | 1.5 ms max. | |
| OFF delay | 1.5 ms max. | |
| Number of circuits per common | 8 inputs/common | |
| Isolation method | Photocoupler | |
| Input indicator | LED (yellow) | |
| Installation | DIN Track | |
| Power supply type | Multi-power supply | |
| Communications power supply current consumption | 30 mA max. for 24-VDC power supply voltage 50 mA max. for 14-VDC power supply voltage | |
| I/O power supply current consumption | 5 mA max. for 24-VDC power supply voltage | |
| Weight | 160 g max. | |
Sixteen-point Input Units (2-tier Terminal Block)
| Item | Specification | |
|---|---|---|
| Model | CRT1-ID16 | CRT1-ID16-1 |
| I/O capacity | 16 inputs | |
| Internal I/O common | NPN | PNP |
| ON voltage | 15 VDC min. (between each input terminal and the V terminal) | 15 VDC min. (between each input terminal and the G terminal) |
| OFF voltage | 5 VDC max. (between each input terminal and the V terminal) | 5 VDC max. (between each input terminal and the G terminal) |
| OFF current | 1 mA max. | |
| Input current | At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA max./input | |
| ON delay | 1.5 ms max. | |
| OFF delay | 1.5 ms max. | |
| Number of circuits per common | 16 inputs/common | |
| Isolation method | Photocoupler | |
| Input indicator | LED (yellow) | |
| Installation | DIN Track mounting | |
| Power supply type | Multi-power supply | |
| Communications power supply current consumption | 55 mA max. for 24-VDC power supply voltage 85 mA max. for 14-VDC power supply voltage | |
| I/O power supply current consumption | 5 mA max. for 24-VDC power supply voltage | |
| Weight | 141 g max. | |
Output Section Specifications
Eight-point Output Units (2-tier Terminal Block)
| Item | Specification | |
|---|---|---|
| Model | CRT1-OD08 | CRT1-OD08-1 |
| I/O capacity | 8 outputs | |
| Internal I/O common | NPN | PNP |
| Rated output current | 0.5 A/output, 2 A/common | |
| Residual voltage | 1.2 V max. (0.5 A DC, between each output terminal and the G terminal) | 1.2 V max. (0.5 A DC, between each output terminal and the V terminal) |
| Leakage current | 0.1 mA max. | |
| ON delay | 0.5 ms max. | |
| OFF delay | 1.5 ms max. | |
| Number of circuits per common | 8 outputs/common | |
| Isolation method | Photocoupler | |
| Output indicators | LED (yellow) | |
| Installation | DIN Track | |
| Power supply type | Multi-power supply | |
| Communications power supply current consumption | 35 mA max. for 24-VDC power supply voltage 55 mA max. for 14-VDC power supply voltage | |
| I/O power supply current consumption | 15 mA max. for 24-VDC power supply voltage | |
| Output handling for communications errors | Select either hold or clear from CX-Integrator. | |
| Weight | 160 g max. | |
Sixteen-point Output Units (2-tier Terminal Block)
| Item | Specification | |
|---|---|---|
| Model | CRT1-OD16 | CRT1-OD16-1 |
| I/O capacity | 16 outputs | |
| Internal I/O common | NPN | PNP |
| Rated output current | 0.5 A/output, 4 A/common | |
| Residual voltage | 1.2 V max. (0.5 A DC, between each output terminal and the G terminal) | 1.2 V max. (0.5 A DC, between each output terminal and the V terminal) |
| Leakage current | 0.1 mA max. | |
| ON delay | 0.5 ms max. | |
| OFF delay | 1.5 ms max. | |
| Number of circuits per common | 16 outputs/common | |
| Isolation method | Photocoupler | |
| Output indicators | LED (yellow) | |
| Installation | DIN Track mounting | |
| Power supply type | Multi-power supply | |
| Communications power supply current consumption | 55 mA max. for 24-VDC power supply voltage 85 mA max. for 14-VDC power supply voltage | |
| I/O power supply current consumption | 15 mA max. for 24-VDC power supply voltage | |
| Output handling for communications errors | Hold or clear can be selected. (CX-Integrator) | |
| Weight | 141 g max. | |
Eight-point Output Units (Relay Outputs)
| Item | Specification |
|---|---|
| Model | CRT1-ROS08 |
| I/O capacity | 8 outputs |
| Mounted Relays | DRTA-NY5W-K (5 VDC) |
| Rated load | Resistive load 250 VAC, 2 A, common: 8 A 30 VDC, 2 A, common: 8 A |
| Rated ON current | 3 A |
| Maximum contact voltage | 250 VAC, 125 VDC |
| Maximum contact current | 3 A |
| Maximum switching capacity | 750 VA AC, 90 W DC |
| Minimum applicable load (reference value) | 5 VDC, 1 mA |
| Mechanical service life | 20,000,000 operations min. |
| Electrical service life | 100,000 operations min. |
| Installation method | DIN Track |
| Communications power supply current consumption | 95 mA max. for 24-VDC power supply voltage 150 mA max. for 14-VDC power supply voltage |
| Output hold for communications errors | Select either hold or clear from CX-Integrator. |
| Weight | 170 g max. |
Sixteen-point Output Units (Relay Outputs) (per Output)
| Item | Specification |
|---|---|
| Model | CRT1-ROS16 |
| I/O capacity | 16 outputs |
| Mounted Relays | DRTA-NY5W-K (5 VDC) |
| Rated load | Resistive load 250 VAC, 2 A, common: 8 A 30 VDC, 2 A, common: 8 A |
| Rated ON current | 3 A |
| Maximum contact voltage | 250 VAC, 125 VDC |
| Maximum contact current | 3 A |
| Maximum switching capacity | 750 VA AC, 90 W DC |
| Minimum applicable load (reference value) | 5 VDC, 1 mA |
| Mechanical service life | 20,000,000 operations min. |
| Electrical service life | 100,000 operations min. |
| Installation | DIN Track mounting |
| Communications power supply current consumption | 155 mA max. for 24-VDC power supply voltage 255 mA max. for 14-VDC power supply voltage |
| Output hold for communications errors | Hold or clear can be selected. (CX-Integrator) |
| Weight | 260 g max. |
Eight-point Output Units (SSR Outputs) (per Output)
| Item | Specification |
|---|---|
| Model | CRT1-ROF08 |
| I/O capacity | 8 outputs |
| Load voltage | 24 to 265 VAC |
| Load current | 0.3 A |
| Inrush current resistivity | 50 A (60 Hz) |
| Installation method | DIN Track |
| Communications power supply current consumption | 60 mA max. for 24-VDC power supply voltage 90 mA max. for 14-VDC power supply voltage |
| Output hold for communications errors | Select either hold or clear from CX-Integrator. |
| Weight | 160 g max. |
Note: The SSRs cannot be replaced.
Sixteen-point Output Units (SSR Outputs) (per Output)
| Item | Specification |
|---|---|
| Model | CRT1-ROF16 |
| I/O capacity | 16 outputs |
| Load voltage | 24 to 265 VAC |
| Load current | 0.3 A |
| Inrush current resistivity | 50 A (60 Hz) |
| Installation | DIN Track mounting |
| Communications power supply current consumption | 85 mA max. for 24-VDC power supply voltage 130 mA max. for 14-VDC power supply voltage |
| Output hold for communications errors | Hold or clear can be selected. (CX-Integrator) |
| Weight | 250 g max. |
Note: The SSRs cannot be replaced.
Load Current vs. Ambient Temperature
![CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Specifications 19](/images/8767/1822_sp_1225-107237.gif)
Input and Output Section Specifications
Eight-point Input and Eight-point Output Units (2-tier Terminal Block)
CRT1-MD16/CRT1-MD16-1
Common Specifications
| Item | Specification | |
|---|---|---|
| Model | CRT1-MD16 | CRT1-MD16-1 |
| Installation | DIN Track | |
| Communications power supply current consumption | 35 mA max. for 24-VDC power supply voltage 60 mA max. for 14-VDC power supply voltage | |
| Weight | 170 g max. | |
Input Section Specifications
| Item | Specification | |
|---|---|---|
| Model | CRT1-MD16 | CRT1-MD16-1 |
| I/O capacity | 8 inputs | |
| Internal I/O common | NPN | PNP |
| ON voltage | 15 VDC min. (between each input terminal and the V terminal) | 15 VDC min. (between each input terminal and the G terminal) |
| OFF voltage | 5 VDC max. (between each input terminal and the V terminal) | 5 VDC max. (between each input terminal and the G terminal) |
| OFF current | 1.0 mA max. | |
| Input current | At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA min./input | |
| ON delay | 1.5 ms max. | |
| OFF delay | 1.5 ms max. | |
| Number of circuits per common | 8 inputs/common | |
| Isolation method | Photocoupler | |
| Input indicator | LED (yellow) | |
| Power supply type | Multi-power supply | |
| I/O power supply current consumption | 5 mA max. for 24-VDC power supply voltage | |
Output Section Specifications
| Item | Specification | |
|---|---|---|
| Model | CRT1-MD16 | CRT1-MD16-1 |
| I/O capacity | 8 outputs | |
| Internal I/O common | NPN | PNP |
| Rated output current | 0.5 A/output, 2A/common | |
| Residual voltage | 1.2 V max. (0.5 A DC, between each output terminal and the G terminal) | 1.2 V max. (0.5 A DC, between each output terminal and the V terminal) |
| Leakage current | 0.1 mA max. | |
| ON delay | 0.5 ms max. | |
| OFF delay | 1.5 ms max. | |
| Number of circuits per common | 8 outputs/common | |
| Isolation method | Photocoupler | |
| Output indicators | LED (yellow) | |
| I/O power supply current consumption | 15 mA max. for 24-VDC power supply voltage | |
| Output handling for communications errors | Select either hold or clear from CX-Integrator. | |
last update: January 05, 2017
OMRON CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] dimension
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-tier Terminal Block/Relay Output/SSR Output)/Dimensionslast update: September 24, 2012

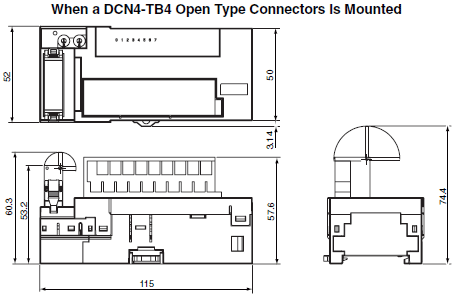

CRT1-ID08 (-1)
CRT1-OD08 (-1)
![CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Dimensions 2 CRT1-ID08 (-1)_Dim](/images/8767/1822_dm_125-107239.gif)

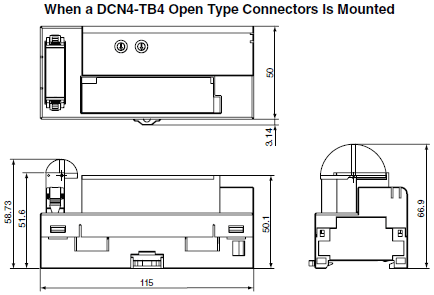

CRT1-ID16 (-1)
CRT1-OD16 (-1)
![CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Dimensions 4 CRT1-ID16 (-1)_Dim](/images/8767/1822_dm_225-107241.gif)

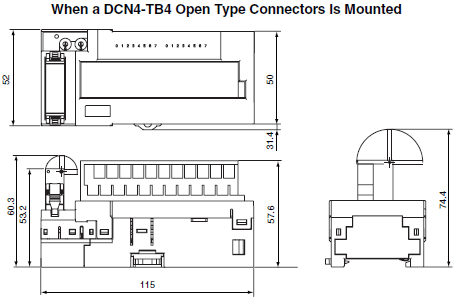

CRT1-MD16 (-1)
![CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Dimensions 6 CRT1-MD16 (-1)_Dim](/images/8767/1822_dm_325-107243.gif)

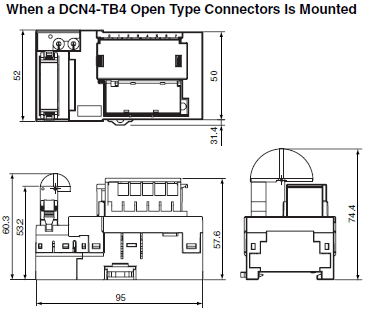

CRT1-ROS08
CRT1-ROF08
![CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Dimensions 8 CRT1-ROS08_Dim](/images/8767/1822_dm_425-107245.gif)

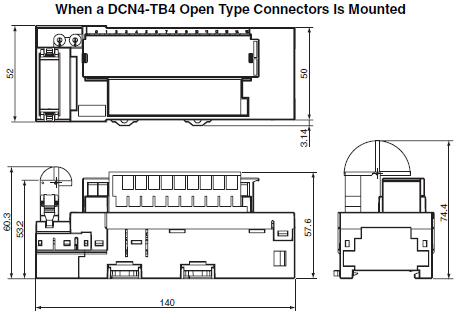

CRT1-ROS16
CRT1-ROF16
![CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Dimensions 10 CRT1-ROS16_Dim](/images/8767/1822_dm_525-107247.gif)
last update: September 24, 2012
OMRON CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] lineup
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-tier Terminal Block/Relay Output/SSR Output)/Lineuplast update: September 24, 2012
| Name | Specifications | Model | ||
|---|---|---|---|---|
| Two-tier Screw Terminal Block | Inputs | 8 inputs | NPN | CRT1-ID08 |
| PNP | CRT1-ID08-1 | |||
| Outputs | 8 outputs | NPN | CRT1-OD08 | |
| PNP | CRT1-OD08-1 | |||
| Inputs | 16 inputs | NPN | CRT1-ID16 * | |
| PNP | CRT1-ID16-1 * | |||
| Outputs | 16 outputs | NPN | CRT1-OD16 * | |
| PNP | CRT1-OD16-1 * | |||
| Inputs/Outputs | 8 inputs/8 outputs | NPN | CRT1-MD16 | |
| PNP | CRT1-MD16-1 | |||
| Screw Terminal Block with Relay Outputs | Outputs | 8 outputs | Contacts | CRT1-ROS08 |
| 16 outputs | CRT1-ROS16 | |||
| Screw Terminal Block with SSR Outputs | Outputs | 8 outputs | SSR | CRT1-ROF08 |
| 16 outputs | CRT1-ROF16 | |||
* These Units are also available with a DCN-TB4 Terminal Conversion Adapter included in the package. Add "(-B)" to the
end of the model number to receive the Adapter as well.
Expansion Units
One Expansion Unit can be combined with one Digital I/O Slave Unit (CRT1-ID16(-1), CRT1-OD16(-1), CRT1-ROS16, or CRT1-ROF16).
The following Expansion Units are available. They can be combined in various ways for flexible I/O capacity expansion.
| Model | I/O points | Input capacity | Output capacity |
|---|---|---|---|
| XWT-ID08 | 8 DC inputs (NPN) | 8 | 0 |
| XWT-ID08-1 | 8 DC inputs (PNP) | 8 | 0 |
| XWT-OD08 | 8 transistor outputs (NPN) | 0 | 8 |
| XWT-OD08-1 | 8 transistor outputs (PNP) | 0 | 8 |
| XWT-ID16 | 16 DC inputs (NPN) | 16 | 0 |
| XWT-ID16-1 | 16 DC inputs (PNP) | 16 | 0 |
| XWT-OD16 | 16 transistor outputs (NPN) | 0 | 16 |
| XWT-OD16-1 | 16 transistor outputs (PNP) | 0 | 16 |
last update: September 24, 2012
OMRON CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] catalog
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-tier Terminal Block/Relay Output/SSR Output)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CompoNet Catalog | P056-E1-08 [4302KB] | May 07, 201820180507 | CompoNet Catalog |
- NO. CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[]
- TYPE:Networks CompoNet Digital I/O Slave Units
- DATE:2021-06-12
- Associated products:
GQ-CRM21 CompoNet Gateway Unit for CC-Link/Features CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw Terminal Blocks (3-tier Terminal Block)/Features
