OMRON D5VSensors/ Displacement Sensors / Measurement Sensors/Other Displacement Sensors
OMRON D5V Sensors
OMRON D5V Dimensions
/Images/l_1272-25-135893-198x198.jpglast update: December 27, 2013
• Works with a low operating force (0.29 N) to detect a wide variety of objects including glass, plastic, and rubber objects.
• Models with digital output for B7A Units and models with 4- to 20-mA linear output corresponding to the 0- to 5-mm measurement range are available.
• Models with ball-, flat-, or pin-type actuators are available for a wide variety of objects.
• The XS3 Sensor I/O Connector makes Sensor connections simple.
last update: December 27, 2013
Purchase the OMRON Other Displacement Sensors Please fill in the following
If you have just landed here, this product OMRON D5V Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D5V We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D5VSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3X-HD Smart Fiber Sensor/Features
G3PE (Single-phase) Solid State Relays for Heaters/Features
H3DK-F Twin Timer/Features
CS1W-LCB01 / LCB05 Loop Control Boards/Features
DCN4-[][]4D Flat Cable Connector/Features

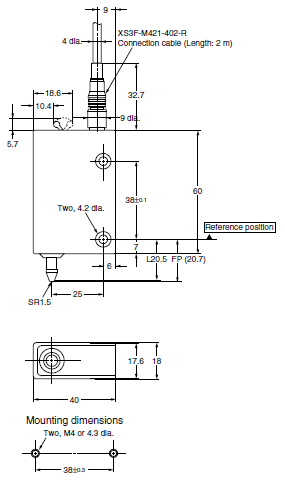

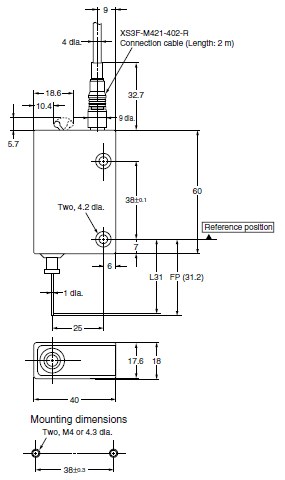

OMRON D5V dimension
D5V Contact Displacement Sensor/Dimensionslast update: December 27, 2013
D5VA-3B1
D5VM-3B1
D5VA-3P1
D5VM-3P1
D5VA-3F1
D5VM-3F1
last update: December 27, 2013
OMRON D5V lineup
D5V Contact Displacement Sensor/Lineuplast update: December 27, 2013
| Measurement range | Output specifications | Actuator | Resolution | Model |
|---|---|---|---|---|
| 5 mm | 4 to 20 mA | Ball type | 10 μm | D5VA-3B1 |
| Pin type | D5VA-3P1 | |||
| Flat type (See note 1.) | D5VA-3F1 | |||
| B7A serial communications output (See note 2.) | Ball type | 1 μm | D5VM-3B1 | |
| Pin type | D5VM-3P1 | |||
| Flat type (See note 1.) | D5VM-3F1 |
Note:
1. Flat-type actuators have a hole 5-mm deep for an M2.5 screw in the tip so that an actuator can be mounted externally.
2. Use the D5VM-3[]1 in combination with the B7A Link Terminal Output Unit or a C200H or CQM1 B7A Interface Unit. Use 16- or 32-point Units with a standard transmission delay time (19.2 ms).
last update: December 27, 2013
OMRON D5V specification
D5V Contact Displacement Sensor/Specificationslast update: December 27, 2013
Approved Standards
Approved Standard Ratings
Conformance to EN50081-1, pr50082-2
| Rated current | 100 mA |
|---|---|
| Rated voltage | 24 VDC |
| Model | D5VA-3[]1 | D5VM-3[]1 |
|---|---|---|
| Supply voltage | 12 to 24 VDC±10% (See note 1.) | |
| Current consumption | 80 mA max. | |
| Measurement range | 5 mm | |
| Maximum actuator travel distance | Approx. 5.7 mm | |
| Offset adjustment range | ±0.25 mm | |
| Resolution | 10 μm | 1μm |
| Linearity | 0.5% FS max. | |
| Repeat accuracy | 10 μm max. | |
| Response time | 6 ms max. | 37 ms max. (including transmission delay time) |
| Operating force | 0.3 N max. | |
| Output | Linear current output: 4 to 20 mA (Allowable load resistance: 0 to 300 Ω) | B7A serial communications output (See note 2.) (BCD and multipoint ON/OFF output modes) (See note 3.) |
| Mounting method | Two M4 screws | |
| Indicators | Power and overtravel indicators | Power, overtravel, setting, and output indicators |
| Mechanical durability | 10,000,000 operations min. | |
| Temperature influence | ±0.04% FS/°C max. | |
| Operating temperature | -10 to 55 °C (with no icing or condensation) | |
| Storage temperature | -25 to 65 °C (with no icing or condensation) | |
| Humidity range | 35% to 85% (with no icing or condensation) | |
| Insulation resistance | 100 MΩ min. (at 100 VDC) | |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | |
| Noise resistance | 1.5 kV with a pulse width of 100 ns to 1 μs | |
| Vibration resistance | 10 to 55 Hz, 0.75-mm double amplitude | |
| Shock resistance | 196 m/s2 | |
| Connection cable | 2 m (XS3F-M421-402-R provided) | |
| Weight | Approx. 80 g (without cable) | |
| Material | ABS and PC polymer alloy | |
Note:
1. If power is supplied to both the D5VM-3[]1 and B7A Output Link Terminal from a single power supply, the supply voltage must be 24 VDC±10%.
2. Connectable models:
| Model number | Description |
|---|---|
| B7A-R6[][]1 B7AS-R6B[]1 | Screw-terminal models |
| B7A-R[]A[]3-[] | PC-connector models |
| C200H-B7A21 C200H-B7A22 C200H-B7A11 C200H-B7A12 | C200H B7A Interface Units |
| CQM1-B7A21 CQM1-B7A12 CQM1-B7A13 | CQM1 B7A Interface Units |
| CJ1W-B7A22 CJ1W-B7A14 CJ1W-B7A04 | CJW1 B7A Interface Units for use in standard mode only) |
3. BCD or multipoint output mode can be selected with the mode selector.
last update: December 27, 2013
OMRON D5V catalog
D5V Contact Displacement Sensor/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 D5SN, D5M, D5V Catalog | X071-E1-01 [1715KB] | Sep 01, 200320030901 | D5SN, D5M, D5V Catalog |
