• Switch between flicker-OFF or flicker-ON start mode.

• Independent ON time and OFF time settings.

• Eight time ranges from 0.1 s to 1,200 h.

Purchase the OMRON Analog Timers Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON H3DK-F Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3DK-F We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3DK-FControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Features
H3DK-F Twin Timer/Features
CJ1W-INT01 CJ-series Interrupt Input Units/Features
CJ1W-CT021 CJ-series High-speed Counter Unit/Features
S8AS Smart Power Supply/Features

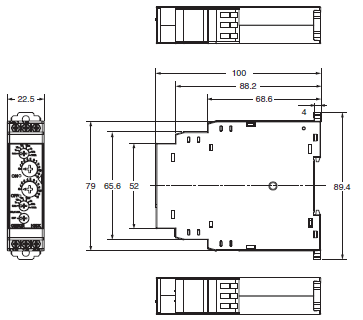

OMRON H3DK-F dimension

H3DK-F Twin Timer/Dimensions

Timers

H3DK-F

H3DK-F Dimensions 2


OMRON H3DK-F catalog

H3DK-F Twin Timer/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size]
Last Update
H3DK Data Sheet L118-E1-02
[5136KB]
Oct 18, 201820181018 H3DK Data Sheet
Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance -
[43KB]
Mar 12, 201820180312 Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance


OMRON H3DK-F lineup

H3DK-F Twin Timer/Lineup

Operating modes Supply voltage Control output H3DK-F
Flicker OFF start/
flicker ON start
24 to 240 VAC/DC Contact output: SPDT Model H3DK-F
12 VDC Contact output: SPDT Model H3DK-FA

Accessories (Order Separately)

Item Specification Model
Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N
1 m (l) x 7.3 mm (t) PFP-100N
1 m (l) x 16 mm (t) PFP-100N2
End Plate --- PFP-M
Spacer --- PFP-S

Model Structure

ModelOperating modesTerminal
block
Output
type
Mounting
method
Safety standardsAccessories
H3DK-FFlicker OFF start/
flicker ON start
6 terminalsRelay,
SPDT
DIN Track
mounting
cURus
(UL508 CSA C22.2 No. 14)
EN 61812-1
IEC 60664-1 4 kV/2
EN 50274
User label


OMRON H3DK-F specification

H3DK-F Twin Timer/Specifications

Time Ranges

Time range
setting
0.1 s1 s10 s1 min10 min1 h10 h100 h
Set time
range
0.1 to 1.2 s1 to 12 s10 to 120 s1 to 12 min10 to 120 min1 to 12 h10 to 120 h100 to 1,200 h
Scale
numbers
12

Note: When the main dial is set to “0” for all settings, the output will operate instantaneously.

Ratings

Power supply voltage *124 to 240 VAC/DC, 50/60 Hz *2
12 VDC *2
Allowable voltage fluctuation
range
24 to 240 VAC/DC: 85% to 110% of rated voltage
12 VDC: 90% to 110% of rated voltage
Power resetMinimum power-OFF time: 0.1 s
Reset voltage10% of rated voltage
Power
consumption
H3DK-FAt 240 VAC: 4.5VA max. *3
H3DK-FAAt 12 VDC: 0.6 W max.
Control outputContact output:
5 A at 250 VAC with resistive load (cosφ = 1),
5 A at 30 VDC with resistive load *4,
0.15 A max. at 125 VDC with resistive load,
0.1 A at 125 VDC with L/R of 7 ms.
The minimum applicable load is 10 mA at 5 VDC (P reference value).
Contact materials: Ag-alloy + Gold plating
Ambient operating temperature-20 to 55°C (with no icing)
Storage temperature-40 to 70°C (with no icing)
Ambient operating humidity25% to 85%

*1. When using a 24-VDC power supply voltage, there will be an inrush current of approximately 0.25 A. Allow for this
       inrush current when turning ON and OFF the power supply to the Timer with device with a solid-state output, such
       as a sensor.
*2. DC ripple: 20% max.
*3. Refer to DC Power Consumptions (Reference Information) on Catalog for DC power consumptions.
*4. The control output ratings are for one H3DK operating alone. If you operate two or more Timers side by side, refer
       to Installation Pitch and Output Switching Capacity (Reference Values) on the Catalog.

Characteristics

Accuracy of operating
time
±1% of FS max. (±1% ±10 ms max. at 1.2-s range)
Setting error±10% of FS ±0.05 s max.
Influence of voltage±0.5% of FS max. (±0.5% ±10 ms max. at 1.2-s range)
Influence of temperature±2% of FS max. (±2% ±10 ms max. at 1.2-s range)
Insulation resistance100 MΩ min. at 500 VDC
Dielectric strengthBetween current-carrying metal parts and exposed non-current-carrying metal parts:
2,000 VAC 50/60 Hz for 1 min.
Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz for 1 min.
Between contacts not located next to each other: 1,000 VAC 50/60 Hz for 1 min.
Impulse withstand voltage24 to 240 VAC/VDC: 5 kV between power terminals, 5 kV between current-carrying
metal parts and exposed non-current-carrying metal parts
12 VDC: 1 kV between power terminals, 1.5 kV between current-carrying metal parts and
exposed non-current-carrying metal parts
Noise immunitySquare-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise):
±1.5 kV
Static immunityMalfunction: 4 kV, Destruction: 8 kV
Vibration
resistance
Destruction0.75-mm single amplitude at 10 to 55 Hz for 2 h each in 3 directions
Malfunction0.5-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions
Shock
resistance
Destruction1,000 m/s2 3 times each in 6 directions
Malfunction100 m/s2 3 times each in 6 directions
Life
expectancy
Mechanical10 million operations min. (under no load at 1,800 operations/h)
Electrical100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h)
Degree of protectionIP30 (Terminal block: IP20)
WeightApprox. 110 g

Installation Pitch and Output Switching Capacity (Reference Values)

The relation between the installation pitch and the load current is shown in the following graph. (Except for the H3DK-GE)
If Timer is used under load conditions that exceed the specified values, the temperature inside the Timer will increase, reducing the life expectancy of internal parts.

H3DK-F Specifications 6

Testing Method

Tested Timer: H3DK-F
Applied voltage: 240 VAC
Installation pitch: 0, 5, 10, and 50 mm

H3DK-F Specifications 7

Applicable standards

Safety standardscURus: UL 508/CSA C22.2 No. 14
EN 50274: Finger protection, back-of-hand proof
EN 61812-1: Pollution degree 2, Overvoltage category III
CCC: GB/T 14048.5 Pollution degree 2, Overvoltage category III *
LR: Test Specification No. 1-2002 Category ENV 1.2
EMC(EMI) EN61812-1
Radiated Emissions: EN 55011 class B
Emission AC Mains: EN 55011 class B
Harmonic Current: EN 61000-3-2
Voltage Fluctuations and Flicker: EN61000-3-3
(EMS) EN61812-1
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Burst: IEC61000-4-4
Immunity Surge: IEC61000-4-5
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Voltage Dip/Interruption: IEC61000-4-11

* CCC certification requirements

Recommended fuse0216005 (250 VAC, 5 A) manufactured by Littelfuse
Rated operating voltage Ue
Rated operating current Ie
AC-15: Ue: 250 VAC, Ie: 3 A
AC-13: Ue: 250 VAC, Ie: 5 A
DC-13: Ue: 30 VDC, Ie: 0.1 A
Rated insulation voltage250 V
Rated impulse withstand voltage
(altitude: 2,000 m max.)
4 kV (at 240 VAC)
Conditional short-circuit current1,000 A
