OMRON D5SN specification

last update: December 27, 2013

Approved Standards

Agency	Standard	File No.
TÜV Product Service	EN61010-1	Z1030339656046
UL	UL50	E104818

Sensor

Model number (of set)	D5SN-S01	D5SN-S04	D5SN-S04-L	D5SN-M05	D5SN-M10
Measurement range	1 mm	4 mm		5 mm	10 mm
Max. actuator travel distance	Approx. 1.5 mm	Approx. 5 mm		Approx. 6 mm	Approx. 12 mm
Resolution (See note 2.)	0.1 μm	0.4 μm		0.5 μm	1μm
Linearity (See note 3.)	0.3% FS max.	0.5% FS max.		0.5% FS max.
Repeat accuracy	0.5 μm max.	1.6 μm max.		10 μm max.	20 μm max.
Response time (not including bounce time)	100 ms max.	200 ms max.		300 ms max.
Operating force (See note 4.)	Approx. 0.7 N		Approx. 0.25 N	5 N max.
Degree of protection (not including the connector)	IP67		IP54	IP67
Mechanical durability	10,000,000 operations min.
Insulation/non-insulation of mounting part	Insulated
Ambient operating temperature	-10 to 60 °C (with no icing or condensation)
Ambient operating humidity	25% to 95% (with no condensation)
Temperature influence (See note 5.)	0.025% FS/°C	0.010% FS/°C		0.03% FS/°C
Weight	Approx. 70 g (including cable connector)			Approx. 230 g	Approx. 300 g
Connection cable length	3-conductor shielded cable, 2 m

Note:
1. The above figures are for use with the standard actuator.
2. These figures are the smallest values that can be read when using OMRON’s K3NX Process Meter.
3. “FS” refers to the corresponding measurement range.
4. These figures are representative values that apply for the measurement mid-point, and are for when the provided actuator is used, with the actuator moving downwards. If the actuator moves horizontally or vertically, the operating force will be reduced. Also, if an actuator other than the standard one is used, the operating force will vary with the weight of the actuator itself.
5. These figures are representative values that apply for the mid-point of the measurement range.

Amplifier

Model		D5SN-A01
Supply voltage (allowable range)		12 to 24 VDC (10.8 to 26.4 VDC)
Current consumption		80 mA max.
Analog output (See note 1.)	Voltage	-5 to 5 V (load impedance: 10 kΩ min.)
	Current	4 to 20 mA (load impedance: 300 Ω max.)
Enable output	Output form	NPN open collector
	Output switching current	100 mA max.
	ON output residual voltage	1.5 V max.
	OFF collector dielectric strength	26.4 VDC
	OFF leakage current	0.1 mA max.
Degree of protection		IP30
Ambient operating temperature		-10 to 55 °C (with no icing or condensation)
Ambient operating humidity		25% to 85% (with no condensation)
Temperature influence (See note 2.)		0.010% FS/°C
Weight		Approx. 200 g (including the cable)
Connection cable length		2-m-long, 5-conductor shielded cable

Note:
1. Depending on the offset adjustment and span adjustment, analog output may leave the specified range (−5 to 5 V or 4 to 20 mA) even for values within the specified measurement range.
2. These figures are representative values that apply for the mid-point of the measurement range.

last update: December 27, 2013

OMRON D5SN catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
D5SN, D5M, D5V Catalog	X071-E1-01 [1715KB]	Sep 01, 200320030901	D5SN, D5M, D5V Catalog

OMRON D5SN dimension

last update: December 27, 2013

Sensor

Note: The dimensions in the following diagrams are for when the plunger is in the released position.

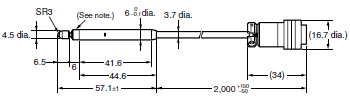

D5SN-S01

Note: Material of rubber boot: Fluorine rubber

D5SN-S04
D5SN-S04-L

Note:
Material of rubber boot
D5SN-S04: Fluorine rubber
D5SN-S04-L: Silicon rubber

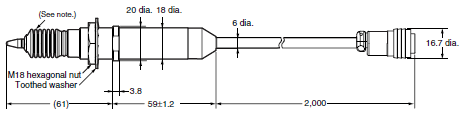

D5SN-M05

Note: Material of rubber boot: NBR

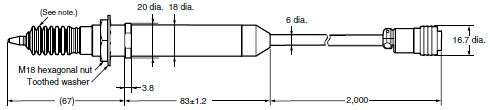

D5SN-M10

Note: Material of rubber boot: NBR

Panel Cutout Dimensions

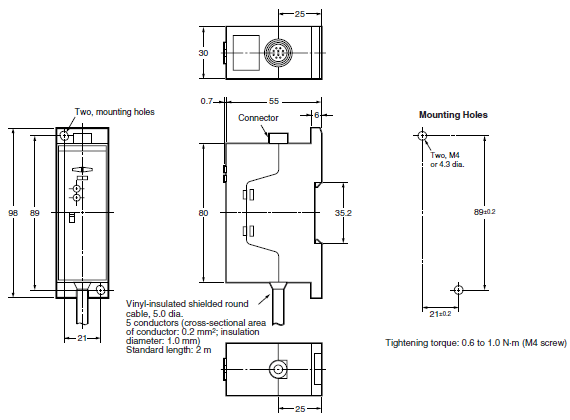

Amplifier

D5SN-A01

last update: December 27, 2013

OMRON D5SN lineup

last update: December 27, 2013

Sensor

Measurement range	Resolution	Operating force	Model
1 mm	0.1 μm	Approx. 0.7 N	D5SN-S01
4 mm	0.4 μm		D5SN-S04
		Approx. 0.25 N	D5SN-S04-L
5 mm	0.5 μm	5N max.	D5SN-M05
10 mm	1 μm		D5SN-M10

Amplifier

Model
D5SN-A01

Note: This Amplifier can be used with each Sensor.

The Amplifier is compatible with any one of five types of Sensor selected to suit the measurement environment.

last update: December 27, 2013
