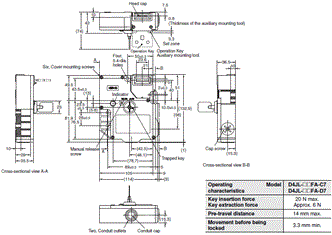

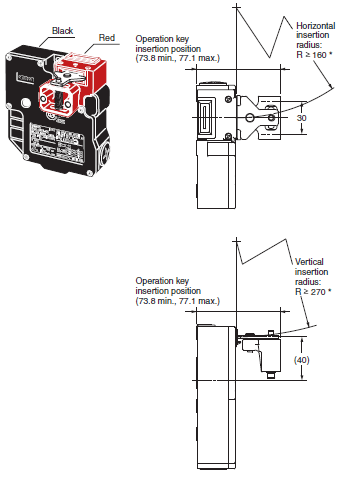

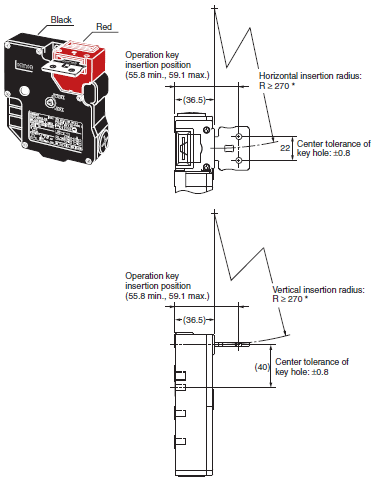

OMRON D4JL, D4JL-SK40 Dimensions
/Images/l_1611-25-118658-198x198.jpglast update: December 7, 2017
Plastic Guard Lock Safety-door Switches Holding Force of 3,000 N
Suitable for large, heavy doors.
Wide variations to protect workers who enter hazardous areas.
Models with Trapped Keys (mechanical lock models only)
As long as a person has the trapped key when he enters a hazardous area, he does not have to worry about somebody locking the door and trapping him inside.
The door can be opened only by supplying power to the solenoid and then turning the trapped key to unlock the D4JL.
There are thirty different types of trapped keys available for use in applications with adjacent hazardous areas.
Models with Rear Release Buttons
A rear release button allows the door to be unlocked from inside a hazardous area in an emergency.
Special Slide Key
A special Slide Key shortens the lead time for mounting design.
The padlock that can be attached to the disable-prevention cover prevents other workers from restarting machines.
(See Data Sheet for details.)
last update: December 7, 2017
Purchase the OMRON Guard Lock Safety-door Switches Please fill in the following
If you have just landed here, this product OMRON D4JL, D4JL-SK40 Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D4JL, D4JL-SK40 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D4JL, D4JL-SK40Safety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NT11 / NT21 Programmable Terminals/Features
EE-SPY31 / 41 Light Convergent Reflective Photomicrosensor/Features
61F-GPN-BT / -BC Conductive Level Controller/Features
NL Limit Touch Switch/Features
CS1W-B7A CS-series B7A Interface Unit/Features
OMRON D4JL, D4JL-SK40 specification
D4JL, D4JL-SK40 Guard Lock Safety-door Switch/Slide key/Specificationslast update: October 5, 2018
Standards and EC Directives
Conforms to the following EC Directives:
• Machinery Directive
• EN ISO 14119
• EN 60204-1
• GS-ET-19
Certified Standards
| Certification body | Standard | File No. |
|---|---|---|
| TÜV SÜD | EN 60947-5-1 (certified direct opening) | Consult your OMRON representative for details. |
| UL *1 | UL 508, CSA C22.2 No.14 | E76675 |
| CQC (CCC) | GB/T 14048.5 | Consult your OMRON representative for details. |
| KOSHA *2 | EN60947-5-1 | Consult your OMRON representative for details. |
*1. CSA C22.2 No. 14 was certified by UL.
*2. Only certain models have been certified.
Certified Standard Ratings
TÜV (EN 60947-5-1)
| Utilization category | AC-15 | DC-13 |
|---|---|---|
| Rated operating current (Ie) | 3 A | 0.27 A |
| Rated operating voltage (Ue) | 240 V | 250 V |
Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not built
into the Switch.
UL/CSA (UL 508, CSA C22.2 No. 14)
A300 (between terminals 12 and 41)
| Rated voltage | Carry current | Current (A) | Volt-amperes (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 120 VAC | 10 A | 60 | 6 | 7,200 | 720 |
| 240 VAC | 30 | 3 | |||
A300 (between all other terminals)
| Rated voltage | Carry current | Current (A) | Volt-amperes (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 240 VAC | 3 A | 30 | 3 | 7,200 | 720 |
Q300
| Rated voltage | Carry current | Current (A) | Volt-amperes (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 125 VDC 250 VDC | 2.5 A | 0.55 0.27 | 0.55 0.27 | 69 | 69 |
Solenoid Coil Characteristics
| Type | 24 VDC |
|---|---|
| Rated operating voltage (100% ED) | 24 VDC +10%, -15% |
| Current consumption | Approx. 200 mA |
| Insulation Class | Class B (130°C max.) |
Indicator Characteristics
| Type | LED | |
|---|---|---|
| Rated voltage | 24 VDC | 24 VDC |
| Current consumption | Approx. 1 mA | Approx. 8 mA |
| Color (LED) | Orange | Green |
Characteristics
| Interlock type | Type 2 (EN ISO 14119) | ||
|---|---|---|---|
| Coding level | Low level coded (EN ISO 14119) | ||
| Degree of protection *1 | IP67 (EN60947-5-1) | ||
| Durability *2 | Mechanical | 1,000,000 operations min. | |
| Trapped key | 10,000 operations min. | ||
| Rear release button | D4JL-[][]FA-[]7-[]: 3,000 operations min. D4JL-[][]FA-[]8-01-SJ: 500 operations min. | ||
| Electrical | 500,000 operations min. (3 A resistive load at 250 VAC) *3 | ||
| Operating speed | 0.05 to 0.5 m/s | ||
| Operating frequency | 30 operations/minute max. | ||
| Direct opening force *4 | 60 N min. (EN60947-5-1) | ||
| Direct opening travel *4 | 15 mm min. (EN60947-5-1) | ||
| Holding force (Fzh) *5 | 3,000 N min. | ||
| Contact resistance | 25 mΩ max. (per contact) | ||
| Minimum applicable load *6 | 1 mA resistive load at 5 VDC (N-level reference value) | ||
| Rated insulation voltage (Ui) | 300 V (EN60947-5-1) | ||
| Rated frequency | 50/60 Hz | ||
| Protection against electric shock | Class II (double insulation)  | ||
| Pollution degree (operating environment) | 3 (EN60947-5-1) | ||
| Impulse withstand voltage (Uimp) (EN60947-5-1) | Between terminals of same polarity | 2.5 kV | |
| Between terminals of different polarity | 4 kV | ||
| Between other terminals and non-current carrying metallic parts | 6 kV | ||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | ||
| Contact gap | 2 × 2 mm min. | ||
| Vibration resistance | Malfunction | 10 to 55 Hz, 0.75 mm single amplitude | |
| Shock resistance | Destruction | 1,000 m/s2 min. | |
| Malfunction | 80 m/s2 min. | ||
| Conditional short-circuit current | 100 A (EN60947-5-1) *7 | ||
| Conventional free air thermal current (Ith) | 10 A (between terminals 12 and 41), 3 A (between all other terminals) (EN60947-5-1) | ||
| Ambient operating temperature | -10 to +55°C (with no icing) | ||
| Ambient operating humidity | 95% max. | ||
| Weight | Approx. 650 g (D4JL-4NFA-C7-01) | ||
Note: The above values are initial values.
*1. The degree of protection is tested using the method specified by the standard (EN60947-5-1). Confirm that sealing
properties are sufficient for the operating conditions and environment beforehand. Although the switch box is
protected from dust or water penetration, do not use the D4JL in places where foreign material may enter through the
key hole on the head, otherwise Switch damage or malfunctioning may occur.
*2. The durability is for an ambient temperature of 5 to 35°C and an ambient humidity of 40% to 70%. For further
conditions, consult your OMRON sales representative.
*3. Do not pass a 3 A, 250 VAC load through more than two circuits.
*4. These figures are minimum requirements for safe operation.
*5. This figure is based on the GS-ET-19 evaluation method.
*6. This value will vary with the switching frequency, environment, and reliability level. Confirm that correct operation is
possible with the actual load beforehand.
*7. Use a 10 A fuse type gI or gG that conforms to IEC 60269 as a short-circuit protection device.
last update: October 5, 2018
OMRON D4JL, D4JL-SK40 catalog
D4JL, D4JL-SK40 Guard Lock Safety-door Switch/Slide key/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 D4JL, D4JL-SK40 Data Sheet | - [3286KB] | Oct 05, 201820181005 | D4JL, D4JL-SK40 Data Sheet |
OMRON D4JL, D4JL-SK40 lineup
D4JL, D4JL-SK40 Guard Lock Safety-door Switch/Slide key/Lineuplast update: December 7, 2017
Switches (Operation Keys are sold separately.)
Consult with your OMRON representative when ordering any models that are not listed in this table.

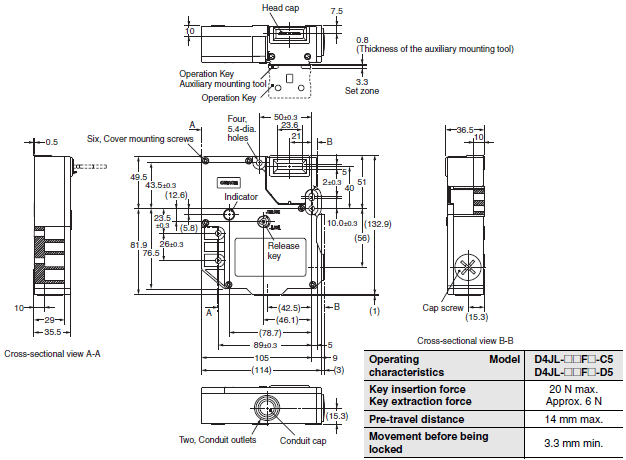

Standard Models
| Release key type | Indicator | Lock and release types | Contact configuration (door open/closed detection switch and lock monitor switch contacts) | Conduit outlet | Model |
|---|---|---|---|---|---|
| Special release key | Green | Mechanical lock Solenoid release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-C5 |
| M20 | D4JL-4NFA-C5 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-C5 | |||
| M20 | D4JL-4PFA-C5 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-C5 | |||
| M20 | D4JL-4QFA-C5 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-C5 | |||
| M20 | D4JL-4RFA-C5 | ||||
| Solenoid lock Mechanical release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFG-C5 | ||
| M20 | D4JL-4NFG-C5 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFG-C5 | |||
| M20 | D4JL-4PFG-C5 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFG-C5 | |||
| M20 | D4JL-4QFG-C5 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFG-C5 | |||
| M20 | D4JL-4RFG-C5 | ||||
| Orange | Mechanical lock Solenoid release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-D5 | |
| M20 | D4JL-4NFA-D5 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-D5 | |||
| M20 | D4JL-4PFA-D5 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-D5 | |||
| M20 | D4JL-4QFA-D5 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-D5 | |||
| M20 | D4JL-4RFA-D5 | ||||
| Solenoid lock Mechanical release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFG-D5 | ||
| M20 | D4JL-4NFG-D5 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFG-D5 | |||
| M20 | D4JL-4PFG-D5 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFG-D5 | |||
| M20 | D4JL-4QFG-D5 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFG-D5 | |||
| M20 | D4JL-4RFG-D5 |

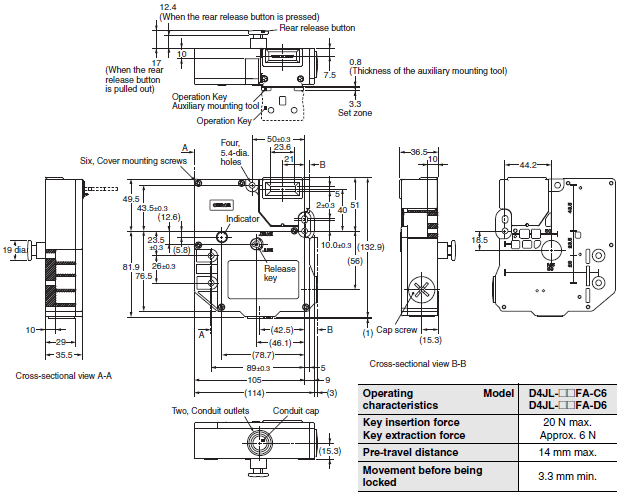

Models with Rear Release Buttons
| Release key type | Indicator | Lock and release types | Contact configuration (door open/closed detection switch and lock monitor switch contacts) | Conduit outlet | Model |
|---|---|---|---|---|---|
| Special release key | Green | Mechanical lock Solenoid release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-C6 |
| M20 | D4JL-4NFA-C6 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-C6 | |||
| M20 | D4JL-4PFA-C6 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-C6 | |||
| M20 | D4JL-4QFA-C6 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-C6 | |||
| M20 | D4JL-4RFA-C6 | ||||
| Orange | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-D6 * | ||
| M20 | D4JL-4NFA-D6 * | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-D6 * | |||
| M20 | D4JL-4PFA-D6 * | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-D6 * | |||
| M20 | D4JL-4QFA-D6 * | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-D6 * | |||
| M20 | D4JL-4RFA-D6 * |
* Models with Korean S-mark certification.
Models with Trapped Keys
| Release key type | Indicator | Lock and release types | Contact configuration (door open/closed detection switch and lock monitor switch contacts) | Conduit outlet | Model |
|---|---|---|---|---|---|
| Trapped key *1 | Green | Mechanical lock Solenoid release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-C7-01 |
| M20 | D4JL-4NFA-C7-01 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-C7-01 | |||
| M20 | D4JL-4PFA-C7-01 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-C7-01 | |||
| M20 | D4JL-4QFA-C7-01 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-C7-01 | |||
| M20 | D4JL-4RFA-C7-01 | ||||
| Orange | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-D7-01 *2 | ||
| M20 | D4JL-4NFA-D7-01 *2 | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-D7-01 *2 | |||
| M20 | D4JL-4PFA-D7-01 *2 | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-D7-01 *2 | |||
| M20 | D4JL-4QFA-D7-01 *2 | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-D7-01 *2 | |||
| M20 | D4JL-4RFA-D7-01 *2 |
*1. Thirty types of trapped keys can be manufactured. Specify the trapped key type in numerical order starting from 01
when ordering.
*2. Models with Korean S-mark certification.

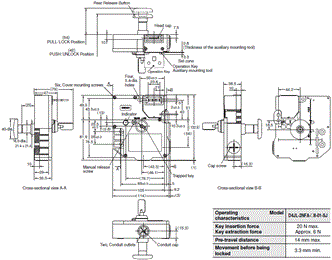

Trapped Key + Rear Release Button type
| Release key type | Indicator | Lock and release types | Contact configuration (door open/closed detection switch and lock monitor switch contacts) | Conduit outlet | Model |
|---|---|---|---|---|---|
| Trapped key | Green | Mechanical lock Solenoid release | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-C8-01-SJ * |
| M20 | D4JL-4NFA-C8-01-SJ * | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-C8-01-SJ * | |||
| M20 | D4JL-4PFA-C8-01-SJ * | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-C8-01-SJ * | |||
| M20 | D4JL-4QFA-C8-01-SJ * | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-C8-01-SJ * | |||
| M20 | D4JL-4RFA-C8-01-SJ * | ||||
| Orange | 2NC/1NO + 2NC/1NO | G1/2 | D4JL-2NFA-D8-01-SJ * | ||
| M20 | D4JL-4NFA-D8-01-SJ * | ||||
| 2NC/1NO + 3NC | G1/2 | D4JL-2PFA-D8-01-SJ * | |||
| M20 | D4JL-4PFA-D8-01-SJ * | ||||
| 3NC + 2NC/1NO | G1/2 | D4JL-2QFA-D8-01-SJ * | |||
| M20 | D4JL-4QFA-D8-01-SJ * | ||||
| 3NC + 3NC | G1/2 | D4JL-2RFA-D8-01-SJ * | |||
| M20 | D4JL-4RFA-D8-01-SJ * |
* Models with Korean S-mark certification.
| Release key position | Front | Front and rear release button | |
|---|---|---|---|
| Release key type | Special release key | Special release key | |
| Switch appearance |  | Front | Rear |
| Release key position | Front | Front and rear release button | |
|---|---|---|---|
| Release key type | Trapped key | Special release key | |
| Switch appearance |  | Front | Rear |

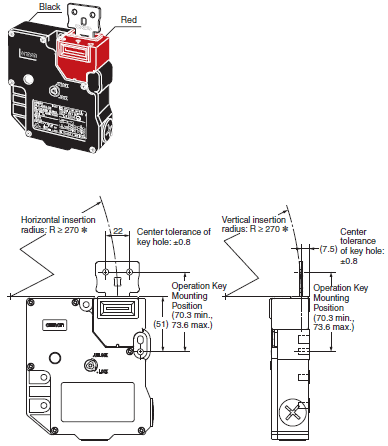

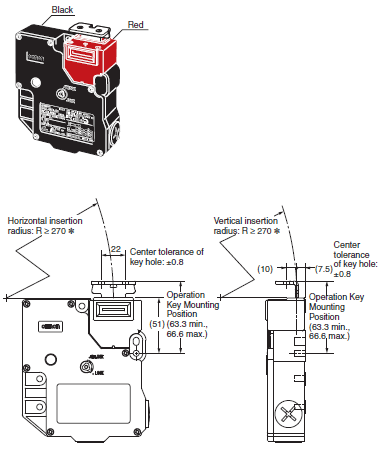

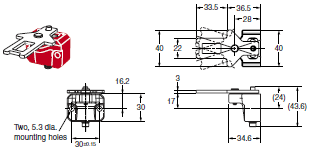

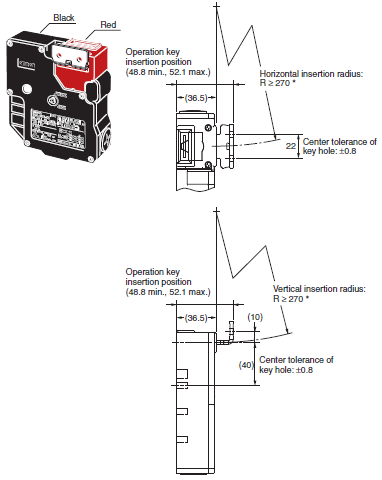

Operation Keys
| Type | Model | |
|---|---|---|
| Horizontal mounting |  | D4JL-K1 |
| Vertical mounting |  | D4JL-K2 |
| Adjustable mounting (horizontal) |  | D4JL-K3 |

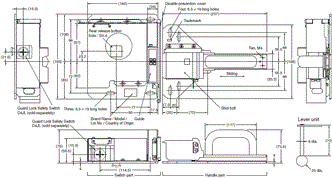

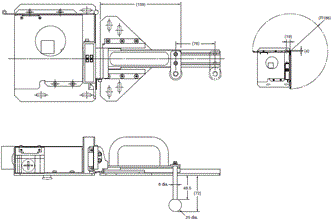

Slide Keys
| Appearance | Specifications | Contents | Model | Applicable Door Switch |
|---|---|---|---|---|
 | Weight: 3,400 g Mechanical durability: 20,000 operations min. | Slide Key: 1 (Disable-prevention cover and Operation Key D4JL-K2 are already mounted on Slide Key) D4JL mounting tool: 1 Inner lever: 1 Inner lever mounting screws: 2 Door Switch mounting one-way screws: 3 Switch protective cover: 1 Switch protective cover screws: 4 | D4JL-SK40 | D4JL-[][]F[]-[]6 D4JL-[][]FA-[]8-01-SJ rear release button type |
Note: 1. The Door Switch is not included. Select the Door Switch depending on the necessary number of contacts and the
conduit outlet.
2. Perform risk assessment for the equipment in question, configure relay units and other safety circuits, and use
properly.
3. Ask your OMRON representative for information on the D4JL-SK30.
last update: December 7, 2017
OMRON D4JL, D4JL-SK40 dimension
D4JL, D4JL-SK40 Guard Lock Safety-door Switch/Slide key/Dimensionslast update: December 7, 2017
(Unit: mm)
Switches
D4JL-[][]F[]-C5
D4JL-[][]F[]-D5
D4JL-[][]FA-C6
D4JL-[][]FA-D6
D4JL-[][]FA-C7
D4JL-[][]FA-D7
D4JL-2NFA-[]8-01-SJ
Operation Keys
D4JL-K1
D4JL-K2
D4JL-K3
Note: Unless otherwise specified, a tolerance of ±0.8 mm applies to all Switch dimensions and a tolerance of ±0.4 mm
applies to Operation Key dimensions.
Slide Keys
D4JL-SK40
Open Door
Closed Door
With Operation Key Inserted
D4JL + D4JL-K1
(with Front-inserted Operation Key)
D4JL + D4JL-K1
(with Top-inserted Operation Key)
D4JL + D4JL-K2
(with Front-inserted Operation Key)
D4JL + D4JL-K2
(with Top-inserted Operation Key)
D4JL + D4JL-K3
(with Front-inserted Operation key)
D4JL + D4JL-K3
(with Top-inserted Operation key)
* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.
last update: December 7, 2017
- NO. D4JL, D4JL-SK40
- TYPE:Safety Door Switches Guard Lock Safety-door Switches
Copyright Statement - DATE:2021-06-08
- Associated products:
D4NL Guard Lock Safety-door Switch/Features D4BL Guard Lock Safety-door Switch/Features
