• Allows flexible input point settings up to a maximum of four points.
• Resolution: 1/6,000
• Takes only 1 ms to exchange each input point.
• Wide input ranges available.
• 105 x 48 x 50 (W x H x D)
last update: November 27, 2013
Purchase the OMRON CompoBus/S Please fill in the following
If you have just landed here, this product OMRON SRT2-AD04 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the SRT2-AD04 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON SRT2-AD04Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R87F / R87T AC Axial Fans/Features
ZG2 Smart Sensor (2D Measurement Sensor)/Features
3Z4S-LE VS-LLD Series Ultra-high-resolution Lens for C-mount Cameras/Features
G3J-S Soft-start Solid State Contactors/Features
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Features
OMRON SRT2-AD04 catalog
SRT2-AD04 Analog Input Terminal/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CompoBus/S Catalog | Q103-E1-07 [6048KB] | Aug 02, 200320030802 | CompoBus/S Catalog |
OMRON SRT2-AD04 specification
SRT2-AD04 Analog Input Terminal/Specificationslast update: November 27, 2013
Ratings
Input
| Item | Voltage input | Current input | |
|---|---|---|---|
| Max. signal input | ±15 V | ±30 mA | |
| Input impedance | 1 MΩ max. | Approx. 250 Ω | |
| Resolution | 1/6,000 (FS) | ||
| Total accuracy | 25°C | ±0.3% FS | ±0.4% FS |
| -10 to 55°C | ±0.6% FS | ±0.8% FS | |
| Conversion time | 4 ms/4 points, 3 ms/3 points, 2 ms/2 points, and 1 ms/1 point | ||
| Dielectric strength | 500 VAC for 1 min between communications power supply, analog input, and communications terminals * | ||
* There is no insulation between analog inputs.
Characteristics
| Communications power supply voltage | 14 to 26.4 VDC (possible to provide through Special Flat Cable) |
|---|---|
| Current consumption | 100 mA max. |
| Connection method | Multi-drop method and T-branch method |
| Dielectric strength | 500 VAC (between insulated circuits) |
| Noise immunity | Conforms to IEC61000-4-4, 2 kV (power lines) |
| Vibration resistance | 10 to 150 Hz, 1.0-mm double amplitude or 70 m/s2 |
| Shock resistance | 200 m/s2 |
| Mounting strength | No damage with 100 N pull load applied in all directions. |
| Terminal strength | No damage with 100 N pull load applied |
| Screw tightening torque | 0.3 to 0.5 Nm |
| Ambient temperature | Operating: -10°C to 55°C Storage: -25°C to 65°C |
| Ambient humidity | Operating: 25% to 85% (with no condensation) |
| Weight | Approx. 120 g |
last update: November 27, 2013
OMRON SRT2-AD04 lineup
SRT2-AD04 Analog Input Terminal/Lineuplast update: November 27, 2013
| Classification | I/O points | Model |
|---|---|---|
| Analog Input Terminal | 1 to 4 (selectable with DIP switch) | SRT2-AD04 |
Note: For details about connecting the SRT2-AD04 to the Master Unit. Refer to Catalog.
last update: November 27, 2013
OMRON SRT2-AD04 dimension

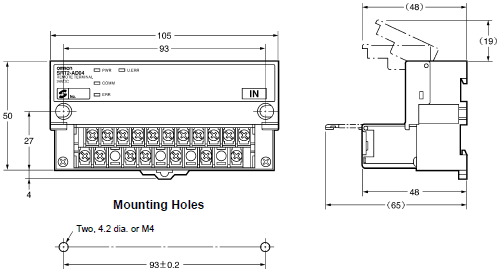

SRT2-AD04 Analog Input Terminal/Dimensionslast update: November 27, 2013
