OMRON ZX-TSensors/ Displacement Sensors / Measurement Sensors/Displacement Sensors for Differentiation
OMRON ZX-T Sensors
OMRON ZX-T Dimensions
/Images/l_1424-25-119110-198x198.jpglast update: December 19, 2013
The Smart Answer to High-precision Measuring Applications that Were Difficult with Non-contact Types
Industry's Top Class Resolution
The long-stroke ZX-TDS04T[] (4-mm measurement range) achieves high-precision measurement with the industry's top class of resolution (0.1 μm) and linearity of 0.3 FS max.
ZX-TDS10T-[][] long-range type
Resolution: 0.4 mm, Linearity: ±0.5% FS
Ultra-low-load Type (0.065 N)
Since micropressure contact is achieved using the Actuator's own weight, these Sensor Heads are ideal for taking measurements where non-contact Sensors cannot be used, such as on transparent and glossy products or products that are easily scratched or warped
Automate Measurements with Vacuum-retracting Type (Air Lifter Type).
Switching from dial gauges to automatic inspection is a snap with the ZX-TDS10T-V. Meanwhile, the ZX-TDS10T-VL can control air push models in addition to air lift models so that contact force can now be controlled externally.
Combines Reliability and Innovations in Advanced Technology with Remarkable Ease of Use
No Need to Calculate or Reset the Origin
The ZX-T uses a differential transformer method, so there is no need to change the absolute origin position. As a result, master adjustment and origin calculation do not have to be performed each time operation is started. There is also no need for complex zero point return operations have been eliminated.
Auto Scale Function
The Amplifier automatically displays the measurement distance when it is connected to the Sensor Head. The cable also be extended up to 10 meters with no effect on characteristics.
Warming-up Display
After the power is turned ON, this display indicates when the Sensor Head has warmed up to its optimum measurement condition.
Long Product Life (Mechanical Durability: 10,000,000 Operations Min.)
The ZX-TDS01T Sensor Head (1-mm measurement range) and the ZX-TDS04T Sensor Head (4-mm measurement range) have long service lives thanks to the unique linear ball-bearing structure shown below. Sliding parts move smoothly and the rubber sleeves keep dust out.
Pressing Force Alarm
Problems caused by excessive pressing force in inappropriate measurement situations can be detected in advance and a signal can be output to prevent malfunction. For example, preventive measures can be taken with a PLC, such as automatically stopping the measurement.
Actuators (1-mm and 4-mm measurement range types only: ZX-TDS01T and ZX-TDS04T)
Select the most appropriate Actuator for your application.
last update: December 19, 2013
Purchase the OMRON Displacement Sensors for Differentiation Please fill in the following
If you have just landed here, this product OMRON ZX-T Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZX-T We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZX-TSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
B7AP Power Couplers/Features
EE-SPY31 / 41 Light Convergent Reflective Photomicrosensor/Features
G3NB Solid State Relays/Features
CP1W-MODTCP61 CP1 Modbus/TCP Adapter/Features
CS1W-AD SYSMAC CS-series Analog I/O Unit/Features
OMRON ZX-T specification
ZX-T Smart Sensors High-Precision Contact Type/Specificationslast update: November 06, 2012
Amplifier Units
| Model | ZX-TDA11 | ZX-TDA41 |
|---|---|---|
| Measurement period | 1 ms | |
| Possible average count settings *1 | 1, 16, 32, 64, 128, 256, 512, or 1,024 | |
| Linear output *2 | Current output: 4 to 20 mA/F.S., Max. load resistance: 300 Ω Voltage output: ±4 V (±5 V, 1 to 5 V *3), Output impedance: 100 Ω | |
| Judgement outputs (3 outputs: HIGH/PASS/LOW) | NPN open-collector outputs, 30 VDC, 30 mA max. Residual voltage: 1.2 V max. | PNP open-collector outputs, 30 VDC, 30 mA max. Residual voltage: 2 V max. |
| Zero reset input, timing input, reset input, judgement output hold input | ON: Short-circuited with 0-V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) | ON: Supply voltage short-circuited or supply voltage of 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) |
| Function | Measurement value display, Present value/set value/output value display, Display reverse, ECO mode, Number of display digit changes, Sample hold, Peak hold, Bottom hold, peak-to-peak hold, Self-peak hold, Self-bottom hold, Zero reset, Initial reset, Direct threshold value setting, Position teaching, Hysteresis width setting, Timing inputs, Reset input, Judgement output hold input, (A-B) calculations *4, (A+B) calculations *4, Sensor disconnection detection, Zero reset memory, Function lock, Non-measurement setting, Clamp value setting, Scale inversion, Zero reset indicator, Span adjustment, Warming-up display, Pressing force alarm | |
| Indicators | Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green) | |
| Power supply voltage | 12 to 24 VDC ±10%, Ripple (p-p): 10% max. | |
| Current consumption | 140 mA max. (with Sensor connected), For 24-VDC power supply voltage: 140 mA max. (with Sensor connected) | |
| Ambient temperature | Operating and storage: 0 to 50°C (with no icing or condensation) | |
| Temperature characteristic | 0.03% F.S./°C | |
| Connection method | Prewired (standard cable length: 2 m) | |
| Weight (packed state) | Approx. 350 g | |
| Materials | Case: PBT (polybutylene terephthalate), Cover: Polycarbonate | |
*1. The response speed of the linear output is calculated as the measurement period × (average count setting + 1).
The response speed of the judgement outputs is calculated as the measurement period × (average count setting
+ 1).
*2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier
Unit.
*3. Setting is possible via the monitor focus function.
*4. A Calculating Unit (ZX-CAL2) is required.
Sensor Heads
| Model | ZX-TDS01T | ZX-TDS04T | ZX-TDS04T-L | |
|---|---|---|---|---|
| Measurement range | 1 mm | 4 mm | ||
| Maximum actuator travel distance | Approx. 1.5 mm | Approx. 5 mm | ||
| Resolution *1 | 0.1 μm | |||
| Linearity *2 | 0.3% F.S. | |||
| Operating force *3 | Approx. 0.7 N | Approx. 0.25 N | ||
| Degree of protection (Sensor Head) | IEC60529, IP67 | IEC60529, IP54 | ||
| Mechanical durability | 10,000,000 operations min. | |||
| Ambient temperature | Operating: 0°C to 50°C (with no icing or condensation) Storage: -15°C to 60°C (with no icing or condensation) | |||
| Ambient humidity | Operating and storage: 35% to 85% (with no icing or condensation) | |||
| Temperature characteristic *4 | Sensor Head | 0.03% F.S./°C | ||
| Preamplifier | 0.01% F.S./°C | |||
| Weight (packed state) | Approx. 100 g | |||
| Materials | Sensor Head | Stainless steel | ||
| Preamplifier | Polycarbonate | |||
| Accessories | Instruction manual, Preamplifier Mounting Brackets (ZX-XBT1) | |||
*1. The resolution is given as the minimum value that can be read when a ZX-TDA[]1 Amplifier Unit is connected. This
value is taken 15 minutes after turning ON the power with the average number of operations set to 256.
*2. The linearity is given as the error in an ideal straight line displacement output.
*3. These figures are representative values that apply for the measurement mid-point, and are for when the provided
actuator is used, with the actuator moving downwards. If the actuator moves horizontally or upwards, the operating
force will be reduced. Also, if an actuator other than the standard one is used, the operating force will vary with the
weight of the actuator itself.
*4. These figures are representative values that apply for the mid-point of the measurement range.
Sensor (Long-range Type)
| Model | ZX-TDS10T | ZX-TDS10T-V | ZX-TDS10T-L | ZX-TDS10T-VL | |
|---|---|---|---|---|---|
| Vacuum retract (VR) and air push (AP) compatible | No | VR | No | VR/AP | |
| Measurement range | 10 mm | ||||
| Maximum actuator travel distance | 10.5 mm | ||||
| Resolution *1 *5 | 0.4 μm | ||||
| Linearity *2 *5 | ±0.5% FS | ||||
| Operating force *3 | Approx. 0.7 N | Approx. 0.6 N | Approx. 0.065 N | Approx. 0.09 to 1.41 N | |
| Air pressure | Vacuum retracting | --- | -0.55 to -0.70 (bar) | --- | -0.22 to -0.5 (bar) |
| Air push | --- | 0.125 to 2 (bar) | |||
| Degree of protection | Sensor Head | IP65 | IP50 | ||
| Preamplifier | IP40 | ||||
| Mechanical durability | 10,000,000 operations min. | ||||
| Ambient temperature | Operating: 0 to 50°C (with no icing or condensation), Storage: -10 to 60°C (with no icing or condensation) | ||||
| Ambient humidity | Operating and storage: 35% to 85% (with no icing or condensation) | ||||
| Temperature characteristic *4 | Sensor Head | ±0.01% F.S./°C | |||
| Preamplifier | ±0.01% F.S./°C | ||||
| Vibration resistance | 0.35-mm single amplitude at 10 to 55 Hz for 50 min each in the X, Y, and Z directions | ||||
| Shock resistance | 150 m/S2 3 times each in 6 directions (up/down, left/right, and forward/backward) | ||||
| Connection method | Prewired connector (2 m from the Sensor Head to the Preamplifier, 0.2 m from the Preamplifier to the connector) | ||||
| Weight (packed state) | Approx. 100 g | ||||
| Materials | Sensor Head | Stainless steel | |||
| Rubber sleeve | Viton | None | |||
| Preamplifier | Polycarbonate | ||||
| Mounting Brackets | Stainless steel | Polyamide | |||
| Accessories | Instruction manual, Preamplifier Mounting Brackets (ZX-XBT1), Right- angle Adapter *6 | ||||
*1. The resolution indicates the variation (±3 σ) in the linear output (voltage output) when a ZX-TDA[]1 Amplifier Unit is
connected. This value is taken 30 minutes after turning ON the power with the average number of operations set to
1,024. The minimum value that can be read is 1 μm.
*2. The linearity is given as the error in an ideal straight line displacement output.
*3. These figures are representative values that apply for the mid-point of the measurement range when the Actuator
provided is secured facing downward.
- ZX-TDS10T and ZX-TDS10T-V: The operating force will be reduced if the Actuator is secured facing horizontally or
upward.
- ZX-TDS10T-L and ZX-TDS10T-VL: The actuator can be installed only facing downward.
*4. These figures are representative values that apply for the mid-point of the measurement range.
*5. These values were measured at an ambient temperature of 23°C.
*6. The ZX-TDS10T comes with a Right-angle Adapter.
last update: November 06, 2012
OMRON ZX-T catalog
ZX-T Smart Sensors High-Precision Contact Type/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZX-T Data Sheet | E345-E1-04 [965KB] | Feb 10, 201520150210 | ZX-T Data Sheet |
OMRON ZX-T dimension
ZX-T Smart Sensors High-Precision Contact Type/Dimensionslast update: November 06, 2012
Sensors

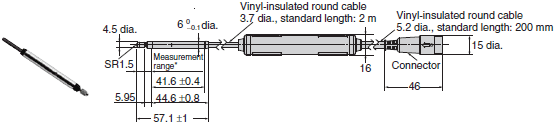

ZX-TDS01T
* Measurement range: 11.2 to 12.2 (TYP)

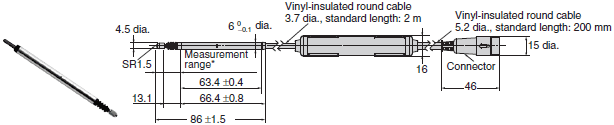

ZX-TDS04T
ZX-TDS04T-L
* Measurement range: 14.9 to 18.9 (TYP)

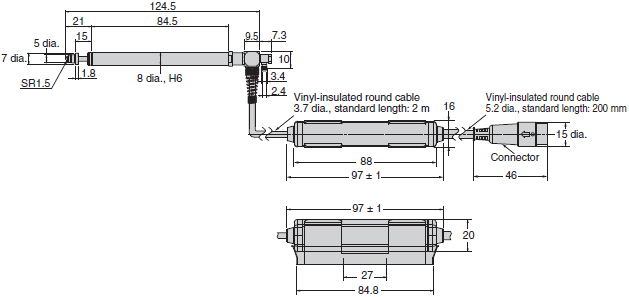

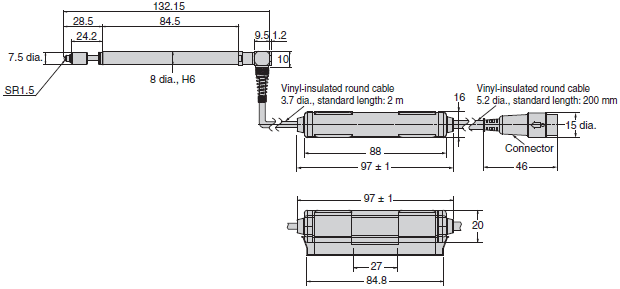

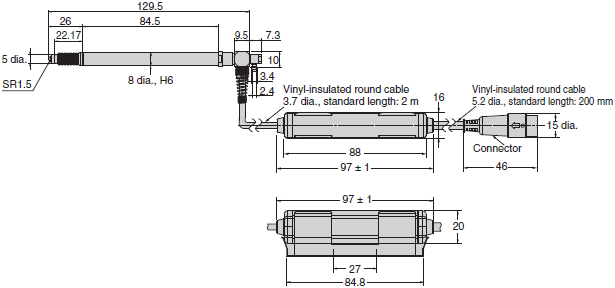

ZX-TDS10[]
ZX-TDS10[]-L
ZX-TDS10[]-V
ZX-TDS10[]-VL

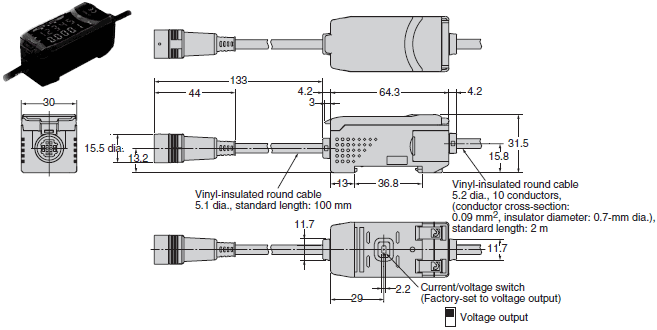

Amplifier Unit
ZX-TDA11
ZX-TDA41

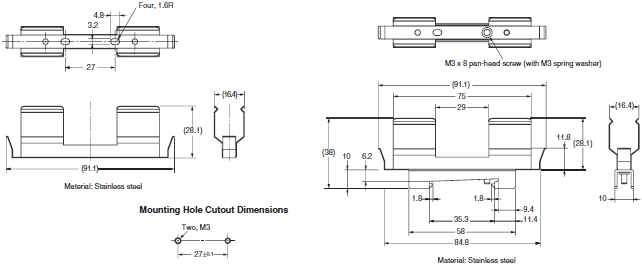

Accessories (Order Separately)
Preamplifier Mounting Bracket (Supplied with Each Sensor)
ZX-XBT1
ZX-XBT2 (For DIN Track Mounting)
last update: November 06, 2012
OMRON ZX-T lineup
ZX-T Smart Sensors High-Precision Contact Type/Lineuplast update: February 10, 2015
Sensors
Sensor Heads
| Size | Type | Sensing distance | Resolution * | Model |
|---|---|---|---|---|
| 6 dia. | Short type | 1 mm | 0.1 μm | ZX-TDS01T |
| Standard type | 4 mm | ZX-TDS04T | ||
| Low measurement type | ZX-TDS04T-L | |||
| 8 dia. | Standard type | 10 mm | 0.4 μm | ZX-TDS10T |
| Ultra-low-load Type | ZX-TDS10T-L | |||
| Air Lift Type | ZX-TDS10T-V | |||
| Air Lift/Air Push Type | ZX-TDS10T-VL |
Note: The resolution refers to the minimum value that can be read when a ZX-TDA[]1 Amplifier Unit is connected.
Amplifier Units
| Appearance | Power supply | Output type | Model |
|---|---|---|---|
 | DC | NPN | ZX-TDA11 2M |
| PNP | ZX-TDA41 2M |
Accessories (Order Separately)
Calculating Unit
| Appearance | Model |
|---|---|
 | ZX-CAL2 |
ZX-series Communications Interface Unit
| Appearance | Model |
|---|---|
 | ZX-SF11 |
SmartMonitor Sensor Setup Tool for Personal Computer Connection
| Appearance | Output type | Model |
|---|---|---|
 | ZX-series Communications Interface Unit | ZX-SF11 |
 | ZX-series Communications Interface Unit + ZX-series Sensor Setup Software Basic | ZX-SFW11EV3 *1 *2 |
| CD-ROM | ZX-series Sensor Setup Software | ZX-SW11EV3 *1 |
*1. When using the ZX-TDA11/41 with the SmartMonitor, either the ZX-SFW11EV3 or the ZX-SW11EV3 SmartMonitor
must be used. Earlier versions cannot be used.
*2. The ZX-SFW11EV3 SmartMonitor can be used only to set functions and monitor waveforms.
Cables with Connectors on Both Ends (for Extension)*
| Cable length | Model | Quantity |
|---|---|---|
| 1 m | ZX-XC1A | 1 |
| 4 m | ZX-XC4A | |
| 8 m | ZX-XC8A |
* Robot Cable models are also available. The model numbers are ZX-XC[]R.
Preamplifier Mounting Brackets
| Appearance | Model | Remarks |
|---|---|---|
 | ZX-XBT1 | Attached to each Sensor Head |
 | ZX-XBT2 | For DIN track mounting |
last update: February 10, 2015
