Compact power supplies…

Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous series safe, reliable, and easy to install, the new S8VK series is even tougher, more compact and easier to use.
Omron is a world leader in the development and manufacture of industrial power supplies.
We launched our first compact product, the S82K, in 1987 and our S8VS compact series has been an automatic choice with customers since 2002.

To ensure that we provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R.

…that make a world of difference!

Three compelling reasons why the S8VK is the right power supply for you:

Resistant in tough environments

Omron is confident that the quality of the S8VK will exceed your high expectations. Its robust design and construction withstand harsh environments and provide stable operation over a wide operating temperature range. Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.

Easy and fast installation

The S8VK series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.

The most compact class on the market

Designed with space saving in mind, the S8VK series is our most compact power-supply range ever and the most compact class on today’s market.

Resistant in tough environments

Wherever the S8VK is installed within the range of the S8VK derating curve, it will give the same reliable performance for the duration of its service life. The wide operating temperature range of between -40°C to 70°C (S8VK-G/T/R) guarantees stable operation in any environment where other power supplies may be found lacking. But its robust design advantages don't end there because the S8VK also offers high resistance to the vibration transmitted by machinery in close proximity, this is due to the vibration-resistant DIN-rail mounting clip.

Easy and fast installation

Making your life easier

Simply click onto a standard DIN rail using one hand to mount in a flash. Effortless and time saving! In addition, the S8VK features a double set of DC output terminals (three for the negative terminal), which means you also spend less time and effort on wiring.

Long-life guaranteed

Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (S8VK-G/T/R) and carries an across-the-board, warranty on all models no matter which country your machine is exported to! Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.

The most compact class on the market

Designed with downsizing in mind

Omron knows that size is important for machine designers, which is why we have applied our developed technology using thermal simulation for the design of the S8VK. This enabled the S8VK compact size body. This gives a high power density in a compact package. And the S8VK has an even sleeker exterior than any previous models.

last update: March 03, 2014

Purchase the OMRON Switch mode power supplies Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON S8VK-G Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8VK-G We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8VK-GPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

WS02-SGWC1 / CPLC1 FA Communications Software/Features
Y92[] Accessories/Features
A22NS / A22NW Selector Switches/Features
G3PE (Three-phase) Solid State Contactors for Heaters/Features
XW2C-20G5-IN16 Connector-Terminal Block Conversion Unit with Common/Features

OMRON S8VK-G catalog
S8VK-G Switch Mode Power Supply (15/30/60/120/240/480-W Models)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

S8VK-G Data Sheet T056-E1-04
[11796KB] Apr 02, 201820180402 S8VK-G Data Sheet

S8VK Catalog T057-E1-05
[6711KB] Mar 10, 201420140310 S8VK Catalog

OMRON S8VK-G specification
S8VK-G Switch Mode Power Supply (15/30/60/120/240/480-W Models)/Specifications
last update: August 29, 2013
Ratings, Characteristics, and Functions

Power ratings 15 W 30 W
Output voltage 5 V 12 V 24 V 5 V 12 V 24 V
Efficiency (Typical) 230 VAC input 0.77 0.8 0.79 0.82 0.86
Input Voltage *1 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
Frequency *1 50/60 Hz (47 to 450 Hz)
Current
(Typical) 115 VAC input 0.32 A 0.3 A 0.31 A 0.5 A 0.57 A 0.58 A
230 VAC input 0.2 A 0.21 A 0.2 A 0.32 A 0.37 A 0.36 A
Power factor
(Typical) 230 VAC input 0.42 0.43 0.42 0.43
Harmonic current emissions Conforms to EN61000-3-2
Leakage
current
(Typical) 115 VAC input 0.14 mA 0.13 mA
230 VAC input 0.25 mA 0.24 mA
Inrush
current
(Typical) *2 115 VAC input 16 A
230 VAC input 32 A
Output Voltage adjustment range *3 -10% to 15% (with V.ADJ) (guaranteed)
Ripple *4 at 20 MHz
(Typical) 60 mV 50 mV 30 mV 30 mV 30 mV 30 mV
Input variation influence 0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence
(Rated Input voltage) 3.0% max. (5 V), 2.0% max. (12 V), 1.5% max. (24 V), at 0% to 100% load
Temperature variation
influence 0.05%/°C max.
Start up time
(Typical) *2 115 VAC input 530 ms 520 ms 580 ms 550 ms 550 ms 600 ms
230 VAC input 330 ms 400 ms 400 ms 430 ms 490 ms 480 ms
Hold time
(Typical) *2 115 VAC input 28 ms 29 ms 32 ms 33 ms 36 ms 23 ms
230 VAC input 134 ms 138 ms 134 ms 177 ms 170 ms 154 ms
Additional
functions Overload protection *2 121% to 160% of rated load current (130% typ value)
Overvoltage protection *2 Yes *5
Power Boost 120% of rated current (Refer to Engineering Data)
Parallel operation Yes (Refer to Engineering Data)
Series operation Possible for up to two Power Supplies (with external diode)
Others Ambient operating
temperature -40 to 70°C (Refer to Engineering Data)
Storage temperature -40 to 85°C
Ambient operating humidity 0% to 95% (Storage humidity: 0% to 95%)
Dielectric strength
(detection current: 20 mA) 3.0 kVAC for 1 min. (between all inputs and outputs)
2.0 kVAC for 1 min. (between all inputs and PE terminal)
1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500
VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z
directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min. each in
X, Y, and Z directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicatior Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI Conducted
Emission Conforms to EN61204-3 EN55011 Class B and based on FCC Class A
Radiated
Emission Conforms to EN61204-3 EN55011 Class B
EMS Conforms to EN61204-3 high severity levels
Approved Standards UL Listed: UL508 (Listing, Class2 Output: Per UL1310)
UL UR: UL60950-1 (Recognition)
cUL: CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223)
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178, EN60950-1
Lloyd's standards *7
ANSI/ISA 12.12.01
CSA C22.2 No.213
Fulfilled Standards SELV (EN60950-1/EN50178/UL60950-1),
PELV (EN60204-1, EN50178),
Safety of Power Transformers (EN61558-2-16)
EN50274 for Terminal parts
Degree of protection IP20 by EN/IEC60529
SEMI Conforms to F47-0706 (200 to 240 VAC)
Weight 150 g 195 g

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage
adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and
be sure that the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*6. Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 60950-1, cUR (CSA C22.2 No. 60950-1), EN 50178,
EN 60950-1, and Lloyd's.
For a DC input, safety is ensured by an external fuse.
Select an external fuse the meets the following conditions.
S8VK-G015[][]: 350 VDC min, 3 A
S8VK-G030[][]: 350 VDC min, 4 A
*7. Clamp filter "ZCAT2035-0930" manufactured by TDK Corporation. or equivalent should be installed in the cable
connected to the input - output terminals of S8VK-G series.
Noise filter "FN2080-10-06" manufactured by SCHAFFNER Corporation. or equivalent should be connected to the
Input terminals of S8VK-G series.

Power ratings 60 W 120 W
Output voltage 12 V 24 V 24 V
Efficiency (Typical) 230 VAC input 0.85 0.88 0.89
Input Voltage *1 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
Frequency *1 50/60 Hz (47 to 450 Hz) 50/60 Hz (47 to 63 Hz)
Current
(Typical) 115 VAC input 1.0 A 1.1 A 1.3 A
230 VAC input 0.6 A 0.7 A
Power factor
(Typical) 230 VAC input 0.46 0.45 0.94
Harmonic current emissions Conforms to EN61000-3-2
Leakage
current
(Typical) 115 VAC input 0.16 mA 0.24 mA
230 VAC input 0.30 mA 0.38 mA
Inrush
current
(Typical) *2 115 VAC input 16 A
230 VAC input 32 A
Output Voltage adjustment range *3 -10% to 15% (with V.ADJ) (guaranteed)
Ripple *4 at 20 MHz
(Typical) 150 mV 50 mV 150 mV
Input variation influence 0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence
(Rated Input voltage) 3.0% max. (5 V), 2.0% max. (12 V), 1.5% max. (24 V), at 0% to 100% load
Temperature variation
influence 0.05%/°C max.
Start up time
(Typical) *2 115 VAC input 570 ms 650 ms 790 ms
230 VAC input 430 ms 500 ms 750 ms
Hold time
(Typical) *2 115 VAC input 26 ms 25 ms 42 ms
230 VAC input 139 ms 129 ms 42 ms
Additional
functions Overload protection *2 121% to 160% of rated load
current, (130% typ value) 121% to 160% of rated load
current, (125% typ value)
Overvoltage protection *2 Yes *5
Power Boost 120% of rated current (Refer to Engineering Data)
Parallel operation Yes (Refer to Engineering Data)
Series operation Possible for up to two Power Supplies (with external diode)
Others Ambient operating
temperature -40 to 70°C (Refer to Engineering Data)
Storage temperature -40 to 85°C
Ambient operating humidity 0% to 95% (Storage humidity: 0% to 95%)
Dielectric strength
(detection current: 20 mA) 3.0 kVAC for 1 min. (between all inputs and outputs)
2.0 kVAC for 1 min. (between all inputs and PE terminal)
1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500
VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z
directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min. each in
X, Y, and Z directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicatior Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI Conducted
Emission Conforms to EN61204-3 EN55011 Class B and based on FCC Class A
Radiated
Emission Conforms to EN61204-3 EN55011 Class B
EMS Conforms to EN61204-3 high severity levels
Approved Standards UL Listed: UL508 (Listing, For 60 W only Class2 Output: Per UL1310)
UL UR: UL60950-1 (Recognition)
cUL: CSA C22.2 No.107.1 (For 60 W only Class2 Output: Per CSA
C22.2 No.223)
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178, EN60950-1
Lloyd's standards *7
ANSI/ISA 12.12.01
CSA C22.2 No.213
Fulfilled Standards SELV (EN60950-1/EN50178/UL60950-1),
PELV (EN60204-1, EN50178),
Safety of Power Transformers (EN61558-2-16)
EN50274 for Terminal parts
Degree of protection IP20 by EN/IEC60529
SEMI Conforms to F47-0706 (200 to 240 VAC)
Weight 260 g 620 g

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage
adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and
be sure that the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*6. Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 60950-1, cUR (CSA C22.2 No. 60950-1), EN 50178,
EN 60950-1, and Lloyd's.
For a DC input, safety is ensured by an external fuse.
Select an external fuse the meets the following conditions.
S8VK-G060[][]: 350 VDC min, 6 A
S8VK-G12024: 350 VDC min, 5 A
*7. Clamp filter "ZCAT2035-0930" manufactured by TDK Corporation. or equivalent should be installed in the cable
connected to the input - output terminals of S8VK-G series.
Noise filter "FN2080-10-06" manufactured by SCHAFFNER Corporation. or equivalent should be connected to the
Input terminals of S8VK-G series.

Power ratings 240 W 480 W
Output voltage 24 V 48 V 24 V 48 V
Efficiency (Typical) 230 VAC input 0.92 0.93
Input Voltage *1 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
Frequency *1 50/60 Hz (47 to 63 Hz)
Current
(Typical) 115 VAC input 2.4 A 4.7 A
230 VAC input 1.3 A 2.3 A
Power factor
(Typical) 230 VAC input 0.9 0.97
Harmonic current emissions Conforms to EN61000-3-2
Leakage
current
(Typical) 115 VAC input 0.23 mA 0.3 mA
230 VAC input 0.33 mA 0.49 mA
Inrush
current
(Typical) *2 115 VAC input 16 A
230 VAC input 32 A
Output Voltage adjustment range *3 -10% to 15% (with V.ADJ) (guaranteed)
Ripple *4 at 20 MHz
(Typical) 180 mV 350 mV 230 mV 470 mV
Input variation influence 0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence
(Rated Input voltage) 1.5% max. (24 V, 48 V), at 0% to 100% load
Temperature variation
influence 0.05%/°C max.
Start up time
(Typical) *2 115 VAC input 250 ms 290 ms 380 ms
230 VAC input 250 ms 290 ms 260 ms
Hold time
(Typical) *2 115 VAC input 44 ms 43 ms 40 ms
230 VAC input 44 ms 50 ms
Additional
functions Overload protection *2 121% to 160% of rated load current (130% typ value)
Overvoltage protection *2 Yes *5
Power Boost 120% of rated current (Refer to Engineering Data)
Parallel operation Yes (Refer to Engineering Data)
Series operation Possible for up to two Power Supplies (with external diode)
Others Ambient operating
temperature -40 to 70°C (Refer to Engineering Data)
Storage temperature -40 to 85°C
Ambient operating humidity 0% to 95% (Storage humidity: 0% to 95%)
Dielectric strength
(detection current: 20 mA) 3.0 kVAC for 1 min. (between all inputs and outputs)
2.0 kVAC for 1 min. (between all inputs and PE terminal)
1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500
VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z
directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max for 240 W, 3 G max
for 480 W) for 80 min. each in X, Y, and Z directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicatior Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI Conducted
Emission Conforms to EN61204-3 EN55011 Class B and based on FCC Class A
Radiated
Emission Conforms to EN61204-3 EN55011 Class B
EMS Conforms to EN61204-3 high severity levels
Approved Standards UL Listed: UL508 (Listing)
UL UR: UL60950-1 (Recognition)
cUL: CSA C22.2 No.107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178, EN60950-1
Lloyd's standards *7
ANSI/ISA 12.12.01 (excluding 480-W models)
CSA C22.2 No.213 (excluding 480-W models)
Fulfilled Standards SELV (EN60950-1/EN50178/UL60950-1),
PELV (EN60204-1, EN50178),
Safety of Power Transformers (EN61558-2-16)
EN50274 for Terminal parts
Degree of protection IP20 by EN/IEC60529
SEMI Conforms to F47-0706 (200 to 240 VAC)
Weight 900 g 1,500 g

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage
adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and
be sure that the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*6. Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 60950-1, cUR (CSA C22.2 No. 60950-1), EN 50178,
EN 60950-1, and Lloyd's.
For a DC input, safety is ensured by an external fuse.
Select an external fuse the meets the following conditions.
S8VK-G240[][]: 350 VDC min, 8 A
S8VK-G480[][]: 350 VDC min, 12 A
*7. Shipping Standards
Clamp filter "ZCAT2035-0930" manufactured by TDK Corporation. or equivalent should be installed in the cable
connected to the input - output terminals of S8VK-G series.
Noise filter "FN2080-10-06" manufactured by SCHAFFNER Corporation. or equivalent should be connected to the
Input terminals of S8VK-G series.

last update: August 29, 2013

OMRON S8VK-G dimension
S8VK-G Switch Mode Power Supply (15/30/60/120/240/480-W Models)/Dimensions
last update: July 01, 2016
S8VK-G015[][] (15 W)

S8VK-G030[][] (30 W)

S8VK-G060[][] (60 W)

S8VK-G12024 (120 W)

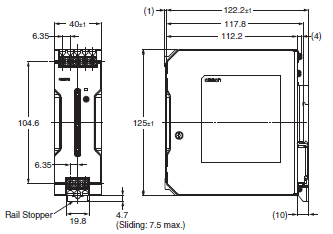

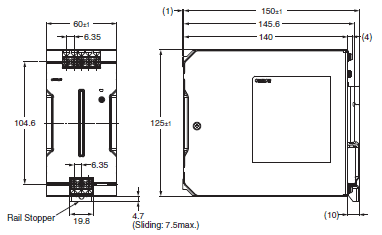

S8VK-G240[][] (240 W)

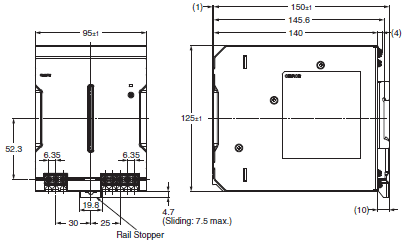

S8VK-G480[][] (480 W)

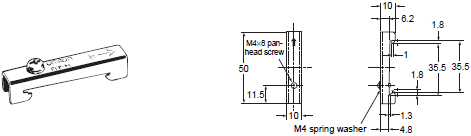

DIN Rail (Order Separately)

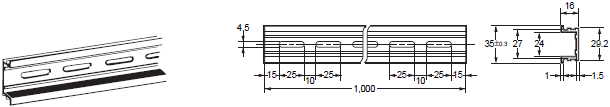

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)
PFP-100N2

End Plate
PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

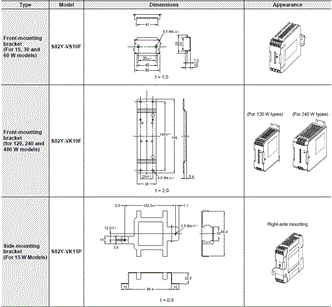

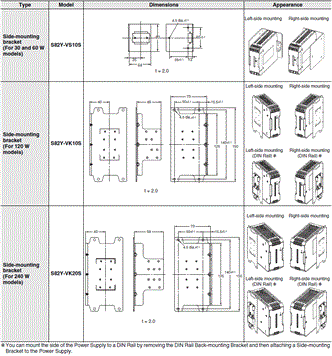

Mounting Brackets

last update: July 01, 2016

OMRON S8VK-G lineup
S8VK-G Switch Mode Power Supply (15/30/60/120/240/480-W Models)/Lineup
last update: April 2, 2018
Model Number Structure
Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.

Ordering Information

Note: For details on normal stock models, contact your nearest OMRON representative.

Power ratings Input voltage Output Voltage Output current Boost Current Model number
15 W Single phase
100 to 240 VAC
90 to 350 VDC 5 V 3 A 3.6 A S8VK-G01505
12 V 1.2 A 1.44 A S8VK-G01512
24 V 0.65 A 0.78 A S8VK-G01524
30 W 5 V 5 A 6 A S8VK-G03005
12 V 2.5 A 3 A S8VK-G03012
24 V 1.3 A 1.56 A S8VK-G03024
60 W 12 V 4.5 A 5.4 A S8VK-G06012
24 V 2.5 A 3 A S8VK-G06024
120 W 24 V 5 A 6 A S8VK-G12024
240 W 24 V 10 A 12 A S8VK-G24024
48 V 5 A 6 A S8VK-G24048
480 W 24 V 20 A 24 A S8VK-G48024
48 V 10 A 12 A S8VK-G48048

Mounting Brackets

Name Model
Front-mounting bracket (for 15, 30 and 60 W models) S82Y-VS10F
Front-mounting bracket (for 120, 240 and 480 W models) S82Y-VK10F
Side-mounting bracket (for 15 W models) S82Y-VK15P
Side-mounting bracket (for 30 and 60 W models) S82Y-VS10S
Side-mounting bracket (for 120 W models) S82Y-VK10S
Side-mounting bracket (for 240 W models) S82Y-VK20S

Note: Be sure to use the accessory screws.
Mounting screw tightening torque (recommended): 4.43 to 5.31 lb-in (0.5 to 0.6 N·m)

Recommended Noise Filter

Noise filter
S8V-NF

Listed on Data Sheet.

last update: April 2, 2018

NO. S8VK-G

TYPE:Power Supplies Switch mode power supplies Copyright Statement

DATE:2021-06-09

Associated products:
S8FS-C Switch Mode Power Supply (15/25/35/50/75/100/150/200/350-W Models)/Features S8VK-T Switch Mode Power Supply (120/240/480/960 W Models)/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
S8VK-G Data Sheet	T056-E1-04 [11796KB]	Apr 02, 201820180402	S8VK-G Data Sheet
S8VK Catalog	T057-E1-05 [6711KB]	Mar 10, 201420140310	S8VK Catalog

Power ratings	15 W	30 W
Output voltage	5 V	12 V	24 V	5 V	12 V	24 V
Efficiency (Typical)	230 VAC input	0.77	0.8	0.79	0.82	0.86
Input	*Voltage 1**	100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
*Frequency 1**	50/60 Hz (47 to 450 Hz)
Current (Typical)	115 VAC input	0.32 A	0.3 A	0.31 A	0.5 A	0.57 A	0.58 A
230 VAC input	0.2 A	0.21 A	0.2 A	0.32 A	0.37 A	0.36 A
Power factor (Typical)	230 VAC input	0.42	0.43	0.42	0.43
Harmonic current emissions	Conforms to EN61000-3-2
Leakage current (Typical)	115 VAC input	0.14 mA	0.13 mA
230 VAC input	0.25 mA	0.24 mA
Inrush current (Typical) *2	115 VAC input	16 A
230 VAC input	32 A
Output	*Voltage adjustment range 3**	-10% to 15% (with V.ADJ) (guaranteed)
*Ripple 4**	at 20 MHz (Typical)	60 mV	50 mV	30 mV	30 mV	30 mV	30 mV
Input variation influence	0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence (Rated Input voltage)	3.0% max. (5 V), 2.0% max. (12 V), 1.5% max. (24 V), at 0% to 100% load
Temperature variation influence	0.05%/°C max.
Start up time (Typical) *2	115 VAC input	530 ms	520 ms	580 ms	550 ms	550 ms	600 ms
230 VAC input	330 ms	400 ms	400 ms	430 ms	490 ms	480 ms
Hold time (Typical) *2	115 VAC input	28 ms	29 ms	32 ms	33 ms	36 ms	23 ms
230 VAC input	134 ms	138 ms	134 ms	177 ms	170 ms	154 ms
Additional functions	*Overload protection 2**	121% to 160% of rated load current (130% typ value)
*Overvoltage protection 2**	Yes *5
Power Boost	120% of rated current (Refer to Engineering Data)
Parallel operation	Yes (Refer to Engineering Data)
Series operation	Possible for up to two Power Supplies (with external diode)
Others	Ambient operating temperature	-40 to 70°C (Refer to Engineering Data)
Storage temperature	-40 to 85°C
Ambient operating humidity	0% to 95% (Storage humidity: 0% to 95%)
Dielectric strength (detection current: 20 mA)	3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance	100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min. each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicatior	Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI	Conducted Emission	Conforms to EN61204-3 EN55011 Class B and based on FCC Class A
Radiated Emission	Conforms to EN61204-3 EN55011 Class B
EMS	Conforms to EN61204-3 high severity levels
Approved Standards	UL Listed: UL508 (Listing, Class2 Output: Per UL1310) UL UR: UL60950-1 (Recognition) cUL: CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223) cUR: CSA C22.2 No.60950-1 EN/VDE: EN50178, EN60950-1 Lloyd's standards *7 ANSI/ISA 12.12.01 CSA C22.2 No.213
Fulfilled Standards	SELV (EN60950-1/EN50178/UL60950-1), PELV (EN60204-1, EN50178), Safety of Power Transformers (EN61558-2-16) EN50274 for Terminal parts
Degree of protection	IP20 by EN/IEC60529
SEMI	Conforms to F47-0706 (200 to 240 VAC)
Weight	150 g	195 g

Power ratings	60 W	120 W
Output voltage	12 V	24 V	24 V
Efficiency (Typical)	230 VAC input	0.85	0.88	0.89
Input	*Voltage 1**	100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
*Frequency 1**	50/60 Hz (47 to 450 Hz)	50/60 Hz (47 to 63 Hz)
Current (Typical)	115 VAC input	1.0 A	1.1 A	1.3 A
230 VAC input	0.6 A	0.7 A
Power factor (Typical)	230 VAC input	0.46	0.45	0.94
Harmonic current emissions	Conforms to EN61000-3-2
Leakage current (Typical)	115 VAC input	0.16 mA	0.24 mA
230 VAC input	0.30 mA	0.38 mA
Inrush current (Typical) *2	115 VAC input	16 A
230 VAC input	32 A
Output	*Voltage adjustment range 3**	-10% to 15% (with V.ADJ) (guaranteed)
*Ripple 4**	at 20 MHz (Typical)	150 mV	50 mV	150 mV
Input variation influence	0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence (Rated Input voltage)	3.0% max. (5 V), 2.0% max. (12 V), 1.5% max. (24 V), at 0% to 100% load
Temperature variation influence	0.05%/°C max.
Start up time (Typical) *2	115 VAC input	570 ms	650 ms	790 ms
230 VAC input	430 ms	500 ms	750 ms
Hold time (Typical) *2	115 VAC input	26 ms	25 ms	42 ms
230 VAC input	139 ms	129 ms	42 ms
Additional functions	*Overload protection 2**	121% to 160% of rated load current, (130% typ value)	121% to 160% of rated load current, (125% typ value)
*Overvoltage protection 2**	Yes *5
Power Boost	120% of rated current (Refer to Engineering Data)
Parallel operation	Yes (Refer to Engineering Data)
Series operation	Possible for up to two Power Supplies (with external diode)
Others	Ambient operating temperature	-40 to 70°C (Refer to Engineering Data)
Storage temperature	-40 to 85°C
Ambient operating humidity	0% to 95% (Storage humidity: 0% to 95%)
Dielectric strength (detection current: 20 mA)	3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance	100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min. each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicatior	Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI	Conducted Emission	Conforms to EN61204-3 EN55011 Class B and based on FCC Class A
Radiated Emission	Conforms to EN61204-3 EN55011 Class B
EMS	Conforms to EN61204-3 high severity levels
Approved Standards	UL Listed: UL508 (Listing, For 60 W only Class2 Output: Per UL1310) UL UR: UL60950-1 (Recognition) cUL: CSA C22.2 No.107.1 (For 60 W only Class2 Output: Per CSA C22.2 No.223) cUR: CSA C22.2 No.60950-1 EN/VDE: EN50178, EN60950-1 Lloyd's standards *7 ANSI/ISA 12.12.01 CSA C22.2 No.213
Fulfilled Standards	SELV (EN60950-1/EN50178/UL60950-1), PELV (EN60204-1, EN50178), Safety of Power Transformers (EN61558-2-16) EN50274 for Terminal parts
Degree of protection	IP20 by EN/IEC60529
SEMI	Conforms to F47-0706 (200 to 240 VAC)
Weight	260 g	620 g

Power ratings	240 W	480 W
Output voltage	24 V	48 V	24 V	48 V
Efficiency (Typical)	230 VAC input	0.92	0.93
Input	*Voltage 1**	100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
*Frequency 1**	50/60 Hz (47 to 63 Hz)
Current (Typical)	115 VAC input	2.4 A	4.7 A
230 VAC input	1.3 A	2.3 A
Power factor (Typical)	230 VAC input	0.9	0.97
Harmonic current emissions	Conforms to EN61000-3-2
Leakage current (Typical)	115 VAC input	0.23 mA	0.3 mA
230 VAC input	0.33 mA	0.49 mA
Inrush current (Typical) *2	115 VAC input	16 A
230 VAC input	32 A
Output	*Voltage adjustment range 3**	-10% to 15% (with V.ADJ) (guaranteed)
*Ripple 4**	at 20 MHz (Typical)	180 mV	350 mV	230 mV	470 mV
Input variation influence	0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence (Rated Input voltage)	1.5% max. (24 V, 48 V), at 0% to 100% load
Temperature variation influence	0.05%/°C max.
Start up time (Typical) *2	115 VAC input	250 ms	290 ms	380 ms
230 VAC input	250 ms	290 ms	260 ms
Hold time (Typical) *2	115 VAC input	44 ms	43 ms	40 ms
230 VAC input	44 ms	50 ms
Additional functions	*Overload protection 2**	121% to 160% of rated load current (130% typ value)
*Overvoltage protection 2**	Yes *5
Power Boost	120% of rated current (Refer to Engineering Data)
Parallel operation	Yes (Refer to Engineering Data)
Series operation	Possible for up to two Power Supplies (with external diode)
Others	Ambient operating temperature	-40 to 70°C (Refer to Engineering Data)
Storage temperature	-40 to 85°C
Ambient operating humidity	0% to 95% (Storage humidity: 0% to 95%)
Dielectric strength (detection current: 20 mA)	3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance	100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max for 240 W, 3 G max for 480 W) for 80 min. each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, and ±Z directions
Output indicatior	Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI	Conducted Emission	Conforms to EN61204-3 EN55011 Class B and based on FCC Class A
Radiated Emission	Conforms to EN61204-3 EN55011 Class B
EMS	Conforms to EN61204-3 high severity levels
Approved Standards	UL Listed: UL508 (Listing) UL UR: UL60950-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.60950-1 EN/VDE: EN50178, EN60950-1 Lloyd's standards *7 ANSI/ISA 12.12.01 (excluding 480-W models) CSA C22.2 No.213 (excluding 480-W models)
Fulfilled Standards	SELV (EN60950-1/EN50178/UL60950-1), PELV (EN60204-1, EN50178), Safety of Power Transformers (EN61558-2-16) EN50274 for Terminal parts
Degree of protection	IP20 by EN/IEC60529
SEMI	Conforms to F47-0706 (200 to 240 VAC)
Weight	900 g	1,500 g

Power ratings	Input voltage	Output Voltage	Output current	Boost Current	Model number
15 W	Single phase 100 to 240 VAC 90 to 350 VDC	5 V	3 A	3.6 A	S8VK-G01505
12 V	1.2 A	1.44 A	S8VK-G01512
24 V	0.65 A	0.78 A	S8VK-G01524
30 W	5 V	5 A	6 A	S8VK-G03005
12 V	2.5 A	3 A	S8VK-G03012
24 V	1.3 A	1.56 A	S8VK-G03024
60 W	12 V	4.5 A	5.4 A	S8VK-G06012
24 V	2.5 A	3 A	S8VK-G06024
120 W	24 V	5 A	6 A	S8VK-G12024
240 W	24 V	10 A	12 A	S8VK-G24024
48 V	5 A	6 A	S8VK-G24048
480 W	24 V	20 A	24 A	S8VK-G48024
48 V	10 A	12 A	S8VK-G48048

Name	Model
Front-mounting bracket (for 15, 30 and 60 W models)	S82Y-VS10F
Front-mounting bracket (for 120, 240 and 480 W models)	S82Y-VK10F
Side-mounting bracket (for 15 W models)	S82Y-VK15P
Side-mounting bracket (for 30 and 60 W models)	S82Y-VS10S
Side-mounting bracket (for 120 W models)	S82Y-VK10S
Side-mounting bracket (for 240 W models)	S82Y-VK20S

Return to OMRON

OMRON S8VK-GPower Supplies / In Addition/ Power Supplies/Switch mode power supplies

OMRON S8VK-G Dimensions

Compact power supplies…

…that make a world of difference!

Three compelling reasons why the S8VK is the right power supply for you:

Resistant in tough environments

Easy and fast installation

The most compact class on the market

Resistant in tough environments

Easy and fast installation

Making your life easier

Long-life guaranteed

The most compact class on the market

Designed with downsizing in mind

Purchase the OMRON Switch mode power supplies Please fill in the following

OMRON S8VK-G catalog

English

Global Edition

OMRON S8VK-G specification

Ratings, Characteristics, and Functions

OMRON S8VK-G dimension

S8VK-G015[][] (15 W)

S8VK-G030[][] (30 W)

S8VK-G060[][] (60 W)

S8VK-G12024 (120 W)

S8VK-G240[][] (240 W)

S8VK-G480[][] (480 W)

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)PFP-100NPFP-50N

Mounting Rail (Material: Aluminum)PFP-100N2

End PlatePFP-M

Mounting Brackets

OMRON S8VK-G lineup

Model Number Structure

Model Number Legend

Ordering Information

Mounting Brackets

Recommended Noise Filter

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)
PFP-100N2

End Plate
PFP-M
